Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Steel -
Wheels 27.5" -
Travel Front 100mm -
Fork RockShox 30 Silver TK
-
Groupset Deore, Alivio -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona Race Light Scandium 69
Suspension Fork
RockShox 30 Gold 100mm
Rear Shock
n/a
Drivetrain
Rear Derailleur
Shimano Deore Shadow
Front Derailleur
Shimano Alivio
Shift Levers
Shimano Acera
Cassette
Shimano HG200 11-34t 9spd
Crank
22/33/44t
Bottom Bracket
Shimano ES25
Chain
KMC Z99
Pedals
Wellgo Platform
Wheels
Front Hub
Shimano RM33
Rear Hub
Shimano RM33
Rims
WTB SX19
Spokes
Sandvik Stainless 15g fr / 14g rr
Tires
Maxxis Ardent 27.5x2.25"
Brakes
Brakes
Shimano M447 Hydraulic
Brake Levers
Shimano M506 Hydraulic
Disk Rotors
Shimano 180mm
Cockpit
Stem
Kona XC/Road
Handlebar
Kona XC/BC Riser
Grips
Kona Race Light
Headset
FSA No.57B
Seat
Saddle
WTB Volt Sport SE
Seatpost
Kona Thumb w/offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17" | 19" | 21" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.46 mm | 1.43 mm | 1.41 mm |
| Bottom Bracket Height | 306 mm | 306 mm | 306 mm | 306 mm |
| Front Center | 646 mm | 672 mm | 698 mm | 725 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 90 mm | 91 mm | 91 mm | 91 mm |
| Stack | 589 mm | 599 mm | 617 mm | 636 mm |
| Reach | 389 mm | 411 mm | 431 mm | 450 mm |
| Top Tube Length | 570 mm | 595 mm | 620 mm | 645 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 432 mm | 483 mm | 533 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 105 mm | 115 mm | 135 mm | 155 mm |
| Chainstay Length | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheelbase | 1065 mm | 1090 mm | 1117 mm | 1143 mm |
| Bottom Bracket Drop | 49 mm | 49 mm | 49 mm | 49 mm |
| Standover Height | 723 mm | 753 mm | 788 mm | 823 mm |
| Wheels | 27" | 27" | 27" | 27" |
Model Overview

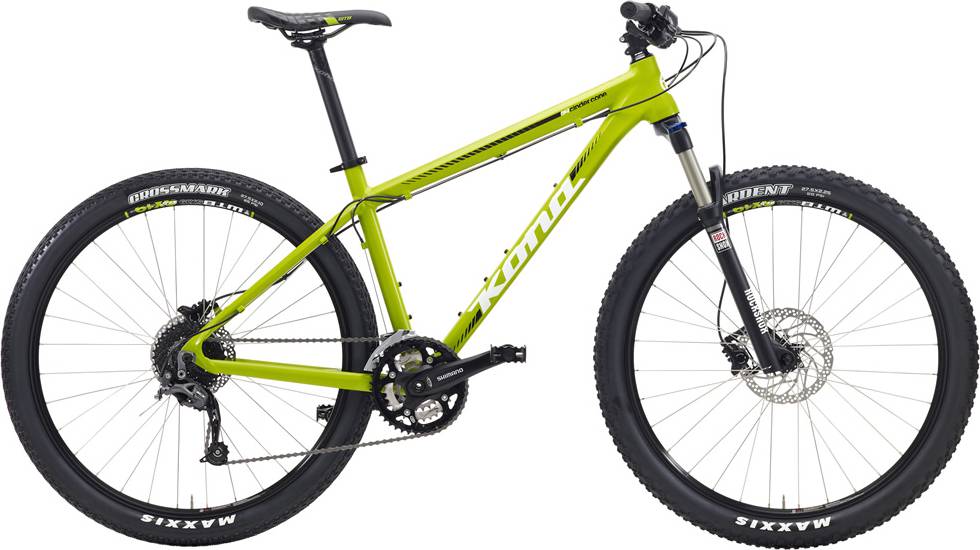

CINDER CONE is a Kona Cinder model. Kona released 13 bikes variations of this model so far.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
CINDER CONE components
Fork
Kona CINDER CONE 2015 bike is equipped with the RockShox 30 Silver TK fork, and has 100mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When leaving the production line, the CINDER CONE model has 27.5″ aluminum wheels. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The CINDER CONE comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
