Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork RockShox Recon Silver RL
-
Groupset SX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 170cm
MD
157cm - 182cm
LG
175cm - 195cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona Race Light 6061 Aluminum Butted
Suspension Fork
RockShox Recon RL Solo Air 100mm
Rear Shock
n/a
Drivetrain
Rear Derailleur
SRAM SX-Eagle
Front Derailleur
n/a
Shift Levers
SRAM SX-Eagle
Cassette
SRAM SX-Eagle 11-50t 12spd
Crank
SRAM SX-Eagle, 32t X-Sync Eagle
Bottom Bracket
SRAM Powerspline 73mm
Chain
SRAM SX-Eagle
Chain Guide
n/a
Pedals
Kona JS2
Wheels
Front Hub
Formula 110x15mm
Rear Hub
Formula 135x10mm
Rims
WTB ST i27 TCS 2.0
Tires
WTB Trail Boss 27.5x2.25"
Brakes
Brakes
Shimano MT501 Hydraulic
Brake Levers
Shimano MT501 Hydraulic
Disk Rotors
Shimano RT56 180mm
Cockpit
Stem
Kona XC
Handlebar
Kona XC/BC Riser
Grips
Kona Key Grip Slip on
Headset
FSA No.57B
Seat
Saddle
WTB Volt Comp (Volt 250 Comp size S)
Seatpost
Kona Thumb w/Offset 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.36 mm | 1.3 mm | 1.24 mm |
| Bottom Bracket Height | 304 mm | 304 mm | 304 mm | 304 mm |
| Front Center | 678 mm | 709 mm | 737 mm | 778 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 98 mm | 98 mm | 98 mm | 98 mm |
| Stack | 589 mm | 603 mm | 612 mm | 626 mm |
| Reach | 419 mm | 444 mm | 469 mm | 504 mm |
| Top Tube Length | 576 mm | 604 mm | 632 mm | 671 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 370 mm | 420 mm | 470 mm | 530 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 100 mm | 115 mm | 125 mm | 140 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1113 mm | 1143 mm | 1172 mm | 1212 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm | 50 mm |
| Standover Height | 714 mm | 722 mm | 728 mm | 751 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 152 cm | 157 cm | 175 cm | 180 cm |
| Rider Max Height | 170 cm | 182 cm | 195 cm | 195 cm |
About this model

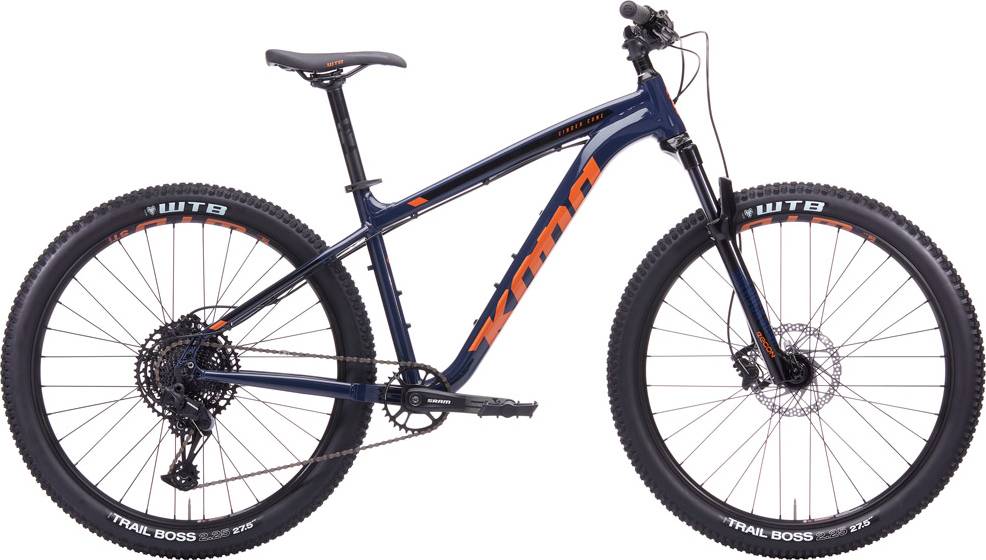

Cinder Cone is part of the Kona Cinder model. There are 13 bikes that carry this model name.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Kona Cinder Cone price was 1299$. Doing a quick comparison, we notice that Cinder Cone price is 46.65% lower than the average cost of a Crosscountry bike.
Cinder Cone components
Fork
The fork installed on this bike is the RockShox Recon Silver RL model. The travel on this model is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
When it comes to wheels, the Cinder Cone bike is equipped with the 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Cinder Cone comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Kona Cinder Cone bike has 4 sizes, in the range of 152 cm – 195 cm (4.99 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
