Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork RockShox Judy Silver TK
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 170cm
MD
157cm - 182cm
LG
175cm - 195cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

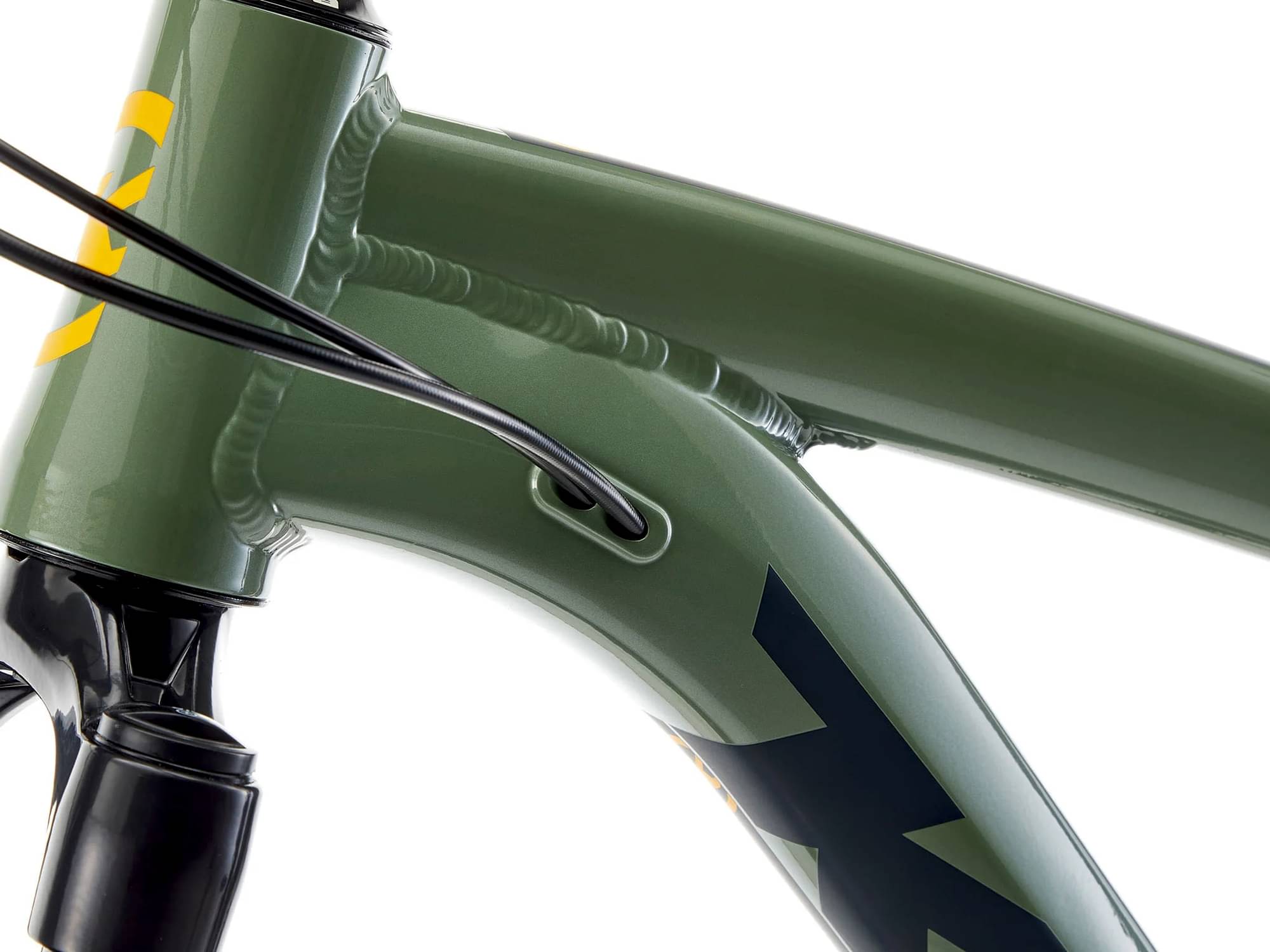

Kona Race Light 6061 Aluminum Butted
Suspension Fork
RockShox Judy Silver TK Solo Air 100mm
Rear Shock
n/a
Drivetrain

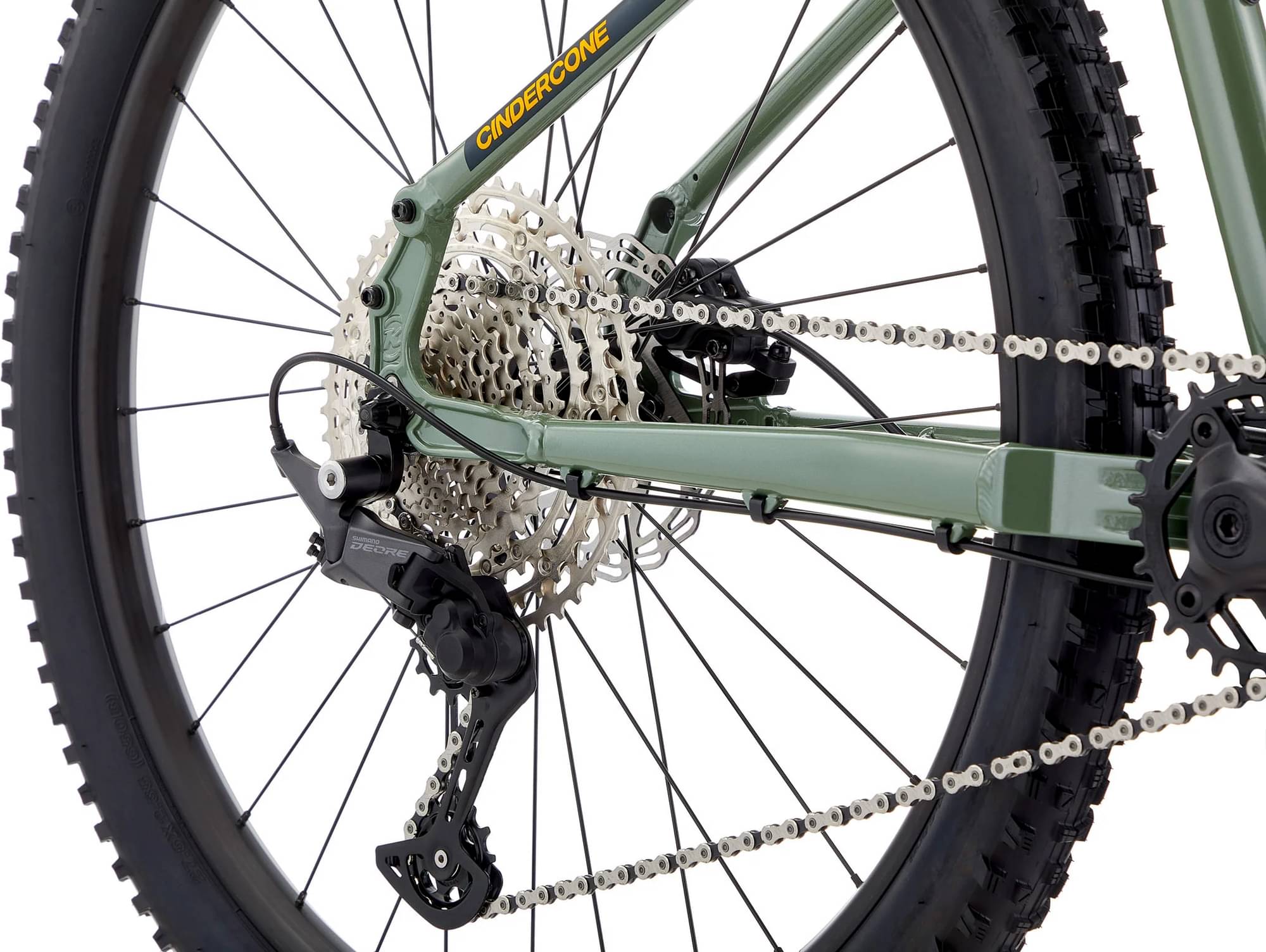

Rear Derailleur
Shimano Deore
Front Derailleur
n/a
Shift Levers
Shimano Deore
Cassette
Shimano Deore 11-51t 11spd
Crank
Prowheel 11spd, 28t
Bottom Bracket
FSA BB7420 73mm
Chain
KMC X11
Chain Guide
n/a
Pedals
Kona JS2
Wheels
Front Hub
Formula 100x9mm (centerlock)
Rear Hub
Shimano 135x10mm (centerlock)
Rims
WTB ST i27 TCS 2.0
Spokes
Stainless Black 14g
Tires
Front: Maxxis Forekaster 27.5x2.35", Rear: Maxxis Forekaster 27.5x2.35"
Brakes

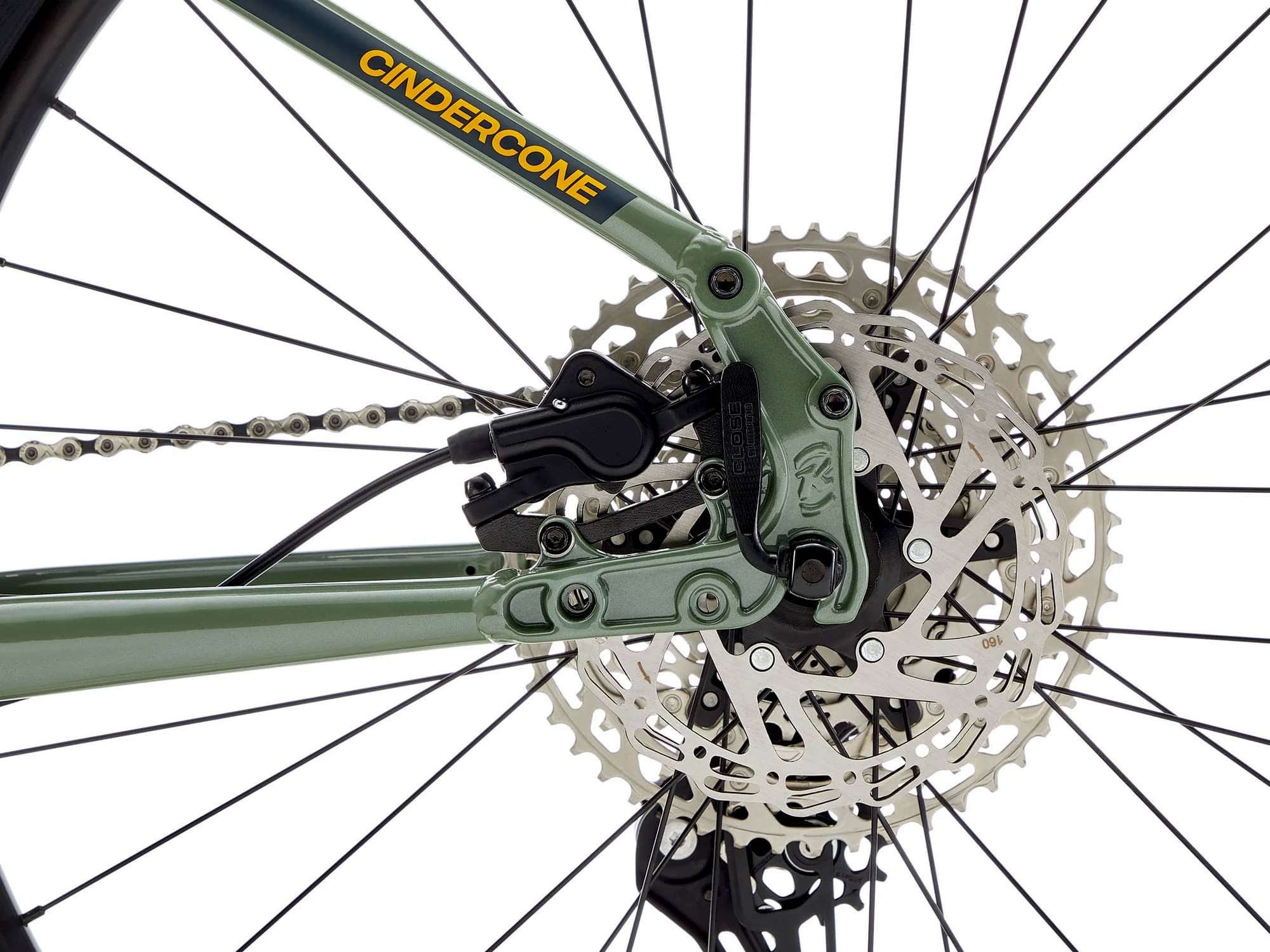

Brakes
Alhonga HT472 Hydraulic
Brake Levers
Alhongo HT472 Hydraulic
Cockpit
Stem
Kona XC
Handlebar
Kona XC/BC Riser
Grips
Kona Key Grip Slip on

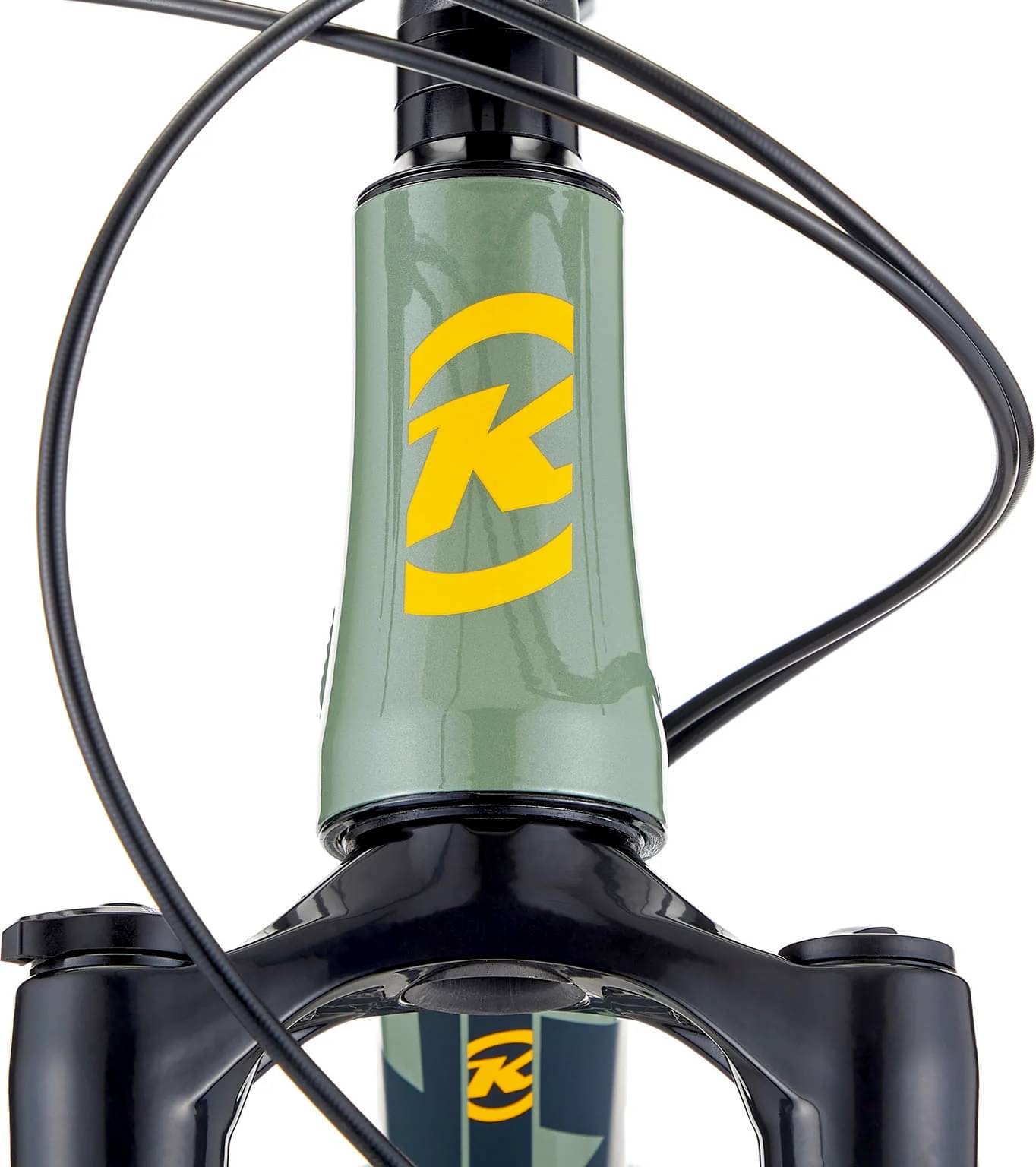

Headset
Feimen HP-H868B
Seat
Saddle
Kona XC
Seatpost
Kona Thumb 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.36 mm | 1.3 mm | 1.24 mm |
| Bottom Bracket Height | 305 mm | 305 mm | 305 mm | 305 mm |
| Front Center | 678 mm | 709 mm | 737 mm | 778 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 98 mm | 98 mm | 98 mm | 98 mm |
| Stack | 589 mm | 603 mm | 612 mm | 626 mm |
| Reach | 419 mm | 444 mm | 469 mm | 504 mm |
| Top Tube Length | 576 mm | 604 mm | 632 mm | 671 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 370 mm | 420 mm | 470 mm | 530 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 100 mm | 115 mm | 125 mm | 140 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1113 mm | 1143 mm | 1172 mm | 1212 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm | 50 mm |
| Standover Height | 714 mm | 723 mm | 729 mm | 752 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 152 cm | 157 cm | 175 cm | 180 cm |
| Rider Max Height | 170 cm | 182 cm | 195 cm | 195 cm |
About this model
Cinder Cone is a Kona Cinder model. Kona launched 13 bikes of this model so far.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry bikes
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
This bike was released in 2023 and its price was 1199$. Doing a quick comparison, we notice that Cinder Cone price is 58.88% smaller than the average cost of a Crosscountry bike.
Cinder Cone components
Fork
The RockShox Judy Silver TK is included from the factory. It has a travel distance of 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
When leaving the production line, the Cinder Cone model has 27.5″ aluminum wheels. These wheels will provide you with more control over the bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Cinder Cone comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 152 cm – 195 cm (4.99 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
