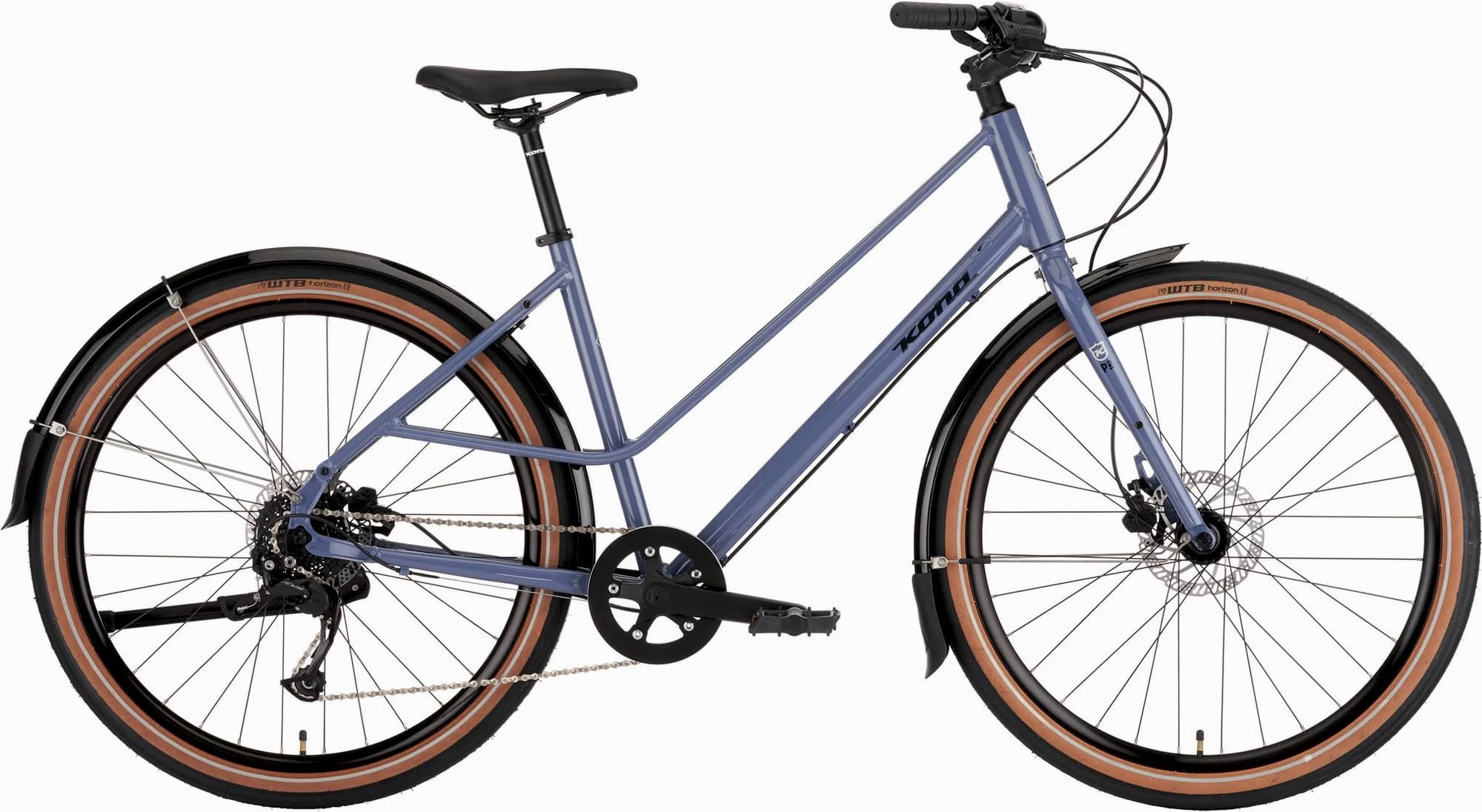

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Alivio, Acera -
Suspension Rigid -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components

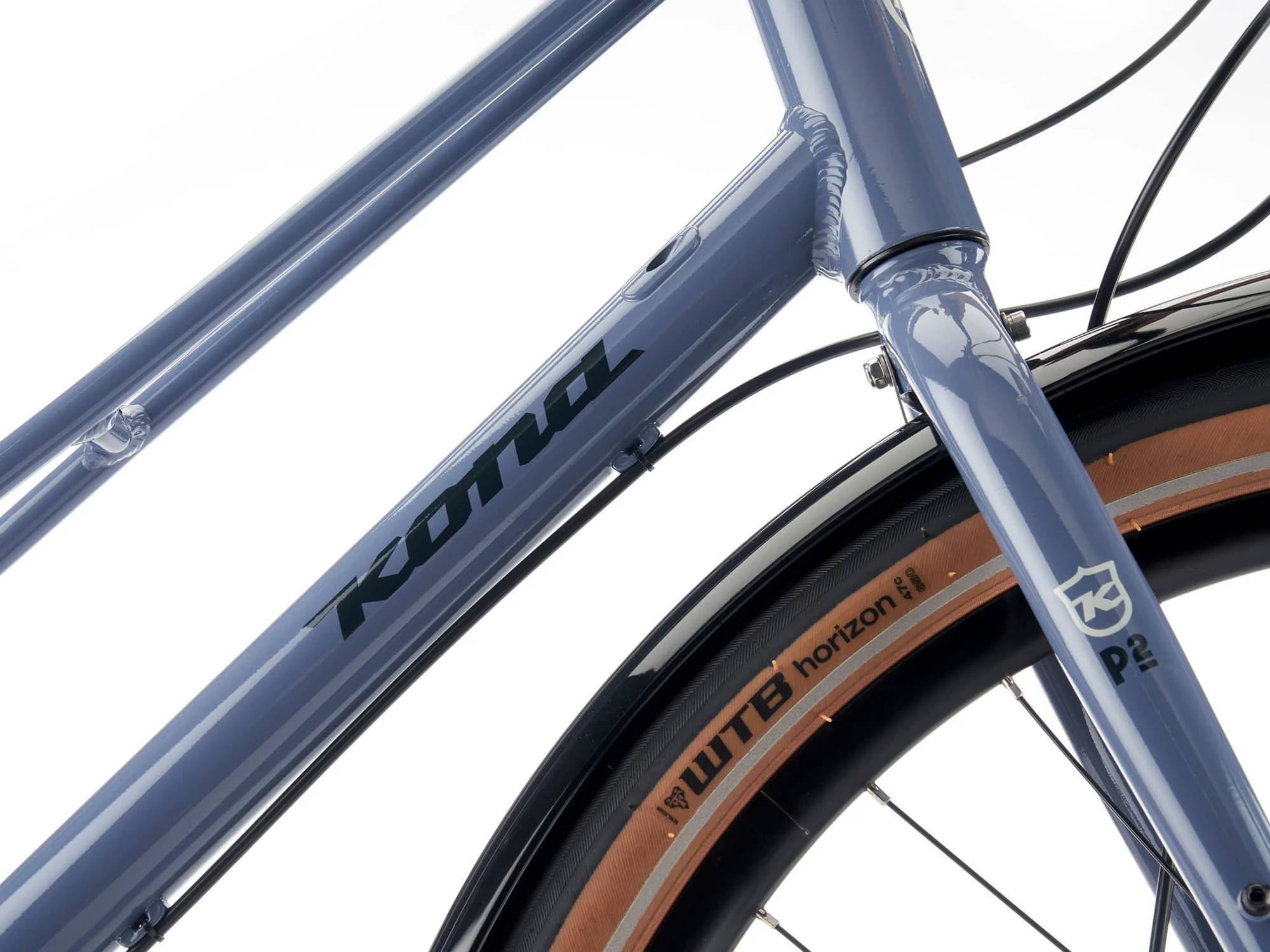

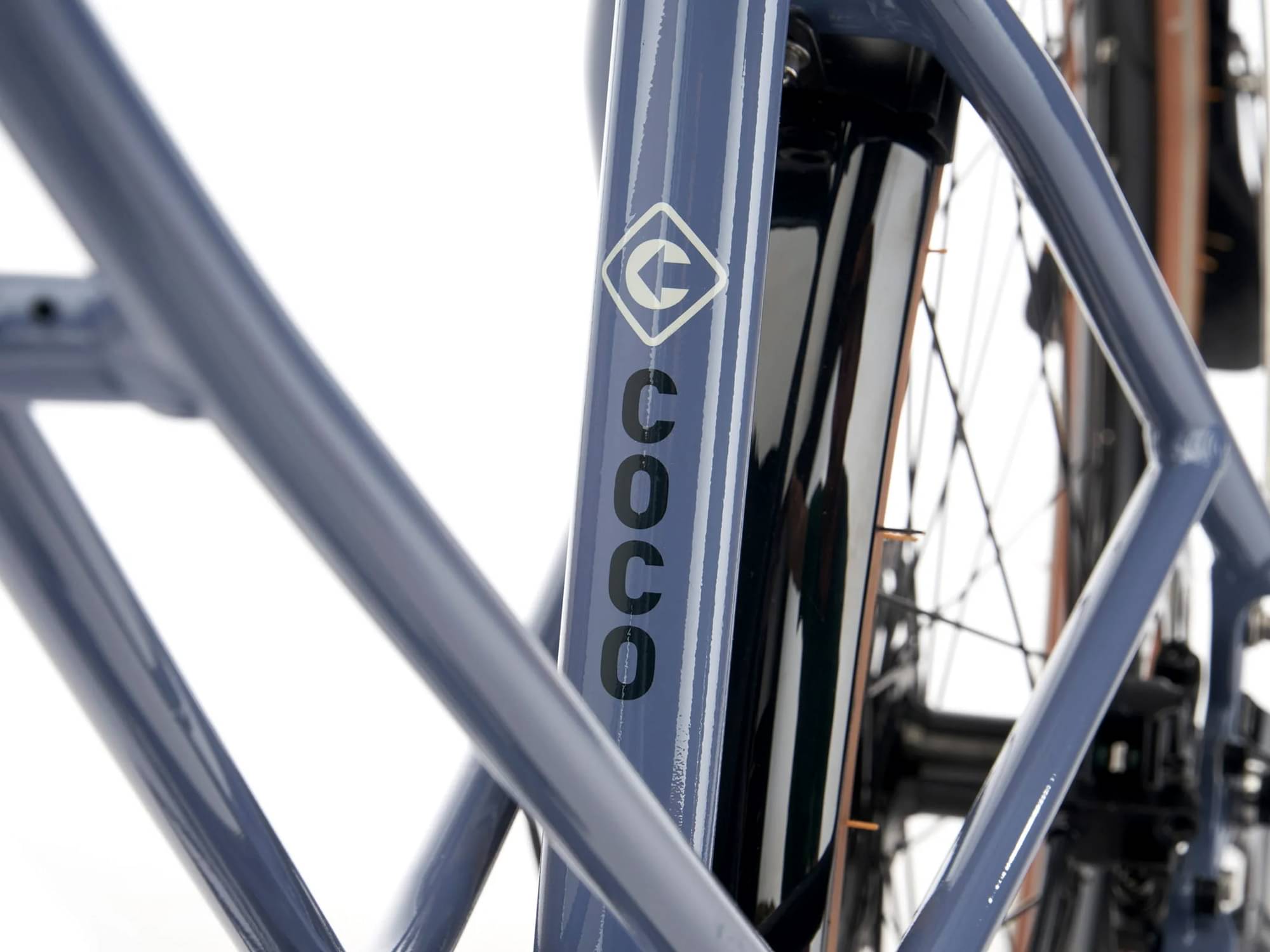

Frame
Frame
Kona 6061 Aluminum Butted
Suspension Fork
Kona Project Two Aluminum Disc
Rear Shock
n/a
Drivetrain

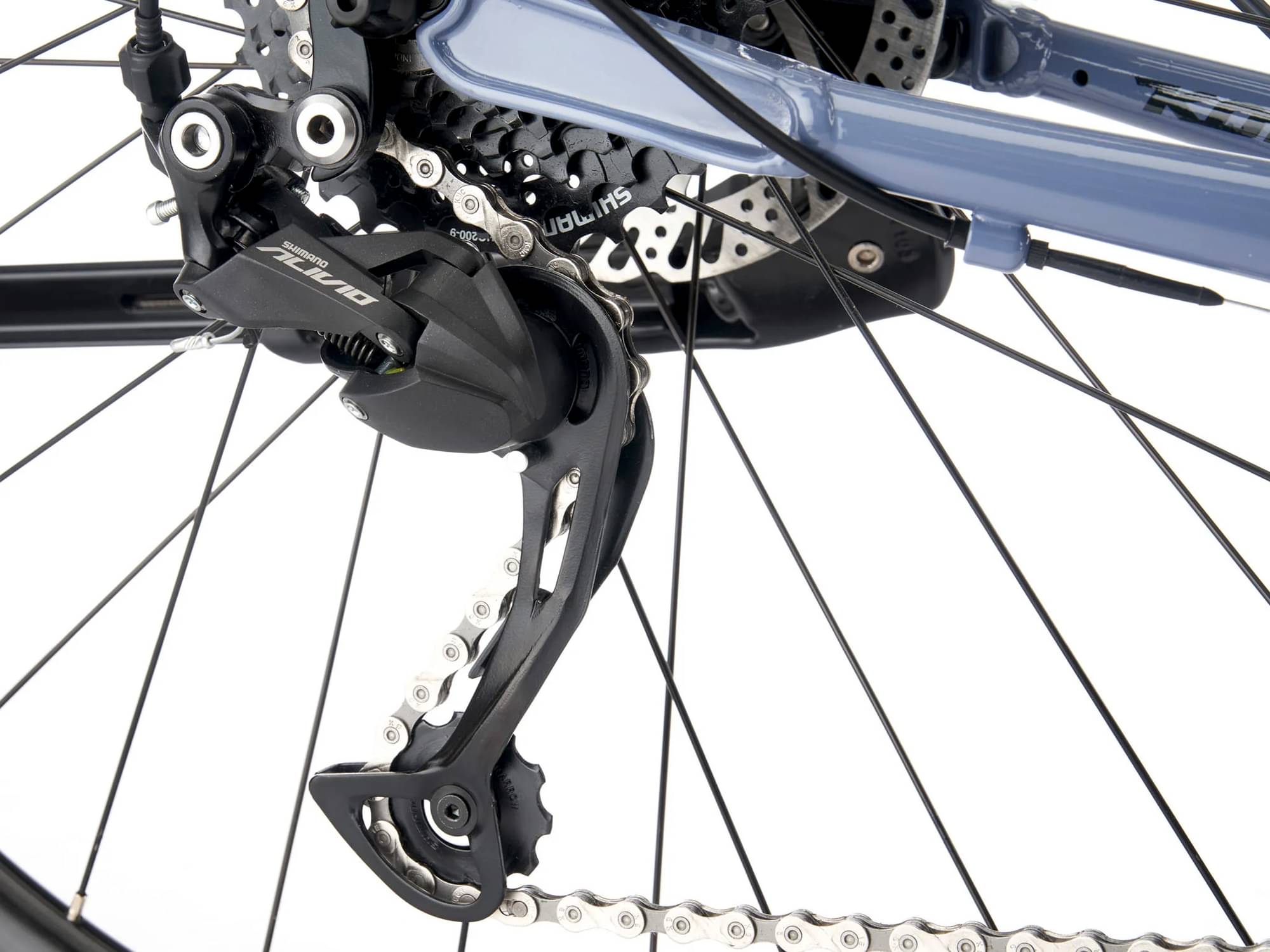

Rear Derailleur
Shimano Alivio SGS
Front Derailleur
n/a

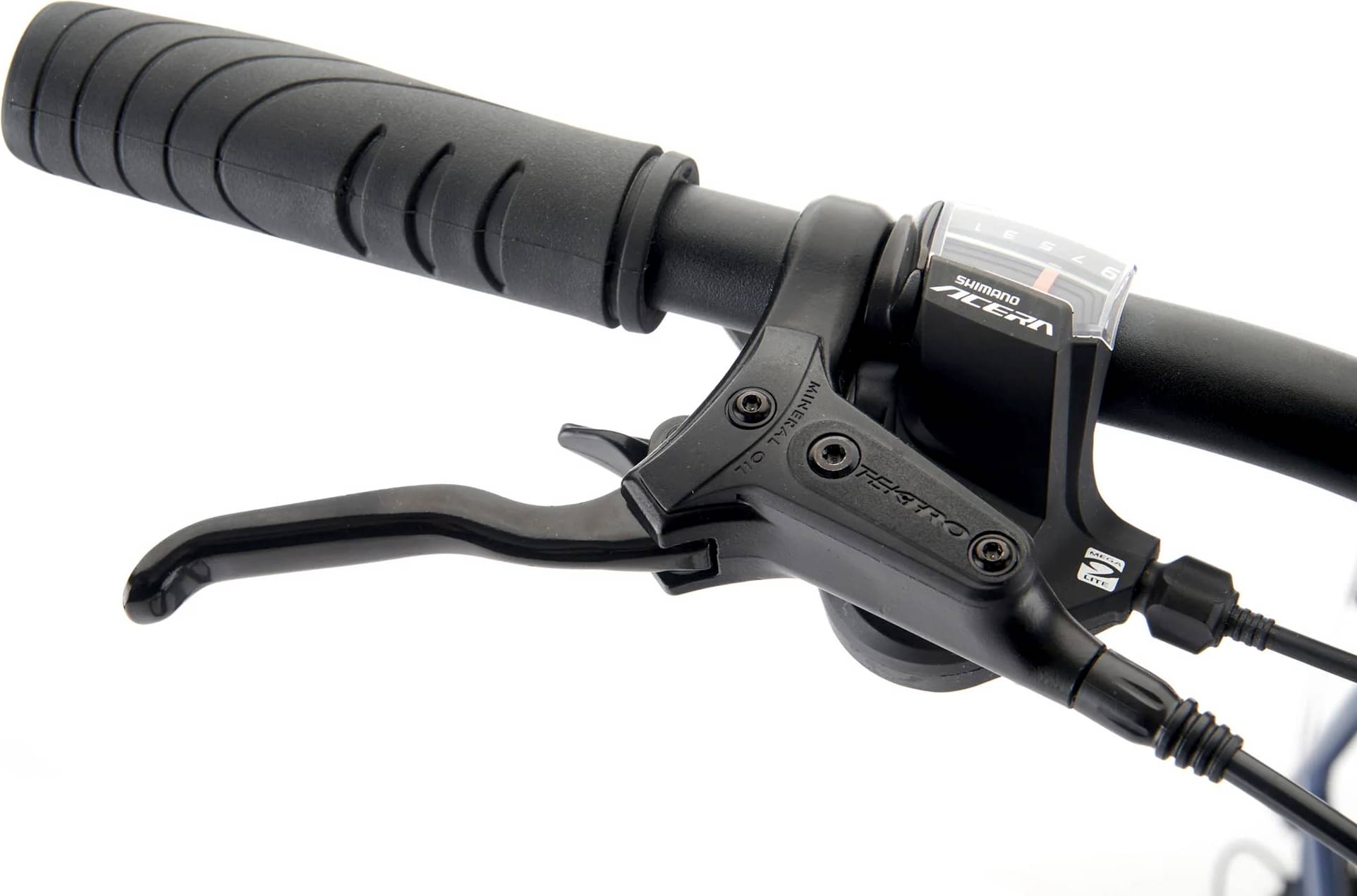

Shift Levers
Shimano Acera
Cassette
Shimano HG200 11-32t 9spd

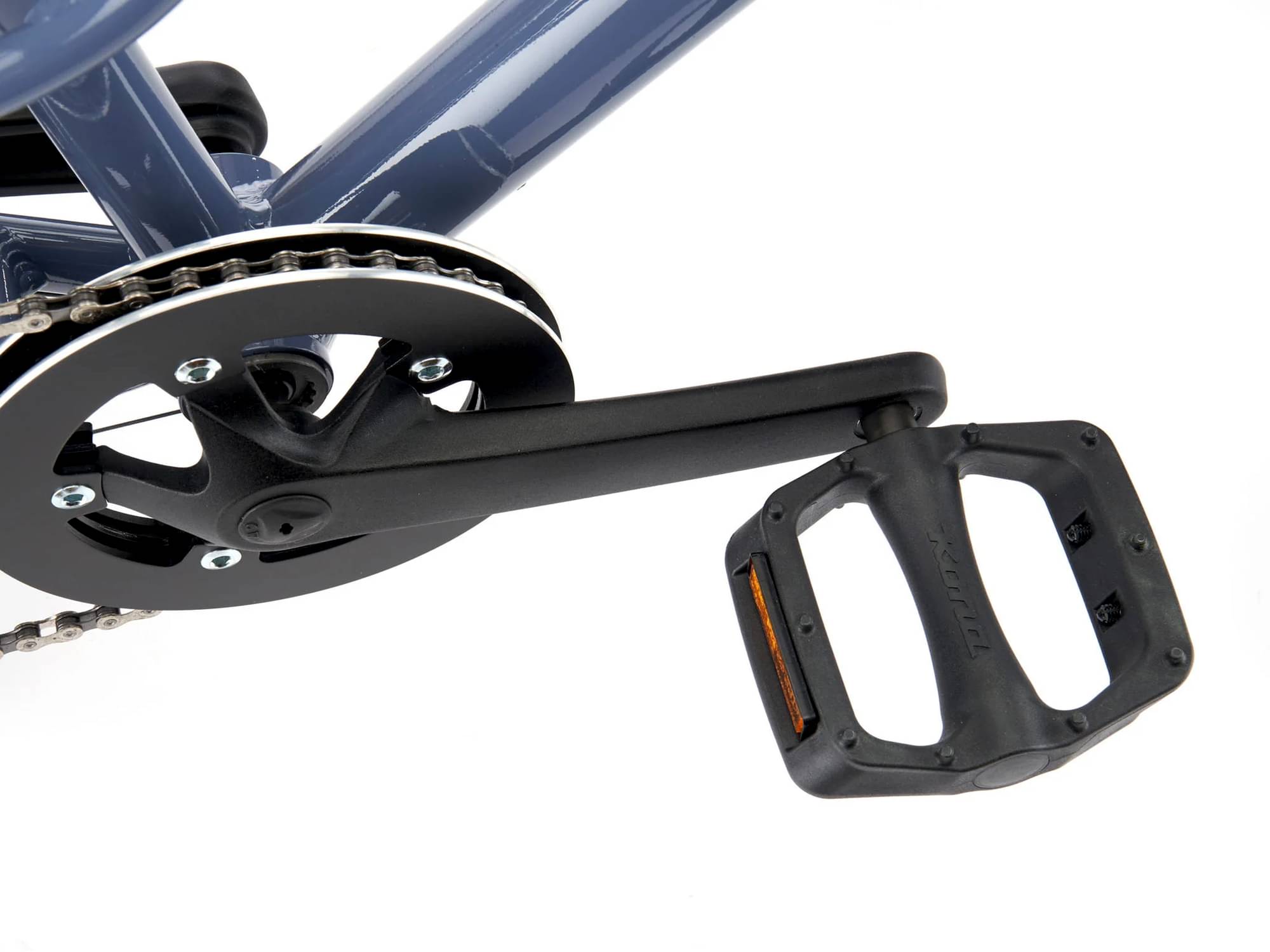

Crank
Samox, 39t/Guard
Bottom Bracket
Feimin 68mm
Chain
KMC X9
Chain Guide
n/a
Pedals
Kona JS2
Wheels
Front Hub
Formula 100x9mm
Rear Hub
Formula 135x10mm
Rims
Double Wall Alloy
Spokes
Stainless Black 14g
Tires
Front: WTB Horizon Comp w/ Puncture Protection 650x47c, Rear: WTB Horizon Comp w/ Puncture Protection 650x47c

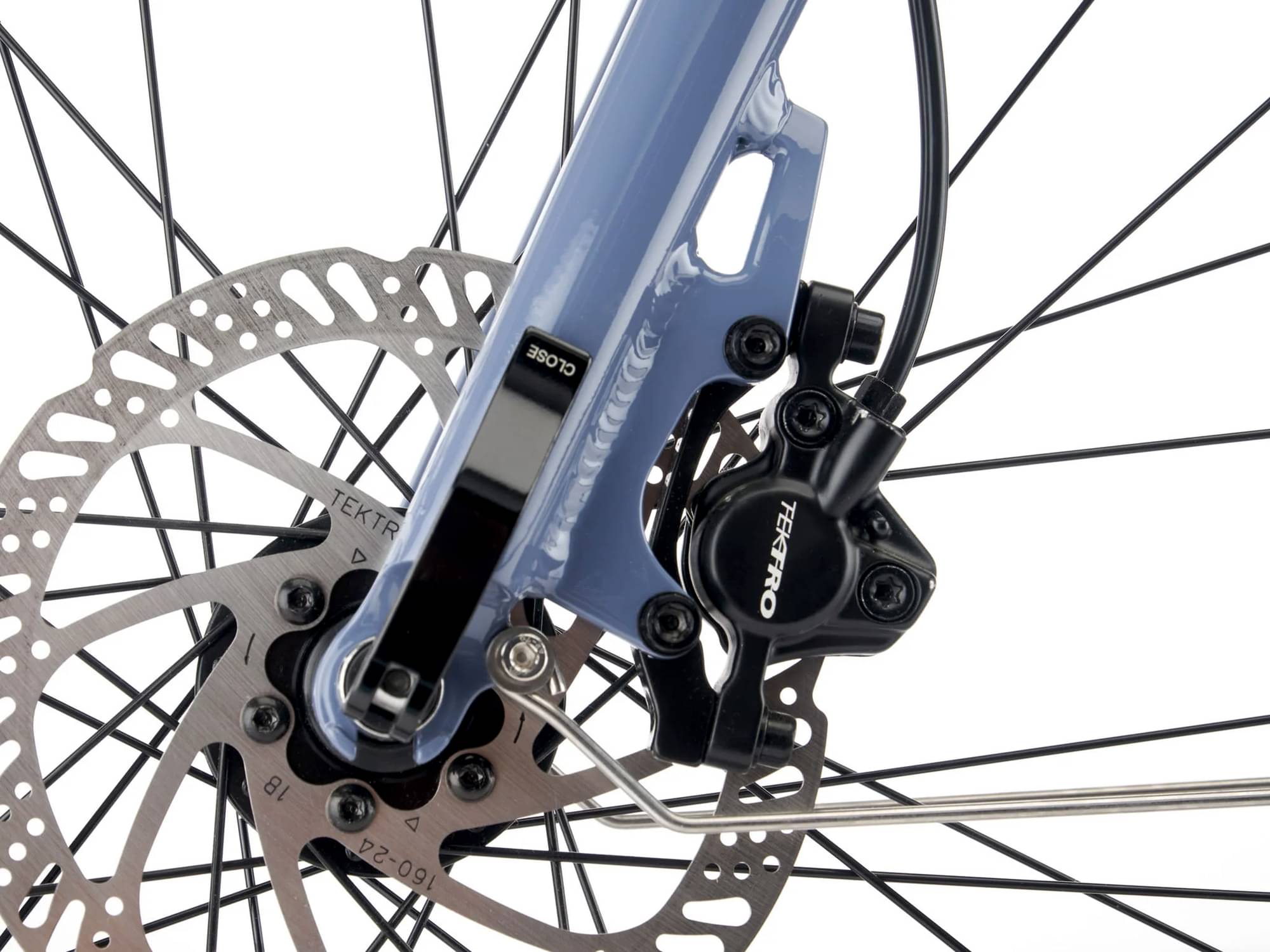

Brakes
Brakes
Clarks M2 Hydraulic
Brake Levers
Clarks M2 Hydraulic

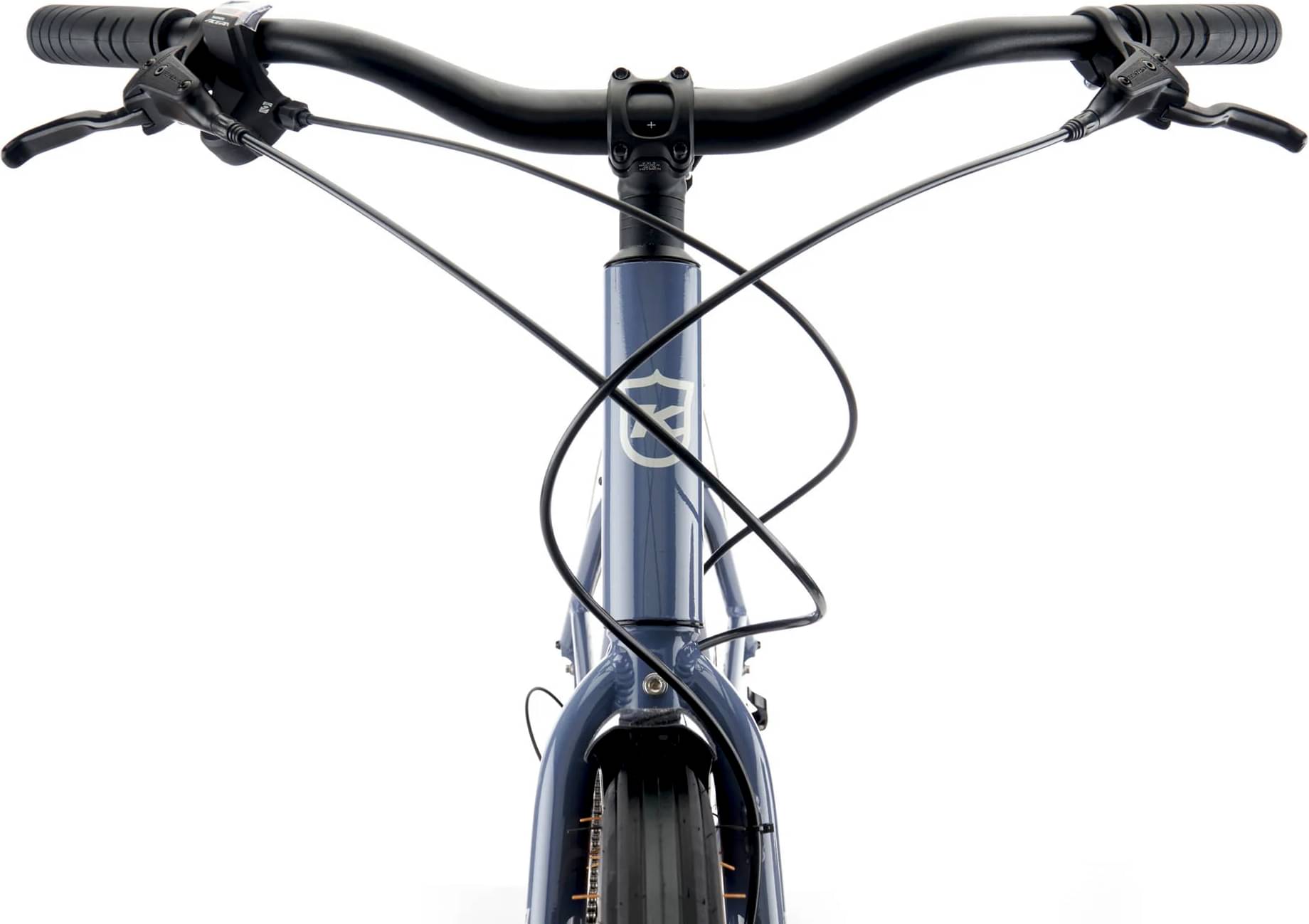

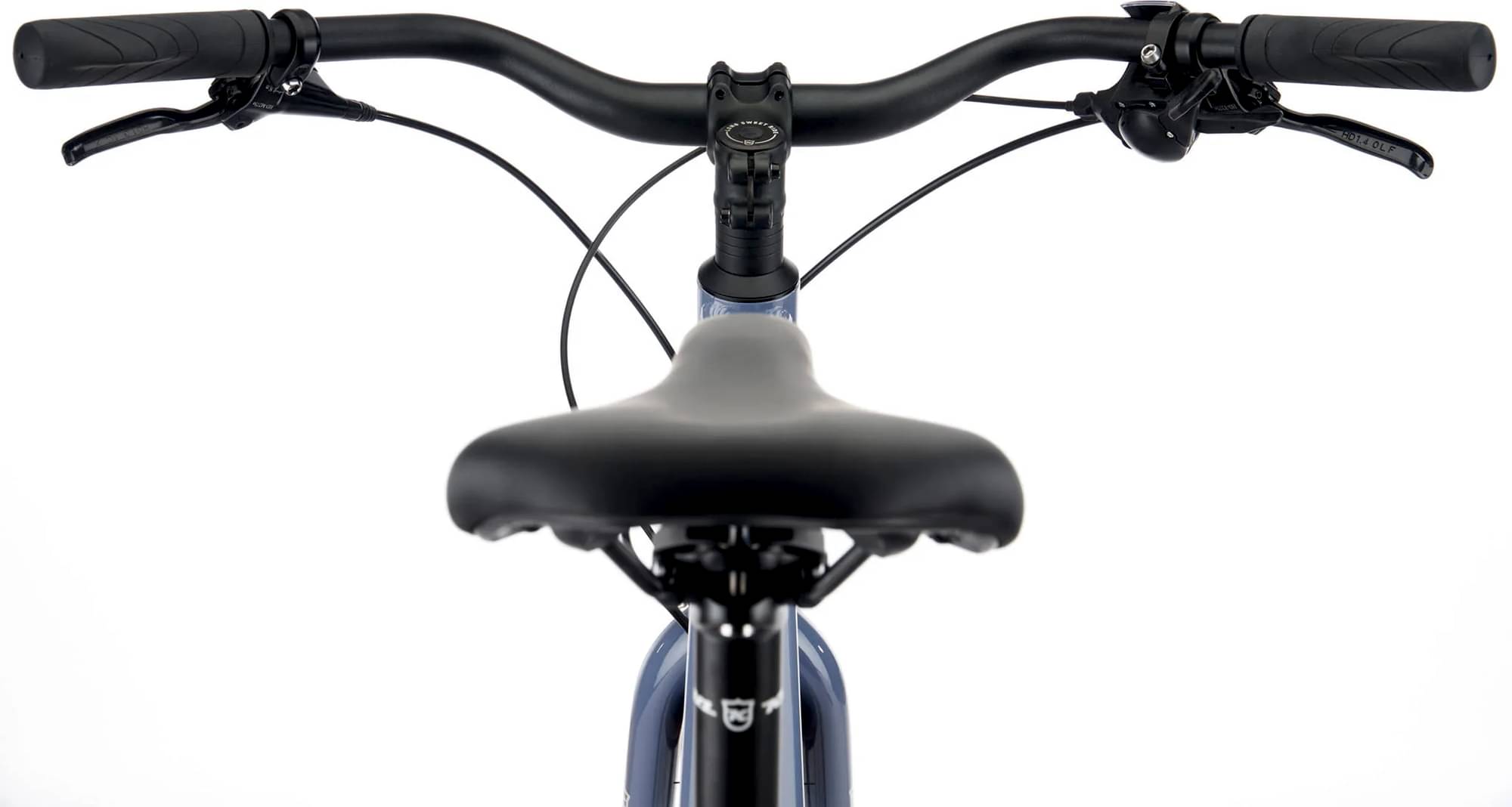

Cockpit
Stem
Kona Commuter
Handlebar
Kona Handplant
Grips
Velo Ergo
Headset
Feimin FP-H863
Seat
Saddle
Kona Commuter
Seatpost
Kona Thumb w/Offset 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.429 mm | 1.463 mm | 1.433 mm | 1.467 mm |
| Bottom Bracket Height | 272 mm | 272 mm | 272 mm | 272 mm |
| Front Center | 617 mm | 637 mm | 675 mm | 705 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 67 mm | 67 mm | 68 mm | 67 mm |
| Stack | 550 mm | 578 mm | 606 mm | 644 mm |
| Reach | 385 mm | 395 mm | 423 mm | 439 mm |
| Top Tube Length | 522 mm | 550 mm | 596 mm | 636 mm |
| Seat Tube Angle | 76 ° | 75 ° | 74 ° | 73 ° |
| Seat Tube Length | 370 mm | 420 mm | 470 mm | 520 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 115 mm | 145 mm | 175 mm | 215 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1057 mm | 1078 mm | 1115 mm | 1146 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 525 mm | 543 mm | 546 mm | 553 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
