Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Tourney, Altus -
Suspension Rigid -
Motor hub-drive -
Battery Phylion 418Wh -
Drivetrain 1 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame

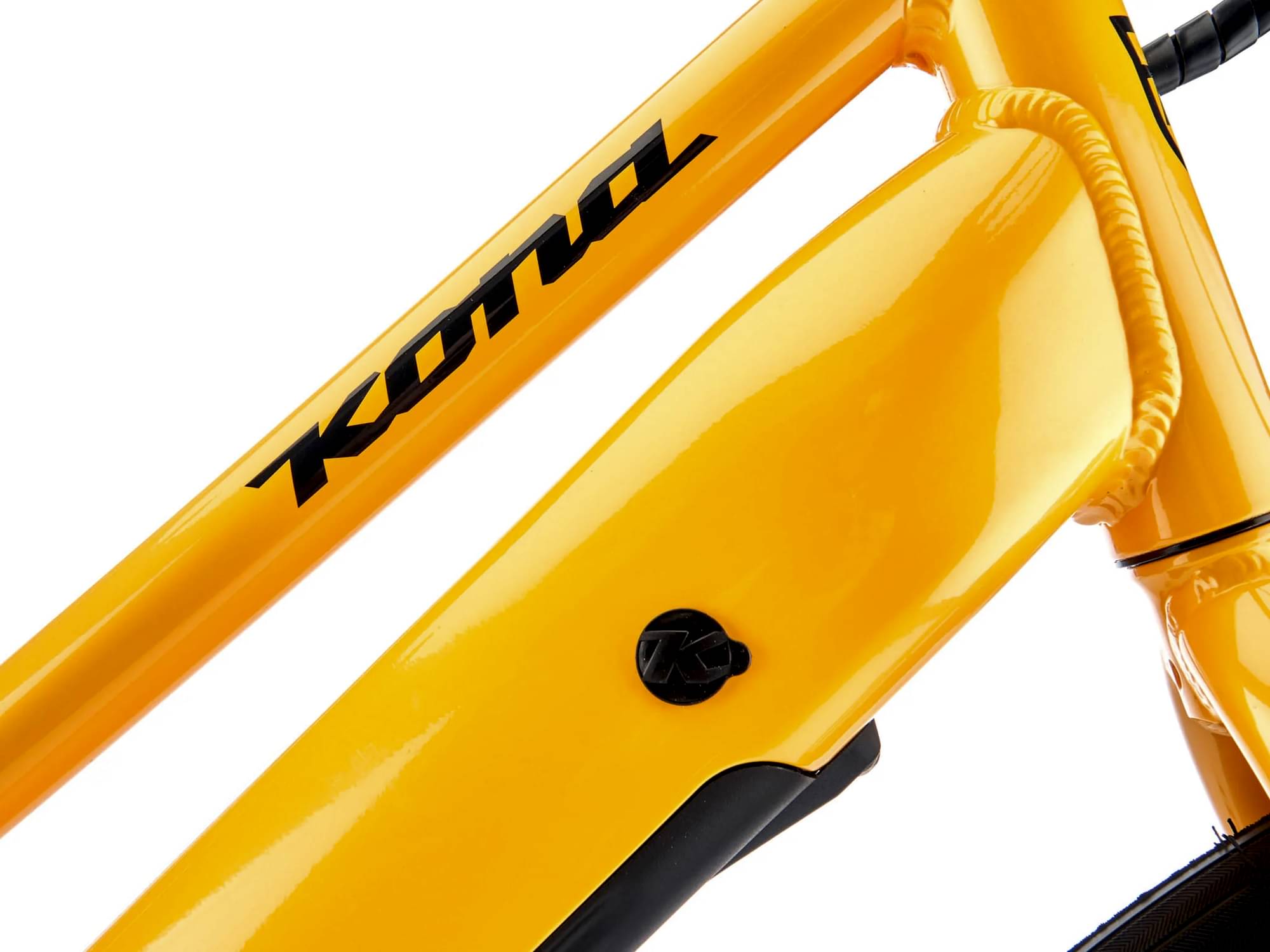

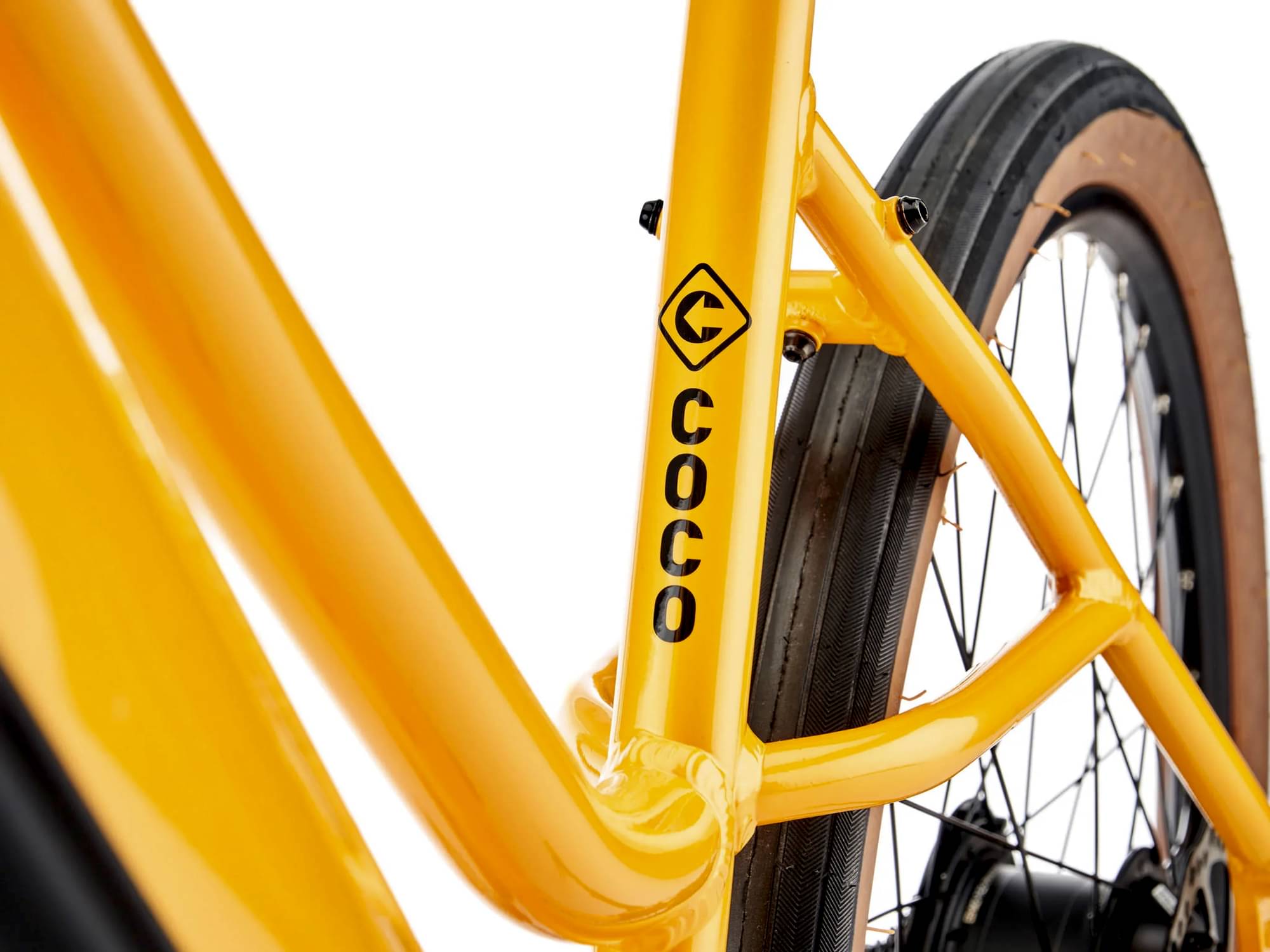

Frame
Kona 6061 Aluminum Butted
Suspension Fork
Kona Project Two Aluminum Disc
Rear Shock
n/a
Drivetrain

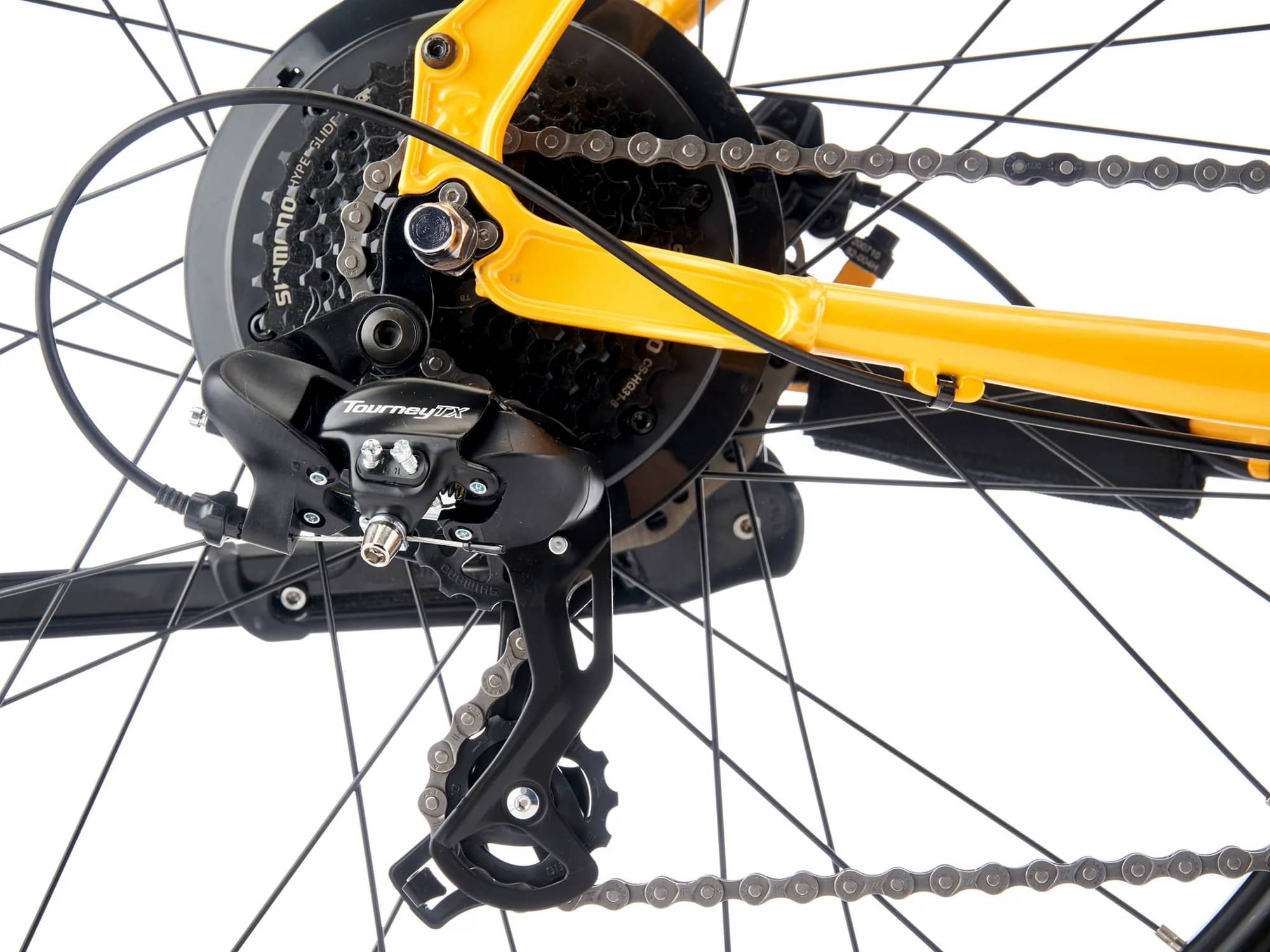

Rear Derailleur
Shimano TX
Front Derailleur
n/a
Shift Levers
Shimano Altus
Cassette
Shimano Altus 11-32t 8spd

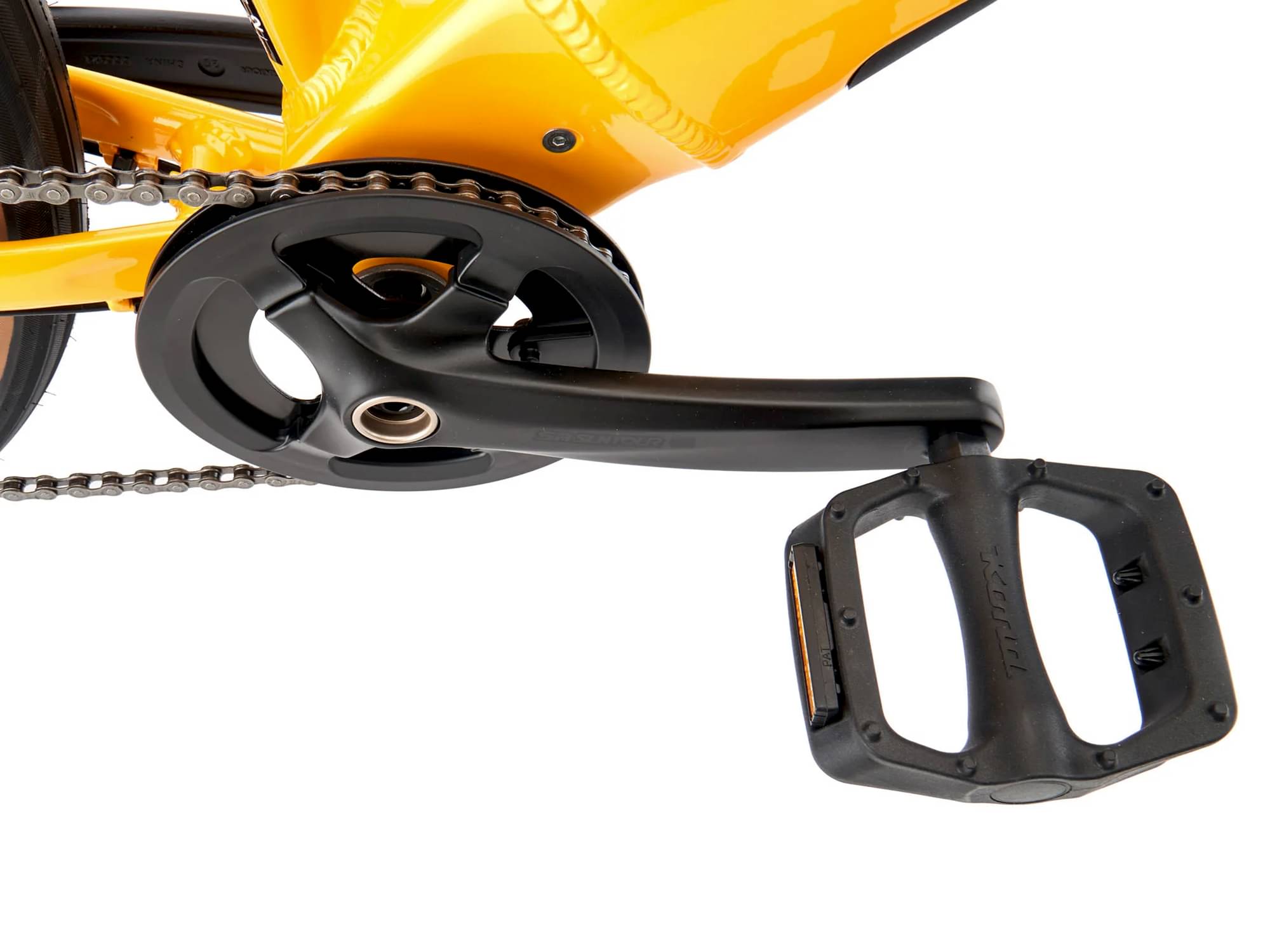

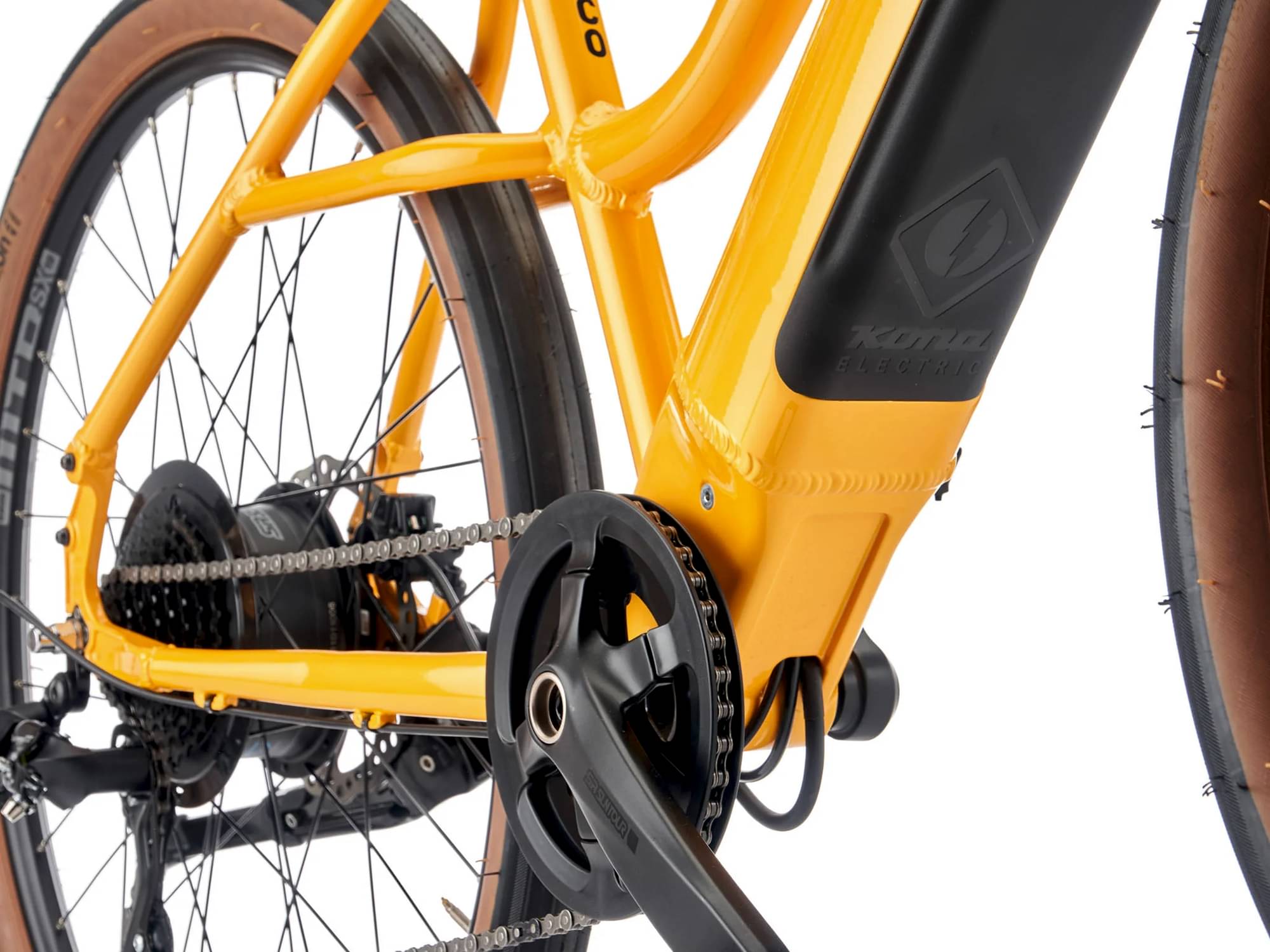

Crank
Suntour, 38t
Bottom Bracket
Suntour
Chain
KMC Z8.3
Chain Guide
n/a
Pedals
Kona JS2
Wheels
Front Hub
Shimano 100x9mm
Rear Hub
SR Suntour HD 20MPH
Rims
WTB SX19
Spokes
Stainless Black 14g/13g
Tires
Front: WTB Horizon Comp 650x47c, Rear: WTB Horizon Comp 650x47c
Brakes

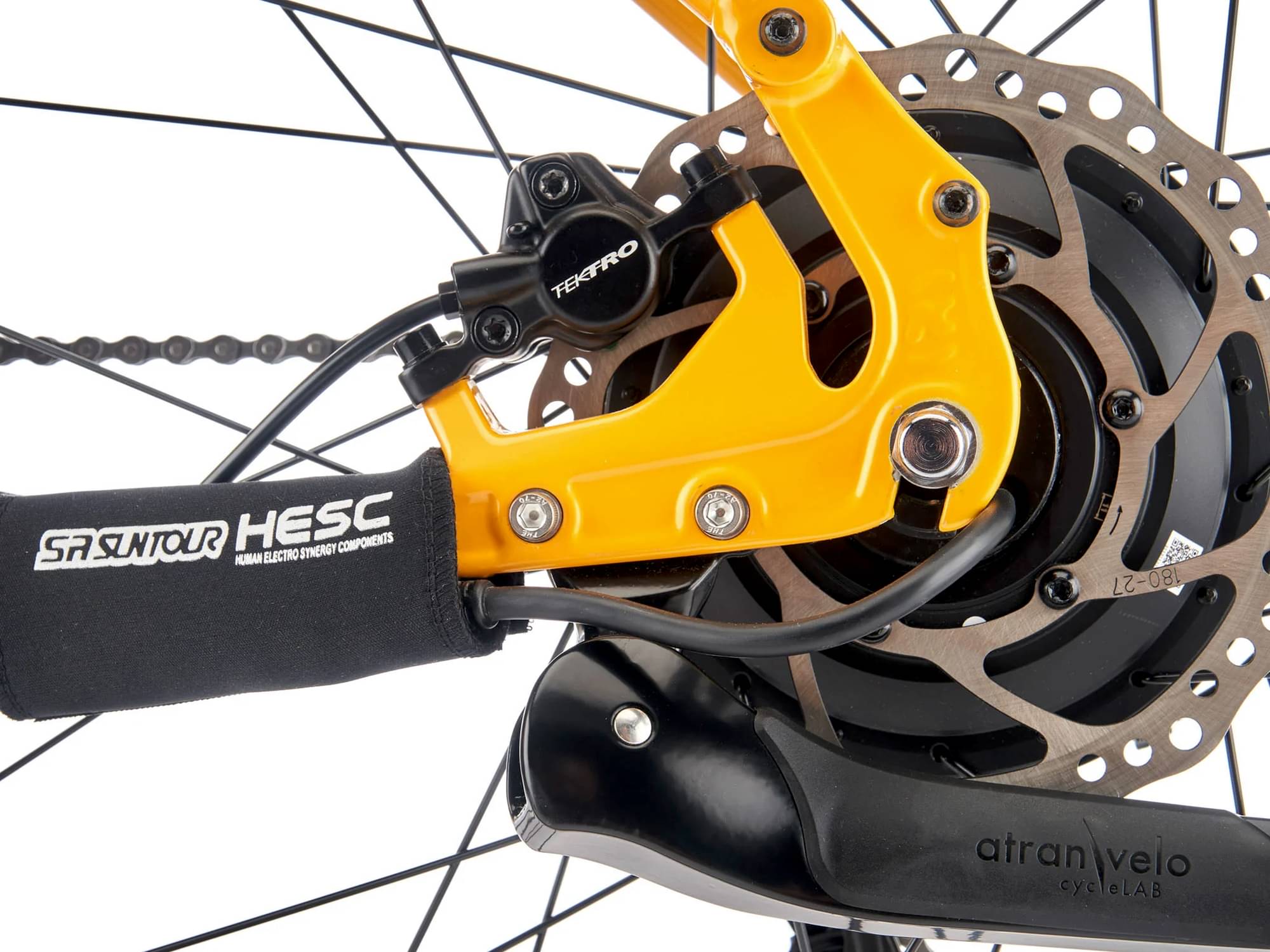

Brakes
Tektro HDM275 Hydraulic
Brake Levers
Tektro HDM275 Hydraulic
Cockpit
Stem
Kona Commuter
Handlebar
Kona Handplant
Grips
Kona Key Grip Slip on
Headset
Feimin FP-H863
Seat
Saddle
Kona Commuter
Seatpost
Kona Commuter 27.2mm
Motor & Battery

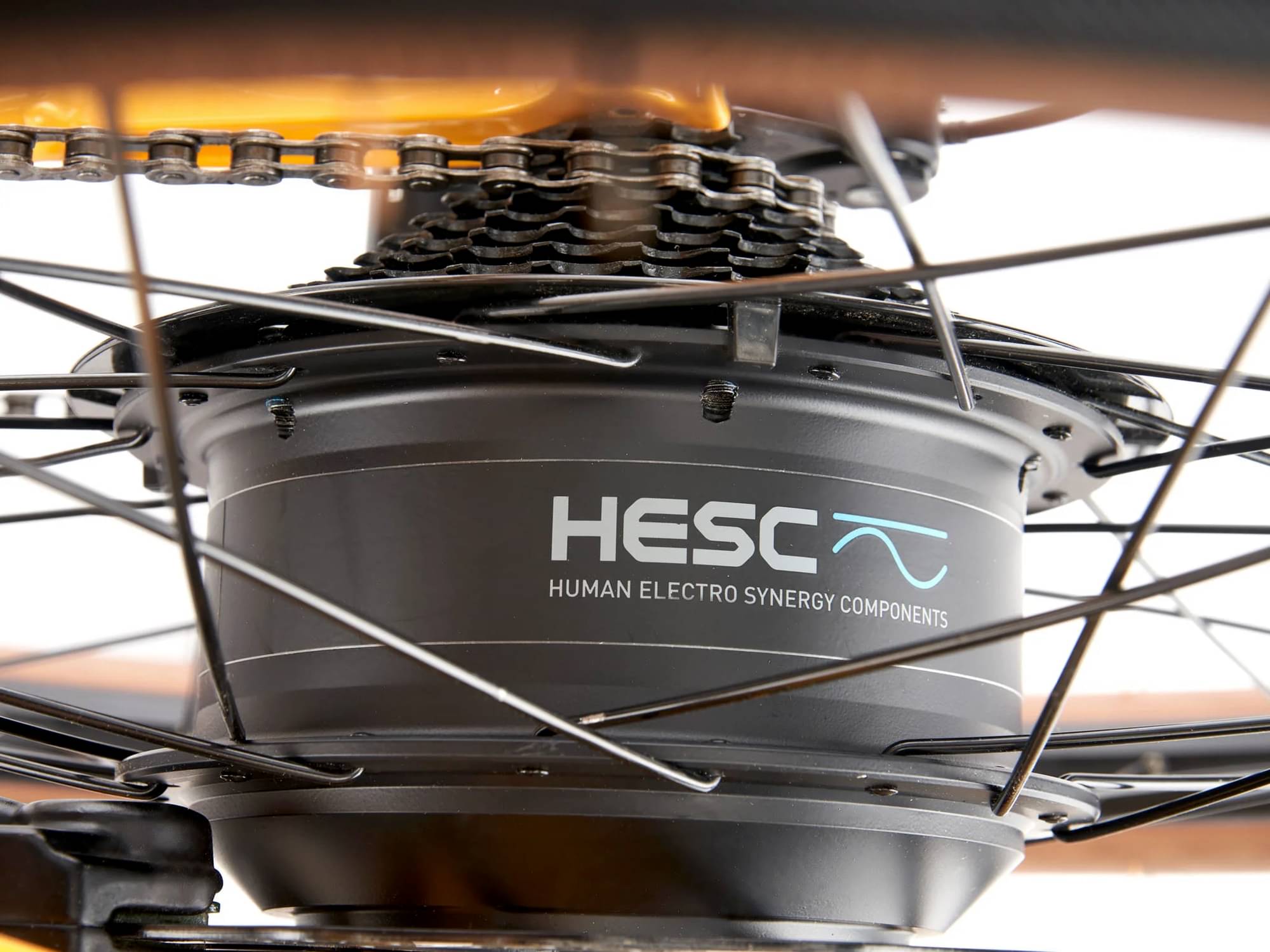

Motor
SR Suntour HD 20MPH

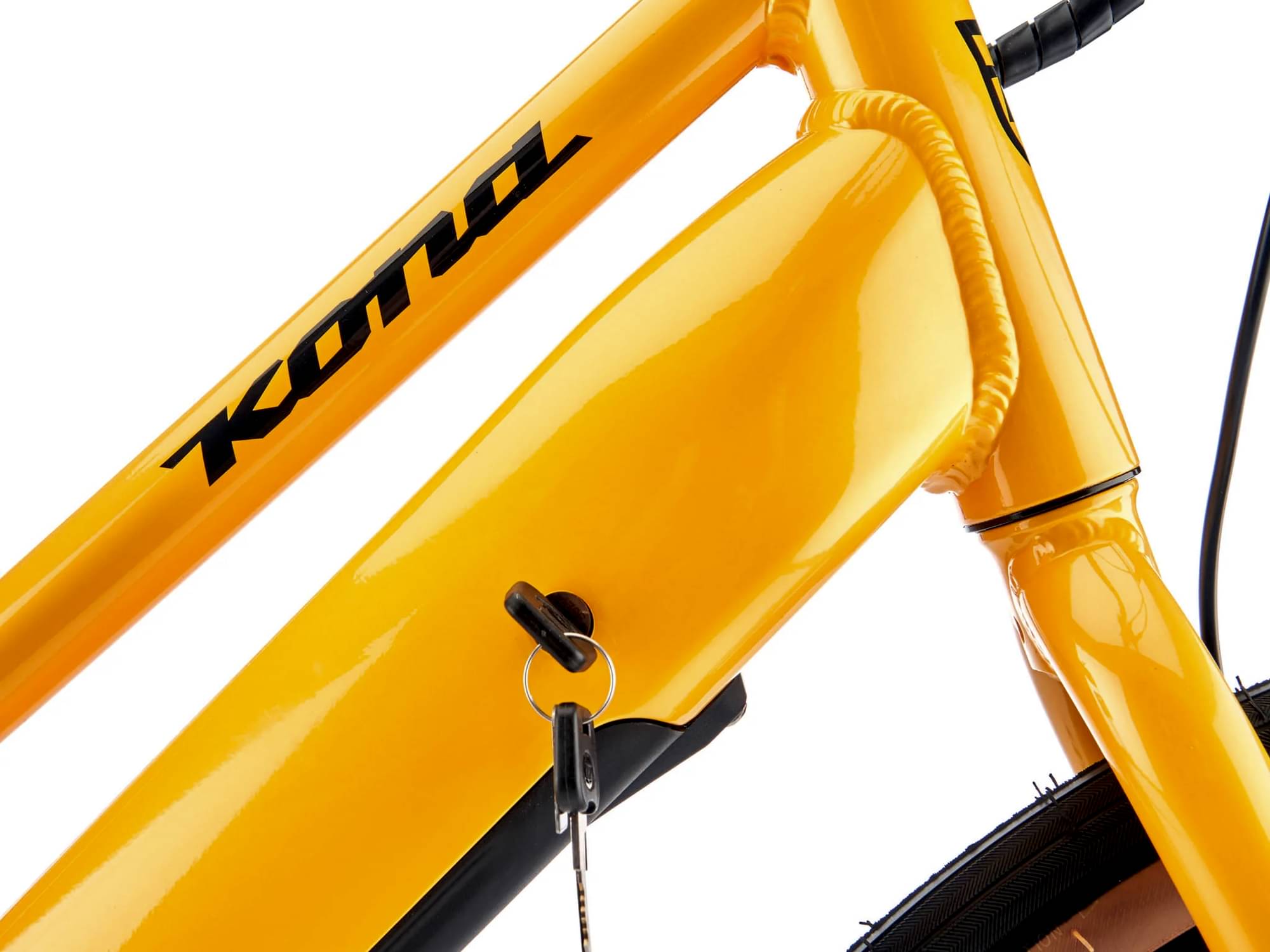

Battery
Phylion 418Wh
Charger
Phylion 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.496 mm | 1.433 mm | 1.465 mm |
| Bottom Bracket Height | 282 mm | 282 mm | 282 mm |
| Front Center | 644 mm | 677 mm | 707 mm |
| Rake | 50 mm | 50 mm | 50 mm |
| Trail | 66 mm | 67 mm | 67 mm |
| Stack | 591 mm | 606 mm | 643 mm |
| Reach | 395 mm | 423 mm | 439 mm |
| Top Tube Length | 553 mm | 597 mm | 636 mm |
| Seat Tube Angle | 75 ° | 74 ° | 73 ° |
| Seat Tube Length | 420 mm | 470 mm | 520 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 170 mm | 185 mm | 225 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1088 mm | 1121 mm | 1150 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 584 mm | 584 mm | 591 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
