Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Alivio, Acera -
Suspension Rigid -
Motor Shimano 250W 60Nm mid-drive -
Battery Shimano 504Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame

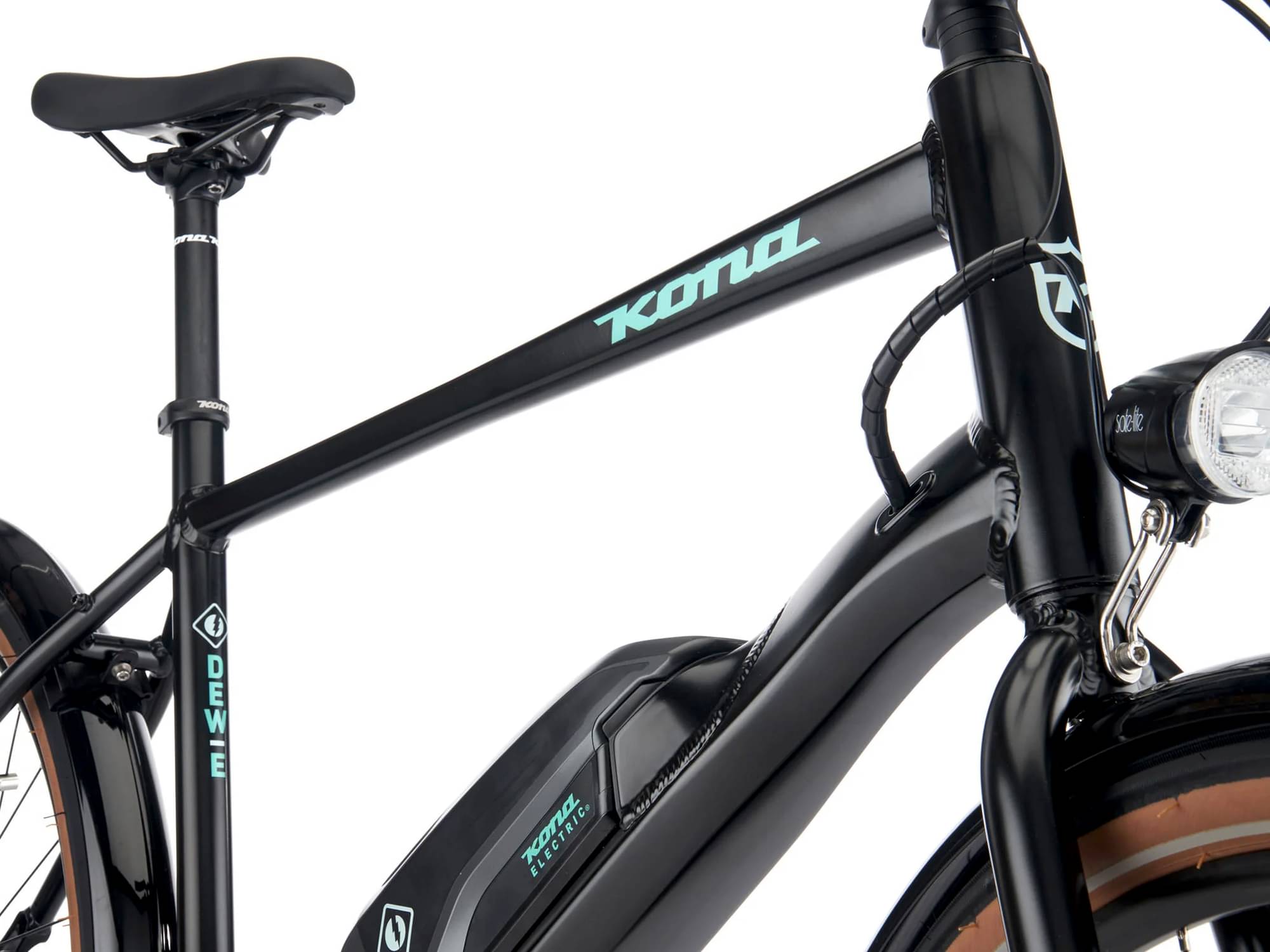

Frame
Kona 6061 Aluminum Butted
Suspension Fork
Kona Project Two Aluminum Disc
Rear Shock
n/a
Drivetrain

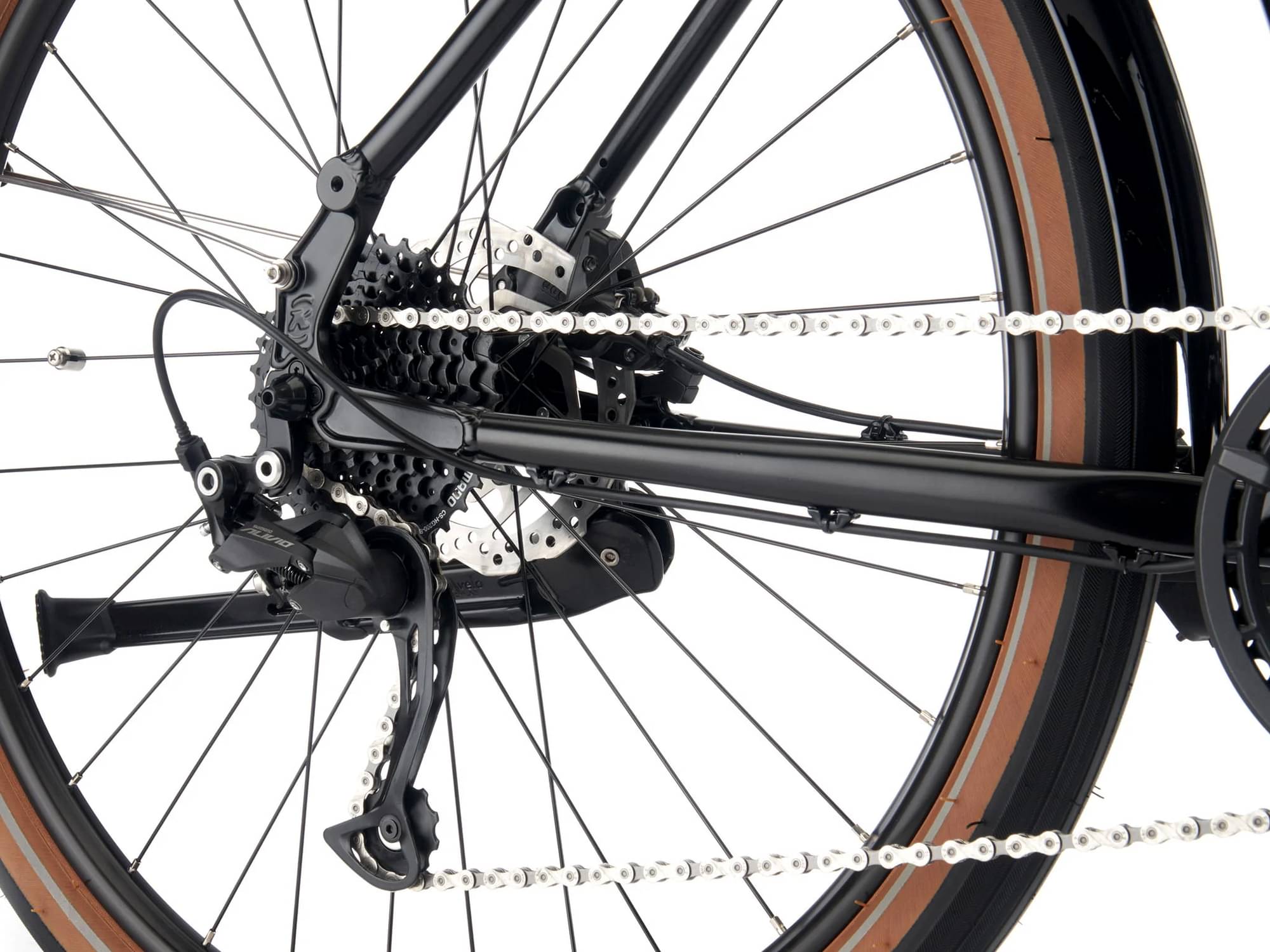

Rear Derailleur
Shimano Alivio
Front Derailleur
n/a

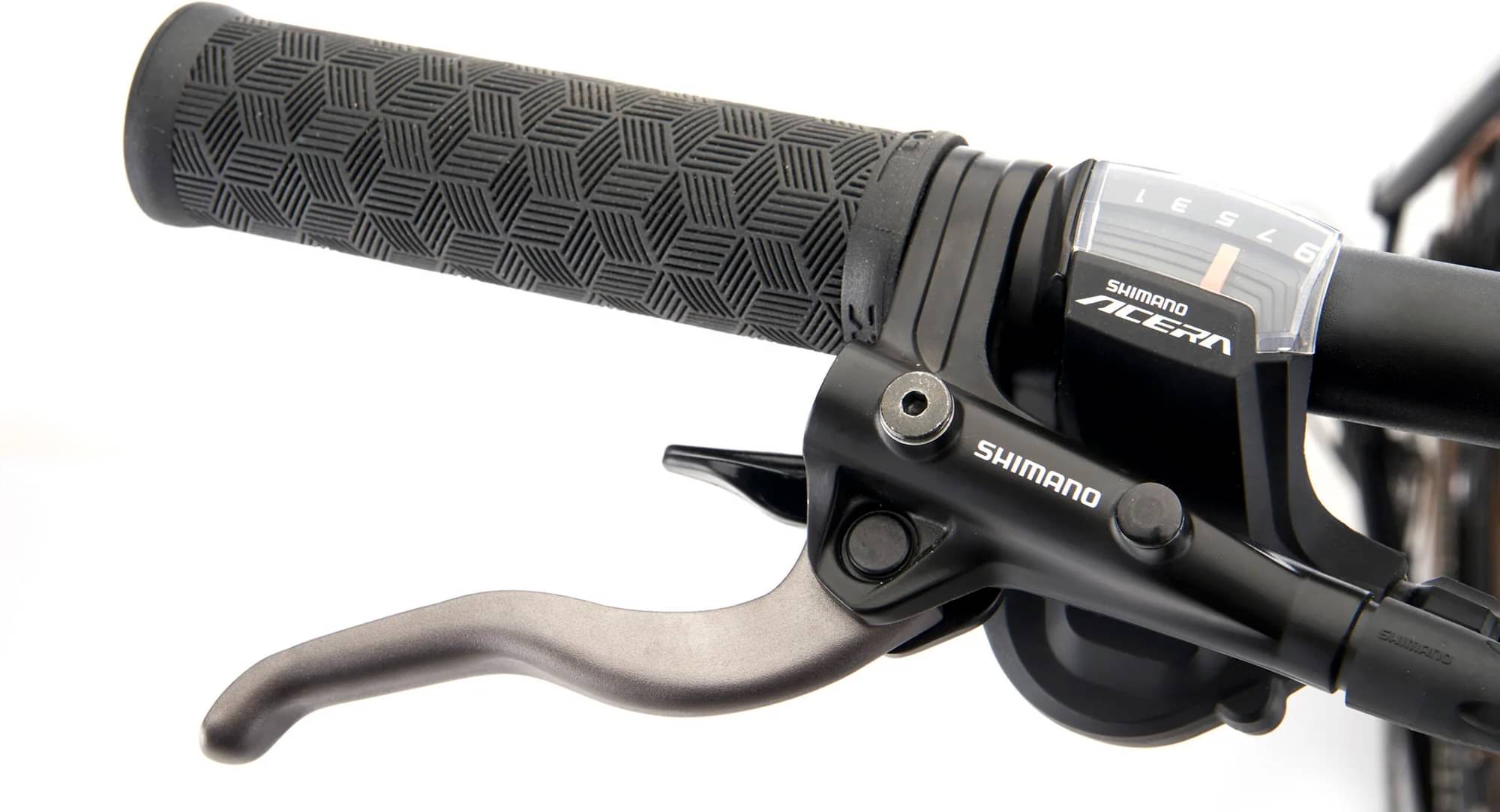

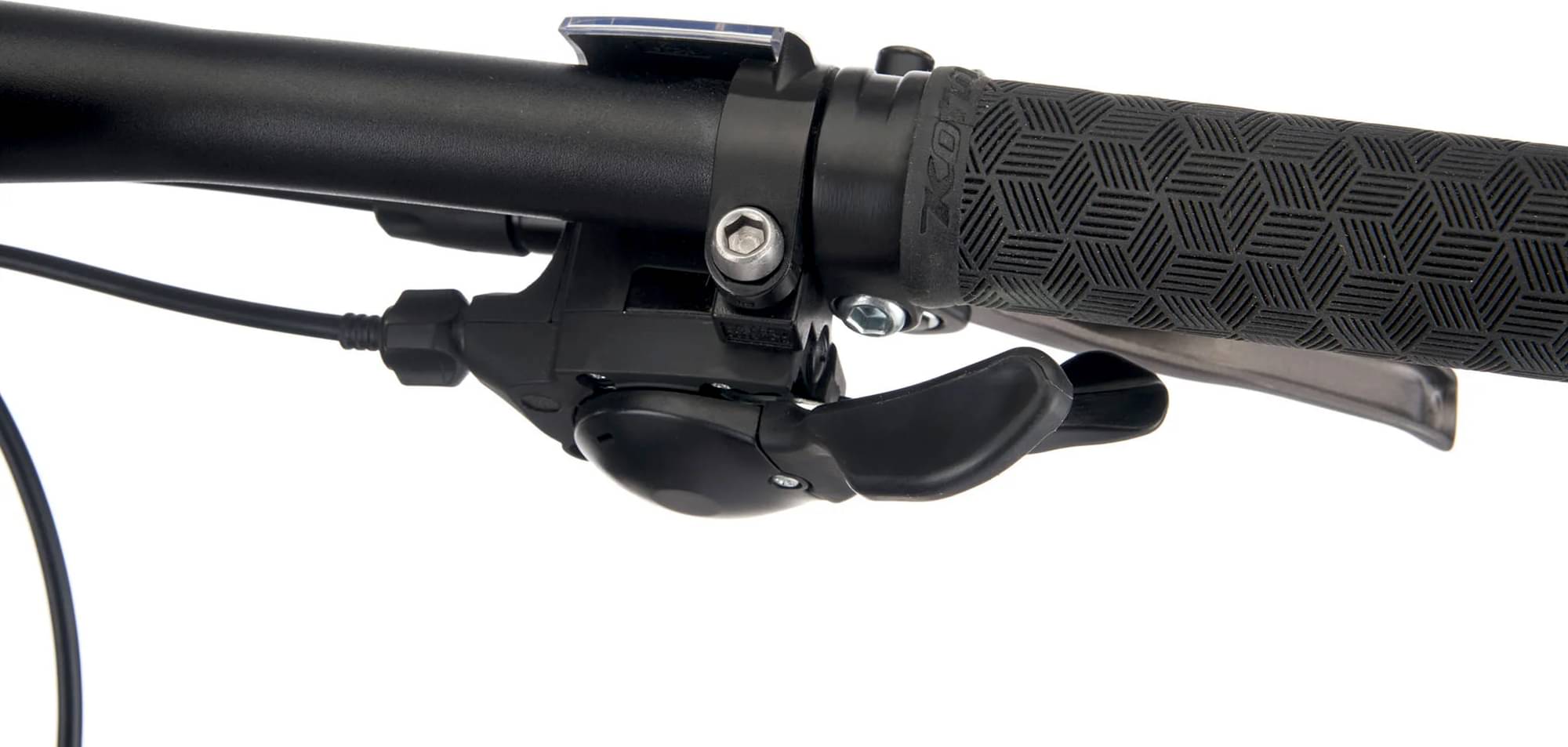

Shift Levers
Shimano Acera
Cassette
Shimano Alivio 11-34t 9spd

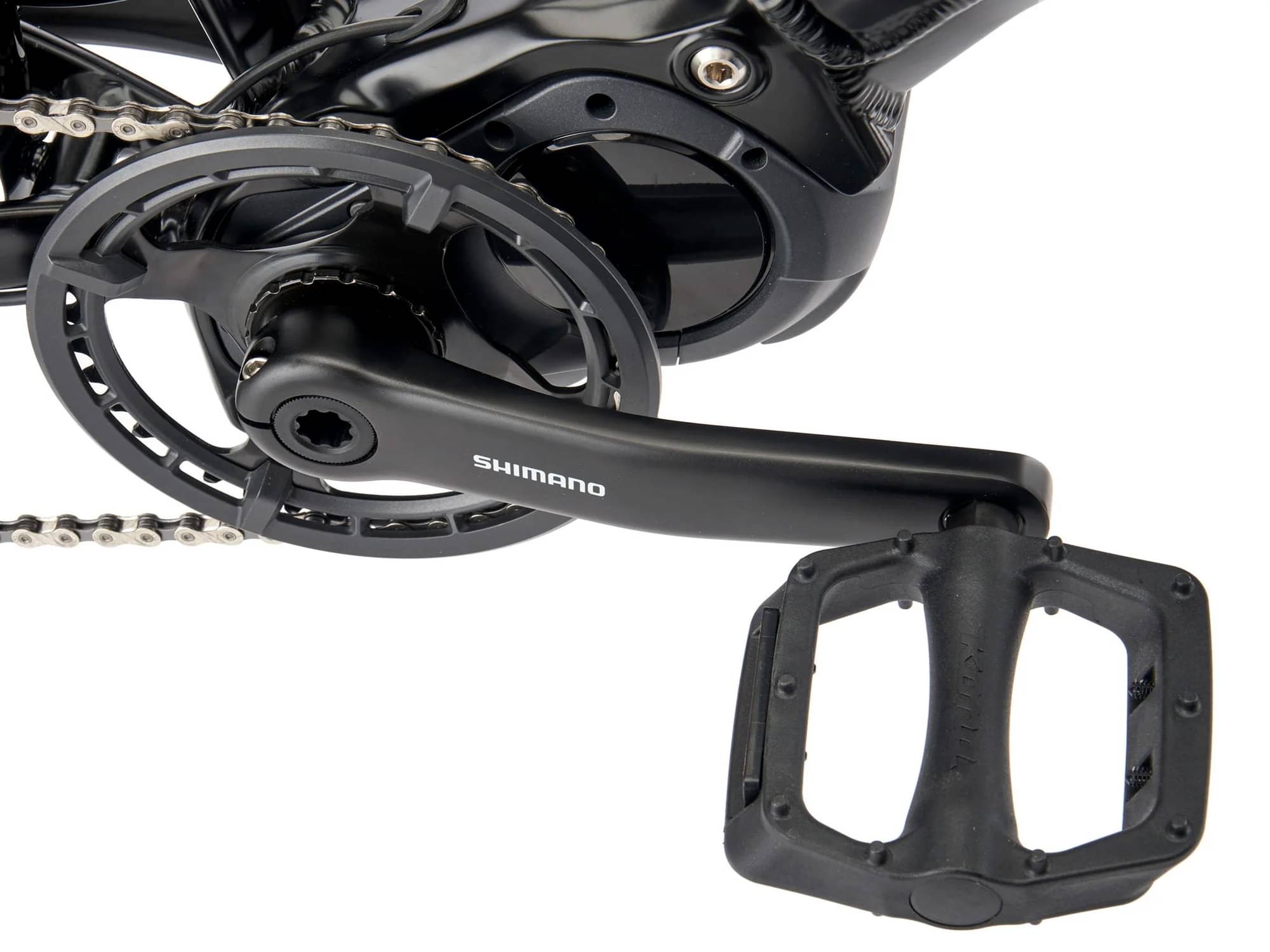

Crank
Shimano E6100, 38t
Bottom Bracket
n/a
Chain
KMC X9
Chain Guide
Shimano E-Bike Chain Guard
Pedals
Kona JS2
Wheels
Front Hub
Shimano Alivio 100x9mm
Rear Hub
Shimano Alivio 135x10mm
Rims
WTB SX19
Spokes
Stainless 14g
Tires
Front: WTB Horizon Comp Puncture Protect 650x47c, Rear: WTB Horizon Comp Puncture Protect 650x47c
Brakes

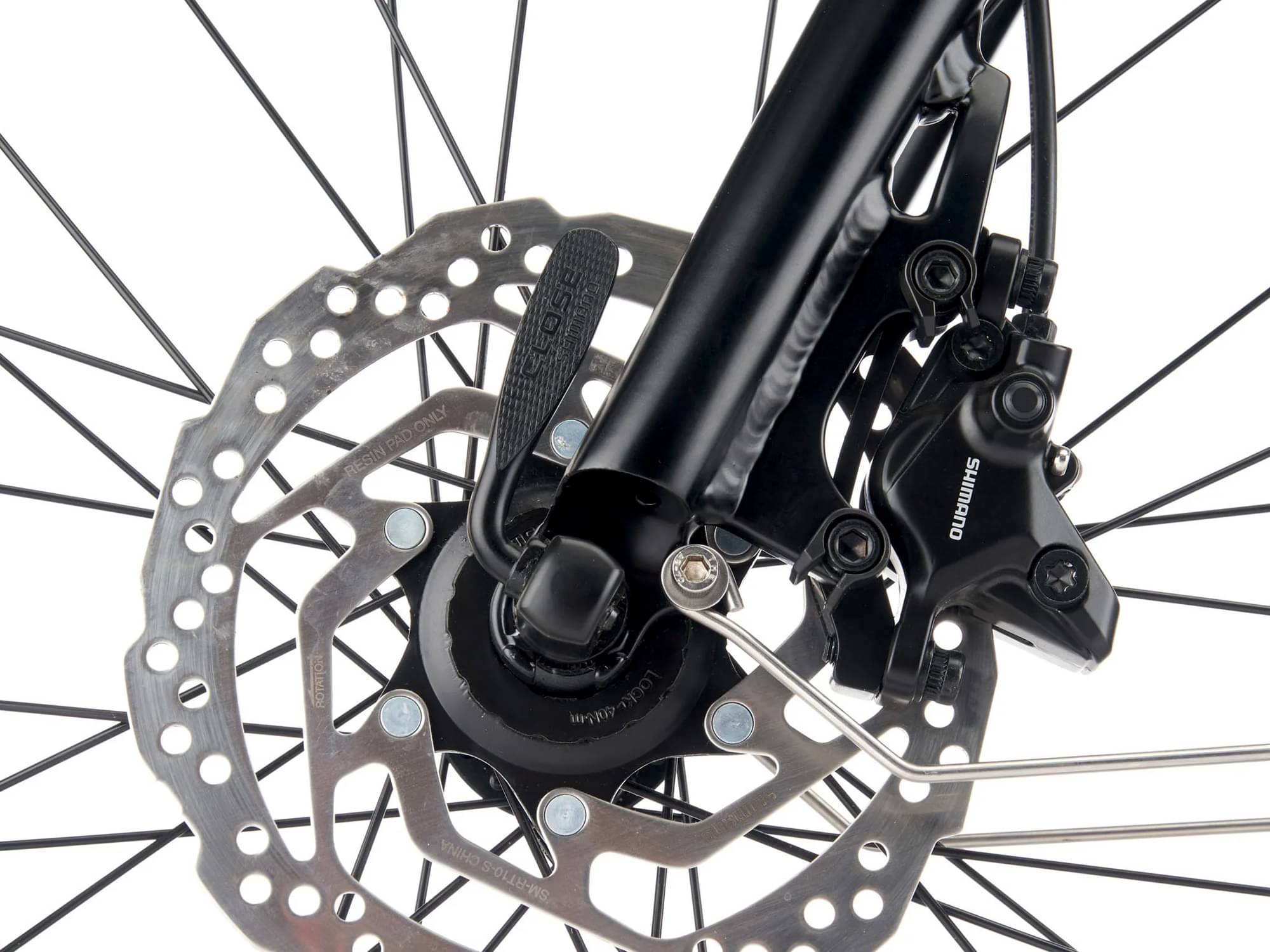

Brakes
Shimano MT410
Brake Levers
Shimano MT401

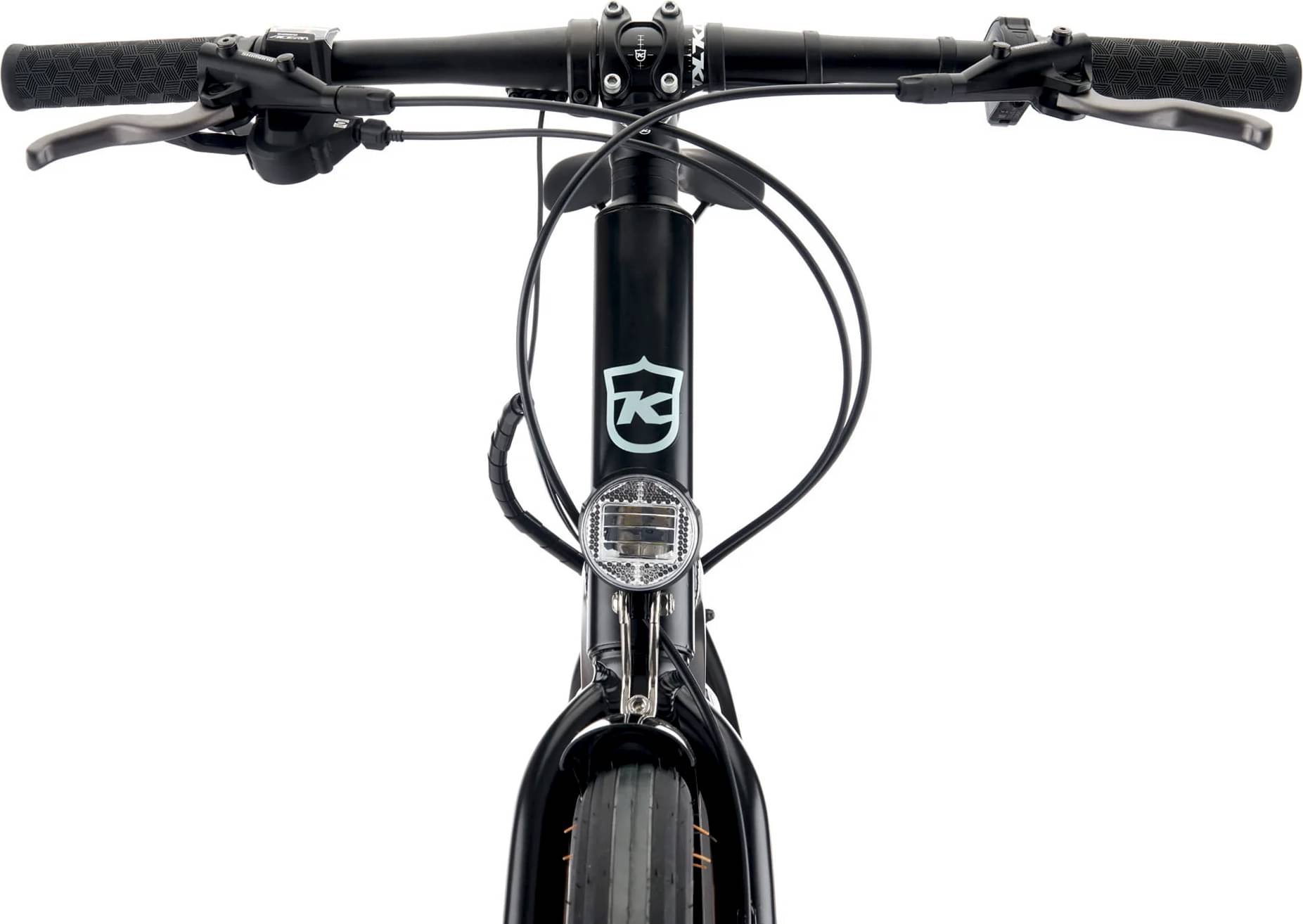

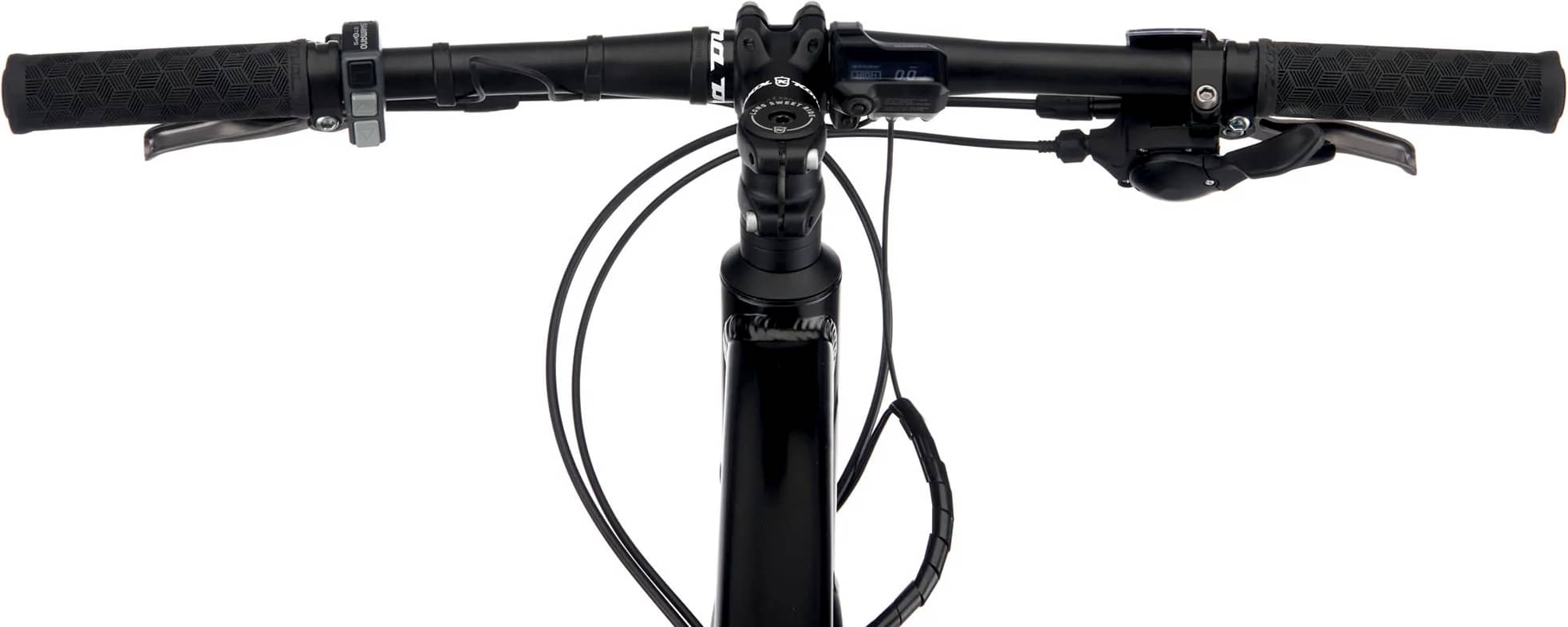

Cockpit
Stem
Kona Control
Handlebar
Kona Aluminum Riser
Grips
Kona Key Grip Slip on
Headset
Feimin H863
Seat
Saddle
Kona Comfort
Seatpost
Kona Commuter 31.6mm
Motor & Battery

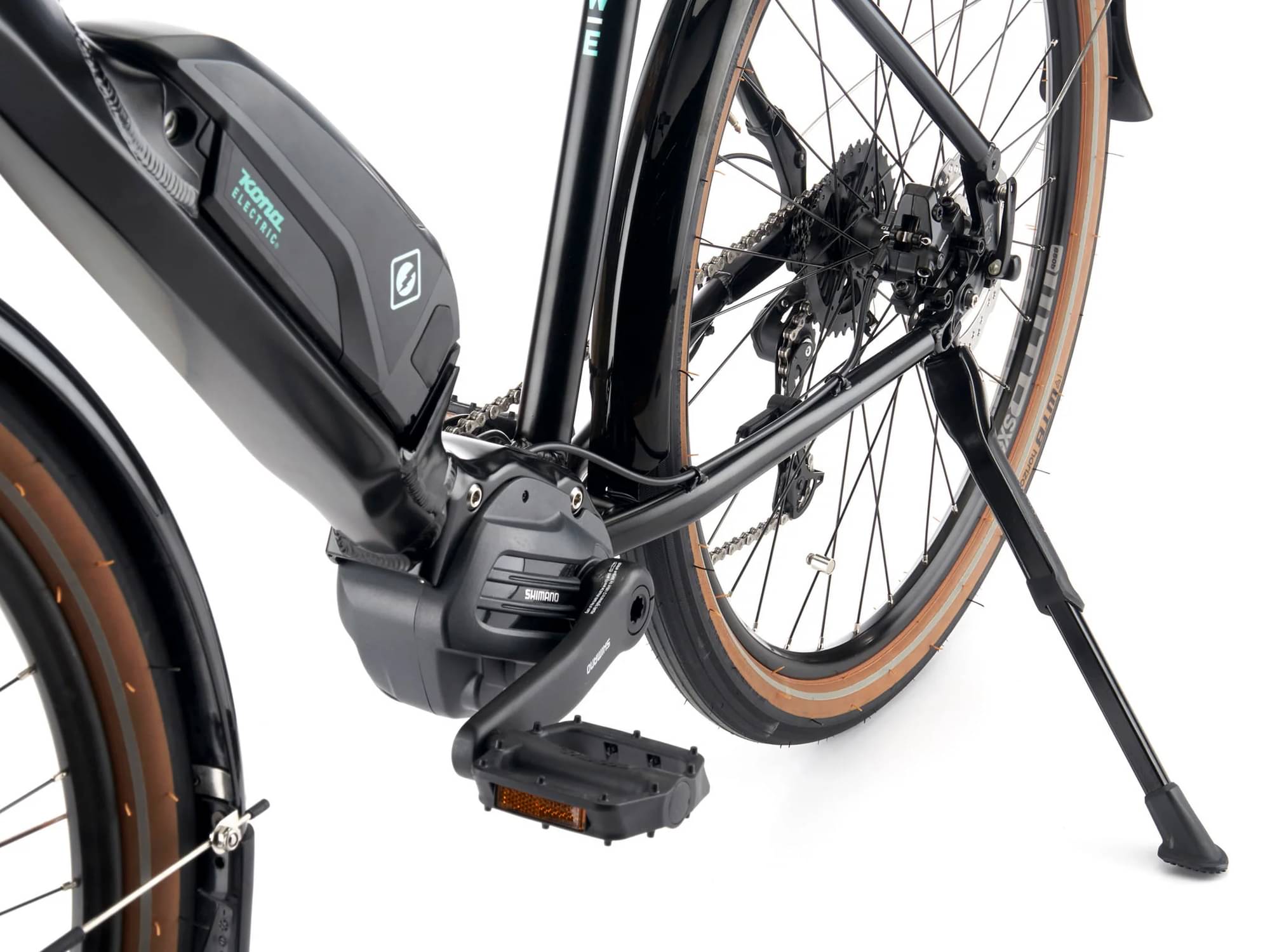

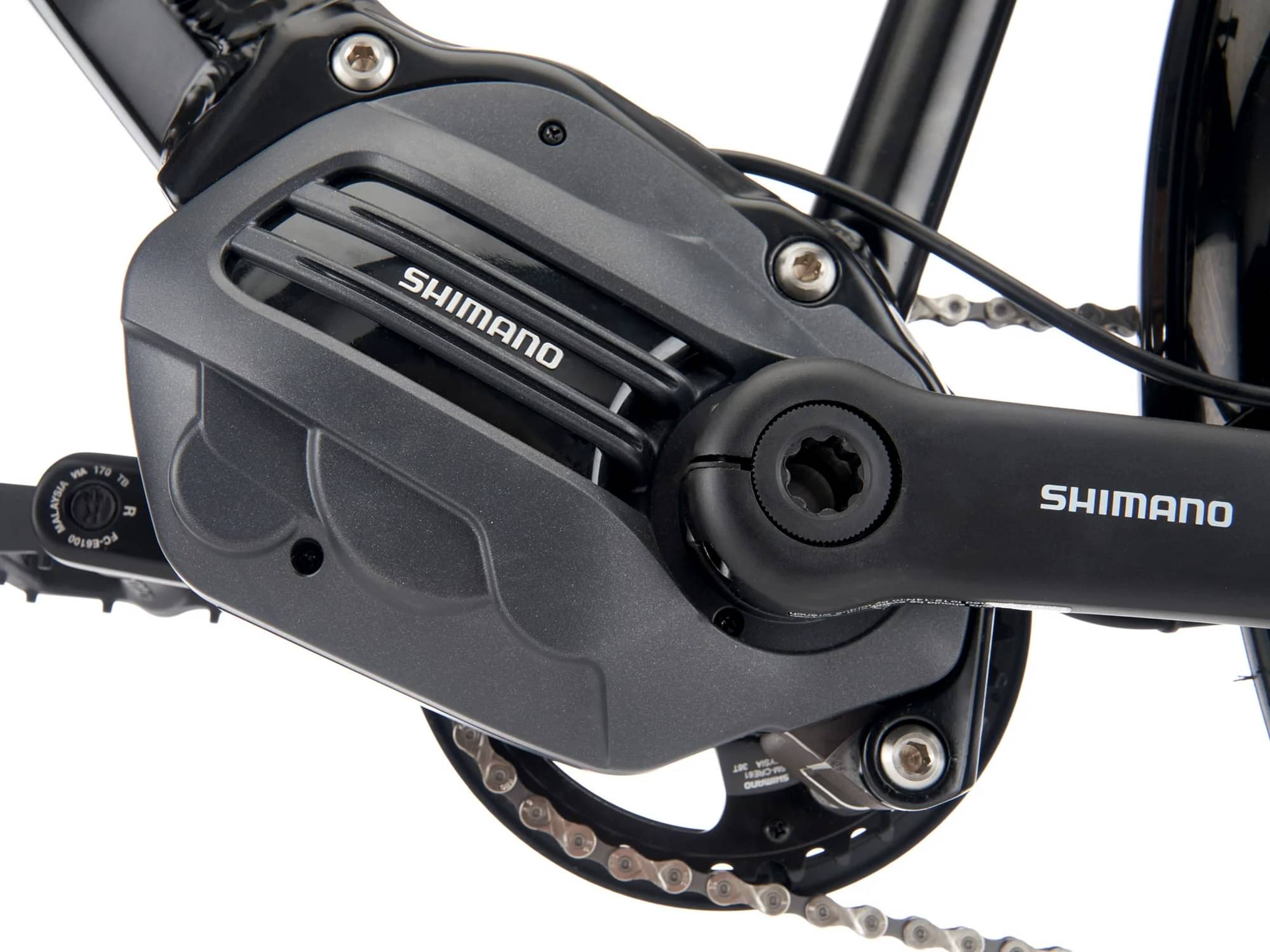

Motor
Shimano E6100 20MPH

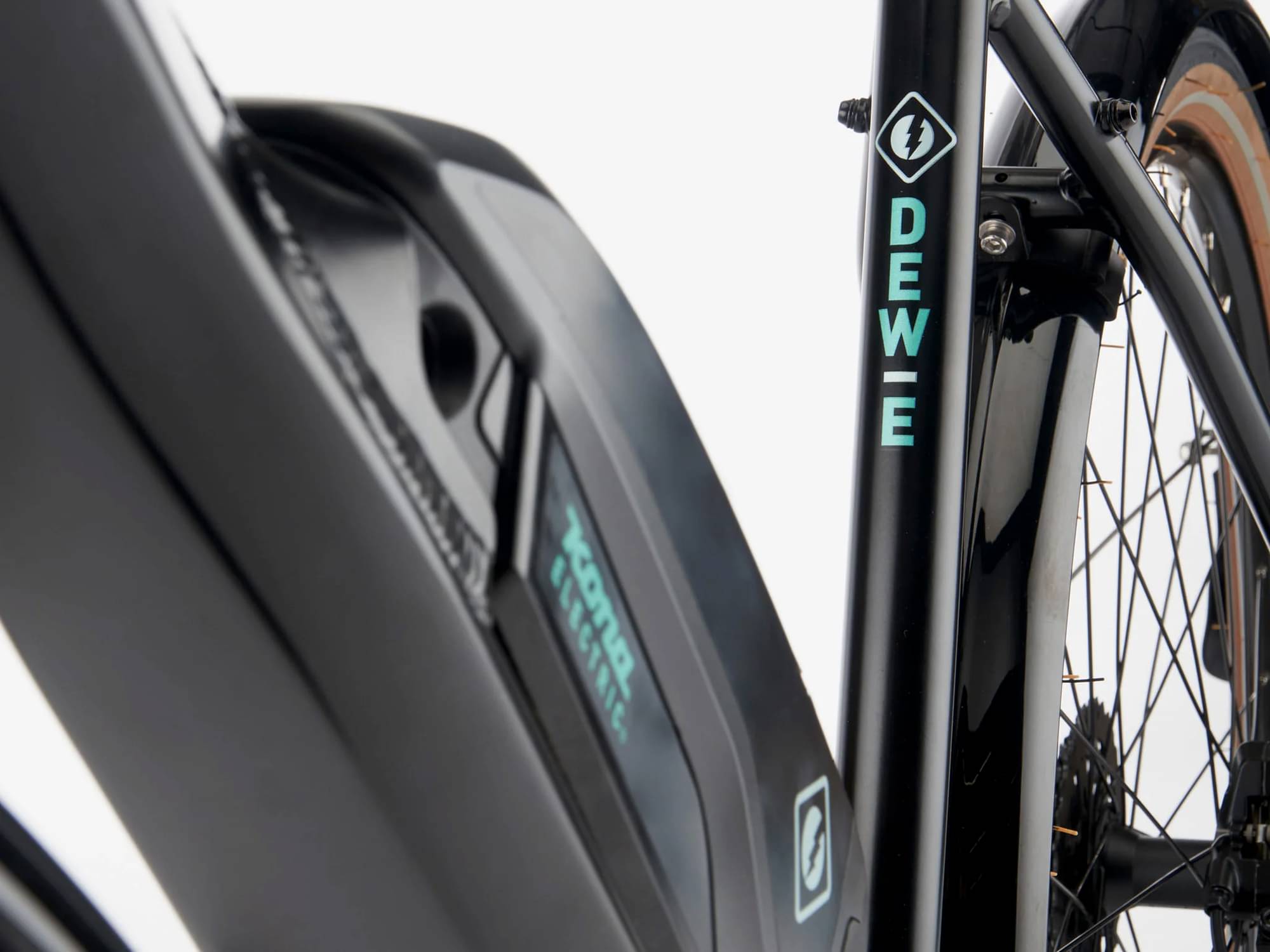

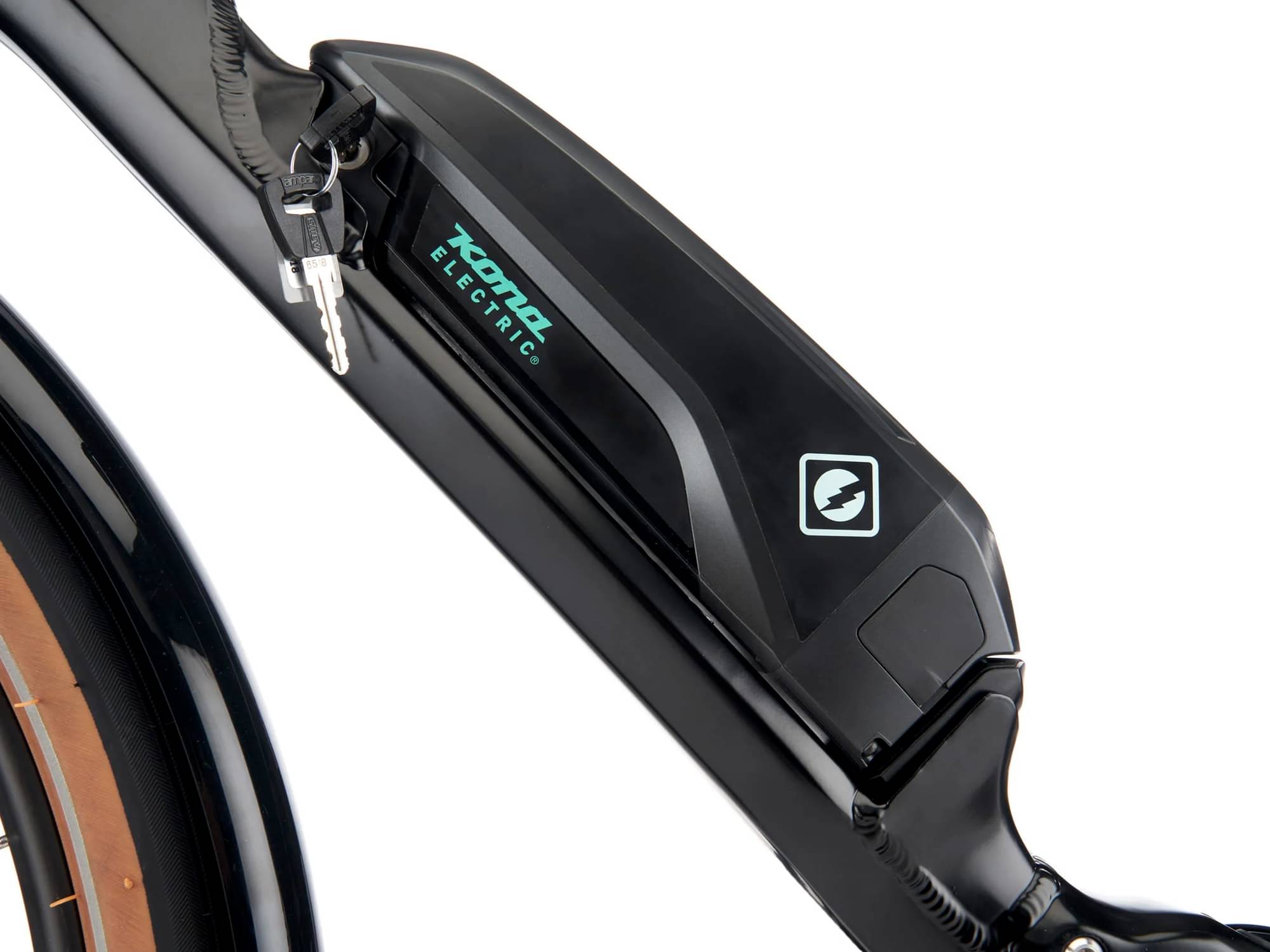

Battery
Shimano 504Wh
Charger
Shimano STEPS 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.402 mm | 1.409 mm | 1.444 mm | 1.443 mm |
| Bottom Bracket Height | 282 mm | 282 mm | 282 mm | 282 mm |
| Front Center | 635 mm | 674 mm | 704 mm | 743 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 67 mm | 67 mm | 67 mm | 67 mm |
| Stack | 558 mm | 596 mm | 634 mm | 671 mm |
| Reach | 398 mm | 423 mm | 439 mm | 465 mm |
| Top Tube Length | 548 mm | 594 mm | 633 mm | 683 mm |
| Seat Tube Angle | 75 ° | 74 ° | 73 ° | 72 ° |
| Seat Tube Length | 420 mm | 470 mm | 520 mm | 580 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 135 mm | 175 mm | 215 mm | 255 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm | 460 mm |
| Wheelbase | 1089 mm | 1127 mm | 1157 mm | 1197 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 692 mm | 736 mm | 782 mm | 832 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
