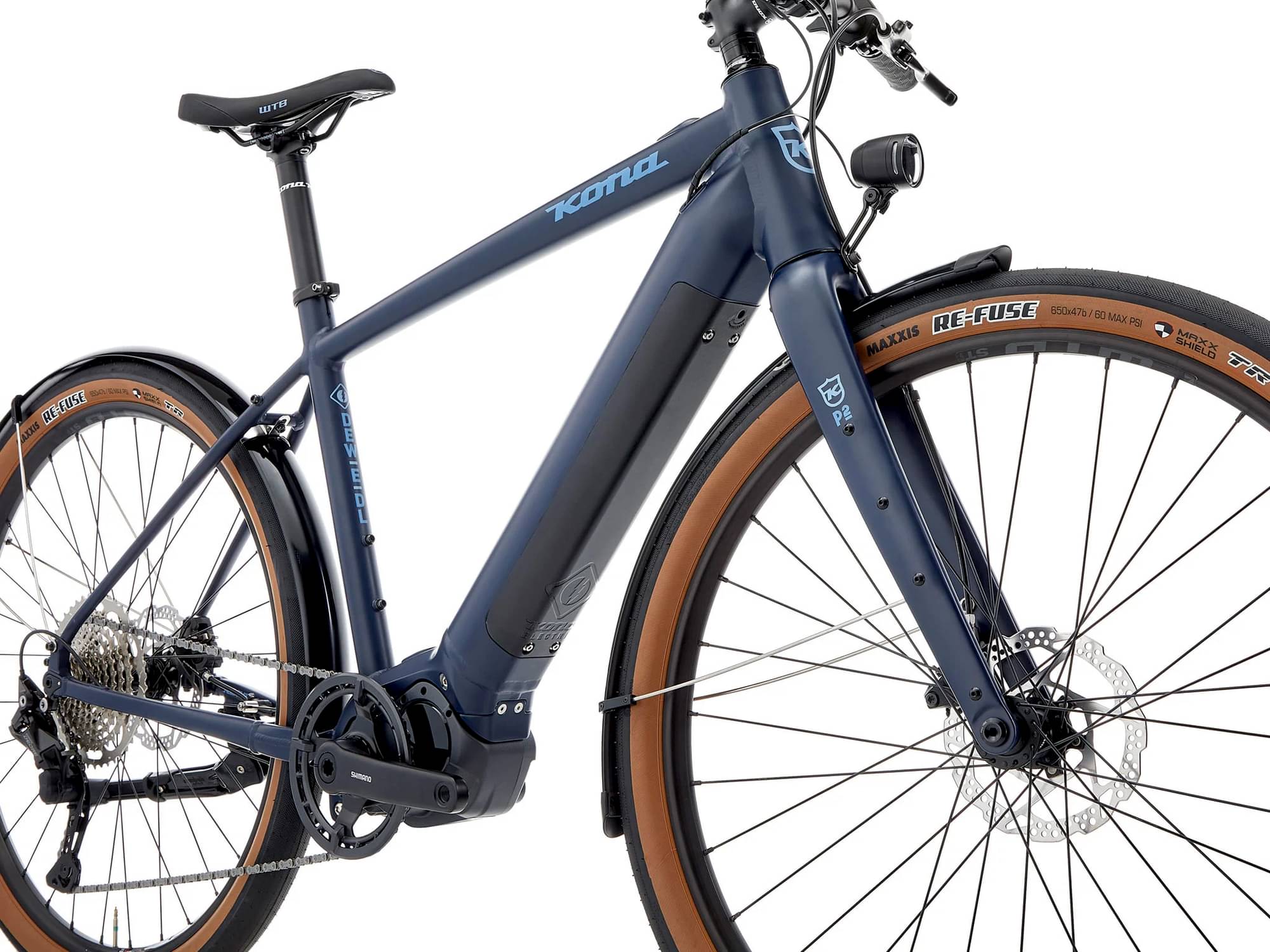

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Deore -
Suspension Rigid -
Motor Shimano 250W 60Nm mid-drive -

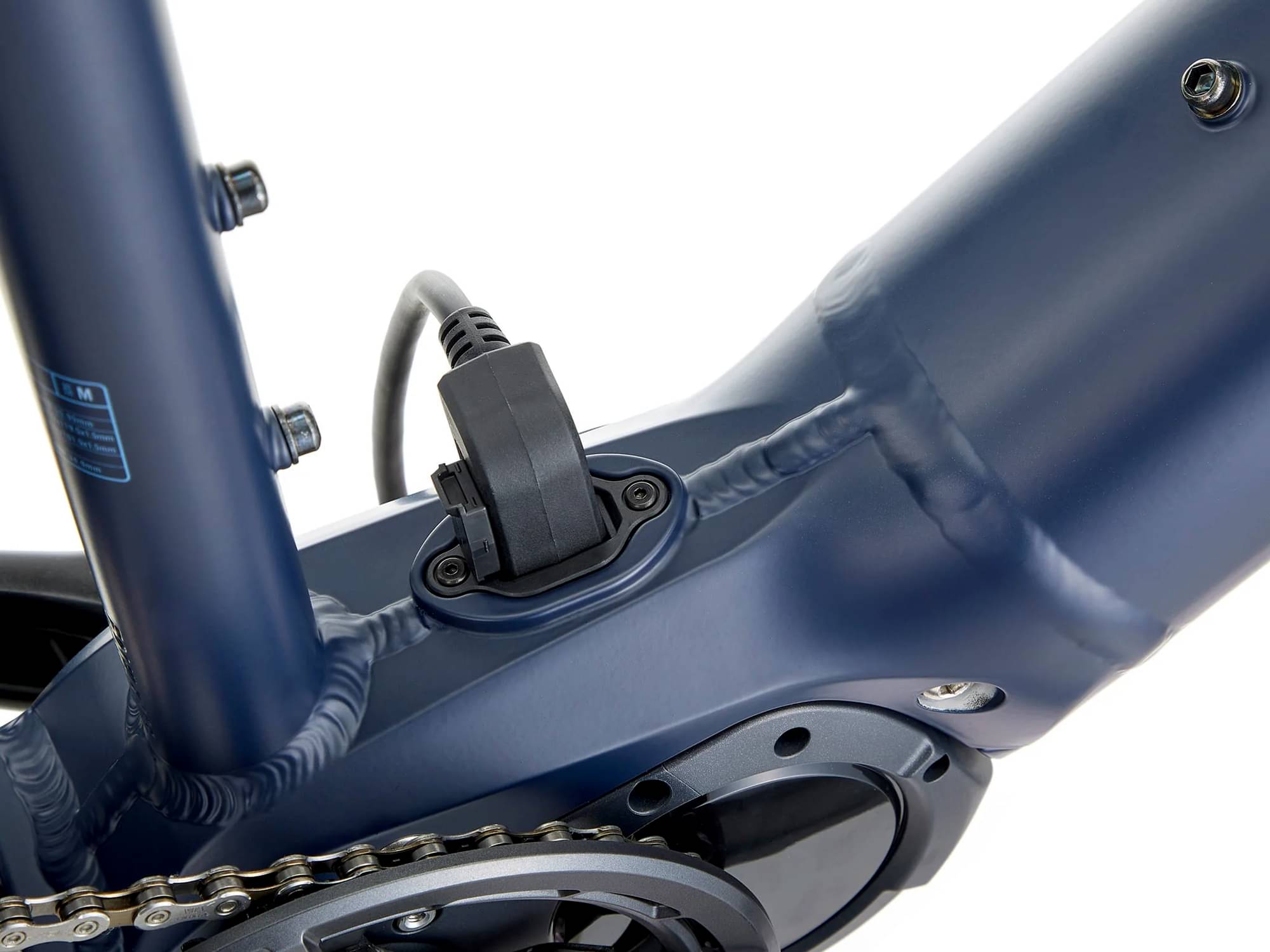

Battery Shimano 504Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components

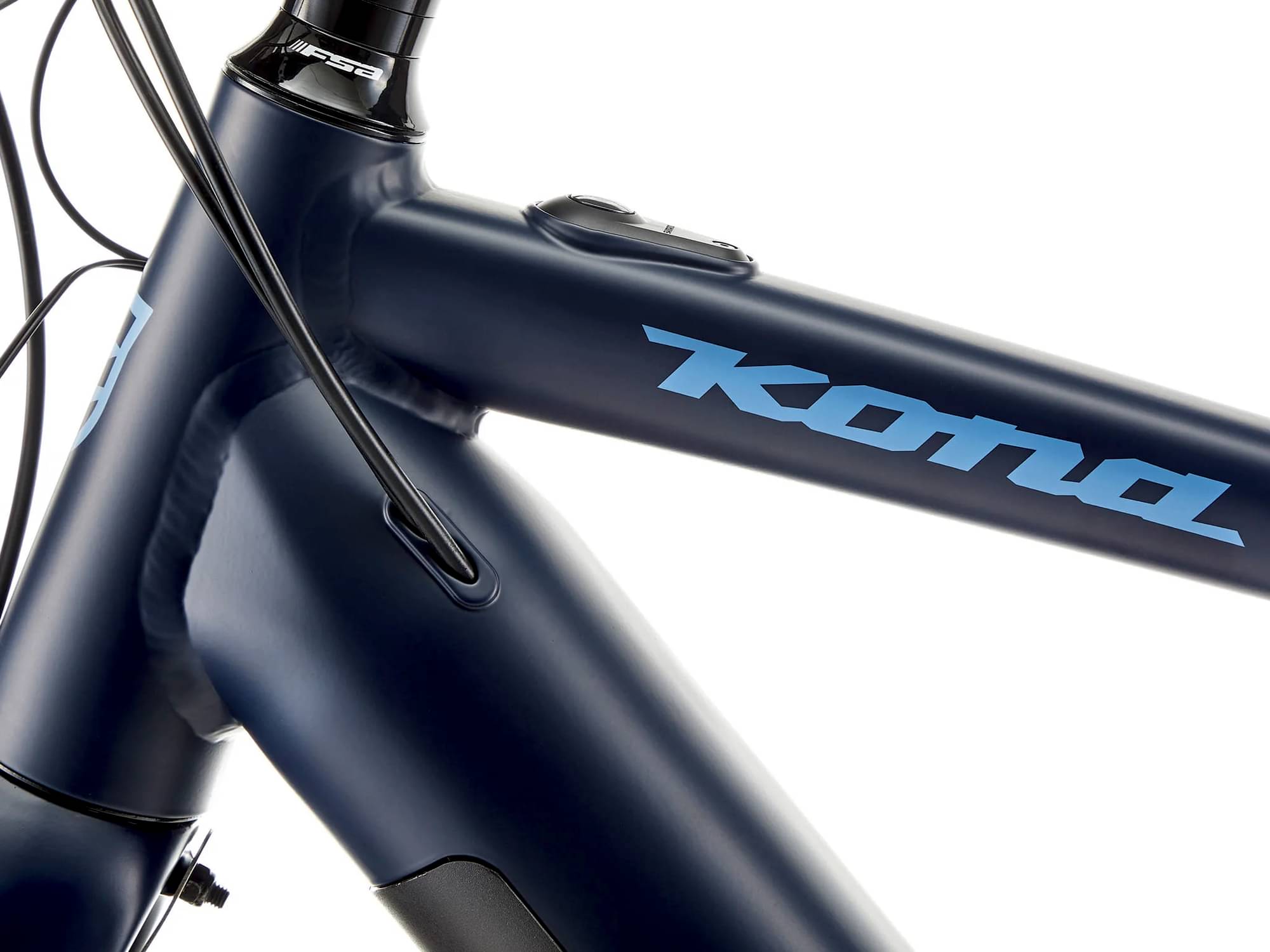

Frame
Frame

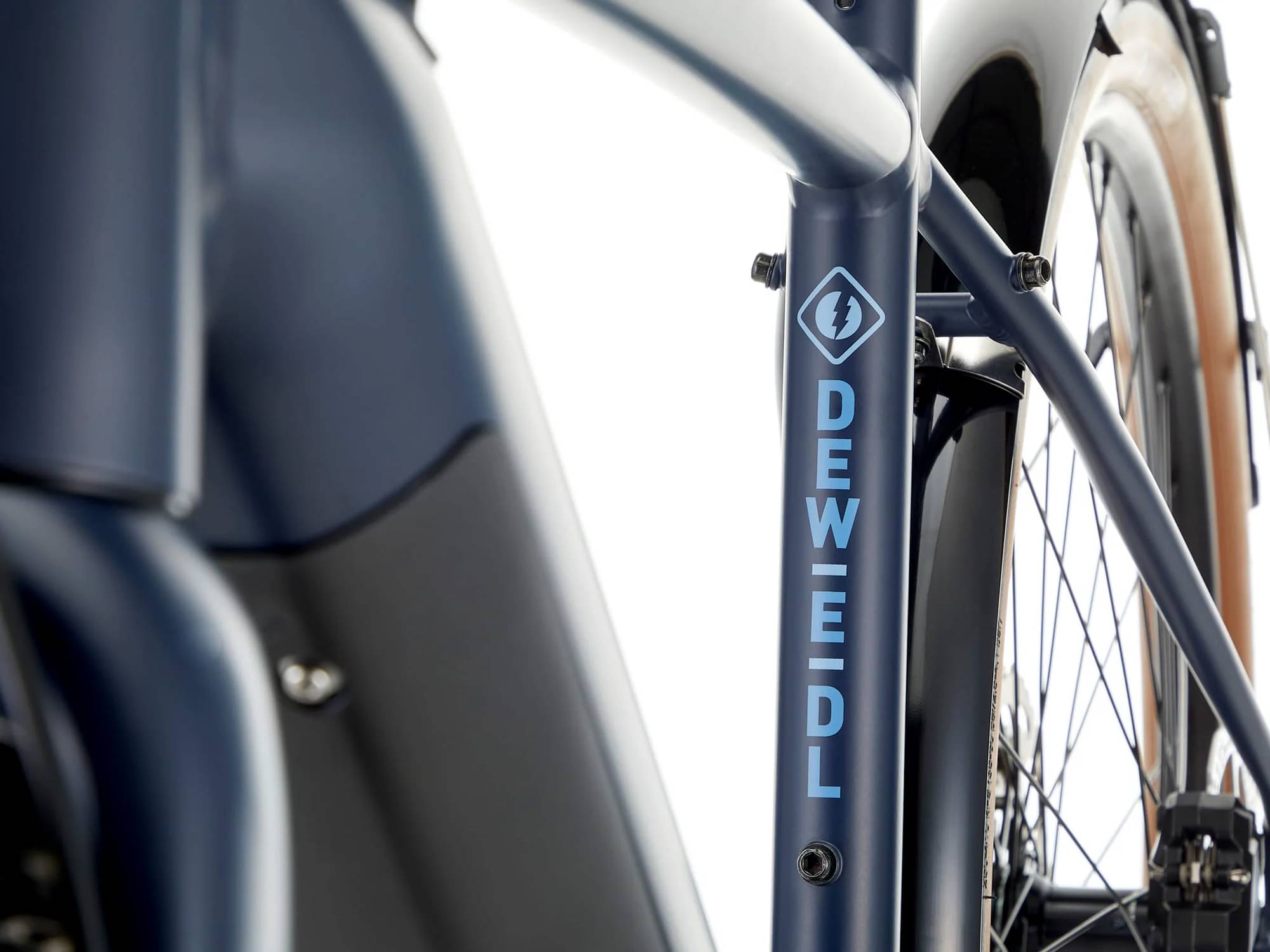

Kona 6061 Aluminum Butted
Suspension Fork
Kona Rove Verso Full Carbon Flat Mount Disc
Rear Shock
n/a
Drivetrain
Rear Derailleur
Shimano Deore
Front Derailleur
n/a
Shift Levers
Shimano Deore
Cassette
Shimano Deore 11-46t 10spd
Crank
Shimano E6100, 38t
Bottom Bracket
n/a
Chain
Shimano HG54
Chain Guide
n/a
Pedals
n/a
Wheels
Front Hub
Shimano Tiagra 100x12mm
Rear Hub
Shimano Tiagra 142x12mm
Rims
WTB ST i23 TCS 2.0
Spokes
Stainless 14g
Tires
Front: WTB Horizon TCS w/ Puncture Protection 650x47c, Rear: WTB Horizon TCS w/ Puncture Protection 650x47c
Brakes
Brakes

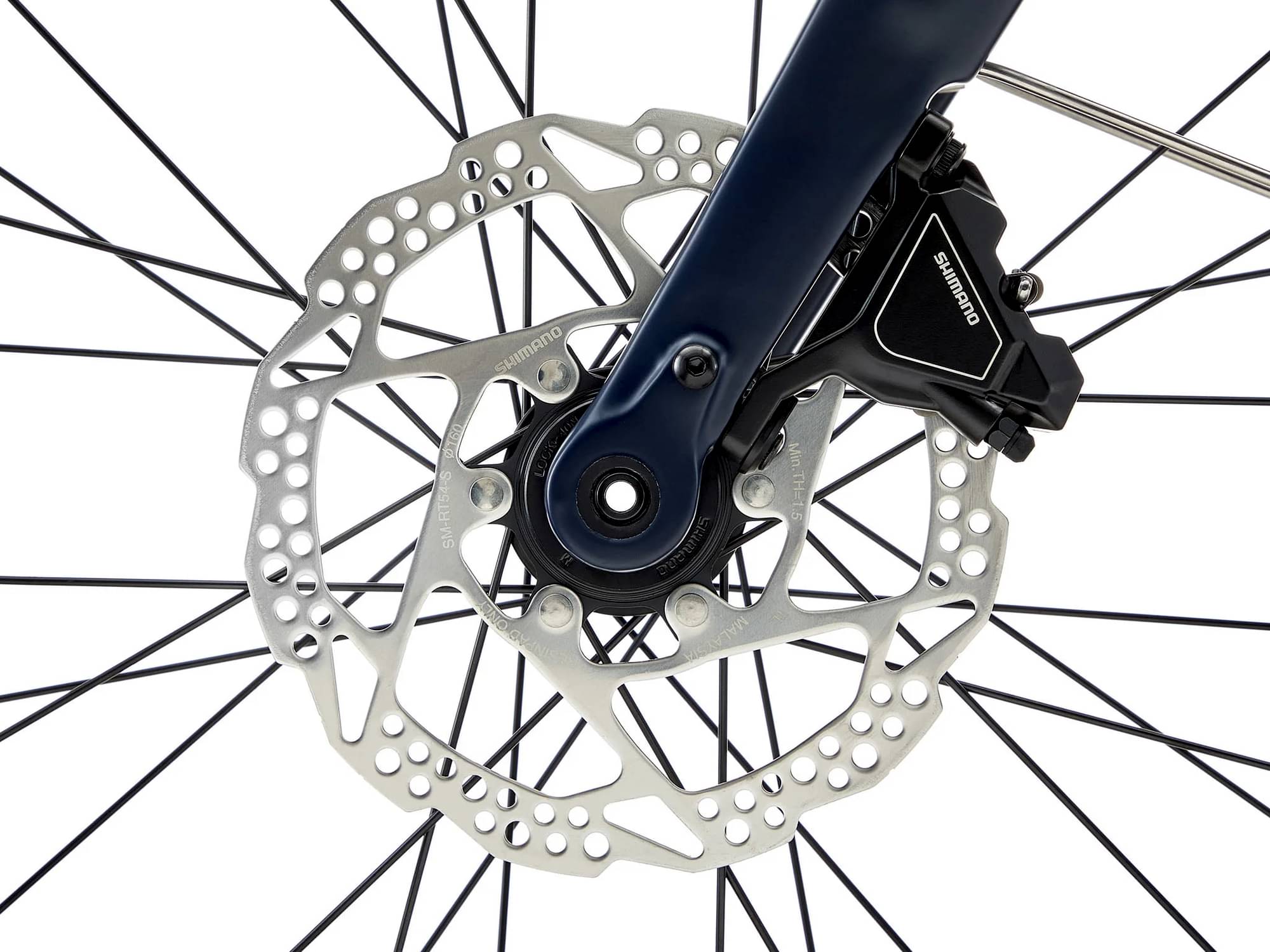

Shimano Hydraulic
Brake Levers
Shimano MT201 Hydraulic

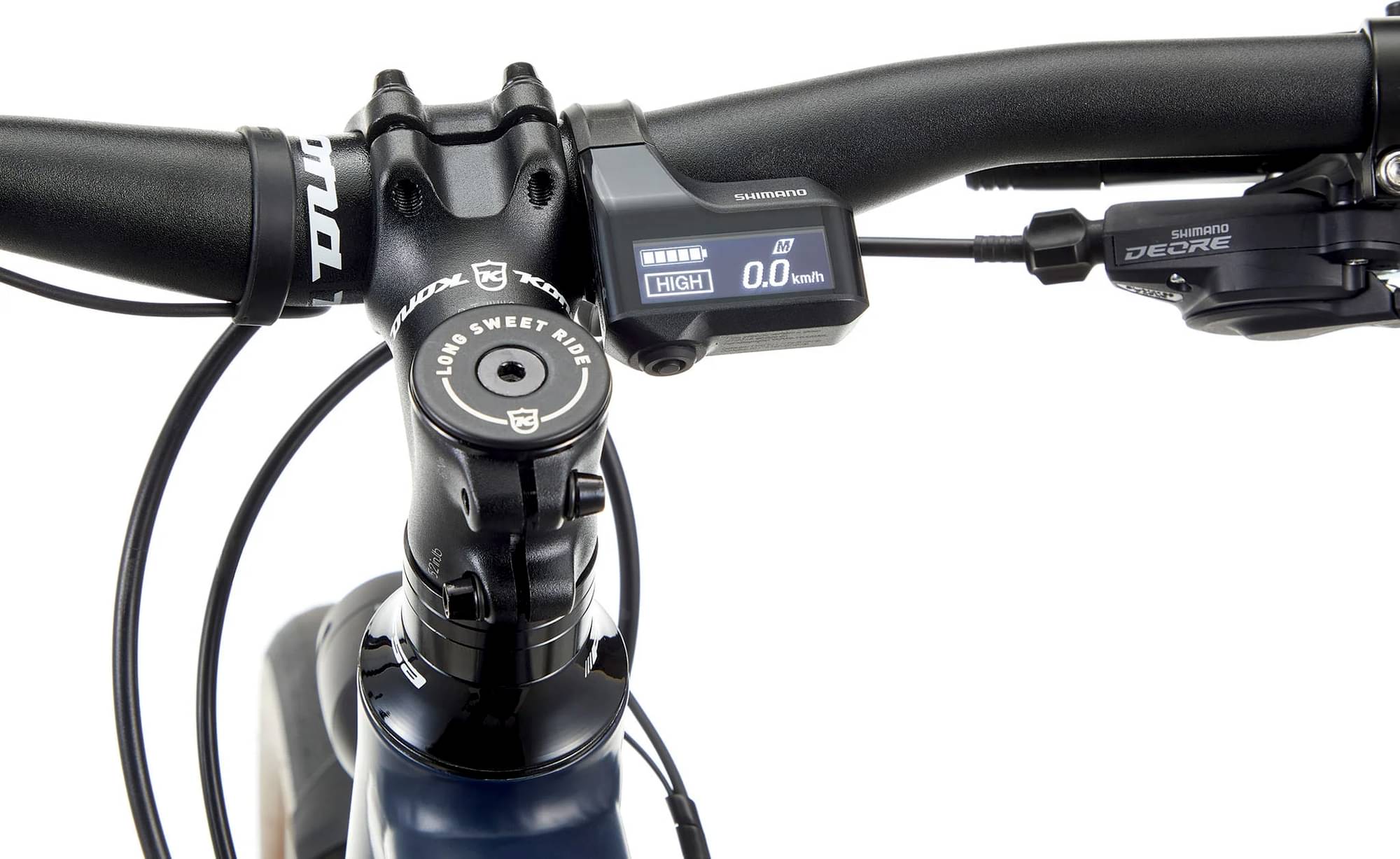

Cockpit
Stem
Kona Control
Handlebar
Kona Aluminum Riser
Grips
Kona Key Grip
Headset
FSA No.57BP
Seat
Saddle
WTB Volt
Seatpost
Kona Commuter 31.6mm
Motor & Battery

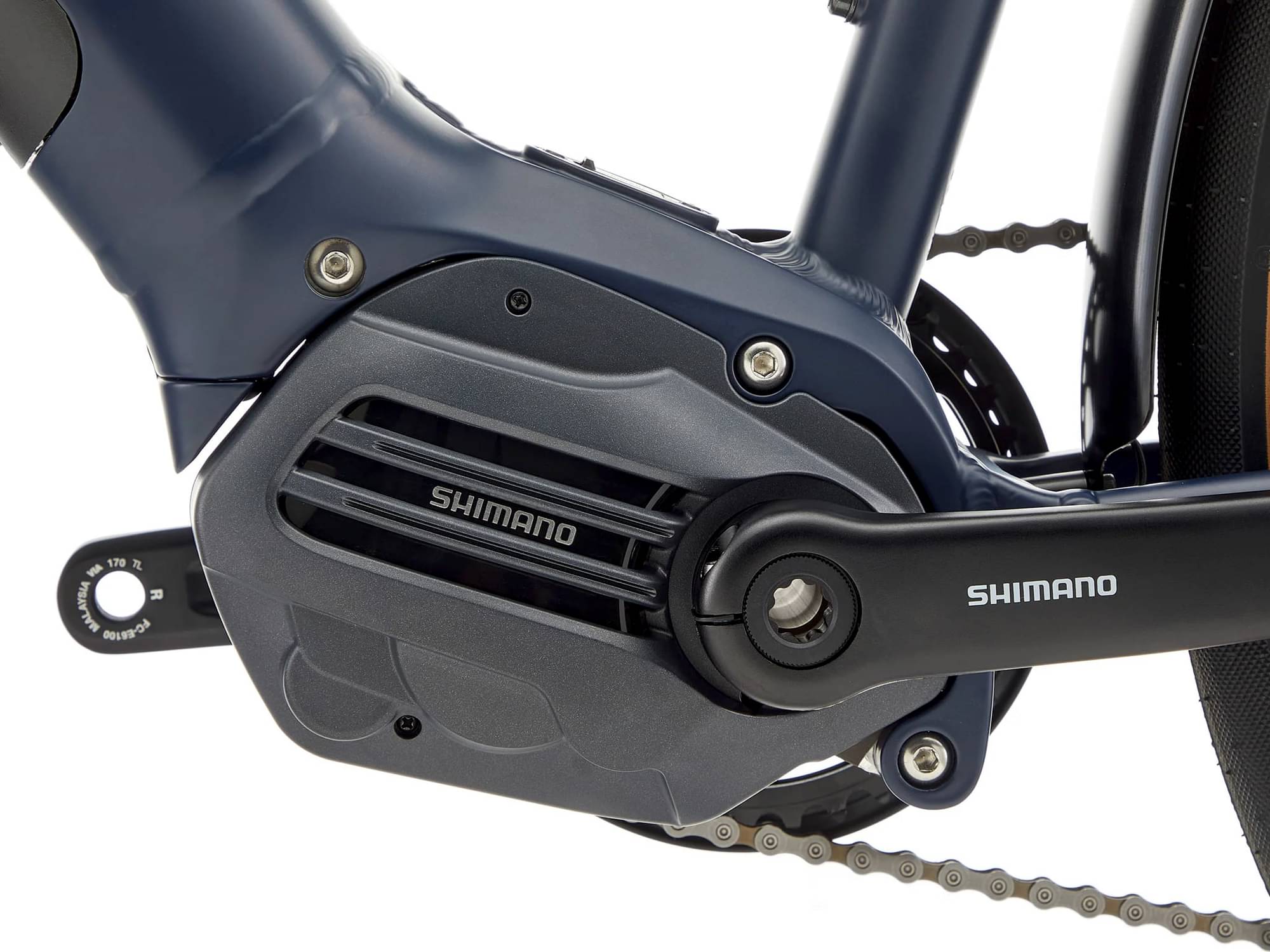

Motor
Shimano E6100 20MPH

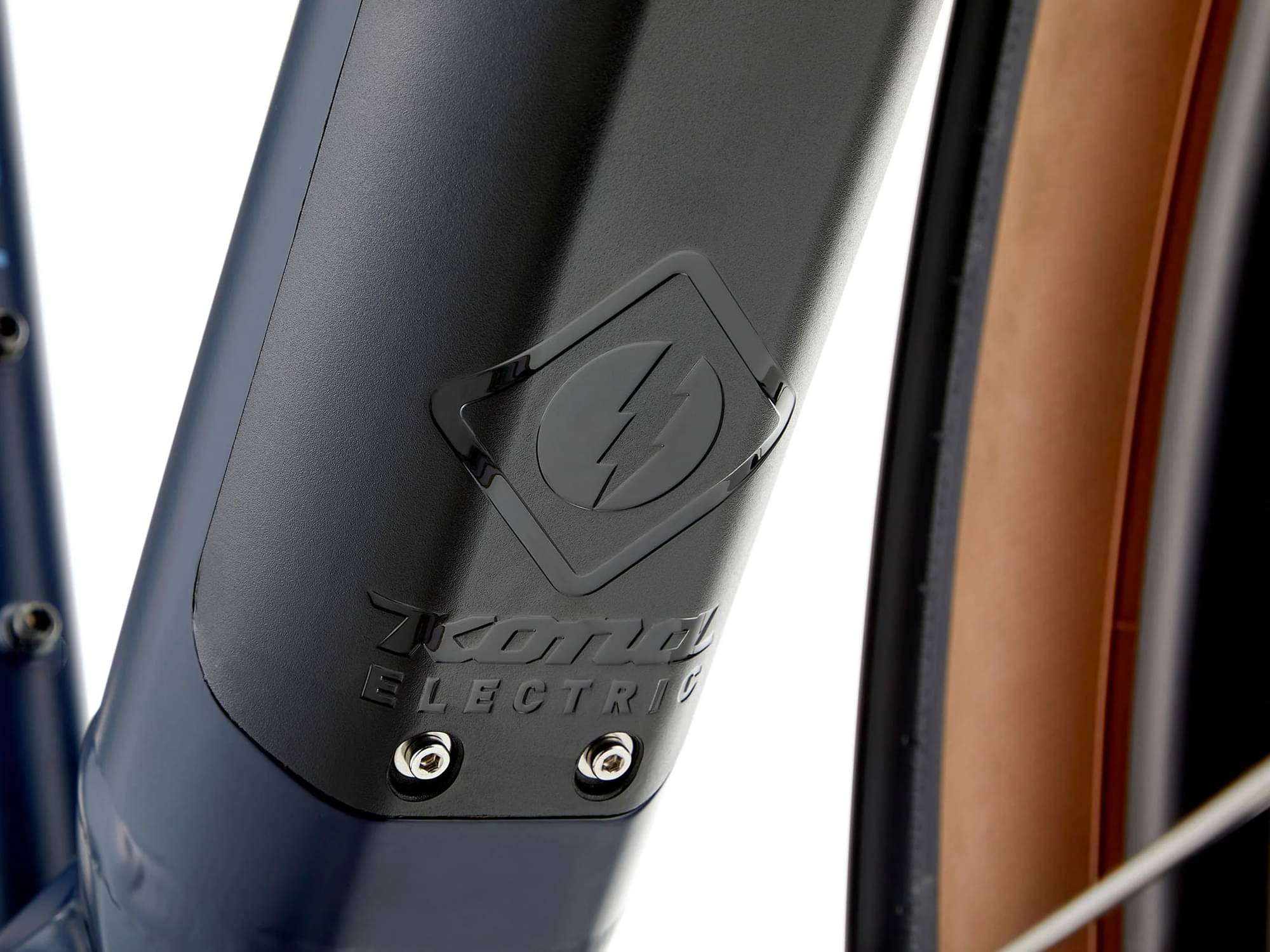

Battery
Shimano 504Wh
Charger
Shimano STEPS 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.356 mm | 1.347 mm | 1.383 mm | 1.35 mm |
| Bottom Bracket Height | 282 mm | 282 mm | 282 mm | 282 mm |
| Front Center | 638 mm | 675 mm | 705 mm | 736 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 67 mm | 67 mm | 67 mm | 67 mm |
| Stack | 548 mm | 579 mm | 617 mm | 636 mm |
| Reach | 404 mm | 430 mm | 446 mm | 471 mm |
| Top Tube Length | 551 mm | 596 mm | 635 mm | 678 mm |
| Seat Tube Angle | 75 ° | 74 ° | 73 ° | 72 ° |
| Seat Tube Length | 420 mm | 470 mm | 520 mm | 580 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 135 mm | 168 mm | 208 mm | 228 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1081 mm | 1118 mm | 1148 mm | 1180 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 700 | 741 mm | 786 mm | 830 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
