Bike details
Overview
Key information split into simple groups.

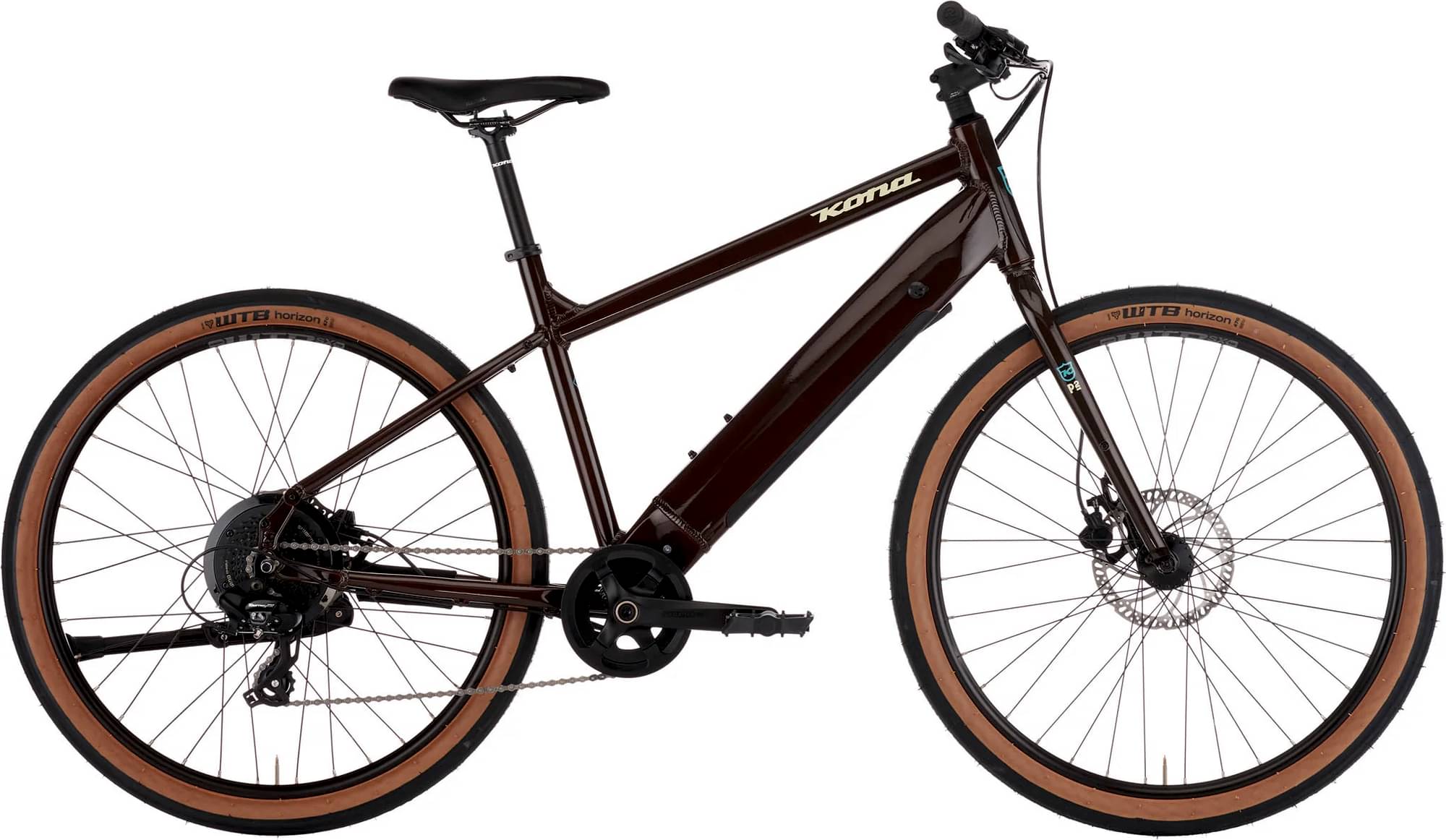

Bike summary
-
-
Frame Aluminum -
Groupset Tourney, Altus -
Suspension Rigid -
Motor hub-drive -
Battery Phylion 418Wh -
Drivetrain 1 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components

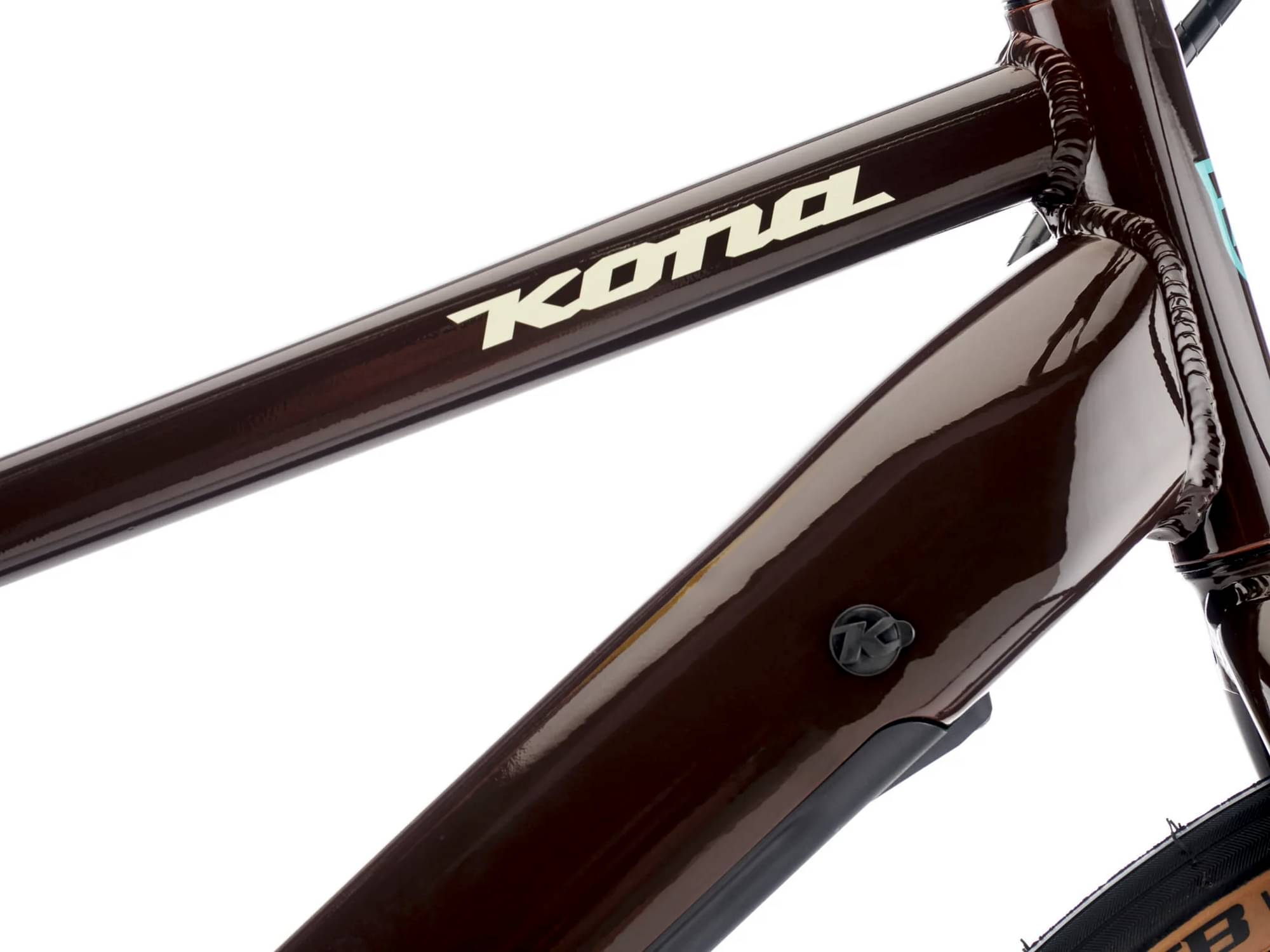

Frame

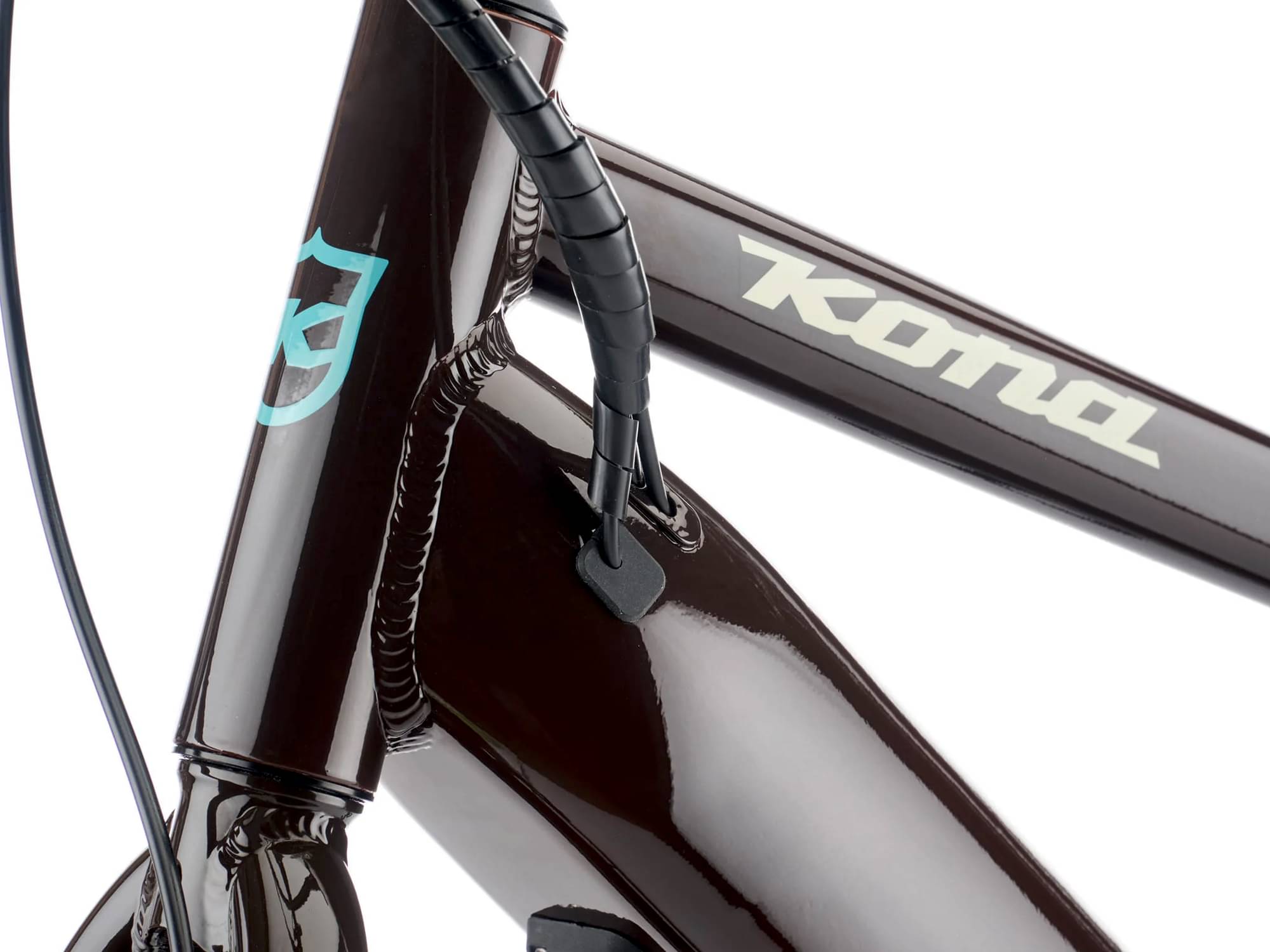

Frame
Kona 6061 Aluminum Butted
Suspension Fork
Kona Project Two Aluminum Disc
Rear Shock
n/a
Drivetrain
Rear Derailleur
Shimano TX
Front Derailleur
n/a
Shift Levers
Shimano Altus
Cassette
Shimano Altus 11-32t 8spd

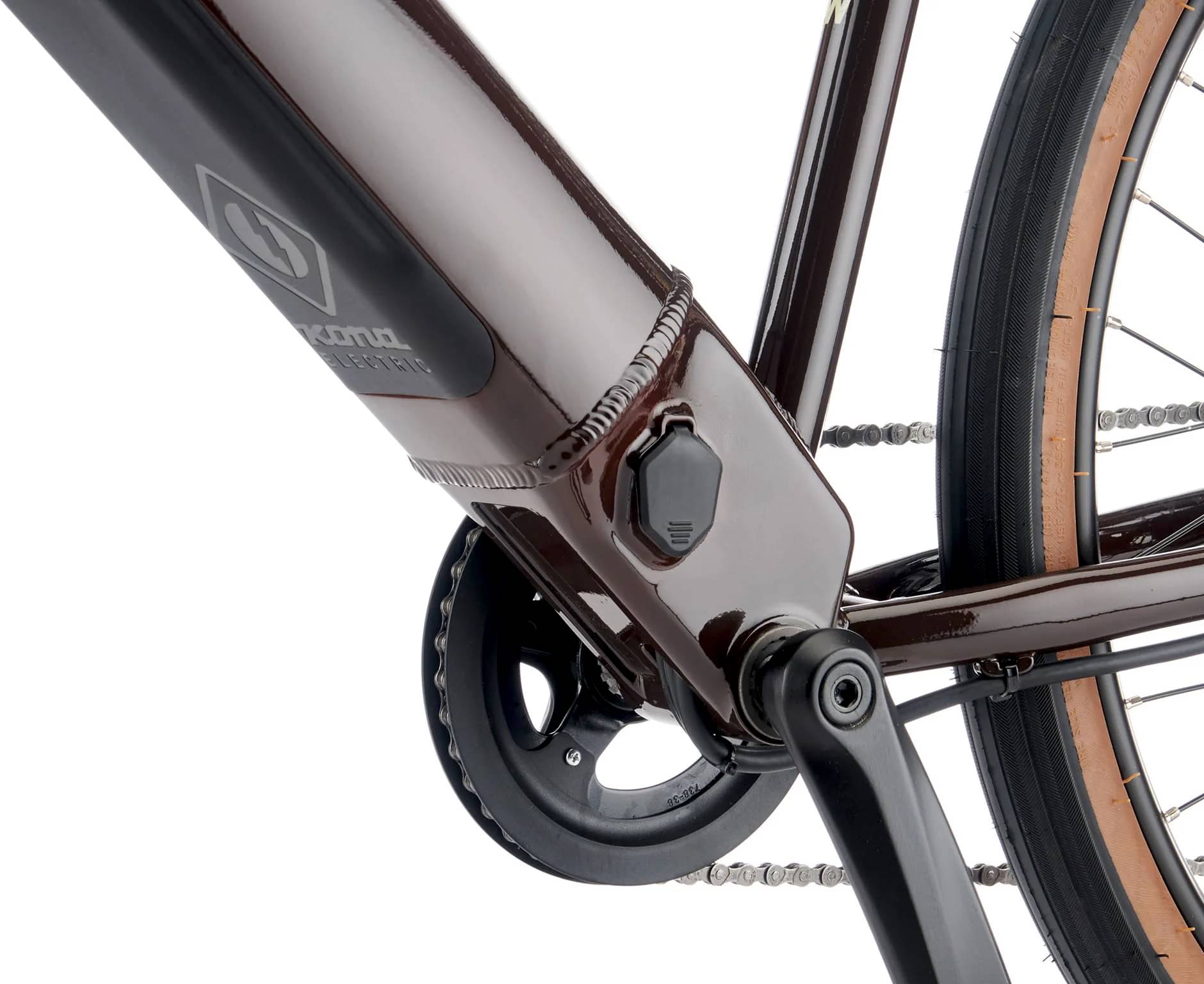

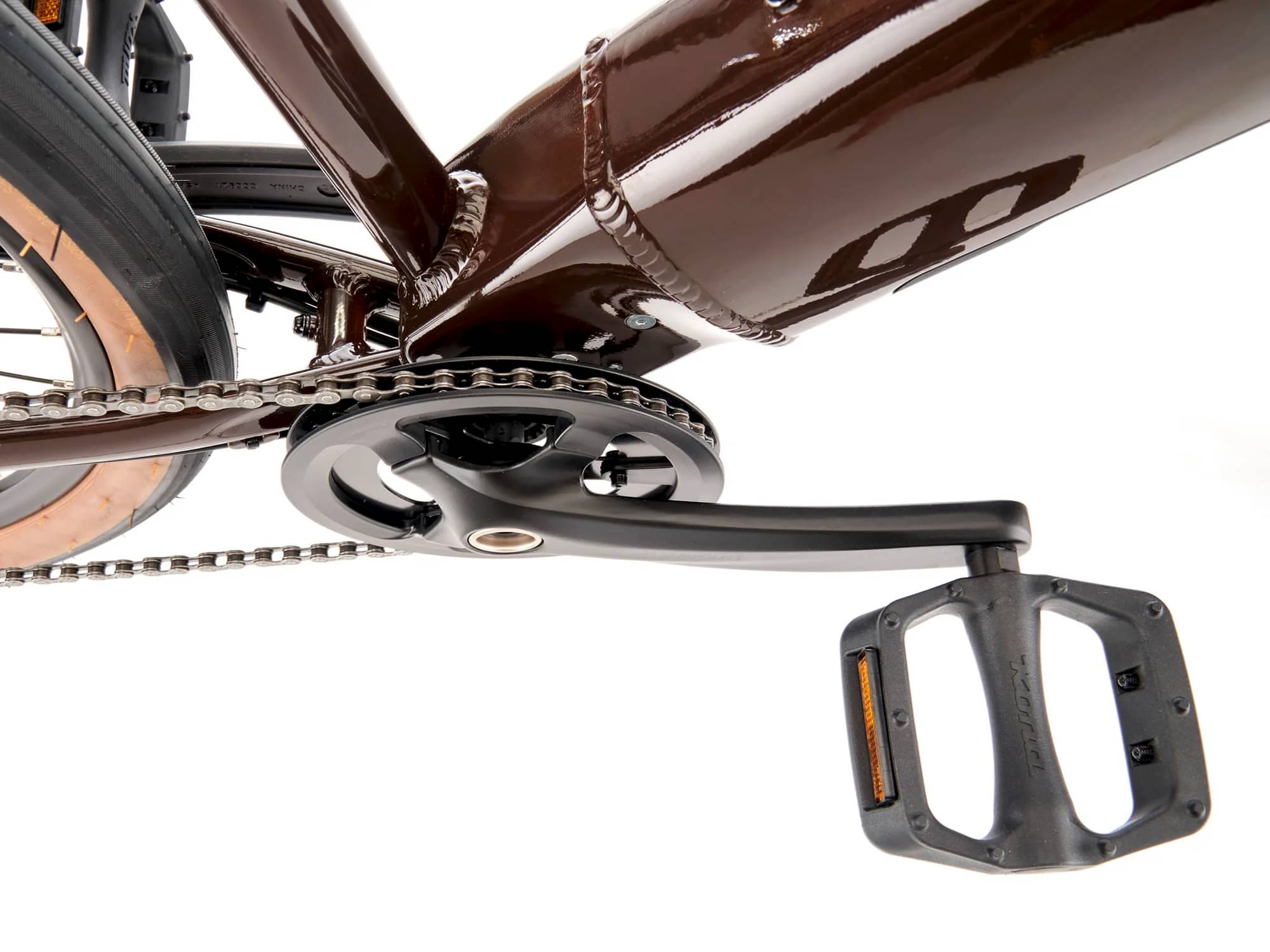

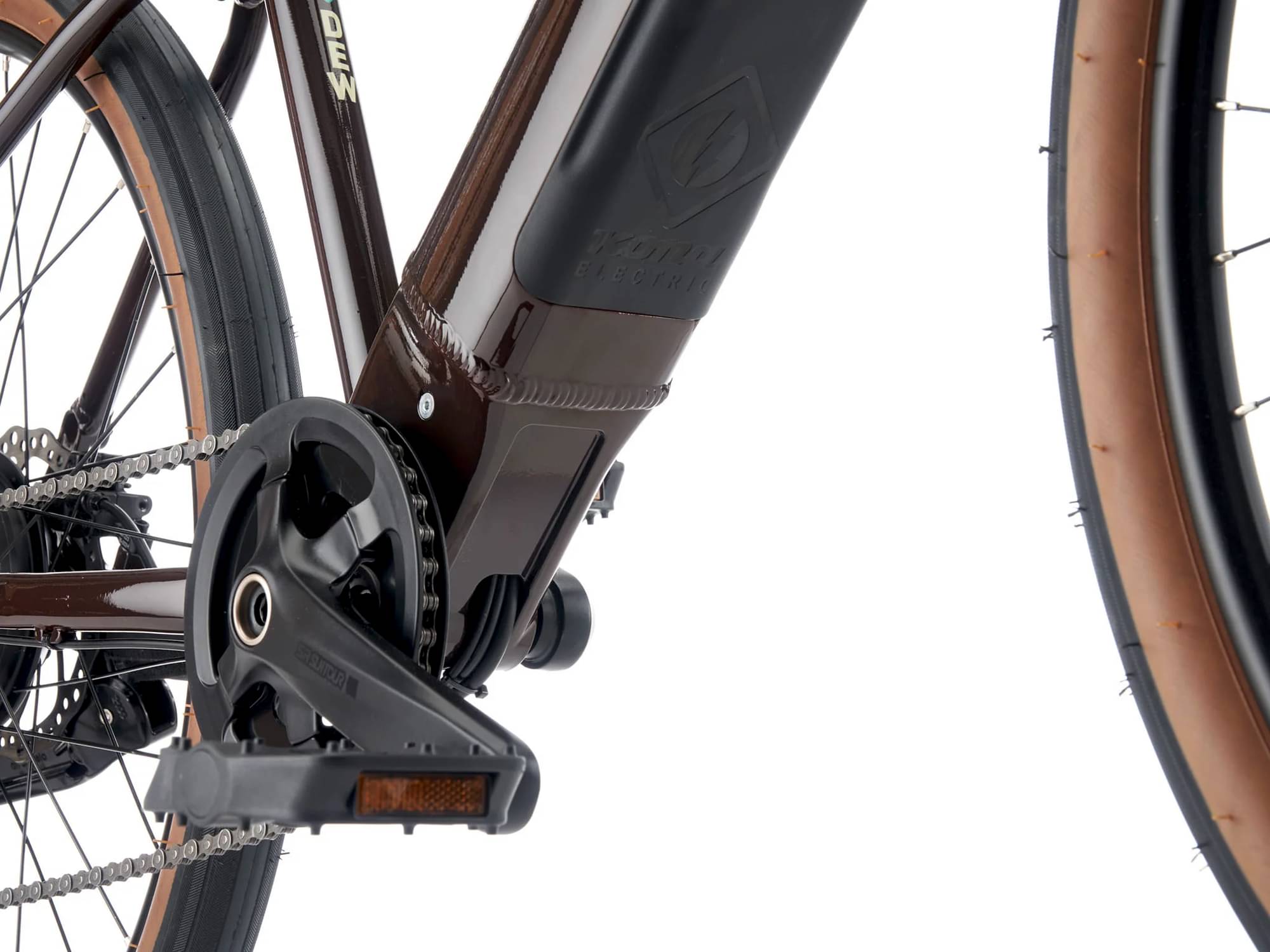

Crank
Suntour, 38t
Bottom Bracket
Suntour
Chain
KMC Z8.3
Chain Guide
n/a
Pedals
Kona JS2
Wheels

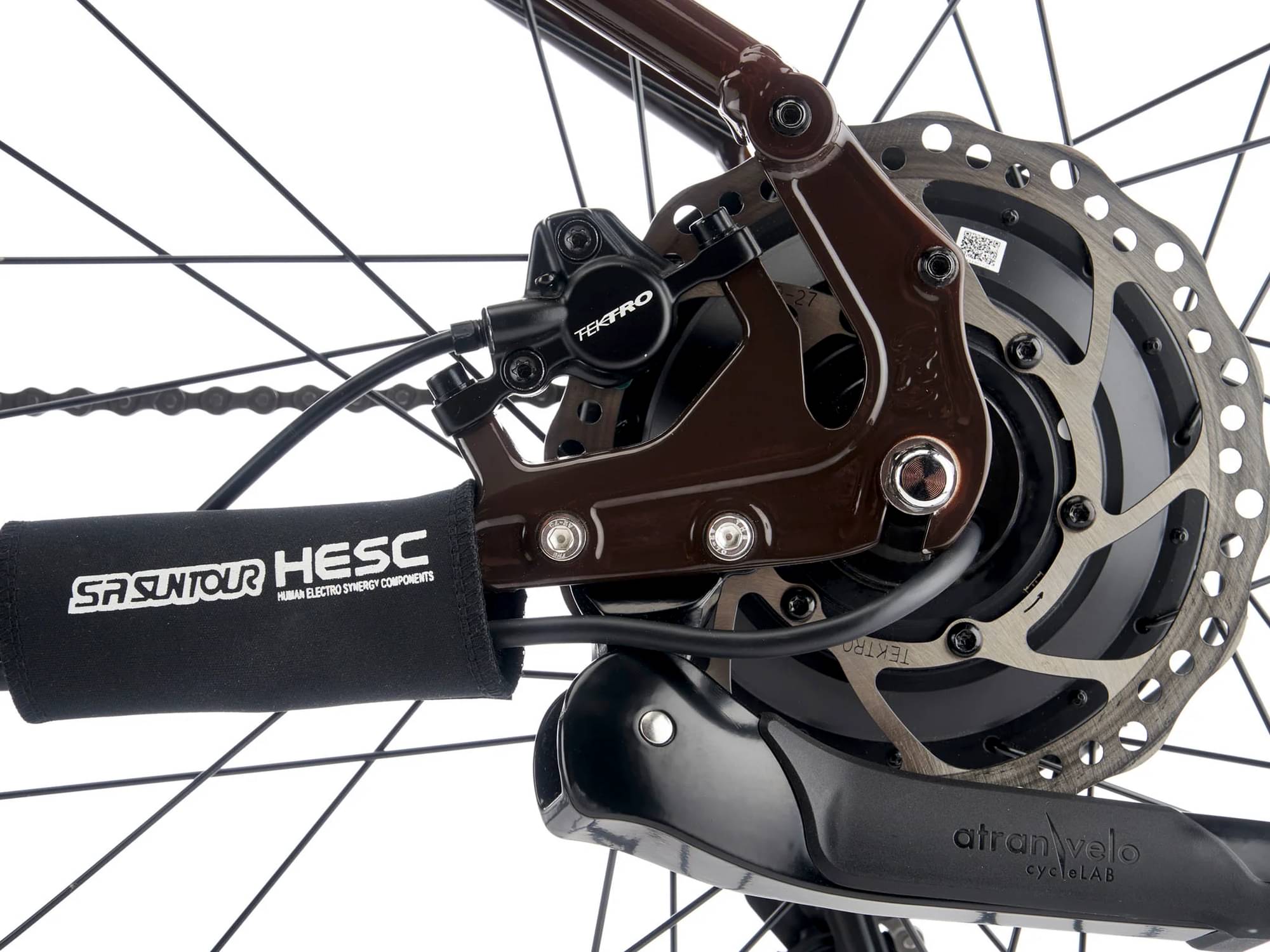

Front Hub
Shimano 100x9mm
Rear Hub
SR Suntour HD 20MPH
Rims
WTB SX19
Spokes
Stainless Black 14g/13g
Tires
Front: WTB Horizon Comp 650x47c, Rear: WTB Horizon Comp 650x47c
Brakes
Brakes
Tektro HDM275 Hydraulic

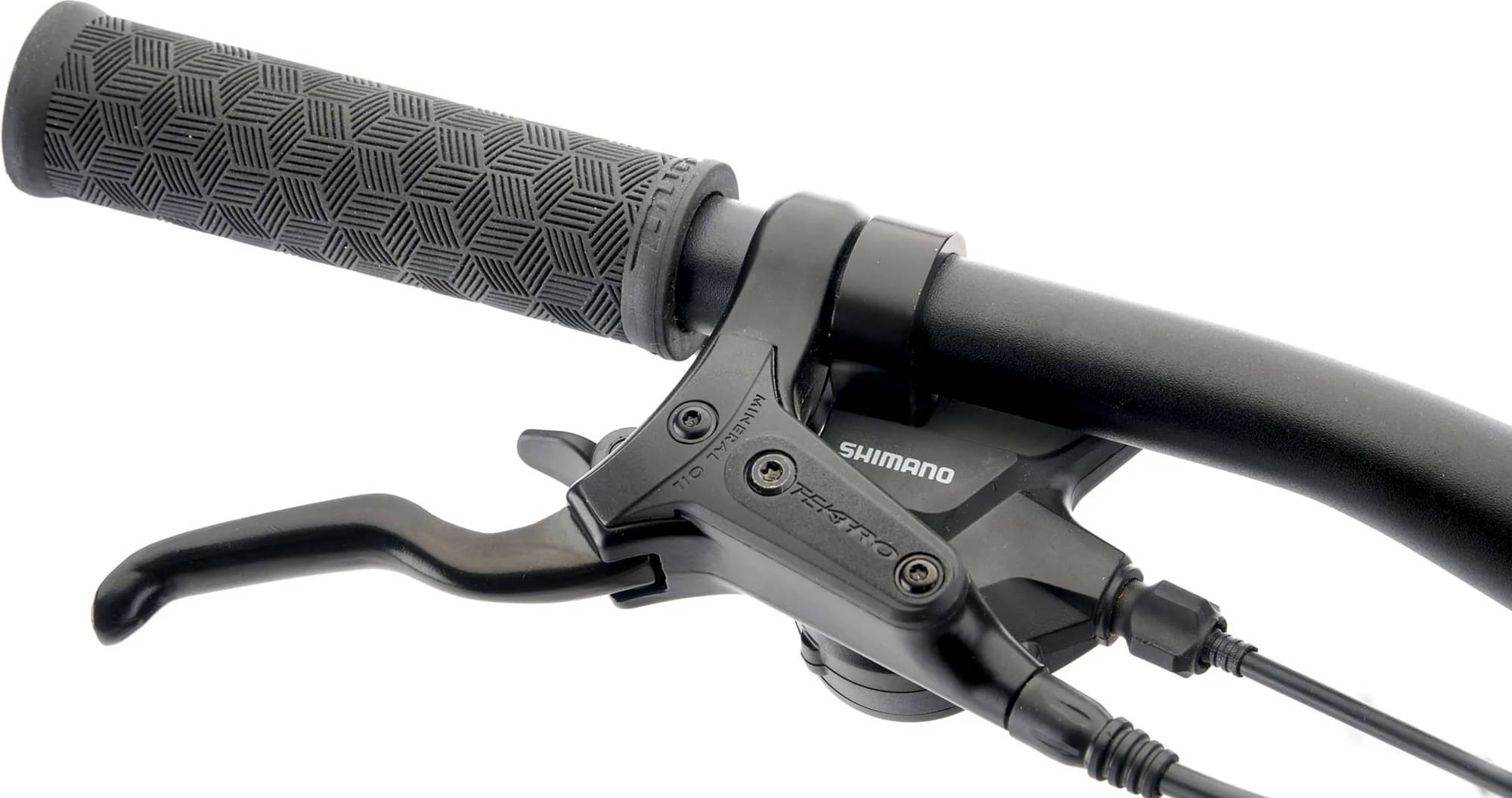

Brake Levers
Tektro HDM275 Hydraulic

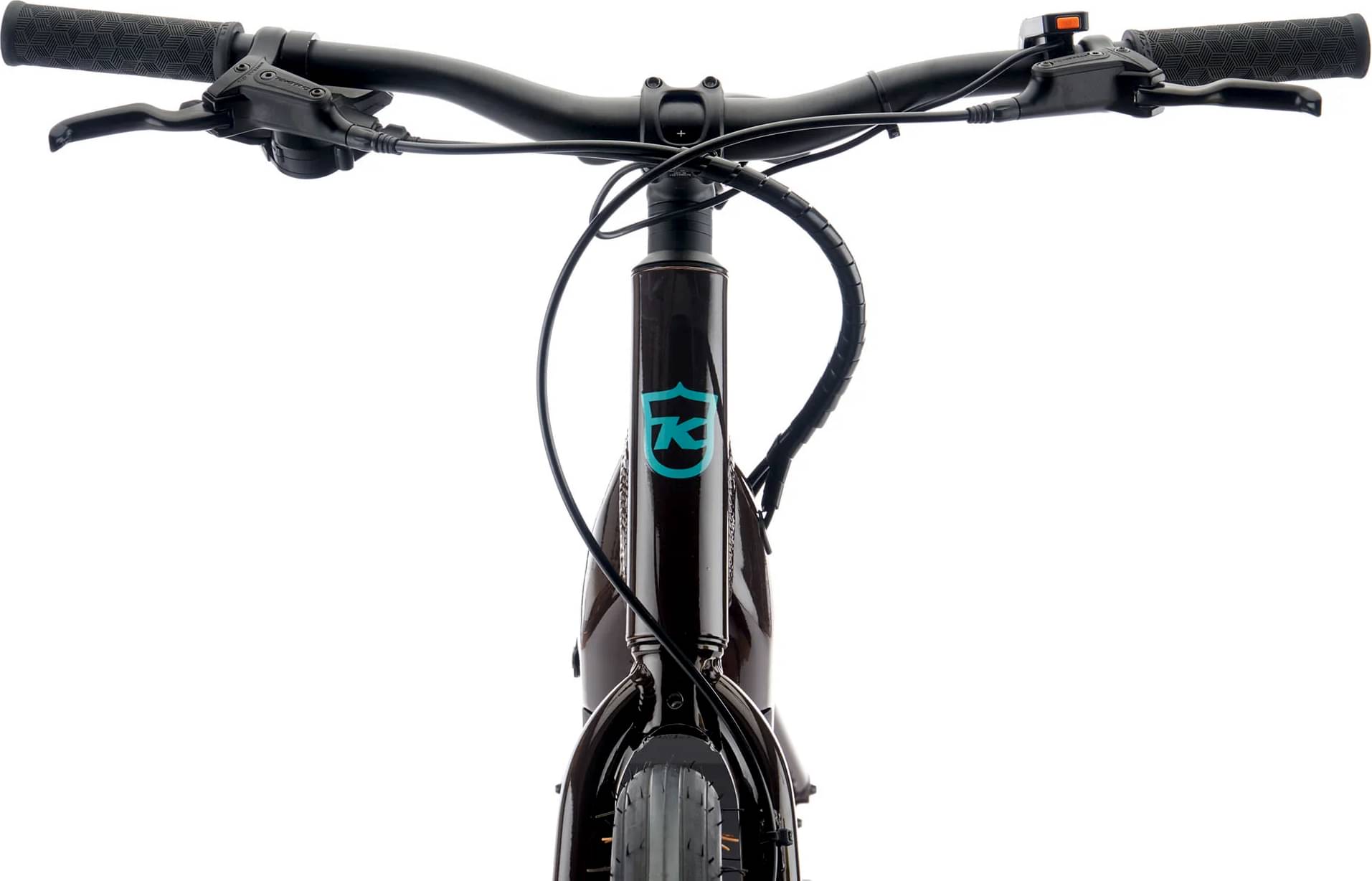

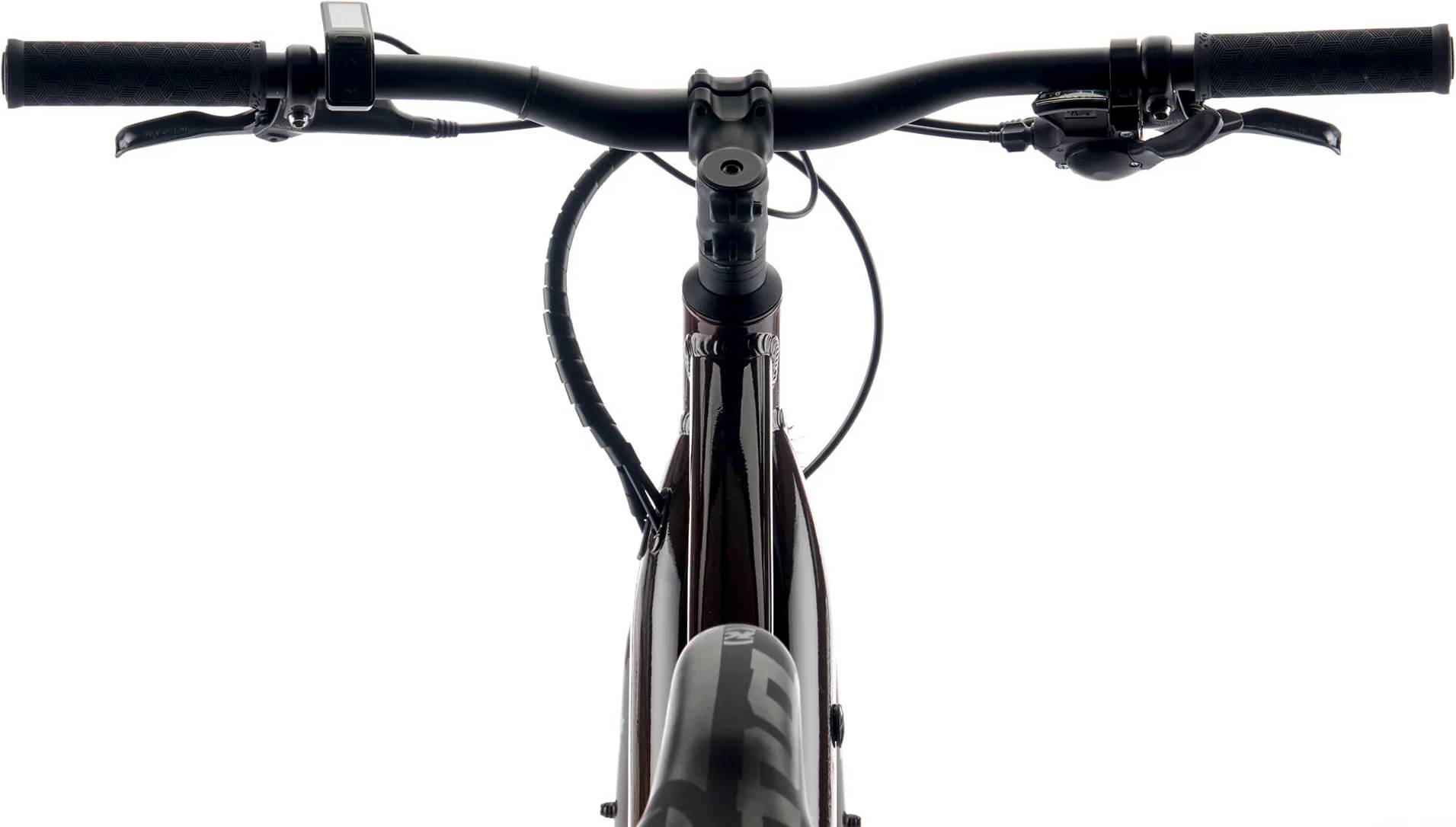

Cockpit
Stem
Kona Control
Handlebar
Kona Aluminum Riser
Grips
Kona Key Grip Slip on
Headset
Feimin FP-H863
Seat
Saddle
Kona Commuter
Seatpost
Kona Commuter 27.2mm
Motor & Battery

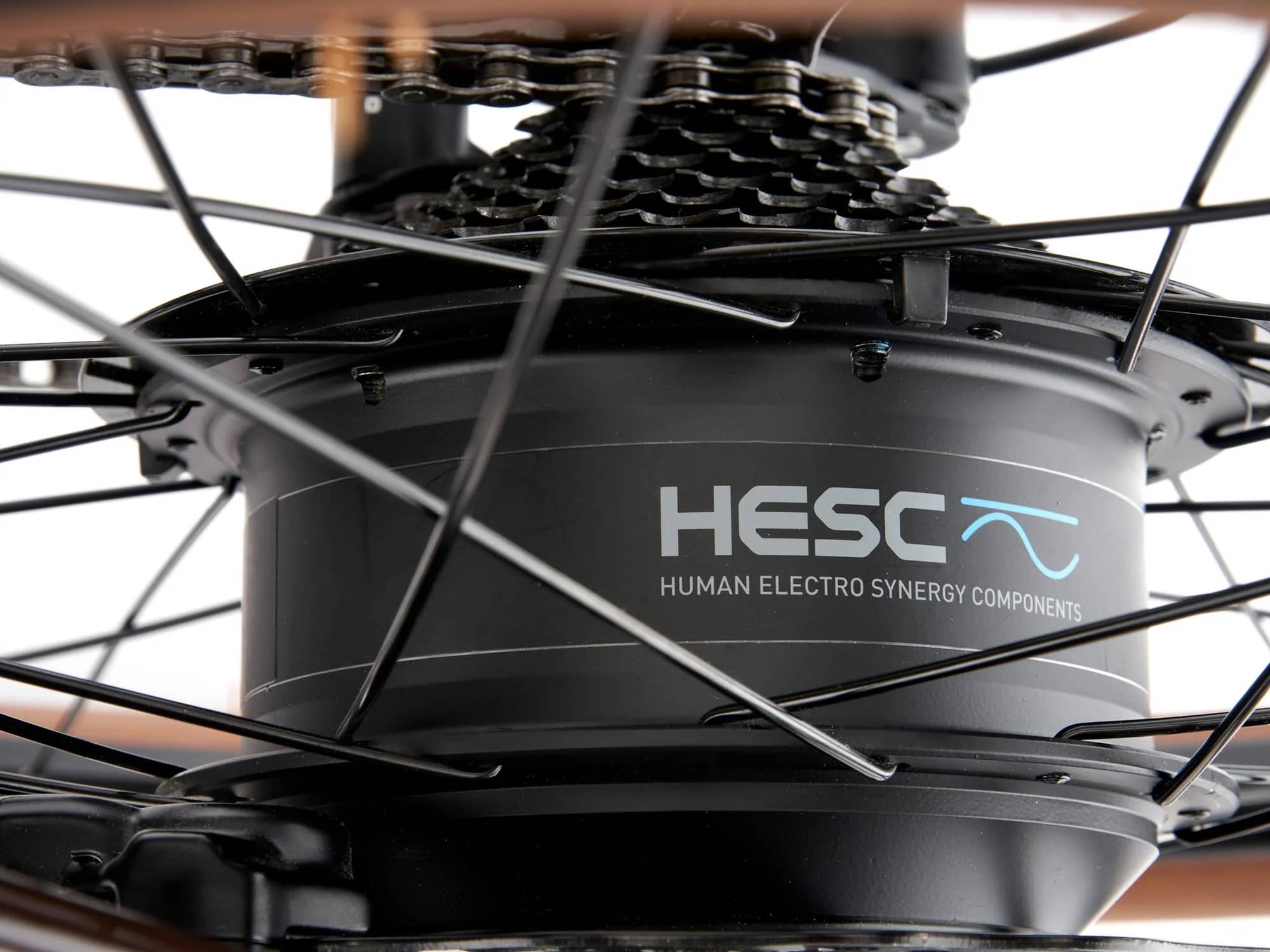

Motor
SR Suntour HD 20MPH

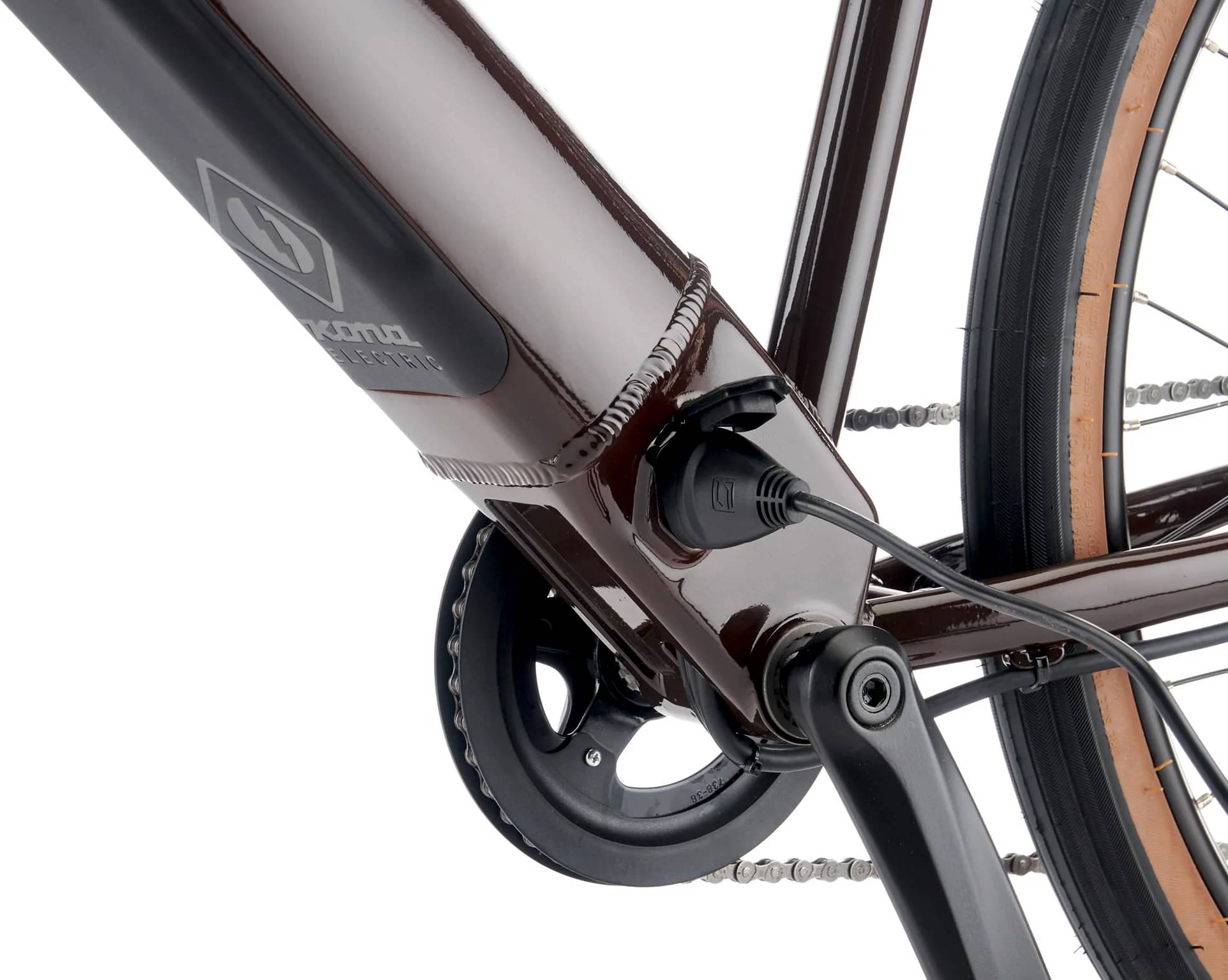

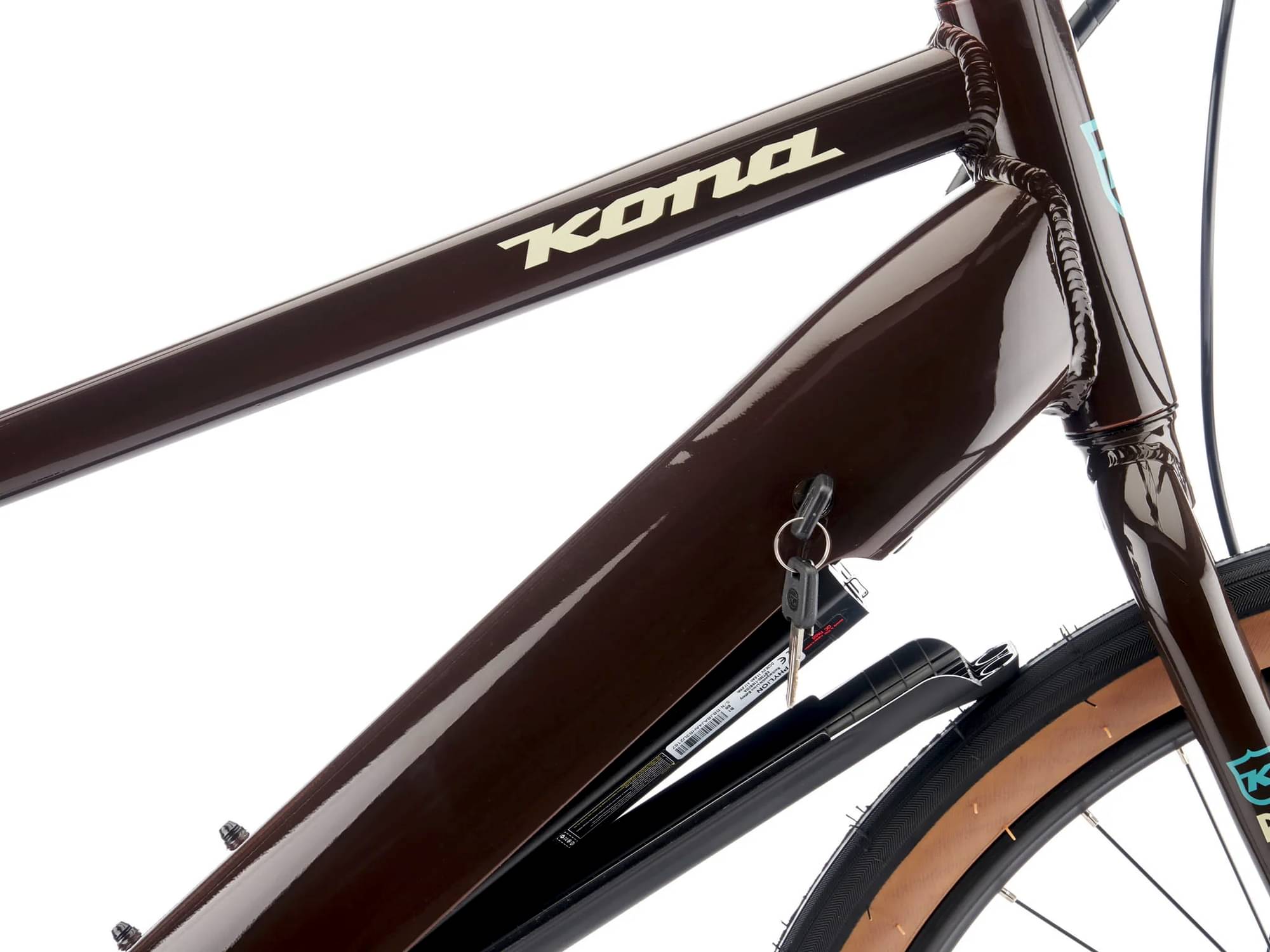

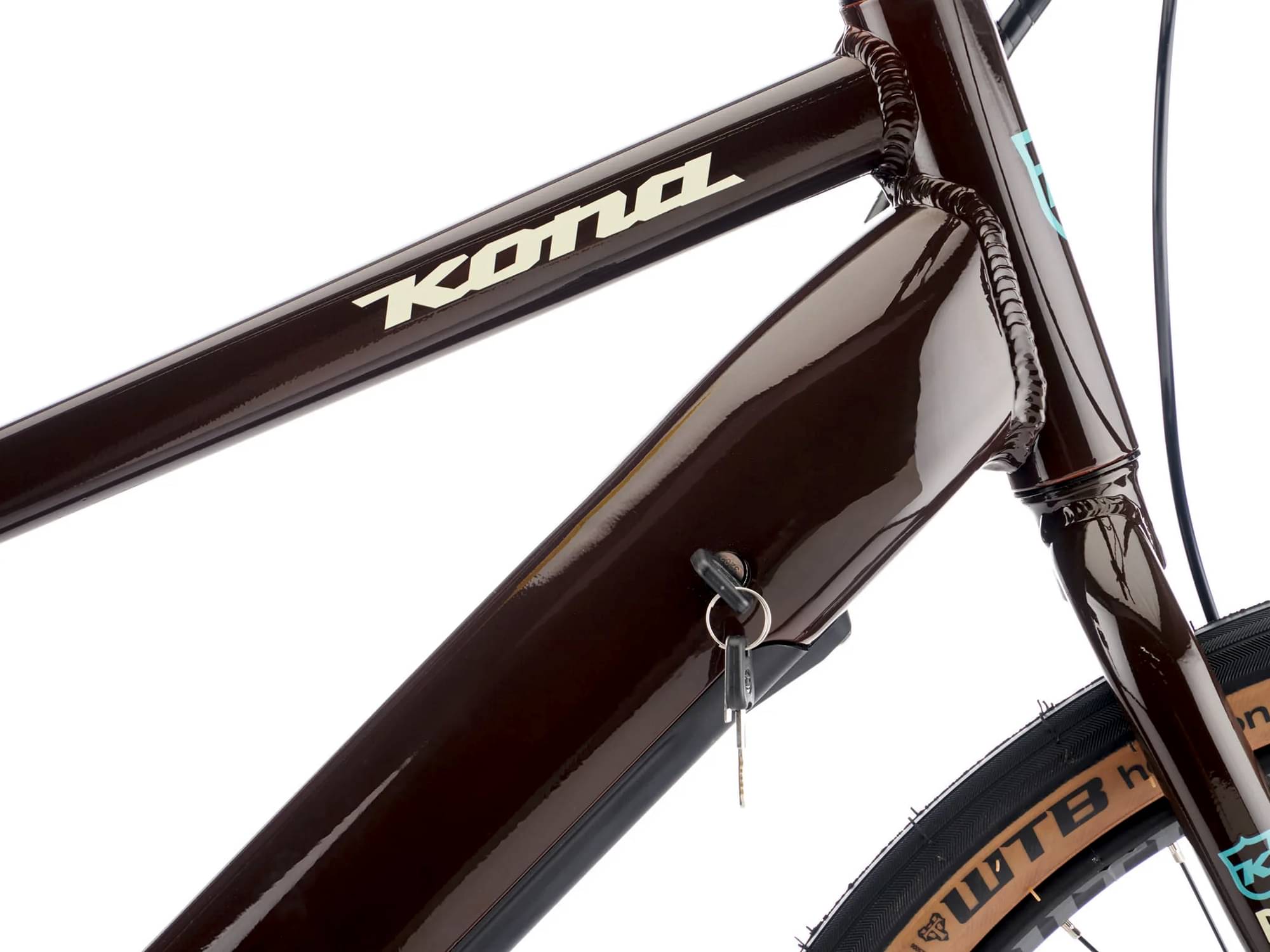

Battery
Phylion 418Wh
Charger
Phylion 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.427 mm | 1.433 mm | 1.465 mm | 1.465 mm |
| Bottom Bracket Height | 282 mm | 282 mm | 282 mm | 282 mm |
| Front Center | 639 mm | 677 mm | 707 mm | 747 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 67 mm | 67 mm | 67 mm | 67 mm |
| Stack | 568 mm | 606 mm | 643 mm | 681 mm |
| Reach | 398 mm | 423 mm | 439 mm | 465 mm |
| Top Tube Length | 550 mm | 597 mm | 636 mm | 686 mm |
| Seat Tube Angle | 75 ° | 74 ° | 73 ° | 72 ° |
| Seat Tube Length | 420 mm | 470 mm | 520 mm | 580 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 145 mm | 185 mm | 225 mm | 265 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1082 mm | 1121 mm | 1150 mm | 1190 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 685 mm | 720 mm | 756 mm | 797 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
