Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Steel -
Wheels 26" -
Travel Front 80mm -
Suspension Hardtail -
Drivetrain Single Speed -
Brakes Mechanical Disc
Sizing
Recommended size guide.
LG
175cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona Cromoly
Suspension Fork
Spinner Cargo 340 80mm
Rear Shock
N/A
Drivetrain
Rear Derailleur
N/A
Front Derailleur
N/A
Shift Levers
N/A
Cassette
Formula 14t
Crank
30t
Bottom Bracket
Chainway Spanish
Chain
KMC Z410B
Pedals
Wellgo Plastic
Wheels
Front Hub
Formula
Rear Hub
Formula
Rims
Alex MUS30
Spokes
Stainless 14g
Tires
Maxxis Holy Roller 26x2.4"
Brakes
Brakes
ProMax DSK310 fr / Tektro HDC300 rr
Brake Levers
Tektro HDC300
Disk Rotors
ProMax 160mm
Cockpit
Stem
Kona Jerk
Handlebar
Kona DJ
Grips
Kona DJ
Headset
FSA ZST N0.10
Seat
Saddle
Kona Pivotal
Seatpost
Kona Pivotal
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | R | LG |
|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.32 mm |
| Bottom Bracket Height | 310 mm | 310 mm |
| Front Center | 655 mm | 665 mm |
| Rake | 50 mm | 50 mm |
| Trail | 80 mm | 80 mm |
| Stack | 538 mm | 538 mm |
| Reach | 393 mm | 408 mm |
| Top Tube Length | 578 mm | 588 mm |
| Seat Tube Angle | 71.5 ° | 71.5 ° |
| Seat Tube Length | 325 mm | 325 mm |
| Head Tube Angle | 69 ° | 69 ° |
| Head Tube Length | 115 mm | 115 mm |
| Chainstay Length | 393 mm | 393 mm |
| Wheelbase | 1043 mm | 1058 mm |
| Bottom Bracket Drop | 25 mm | 25 mm |
| Standover Height | 718 mm | 718 mm |
| Wheels | 26" | 26" |
About this model

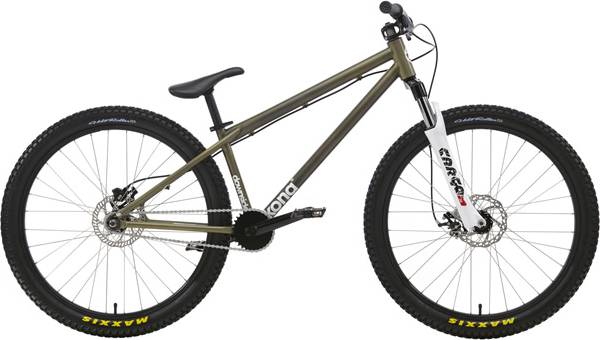

DOWNSIDE is a Kona Downside model. Kona released 3 bikes variations of this model so far.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry bikes
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
DOWNSIDE components
Wheels size
The wheels on DOWNSIDE are the 26″ aluminum type. These wheels give you great handling over your bike. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Kona DOWNSIDE has Mechanical Disc brakes installed. They are much easier to maintain than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
