Bike details
Overview
Key information split into simple groups.

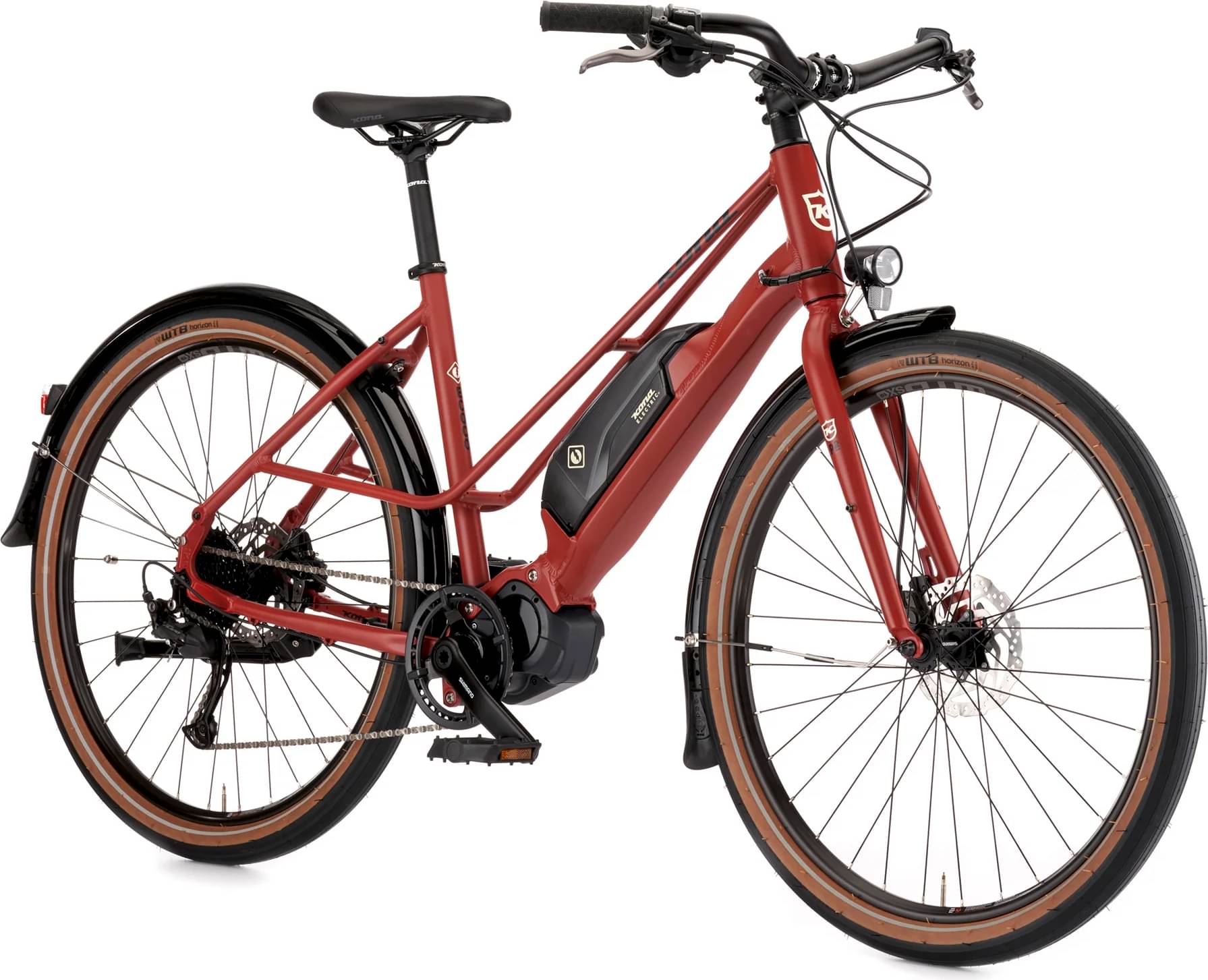

Bike summary
-
-
Frame Aluminum -
Groupset Alivio, Acera -
Suspension Rigid -
Motor Shimano 250W 60Nm mid-drive -
Battery Shimano 504Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components

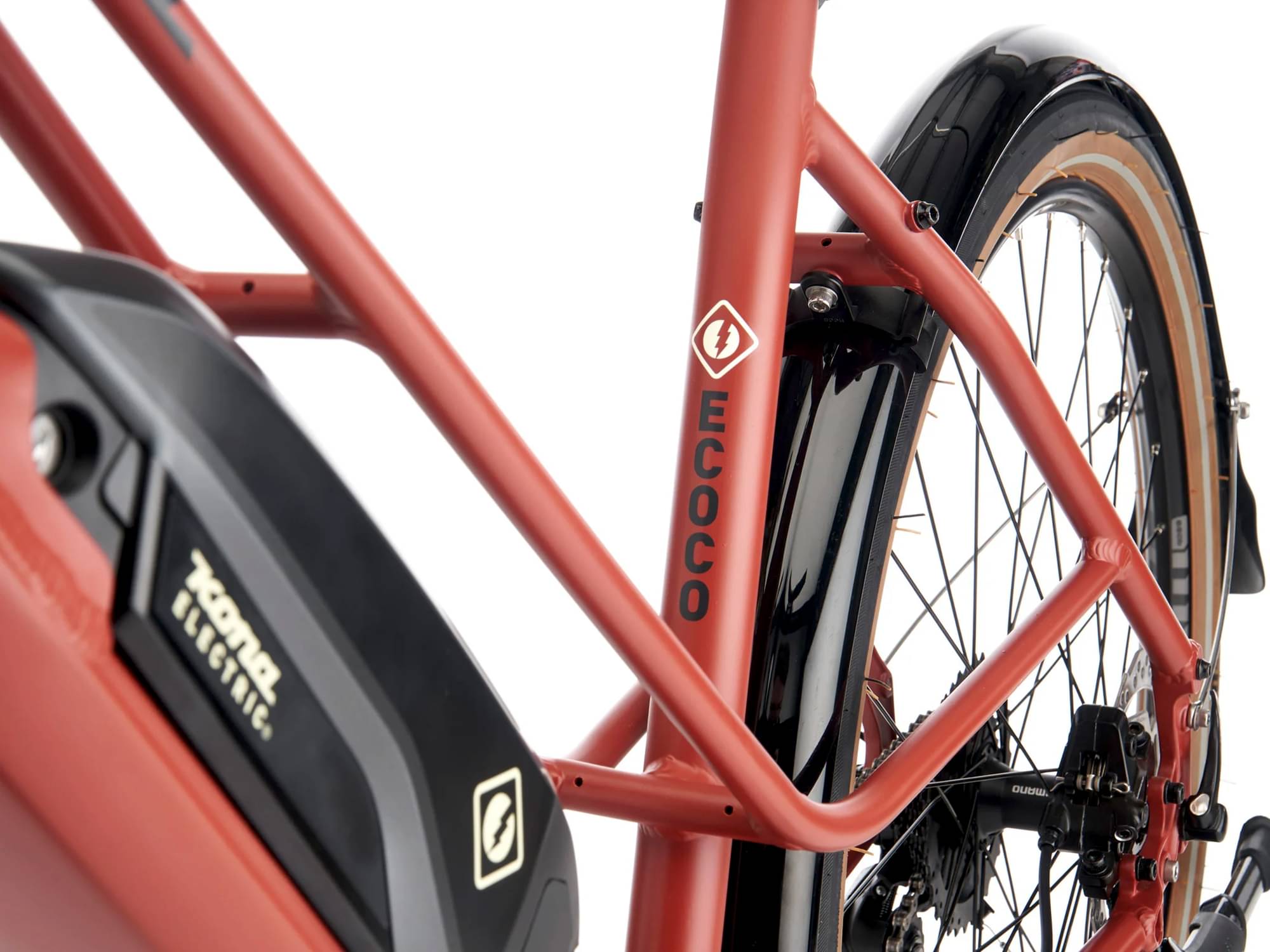

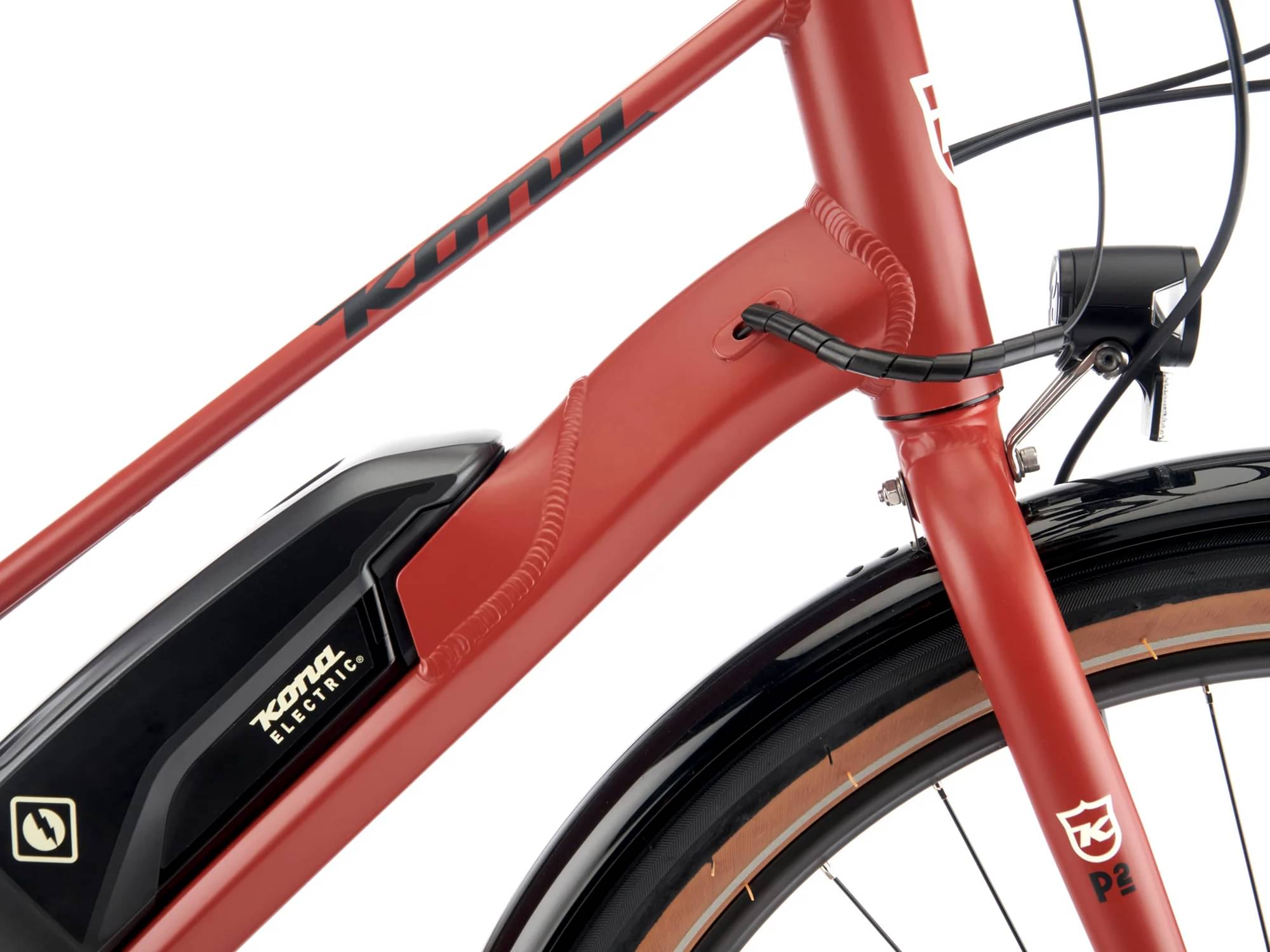

Frame
Frame
Kona 6061 Aluminum Butted
Suspension Fork
Kona Project Two Aluminum Disc
Rear Shock
n/a
Drivetrain

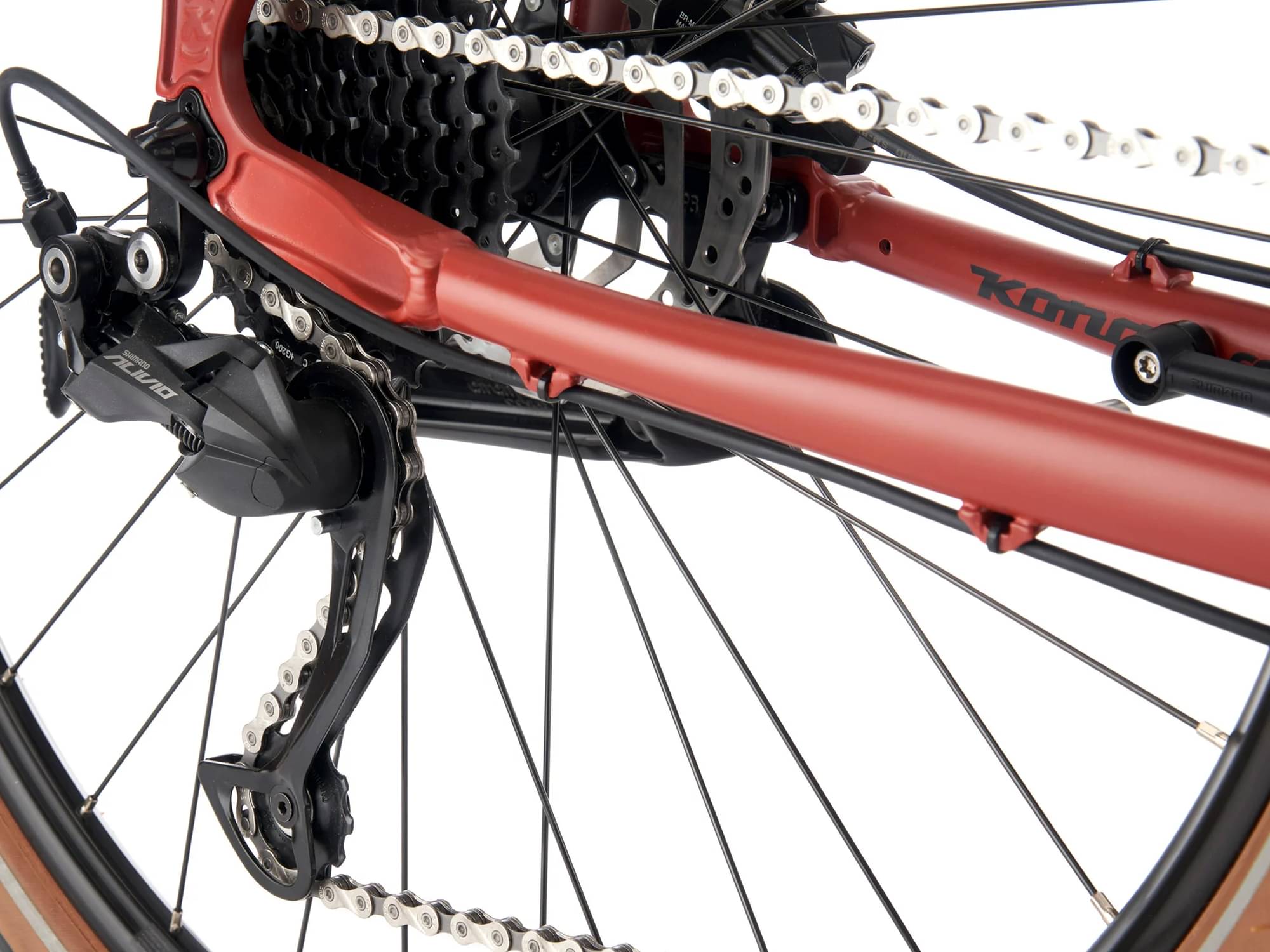

Rear Derailleur
Shimano Alivio
Front Derailleur
n/a

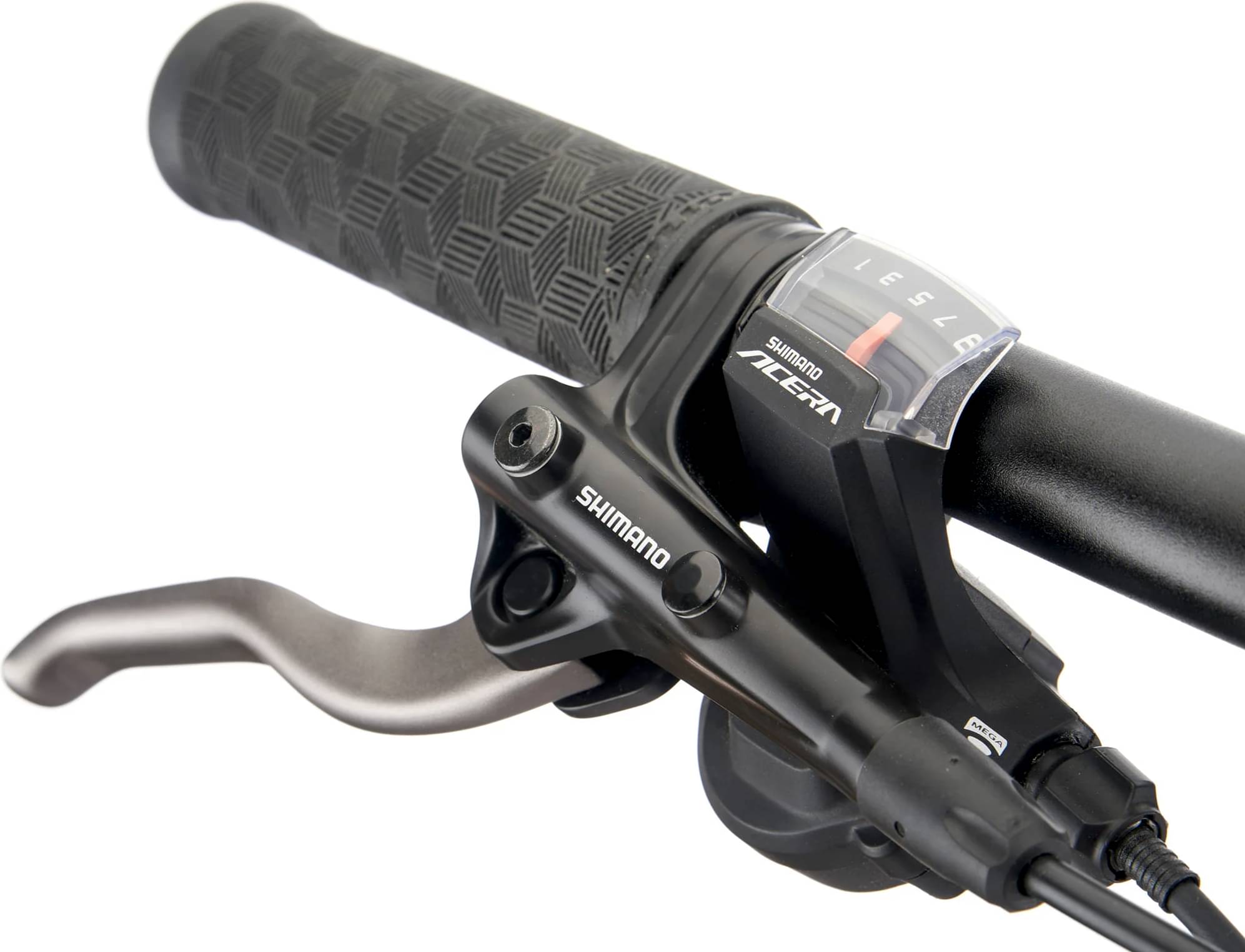

Shift Levers
Shimano Acera
Cassette
Shimano Alivio 11-34t 9spd

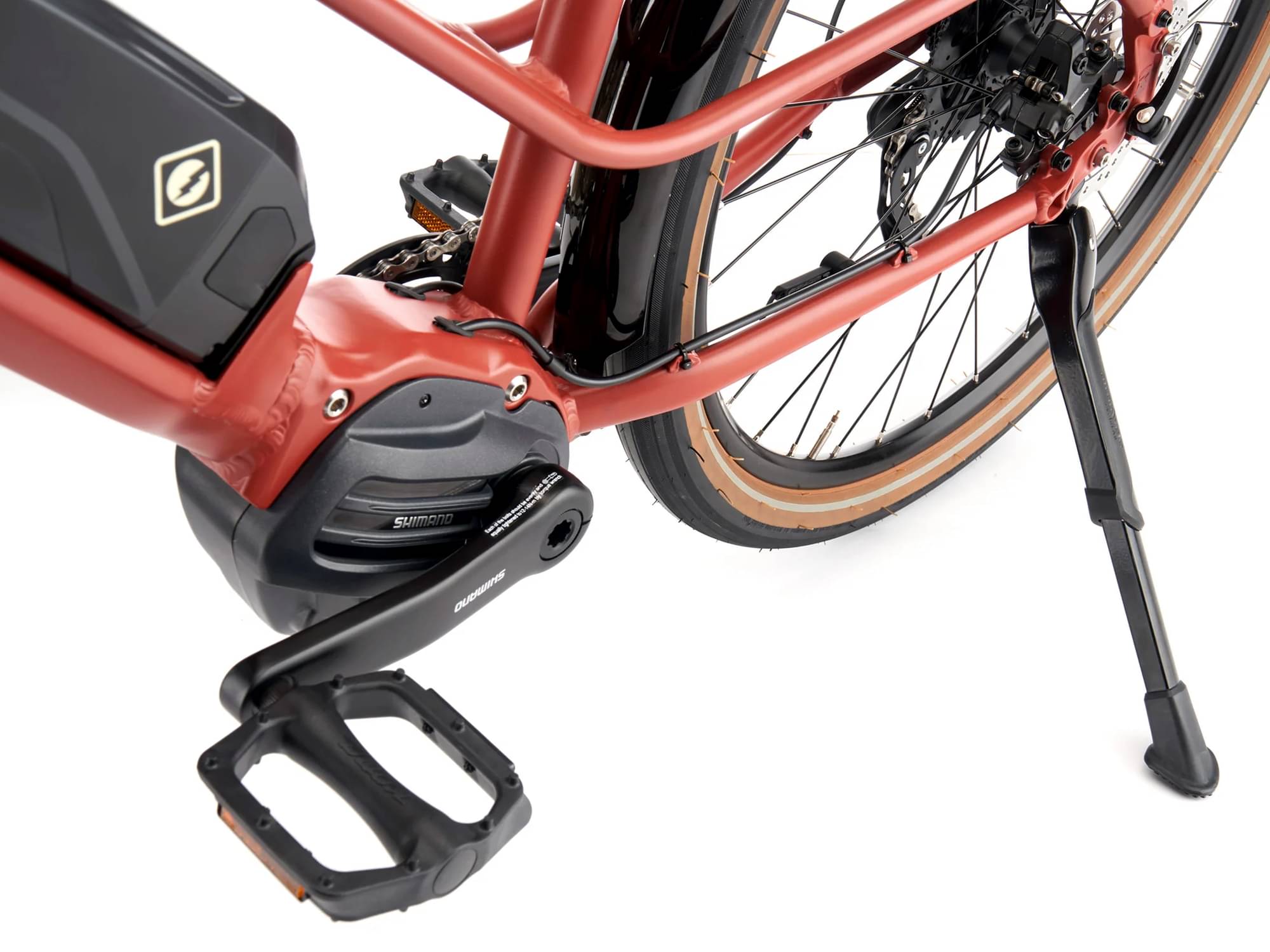

Crank

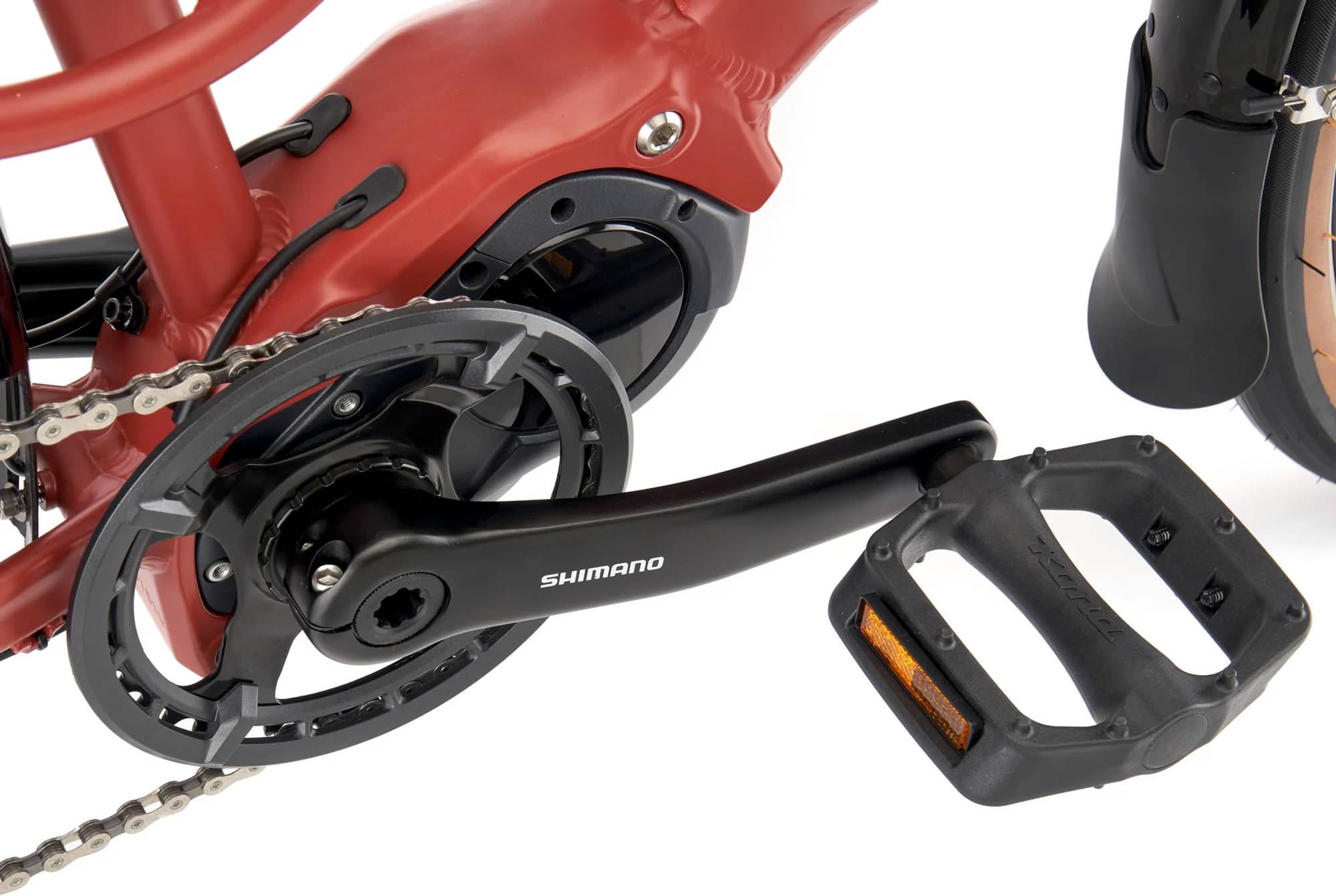

Shimano E6100, 38t
Bottom Bracket
n/a
Chain
KMC X9
Chain Guide
Shimano E-Bike Chain Guard
Pedals
Kona JS2
Wheels
Front Hub
Shimano Alivio 100x9mm
Rear Hub
Shimano Alivio 135x10mm
Rims
WTB SX19
Spokes
Stainless 14g
Tires
Front: WTB Horizon Comp Puncture Protect 650x47c, Rear: WTB Horizon Comp Puncture Protect 650x47c

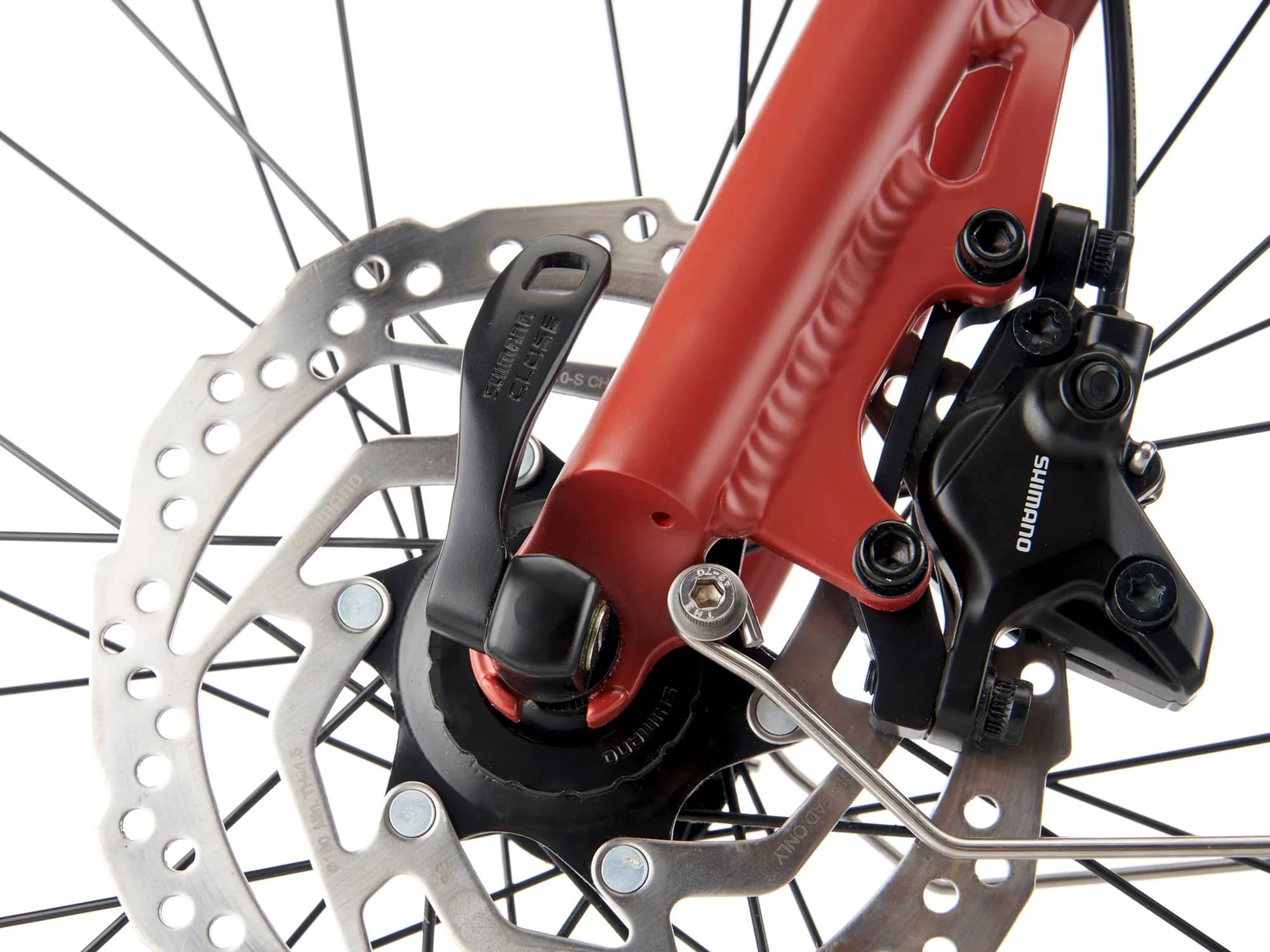

Brakes
Brakes
Shimano MT410
Brake Levers
Shimano MT401

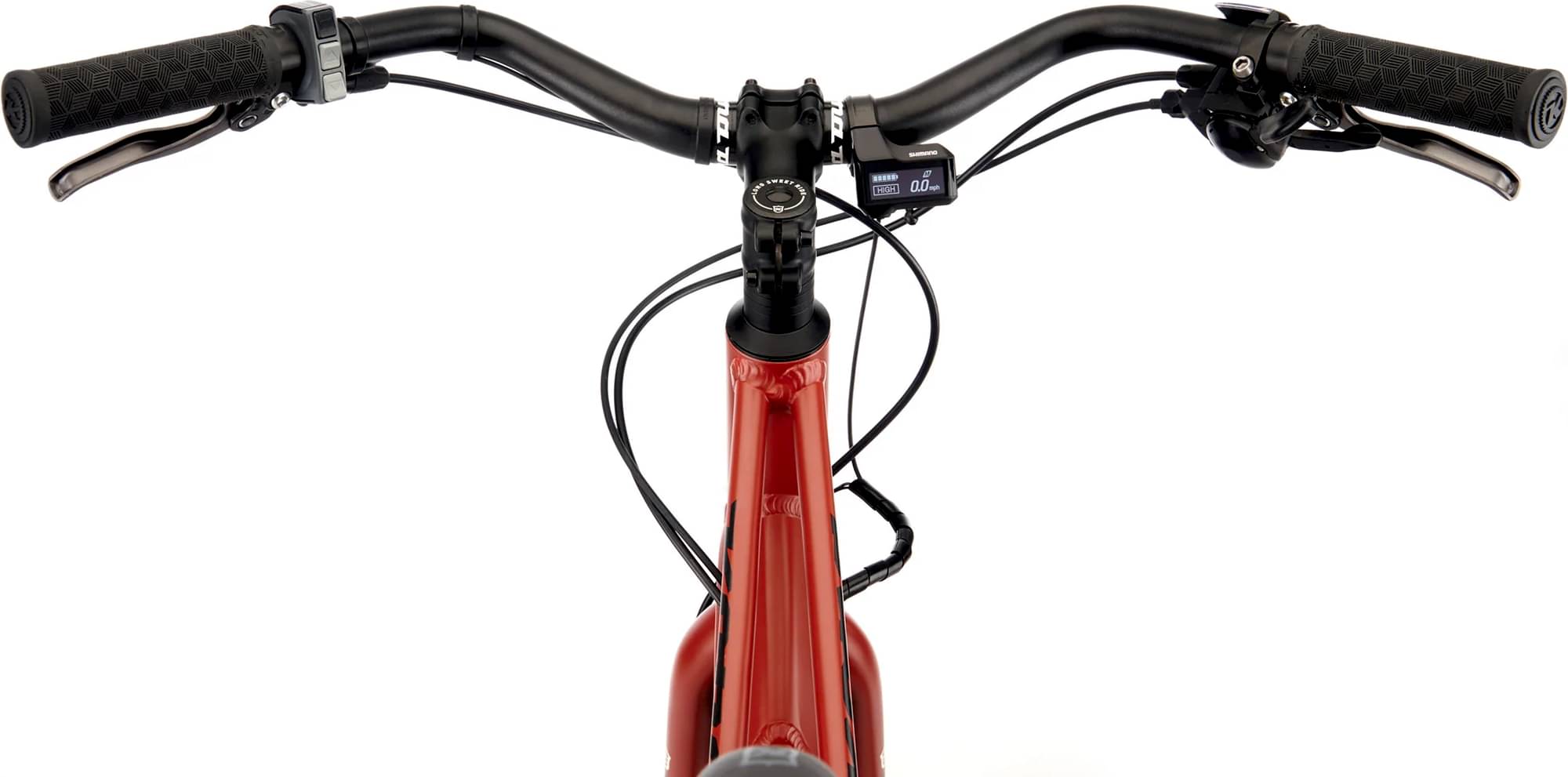

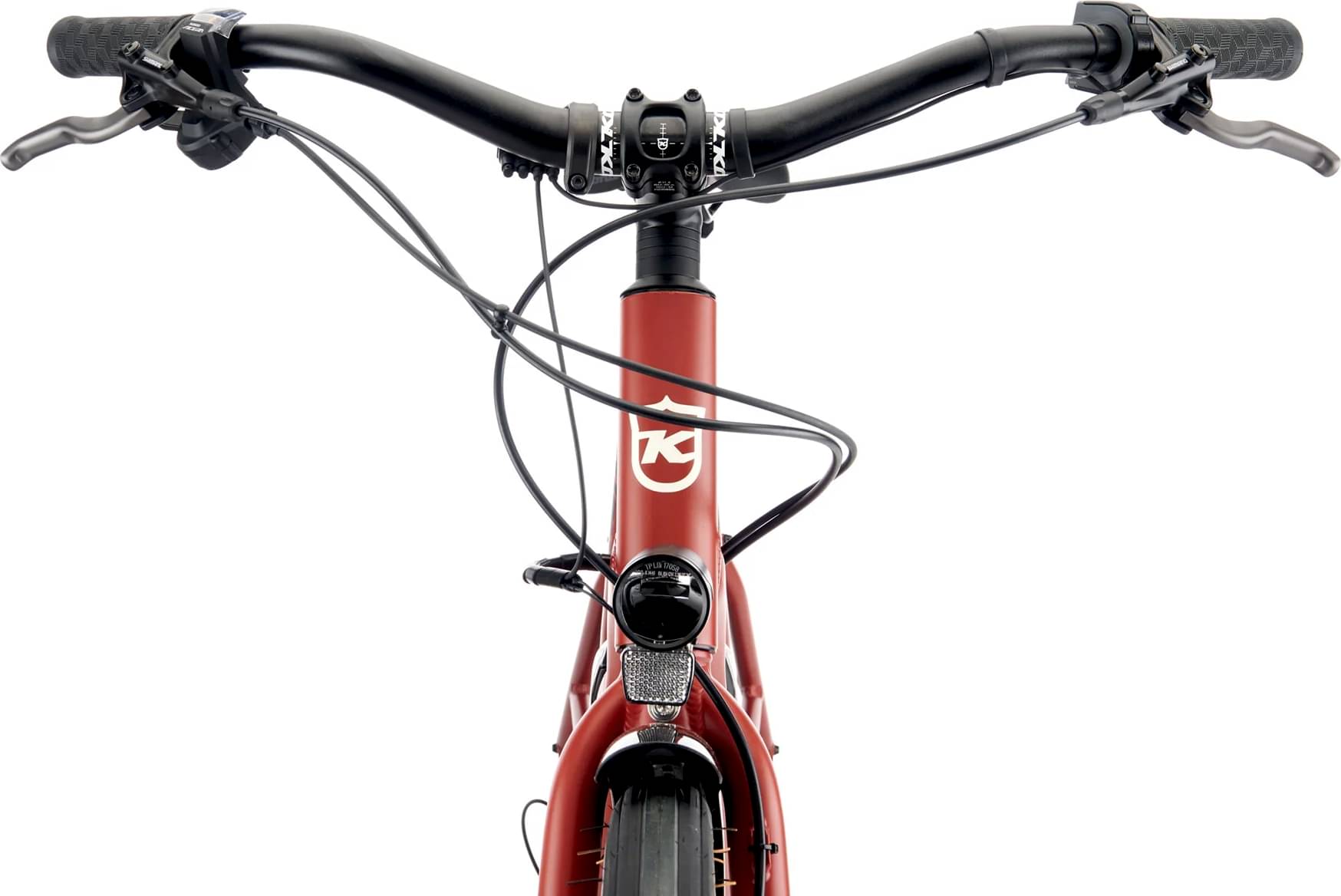

Cockpit
Stem
Kona Control
Handlebar
Kona Handplant
Grips
Kona Key Grip Slip on
Headset
Feimin H863
Seat
Saddle
Kona Comfort
Seatpost
Kona Commuter 27.2mm
Motor & Battery

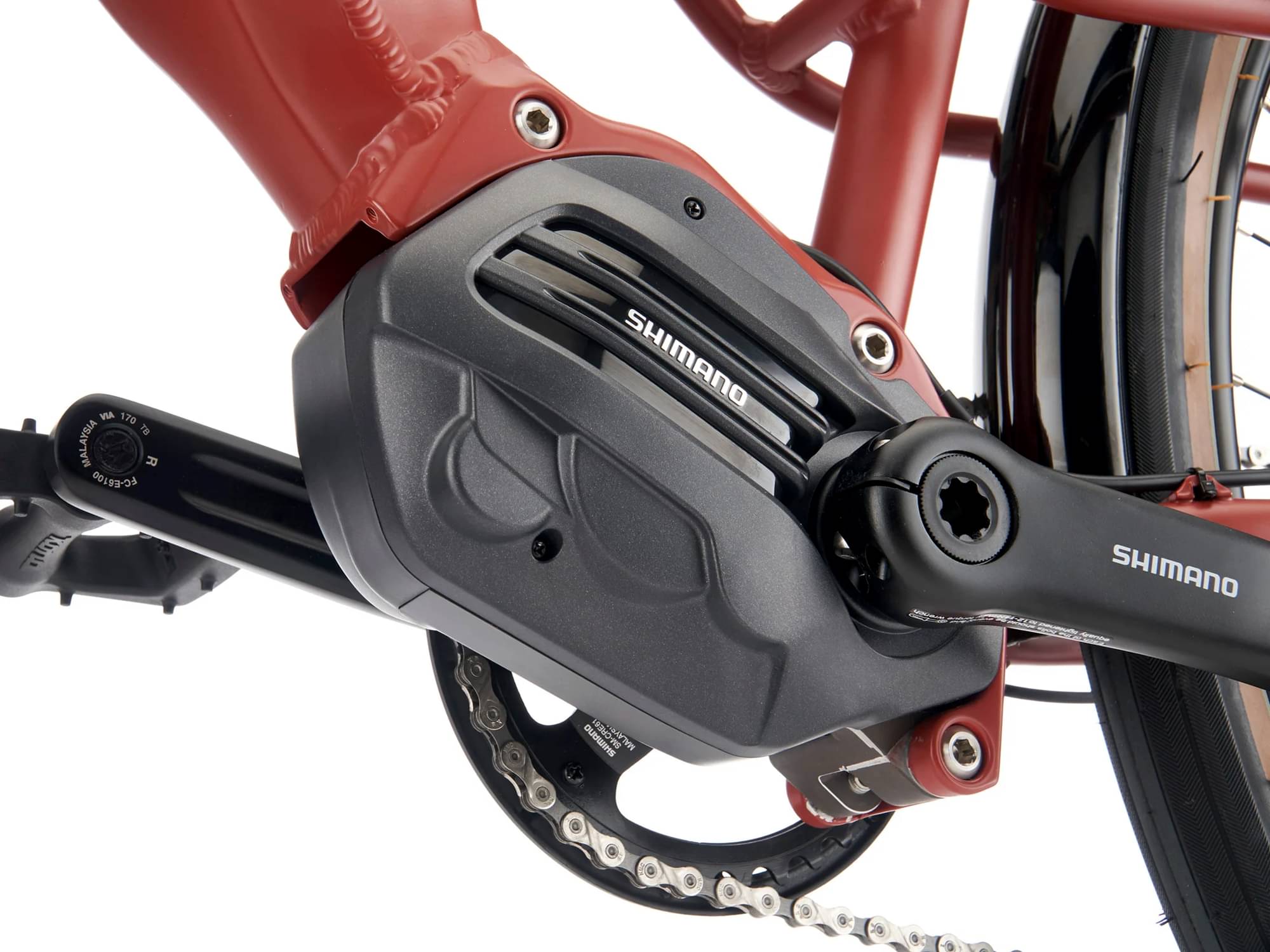

Motor
Shimano E6100 20MPH

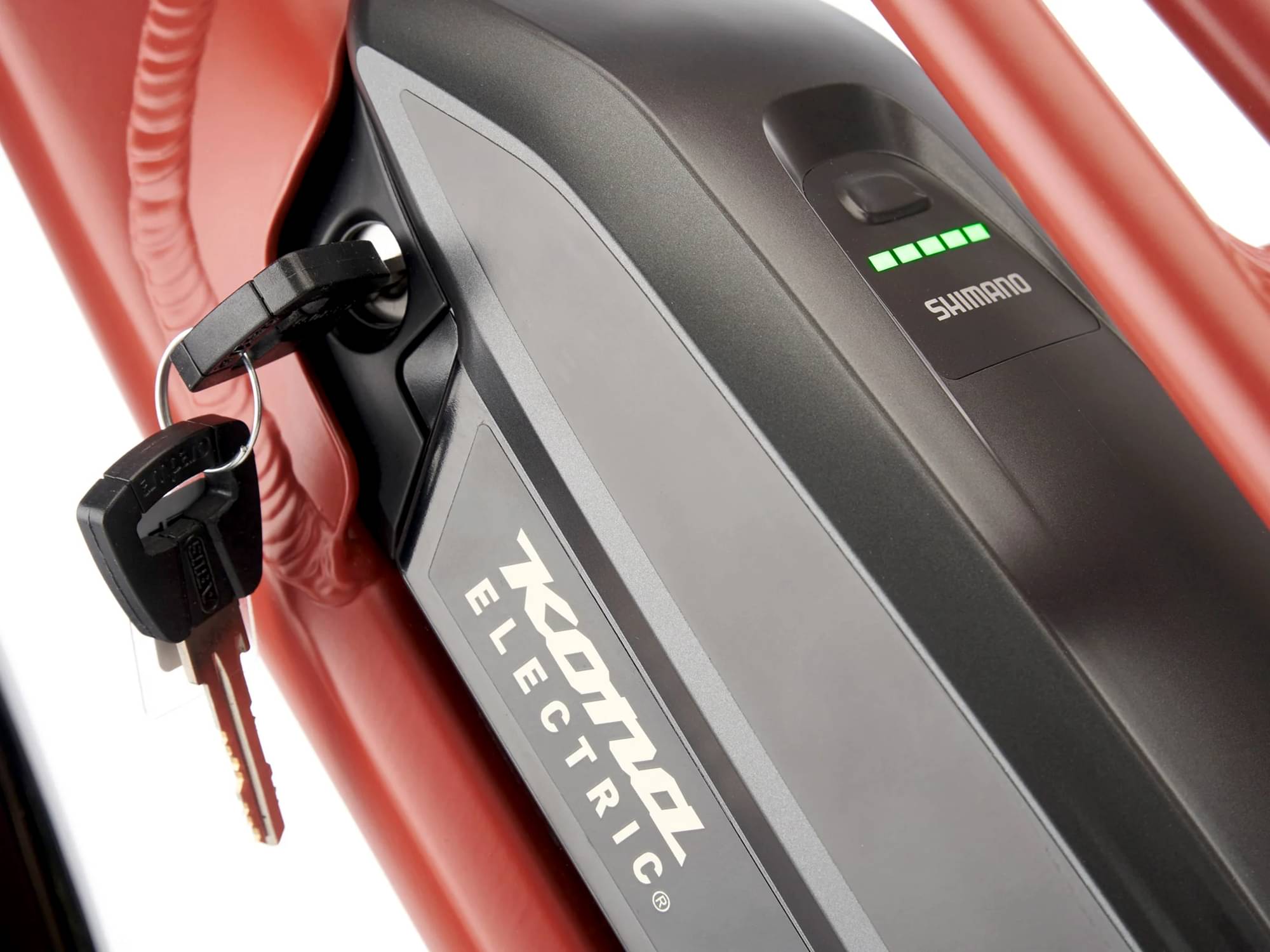

Battery
Shimano 504Wh

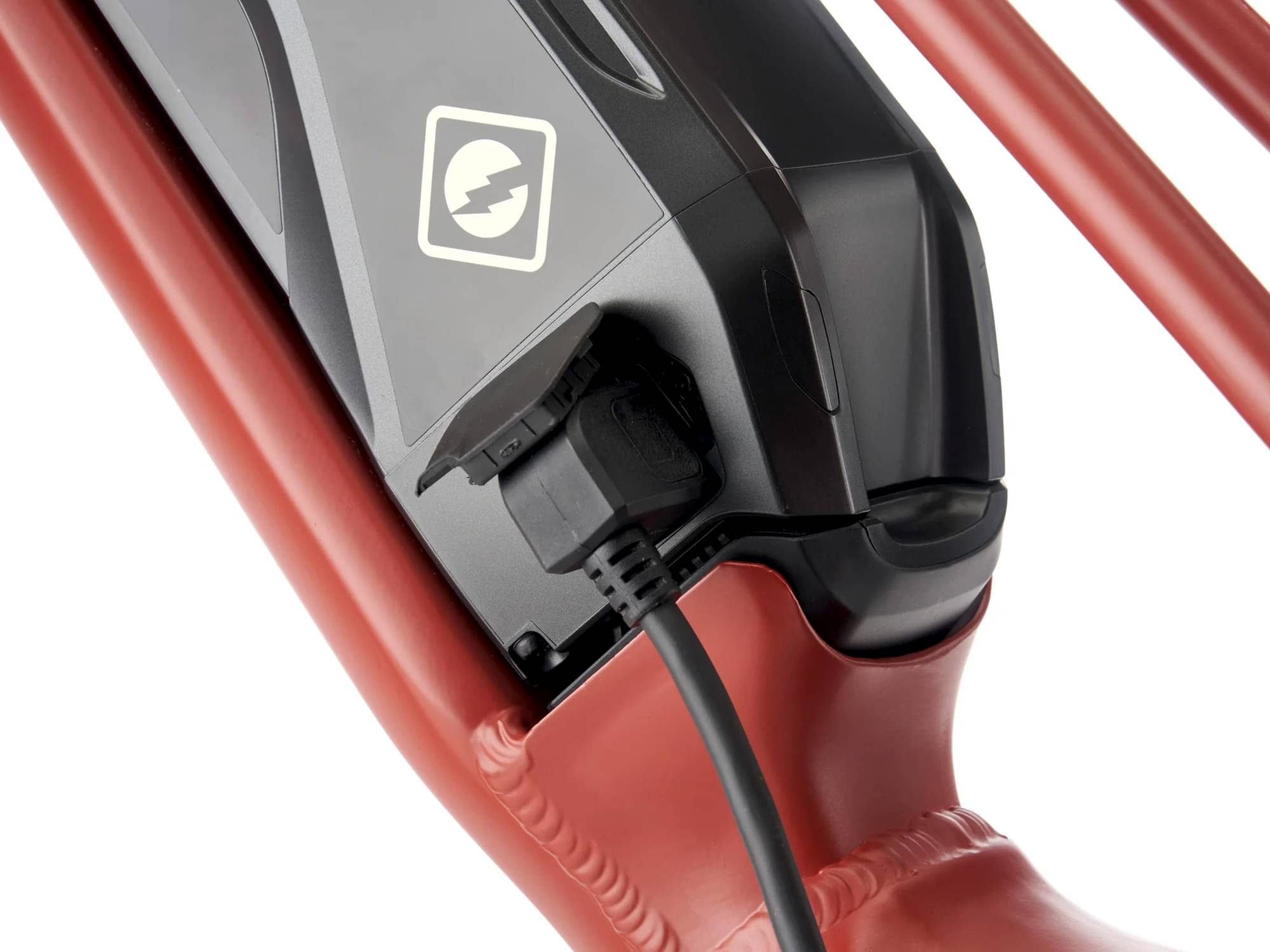

Charger
Shimano STEPS 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.443 mm | 1.436 mm | 1.47 mm |
| Bottom Bracket Height | 272 mm | 272 mm | 272 mm |
| Front Center | 637 mm | 674 mm | 703 mm |
| Rake | 50 mm | 50 mm | 50 mm |
| Trail | 67 mm | 67 mm | 68 mm |
| Stack | 573 mm | 606 mm | 644 mm |
| Reach | 397 mm | 422 mm | 438 mm |
| Top Tube Length | 551 mm | 596 mm | 635 mm |
| Seat Tube Angle | 75 ° | 74 ° | 73 ° |
| Seat Tube Length | 420 mm | 470 mm | 520 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 140 mm | 175 mm | 215 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1078 mm | 1115 mm | 1144 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm |
| Standover Height | 584 mm | 584 mm | 591 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
