Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 27.5" -
Travel Front 120mm -
Fork RockShox Revelation RC
-
Groupset X9, X7 -
Suspension Hardtail -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona Cromoly Butted
Suspension Fork
RockShox Revelation RL 120mm Tapered w/15mm Axle
Rear Shock
N/A
Drivetrain
Rear Derailleur
SRAM X9
Front Derailleur
SRAM X7
Shift Levers
SRAM X7
Cassette
SRAM Powerglide 1030 11-36t 10spd
Crank
24/38t
Bottom Bracket
SRAM X7 GXP
Chain
SRAM Powerchain 1031
Pedals
Shimano M520 Clipless
Wheels
Front Hub
King Kong
Rear Hub
Formula
Rims
WTB Speed Disc i23
Spokes
Sanvik Stainless 15g fr/14g rr
Tires
Maxxis Ardent 650B 27.5x2.25"folding
Brakes
Brakes
Avid Elixir 5
Brake Levers
Avid Elixir 5
Disk Rotors
Avid HS1 180mm
Cockpit
Stem
Kona XC/Road
Handlebar
Kona XC/BC Riser
Grips
Kona Race Light Lock-on
Headset
ZST NO. 10/7B/44
Seat
Saddle
WTB Volt Comp
Seatpost
Kona Double Clamp w/offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17" | 19" | 21" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.59 mm | 1.53 mm | 1.47 mm | 1.43 mm |
| Bottom Bracket Height | 300 mm | 300 mm | 300 mm | 300 mm |
| Front Center | 660 mm | 685 mm | 710 mm | 735 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Stack | 607 mm | 617 mm | 627 mm | 637 mm |
| Reach | 382 mm | 402 mm | 427 mm | 447 mm |
| Top Tube Length | 567 mm | 592 mm | 617 mm | 647 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 380 mm | 430 mm | 485 mm | 535 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 105 mm | 115 mm | 130 mm | 135 mm |
| Chainstay Length | 417 mm | 417 mm | 417 mm | 417 mm |
| Wheelbase | 1072 mm | 1097 mm | 1127 mm | 1152 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm |
| Standover Height | 757 mm | 762 mm | 817 mm | 842 mm |
| Wheels | 27" | 27" | 27" | 27" |
About this model

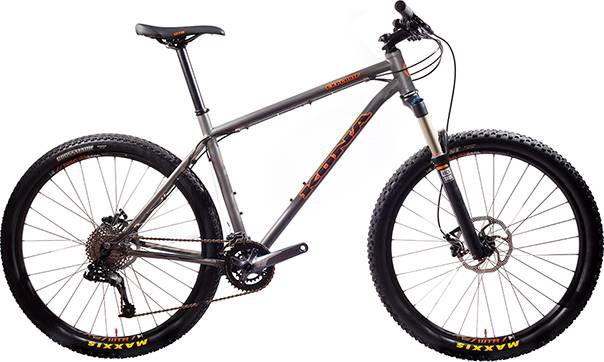

EXPLOSIF 27.5 belongs to the Kona Explosif model. 9 bikes variations carry this model name so far.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
Our math shows that the average cost of a dependable Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
EXPLOSIF 27.5 components
Fork
The RockShox Revelation RC is included from the factory. It has a travel distance of 120mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When it comes to wheels, the EXPLOSIF 27.5 bike is equipped with the 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
