Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 26" -
Travel Front 100mm -
Fork RockShox
-
Groupset Alivio, Acera -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona 7005 Aluminum Butted
Suspension Fork
RockShox Dart 1 100mm
Drivetrain
Rear Derailleur
Shimano Alivio SGS
Front Derailleur
Shimano Acera
Shift Levers
Shimano Altus EZ Fire Integrated
Cassette
Shimano HG30 11-32 8 spd
Crank
42/32/22
Bottom Bracket
Xerama SP-500
Chain
Shimano HG40
Pedals
Wellgo LU-A9
Wheels
Front Hub
KT Disc
Rear Hub
KT Disc
Rims
Shining MT-20
Spokes
Stainless 14g
Tires
Vittoria Geax 26 x 2.0
Brakes
Brakes
Shimano M445 Hydraulic Disc
Brake Levers
Shimano M445 Hydraulic
Disk Rotors
Shimano 160mm
Cockpit
Stem
Kona Control
Handlebar
Kona Aluminum Riser
Grips
Kona Mooseknuckle
Headset
FSA
Seat
Saddle
Kona XC
Seatpost
Kona Thumb w/offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 356 | 40.6cm | 45.7cm | 50.8cm | 55.9cm |
|---|---|---|---|---|---|
| Bottom Bracket Height | 300 mm | 300 mm | 305 mm | 305 mm | 310 mm |
| Front Center | 638 mm | 665 mm | 688 mm | 704 mm | 725 mm |
| Rake | 39 mm | 39 mm | 39 mm | 39 mm | 39 mm |
| Top Tube Length | 566 mm | 591 mm | 617 mm | 642 mm | 667 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 71.5 ° | 71 ° |
| Seat Tube Length | 356 mm | 406 mm | 457 mm | 508 mm | 559 mm |
| Head Tube Angle | 68 ° | 68 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 100 mm | 120 mm | 140 mm | 165 mm | 180 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 424 mm | 424 mm |
| Wheelbase | 1061 mm | 1087 mm | 1111 mm | 1126 mm | 1148 mm |
| Bottom Bracket Drop | 43 mm | 43 mm | 38 mm | 38 mm | 33 mm |
| Standover Height | 721 mm | 752 mm | 788 mm | 822 mm | 854 mm |
| Wheels | 26" | 26" | 26" | 26" | 26" |

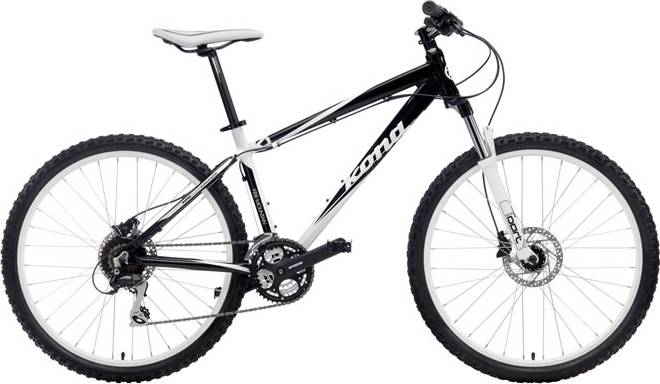

About this model
FIRE MOUNTAIN is a Kona Fire model. Kona released 15 bikes variations of this model so far.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
FIRE MOUNTAIN components
Fork
This bike has the RockShox fork installed. The fork’s travel is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
The wheels on FIRE MOUNTAIN are the 26″ aluminum type. These wheels give you great handling over your bike. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
