Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 26" -
Travel Front 100mm -
Fork RockShox
-
Groupset Acera -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona 7005 Aluminum Butted
Suspension Fork
RockShox XC28 100mm w/Turnkey
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Acera SGS
Front Derailleur
Shimano Acera
Shift Levers
Shimano Acera
Cassette
Shimano HG20 11-34 9 spd
Crank
44/32/22
Bottom Bracket
TH 7420
Chain
KMC HG-53
Pedals
Wellgo LU-A9
Wheels
Front Hub
KT Disc
Rear Hub
KT Disc
Rims
Shining MT-20
Spokes
Stainless 14g
Tires
Vittoria Saguaro 26x2.2
Brakes
Brakes
Shimano M446 Hydraulic Disc
Brake Levers
Shimano M445 Hydraulic
Disk Rotors
Shimano 160mm
Cockpit
Stem
Kona Control
Handlebar
Kona Aluminum Riser
Grips
Kona Mooseknuckle
Headset
TH No. 10
Seat
Saddle
Kona XC
Seatpost
Kona Thumb w/offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 14" | 16" | 18" | 20" | 22" |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.39 mm | 1.36 mm | 1.4 mm | 1.38 mm |
| Bottom Bracket Height | 300 mm | 300 mm | 305 mm | 305 mm | 310 mm |
| Front Center | 640 mm | 665 mm | 685 mm | 705 mm | 725 mm |
| Rake | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm |
| Stack | 556 mm | 571 mm | 586 mm | 611 mm | 621 mm |
| Reach | 391 mm | 411 mm | 431 mm | 436 mm | 451 mm |
| Top Tube Length | 566 mm | 591 mm | 616 mm | 641 mm | 666 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 71.5 ° | 71 ° |
| Seat Tube Length | 355 mm | 405 mm | 455 mm | 510 mm | 560 mm |
| Head Tube Angle | 68 ° | 68 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 100 mm | 120 mm | 140 mm | 165 mm | 180 mm |
| Chainstay Length | 421 mm | 421 mm | 421 mm | 421 mm | 421 mm |
| Wheelbase | 1061 mm | 1086 mm | 1111 mm | 1126 mm | 1146 mm |
| Bottom Bracket Drop | 43 mm | 43 mm | 38 mm | 38 mm | 33 mm |
| Standover Height | 721 mm | 751 mm | 786 mm | 821 mm | 851 mm |
| Wheels | 26" | 26" | 26" | 26" | 26" |
About this model

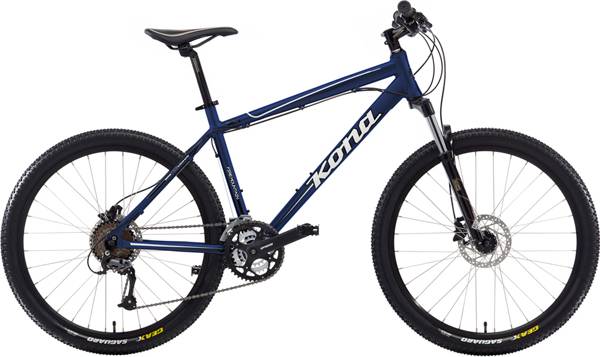

Fire Mountain is part of the Kona Fire model. 15 bikes variations carry this model name so far.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Overview of components
Fork
This bike has the RockShox fork installed. The fork’s travel is 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
When leaving the production line, the Fire Mountain model has 26″ aluminum wheels. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, they provide less traction than 29″ wheels do.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Fire Mountain comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
