Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork SunTour XCR 32
-
Groupset Altus -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona 6061 Aluminum Butted
Suspension Fork
Suntour XCR 32 LO-R 100mm
Rear Shock
n/a
Drivetrain
Rear Derailleur
Shimano Altus
Front Derailleur
Shimano Altus
Shift Levers
Shimano Altus
Cassette
Shimano HG200 11-34t 9spd
Crank
22/32/44t
Bottom Bracket
FSA 7420
Chain
KMC HG53
Pedals
Wellgo Platform
Wheels
Front Hub
Joytech
Rear Hub
Joytech
Rims
WTB SX19
Spokes
Stainless 14g
Tires
Kenda Slant Six 27.5/26x2.1"
Brakes
Brakes
Tektro HDC-M290
Brake Levers
Tektro HDC-M290
Disk Rotors
Tektro HDC-M290 180mm/160mm
Cockpit
Stem
Kona Control
Handlebar
Kona Aluminum Riser
Grips
Kona Race Light
Headset
TH ZST No.10
Seat
Saddle
Kona XC
Seatpost
Kona Thumb
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 13" | 15" | 17" | 19" | 21" |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.52 mm | 1.46 mm | 1.46 mm | 1.41 mm |
| Bottom Bracket Height | 325 mm | 306 mm | 306 mm | 306 mm | 306 mm |
| Front Center | 656 mm | 646 mm | 672 mm | 698 mm | 726 mm |
| Rake | 39 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 102 mm | 85 mm | 91 mm | 91 mm | 93 mm |
| Stack | 568 mm | 591 mm | 600 mm | 627 mm | 638 mm |
| Reach | 395 mm | 390 mm | 412 mm | 429 mm | 452 mm |
| Top Tube Length | 558 mm | 571 mm | 596 mm | 621 mm | 647 mm |
| Seat Tube Angle | 74 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 331 mm | 381 mm | 432 mm | 483 mm | 533 mm |
| Head Tube Angle | 68 ° | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 110 mm | 105 mm | 115 mm | 135 mm | 155 mm |
| Chainstay Length | 424 mm | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1079 mm | 1082 mm | 1101 mm | 1128 mm | 1155 mm |
| Bottom Bracket Drop | 30 mm | 49 mm | 49 mm | 49 mm | 49 mm |
| Standover Height | 704 mm | 729 mm | 759 mm | 794 mm | 829 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
About this model

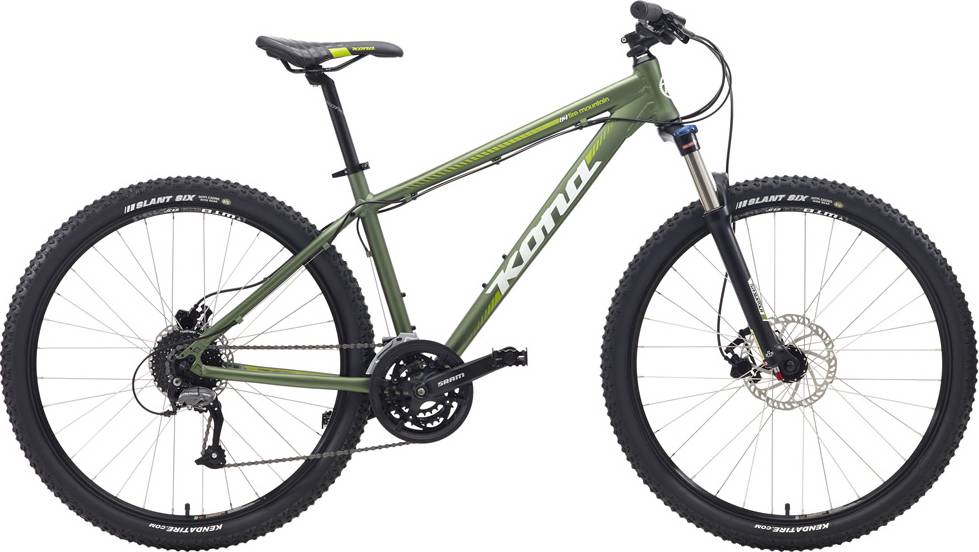

FIRE MOUNTAIN is a Kona Fire model. There are 15 bikes that carry this model name.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry bikes average price
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
FIRE MOUNTAIN components
Fork
The FIRE MOUNTAIN comes factory-installed with the SunTour XCR 32 fork. This has a travel range of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
The FIRE MOUNTAIN 2015 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The FIRE MOUNTAIN comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
