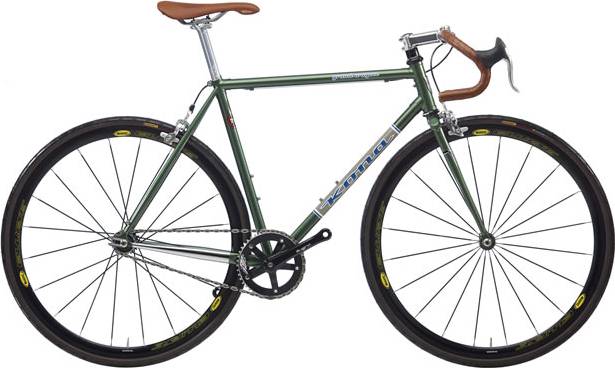

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Steel -
Wheels 700c -
Suspension Rigid -
Drivetrain Single Speed -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Dedacciai SAT Bronze-Welded Cromoly
Suspension Fork
Kona Retro Road
Rear Shock
N/A
Drivetrain
Rear Derailleur
N/A
Front Derailleur
N/A
Shift Levers
N/A
Cassette
Shimano 16T Freewheel & Fixed
Crank
Sugino 45T
Bottom Bracket
Sugino BB-SG75
Chain
Shimano CN-NX01
Pedals
N/A
Wheels
Front Hub
Mavic Track Ellipse Wheelset
Rear Hub
Mavic Track Ellipse Wheelset
Rims
Mavic Track Ellipse Wheelset
Spokes
Mavic Track Ellipse Wheelset
Tires
Continental Ultra Gatorskin 700x28C
Brakes
Brakes
Shimano R650
Brake Levers
Shimano R600
Cockpit
Stem
Kona Rat Pack (6°±, 49-52=90, 54-56=100, 58-60=115mm)
Handlebar
Kona Rat Pack Pista (31.8mm, 420mm Wide)
Grips
Kona Cork Tape
Headset
FSA Orbit DL
Seat
Saddle
Selle Italia Flight Retro
Seatpost
Kona Road Deluxe
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 52cm | 54cm | 56cm | 58cm | 60cm |
|---|---|---|---|---|---|---|
| Bottom Bracket Height | 281 mm | 281 mm | 281 mm | 281 mm | 284 mm | 284 mm |
| Front Center | 582 mm | 583 mm | 586 mm | 591 mm | 601 mm | 610 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Top Tube Length | 523 mm | 537 mm | 553 mm | 568 mm | 583 mm | 596 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 73.5 ° | 73 ° | 72.5 ° | 72 ° |
| Seat Tube Length | 470 mm | 500 mm | 520 mm | 540 mm | 560 mm | 580 mm |
| Head Tube Angle | 71.5 ° | 72.5 ° | 73 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Head Tube Length | 110 mm | 115 mm | 135 mm | 136 mm | 165 mm | 168 mm |
| Chainstay Length | 416 mm | 416 mm | 416 mm | 416 mm | 416 mm | 416 mm |
| Wheelbase | 991 mm | 993 mm | 995 mm | 1000 mm | 1011 mm | 1019 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm | 52 mm | 52 mm |
| Standover Height | 759 mm | 778 mm | 797 mm | 806 mm | 831 mm | 841 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model
GRAND WAGON is part of the Kona Grand Wagon model. Kona launched 1 bike of this model so far.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for General Road bikes
According to our calculations, the average cost of a General Road bike that is reliable is 1915$. However, this doesn’t mean that if you spend less money on a General Road bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Overview of components
Wheels
The wheels on GRAND WAGON are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Kona GRAND WAGON is equipped with Rim brakes. Rim brakes deliver an average performance overall. However, you could spend a little extra and get a bike that has hydraulic brakes.
