Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Steel -
Wheels 700c -
Groupset Ultegra -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Deda Zero Replica TIG-Welded Cromoly
Suspension Fork
Dedacciai Fin Carbon
Rear Shock
NA
Drivetrain
Rear Derailleur
Shimano Ultegra
Front Derailleur
Shimano Ultegra
Shift Levers
Shimano Ultegra
Cassette
Shimano Ultegra (12-25, 10spd)
Crank
53/39
Bottom Bracket
FSA MegaExo
Chain
Shimano 105
Pedals
None
Wheels
Front Hub
Mavic Ksyrium Equipe Wheelset
Rear Hub
Mavic Ksyrium Equipe Wheelset
Rims
Mavic Ksyrium Equipe Wheelset
Spokes
Mavic Ksyrium Equipe Wheelset
Tires
Continental UltraRace Kevlar 700x23C
Brakes
Brakes
Shimano Ultegra
Brake Levers
Shimano Ultegra
Cockpit
Stem
FSA 150-1XT (6°±, 49-53=90, 56=100, 58-61=120mm)
Handlebar
FSA RD305S (49=400, 53-56=420, 58-61=440mm)
Grips
Kona Cork Tape
Headset
FSA Orbit C#8
Seat
Saddle
Selle Italia XO SE
Seatpost
FSA SL280
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 53cm | 56cm | 59cm | 61cm |
|---|---|---|---|---|---|
| Bottom Bracket Height | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm |
| Front Center | 567 mm | 588 mm | 594 mm | 610 mm | 619 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Top Tube Length | 522 mm | 537 mm | 552 mm | 582 mm | 597 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 470 mm | 510 mm | 540 mm | 570 mm | 590 mm |
| Head Tube Angle | 71.5 ° | 72 ° | 72 ° | 73 ° | 73 ° |
| Head Tube Length | 120 mm | 150 mm | 175 mm | 190 mm | 200 mm |
| Chainstay Length | 409 mm | 409 mm | 412 mm | 412 mm | 415 mm |
| Wheelbase | 974 mm | 987 mm | 996 mm | 1012 mm | 1024 mm |
| Bottom Bracket Drop | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm |
| Standover Height | 735 mm | 769 mm | 794 mm | 816 mm | 820 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |

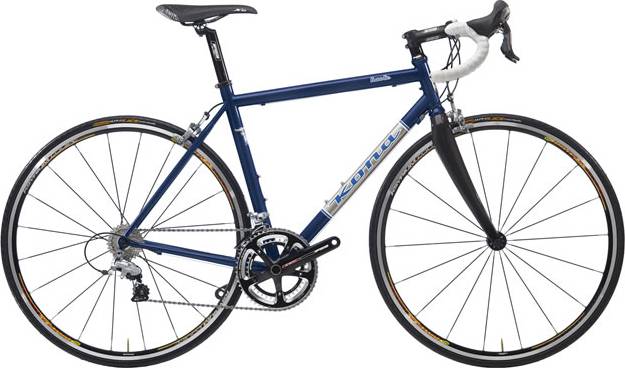

About this model
HAOLE is a Kona Haole model. Kona released 1 bike variation of this model so far.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for General Road bikes
According to our calculations, the average cost of a General Road bike that is reliable is 1915$. However, you could also get a good General Road bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
HAOLE components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
When leaving the production line, the HAOLE model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they have problems in wet conditions.
