Bike details
Overview
Key information split into simple groups.

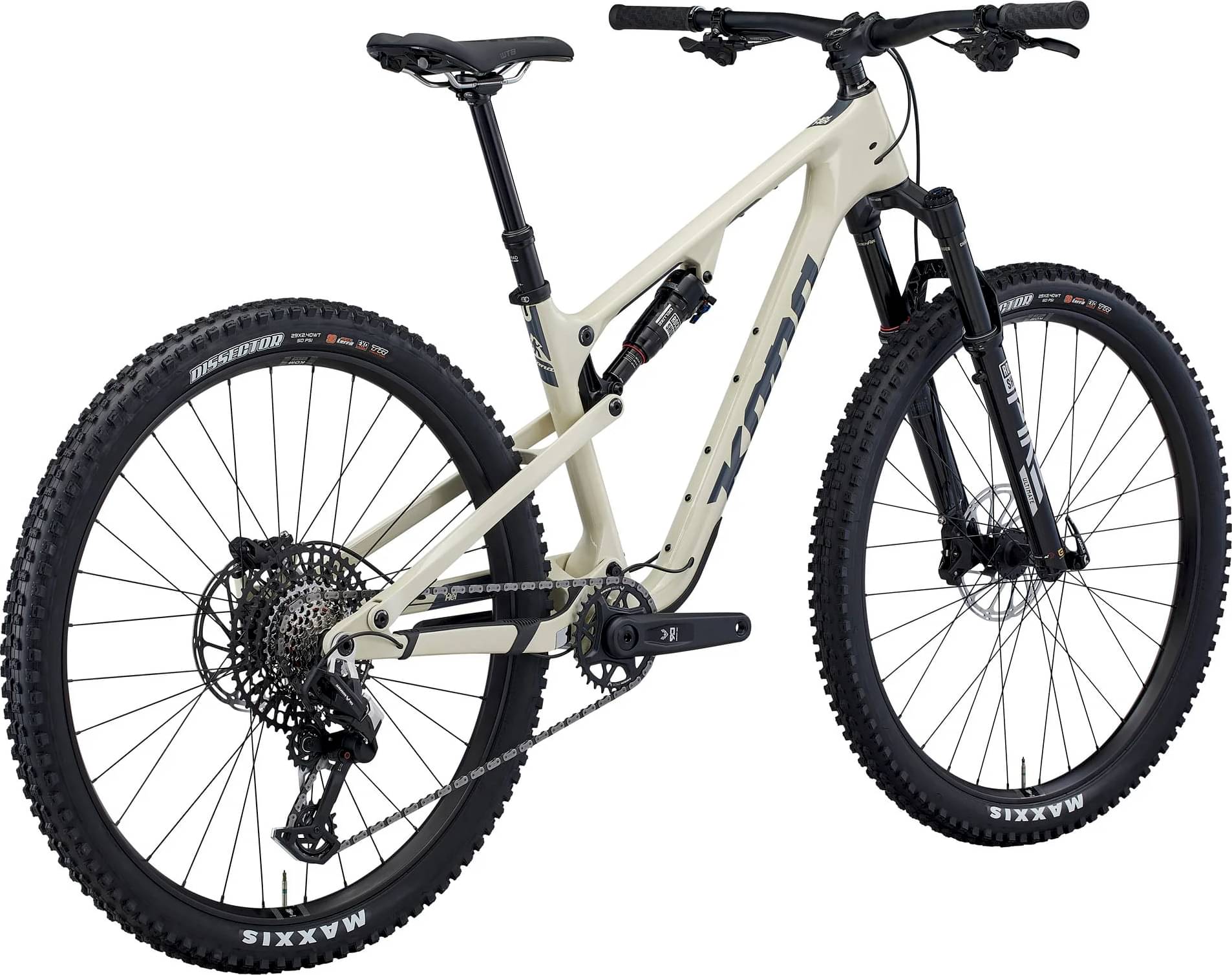

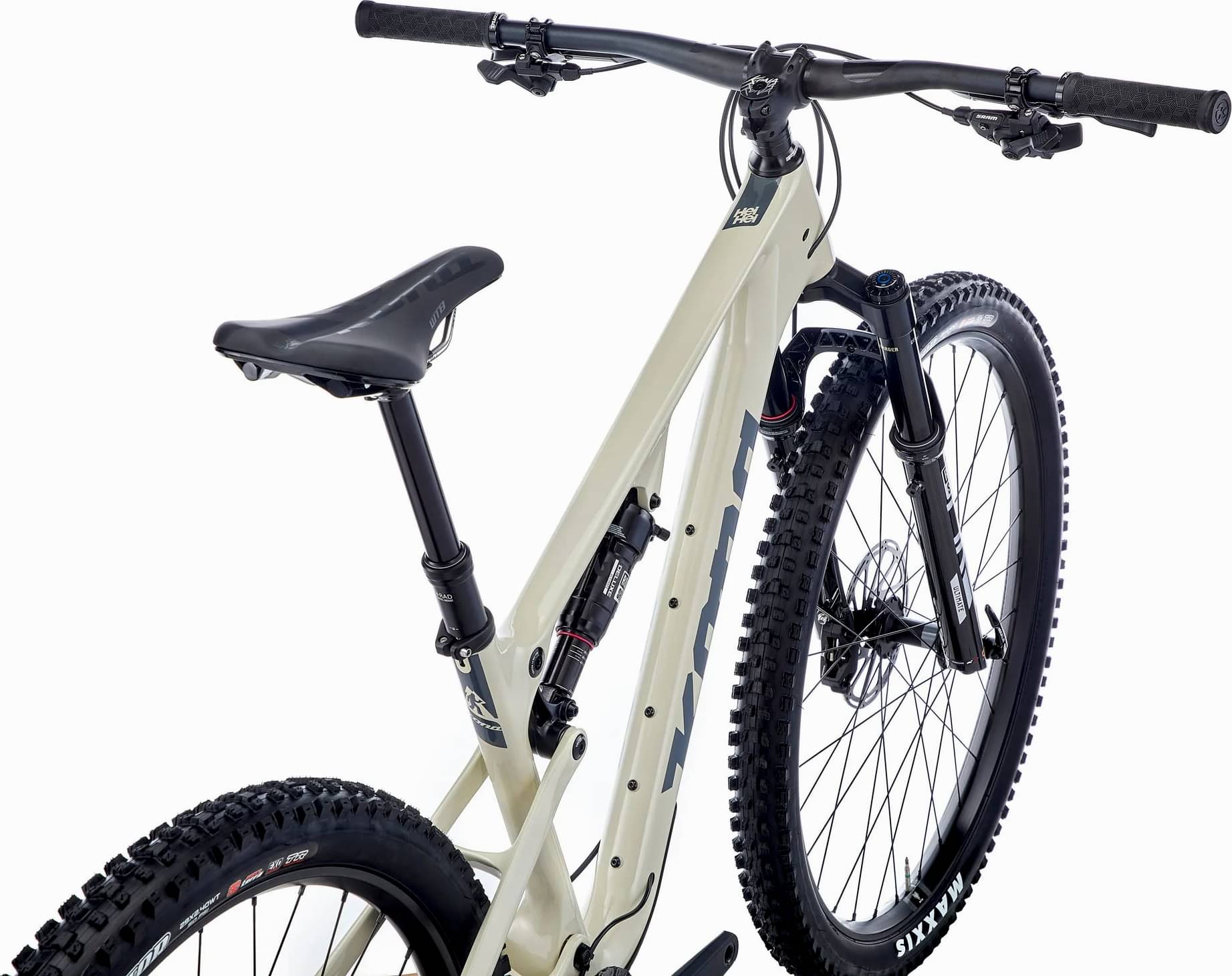

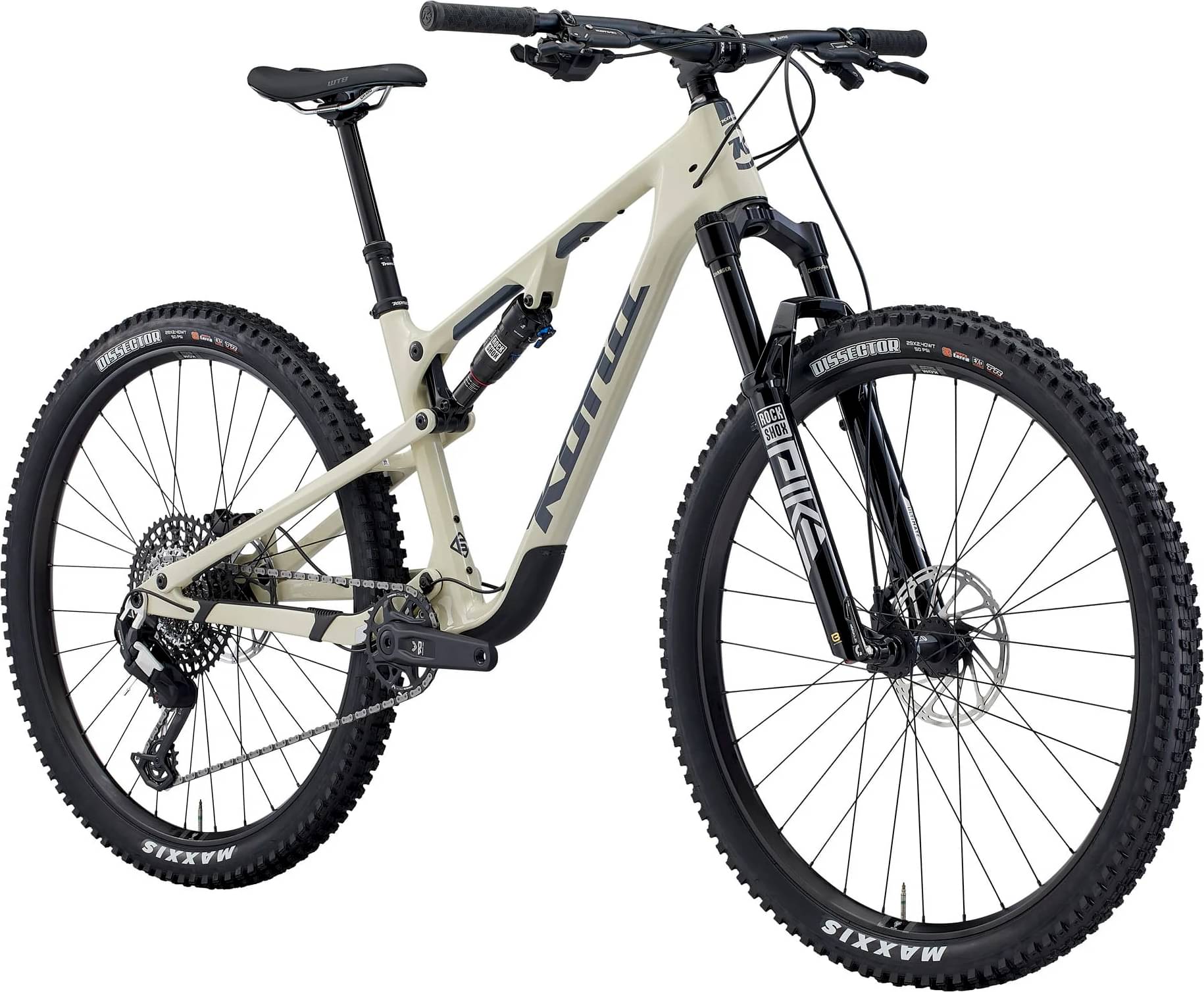

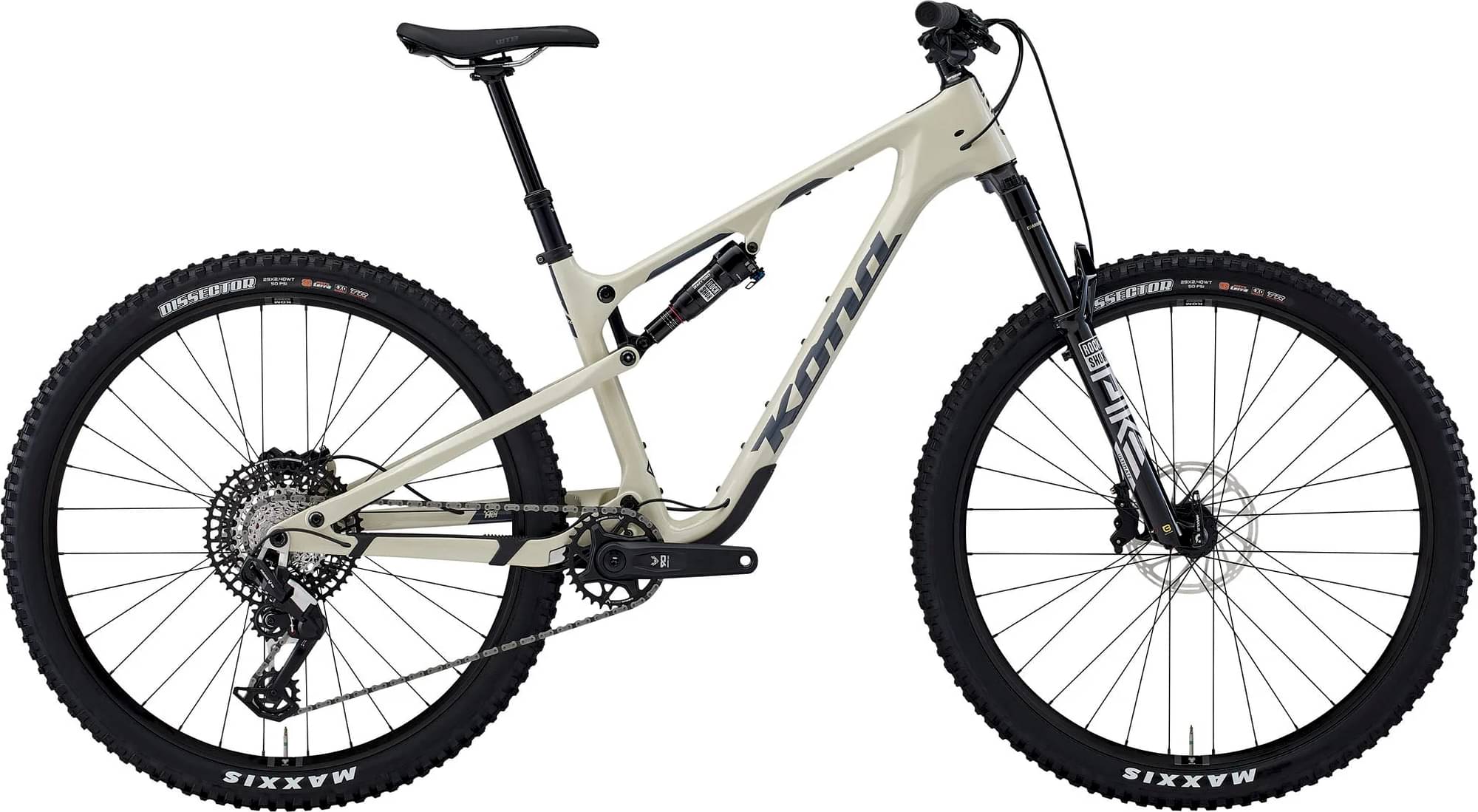

Bike summary
-
-
Frame Carbon -
Travel Front 130mm -
Fork RockShox Pike Ultimate
-
Groupset Eagle 90 Transmission -
Suspension Full -
Drivetrain 1 × 12 -
Brakes SRAM Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 170cm
MD
157cm - 182cm
LG
175cm - 195cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona Carbon
Suspension Fork
RockShox Pike Ultimate Charger 3.1 RC2 130mm Tapered 110mm Spacing

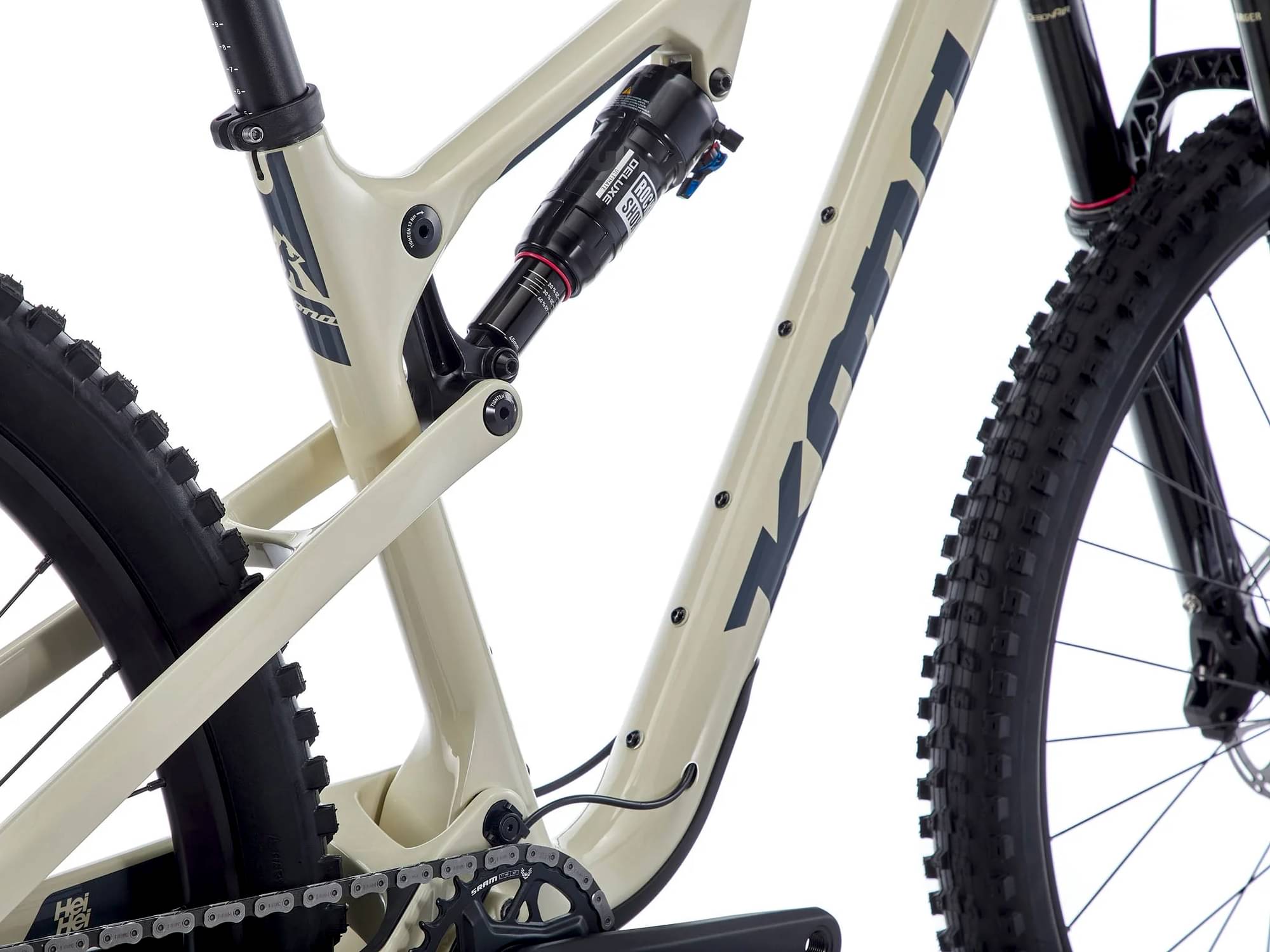

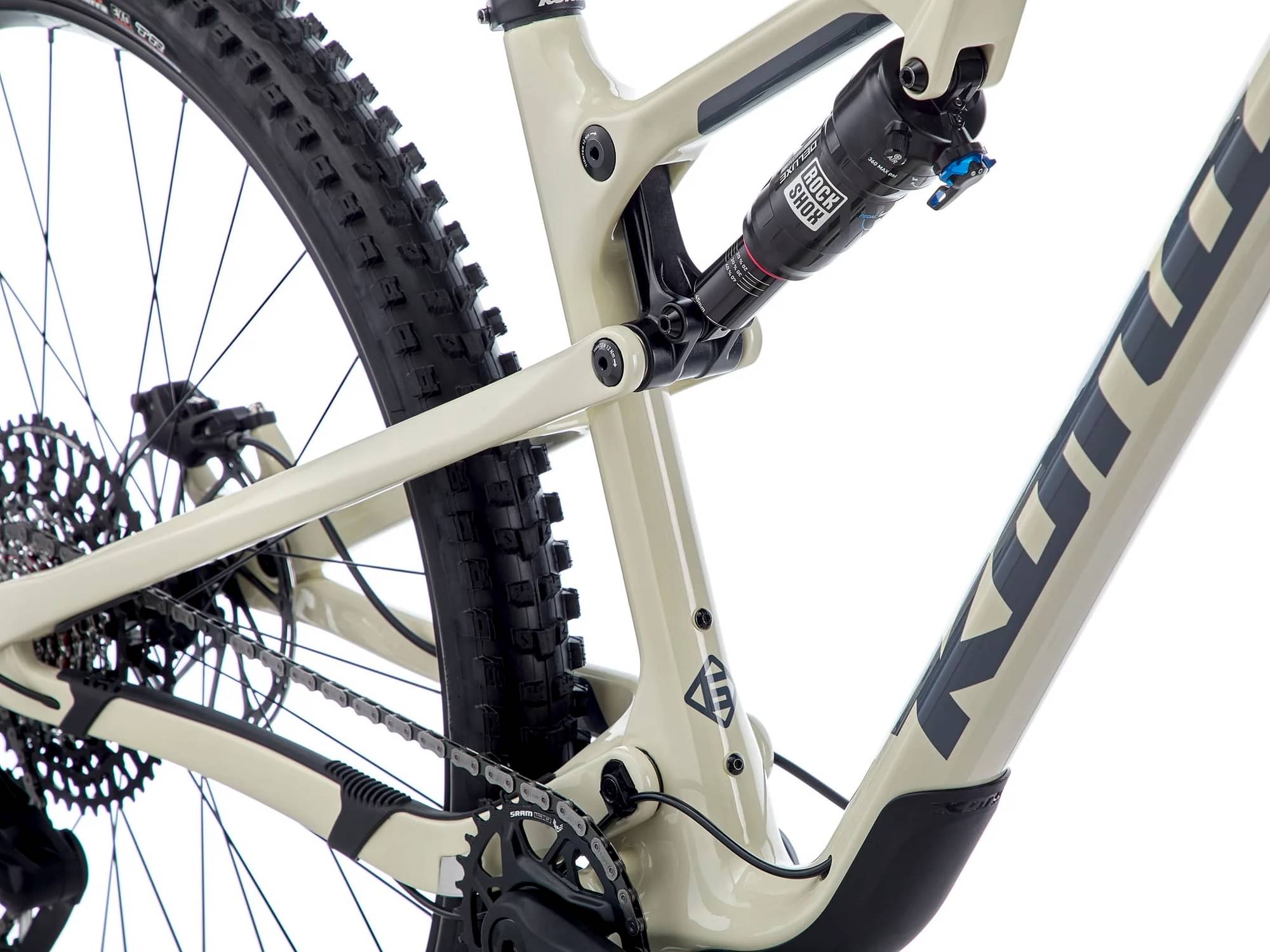

Rear Shock
RockShox Deluxe Ultimate
Drivetrain
Rear Derailleur
SRAM Eagle 90 Transmission
Front Derailleur
n/a
Shift Levers
SRAM Eagle 90 Transmission
Cassette
SRAM Eagle 90 Transmission 10-52t 12spd

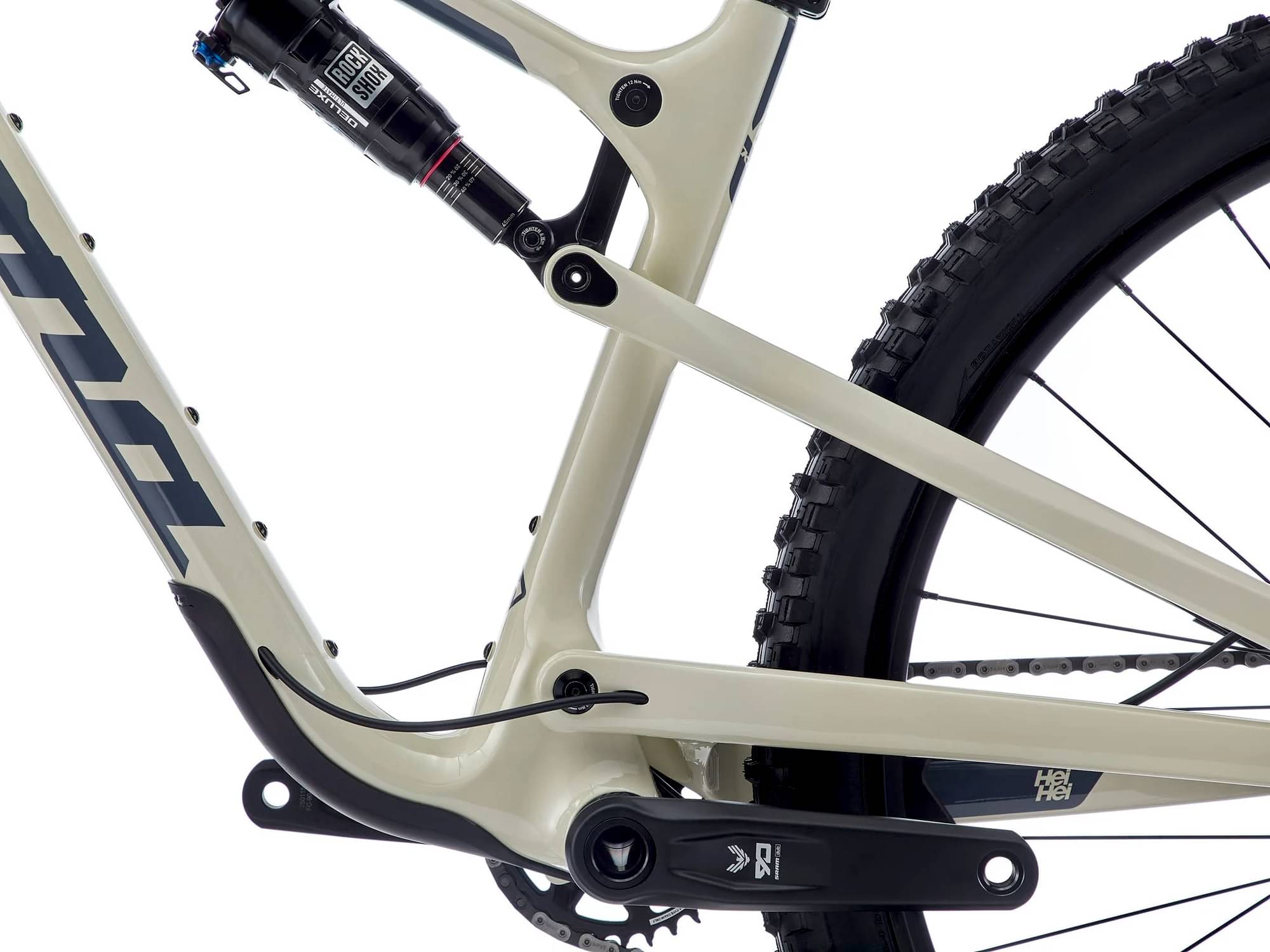

Crank
SRAM Eagle 90 DUB, SRAM Eagle 90 32t
Bottom Bracket
SRAM DUB PF92
Chain
SRAM Eagle 70
Chain Guide
n/a
Pedals
n/a
Wheels
Front Hub
DT Swiss 370 110x15mm
Rear Hub
DT Swiss 370 148x12mm
Rims
WTB KOM Team i30 TCS 2.0
Spokes
Sandvik Stainless Black 2.0/1.8 Butted
Tires
Front: Maxxis Dissector EXO TR 29x2.4WT", Rear: Maxxis Dissector EXO TR 29x2.4WT"
Brakes
Brakes
SRAM Motive Bronze 4-Piston Brakes
Brake Levers
SRAM Motive Bronze

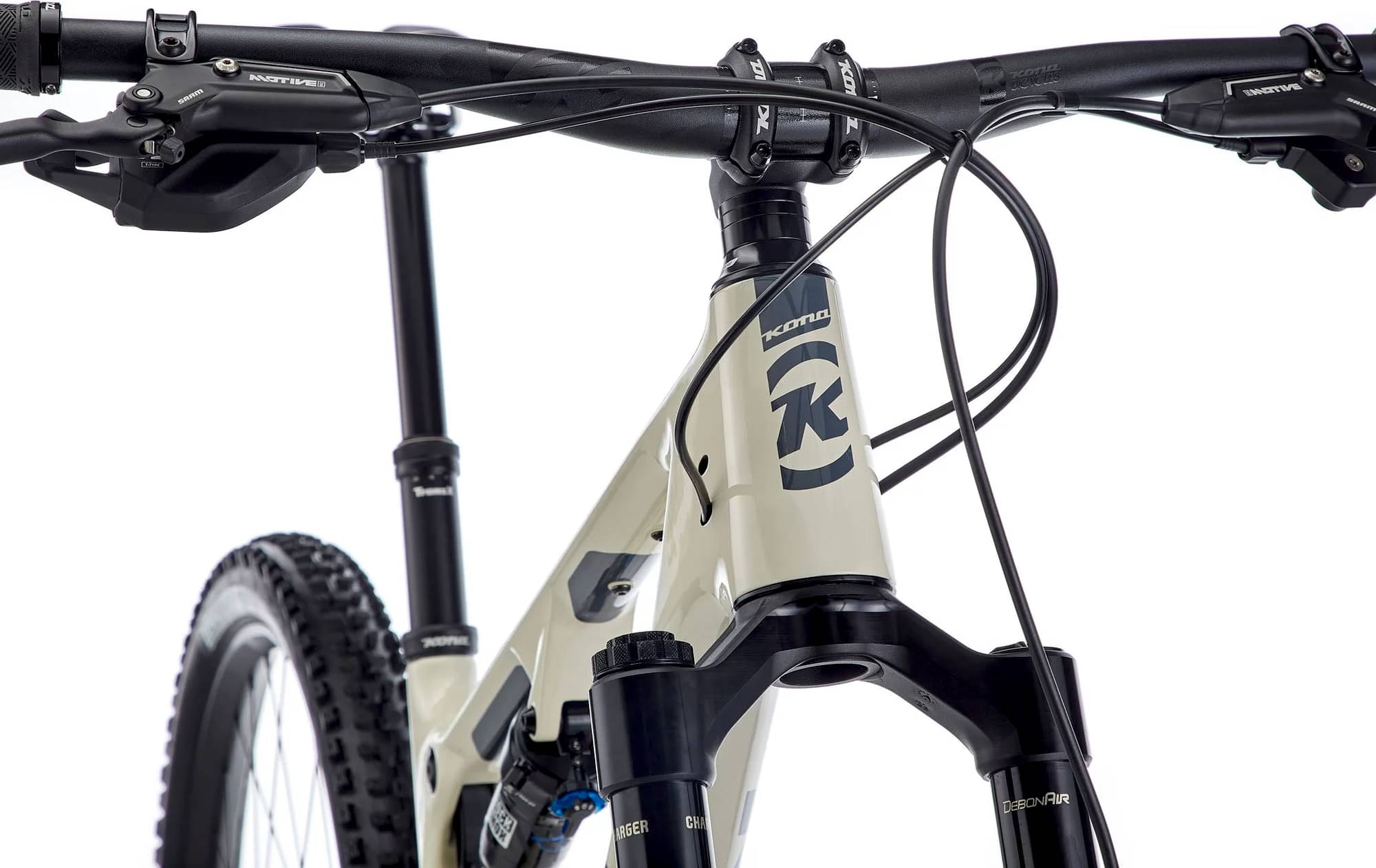

Cockpit
Stem
Kona XC/BC 35
Handlebar
Kona XC/BC 35
Grips
Kona Key Grip
Headset
FSA No.57E
Seat
Saddle
WTB Volt
Seatpost
TranzX Dropper +RAD Internal 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.429 mm | 1.381 mm | 1.329 mm | 1.255 mm |
| Bottom Bracket Height | 344 mm | 344 mm | 344 mm | 344 mm |
| Front Center | 730 mm | 761 mm | 790 mm | 829 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 117 mm | 117 mm | 119 mm | 119 mm |
| Stack | 606 mm | 620 mm | 630 mm | 639 mm |
| Reach | 424 mm | 449 mm | 474 mm | 509 mm |
| Top Tube Length | 575 mm | 605 mm | 633 mm | 671 mm |
| Seat Tube Angle | 76.1 ° | 76 ° | 75.9 ° | 75.8 ° |
| Seat Tube Length | 380 mm | 410 mm | 450 mm | 490 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 105 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1163 mm | 1194 mm | 1223 mm | 1262 mm |
| Bottom Bracket Drop | 31 mm | 31 mm | 31 mm | 31 mm |
| Standover Height | 752 mm | 752 mm | 753 mm | 755 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 152 cm | 157 cm | 175 cm | 180 cm |
| Rider Max Height | 170 cm | 182 cm | 195 cm | 195 cm |
