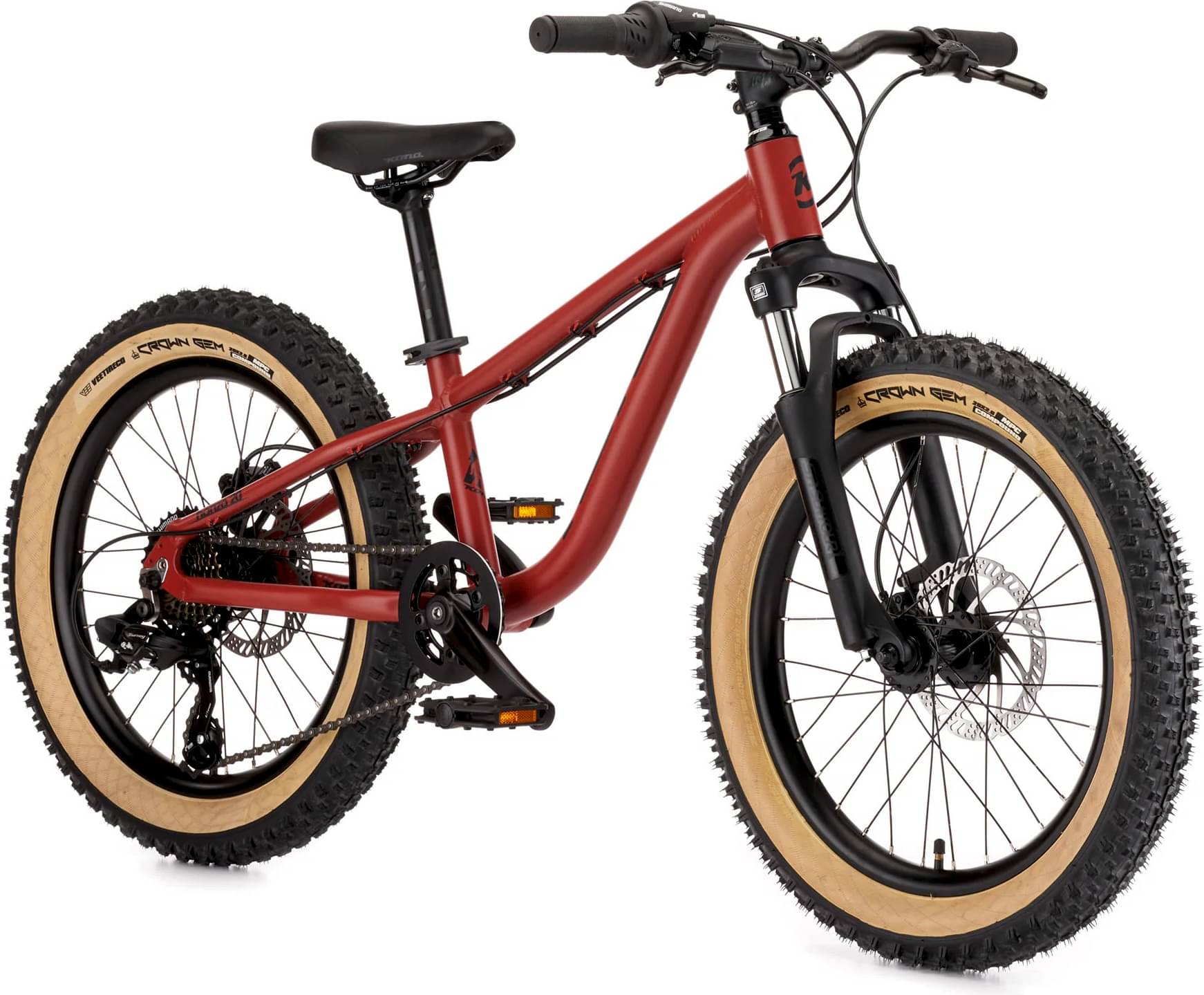

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 60mm -
Fork Suntour XCT
-
Groupset Tourney -
Suspension Hardtail -
Drivetrain 1 × 7 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona 6061 Aluminum Butted
Suspension Fork
Suntour XCT DS Boost Plus Coil 60mm
Rear Shock
n/a
Drivetrain

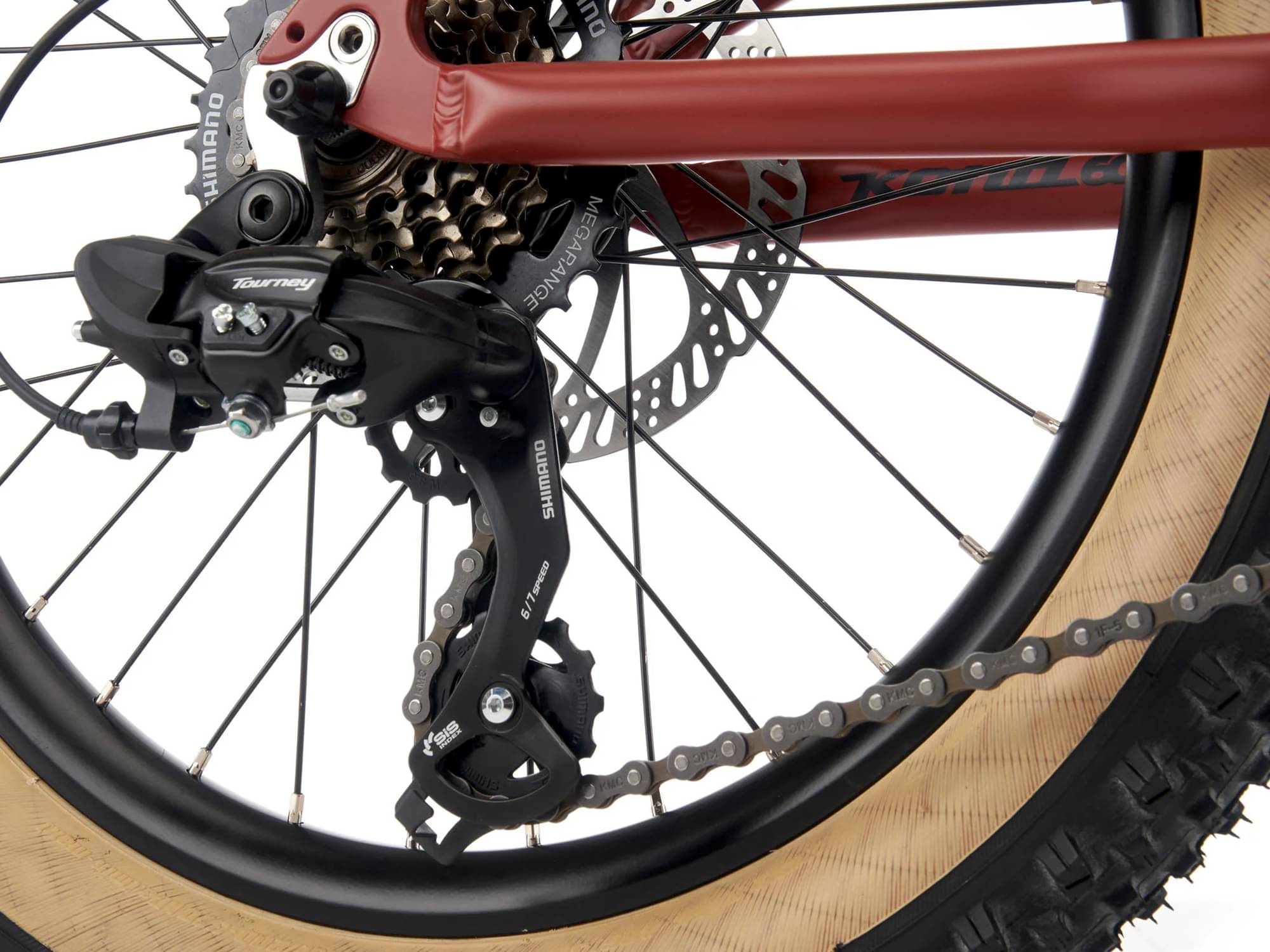

Rear Derailleur
Shimano Tourney
Front Derailleur
n/a

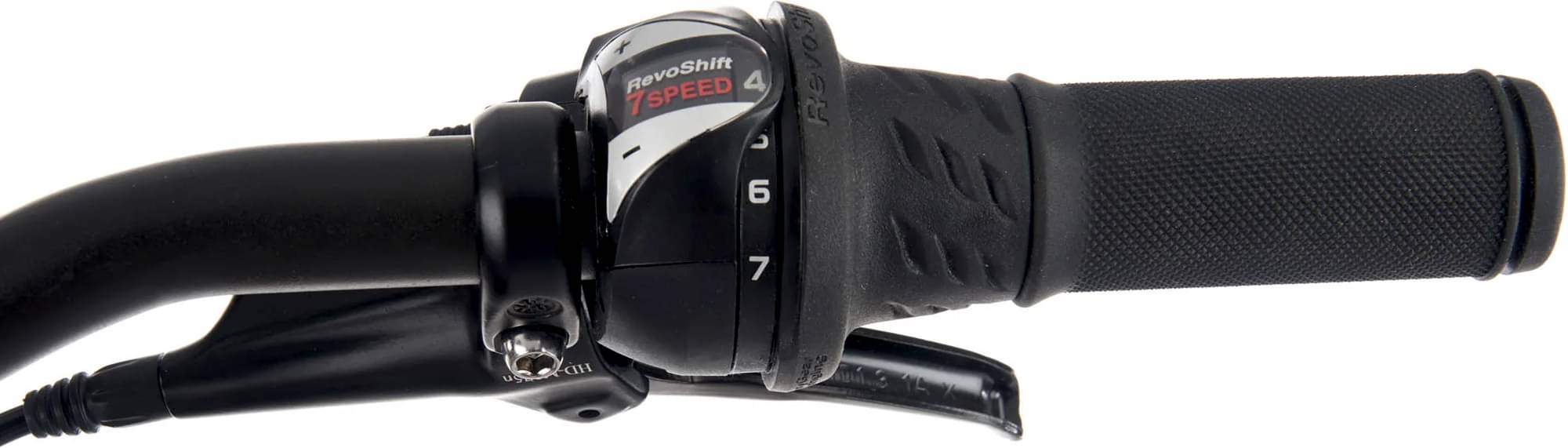

Shift Levers
Shimano Revo Shift
Cassette
Shimano Tourney 14-34t 7spd

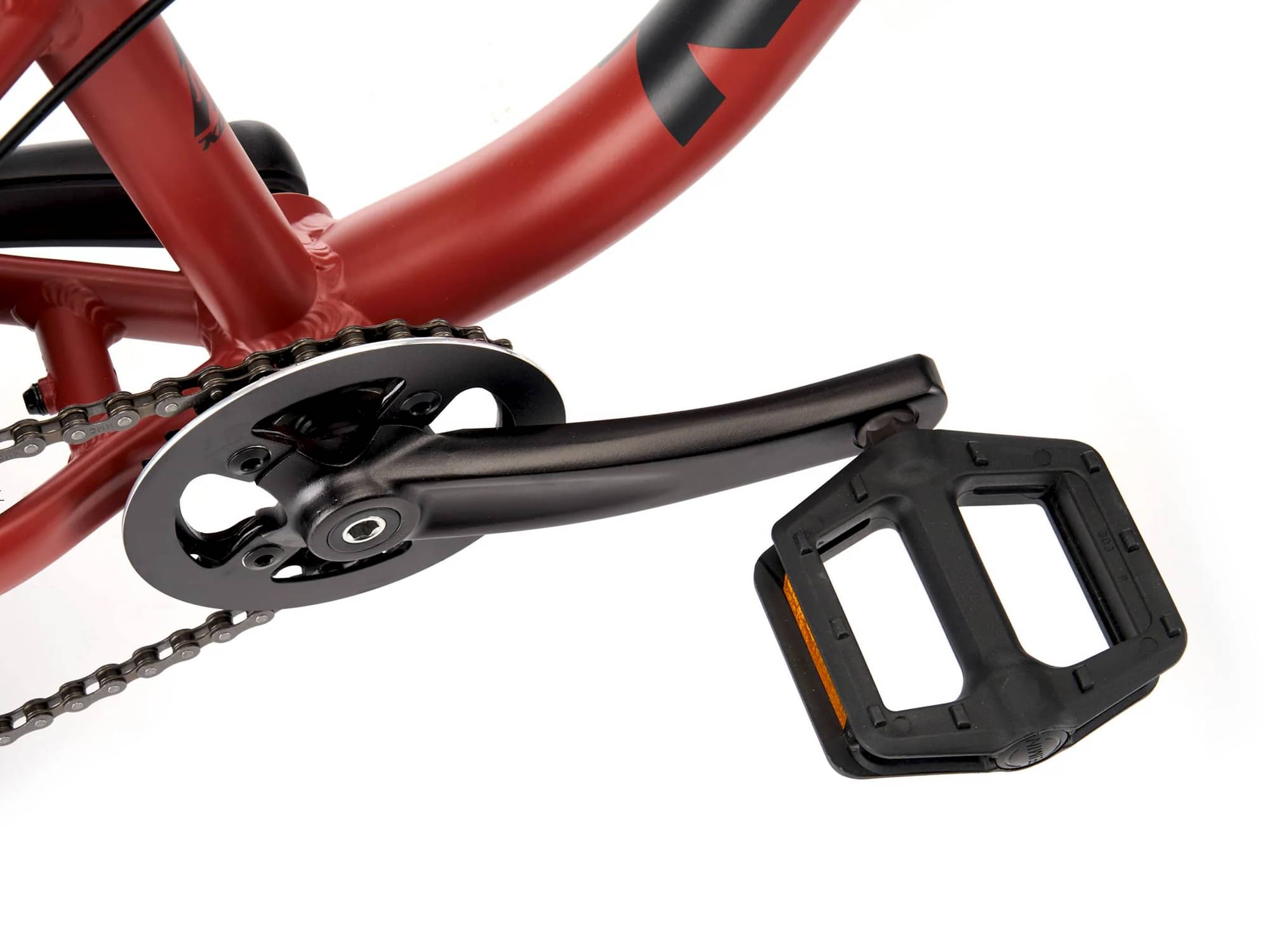

Crank
Samox 152mm, 28t Narrow/Wide w/Guard
Bottom Bracket
Feimin 68mm
Chain
KMC HV500
Chain Guide
n/a
Pedals
Feimin Platform
Wheels
Front Hub
Joytech 110x9mm
Rear Hub
Joytech 135x10mm
Rims
Double Wall alloy
Spokes
Stainless 14g
Tires
Front: Vee Tire Crown Gem 20x2.6", Rear: Vee Tire Crown Gem 20x2.6"
Brakes

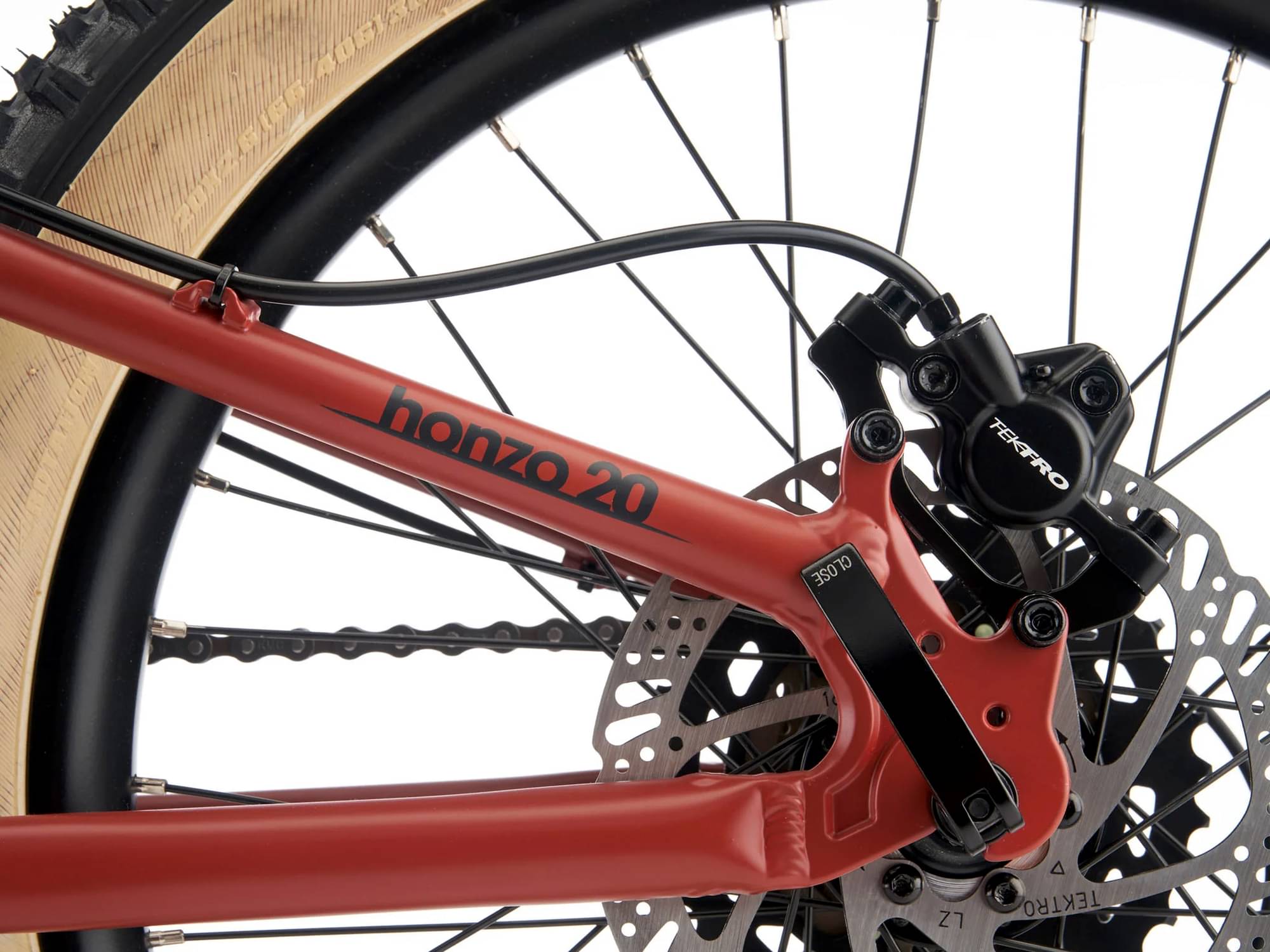

Brakes
Tektro HDM276 Hydraulic

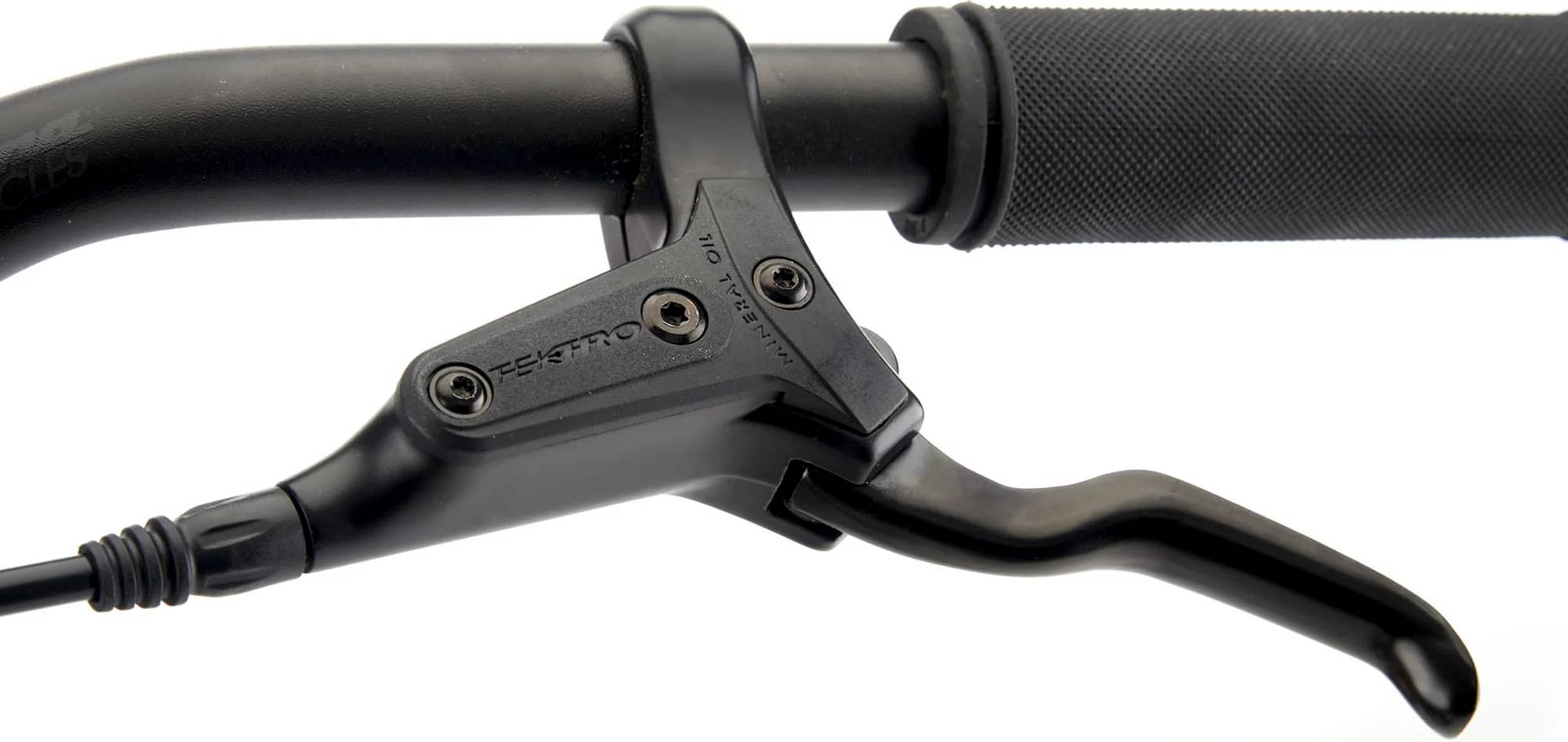

Brake Levers
Tektro HDM276 Hydraulic
Cockpit

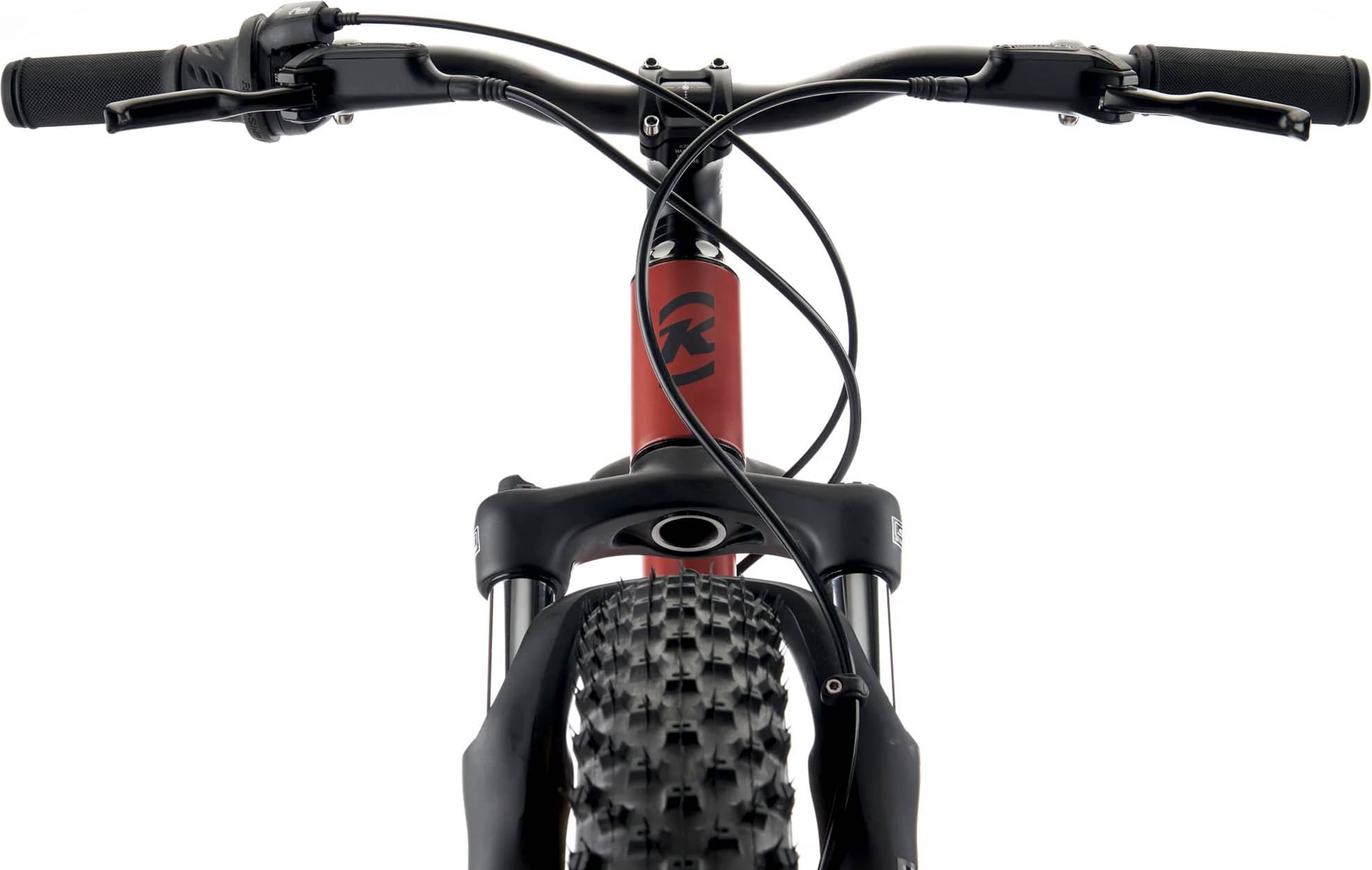

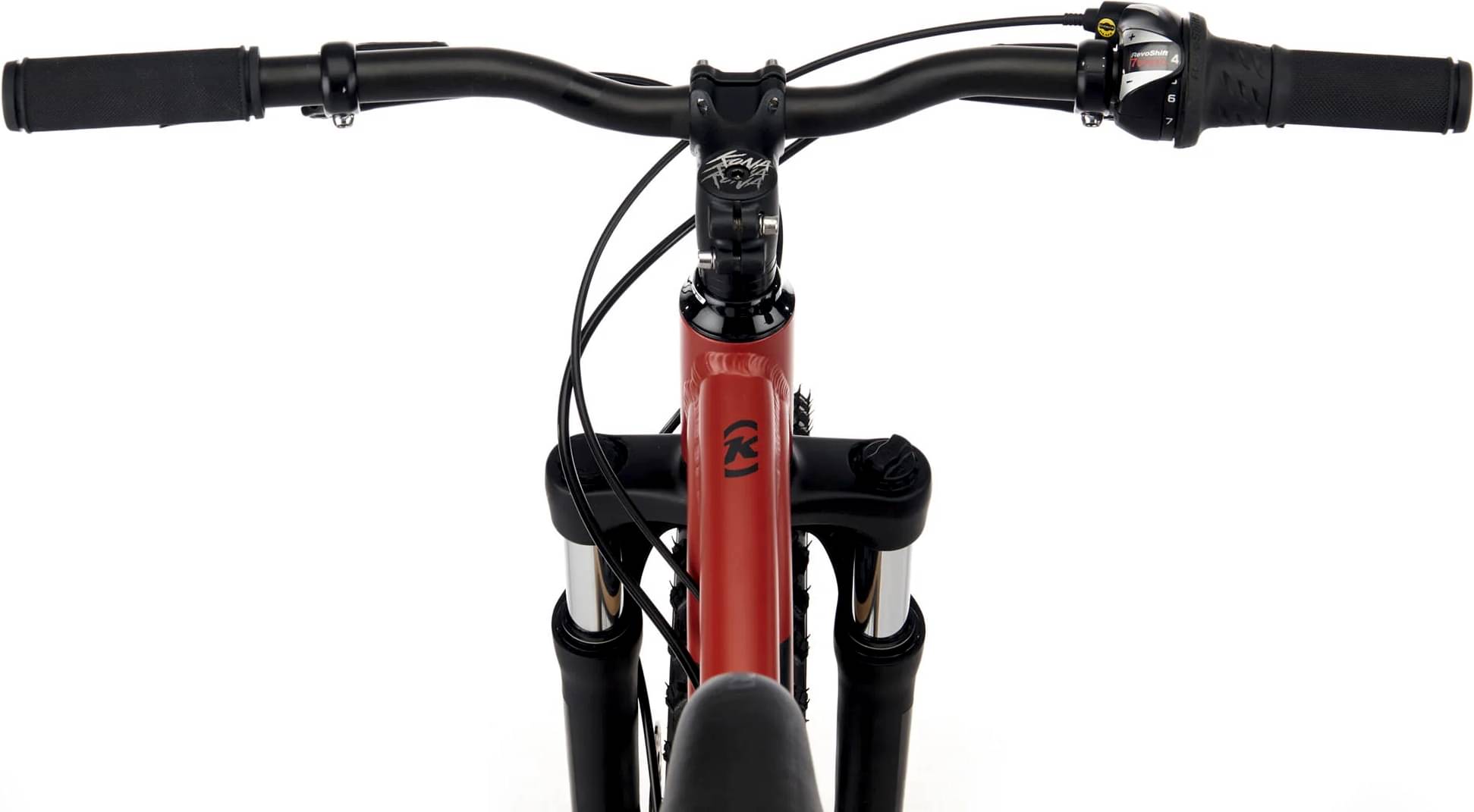

Stem
Kona OB
Handlebar
Kona OB
Grips
Kona DJ
Headset
FSA No.10
Seat
Saddle
Kona DJ
Seatpost
Kona Thumb 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM |
|---|---|
| Stack Reach Ratio | 1.359 mm |
| Bottom Bracket Height | 269 mm |
| Front Center | 528 mm |
| Rake | 40 mm |
| Stack | 435 mm |
| Reach | 320 mm |
| Top Tube Length | 457 mm |
| Seat Tube Angle | 72.5 ° |
| Seat Tube Length | 250 mm |
| Head Tube Angle | 69 ° |
| Head Tube Length | 90 mm |
| Chainstay Length | 365 mm |
| Wheelbase | 893 mm |
| Bottom Bracket Drop | 5 mm |
| Standover Height | 546 mm |
| Wheels | 20" |
