Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 29" -
Travel Front 120mm -
Fork RockShox Revelation RC
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 170cm
MD
157cm - 182cm
LG
175cm - 195cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona Cromoly Butted
Suspension Fork
RockShox Revelation RL Solo Air 120mm QR15 Tapered
Rear Shock
n/a
Drivetrain
Rear Derailleur
Shimano Deore
Front Derailleur
n/a
Shift Levers
Shimano Deore (rh only)
Cassette
SRAM PG1030 11-36t 10 spd
Crank
32t
Bottom Bracket
FSA BB7000
Chain
KMC X10
Chain Guide
The Hive LS1+ No Taco
Pedals
n/a
Wheels
Front Hub
Shimano Deore QR15
Rear Hub
Shimano Deore 142x12mm
Rims
WTB ST i23 TCS
Spokes
Stainless 14g
Tires
Maxxis Ardent 29x2.4" EXO AR
Brakes
Brakes
Shimano M505 Hydraulic Disc
Brake Levers
Shimano M505 Hydraulic
Disk Rotors
Shimano SLX 180mm (centerlock)
Cockpit
Stem
Kona XC/BC
Handlebar
Kona XC/BC Riser
Grips
Kona S-LOG
Headset
FSA Internal
Seat
Saddle
WTB Volt Comp
Seatpost
Kona Thumb OB
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.5 mm | 1.44 mm | 1.4 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 687 mm | 714 mm | 740 mm | 765 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 103 mm | 102 mm | 102 mm | 102 mm |
| Stack | 630 mm | 639 mm | 648 mm | 658 mm |
| Reach | 404 mm | 427 mm | 449 mm | 470 mm |
| Top Tube Length | 582 mm | 608 mm | 633 mm | 657 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 381 mm | 432 mm | 478 mm | 508 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 413 mm | 413 mm | 413 mm | 413 mm |
| Wheelbase | 1092 mm | 1119 mm | 1145 mm | 1170 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 785 mm | 812 mm | 837 mm | 855 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 152 cm | 157 cm | 175 cm | 180 cm |
| Rider Max Height | 170 cm | 182 cm | 195 cm | 195 cm |
Model Overview

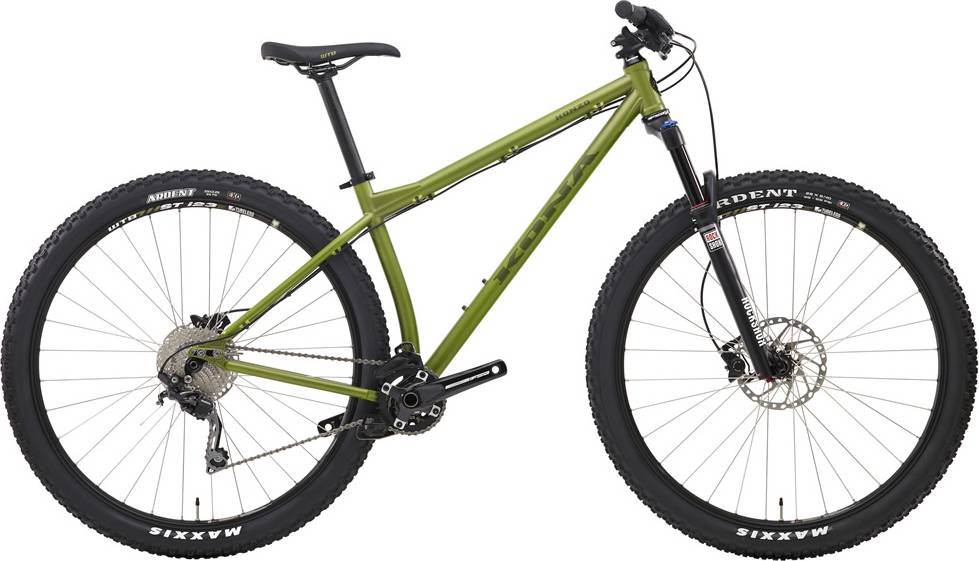

HONZO is part of the Kona Honzo model. 53 bikes variations carry this model name so far.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
HONZO components
Fork
Kona HONZO 2014 bike is equipped with the RockShox Revelation RC fork, and has 120mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
The wheels on HONZO are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The HONZO comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Kona HONZO bike has 4 sizes, in the range of 152 cm – 195 cm (4.99 ft – 6.4 ft). In short, you can easily find one that suits you.
