Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 80mm -
Fork RockShox
-
Groupset SLX, Deore -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona Race Light 7005 Aluminum Butted
Suspension Fork
RockShox Dart 3 80mm
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano SLX
Front Derailleur
Shimano Deore
Shift Levers
Shimano Deore
Cassette
Shimano Deore (11-34, 9spd)
Crank
44/32/22
Bottom Bracket
FSA MegaExo
Chain
KMC HG53
Pedals
Wellgo LU-A9
Wheels
Front Hub
Formula Disc
Rear Hub
Shimano M475 Disc
Rims
Alex EN-24
Spokes
Sandvik Stainless 15g fr/14g rr
Tires
Maxxis Ignitor 29 x 2.1
Brakes
Brakes
Shimano 486 Hydraulic Disc 7" fr/6" rr
Brake Levers
Shimano 486 Hydraulic Disc
Cockpit
Stem
Kona XC/BC (6°± ; 14-16=75mm, 17-19=90mm, 20-22=105mm)
Handlebar
Kona Energy Bar (31.8mm x 680mm = 16-18" / 710mm = 19" +)
Grips
Kona Race Light
Headset
TH
Seat
Saddle
WTB Speed V Sport SE
Seatpost
Kona XC/BC
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 40.7cm | 45.7cm | 48.3cm | 50.8cm | 55.9cm |
|---|---|---|---|---|---|
| Bottom Bracket Height | 307 mm | 310 mm | 313 mm | 313 mm | 313 mm |
| Front Center | 650 | 661 mm | 664 mm | 666 mm | 678 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Top Tube Length | 579 mm | 604 mm | 617 mm | 629 mm | 641 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 407 mm | 457 mm | 483 mm | 508 mm | 559 mm |
| Head Tube Angle | 69.5 ° | 71 ° | 71 ° | 72 ° | 72 ° |
| Head Tube Length | 105 mm | 120 mm | 130 mm | 145 mm | 160 mm |
| Chainstay Length | 447 mm | 447 mm | 447 mm | 447 mm | 447 mm |
| Wheelbase | 1091 mm | 1103 mm | 1106 mm | 1108 mm | 1121 mm |
| Bottom Bracket Drop | 67 mm | 64 mm | 61 mm | 61 mm | 61 mm |
| Standover Height | 780 mm | 815 mm | 833 mm | 853 mm | 883 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
About this model

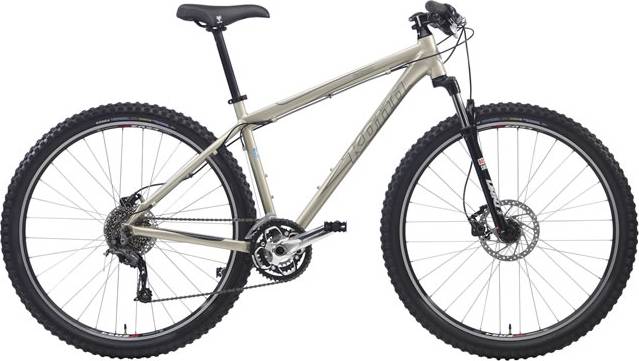

KAHUNA is a Kona Kahuna model. There are 22 bikes that carry this model name.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
KAHUNA components
Fork
The KAHUNA comes factory-installed with the RockShox fork. This has a travel range of 80mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
The KAHUNA 2010 bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
