Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork RockShox Recon Silver RL
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 170cm
MD
157cm - 182cm
LG
175cm - 195cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona Race Light 6061 Aluminum Butted
Suspension Fork
RockShox Recon Silver RL Solo Air 100mm Tapered 110mm Spacing
Rear Shock
n/a
Drivetrain
Rear Derailleur
Shimano Deore 12 spd
Front Derailleur
n/a
Shift Levers
Shimano Deore 12 spd
Cassette
Shimano Deore 10-51t 12spd
Crank
Shimano Deore 12spd, 32t
Bottom Bracket
Shimano 73mm
Chain
Shimano Deore 12spd
Chain Guide
n/a
Pedals
Kona JS2
Wheels
Front Hub
Shimano 110x15mm
Rear Hub
Shimano 135x10mm
Rims
WTB ST i27 TCS 2.0
Spokes
Stainless Black 14g
Tires
Maxxis Forekaster 29x2.35"
Brakes
Brakes
Shimano MT401 Hydraulic
Brake Levers
Shimano MT401 Hydraulic
Disk Rotors
Shimano RT10 180mm
Cockpit
Stem
Kona XC
Handlebar
Kona XC/BC Riser
Grips
Kona Key Grip Slip on
Headset
FSA No.57B
Seat
Saddle
WTB Volt
Seatpost
Kona Thumb w/Offset 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.39 mm | 1.33 mm | 1.26 mm |
| Bottom Bracket Height | 315 mm | 315 mm | 315 mm | 315 mm |
| Front Center | 691 mm | 720 mm | 749 mm | 787 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 96 mm | 96 mm | 96 mm | 96 mm |
| Stack | 606 mm | 615 mm | 624 mm | 633 mm |
| Reach | 419 mm | 444 mm | 469 mm | 504 mm |
| Top Tube Length | 580 mm | 608 mm | 635 mm | 673 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 370 mm | 420 mm | 470 mm | 530 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 454 mm | 454 mm | 454 mm | 454 mm |
| Wheelbase | 1139 mm | 1168 mm | 1196 mm | 1235 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 731 mm | 737 mm | 742 mm | 764 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 152 cm | 157 cm | 175 cm | 180 cm |
| Rider Max Height | 170 cm | 182 cm | 195 cm | 195 cm |
About this model

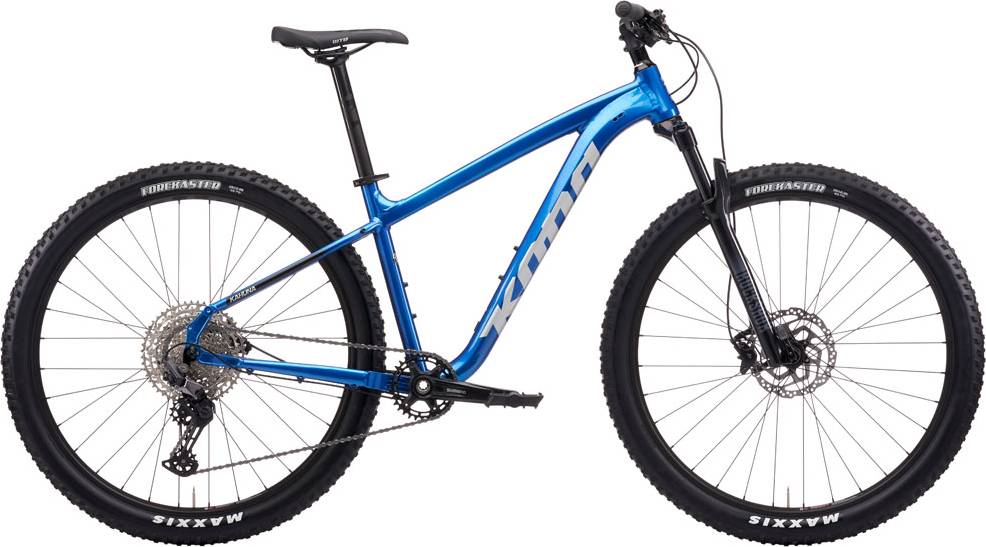

KAHUNA is part of the Kona Kahuna model. Kona released 22 bikes variations of this model so far.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Crosscountry bikes average price
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
This bike was released in 2021 and its price was 1399$. If we compare this with the average Crosscountry bike cost we notice that the price is 36.17% lower.
Overview of components
Fork
The RockShox Recon Silver RL is included from the factory. It has a travel distance of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
The wheels on KAHUNA are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The KAHUNA has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
KAHUNA comes in 4 sizes, that range from 152 cm – 195 cm (4.99 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
