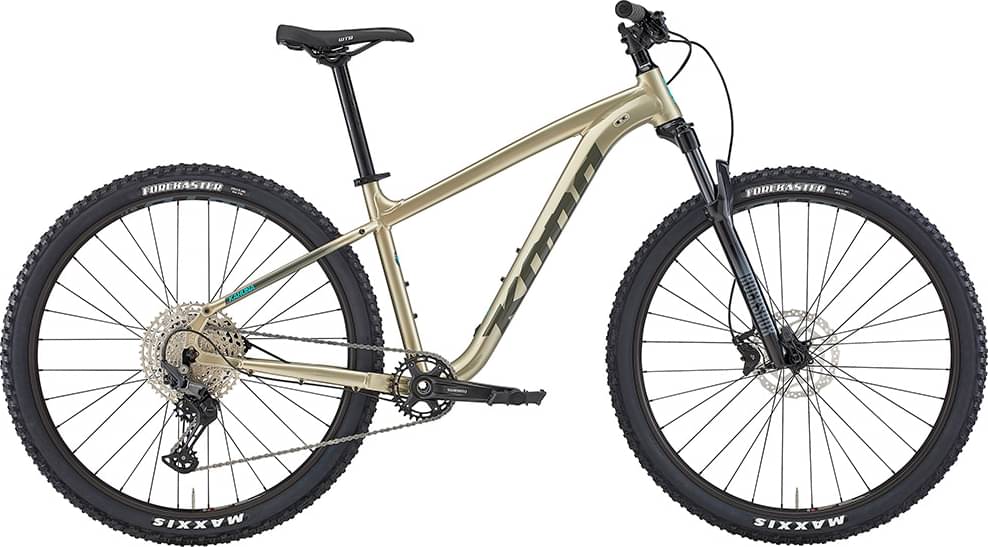

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork RockShox Recon Silver RL
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 170cm
MD
157cm - 182cm
LG
175cm - 195cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona Race Light 6061 Aluminum Butted
Suspension Fork
RockShox Recon Silver RL Solo Air 100mm Tapered 110mm Spacing
Rear Shock
n/a
Drivetrain
Rear Derailleur
Shimano Deore 12 spd
Front Derailleur
n/a
Shift Levers
Shimano Deore 12 spd
Cassette
Shimano Deore 10-51t 12spd
Crank
Shimano Deore 12spd, 32t
Bottom Bracket
Shimano 73mm
Chain
Shimano Deore 12spd
Chain Guide
n/a
Pedals
Kona JS2
Wheels
Front Hub
Shimano 110x15mm
Rear Hub
Shimano 135x10mm
Rims
WTB ST i27 TCS 2.0
Spokes
Stainless Black 14g
Tires
Maxxis Forekaster 29x2.35"
Brakes
Brakes
Shimano MT410 Hydraulic
Brake Levers
Shimano MT410 Hydraulic
Disk Rotors
Shimano RT10 180mm
Cockpit
Stem
Kona XC
Handlebar
Kona XC/BC Riser
Grips
Kona Key Grip Slip on
Headset
Feimen HP-H868B
Seat
Saddle
WTB Volt
Seatpost
Kona Thumb w/Offset 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.39 mm | 1.33 mm | 1.26 mm |
| Bottom Bracket Height | 315 mm | 315 mm | 315 mm | 315 mm |
| Front Center | 691 mm | 720 mm | 749 mm | 787 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 96 mm | 96 mm | 96 mm | 96 mm |
| Stack | 606 mm | 615 mm | 624 mm | 633 mm |
| Reach | 419 mm | 444 mm | 469 mm | 504 mm |
| Top Tube Length | 580 mm | 608 mm | 635 mm | 673 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 370 mm | 420 mm | 470 mm | 530 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 454 mm | 454 mm | 454 mm | 454 mm |
| Wheelbase | 1139 mm | 1168 mm | 1196 mm | 1235 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 731 mm | 737 mm | 742 mm | 764 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 152 cm | 157 cm | 175 cm | 180 cm |
| Rider Max Height | 170 cm | 182 cm | 195 cm | 195 cm |
About this model
KAHUNA belongs to the Kona Kahuna model. Kona launched 22 bikes of this model so far.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Crosscountry bikes average price
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2022 for 1499$. Comparing this to the average Crosscountry bike price, we see that the price is 27.08% smaller.
KAHUNA components
Fork
The RockShox Recon Silver RL is included from the factory. It has a travel distance of 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
When it comes to wheels, the KAHUNA bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. Kona KAHUNA has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
KAHUNA comes in 4 sizes, that range from 152 cm – 195 cm (4.99 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
