Bike details
Overview
Key information split into simple groups.

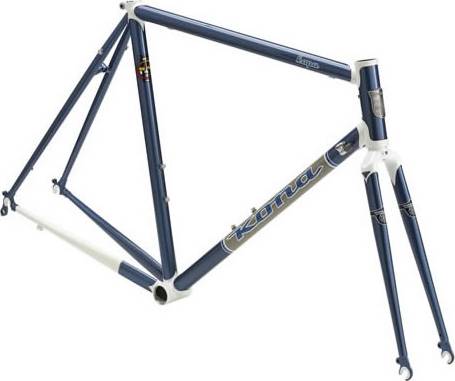

Frame summary
-
-
Frame Steel -
Wheels 700c -
Suspension Rigid
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 53cm | 56cm | 59cm | 61cm |
|---|---|---|---|---|---|
| Bottom Bracket Height | 272 mm | 272 mm | 272 mm | 272 mm | 272 mm |
| Front Center | 571 mm | 582 mm | 588 mm | 618 mm | 624 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Top Tube Length | 531 mm | 541 mm | 557 mm | 586 mm | 601 mm |
| Seat Tube Angle | 72.7 ° | 72.7 ° | 72.7 ° | 72.7 ° | 72.7 ° |
| Seat Tube Length | 490 mm | 530 mm | 560 mm | 590 mm | 610 mm |
| Head Tube Angle | 70.7 ° | 70.7 ° | 71.7 ° | 71.7 ° | 72.7 ° |
| Head Tube Length | 120 mm | 119 mm | 146 mm | 176 mm | 192 mm |
| Chainstay Length | 412 mm | 412 mm | 415 mm | 415 mm | 415 mm |
| Wheelbase | 974 mm | 984 mm | 994 mm | 1024 mm | 1029 mm |
| Standover Height | 768 mm | 786 mm | 815 mm | 843 mm | 862 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
About this model
KAPU is a Kona Kapu model. 2 frames variations carry this model name so far.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Fitness frames
According to our calculations, the average cost of a Fitness frame that is reliable is 326$. However, even though the average price of a Fitness frame is lower, you might still be able to get a top-quality frame. As a general rule of thumb, you should always read reviews about the frame and its components before buying it to ensure you don’t pay too much.
