Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Steel -
Wheels 29" -
Travel Front 80mm -
Fork Fox Float 32
-
Groupset XT, SLX -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona Race Light Scandium Butted
Suspension Fork
Fox 32 F29 80-RL TA 80mm w/15mm Dropouts
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano XT Shadow
Front Derailleur
Shimano SLX
Shift Levers
Shimano XT
Cassette
Shimano HG80 (11-34, 9spd)
Crank
44/32/22
Bottom Bracket
Shimano XT
Chain
Shimano Deore
Pedals
Shimano M520 Clipless
Wheels
Front Hub
Easton XC2 29er Wheelset
Rear Hub
Easton XC2 29er Wheelset
Rims
Easton XC2 29er Wheelset
Spokes
Easton XC2 29er Wheelset
Tires
Maxxis Aspen 29 x 2.1 Kevlar
Brakes
Brakes
Shimano SLX Disc 7" fr / 6" rr
Brake Levers
Shimano SLX Disc
Cockpit
Stem
Kona XC/BC Deluxe (6°± ; 14=75, 16-17=90, 18-19=105, 20-22=120mm)
Handlebar
Kona Deluxe Energy Bar (31.8mm x 680mm 16-18" / 710mm 19" +)
Grips
Kona Race Light
Headset
FSA Orbit DL
Seat
Saddle
WTB Rocket V Comp
Seatpost
Kona XC/BC Deluxe
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 40.7cm | 45.7cm | 48.3cm | 50.8cm | 55.9cm |
|---|---|---|---|---|---|
| Bottom Bracket Height | 307 mm | 310 mm | 313 mm | 313 mm | 313 mm |
| Front Center | 650 | 661 mm | 664 mm | 666 mm | 678 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Top Tube Length | 579 mm | 604 mm | 617 mm | 629 mm | 641 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 407 mm | 457 mm | 483 mm | 508 mm | 559 mm |
| Head Tube Angle | 69.5 ° | 71 ° | 71 ° | 72 ° | 72 ° |
| Head Tube Length | 105 mm | 120 mm | 130 mm | 145 mm | 160 mm |
| Chainstay Length | 447 mm | 447 mm | 447 mm | 447 mm | 447 mm |
| Wheelbase | 1091 mm | 1103 mm | 1106 mm | 1108 mm | 1121 mm |
| Bottom Bracket Drop | 67 mm | 64 mm | 61 mm | 61 mm | 61 mm |
| Standover Height | 780 mm | 815 mm | 833 mm | 853 mm | 883 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
About this model

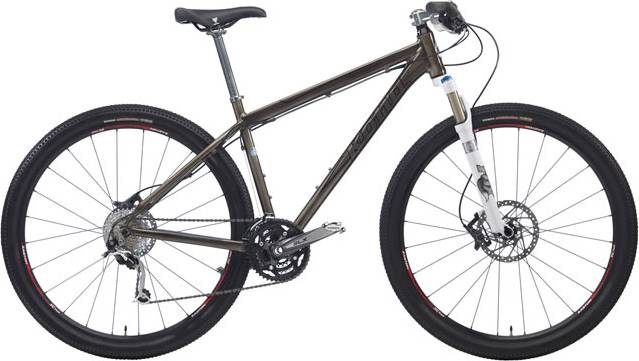

KING KAHUNA completes the Kona King model. There are 6 bikes that carry this model name.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Crosscountry bikes average price
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
KING KAHUNA components
Fork
The KING KAHUNA comes factory-installed with the Fox Float 32 fork. This has a travel range of 80mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
The KING KAHUNA 2010 bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The KING KAHUNA comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
