Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork Fox
-
Groupset XT -
Suspension Hardtail -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona Race Light Carbon
Suspension Fork
Fox Float 29 CTD FIT Factory Kashima 100mm QR15 Tapered
Rear Shock
n/a
Drivetrain
Rear Derailleur
Shimano XT Shadow
Front Derailleur
Shimano XT
Shift Levers
Shimano XT
Cassette
Shimano XT 11-36t 10 spd
Crank
24/38t
Bottom Bracket
Shimano XT Press Fit 92
Chain
KMC X10
Chain Guide
n/a
Pedals
n/a
Wheels
Front Hub
Stan's ZTR Crest Wheelset QR15
Rear Hub
Stan's ZTR Crest Wheelset 142x12mm
Rims
Stan's ZTR Crest Wheelset
Spokes
Stan's ZTR Crest Wheelset
Tires
Maxxis Ikon 29x2.2" Folding
Brakes
Brakes
Shimano XT
Brake Levers
Shimano XT
Disk Rotors
Shimano XT 180mm
Cockpit
Stem
RaceFace Turbine
Handlebar
RaceFace Next
Grips
Kona Race Light LOG
Headset
FSA No.57B-1
Seat
Saddle
WTB Volt Race
Seatpost
RaceFace Turbine
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 18" | 19" | 20" | 22" |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.5 mm | 1.53 mm | 1.54 mm | 1.52 mm |
| Bottom Bracket Height | 316 mm | 321 mm | 321 mm | 321 mm | 321 mm |
| Front Center | 666 mm | 677 mm | 679 mm | 680 mm | 695 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 97 mm | 86 mm | 86 mm | 79 mm | 71 mm |
| Stack | 614 mm | 635 mm | 644 mm | 658 mm | 681 mm |
| Reach | 402 mm | 422 mm | 420 mm | 428 mm | 447 mm |
| Top Tube Length | 578 mm | 603 mm | 616 mm | 628 mm | 654 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73 ° | 73 ° | 74 ° |
| Seat Tube Length | 406 mm | 457 mm | 483 mm | 508 mm | 559 mm |
| Head Tube Angle | 68.5 ° | 70 ° | 70 ° | 71 ° | 72 ° |
| Head Tube Length | 100 mm | 120 mm | 130 mm | 140 mm | 160 mm |
| Chainstay Length | 446 mm | 446 mm | 446 mm | 446 mm | 446 mm |
| Wheelbase | 1105 mm | 1118 mm | 1120 mm | 1121 mm | 1136 mm |
| Bottom Bracket Drop | 58 mm | 53 mm | 53 mm | 53 mm | 53 mm |
| Standover Height | 783 mm | 822 mm | 838 mm | 857 mm | 875 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
About this model

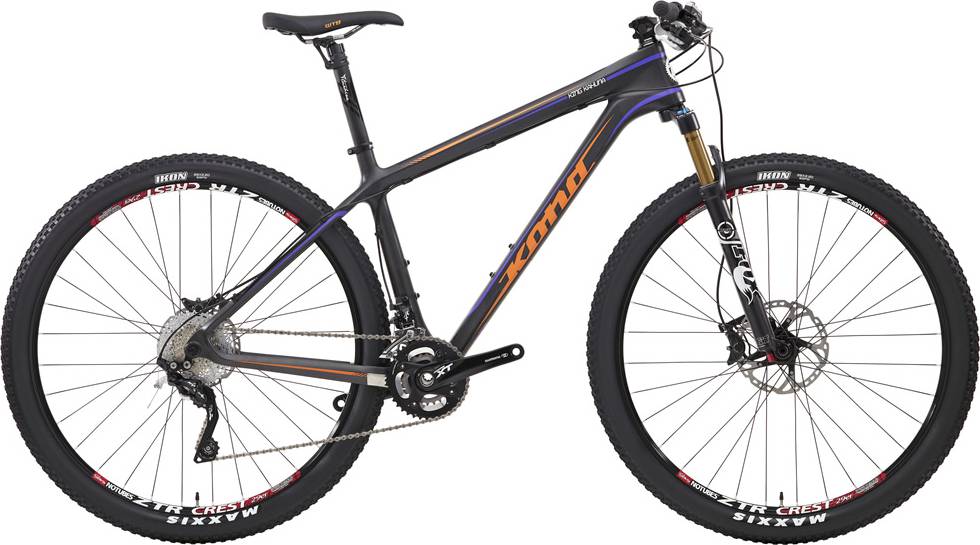

KING KAHUNA is part of the Kona King model. 6 bikes variations carry this model name so far.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Crosscountry bikes average price
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Overview of components
Fork
This bike has the Fox fork installed. The fork’s travel is 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
As for the wheels, Kona KING KAHUNA 2014, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Kona KING KAHUNA is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
