Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork RockShox SID
-
Groupset XX1, X01 -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona Race Light Carbon
Suspension Fork
RockShox SID XXS 100mm QR15 Tapered XLOC
Rear Shock
n/a
Drivetrain
Rear Derailleur
SRAM XX1
Front Derailleur
n/a
Shift Levers
SRAM XO1
Cassette
SRAM XG1180 10-42t 11spd
Crank
34t
Bottom Bracket
RaceFace Next
Chain
KMC X11
Pedals
n/a
Wheels
Front Hub
Stan's ZTR Crest Wheelset QR15
Rear Hub
Stan's ZTR Crest Wheelset 142x12mm
Rims
Stan's ZTR Crest Wheelset
Spokes
Stan's ZTR Crest Wheelset
Tires
Maxxis Ikon EXO TR 29x2.2"
Brakes
Brakes
Avid X0 Trail
Brake Levers
Avid X0 Trail
Disk Rotors
Avid Centerline 180mm
Cockpit
Stem
RaceFace Turbine 35
Handlebar
RaceFace Next 35
Grips
Kona Race Light LOG
Headset
FSA No.57E/SL
Seat
Saddle
WTB Volt Race
Seatpost
RaceFace Turbine
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 18" | 19" | 20" | 22" |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.51 mm | 1.53 mm | 1.54 mm | 1.52 mm |
| Bottom Bracket Height | 316 mm | 321 mm | 321 mm | 321 mm | 321 mm |
| Front Center | 666 mm | 677 mm | 679 mm | 680 mm | 695 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 97 mm | 85 mm | 86 mm | 79 mm | 71 mm |
| Stack | 614 mm | 635 mm | 644 mm | 658 mm | 681 mm |
| Reach | 402 mm | 421 mm | 420 mm | 428 mm | 447 mm |
| Top Tube Length | 578 mm | 603 mm | 616 mm | 628 mm | 654 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 406 mm | 457 mm | 483 mm | 508 mm | 559 mm |
| Head Tube Angle | 68.5 ° | 70 ° | 70 ° | 71 ° | 72 ° |
| Head Tube Length | 100 mm | 120 mm | 130 mm | 140 mm | 160 mm |
| Chainstay Length | 446 mm | 446 mm | 446 mm | 446 mm | 446 mm |
| Wheelbase | 1105 mm | 1118 mm | 1120 mm | 1121 mm | 1136 mm |
| Bottom Bracket Drop | 58 mm | 53 mm | 53 mm | 53 mm | 53 mm |
| Standover Height | 746 mm | 796 mm | 816 mm | 836 mm | 876 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
Model Overview
KING KAHUNA is part of the Kona King model. Kona launched 6 bikes of this model so far.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry bikes
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
KING KAHUNA components
Fork

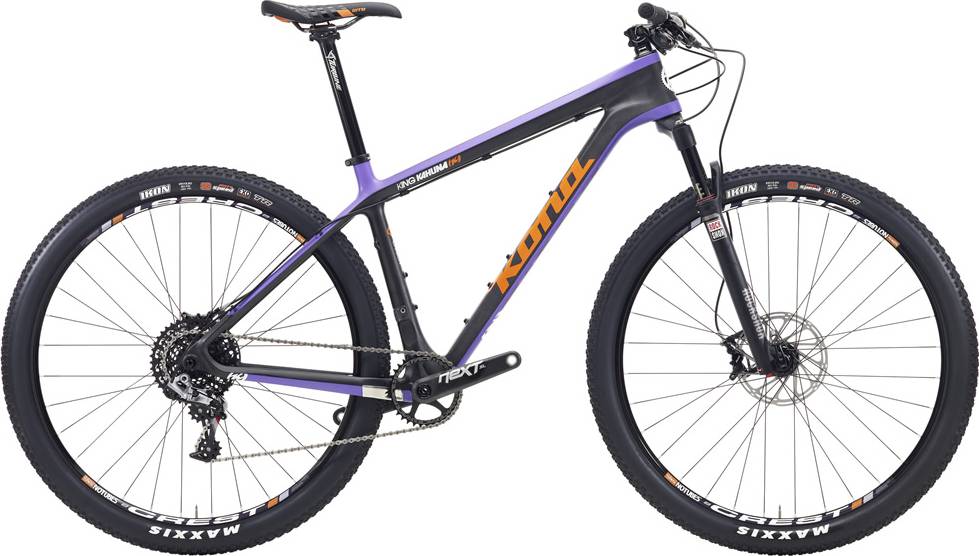

Kona KING KAHUNA 2015 bike is equipped with the RockShox SID fork, and has 100mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
The KING KAHUNA 2015 bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. Kona KING KAHUNA is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
