Bike details
Overview
Key information split into simple groups.

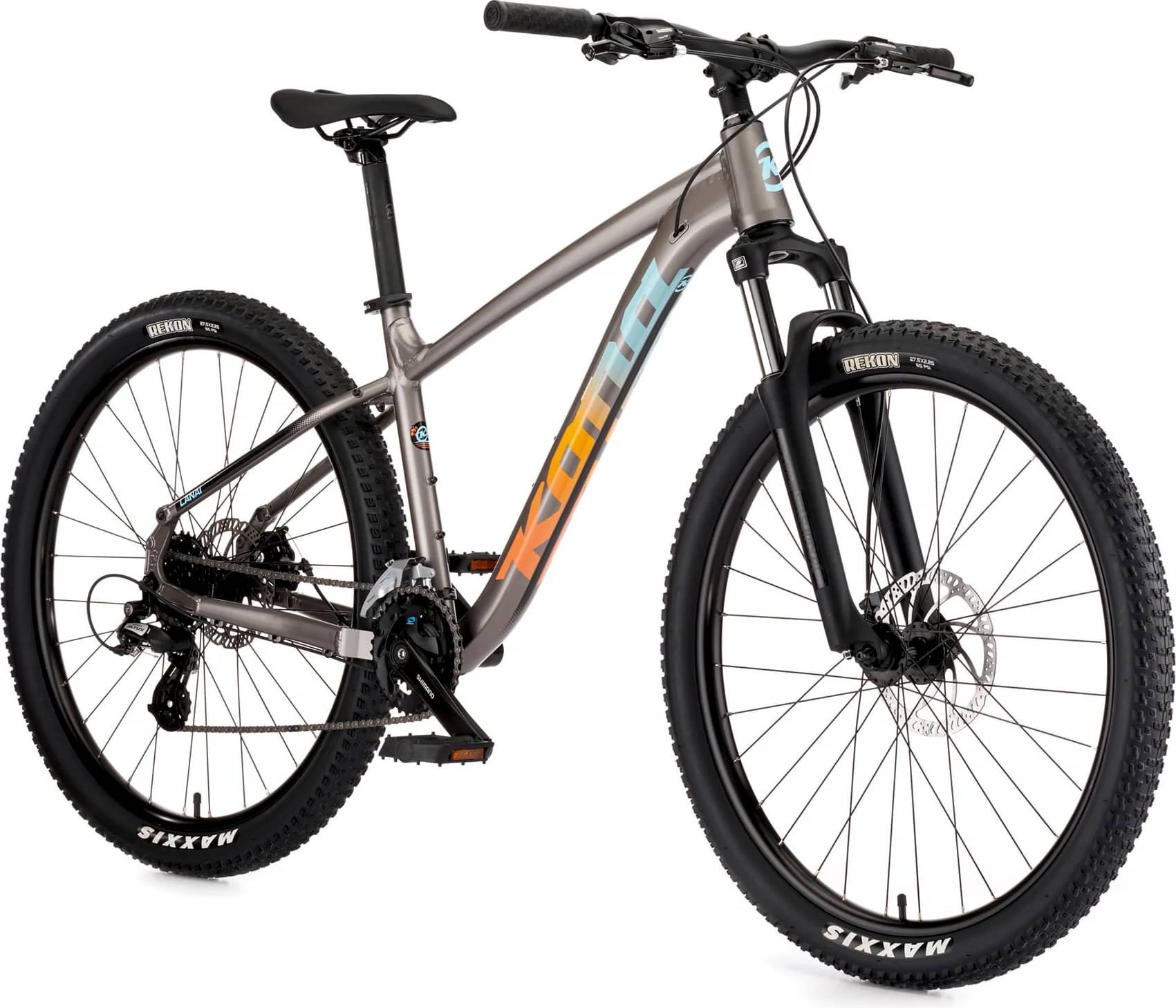

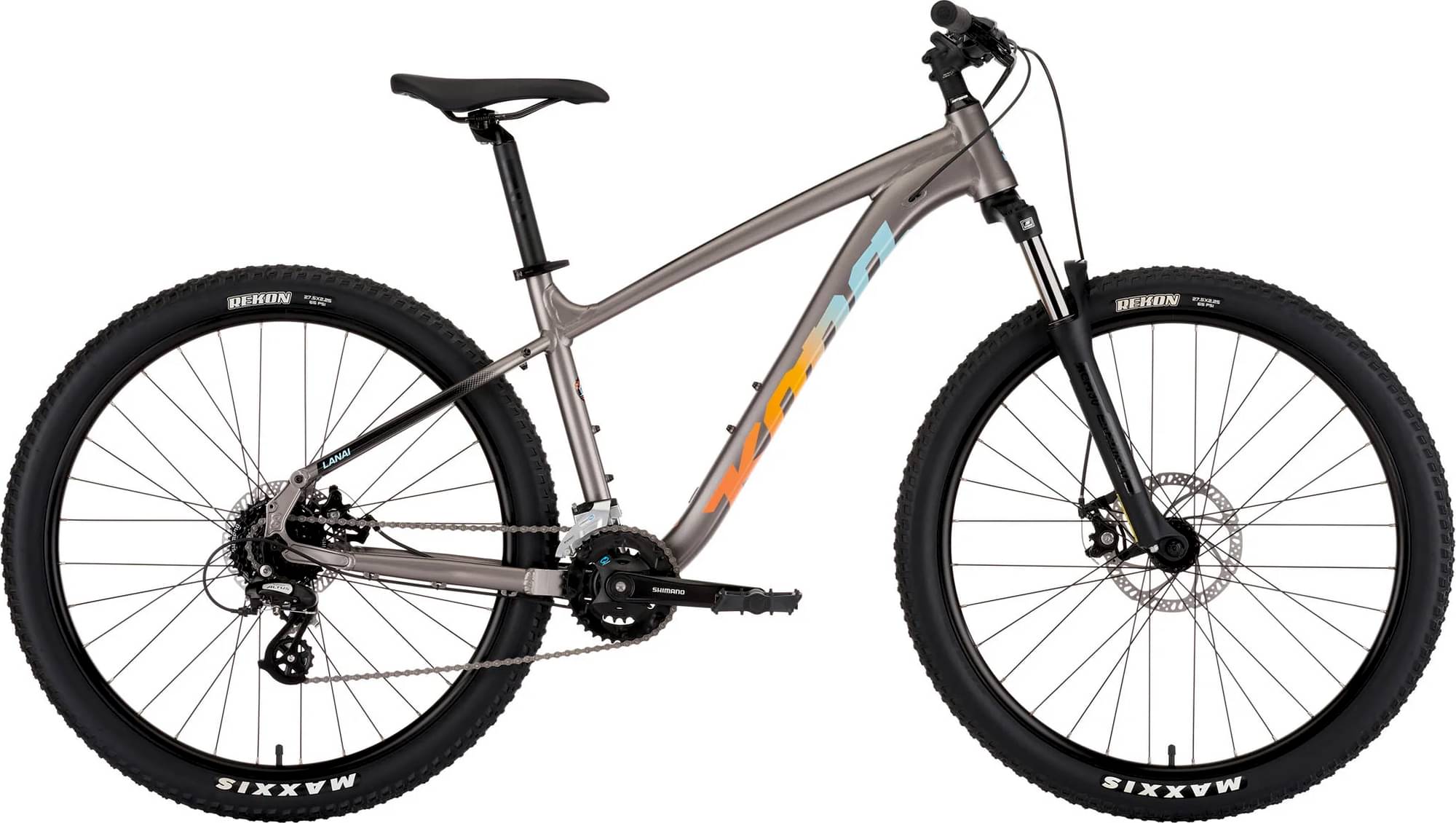

Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Suntour XCT
-
Groupset Altus -
Suspension Hardtail -
Drivetrain 2 × 8 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
147cm - 154cm
SM
152cm - 170cm
MD
157cm - 182cm
LG
175cm - 195cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona 6061 Aluminum Butted

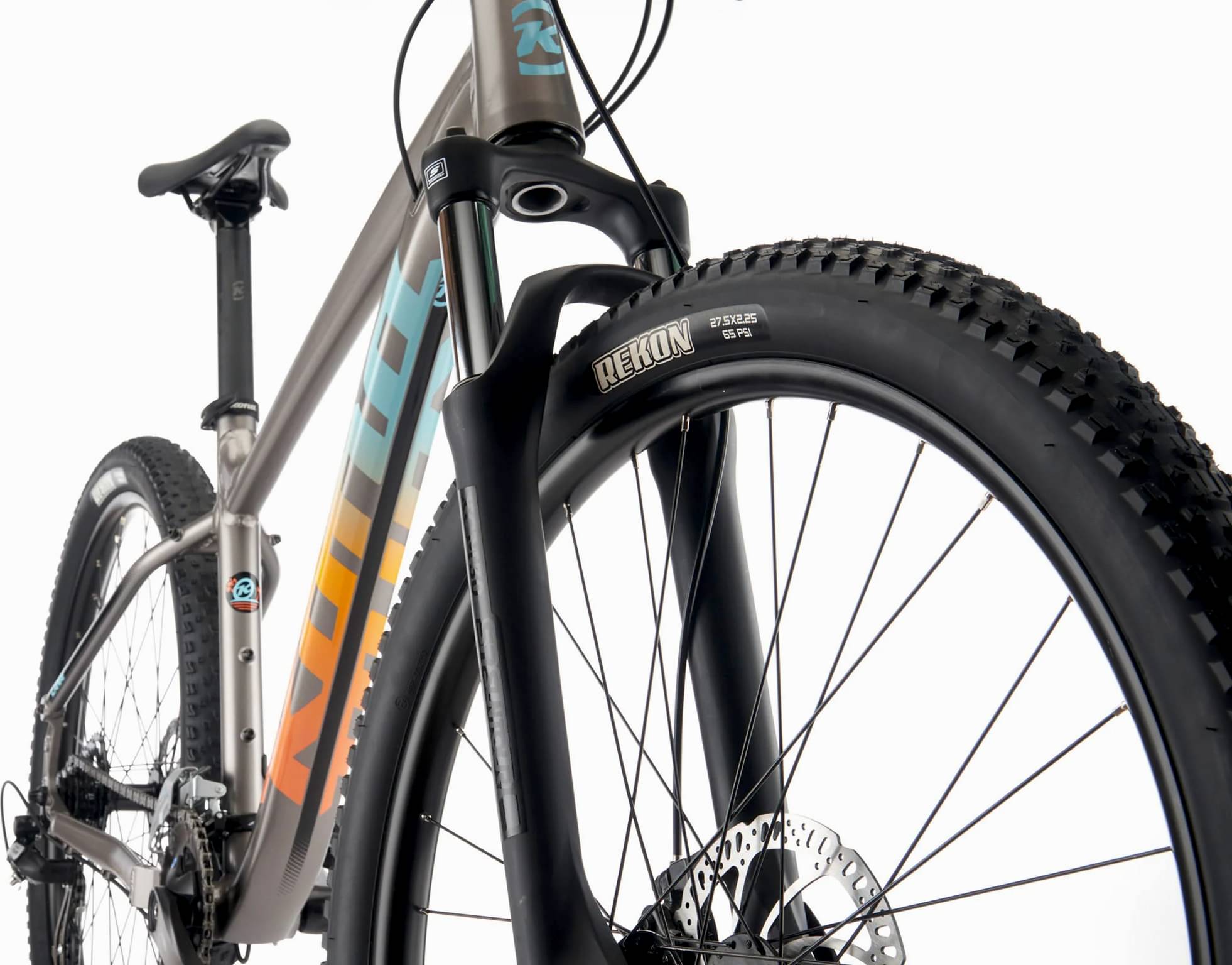

Suspension Fork
Suntour XCT30 or XCM DS Coil Spring 100mm
Rear Shock
n/a
Drivetrain

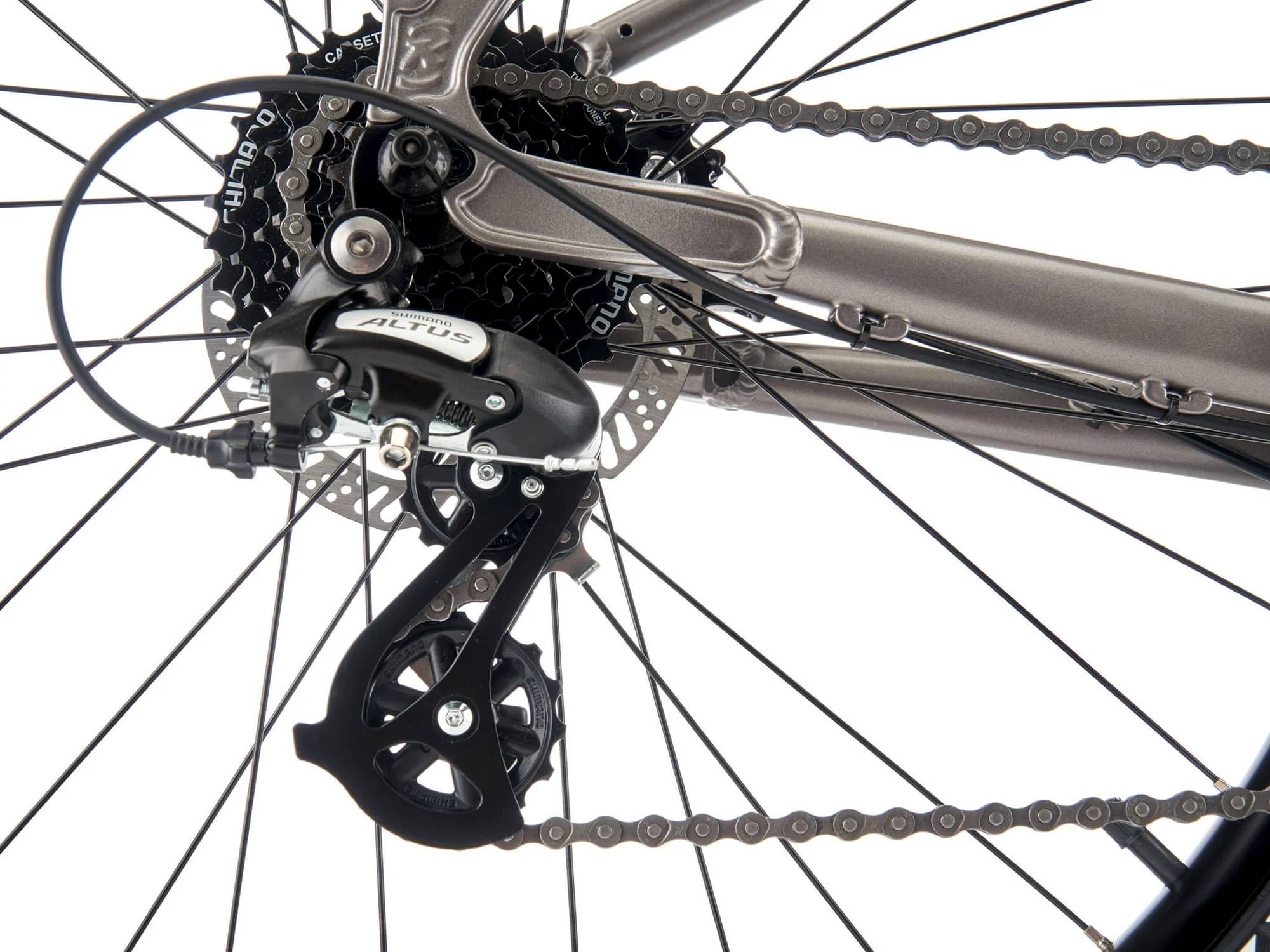

Rear Derailleur
Shimano Altus

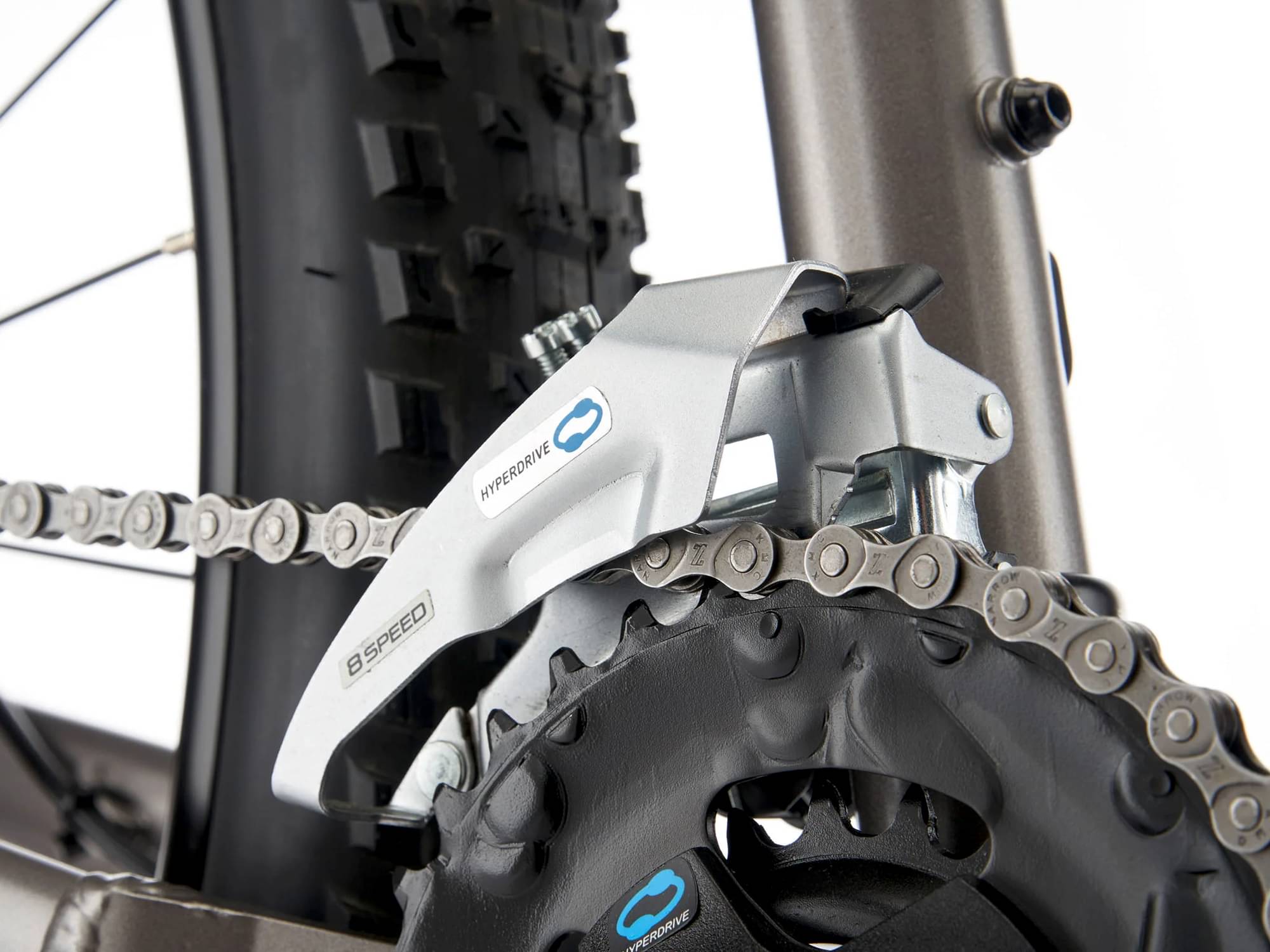

Front Derailleur
Shimano Altus
Shift Levers
Shimano Altus
Cassette
Shimano HG200 12-32t 8spd

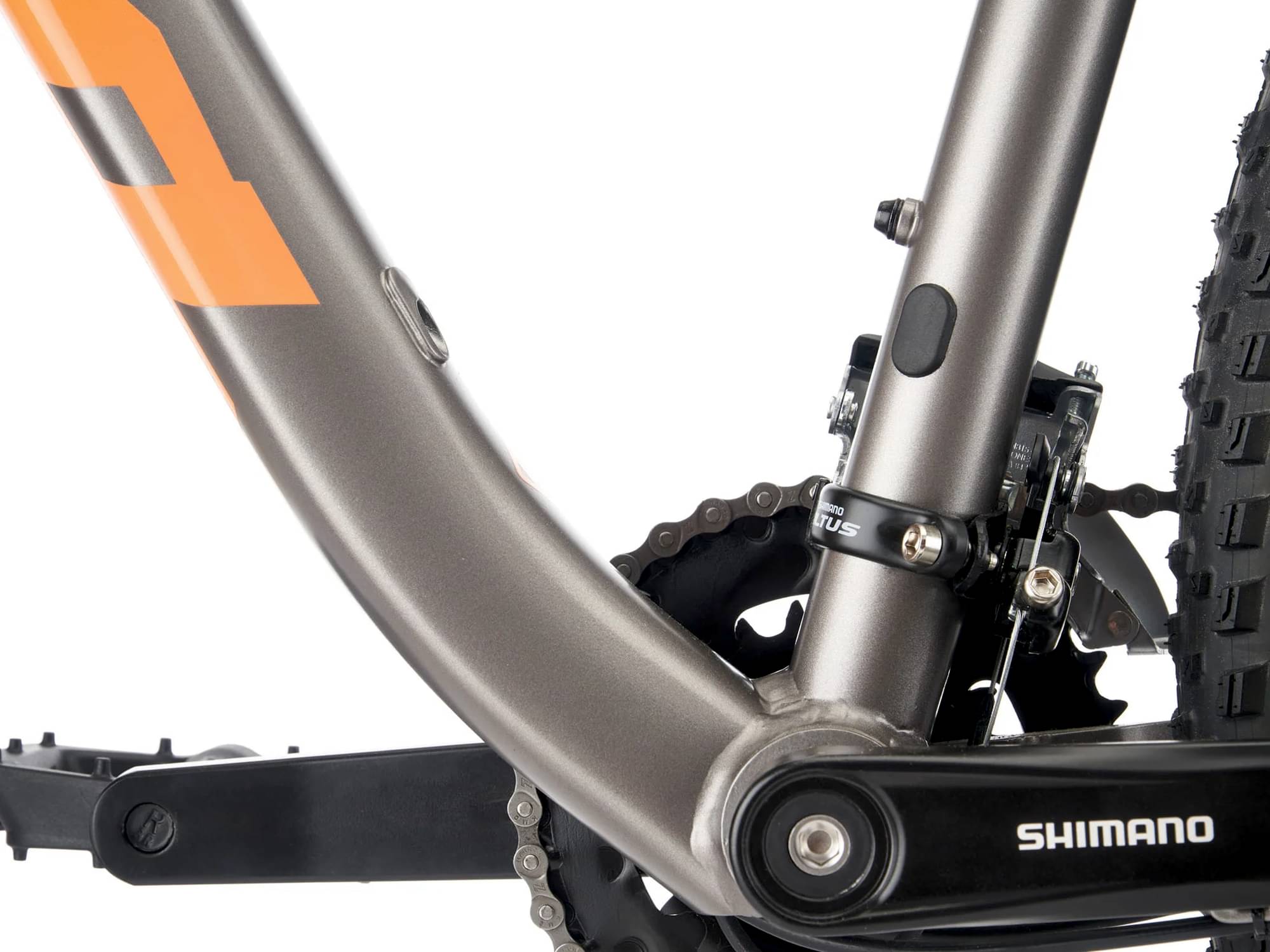

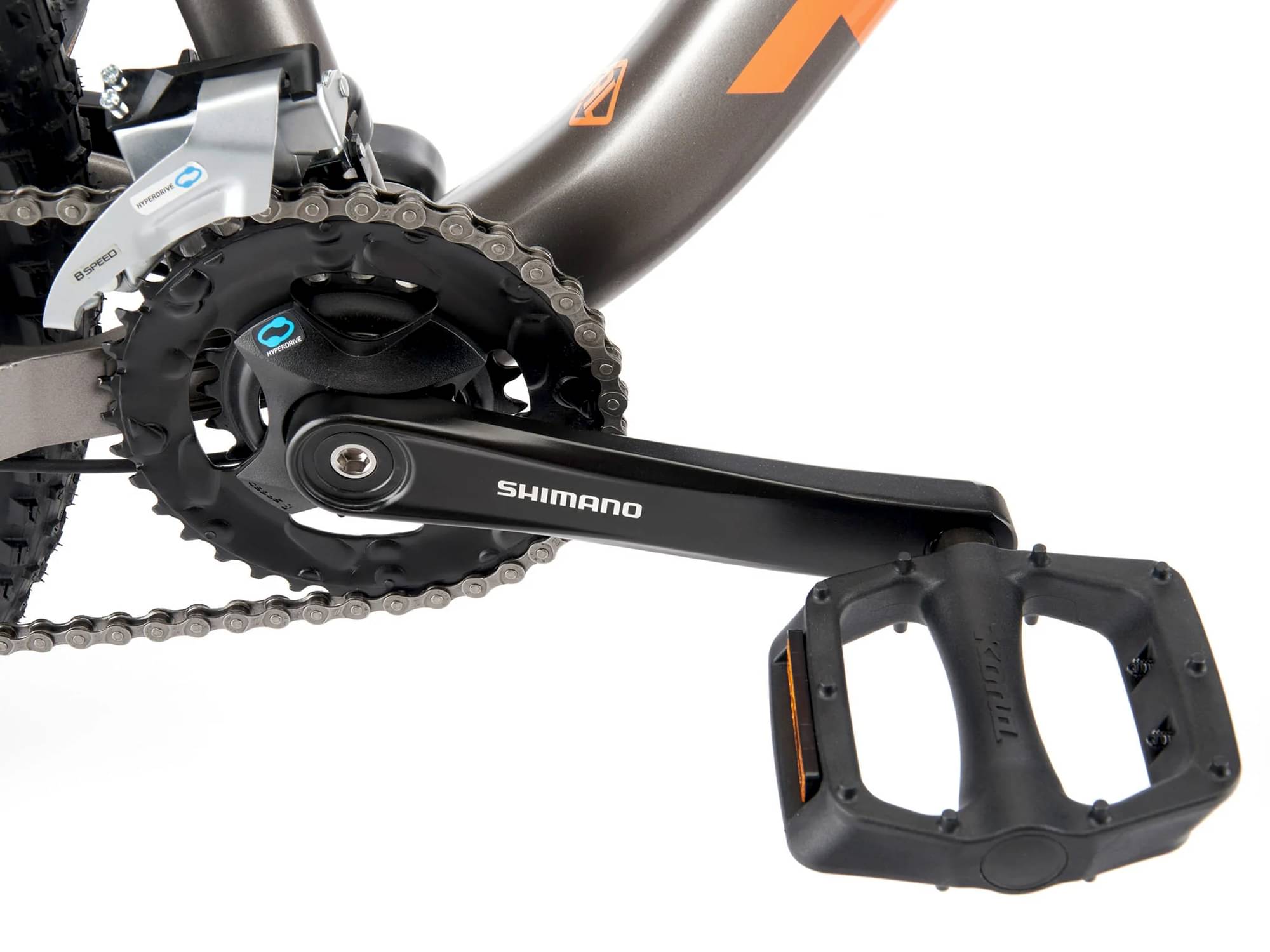

Crank
Shimano Altus or Prowheel CW TM-CY10, 22/36t
Bottom Bracket
Shimano or Feimin 73mm
Chain
KMC Z8.3
Chain Guide
n/a
Pedals
Kona JS2
Wheels
Front Hub
Joytech or Solon 100x9mm
Rear Hub
Joytech or Solon 135x10mm
Rims
Alex DP27K or Jalco DD32
Spokes
Stainless Black 14g
Tires
Front: WTB Trail Boss or Maxxis Rekon 29/27.5/26x2.25", Rear: WTB Trail Boss or Maxxis Rekon 29/27.5/26x2.25"
Brakes
Brakes

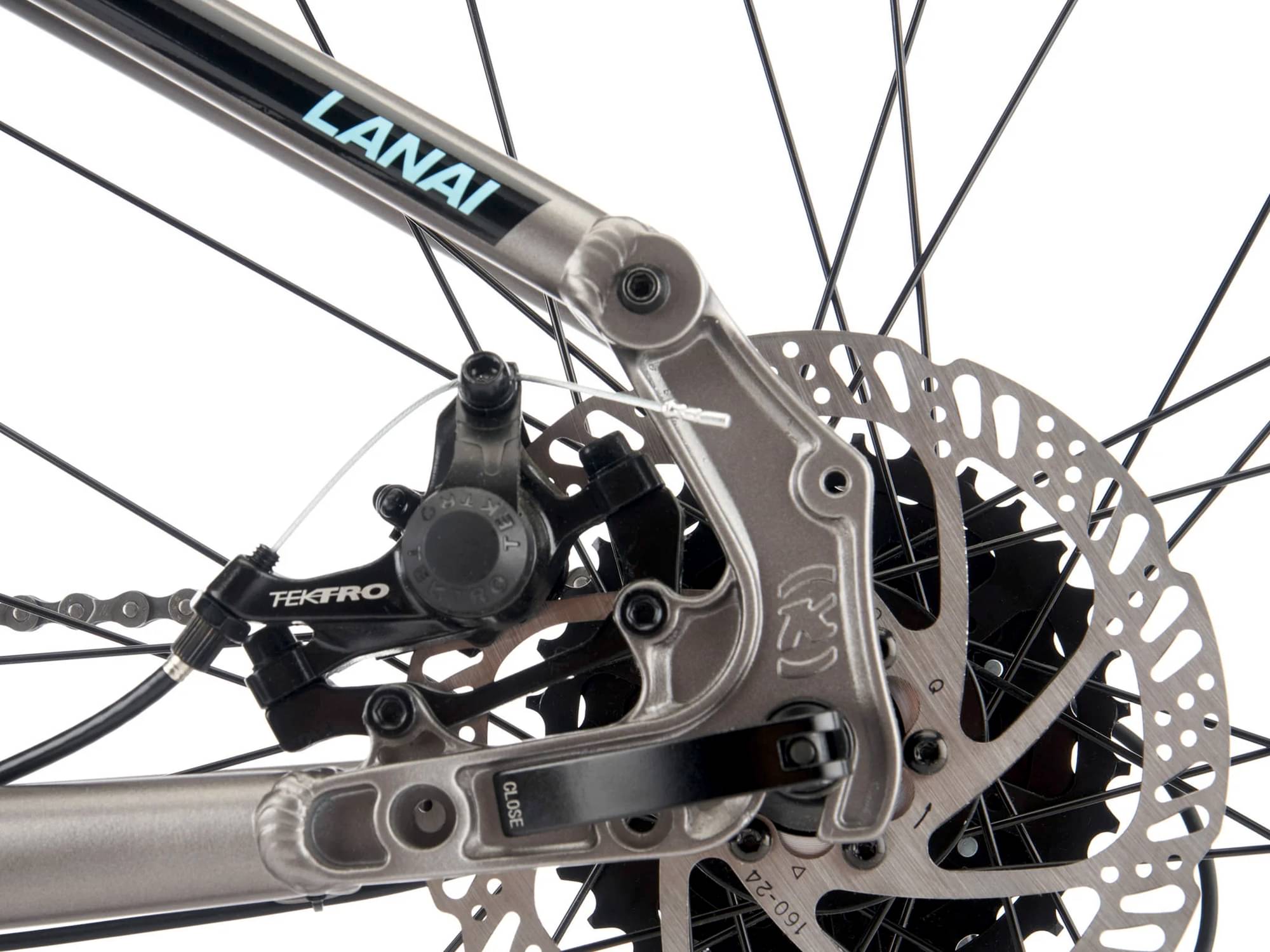

Tektro M280

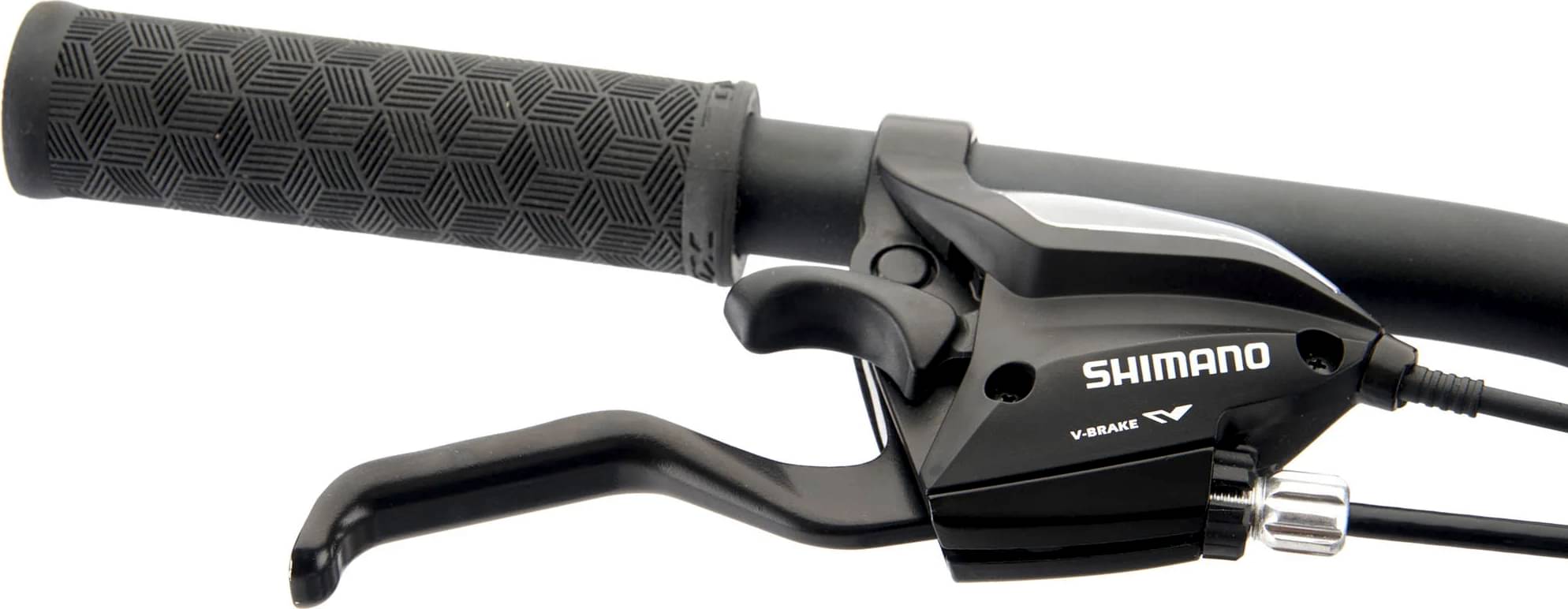

Brake Levers
Shimano Altus

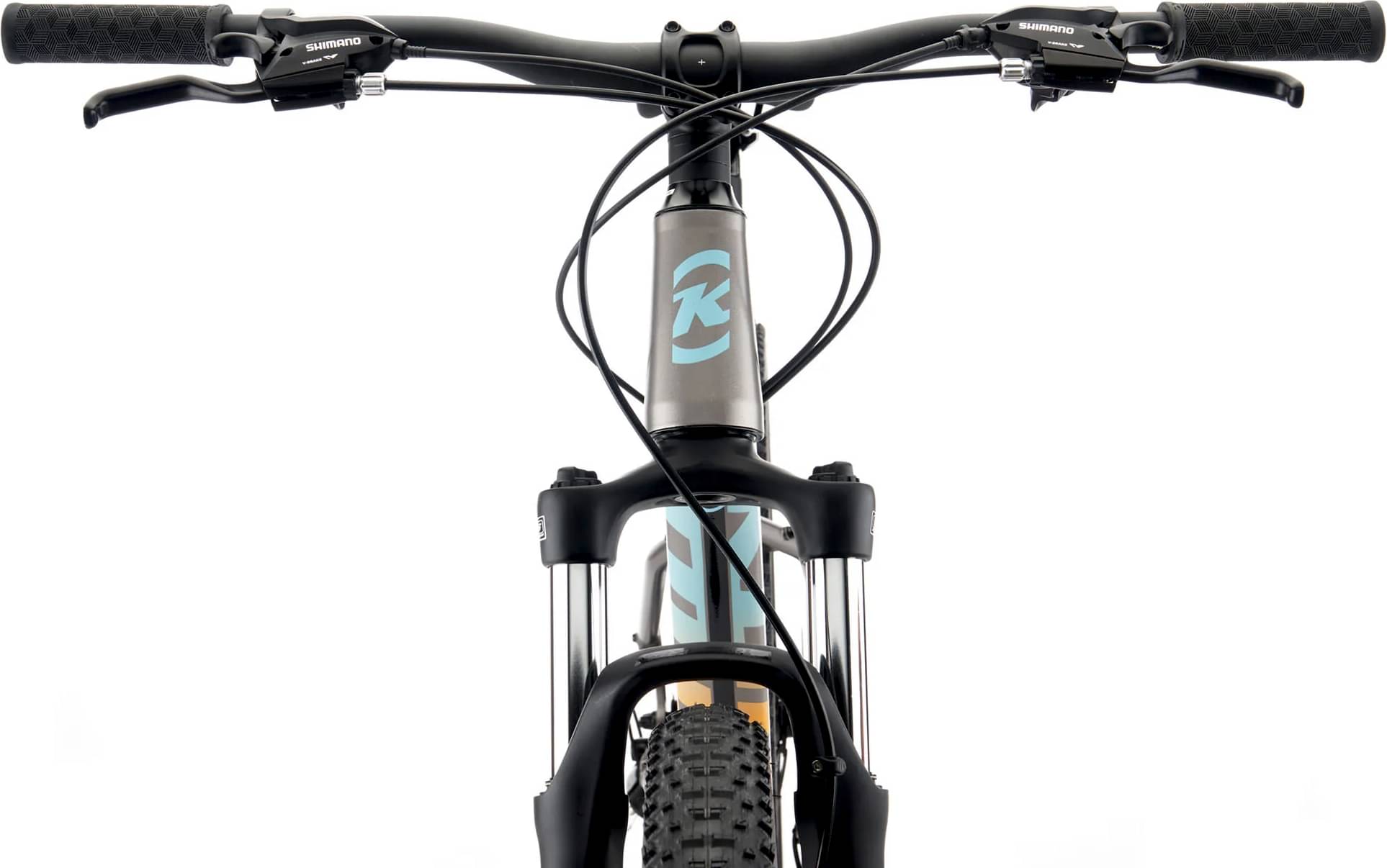

Cockpit
Stem
Kona Control

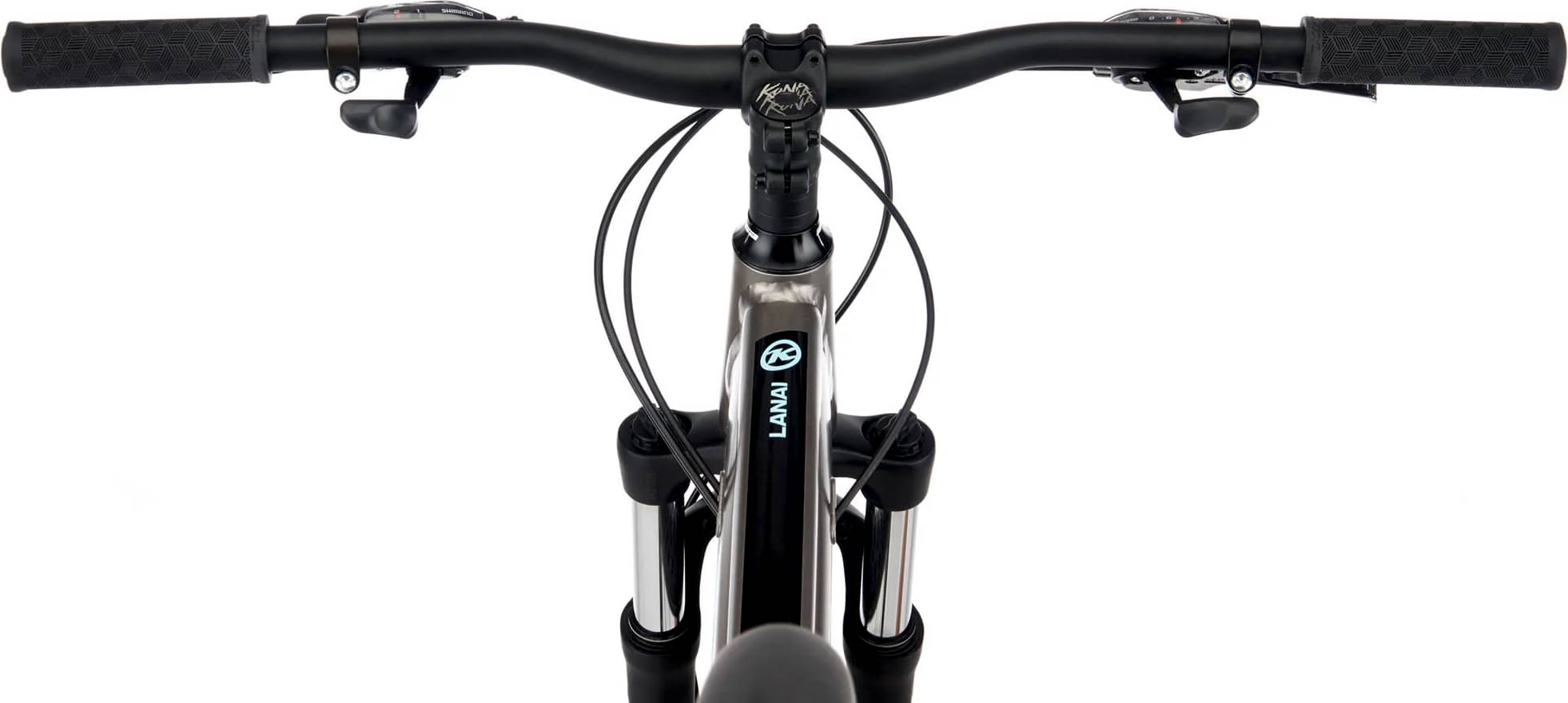

Handlebar
Kona Aluminum Riser
Grips
Kona Key Grip Slip on

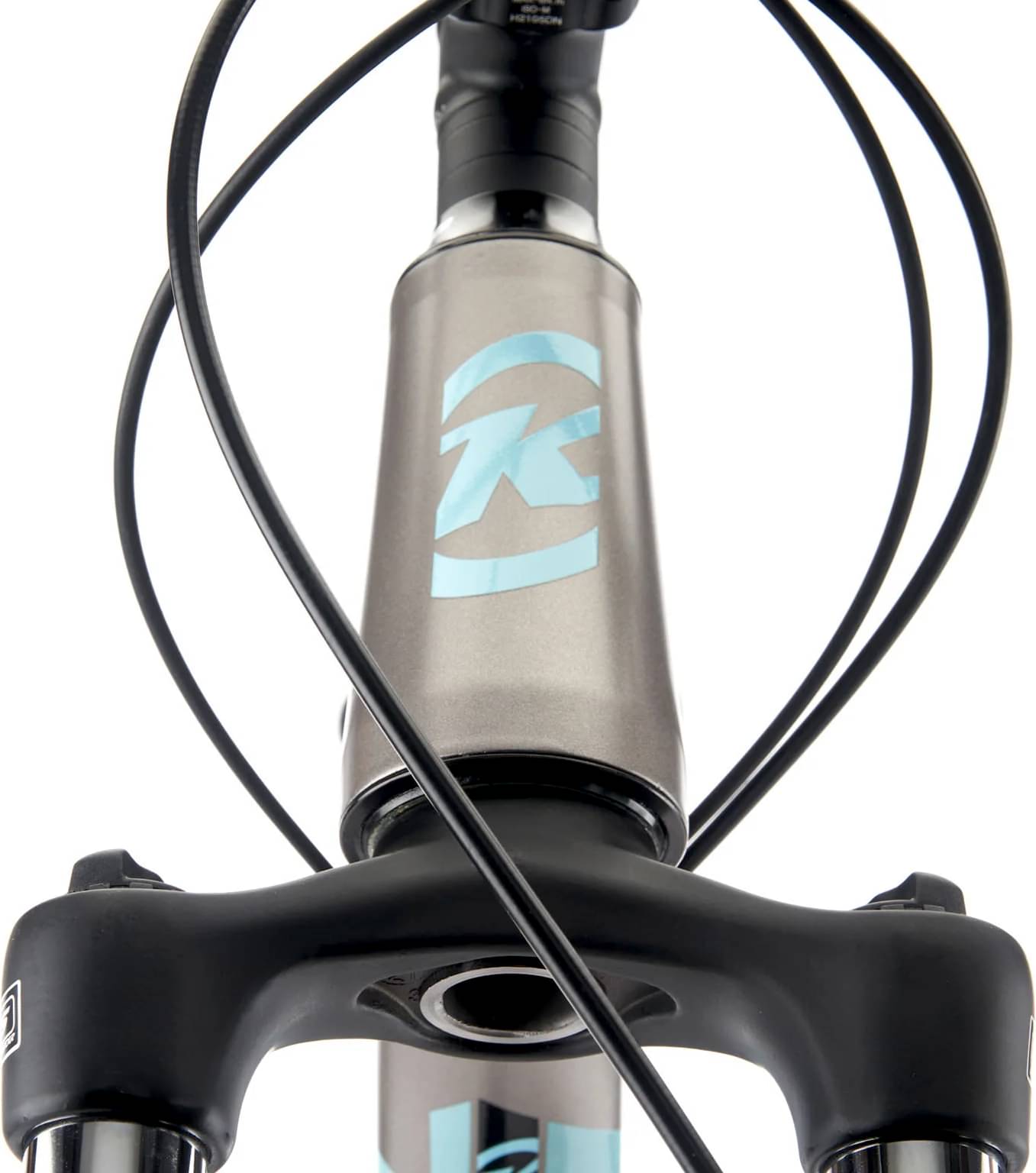

Headset
Feimen HP-H868B
Seat
Saddle
Kona XC
Seatpost
Kona Thumb w/Offset 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.41 mm | 1.361 mm | 1.308 mm | 1.244 mm |
| Bottom Bracket Height | 303 mm | 304 mm | 304 mm | 304 mm | 304 mm |
| Front Center | 662 mm | 678 mm | 709 mm | 737 mm | 778 mm |
| Rake | 40 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 104 mm | 88 mm | 98 mm | 98 mm | 98 mm |
| Stack | 556 mm | 585 mm | 599 mm | 608 mm | 622 mm |
| Reach | 400 mm | 415 mm | 440 mm | 465 mm | 500 mm |
| Top Tube Length | 549 mm | 572 mm | 600 mm | 628 mm | 667 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 331 mm | 370 mm | 420 mm | 470 mm | 530 mm |
| Head Tube Angle | 67.5 ° | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 100 mm | 100 mm | 115 mm | 125 mm | 140 mm |
| Chainstay Length | 425 mm | 425 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1085 mm | 1109 mm | 1139 mm | 1168 mm | 1208 mm |
| Bottom Bracket Drop | 30 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Standover Height | 675 mm | 710 mm | 718 mm | 724 mm | 747 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 147 cm | 152 cm | 157 cm | 175 cm | 180 cm |
| Rider Max Height | 154 cm | 170 cm | 182 cm | 195 cm | 195 cm |
