Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork SunTour XCT
-
Groupset Altus -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 170cm
MD
157cm - 182cm
LG
175cm - 195cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona 6061 Aluminum Butted
Suspension Fork
Suntour XCT HLO 100mm
Rear Shock
n/a
Drivetrain
Rear Derailleur
Shimano Altus
Front Derailleur
Shimano Altus
Shift Levers
Shimano Altus
Cassette
Shimano HG31 11-34t 8spd
Crank
22/32/42t
Bottom Bracket
TH 7420
Chain
KMC Z72
Chain Guide
n/a
Pedals
Wellgo Platform
Wheels
Front Hub
Joytech
Rear Hub
Joytech
Rims
Double wall alloy
Spokes
Stainless 14g
Tires
Vittoria Saguaro 29x2.2"
Brakes
Brakes
Tektro HD-M290
Brake Levers
Tektro HD-M290
Disk Rotors
Tektro HD-M290 180mm
Cockpit
Stem
Kona XC
Handlebar
Kona XC/BC Riser
Grips
Kona Race Light
Headset
CH
Seat
Saddle
Kona XC
Seatpost
Kona Thumb
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.49 mm | 1.43 mm | 1.36 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 668 mm | 695 mm | 724 mm | 758 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 94 mm | 94 mm | 93 mm | 94 mm |
| Stack | 629 mm | 638 mm | 648 mm | 657 mm |
| Reach | 403 mm | 427 mm | 452 mm | 483 mm |
| Top Tube Length | 582 mm | 609 mm | 637 mm | 670 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 370 mm | 420 mm | 470 mm | 530 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 454 mm | 454 mm | 454 mm | 454 mm |
| Wheelbase | 1115 mm | 1143 mm | 1172 mm | 1206 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 664 mm | 704 mm | 749 mm | 798 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 152 cm | 157 cm | 175 cm | 180 cm |
| Rider Max Height | 170 cm | 182 cm | 195 cm | 195 cm |
About this model

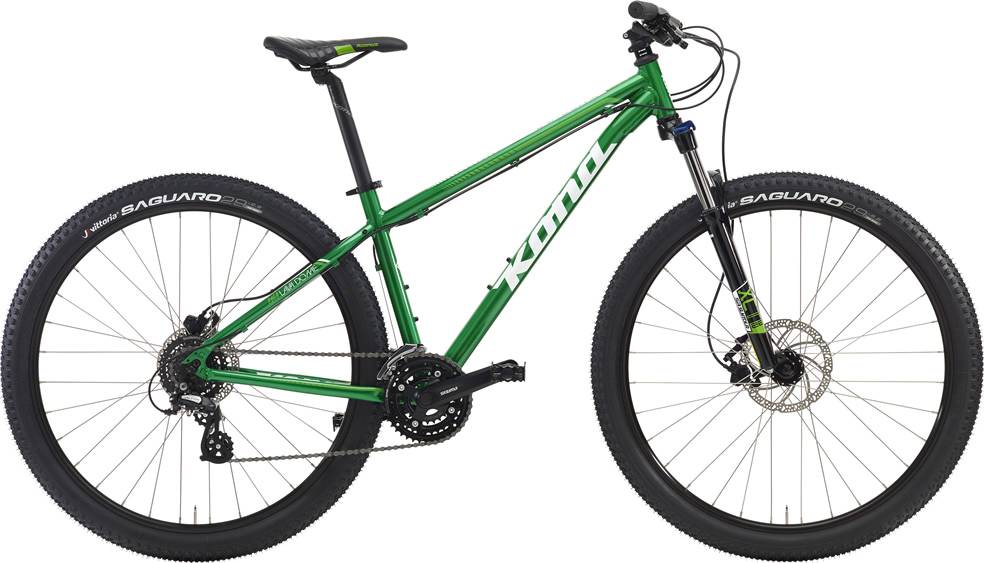

Lava Dome completes the Kona Lava model. Kona released 10 bikes variations of this model so far.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Crosscountry bikes average price
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, Kona Lava Dome price was 649$. Doing a quick comparison, we notice that Lava Dome price is 193.53% smaller than the average cost of a Crosscountry bike.
Overview of components
Fork
The SunTour XCT is included from the factory. It has a travel distance of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
As for the wheels, Kona Lava Dome 2016, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Lava Dome comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Kona Lava Dome bike has 4 sizes, in the range of 152 cm – 195 cm (4.99 ft – 6.4 ft). In short, you can easily find one that suits you.
