Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Suntour XCR
-
Groupset microSHIFT Advent -
Suspension Hardtail -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 170cm
MD
157cm - 182cm
LG
175cm - 195cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components

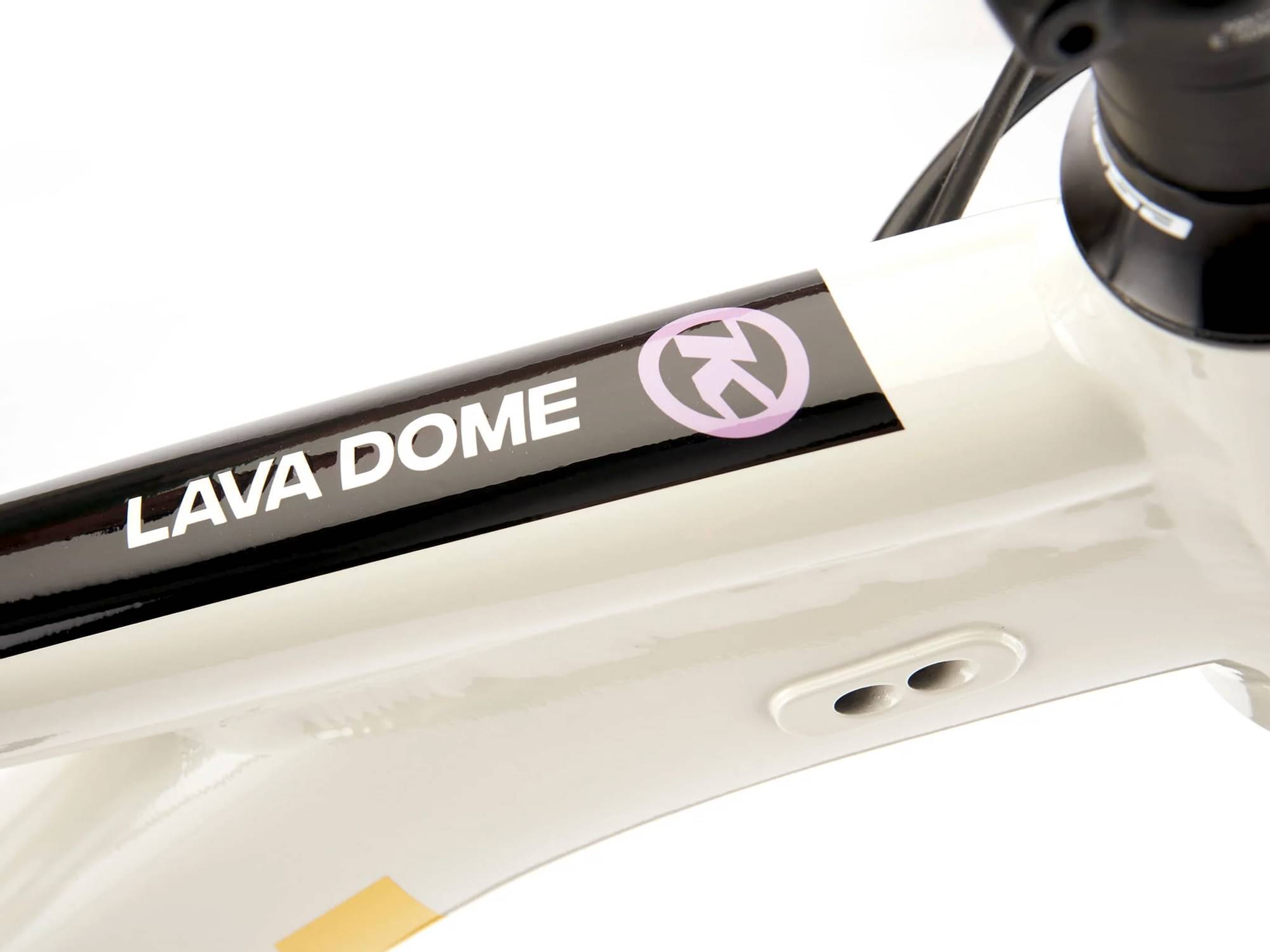

Frame
Frame
Kona 6061 Aluminum Butted

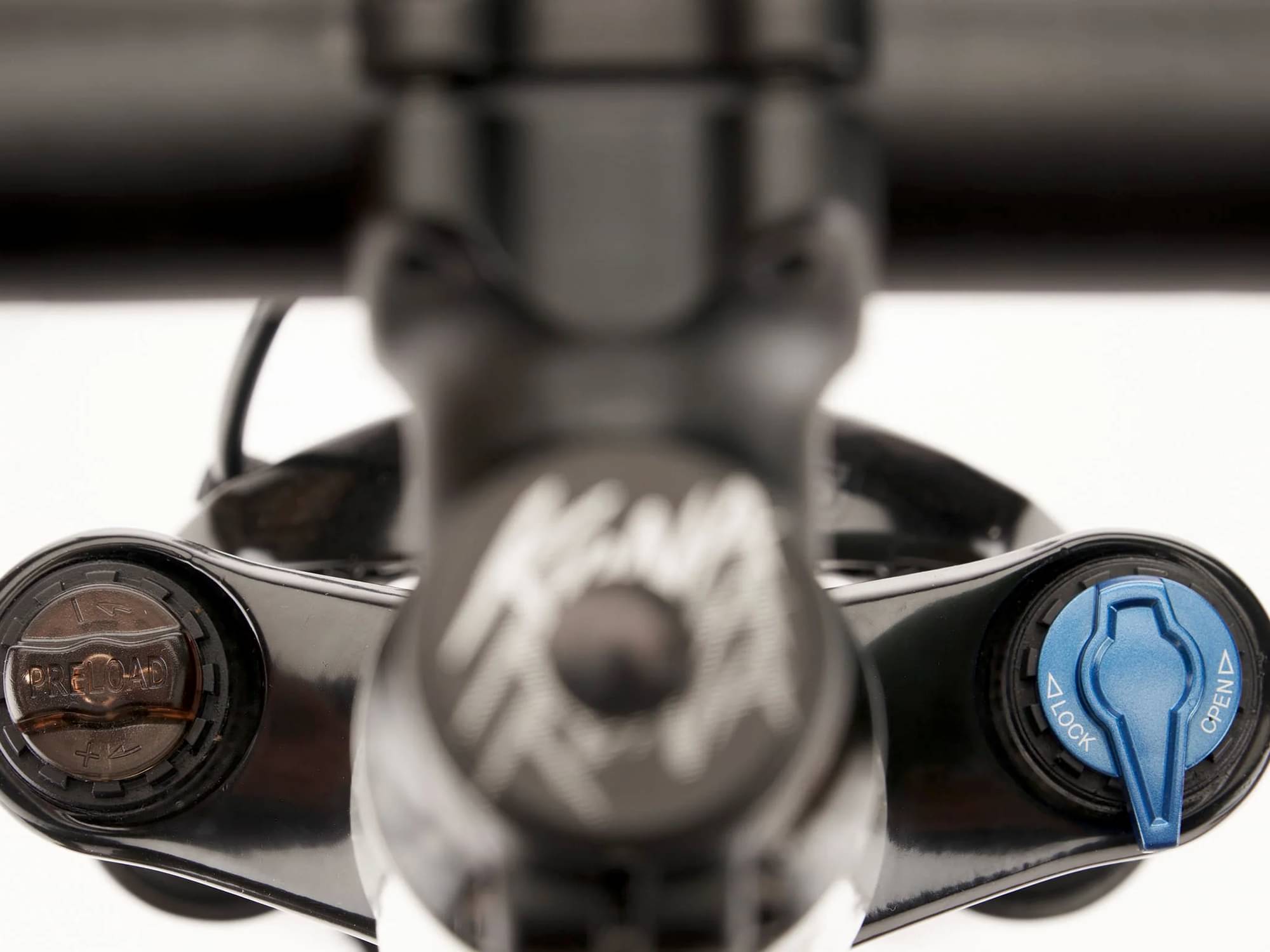

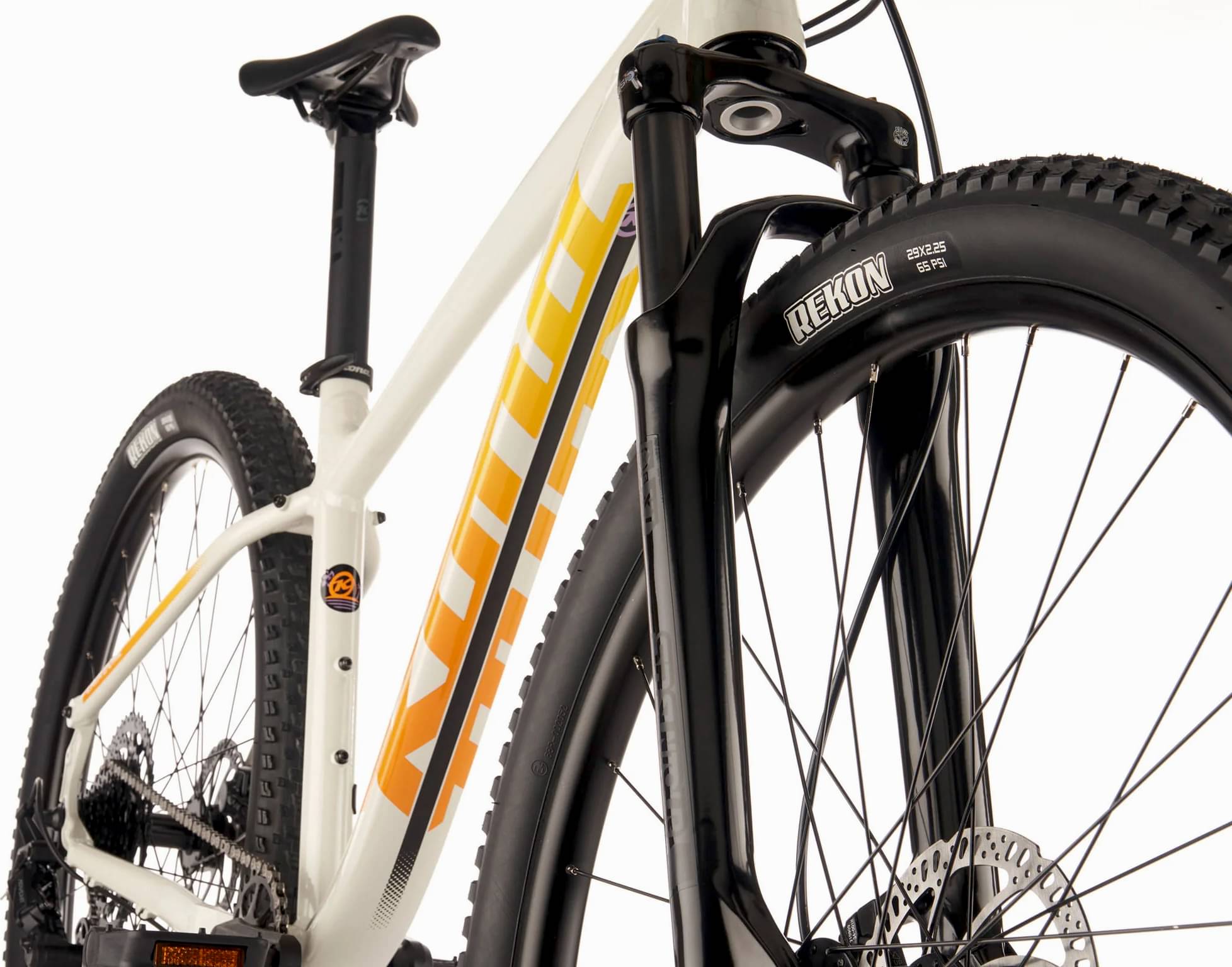

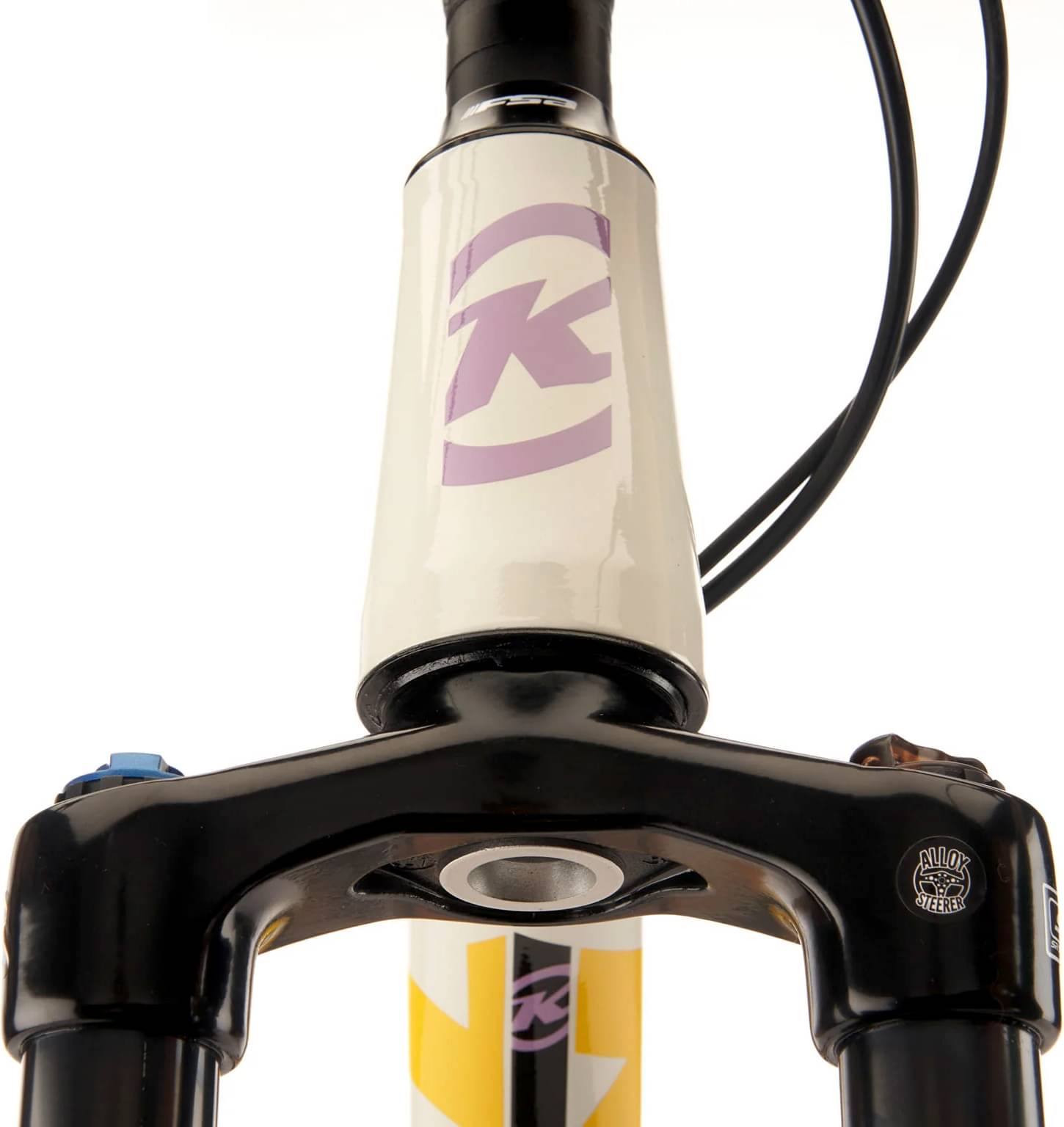

Suspension Fork
Suntour XCR 32 or X1 LO-R or RST Omega Coil Spring 100mm
Rear Shock
n/a
Drivetrain

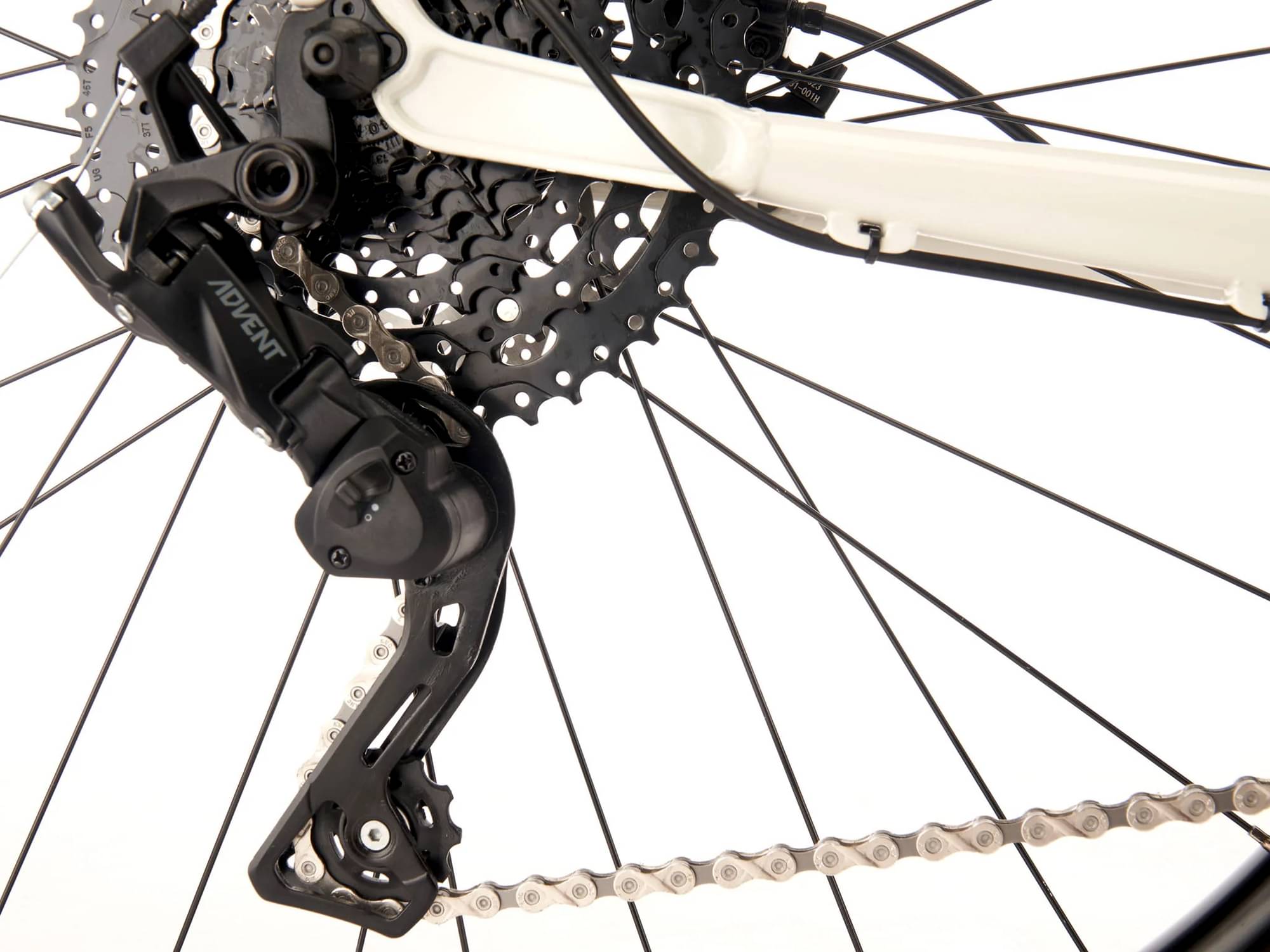

Rear Derailleur
Microshift Advent w/ Clutch
Front Derailleur
n/a
Shift Levers
Microshift Advent
Cassette
Microshift Advent 11-46t 9spd

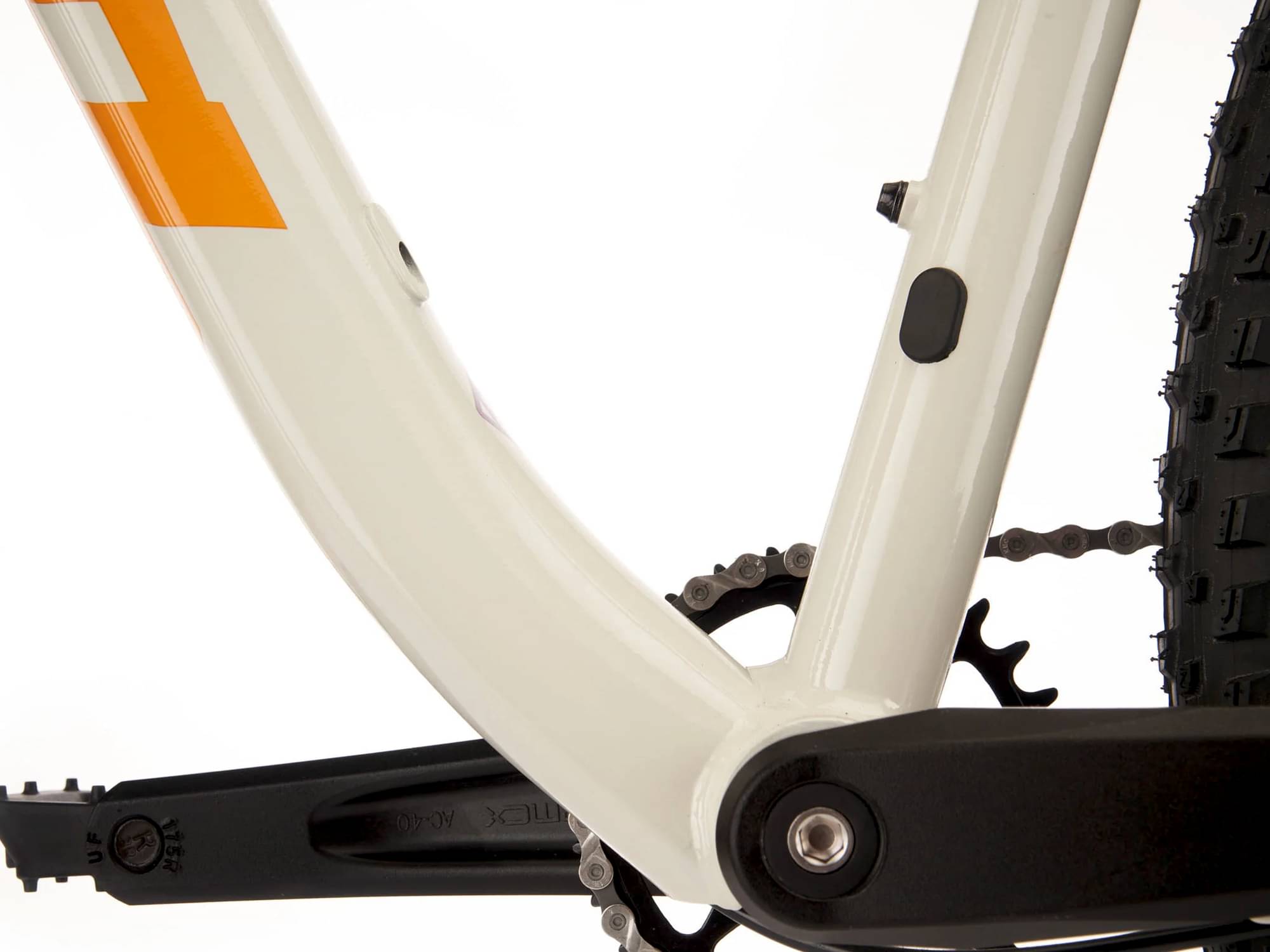

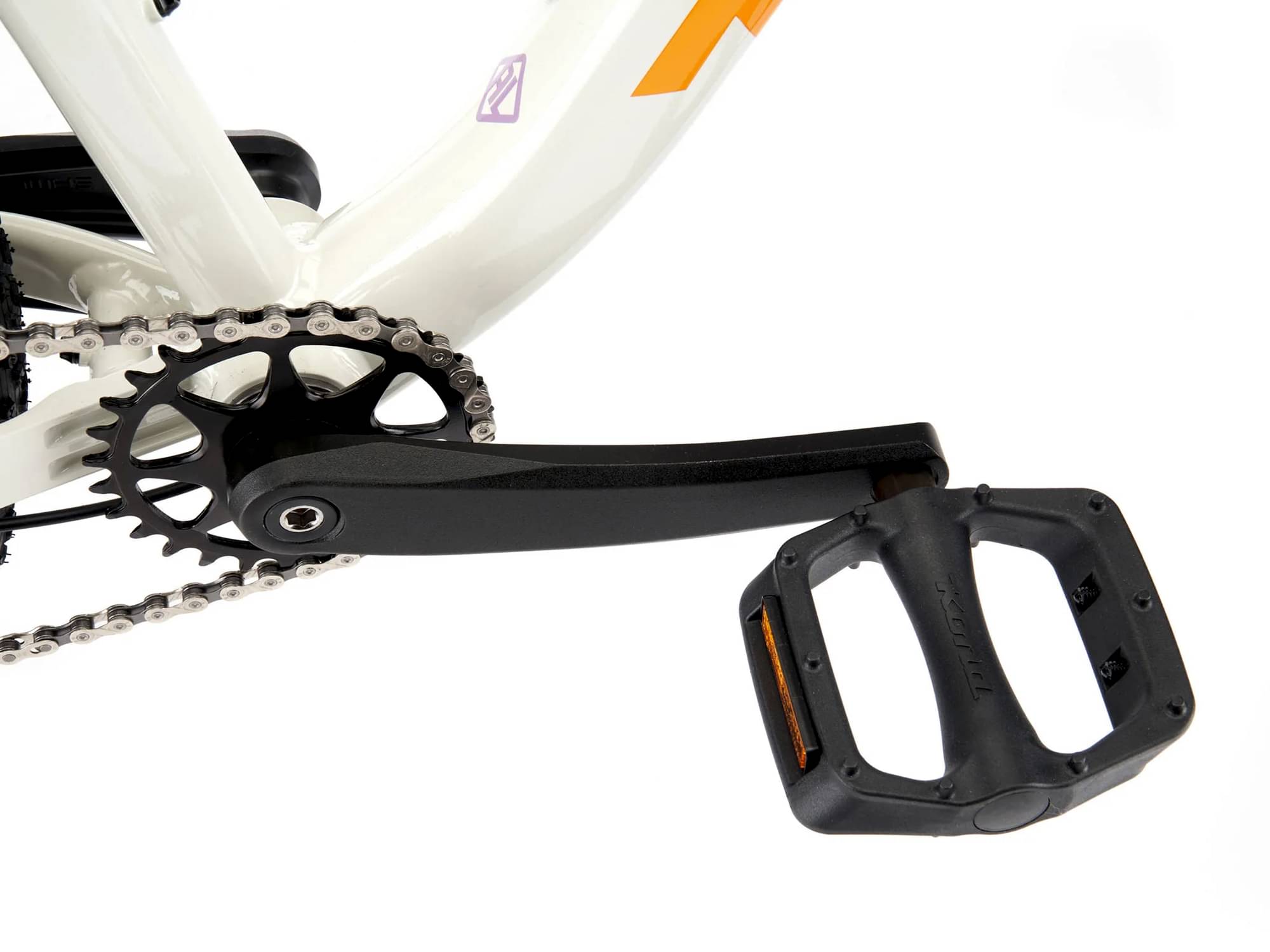

Crank
Samox, 28t
Bottom Bracket
Feimin 73mm
Chain
KMC X9
Chain Guide
n/a
Pedals
Kona JS2
Wheels
Front Hub
Joytech 100x9mm
Rear Hub
Joytech 135x10mm
Rims
Alex DP27K
Spokes
Stainless Black 14g
Tires
Front: WTB Trail Boss or Maxxis Rekons 29x2.25", Rear: WTB Trail Boss or Maxxis Rekons 29x2.25"

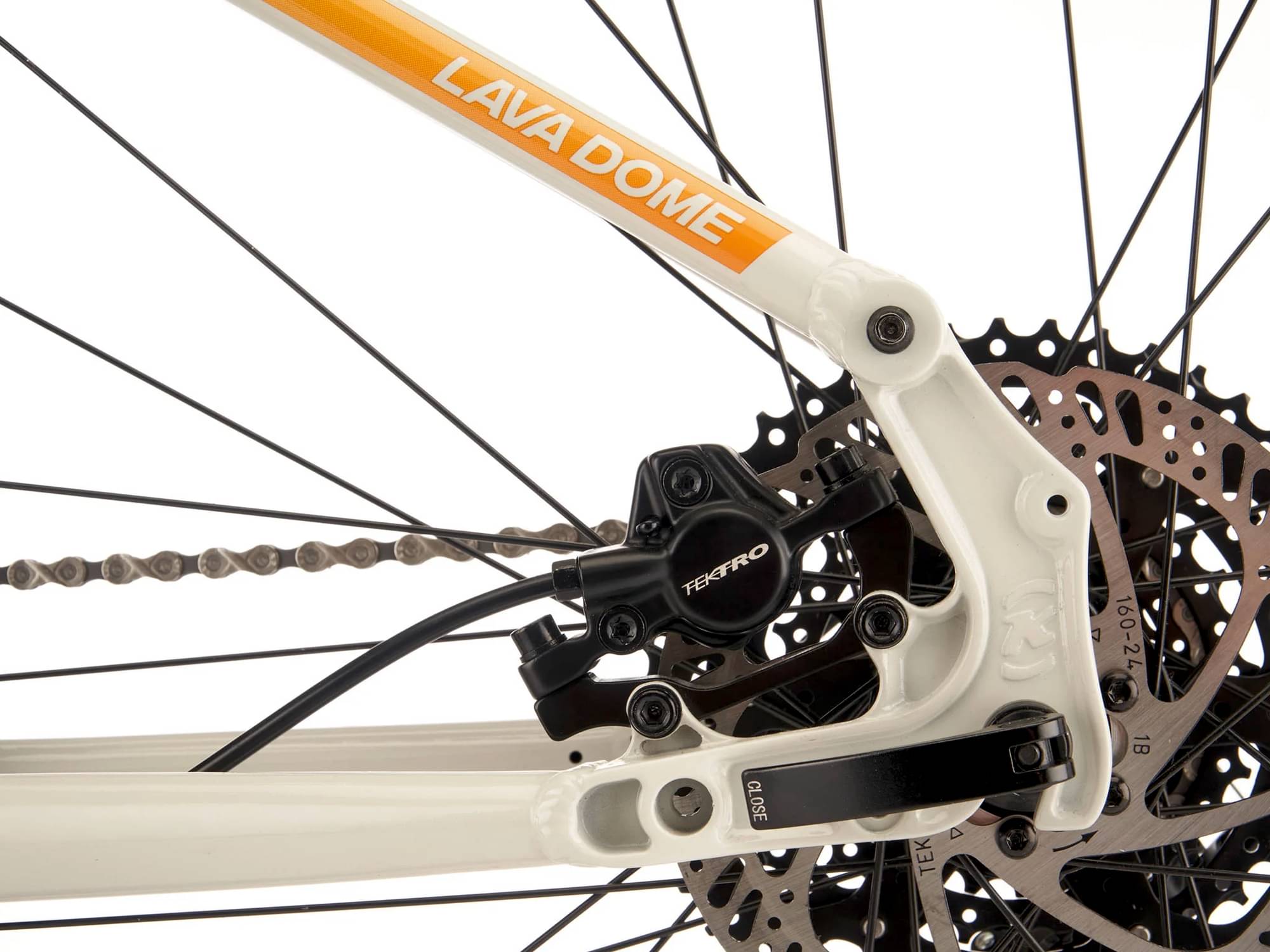

Brakes
Brakes
Tektro HDM275 Hydraulic

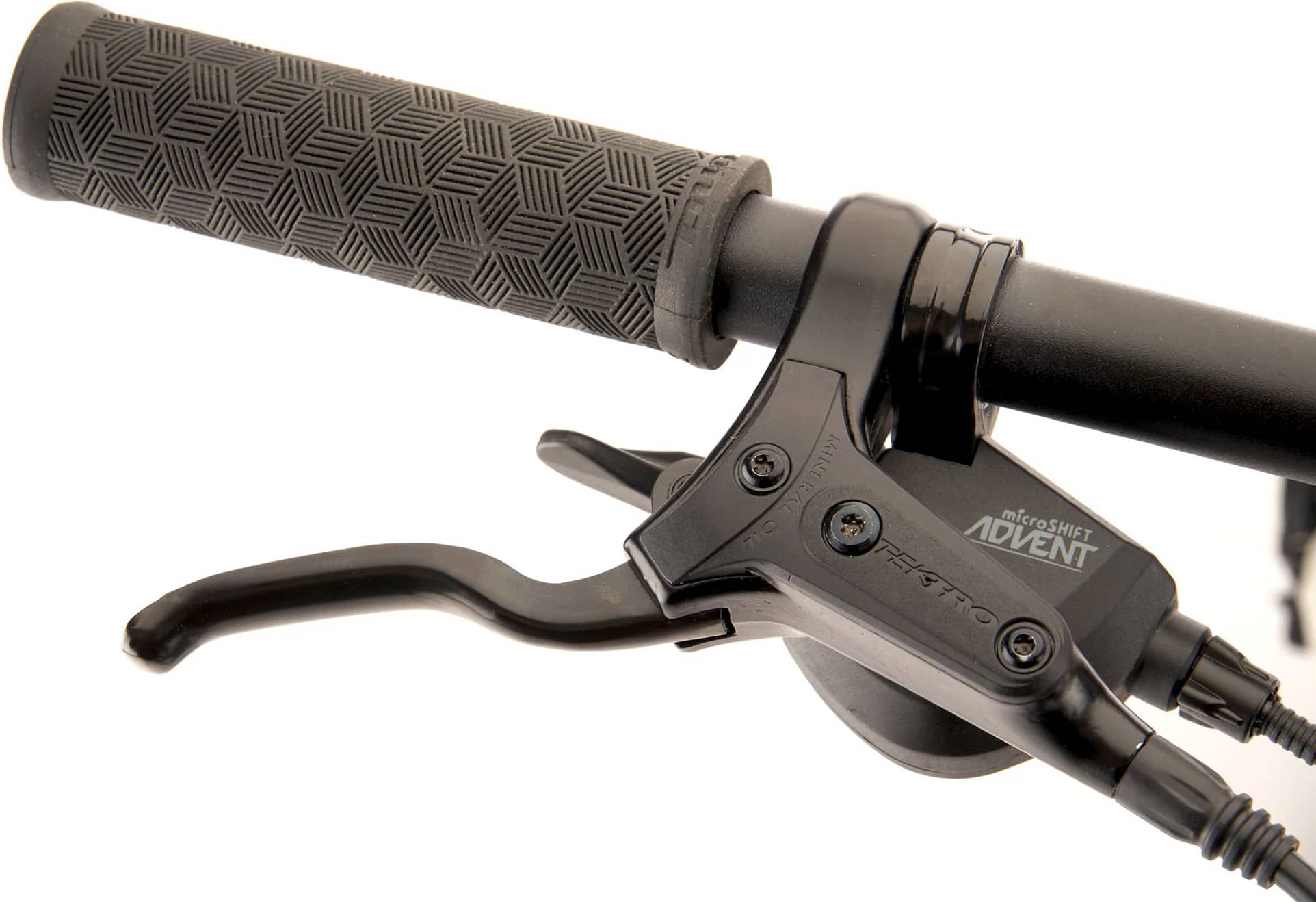

Brake Levers
Tektro HDM275 Hydraulic

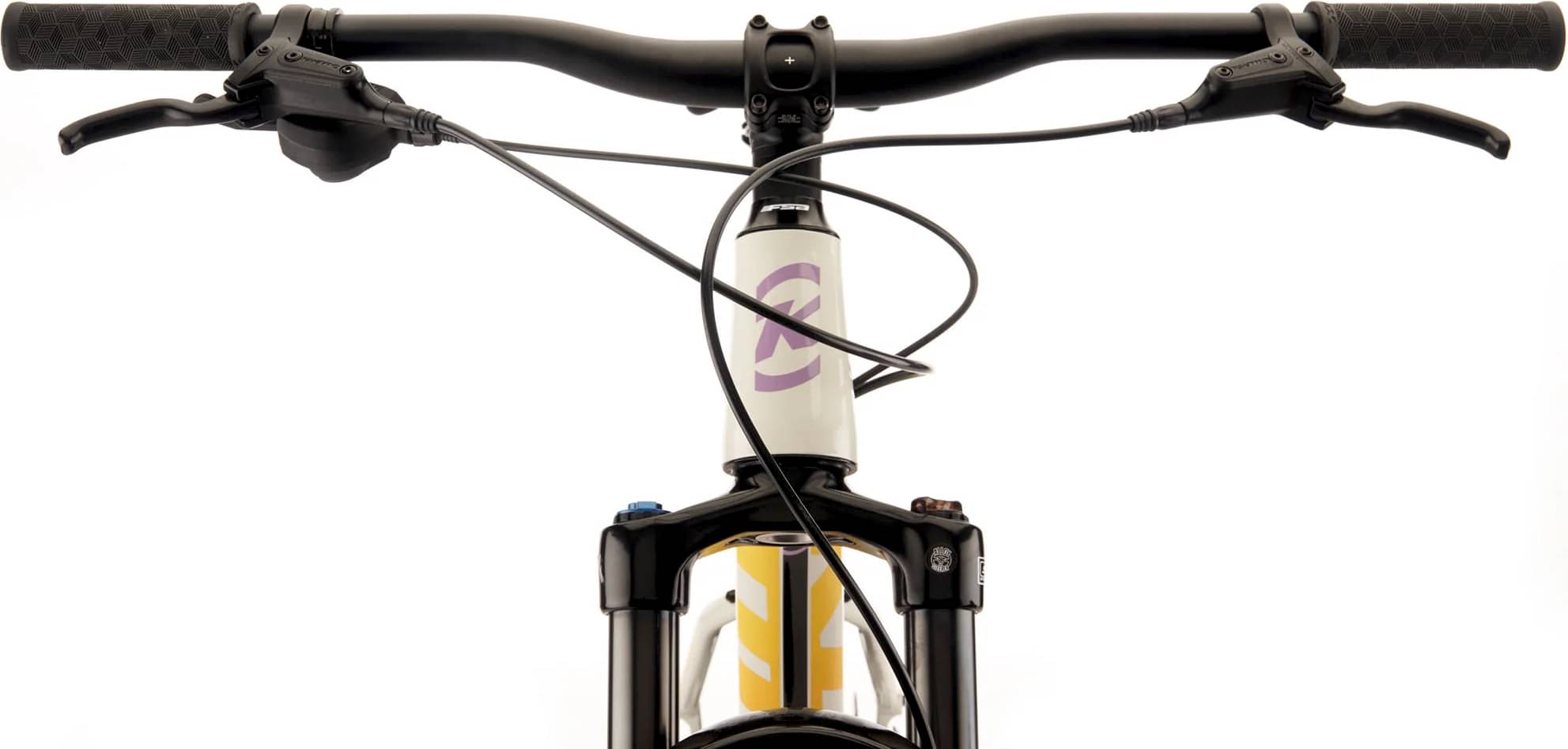

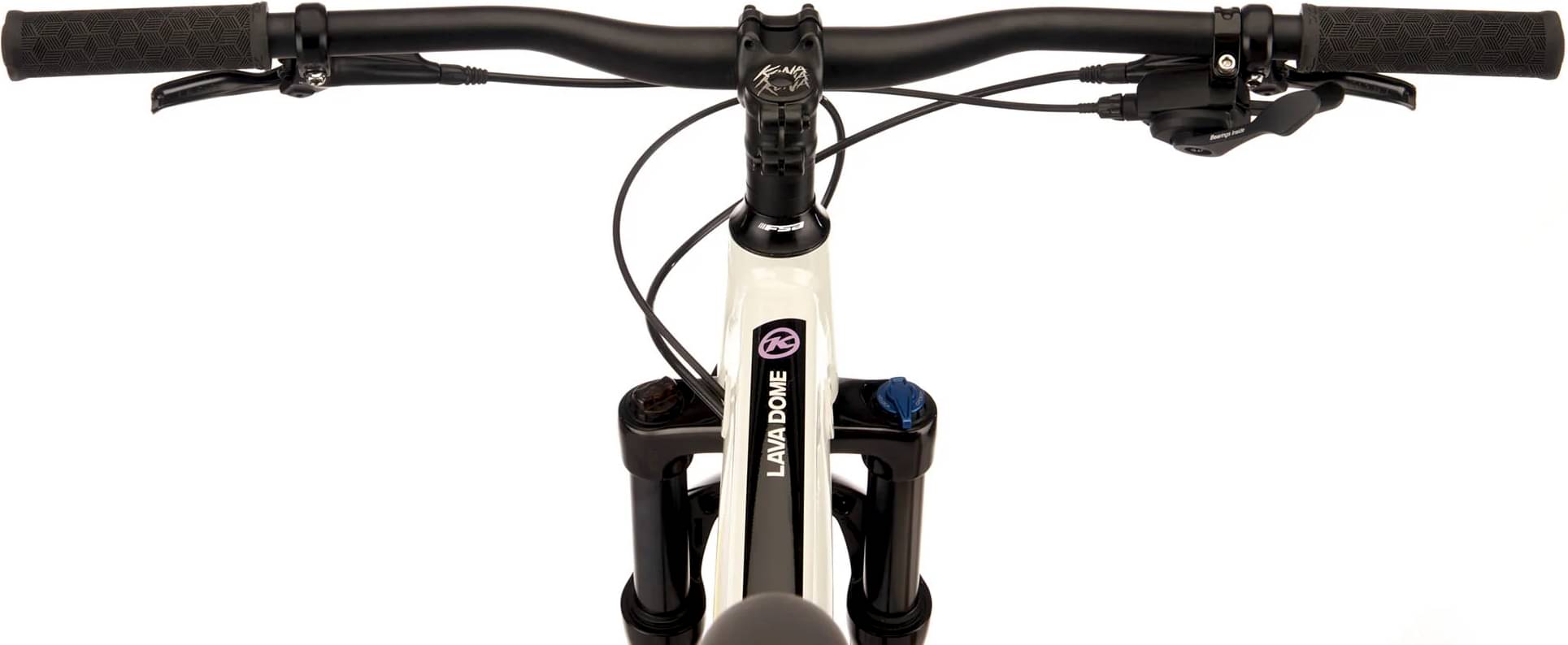

Cockpit
Stem
Kona XC
Handlebar
Kona XC/BC Riser
Grips
Kona Key Grip Slip on
Headset
Feimen HP-H868B
Seat
Saddle
Kona XC
Seatpost
Kona Thumb 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.504 mm | 1.389 mm | 1.333 mm | 1.258 mm |
| Bottom Bracket Height | 315 mm | 315 mm | 315 mm | 315 mm |
| Front Center | 691 mm | 720 mm | 754 mm | 787 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 105 mm | 96 mm | 92 mm | 96 mm |
| Stack | 624 mm | 611 mm | 620 mm | 629 mm |
| Reach | 415 mm | 440 mm | 465 mm | 500 mm |
| Top Tube Length | 576 mm | 604 mm | 636 mm | 669 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 370 mm | 420 mm | 470 mm | 530 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1135 mm | 1164 mm | 1197 mm | 1231 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 727 mm | 733 mm | 738 mm | 760 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 152 cm | 157 cm | 175 cm | 180 cm |
| Rider Max Height | 170 cm | 182 cm | 195 cm | 195 cm |
