Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork SunTour XCR 32
-
Groupset Altus -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona 6061 Aluminum Butted
Suspension Fork
Suntour XCR 32 LO-R 100mm
Rear Shock
n/a
Drivetrain
Rear Derailleur
Shimano Altus
Front Derailleur
Shimano Altus
Shift Levers
Shimano Altus
Cassette
Shimano HG20 11-34t 9 spd
Crank
22/32/44t
Bottom Bracket
TH 7420
Chain
KMC HG53
Chain Guide
n/a
Pedals
Wellgo Platform
Wheels
Front Hub
Joytech
Rear Hub
Joytech
Rims
WTB SX19
Spokes
Stainless 14g
Tires
Vittoria Saguaro 29x2.2"
Brakes
Brakes
Shimano M395 Hydraulic
Brake Levers
Shimano M395 Hydraulic
Disk Rotors
Shimano 180mm
Cockpit
Stem
Kona Control
Handlebar
Kona XC/BC Riser
Grips
Kona Race Light LOG
Headset
TH ZST No.10
Seat
Saddle
Kona XC
Seatpost
Kona Double Clamp
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17" | 19" | 21" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.61 mm | 1.55 mm | 1.57 mm | 1.54 mm |
| Bottom Bracket Height | 316 mm | 316 mm | 316 mm | 316 mm |
| Front Center | 651 mm | 677 mm | 691 mm | 717 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 87 mm | 114 mm | 88 mm | 86 mm |
| Stack | 627 mm | 637 mm | 656 mm | 674 mm |
| Reach | 389 mm | 412 mm | 419 mm | 438 mm |
| Top Tube Length | 570 mm | 595 mm | 620 mm | 645 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 432 mm | 483 mm | 533 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 105 mm | 115 mm | 135 mm | 155 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1092 mm | 1092 mm | 1132 mm | 1159 mm |
| Bottom Bracket Drop | 58 mm | 58 mm | 58 mm | 58 mm |
| Standover Height | 773 mm | 800 mm | 832 mm | 864 mm |
| Wheels | 29" | 29" | 29" | 29" |
Model Overview

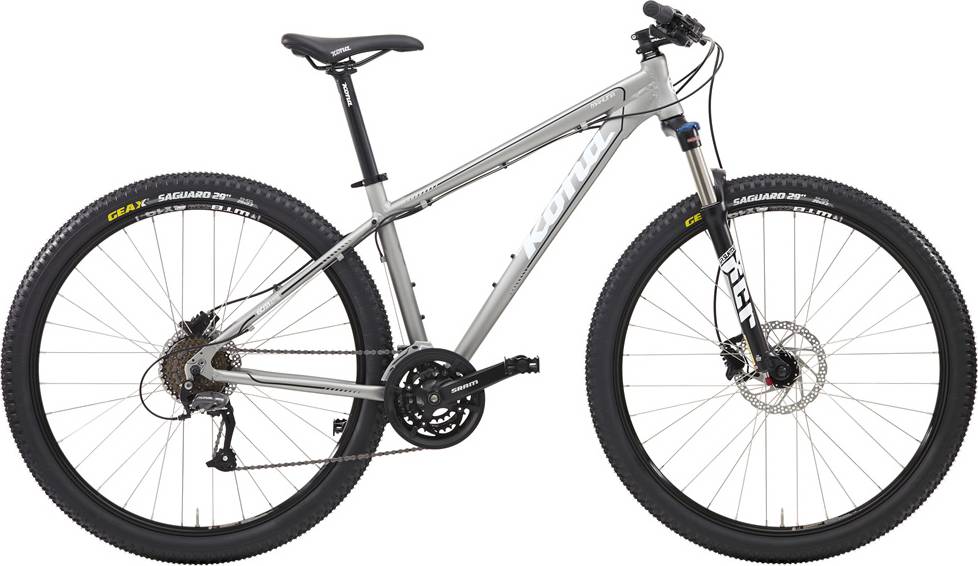

MAHUNA is part of the Kona Mahuna model. Kona released 13 bikes variations of this model so far.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Crosscountry bikes average price
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
MAHUNA components
Fork
This bike has the SunTour XCR 32 fork installed. The fork’s travel is 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
The MAHUNA 2014 bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The MAHUNA comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
