Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork RockShox Judy Silver TK
-
Groupset Deore, FSA -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 170cm
MD
157cm - 182cm
LG
175cm - 195cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona 6061 Aluminum Butted
Suspension Fork
RockShox Judy Silver TK Solo Air 100mm
Rear Shock
n/a
Drivetrain
Rear Derailleur
Shimano Deore
Front Derailleur
n/a
Shift Levers
Shimano Deore
Cassette
Shimano Deore 11-51t 11spd
Crank
FSA Alpha Drive 1x, 28t
Bottom Bracket
FSA 7420 73mm
Chain
KMC X11
Chain Guide
n/a
Pedals
Kona JS2
Wheels
Front Hub
Formula 100x9mm
Rear Hub
Shimano 135x10mm
Rims
WTB ST i27 TCS 2.0
Spokes
Stainless Black 14g
Tires
Maxxis Forekaster 29x2.35"
Brakes
Brakes
Shimano MT201 Hydraulic
Brake Levers
Shimano MT201 Hydraulic
Disk Rotors
Shimano RT10 180mm (centerlock)
Cockpit
Stem
Kona XC
Handlebar
Kona XC/BC Riser
Grips
Kona Key Grip Slip on
Headset
FSA No.57B
Seat
Saddle
Kona XC
Seatpost
Kona Thumb 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.39 mm | 1.33 mm | 1.26 mm |
| Bottom Bracket Height | 315 mm | 315 mm | 315 mm | 315 mm |
| Front Center | 691 mm | 720 mm | 749 mm | 787 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 96 mm | 96 mm | 93 mm | 96 mm |
| Stack | 606 mm | 615 mm | 624 mm | 633 mm |
| Reach | 419 mm | 444 mm | 469 mm | 504 mm |
| Top Tube Length | 580 mm | 608 mm | 635 mm | 673 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 370 mm | 420 mm | 470 mm | 530 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 454 mm | 454 mm | 454 mm | 454 mm |
| Wheelbase | 1139 mm | 1168 mm | 1199 mm | 1235 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 731 mm | 737 mm | 742 mm | 764 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 152 cm | 157 cm | 175 cm | 180 cm |
| Rider Max Height | 170 cm | 182 cm | 195 cm | 195 cm |
Model Overview

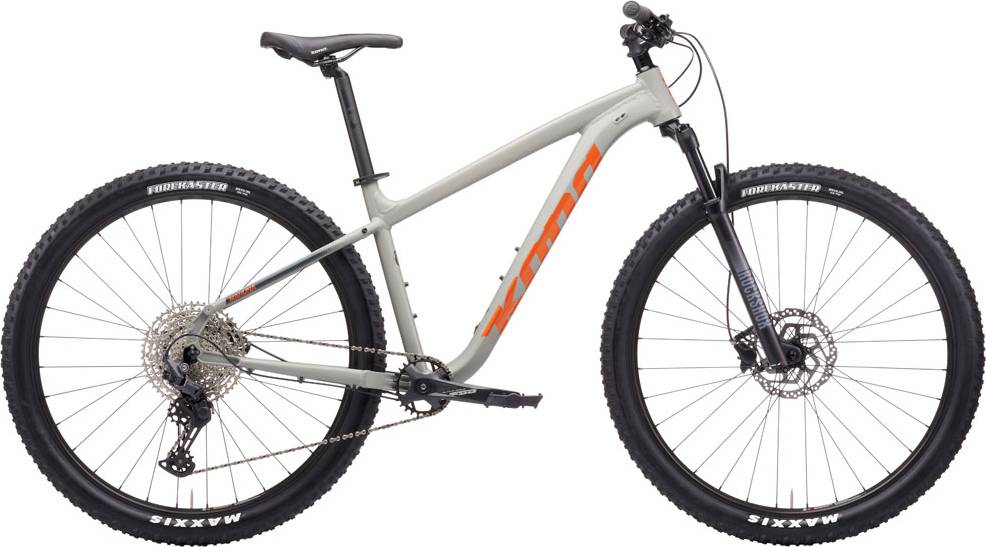

Mahuna belongs to the Kona Mahuna model. Kona released 13 bikes variations of this model so far.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Kona released this model in 2021, its price was 1049$. If we compare this with the average Crosscountry bike cost we notice that the price is 81.6% smaller.
Mahuna components
Fork
The RockShox Judy Silver TK is included from the factory. It has a travel distance of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The wheels on Mahuna are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Mahuna comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Kona Mahuna bike has 4 sizes, in the range of 152 cm – 195 cm (4.99 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
