Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 700c -
Groupset Claris -
Suspension Rigid -
Drivetrain 2 × 8 -
Brakes Rim
Sizing
Recommended size guide.
49cm
155cm - 163cm
52cm
161cm - 169cm
54cm
166cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
61cm
183cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona Cromoly Butted
Suspension Fork
Kona Classic Road
Rear Shock
n/a
Drivetrain
Rear Derailleur
Shimano Claris
Front Derailleur
Shimano Claris
Shift Levers
Shimano Claris
Cassette
SunRace CSM66 11-32t 8spd
Crank
34/50t
Bottom Bracket
TH 7420
Chain
Shimano HG71
Chain Guide
n/a
Pedals
n/a
Wheels
Front Hub
Formula FM21
Rear Hub
Shimano 2400
Rims
Alex R500
Spokes
Sandvik Stainless 15g fr / 14g rr
Tires
Continental UltraSport II 700x28c
Brakes
Brakes
Tektro R359
Brake Levers
Shimano 2400
Disk Rotors
n/a
Cockpit
Stem
Kona Road
Handlebar
Kona Road
Grips
Kona Cork Tape
Headset
TH 848
Seat
Saddle
Kona Classic Road
Seatpost
Kona Thumb w/Offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.51 mm | 1.53 mm | 1.56 mm | 1.58 mm | 1.6 mm |
| Bottom Bracket Height | 260 mm | 260 mm | 262 mm | 262 mm | 264 mm | 264 mm |
| Front Center | 581 mm | 582 mm | 593 mm | 602 mm | 613 mm | 621 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 71 mm | 65 mm | 65 mm | 66 mm | 62 mm | 58 mm |
| Stack | 546 mm | 569 mm | 586 mm | 605 mm | 624 mm | 645 mm |
| Reach | 375 mm | 378 mm | 383 mm | 387 mm | 396 mm | 403 mm |
| Top Tube Length | 525 mm | 540 mm | 555 mm | 570 mm | 585 mm | 605 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 490 mm | 520 mm | 540 mm | 560 mm | 580 mm | 610 mm |
| Head Tube Angle | 71 ° | 72 ° | 72 ° | 72 ° | 72.5 ° | 73 ° |
| Head Tube Length | 125 mm | 145 mm | 165 mm | 185 mm | 205 mm | 225 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm | 427 mm | 430 mm | 430 mm |
| Wheelbase | 996 mm | 997 mm | 1008 mm | 1018 mm | 1032 mm | 1041 mm |
| Bottom Bracket Drop | 76 mm | 76 mm | 74 mm | 74 mm | 72 mm | 72 mm |
| Standover Height | 733 mm | 760 mm | 780 mm | 800 mm | 820 mm | 850 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 161 cm | 166 cm | 172 cm | 178 cm | 183 cm |
| Rider Max Height | 163 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm |
About this model

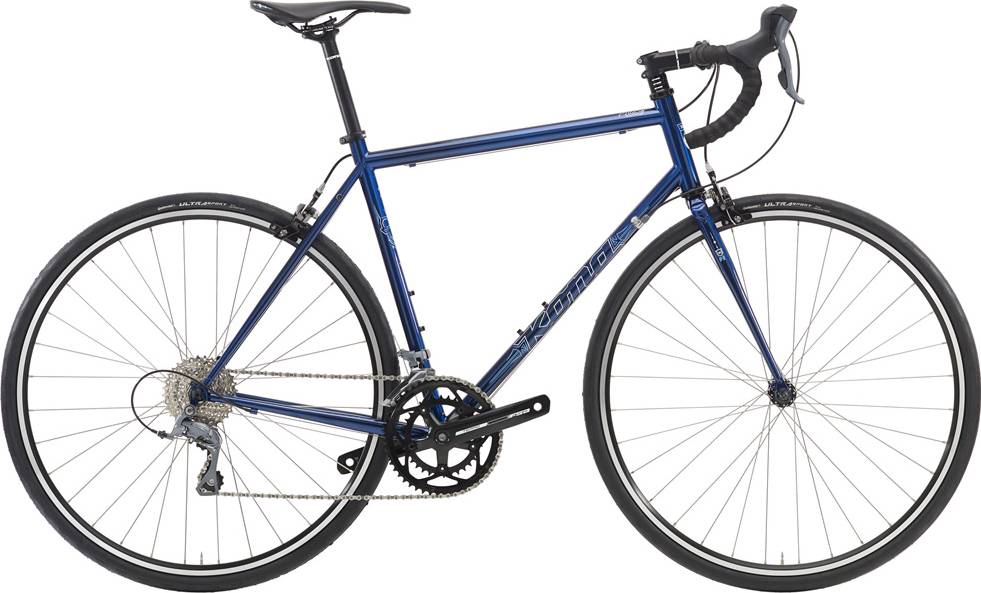

Penthouse belongs to the Kona Penthouse model. Kona launched 1 bike of this model so far.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Endurance bikes average price
According to our calculations, the average cost of an Endurance bike that is reliable is 2346$. However, even though the average price of an Endurance bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Overview of components
Wheels
The Penthouse 2016 bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Rim brakes deliver an average performance overall. However, you could spend a little extra and get a bike that has hydraulic brakes.
Sizes
Kona Penthouse bike has 6 sizes, in the range of 155 cm – 191 cm (5.09 ft – 6.27 ft). In short, it won’t be difficult to find the right one for you.
