Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Ultegra, Shimano -
Suspension Rigid -
Drivetrain 3 × 10 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona 7005 Aluminum Butted
Suspension Fork
Kona Carbon
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Ultegra
Front Derailleur
Shimano
Shift Levers
Shimano
Cassette
Shimano 105 (12-25, 10spd)
Crank
52/39/30
Bottom Bracket
FSA MegaExo
Chain
Shimano 105
Pedals
Shimano A520 Clipless
Wheels
Front Hub
Mavic Aksium Wheelset
Rear Hub
Mavic Aksium Wheelset
Rims
Mavic Aksium Wheelset
Spokes
Mavic Aksium Wheelset
Tires
Continental UltraSport 700x23C
Brakes
Brakes
Avid SD-5
Brake Levers
Avid FR-5
Cockpit
Stem
FSA OS-150-1 LX (49-52=6/90 and 54-60=6/110mm)
Handlebar
FSA XC-180 FlatBar (580mm Wide)
Grips
Kona Race Light
Headset
FSA Orbit #8BE
Seat
Saddle
WTB Rocket V Comp
Seatpost
FSA SL280
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 52cm | 54cm | 56cm | 58cm | 60cm |
|---|---|---|---|---|---|---|
| Bottom Bracket Height | 271 mm | 271 mm | 274 mm | 274 mm | 277 mm | 277 mm |
| Front Center | 603 mm | 607 mm | 605 mm | 614 mm | 621 mm | 627 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Top Tube Length | 541 mm | 554 mm | 567 mm | 579 mm | 591 mm | 603 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 440 mm | 470 mm | 490 mm | 510 mm | 530 mm | 550 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 72 ° | 72 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 115 mm | 130 mm | 145 mm | 160 mm | 175 mm | 195 mm |
| Chainstay Length | 446 mm | 446 mm | 446 mm | 446 mm | 446 mm | 446 mm |
| Wheelbase | 1040 mm | 1044 mm | 1042 mm | 1051 mm | 1059 mm | 1066 mm |
| Standover Height | 731 mm | 752 mm | 773 mm | 799 mm | 808 mm | 826 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

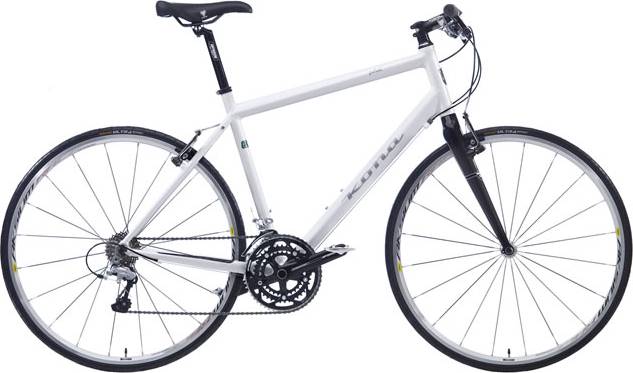

PH.D is part of the Kona Phd model. Kona released 2 bikes variations of this model so far.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Commuter bikes average price
According to our math, the average price for a trustworthy Commuter bike is 762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Commuter bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Overview of components
Fork material
The fork is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
The wheels on PH.D are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, you could spend a little extra and get a bike that has hydraulic brakes.
