Bike details
Overview
Key information split into simple groups.

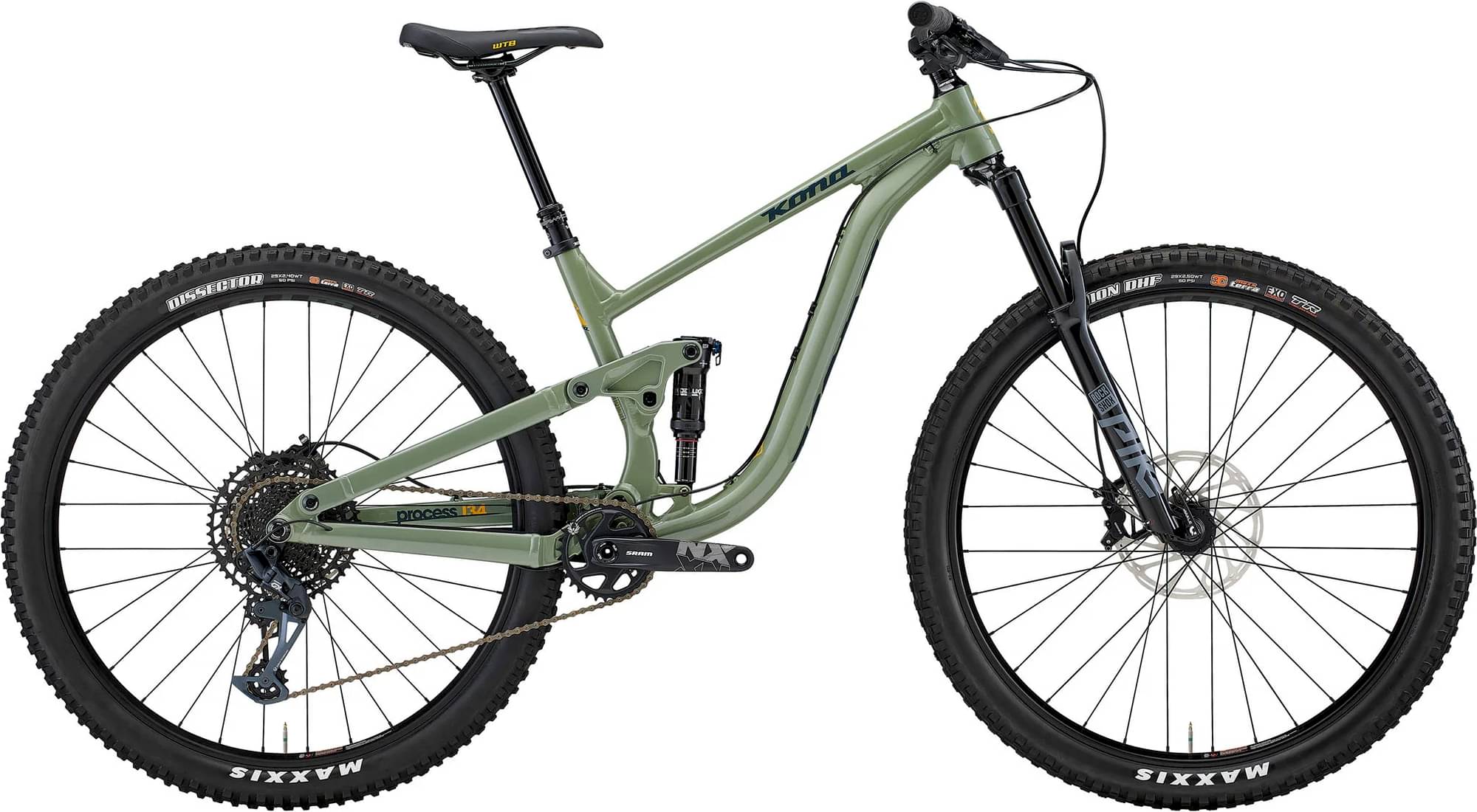

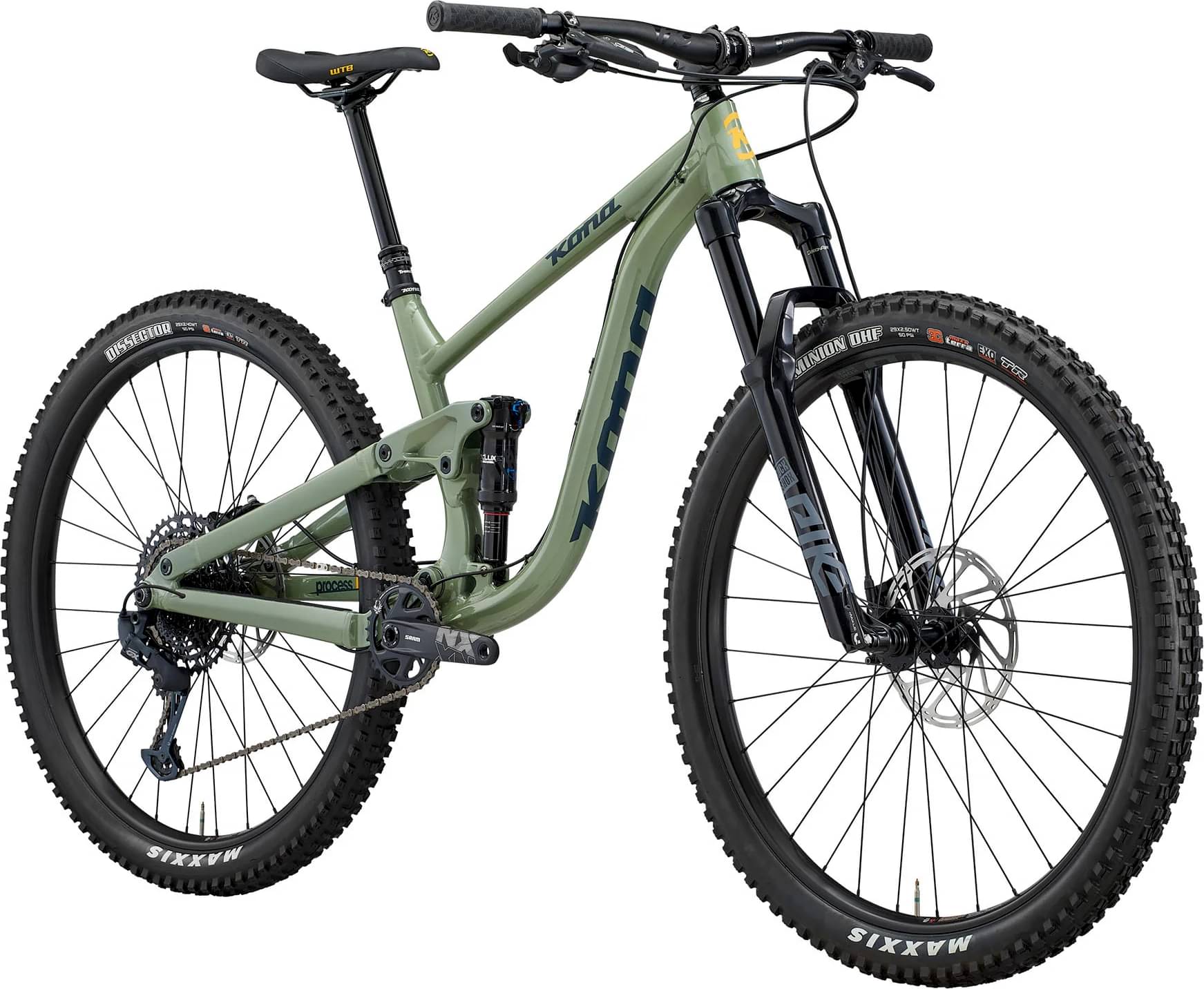

Bike summary
-
-
Frame Aluminum -
Travel Front 140mm -
Travel Rear 134mm -
Fork RockShox Pike Select
-
Groupset GX Eagle, NX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 170cm
MD
157cm - 182cm
LG
175cm - 195cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

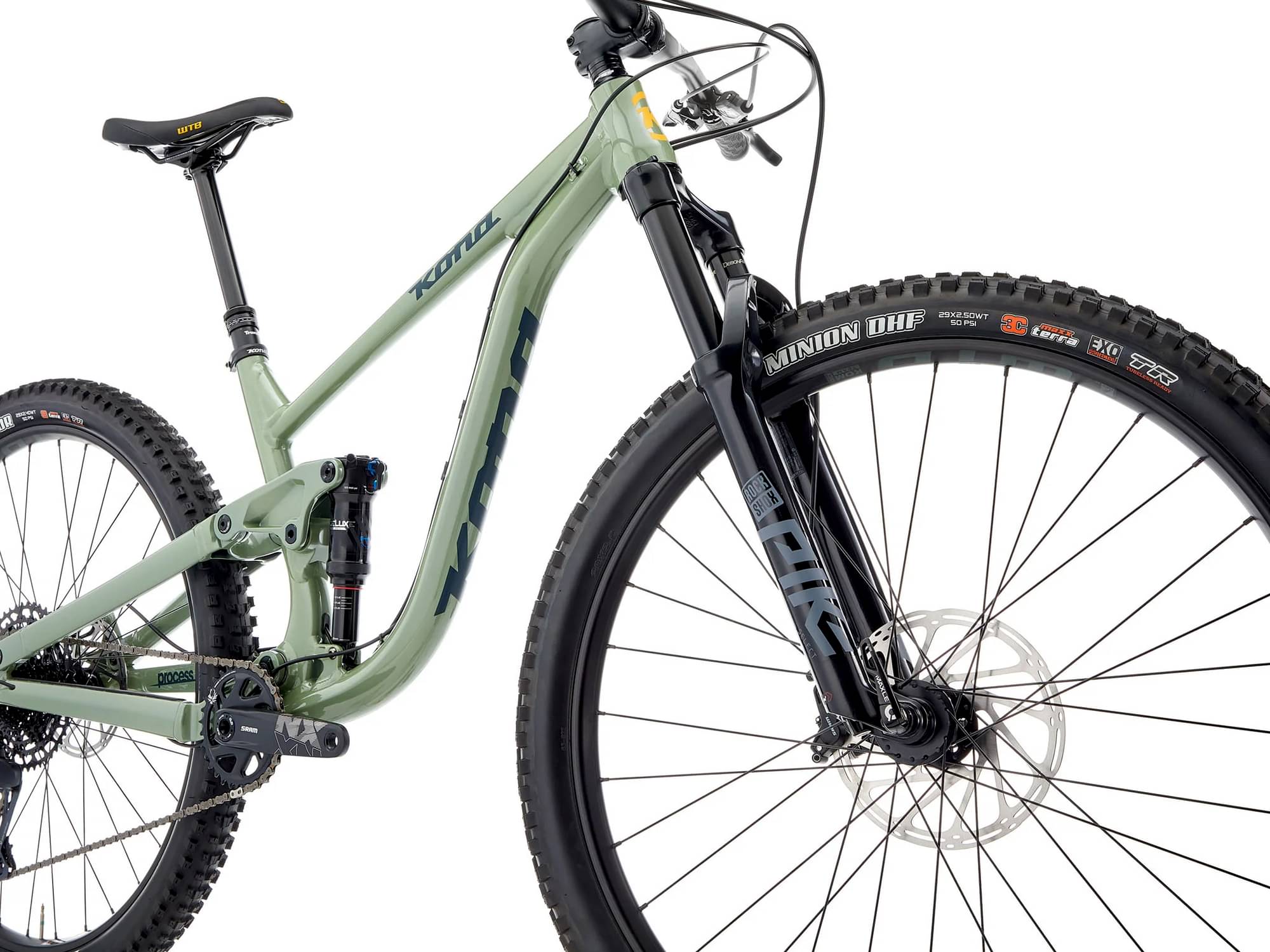

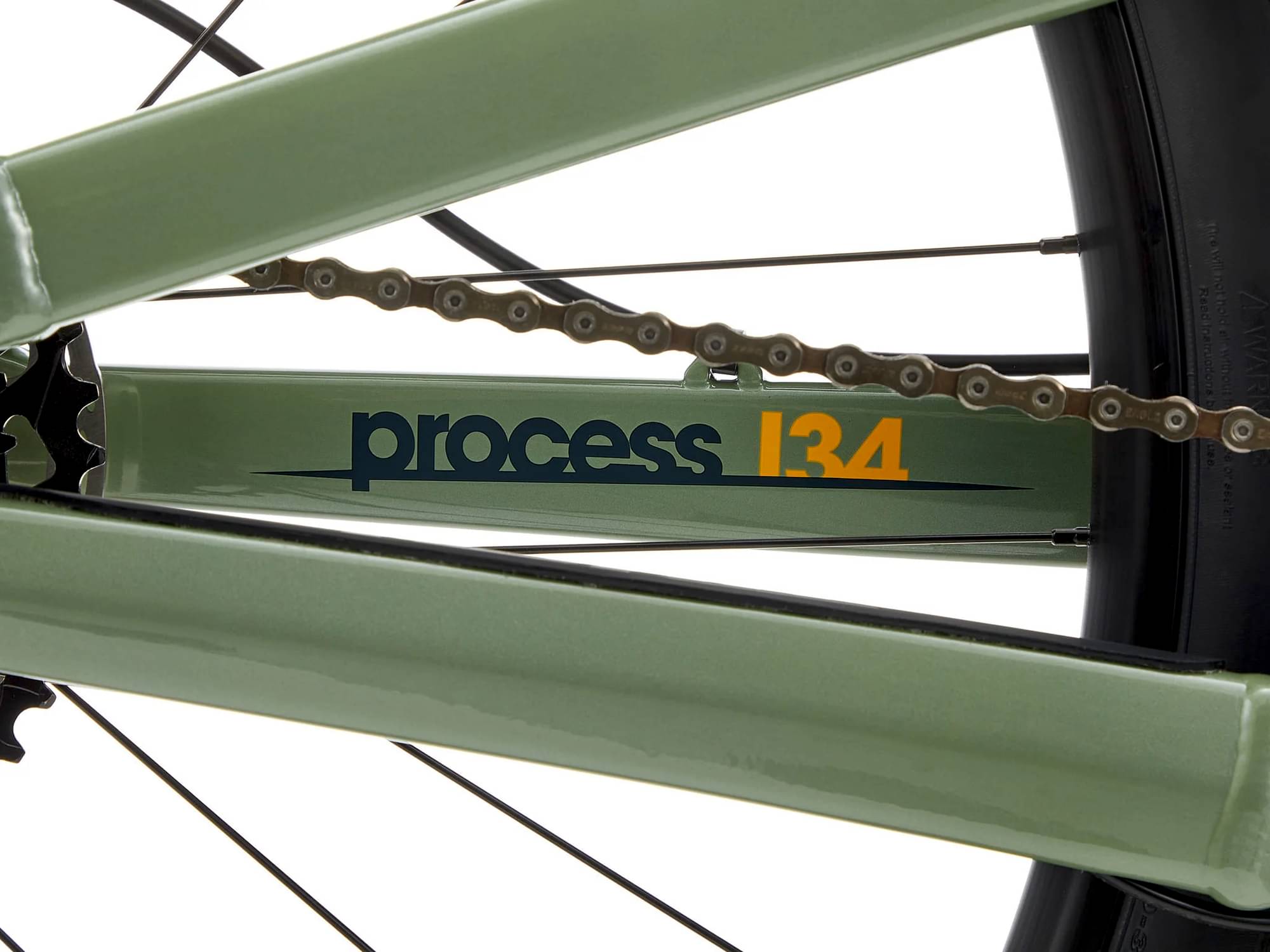

Kona 6061 Aluminum Butted 134mm Travel
Suspension Fork

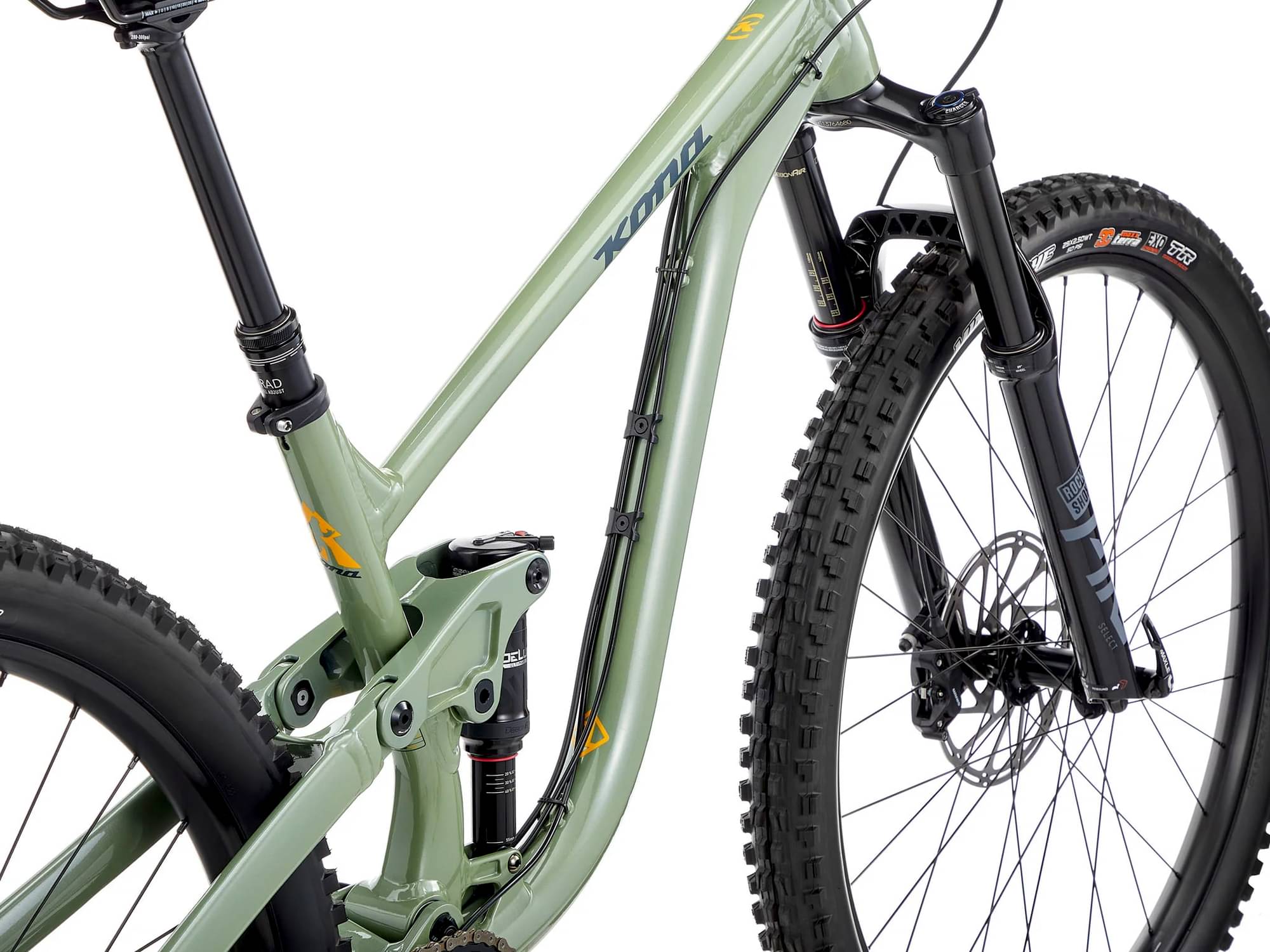

RockShox Pike Select RC Charger DebonAir 140mm Tapered 110mm Spacing
Rear Shock

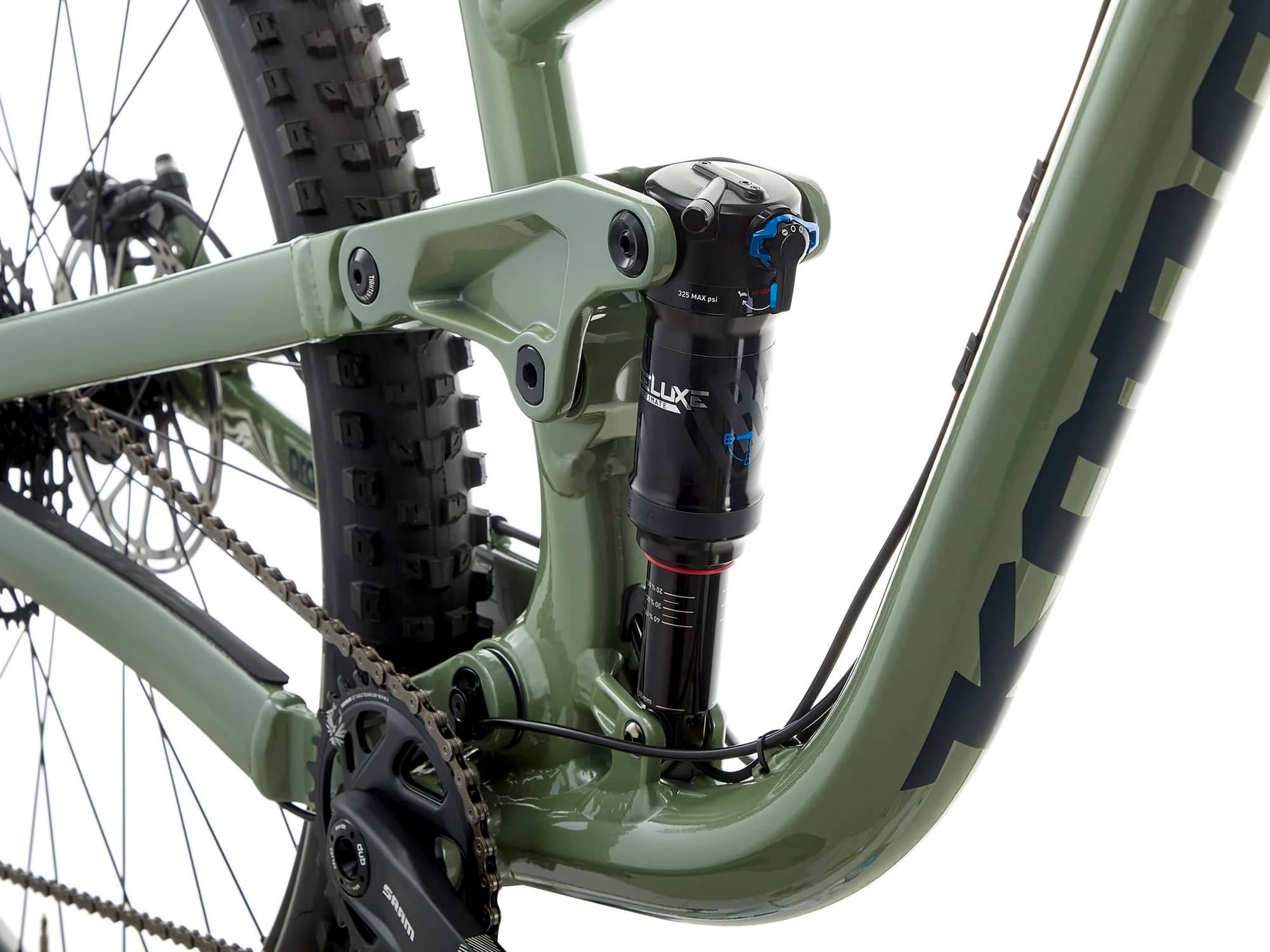

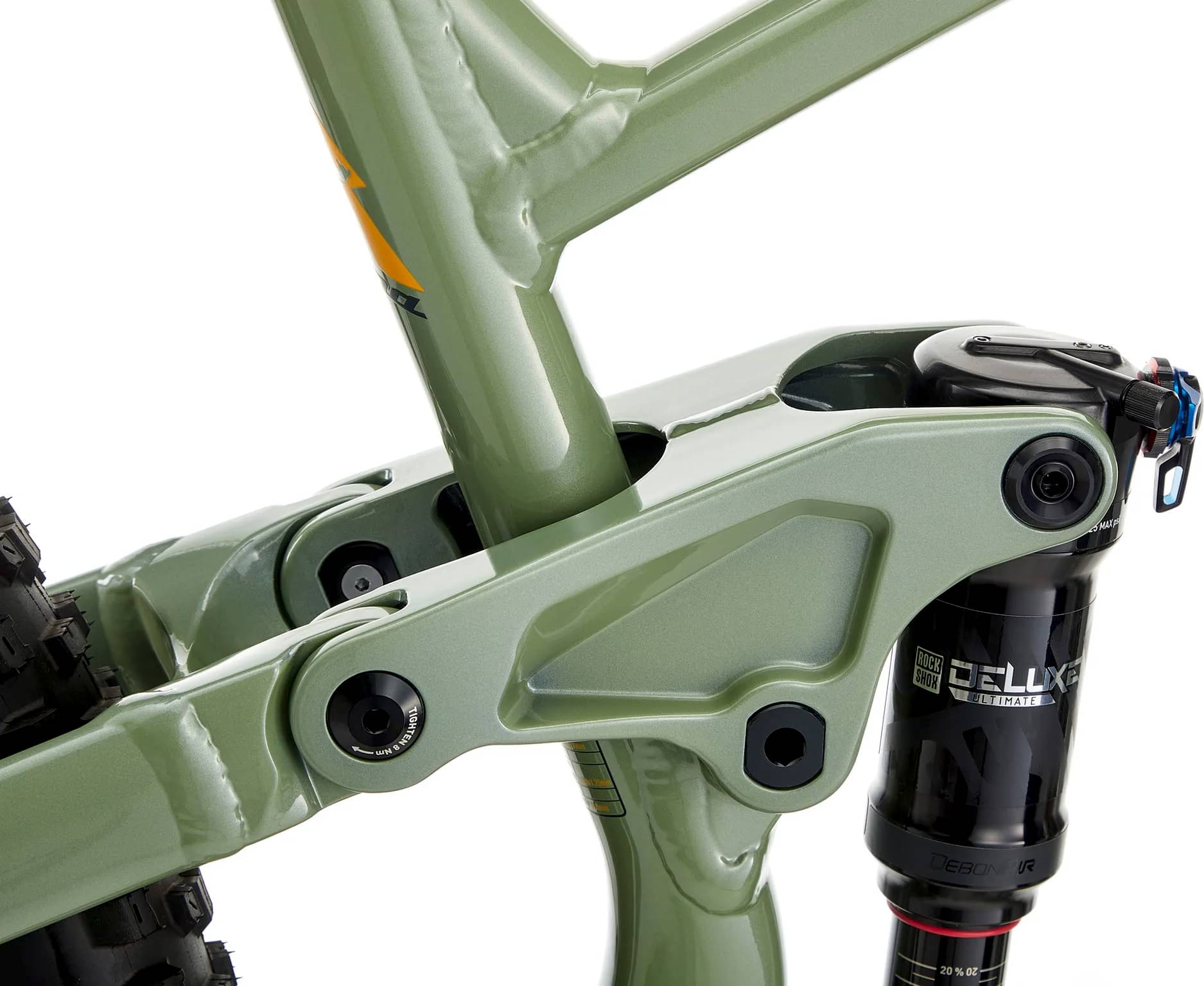

RockShox Deluxe Ultimate Trunnion
Drivetrain
Rear Derailleur

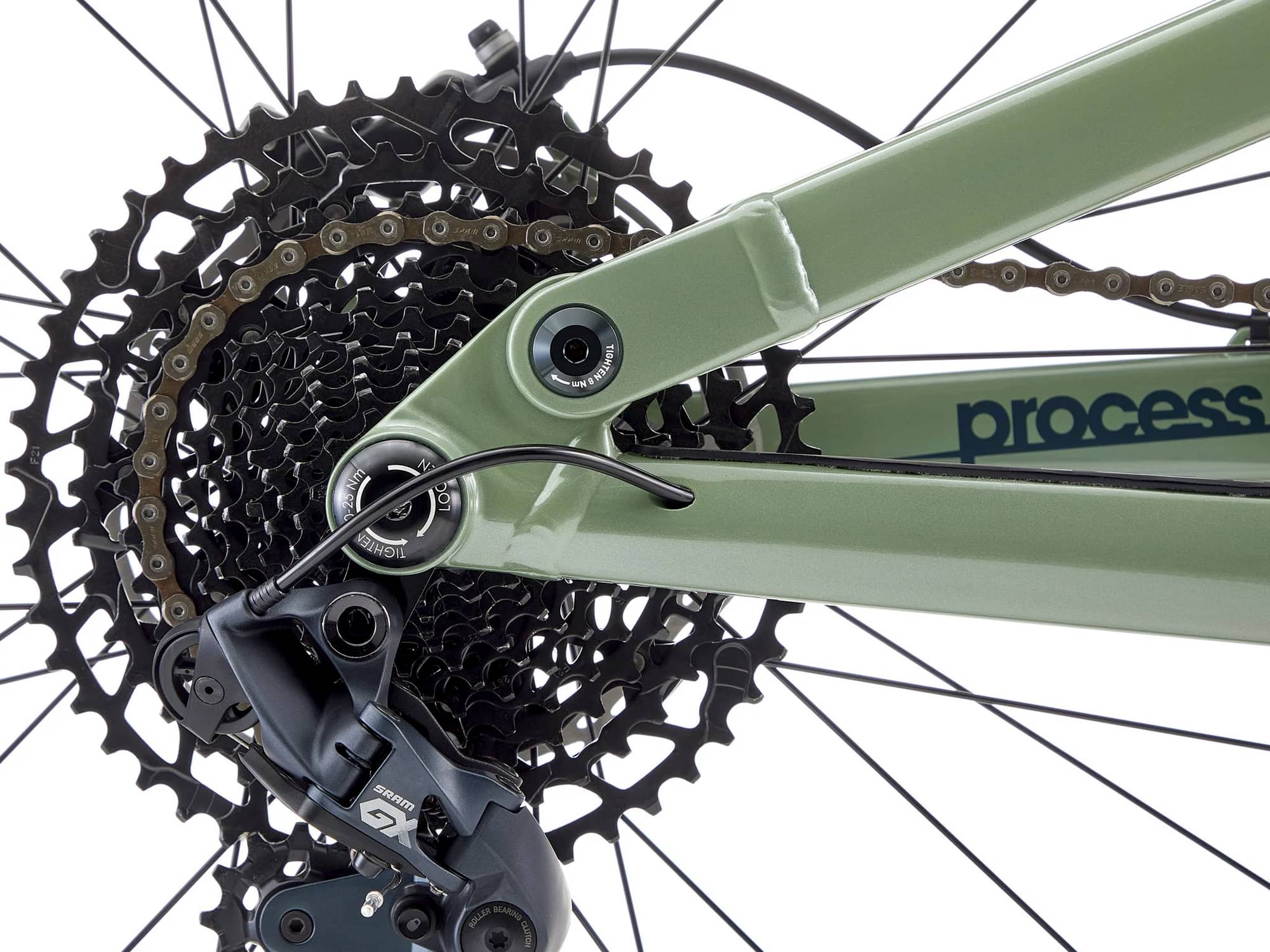

SRAM GX-Eagle
Front Derailleur
n/a
Shift Levers
SRAM NX-Eagle
Cassette
SRAM NX-Eagle 11-50t 12spd
Crank

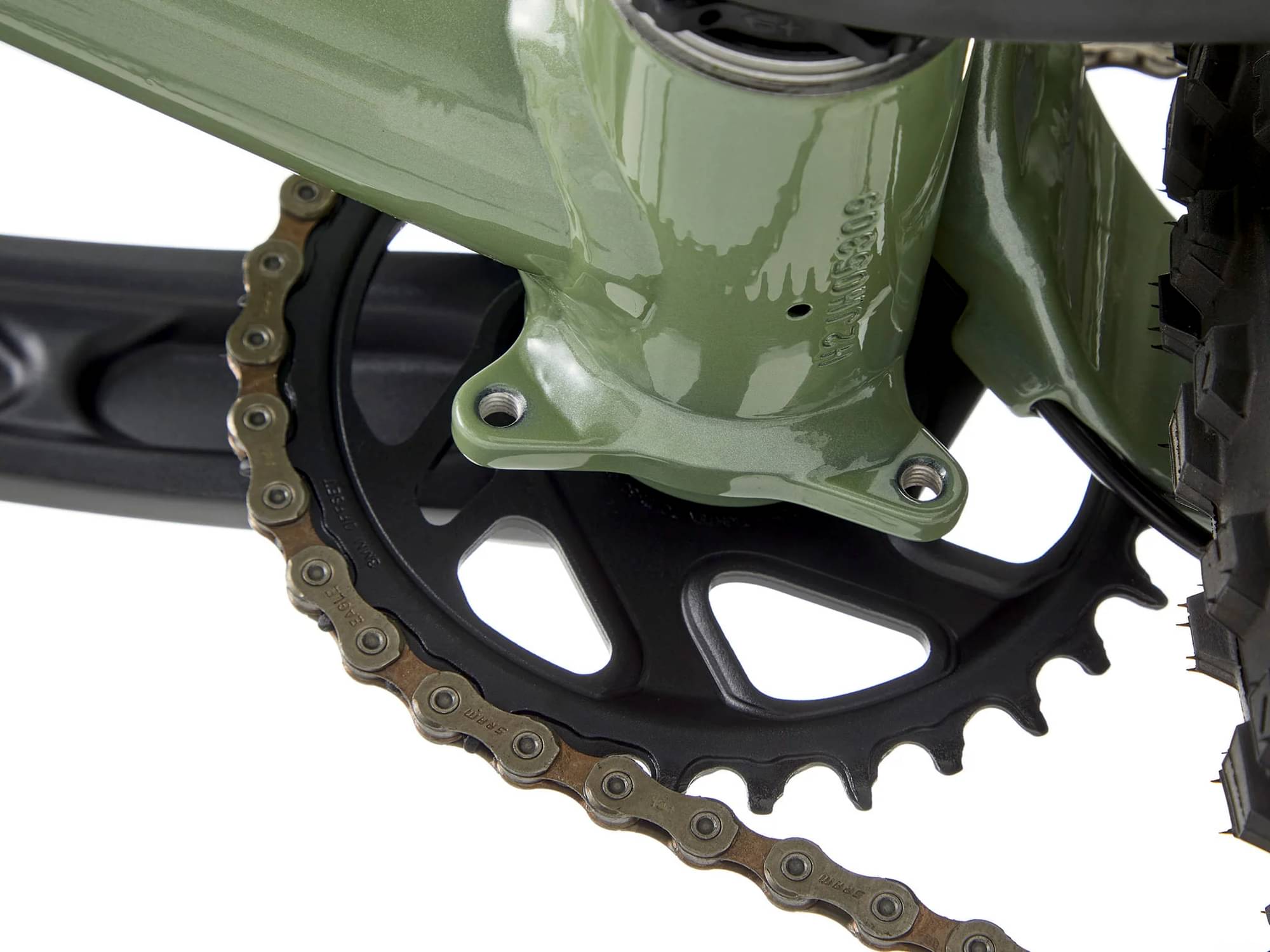

SRAM NX Eagle DUB, 32t X-Sync Eagle
Bottom Bracket
SRAM DUB PF92
Chain
SRAM SX-Eagle
Chain Guide
n/a
Pedals
n/a
Wheels
Front Hub
Formula 110x15mm
Rear Hub
Formula 148x12mm
Rims
WTB KOM Team i30 TCS
Spokes
Stainless Black 14g
Tires
Front: Maxxis Minion DHF EXO TR 3C 29x2.5" WT, Rear: Maxxis Dissector EXO TR 3C 29x2.4" WT
Brakes
Brakes

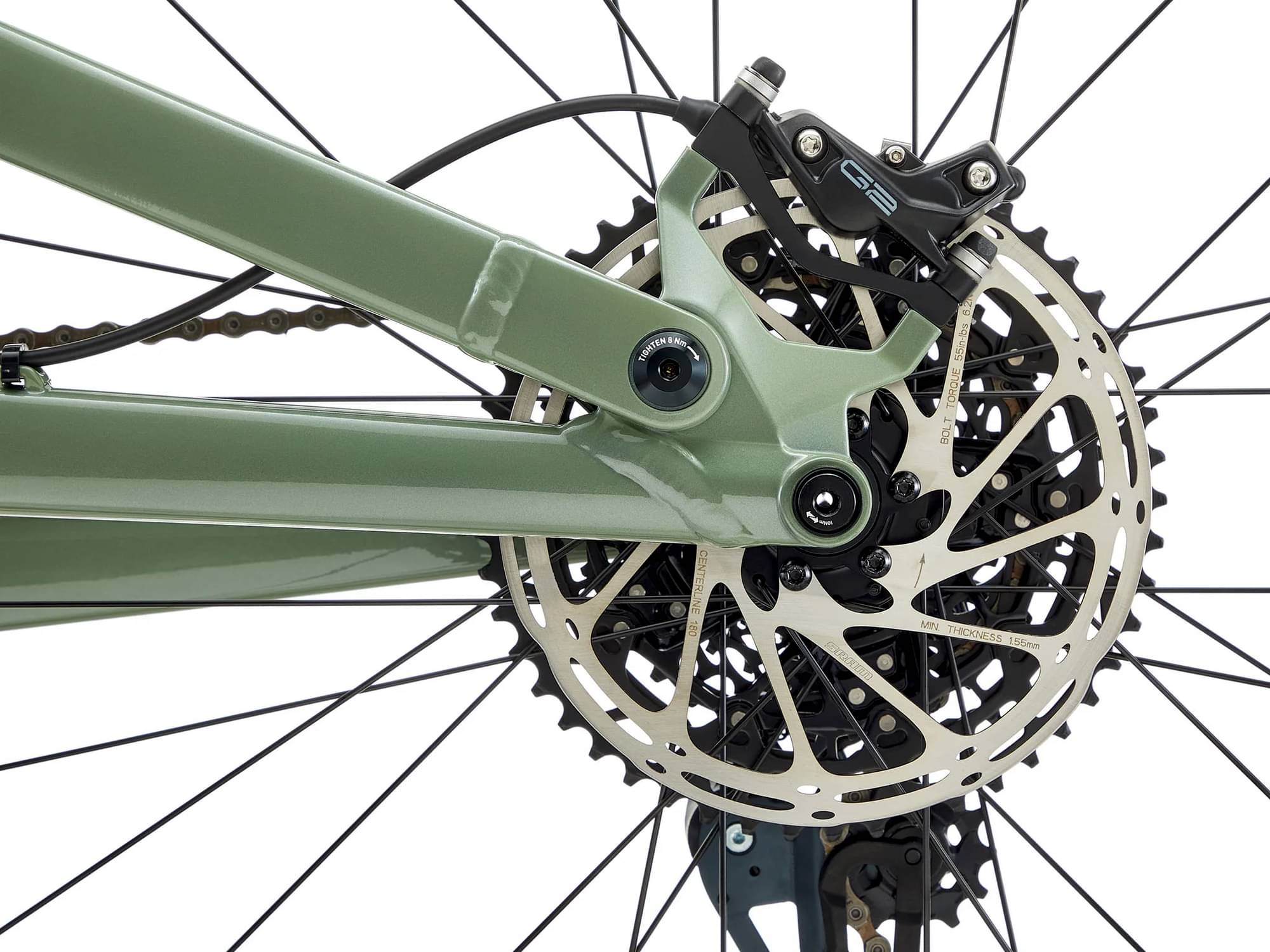

SRAM G2 RS
Brake Levers
SRAM G2 RS
Cockpit
Stem

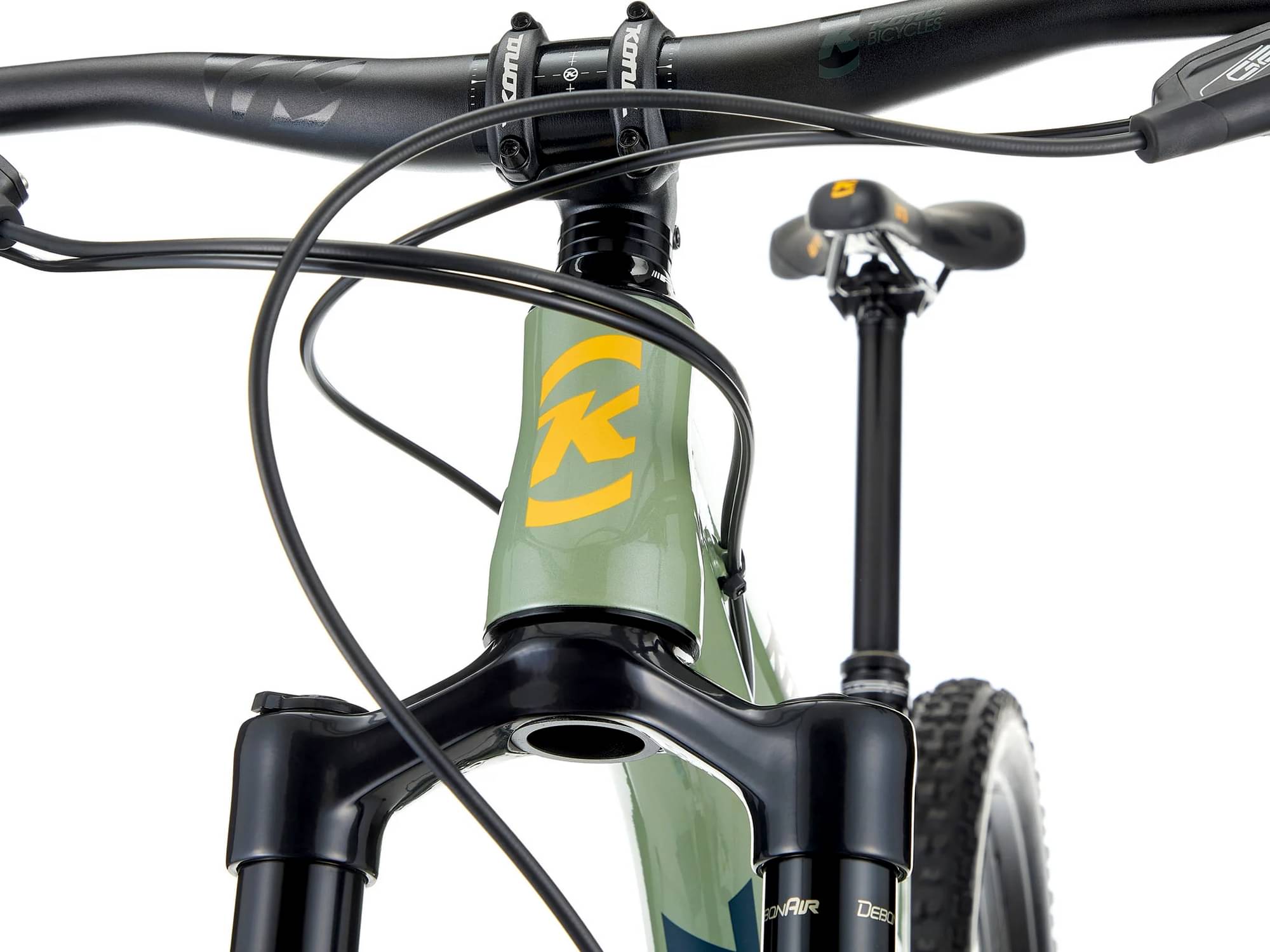

Kona XC/BC 35
Handlebar
Kona XC/BC 35
Grips
Kona Key Grip
Headset
FSA Orbit 1.5 EP ZS
Seat
Saddle
WTB Volt
Seatpost

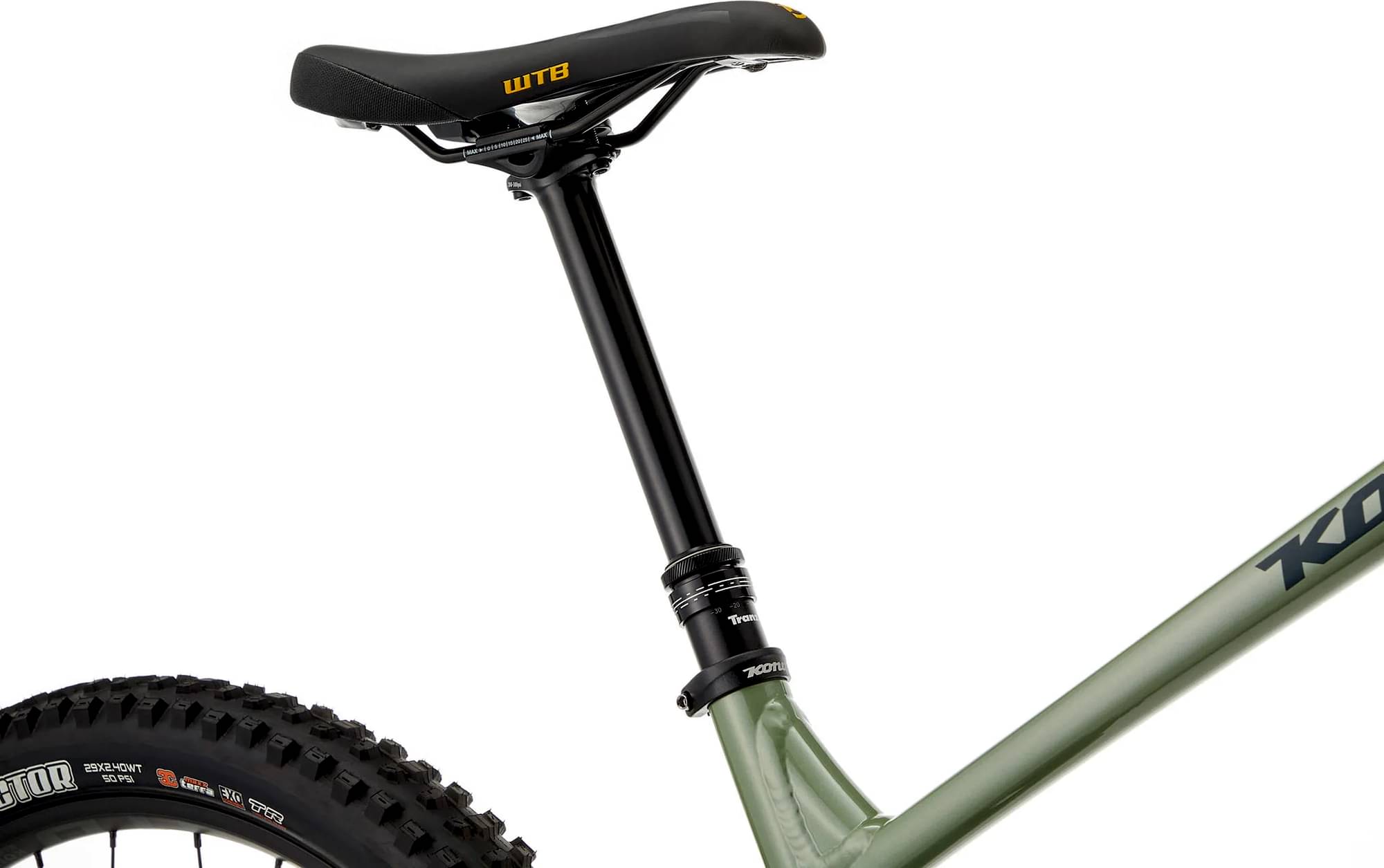

TranzX Dropper +RAD Internal 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.414 mm | 1.344 mm | 1.295 mm | 1.225 mm |
| Bottom Bracket Height | 342 mm | 342 mm | 342 mm | 342 mm |
| Front Center | 734 mm | 761 mm | 791 mm | 830 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 111 mm | 111 mm | 111 mm | 111 mm |
| Stack | 601 mm | 605 mm | 615 mm | 625 mm |
| Reach | 425 mm | 450 mm | 475 mm | 510 mm |
| Top Tube Length | 569 mm | 596 mm | 625 mm | 664 mm |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76.3 ° | 76.2 ° |
| Seat Tube Length | 385 mm | 410 mm | 450 mm | 485 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 93 mm | 98 mm | 109 mm | 120 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm | 427 mm |
| Wheelbase | 1159 mm | 1186 mm | 1216 mm | 1255 mm |
| Bottom Bracket Drop | 33 mm | 33 mm | 33 mm | 33 mm |
| Standover Height | 715 mm | 725 mm | 725 mm | 725 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 152 cm | 157 cm | 175 cm | 180 cm |
| Rider Max Height | 170 cm | 182 cm | 195 cm | 195 cm |
