Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 160mm -
Travel Rear 153mm -
Fork RockShox Yari RC
-
Groupset microSHIFT Advent X -
Suspension Full -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 170cm
MD
157cm - 182cm
LG
175cm - 195cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona 6061 Aluminum Butted 153mm Travel
Suspension Fork
RockShox Yari RC Motion Control DebonAir 160mm Tapered 110mm Spacing
Rear Shock

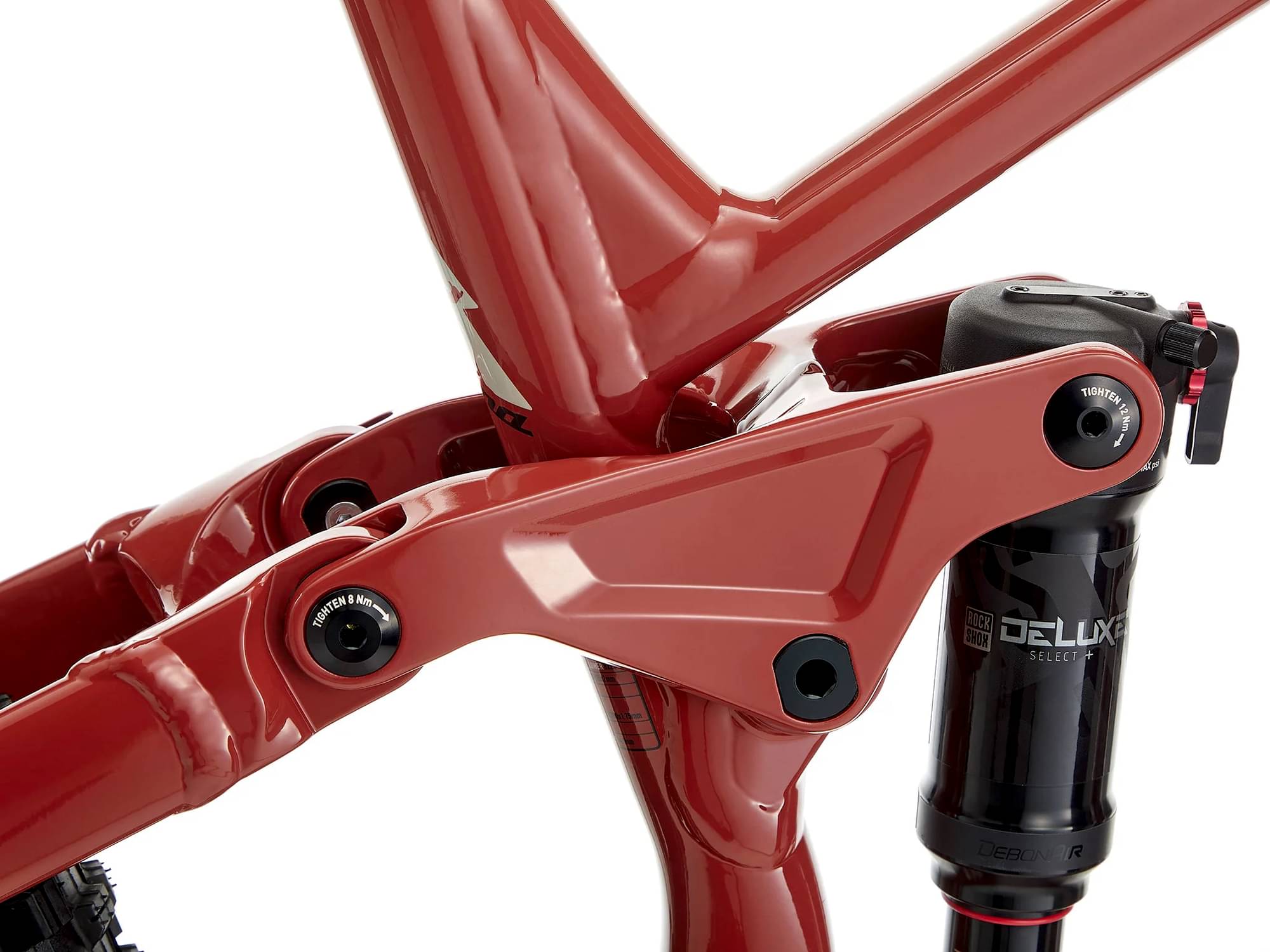

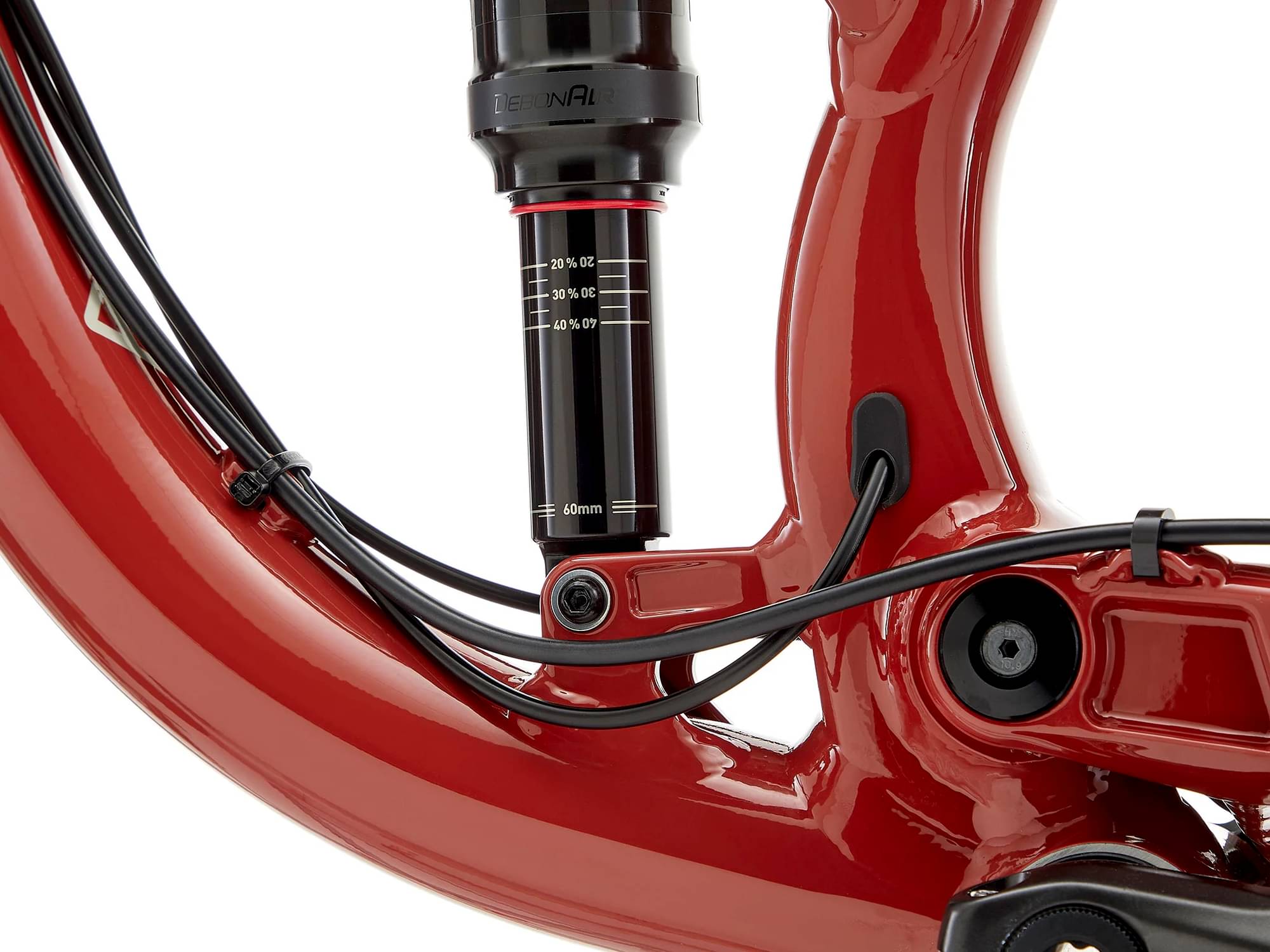

RockShox Deluxe Select Plus Trunnion
Drivetrain
Rear Derailleur
Microshift Advent X or Shimano Deore 11spd
Front Derailleur
n/a
Shift Levers
Microshift Advent X or Shimano Deore 11spd
Cassette
Microshift Advent X 11-48t 10spd or Shimano Deore 11-50t 11spd
Crank

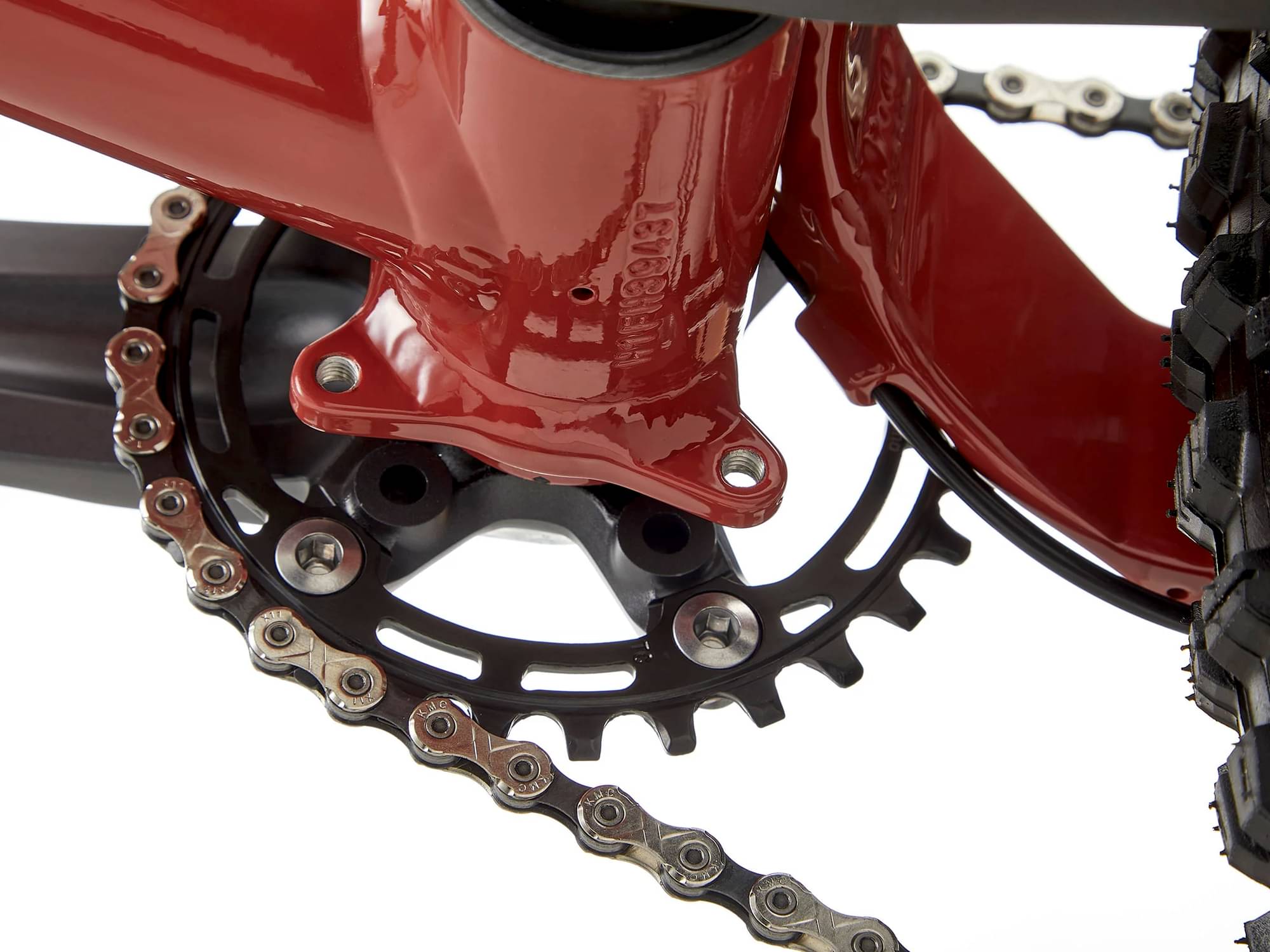

FSA Comet Heavy Duty or Shimano Deore, 30t
Bottom Bracket
FSA or Shimano Deore PF92
Chain
KMC X10 or X11
Chain Guide
n/a
Pedals
n/a
Wheels
Front Hub
Formula or Shimano 110x15mm
Rear Hub
Formula or Shimano 148x12mm
Rims
WTB ST i30 TCS 2.0
Spokes
Stainless Black 14g
Tires
Front: Maxxis Assegai EXO TR DUAL 27.5x2.5" WT, Rear: Maxxis Minion DHR II EXO TR DUAL 27.5x2.4" WT
Brakes
Brakes
SRAM DB8 or Shimano Deore
Brake Levers
SRAM DB8 or Shimano Deore
Cockpit
Stem
Kona XC/BC 35
Handlebar
Kona XC/BC 35
Grips
Kona Key Grip
Headset
FSA No.57B
Seat
Saddle
Kona Trail
Seatpost
TranzX Dropper +RAD Internal w/ Shimano Lever 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.407 mm | 1.352 mm | 1.302 mm | 1.233 mm |
| Bottom Bracket Height | 348 mm | 348 mm | 348 mm | 348 mm |
| Front Center | 754 mm | 784 mm | 814 mm | 853 mm |
| Rake | 37 mm | 37 mm | 37 mm | 37 mm |
| Trail | 129 mm | 129 mm | 129 mm | 129 mm |
| Stack | 605 mm | 615 mm | 625 mm | 635 mm |
| Reach | 430 mm | 455 mm | 480 mm | 515 mm |
| Top Tube Length | 569 mm | 599 mm | 628 mm | 667 mm |
| Seat Tube Angle | 77 ° | 76.9 ° | 76.7 ° | 76.6 ° |
| Seat Tube Length | 385 mm | 410 mm | 450 mm | 485 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 123 mm | 134 mm | 145 mm | 156 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1184 mm | 1213 mm | 1243 mm | 1283 mm |
| Bottom Bracket Drop | 12 mm | 12 mm | 12 mm | 12 mm |
| Standover Height | 690 mm | 700 | 710 mm | 720 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 152 cm | 157 cm | 175 cm | 180 cm |
| Rider Max Height | 170 cm | 182 cm | 195 cm | 195 cm |
