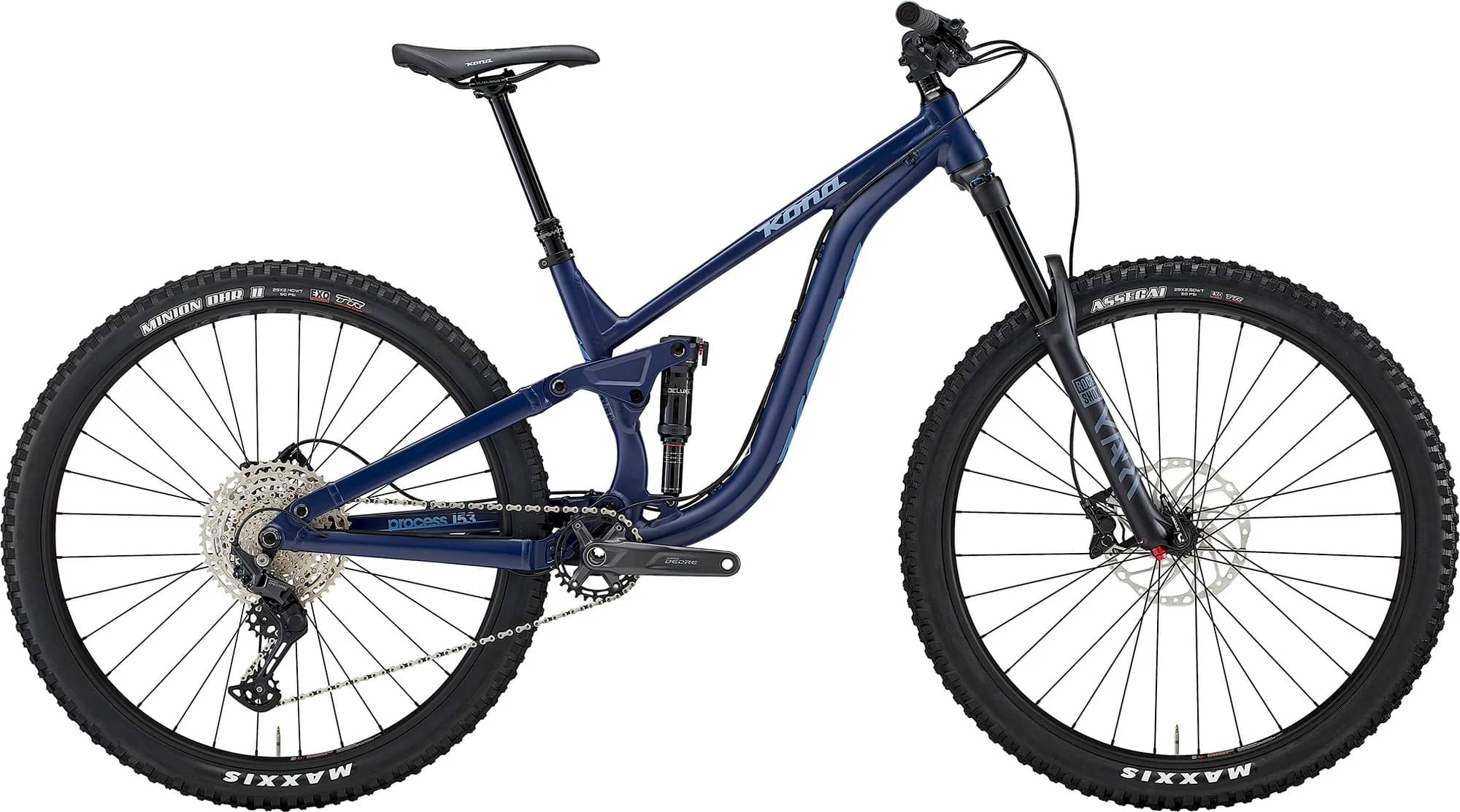

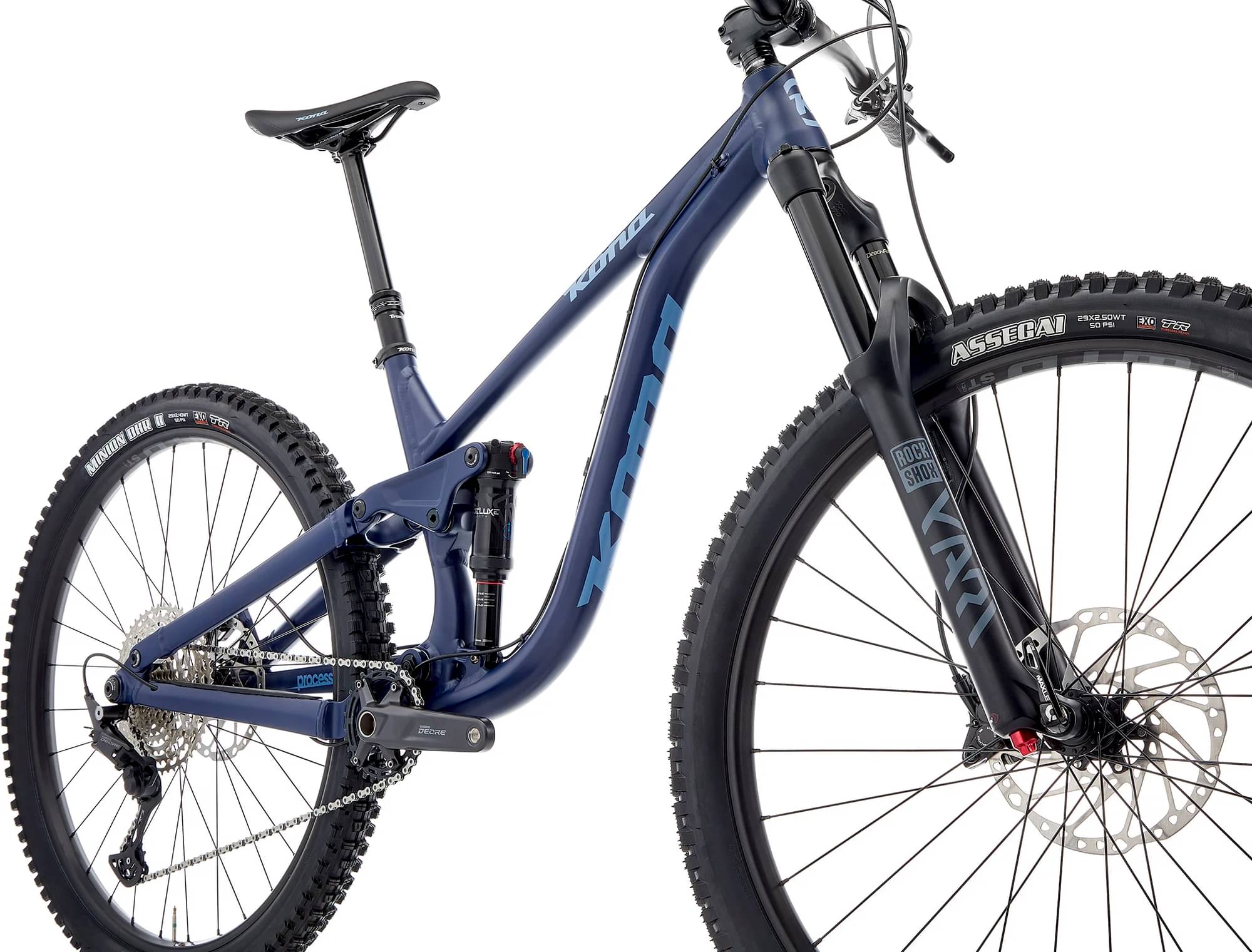

Bike details
Overview
Key information split into simple groups.

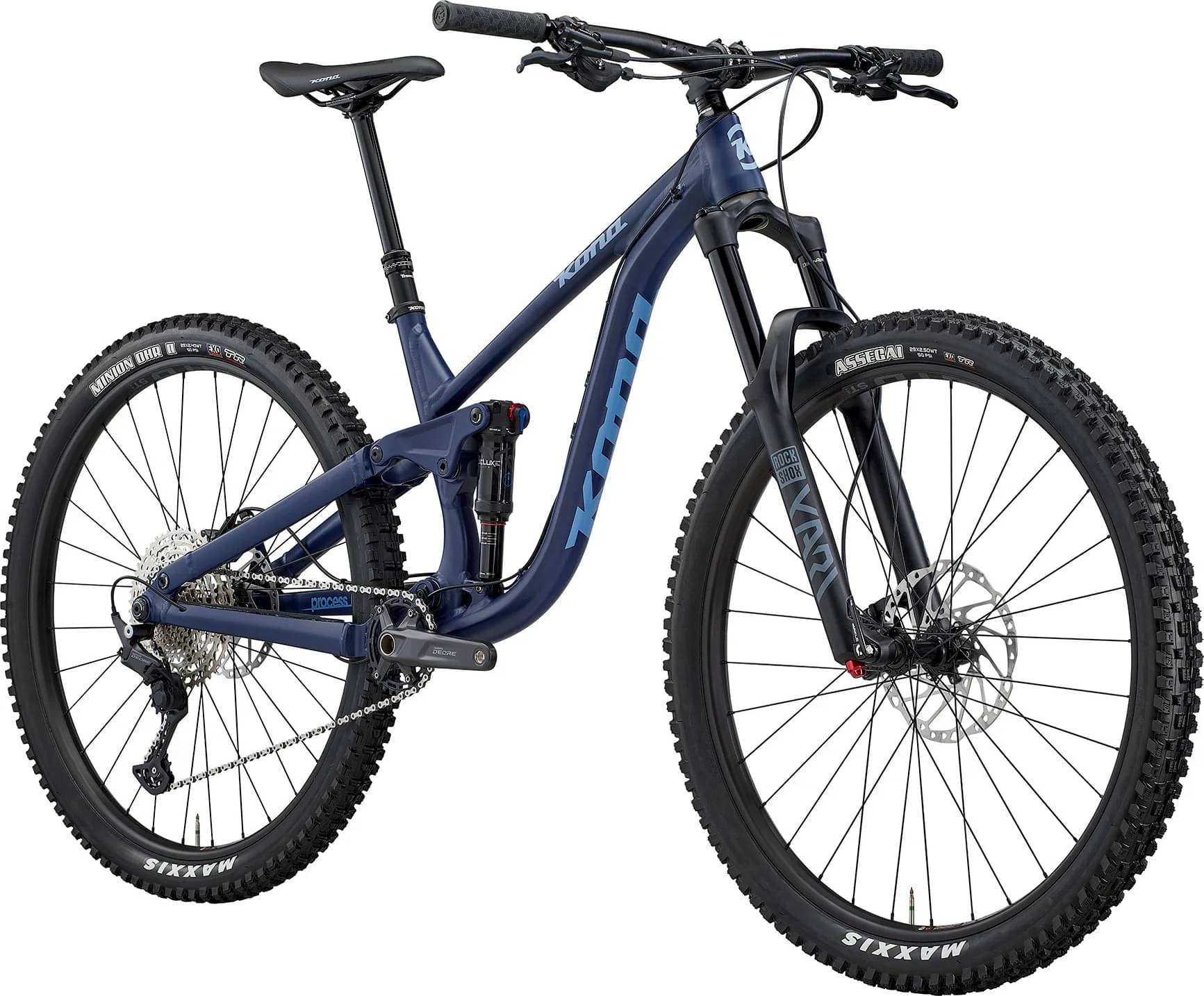

Bike summary
-
-
Frame Aluminum -
Travel Front 160mm -
Travel Rear 153mm -
Fork RockShox Yari RC
-
Groupset microSHIFT Advent X -
Suspension Full -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
157cm - 182cm
LG
175cm - 195cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

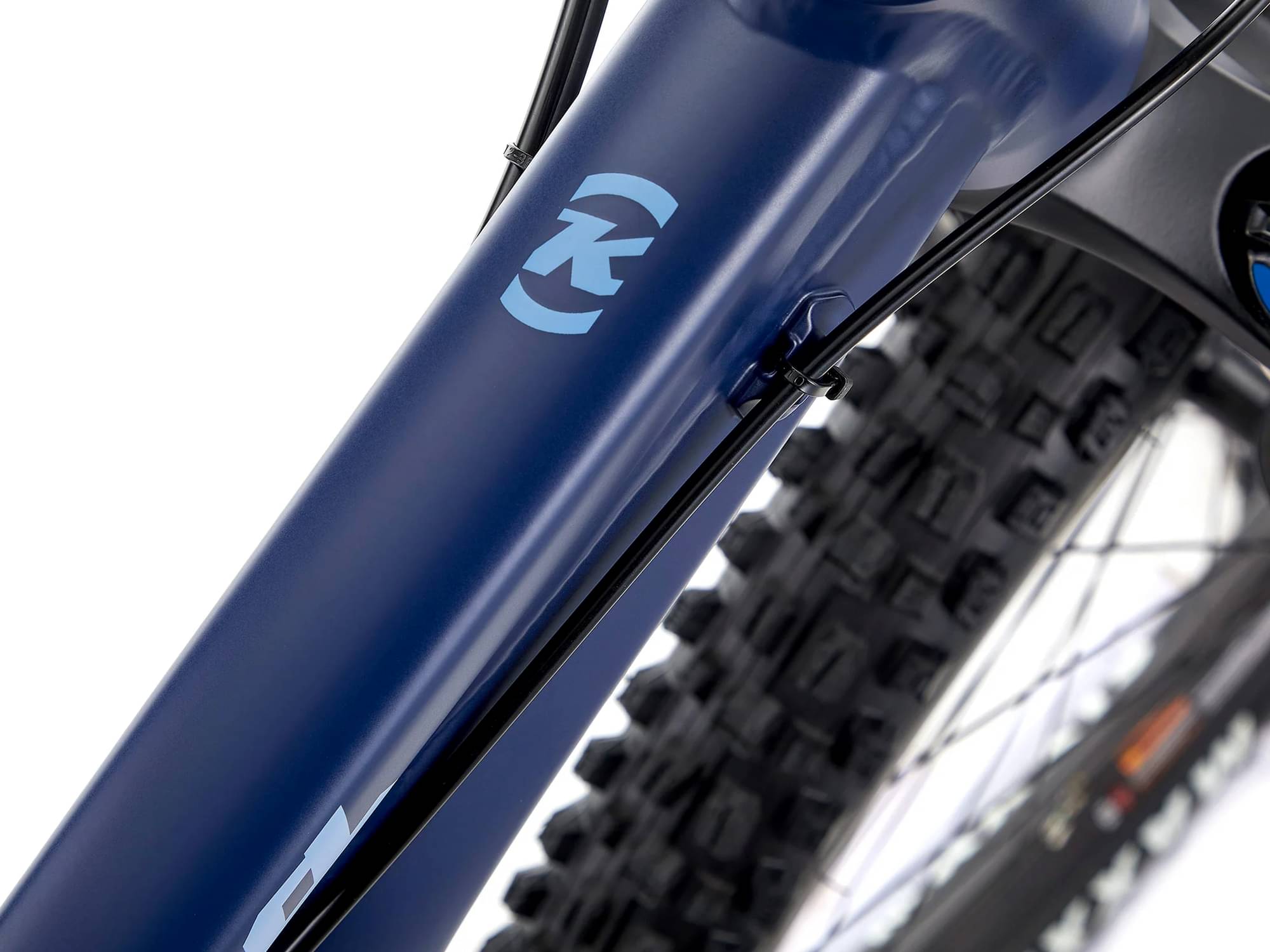

Kona 6061 Aluminum Butted 153mm Travel
Suspension Fork

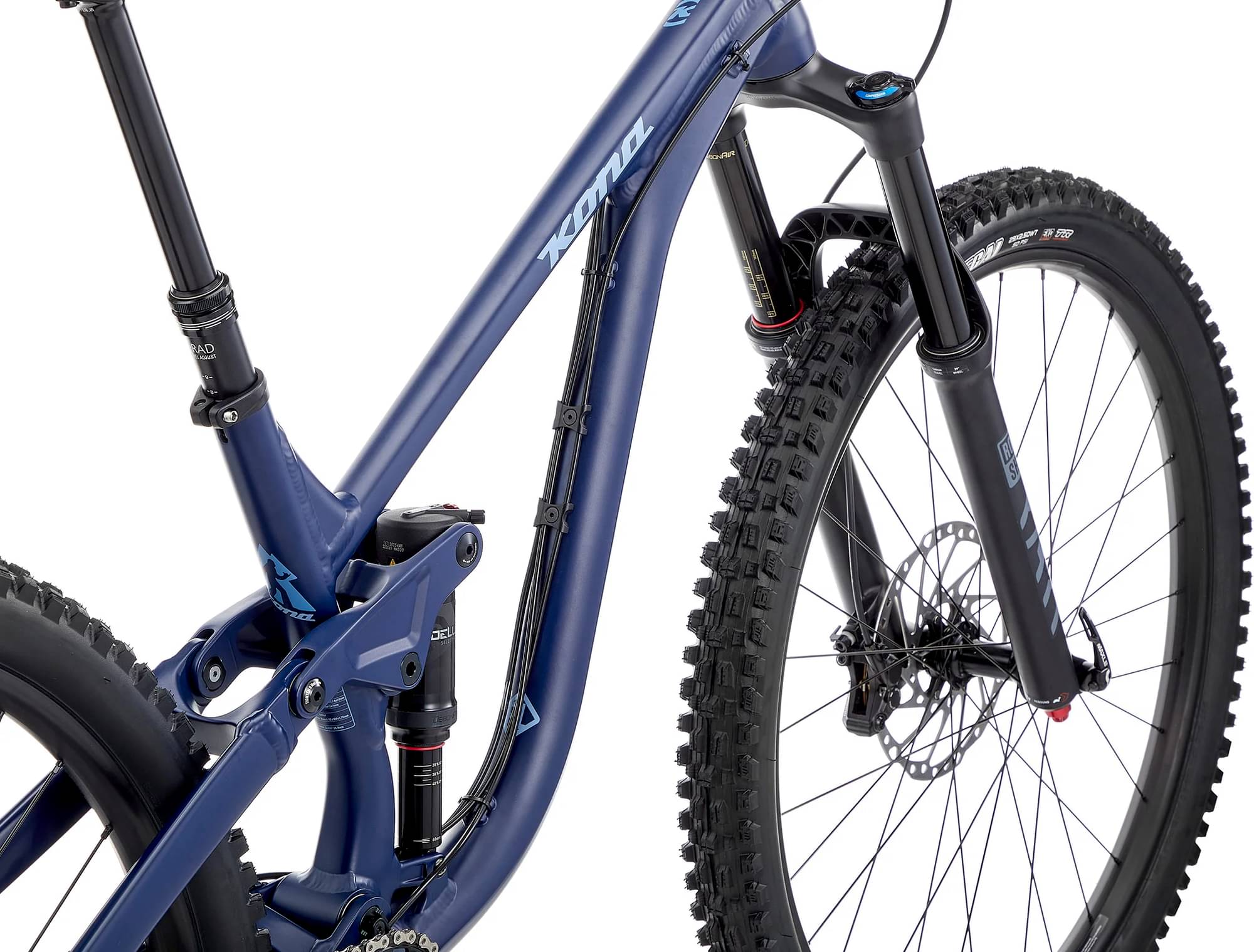

RockShox Yari RC Motion Control DebonAir 160mm Tapered 110mm Spacing

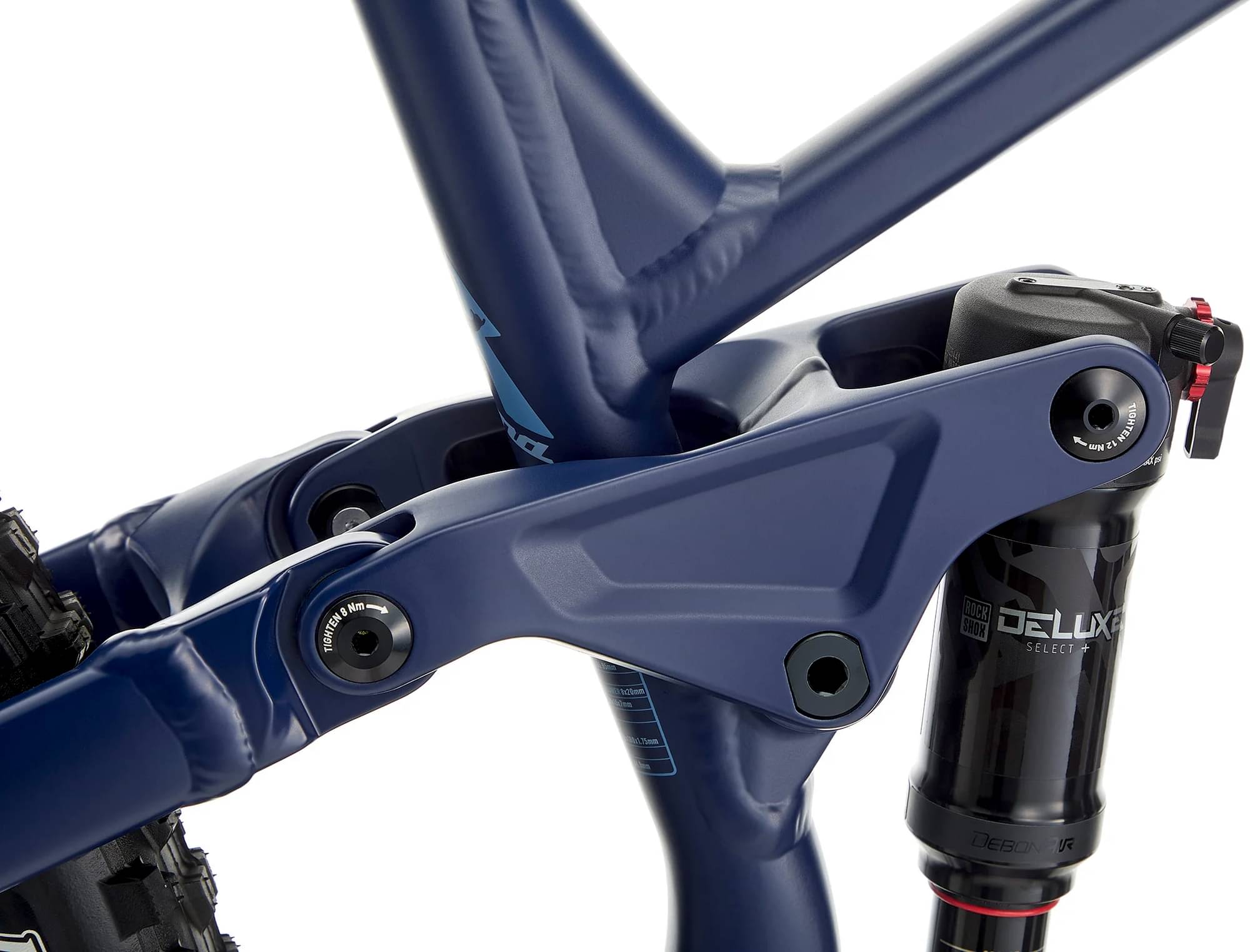

Rear Shock

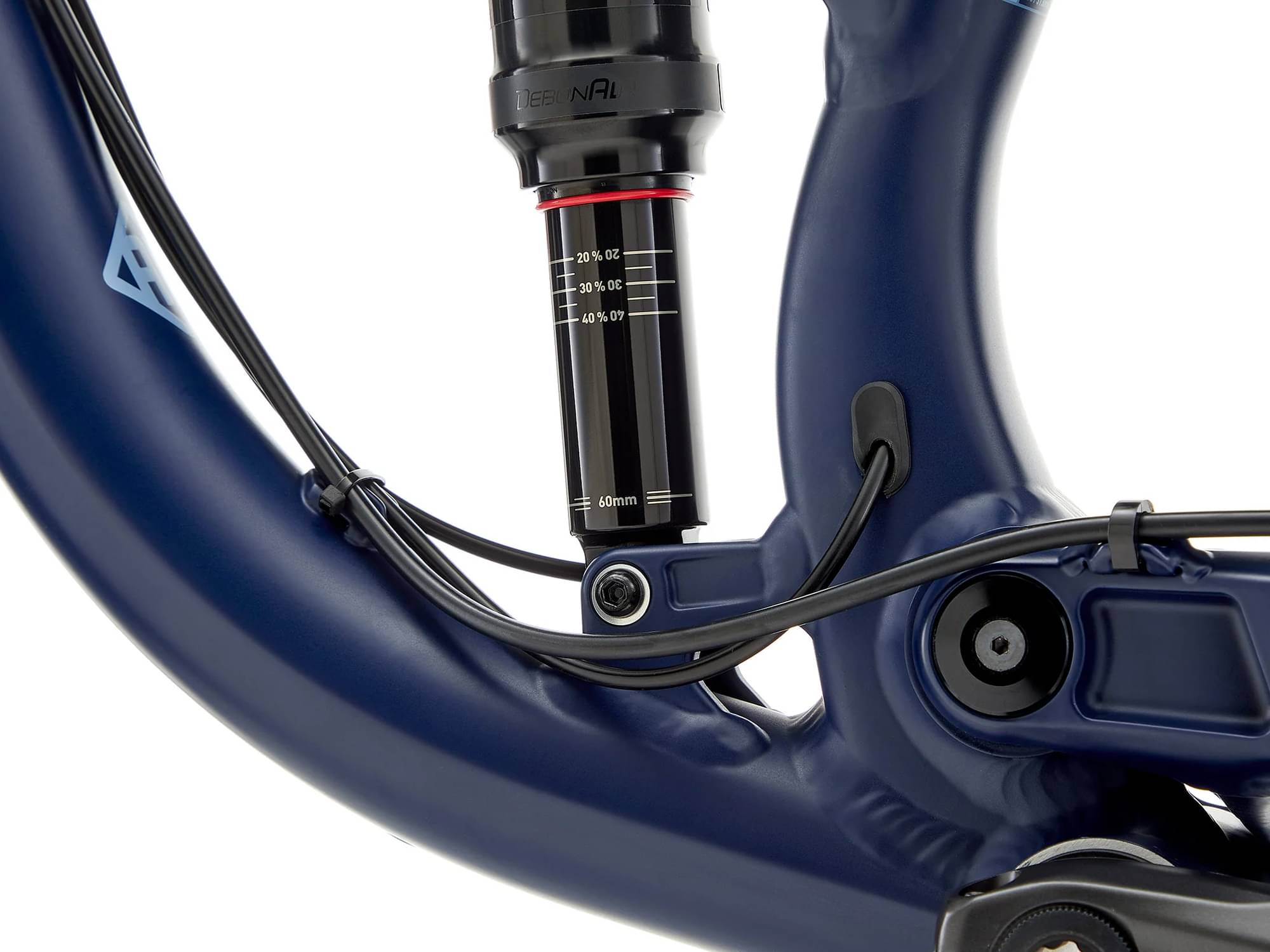

RockShox Deluxe Select Plus Trunnion
Drivetrain
Rear Derailleur
Microshift Advent X or Shimano Deore 11spd
Front Derailleur
n/a
Shift Levers
Microshift Advent X or Shimano Deore 11spd
Cassette

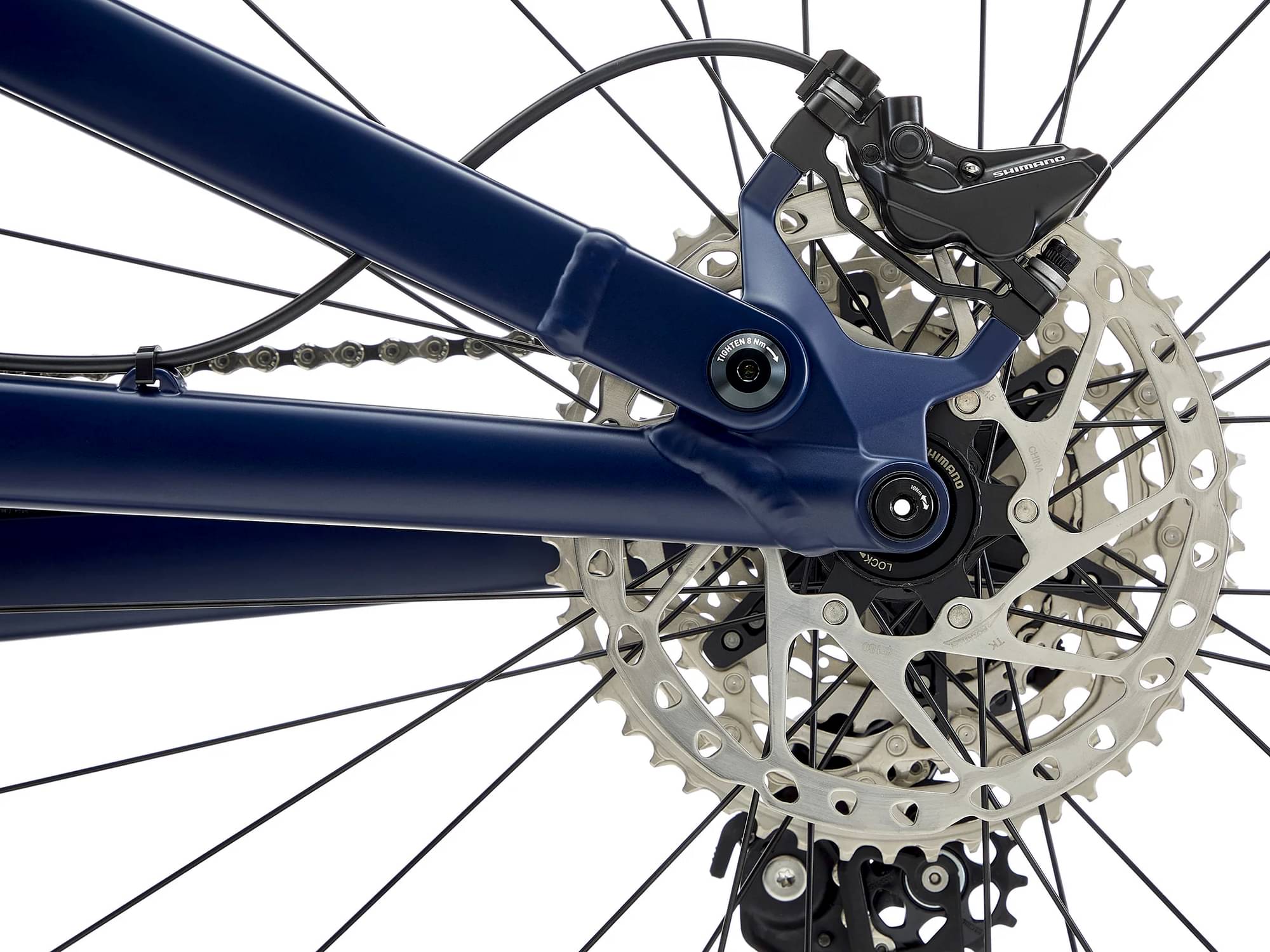

Microshift Advent X 11-48t 10spd or Shimano Deore 11-50t 11spd
Crank
FSA Comet Heavy Duty or Shimano Deore, 30t
Bottom Bracket
FSA or Shimano Deore PF92
Chain

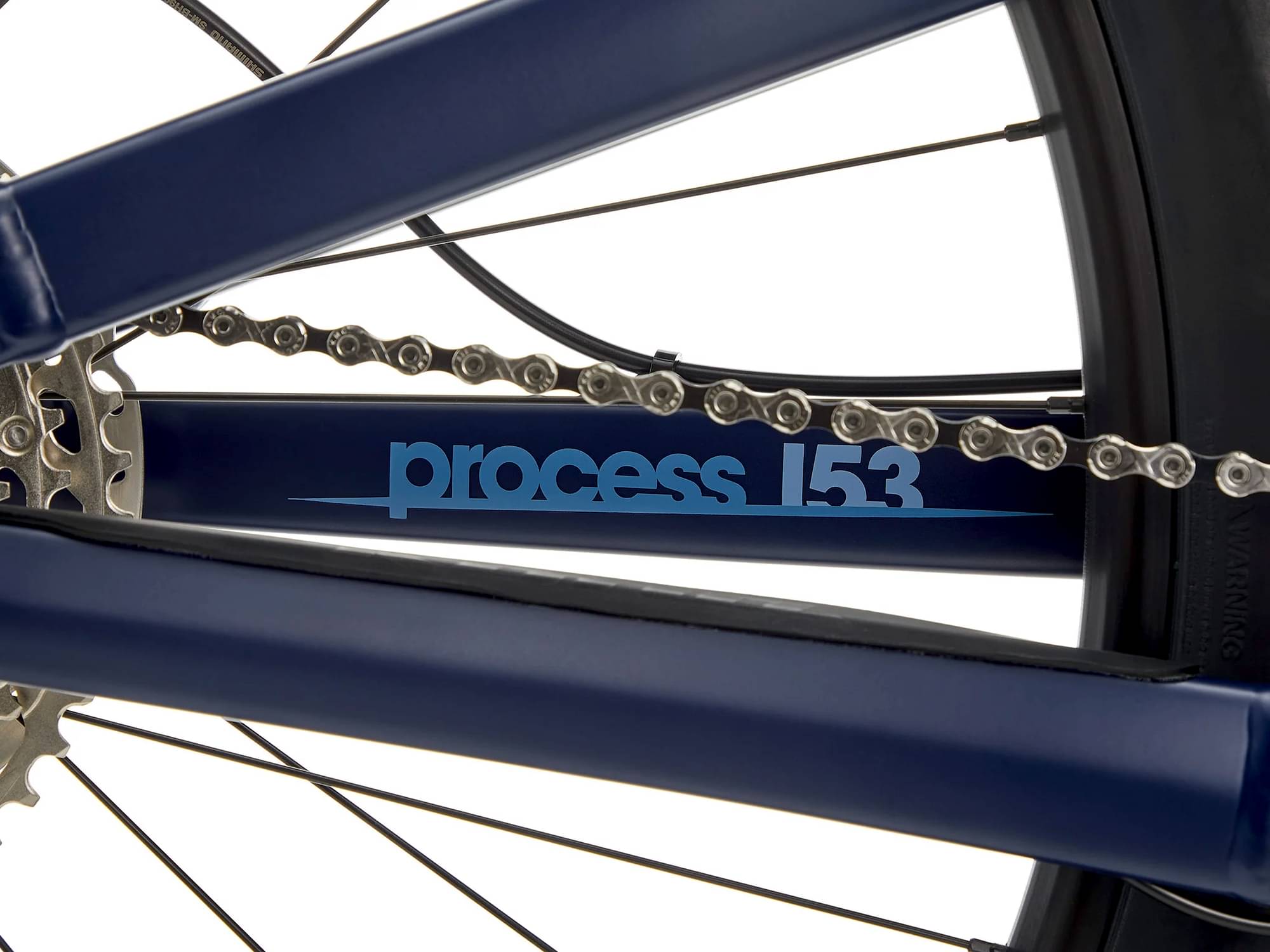

KMC X10 or X11
Chain Guide
n/a
Pedals
n/a
Wheels
Front Hub
Formula or Shimano 110x15mm
Rear Hub
Formula or Shimano 148x12mm
Rims
WTB ST i30 TCS 2.0
Spokes
Stainless Black 14g
Tires
Front: Maxxis Assegai EXO TR DUAL 29x2.5" WT, Rear: Maxxis Minion DHR II EXO TR DUAL 29x2.4" WT
Brakes
Brakes
SRAM DB8 or Shimano Deore
Brake Levers
SRAM DB8 or Shimano Deore
Cockpit
Stem
Kona XC/BC 35
Handlebar
Kona XC/BC 35
Grips
Kona Key Grip

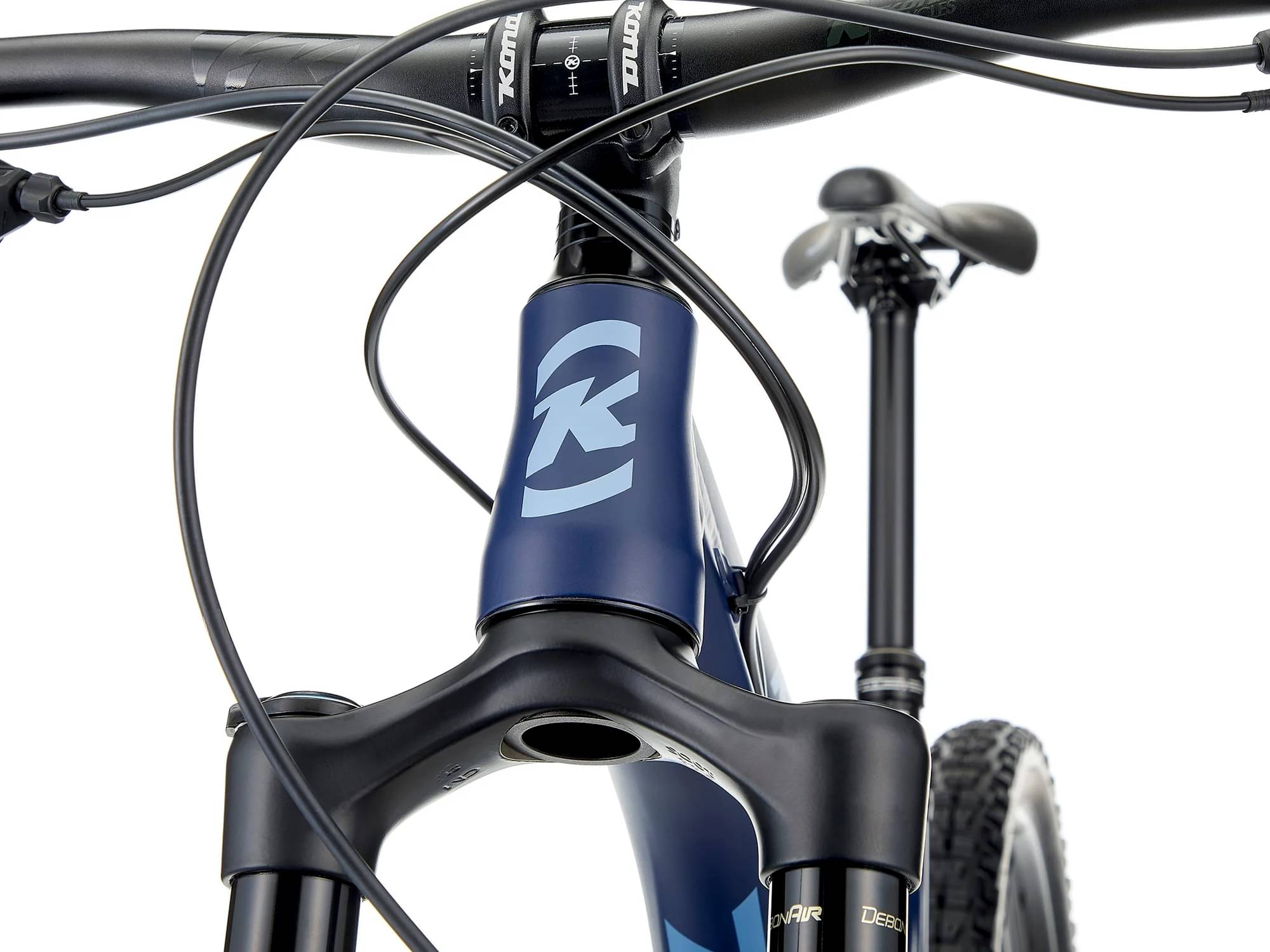

Headset
FSA No.57B
Seat
Saddle
Kona Trail
Seatpost
TranzX Dropper +RAD Internal w/ Shimano Lever 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.352 mm | 1.302 mm | 1.233 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm |
| Front Center | 781 mm | 811 mm | 851 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Trail | 132 mm | 132 mm | 132 mm |
| Stack | 615 mm | 625 mm | 635 mm |
| Reach | 455 mm | 480 mm | 515 mm |
| Top Tube Length | 599 mm | 628 mm | 667 mm |
| Seat Tube Angle | 76.9 ° | 76.7 ° | 76.6 ° |
| Seat Tube Length | 410 mm | 450 mm | 485 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 97 mm | 108 mm | 119 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1215 mm | 1244 mm | 1284 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm |
| Standover Height | 700 | 710 mm | 720 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 157 cm | 175 cm | 180 cm |
| Rider Max Height | 182 cm | 195 cm | 195 cm |
