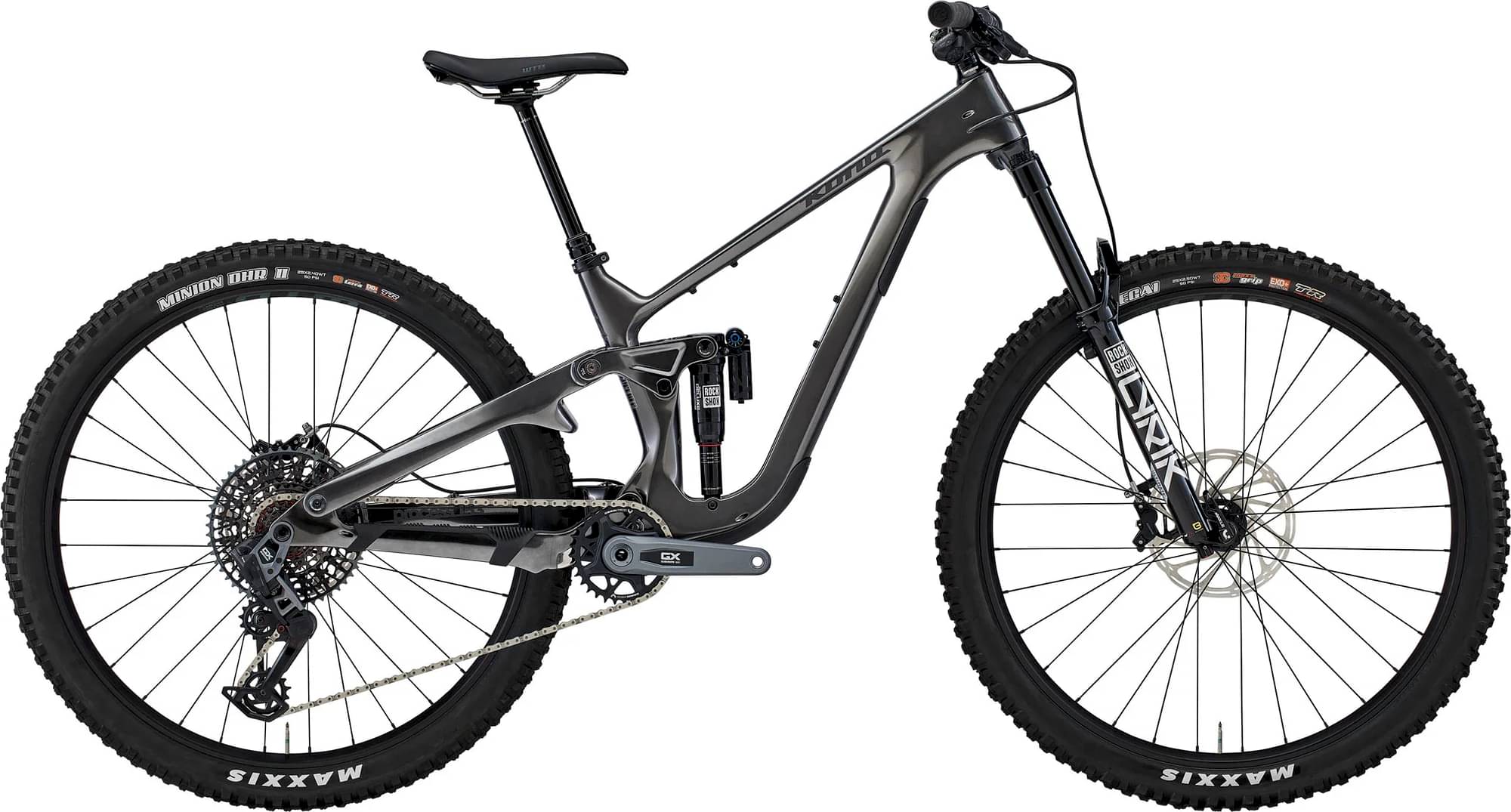

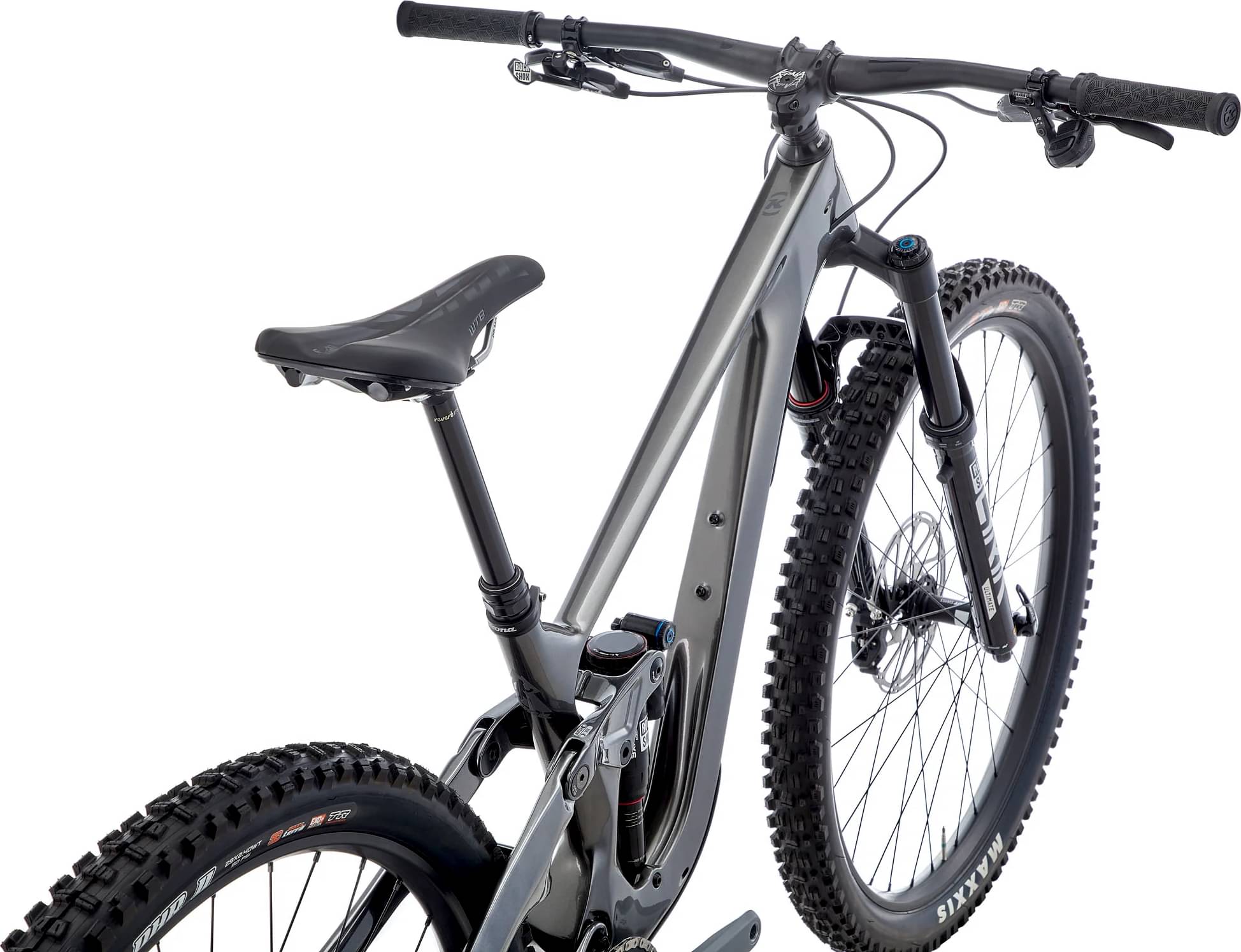

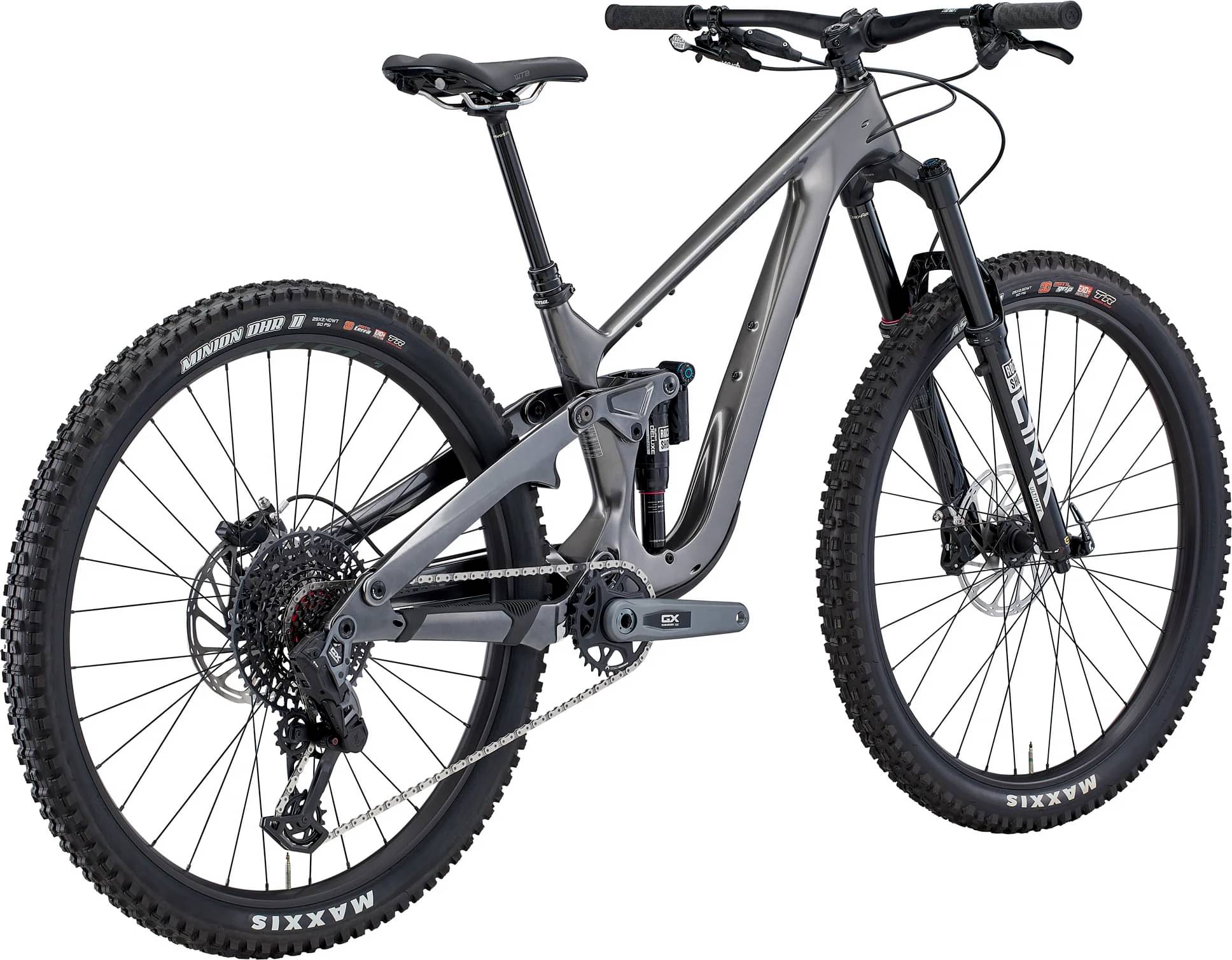

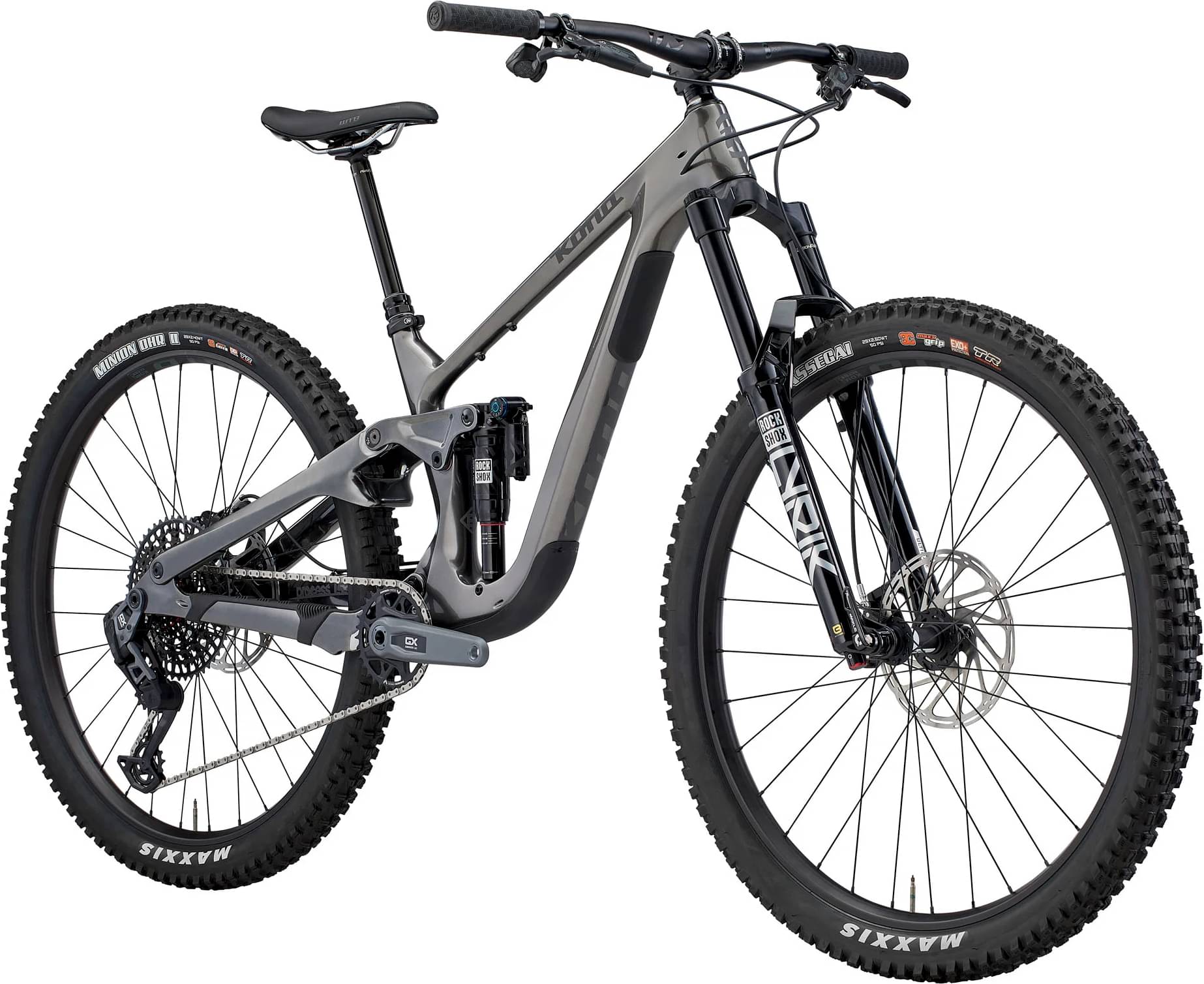

Kona Process 153 CR/DL GX Eagle Transmission 2024
2024 Mountain
Estimate price |
5,499$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 160mm -
Travel Rear 153mm -
Fork RockShox Lyrik Ultimate
-
Groupset X01 Eagle AXS, GX Eagle Transmission -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 170cm
MD
157cm - 182cm
LG
175cm - 195cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona DH Carbon 153mm Travel
Suspension Fork
RockShox Lyrik Ultimate RC2 Charger 3 DebonAir+ w/ButterCups 160mm Tapered 110mm Spacing
Rear Shock

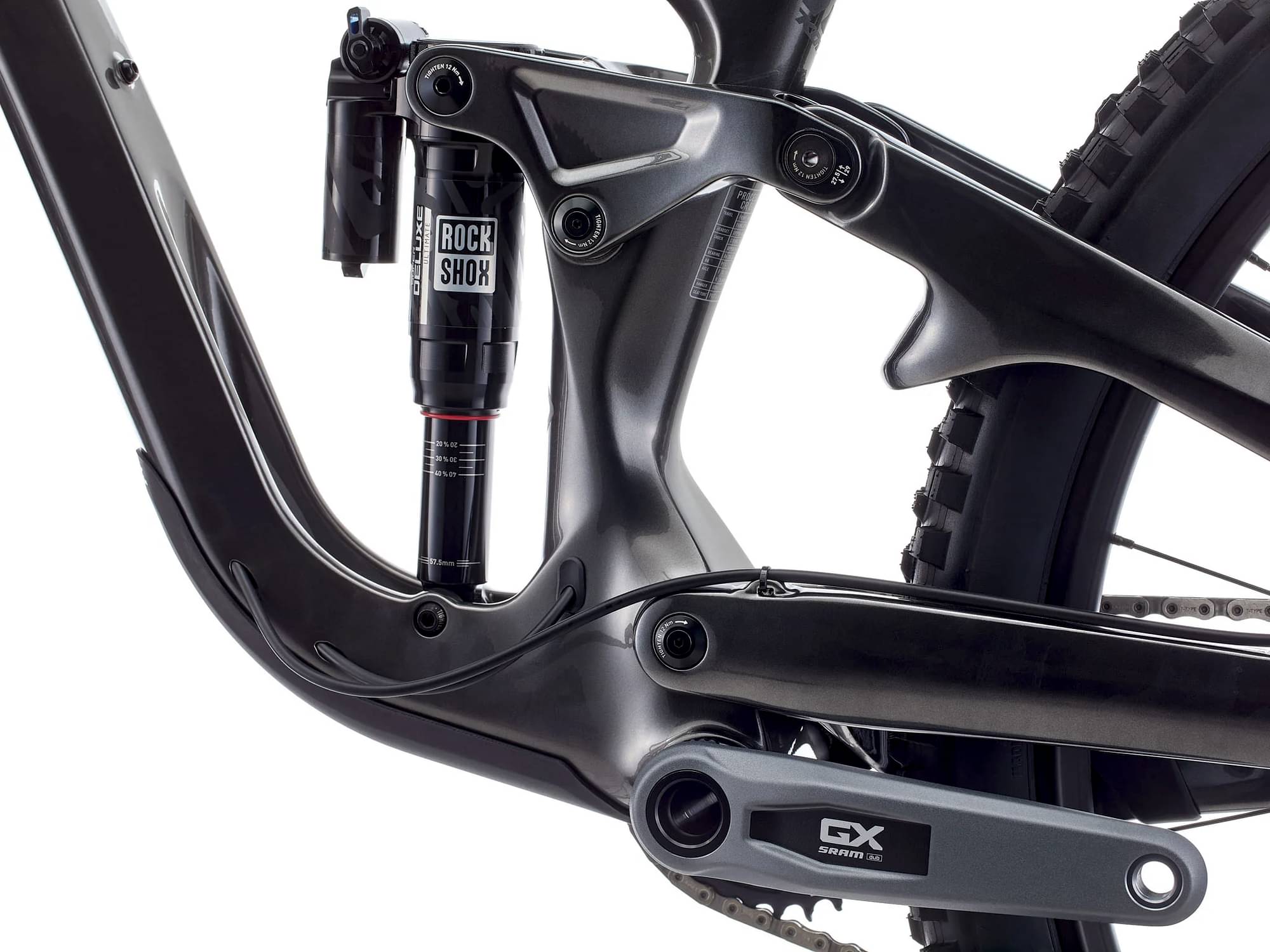

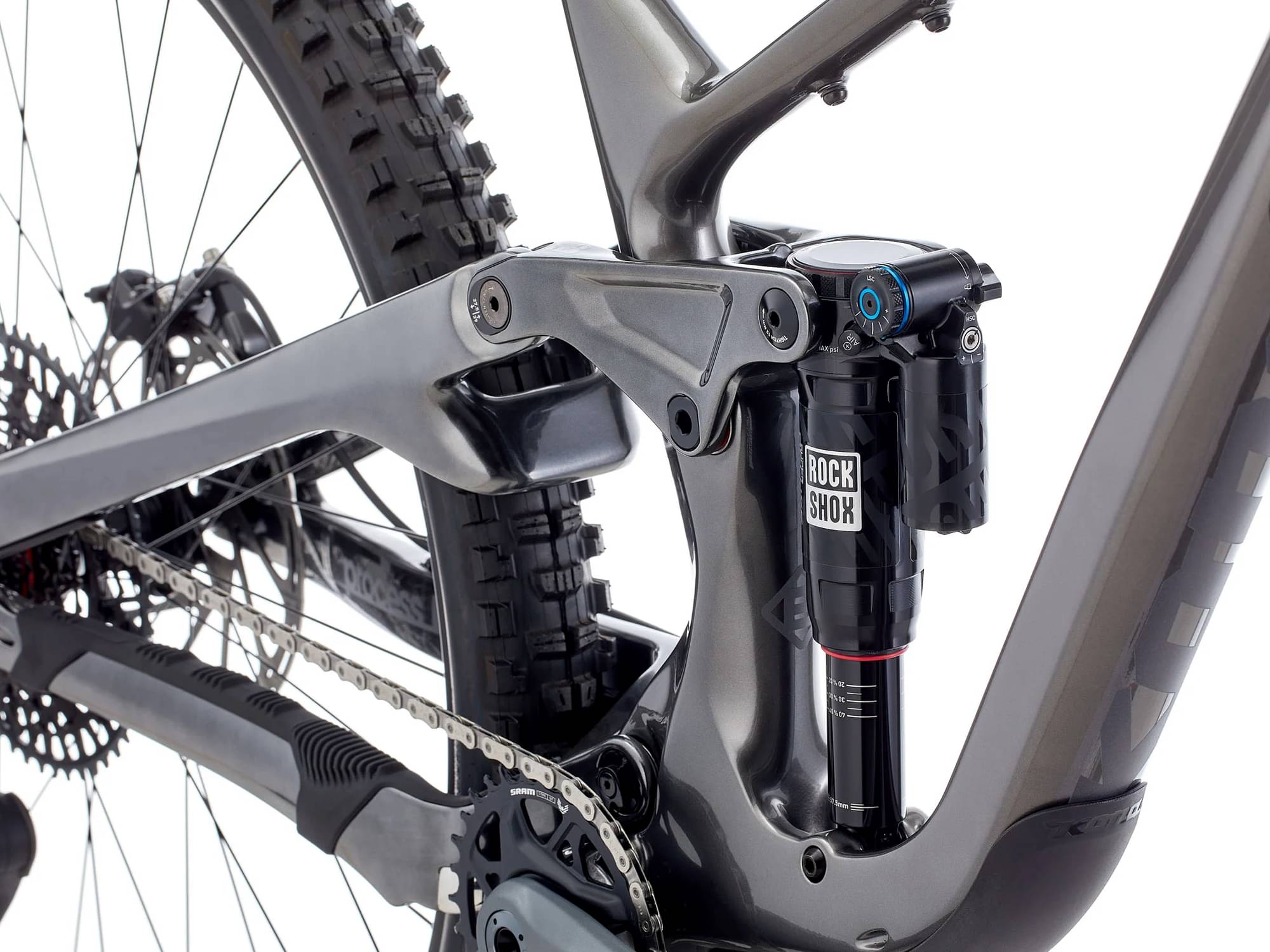

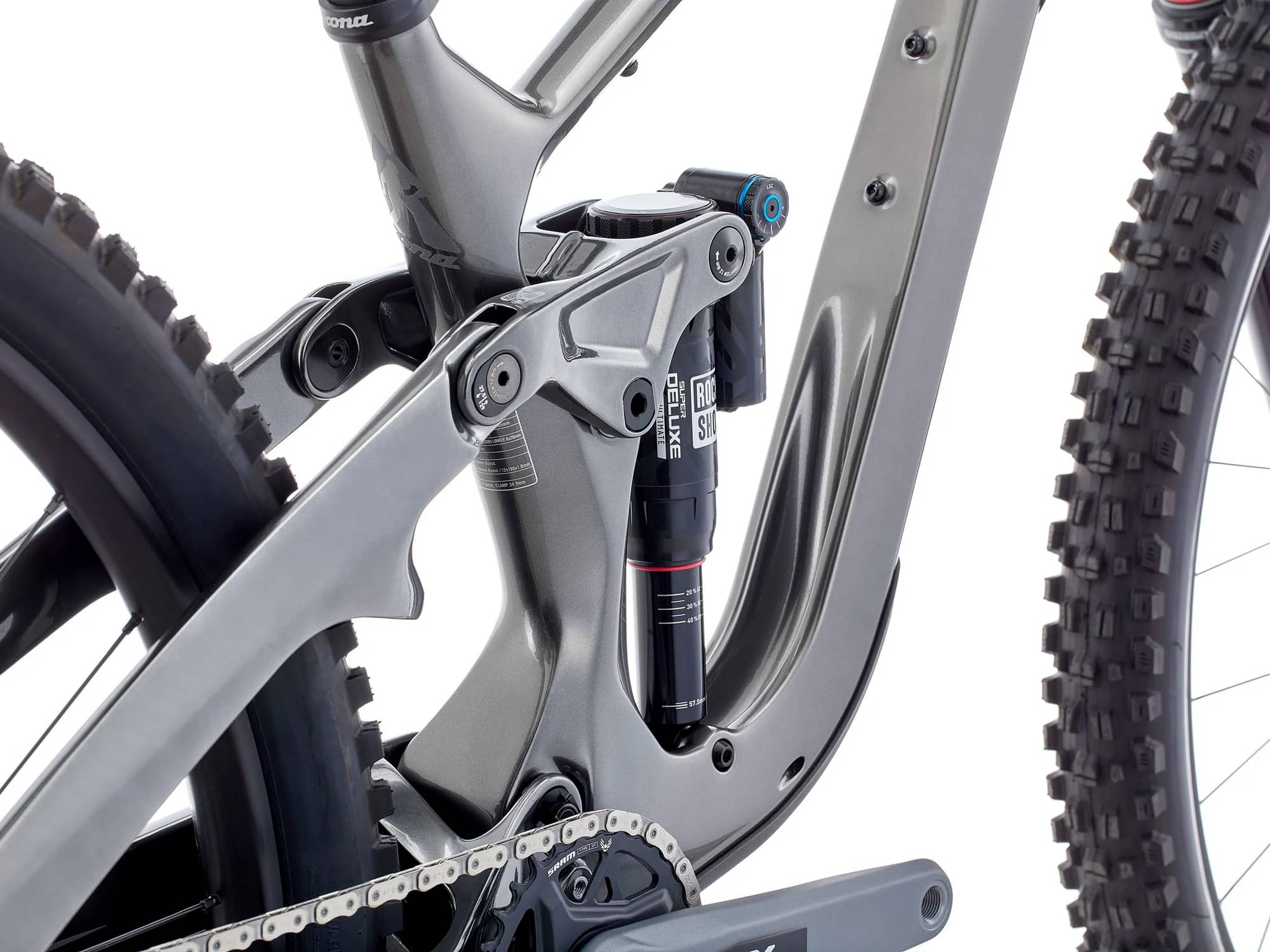

RockShox Super Deluxe Ultimate Trunnion
Drivetrain
Rear Derailleur
SRAM GX Eagle Transmission
Front Derailleur
n/a
Shift Levers
SRAM AXS Pod Controller
Cassette
SRAM GX Eagle Transmission 10-52t 12spd
Crank
SRAM GX Eagle Transmission, 32t
Bottom Bracket
SRAM DUB PF92 Wide
Chain
SRAM GX Eagle Transmission
Chain Guide
n/a
Pedals
n/a
Wheels
Front Hub
DT Swiss 350 110x15mm
Rear Hub
DT Swiss 350 148x12mm
Rims
WTB KOM Trail i30 TCS
Spokes
Stainless Black 14g
Tires
Front: Maxxis Assegai EXO+ TR 3C 29x2.5" WT, Rear: Maxxis Minion DHR II EXO+ TR 3C 29x2.4" WT (27.5x2.4" WT size S)
Brakes
Brakes
SRAM G2 RSC
Brake Levers
SRAM G2 RSC

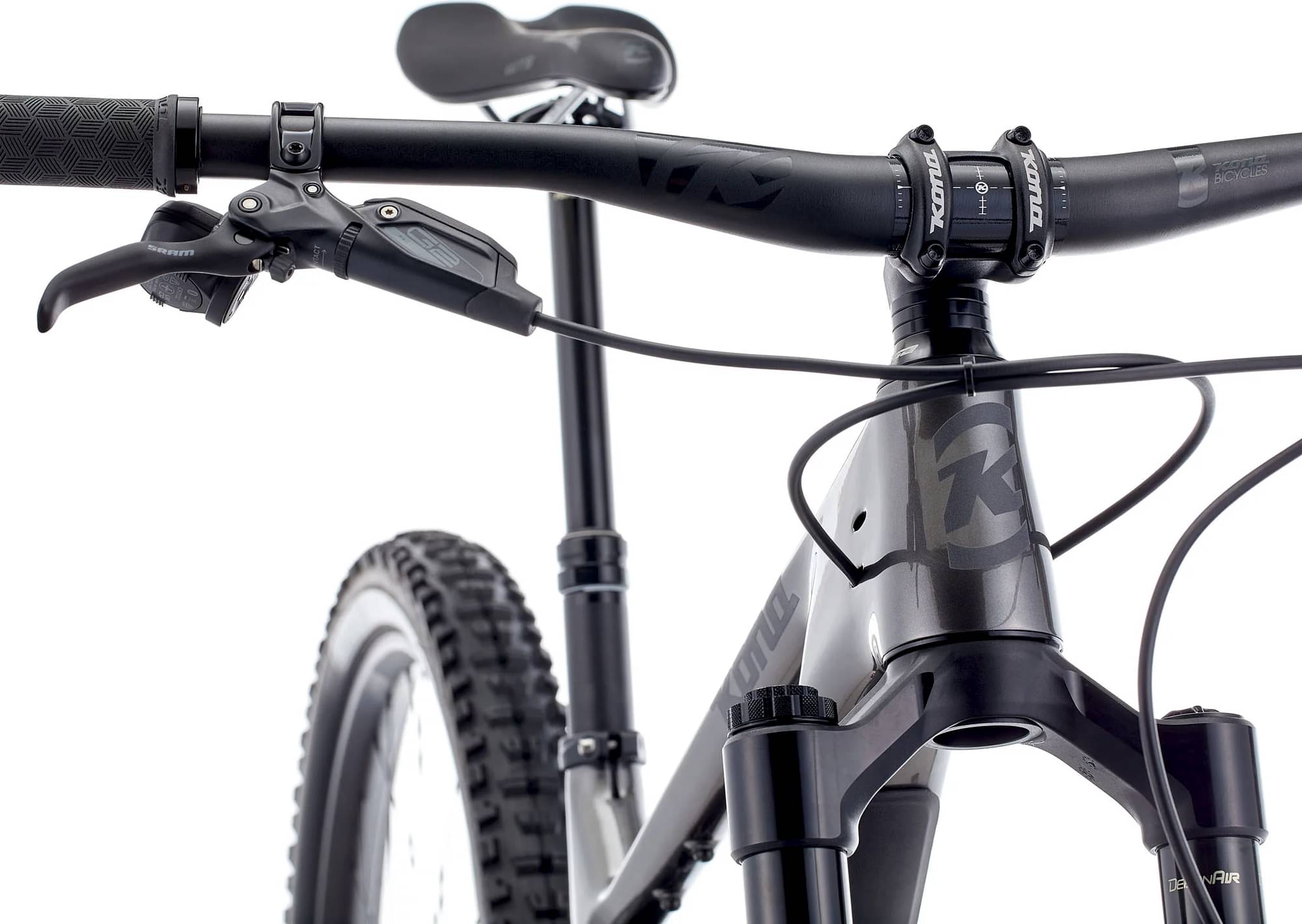

Cockpit
Stem
Kona XC/BC 35
Handlebar
Kona XC/BC 35
Grips
Kona Key Grip
Headset
FSA Orbit 1.5 E ZS
Seat
Saddle
WTB Volt
Seatpost
Rock Shox Reverb w/1x Remote Lever 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.352 mm | 1.302 mm | 1.233 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm |
| Front Center | 756 mm | 781 mm | 811 mm | 851 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 137 mm | 132 mm | 132 mm | 132 mm |
| Stack | 615 mm | 615 mm | 625 mm | 635 mm |
| Reach | 430 mm | 455 mm | 480 mm | 515 mm |
| Top Tube Length | 574 mm | 599 mm | 628 mm | 667 mm |
| Seat Tube Angle | 76.9 ° | 76.9 ° | 76.7 ° | 76.6 ° |
| Seat Tube Length | 380 mm | 380 mm | 420 mm | 450 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 94 mm | 94 mm | 105 mm | 116 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1190 mm | 1215 mm | 1244 mm | 1284 mm |
| Bottom Bracket Drop | 20 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 690 mm | 700 | 710 mm | 720 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 152 cm | 157 cm | 175 cm | 180 cm |
| Rider Max Height | 170 cm | 182 cm | 195 cm | 195 cm |
