Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 160mm -
Travel Rear 153mm -
Fork RockShox Lyrik Select
-
Groupset GX Eagle, NX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 170cm
MD
157cm - 182cm
LG
175cm - 195cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona 6061 Aluminum Butted 153mm Travel
Suspension Fork
RockShox Lyrik Select RC Charger DebonAir 160mm Tapered 110mm Spacing

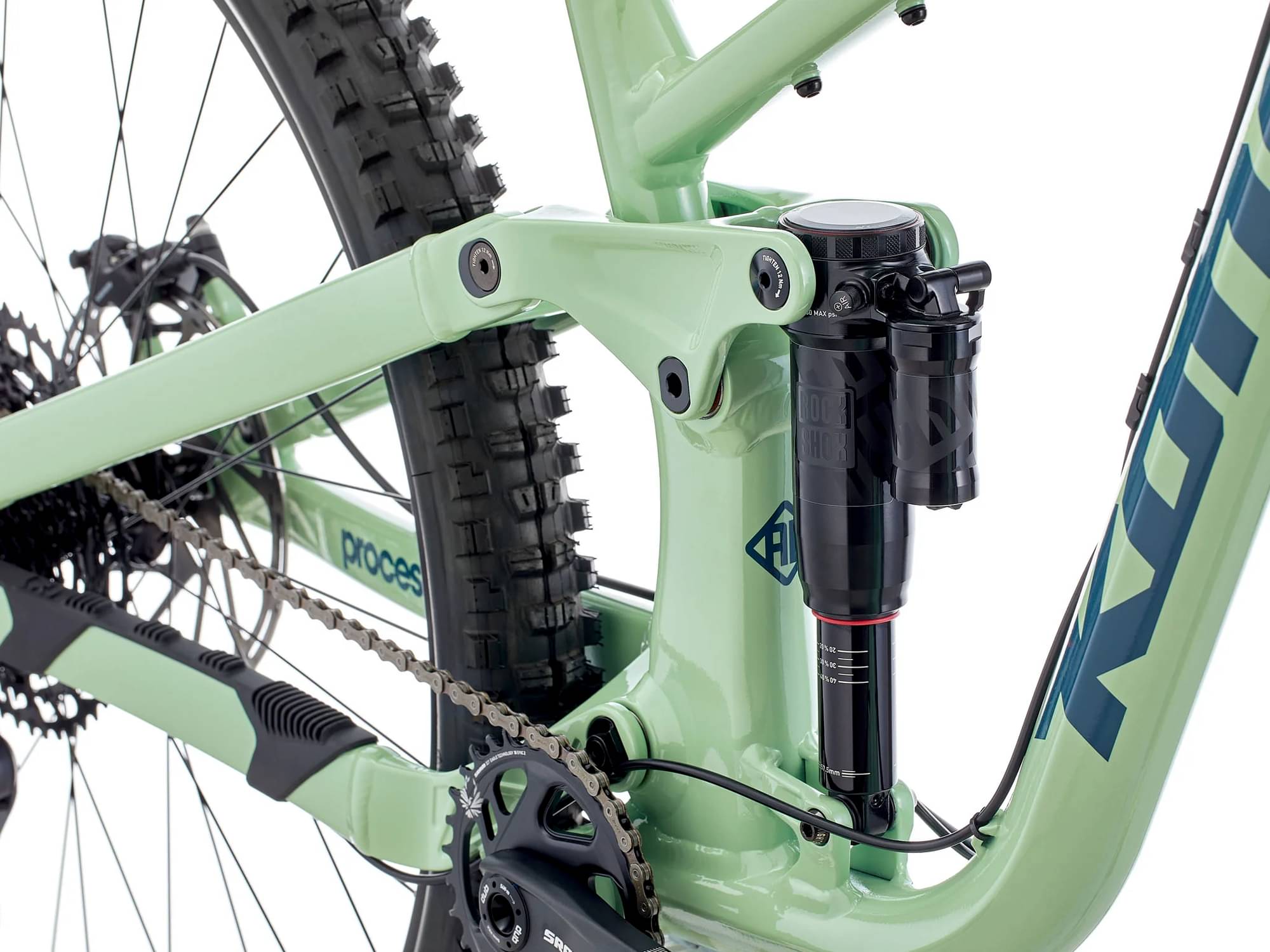

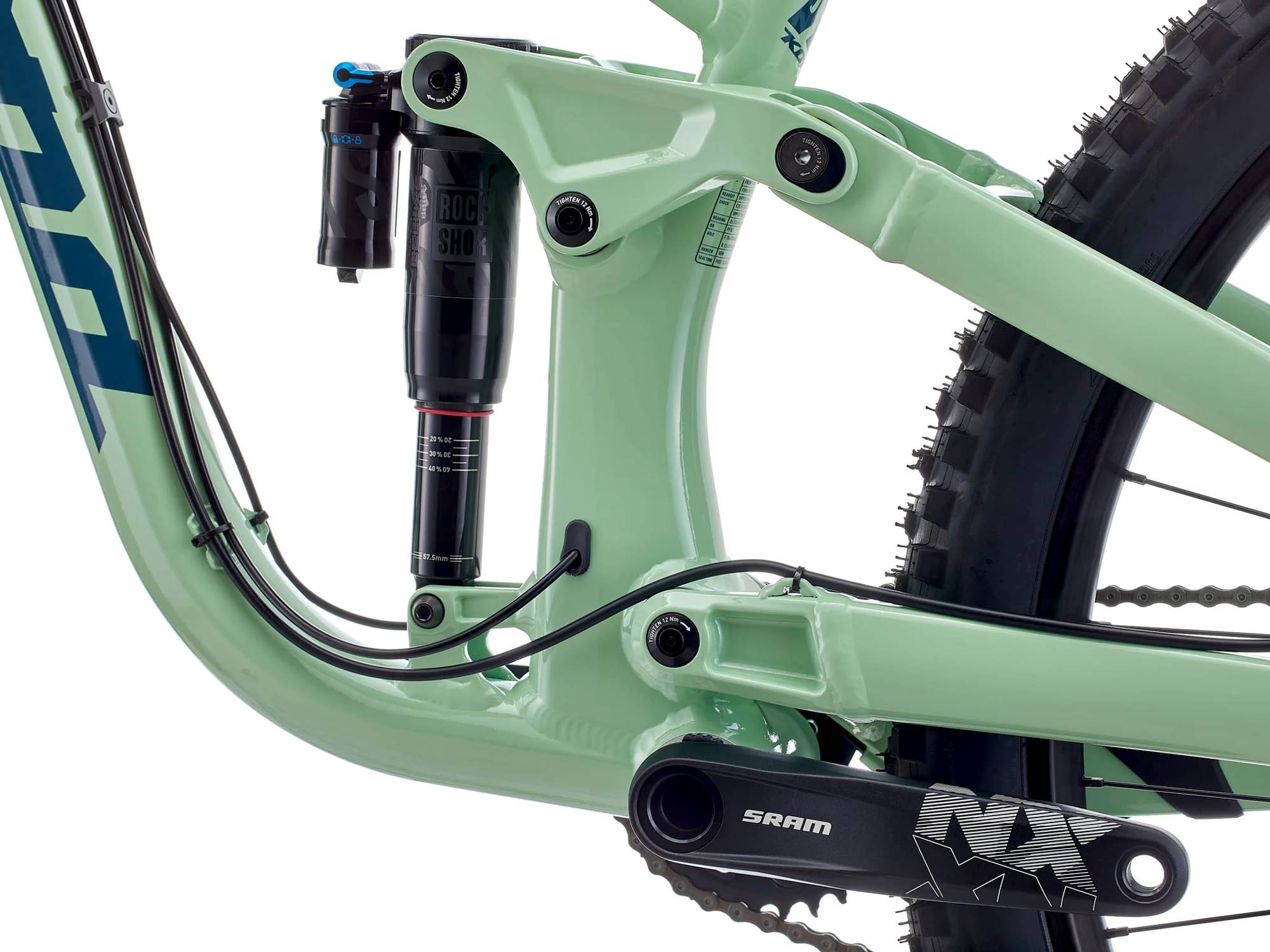

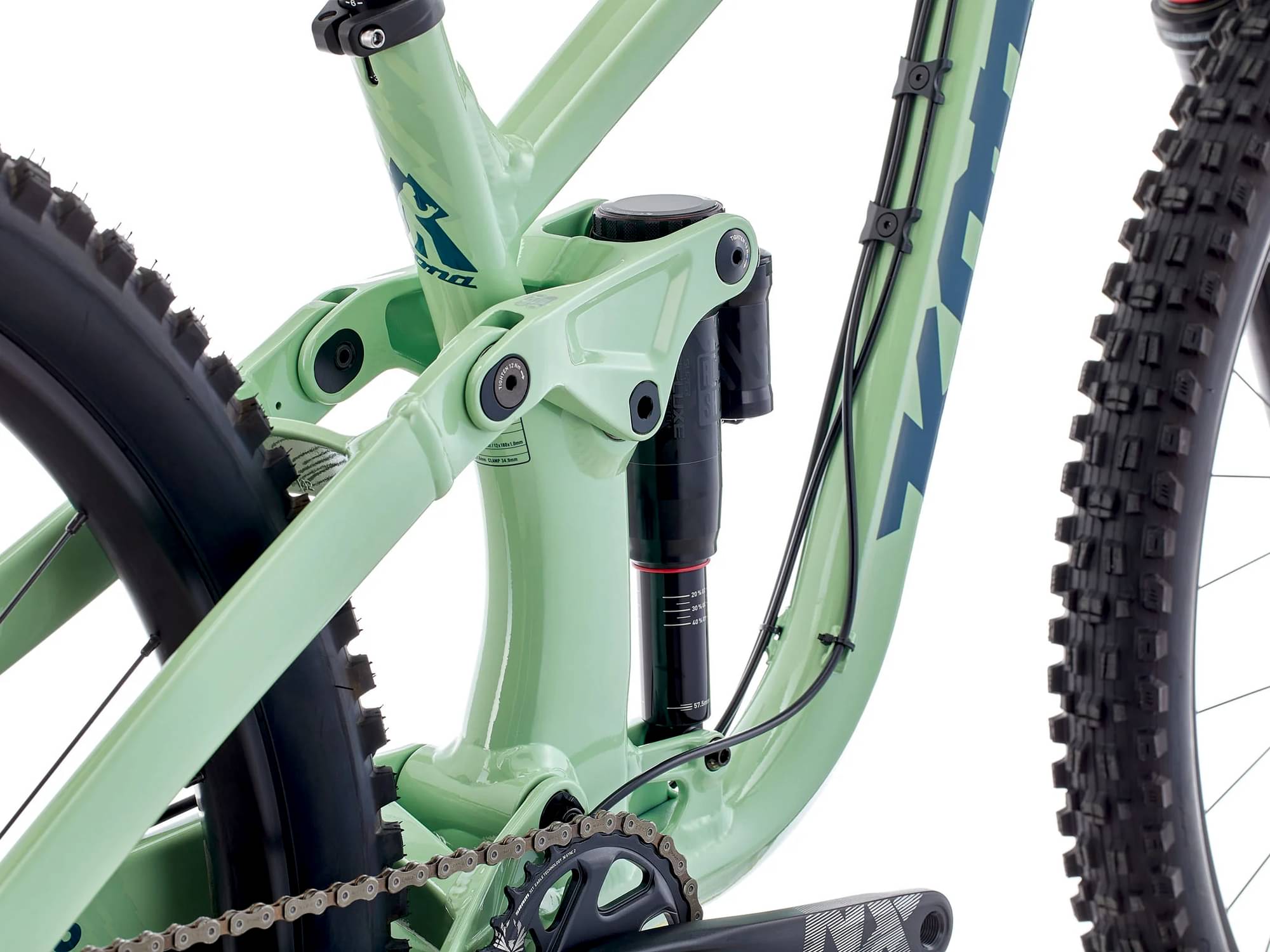

Rear Shock
RockShox Super Deluxe Select Plus Trunnion
Drivetrain
Rear Derailleur
SRAM GX-Eagle
Front Derailleur
n/a
Shift Levers
SRAM NX-Eagle
Cassette
SRAM NX-Eagle 11-50t 12spd
Crank
SRAM NX Eagle DUB, 32t X-Sync Eagle
Bottom Bracket
SRAM DUB PF92
Chain
SRAM SX-Eagle
Chain Guide
n/a
Pedals
n/a
Wheels
Front Hub
Formula 110x15mm
Rear Hub
Formula 148x12mm
Rims
WTB KOM Trail i30 TCS
Spokes
Stainless Black 14g
Tires
Front: Maxxis Assegai EXO TR 3C 29x2.5" WT, Rear: Maxxis Minion DHR II EXO TR 3C 29x2.4" WT (27.5x2.4" WT size S)
Brakes
Brakes
SRAM G2 RS
Brake Levers
SRAM G2 RS

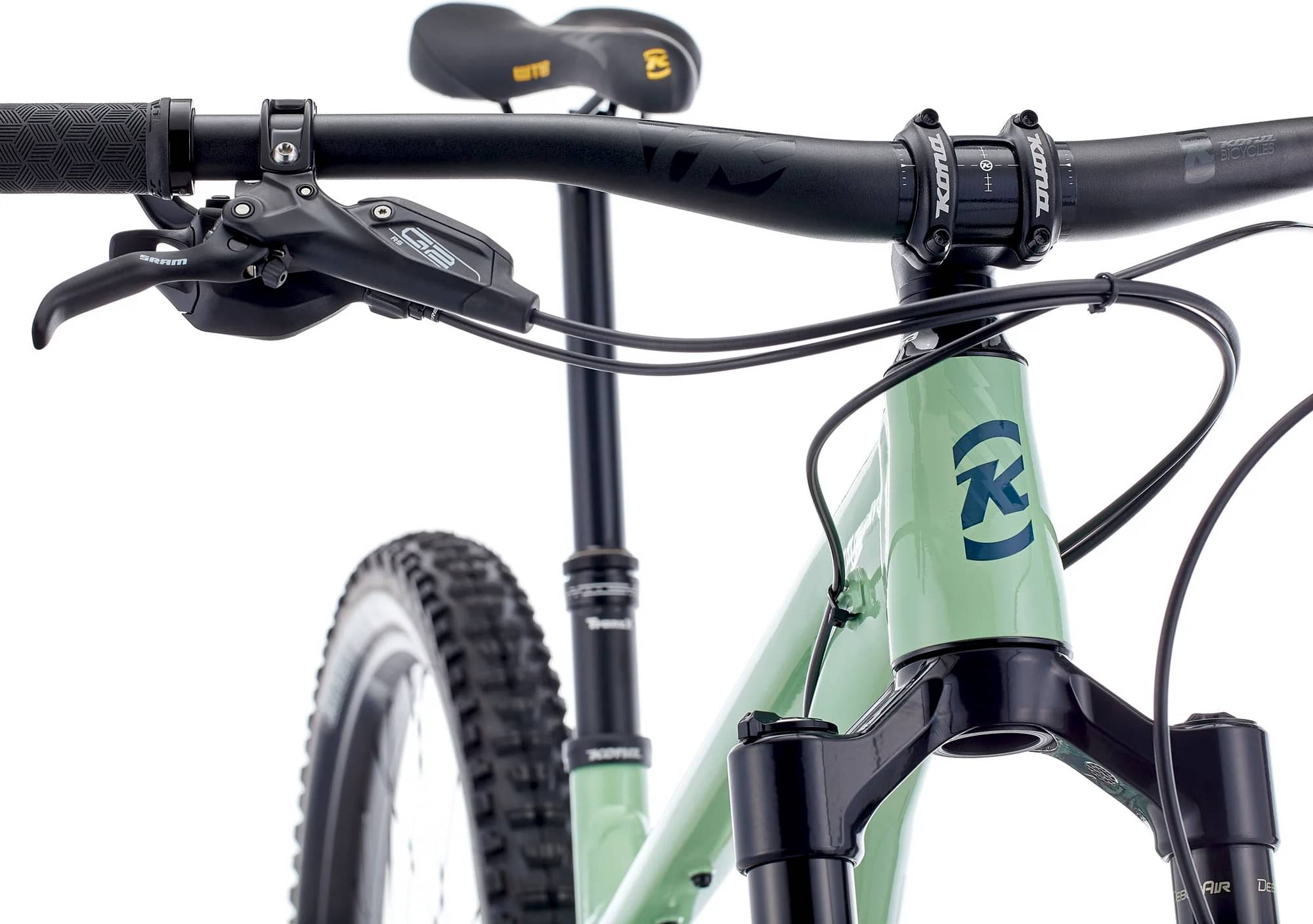

Cockpit
Stem
Kona XC/BC 35
Handlebar
Kona XC/BC 35
Grips
Kona Key Grip
Headset
FSA Orbit 1.5 E ZS
Seat
Saddle
WTB Volt
Seatpost
TranzX Dropper +RAD Internal 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.442 mm | 1.363 mm | 1.302 mm | 1.233 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm |
| Front Center | 756 mm | 781 mm | 811 mm | 851 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 140 mm | 134 mm | 132 mm | 132 mm |
| Stack | 620 mm | 620 mm | 625 mm | 635 mm |
| Reach | 430 mm | 455 mm | 480 mm | 515 mm |
| Top Tube Length | 576 mm | 601 mm | 628 mm | 667 mm |
| Seat Tube Angle | 76.9 ° | 76.9 ° | 76.7 ° | 76.6 ° |
| Seat Tube Length | 380 mm | 380 mm | 420 mm | 450 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 100 mm | 100 mm | 105 mm | 116 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1190 mm | 1215 mm | 1244 mm | 1284 mm |
| Bottom Bracket Drop | 20 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 700 | 700 | 710 mm | 720 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 152 cm | 157 cm | 175 cm | 180 cm |
| Rider Max Height | 170 cm | 182 cm | 195 cm | 195 cm |
