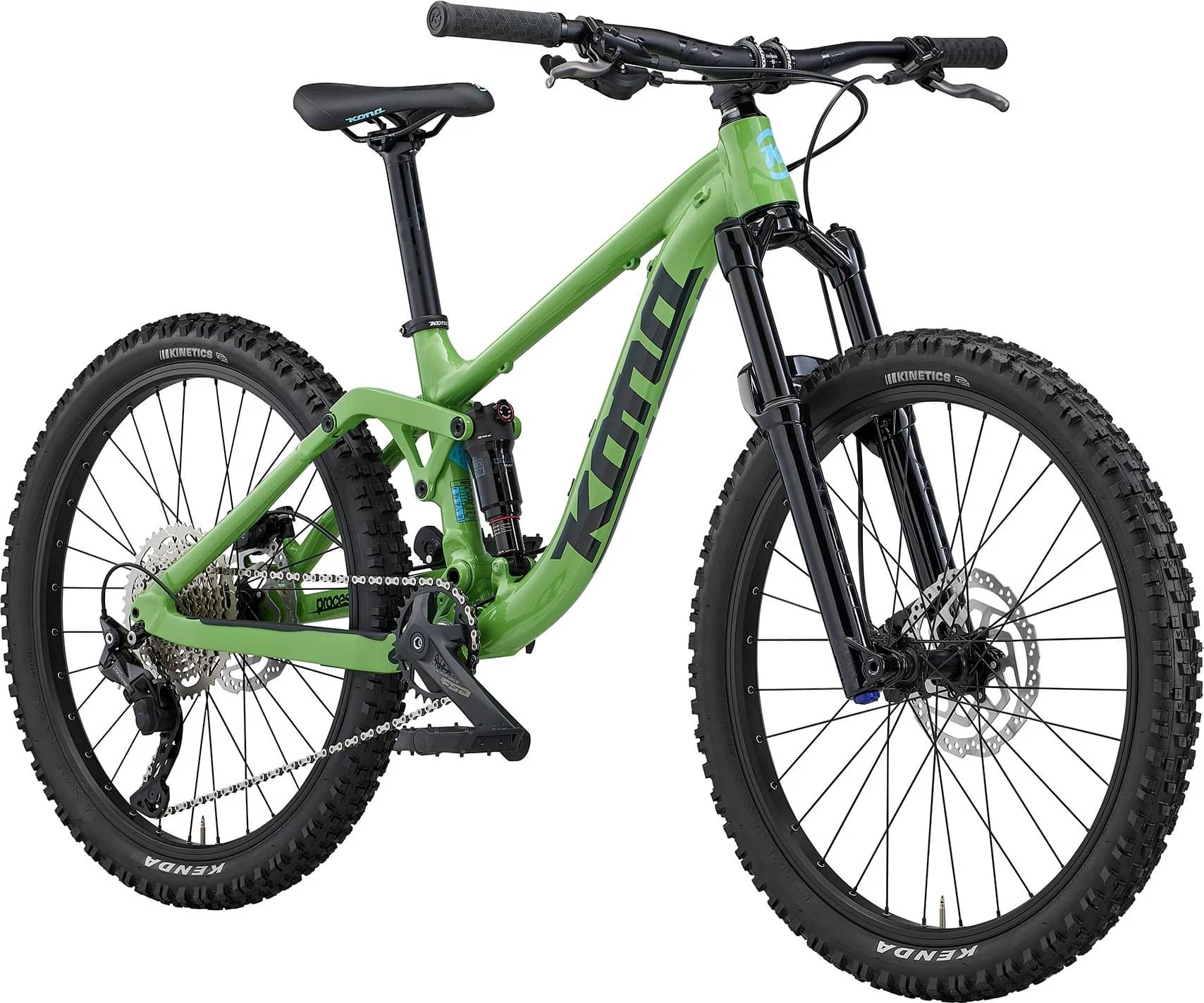

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork Manitou Machete JUNIT
-
Groupset Deore -
Suspension Full -
Drivetrain 1 × 10 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona 6061 DH Aluminum Butted
Suspension Fork
Manitou Machete J-Unit Comp Air 120mm Tapered

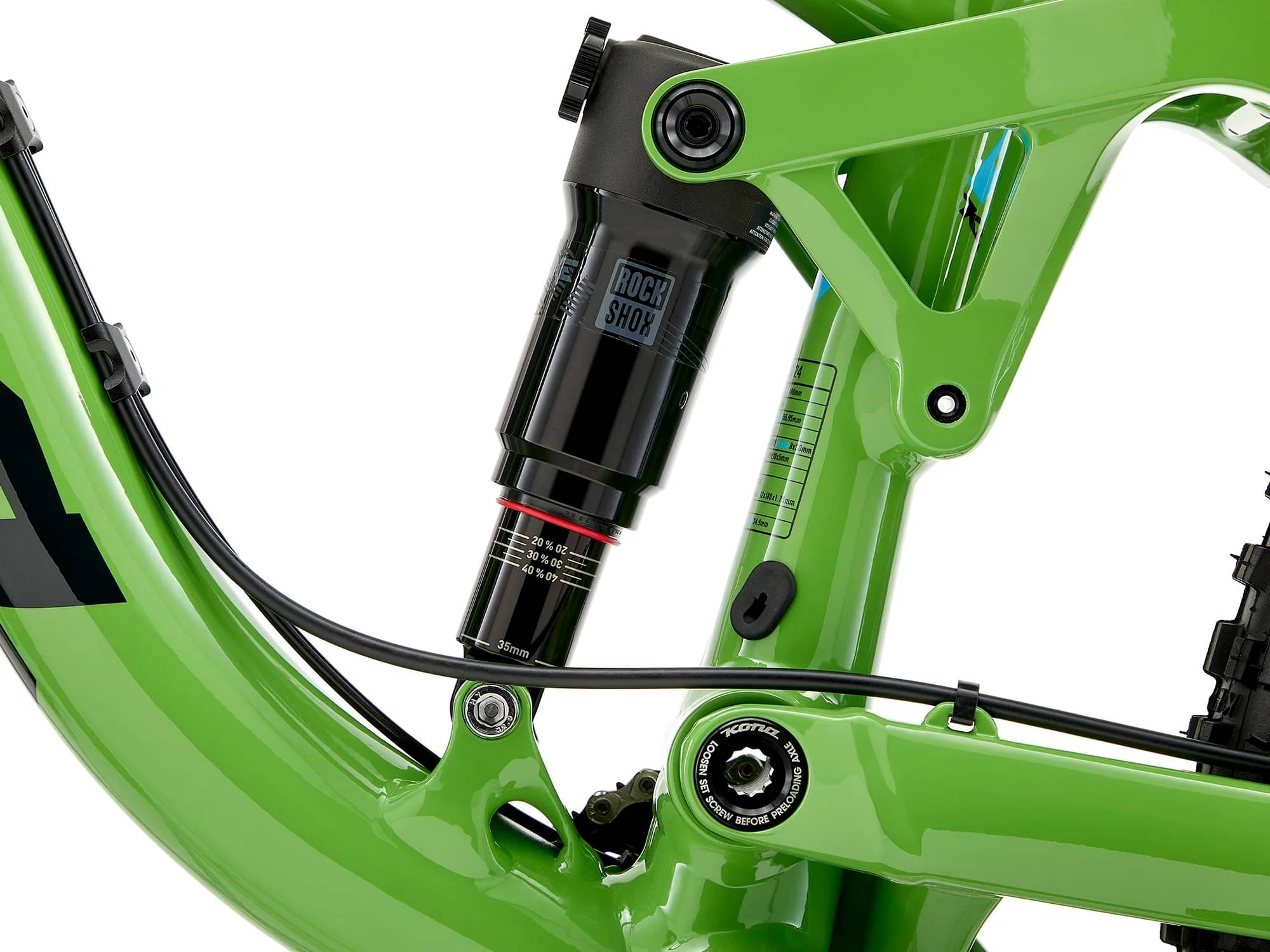

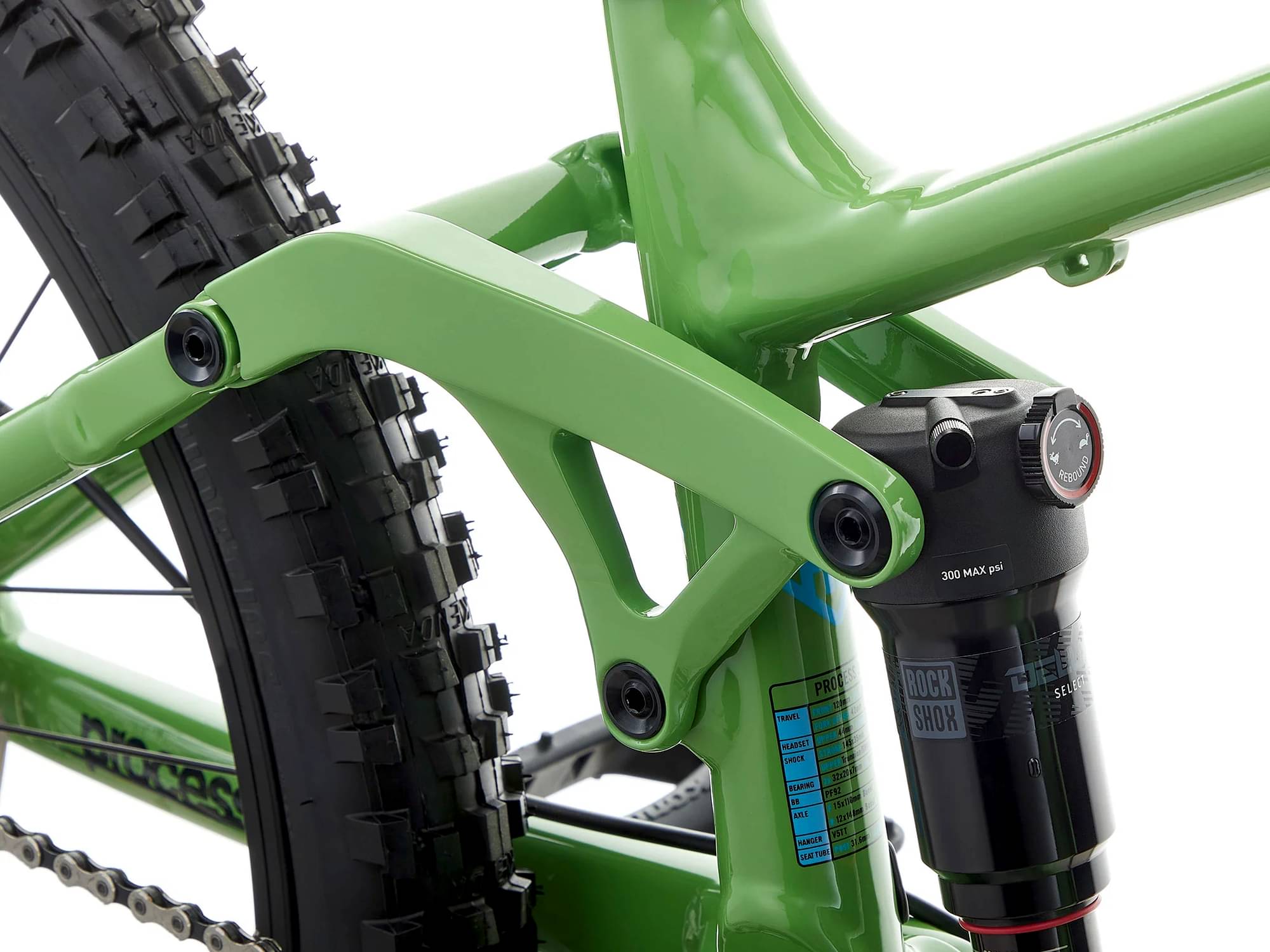

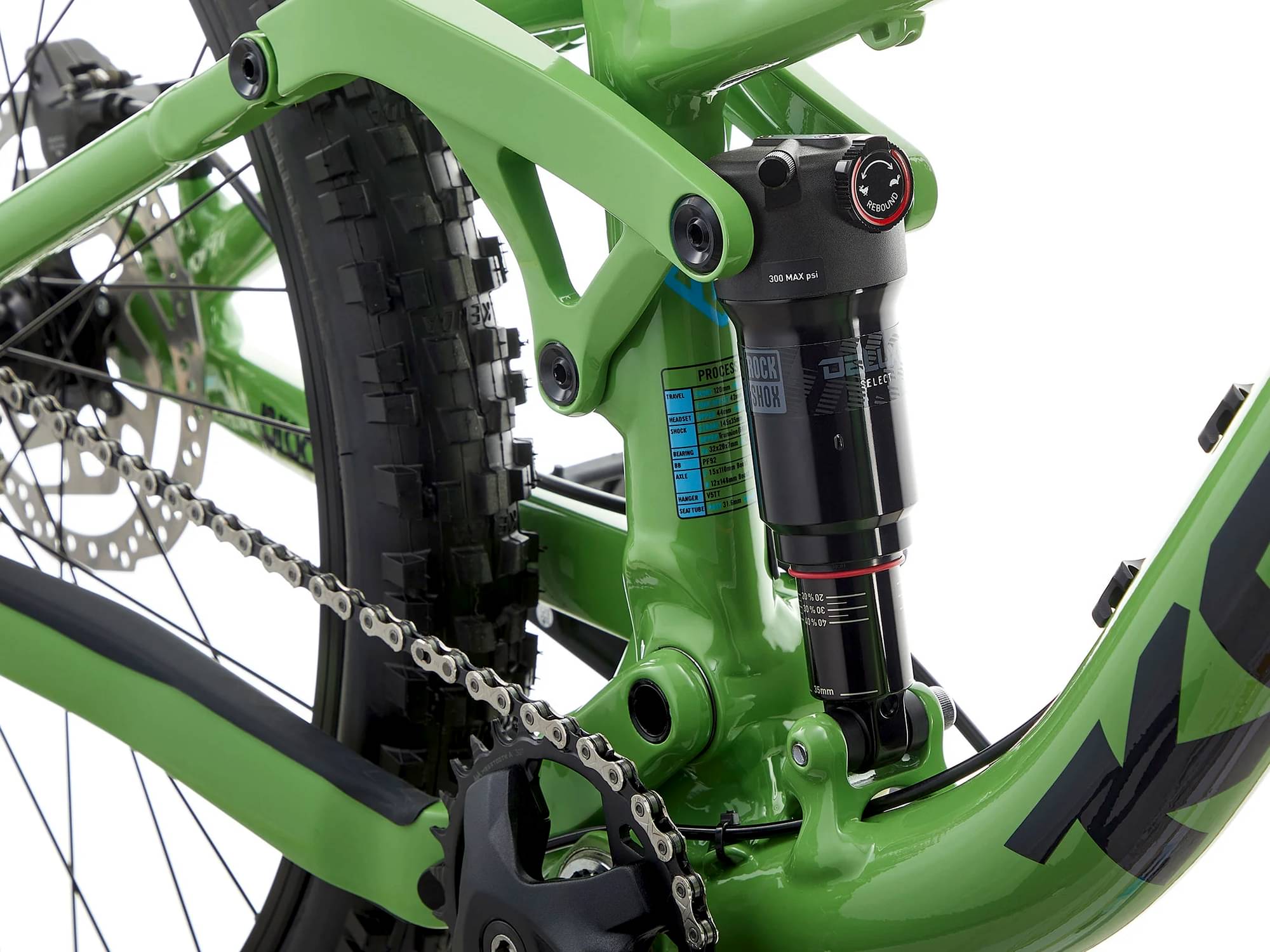

Rear Shock
RockShox Deluxe Select Solo Air
Drivetrain
Rear Derailleur
Shimano Deore
Front Derailleur
n/a
Shift Levers
Shimano Deore
Cassette
Shimano Deore 11-46t 10spd
Crank
FSA Alpha Drive, 30t
Bottom Bracket
FSA BB7420
Chain
KMC X10
Chain Guide
n/a
Pedals
Kona JS2
Wheels
Front Hub
Shimano 110x15mm (centerlock)
Rear Hub
Shimano 148x12mm (centerlock)
Rims
Alex DM24
Spokes
Stainless Black 14g
Tires
Front: Kenda Kinetics Rear 24x2.35", Rear: Kenda Kinetics Rear 24x2.35"

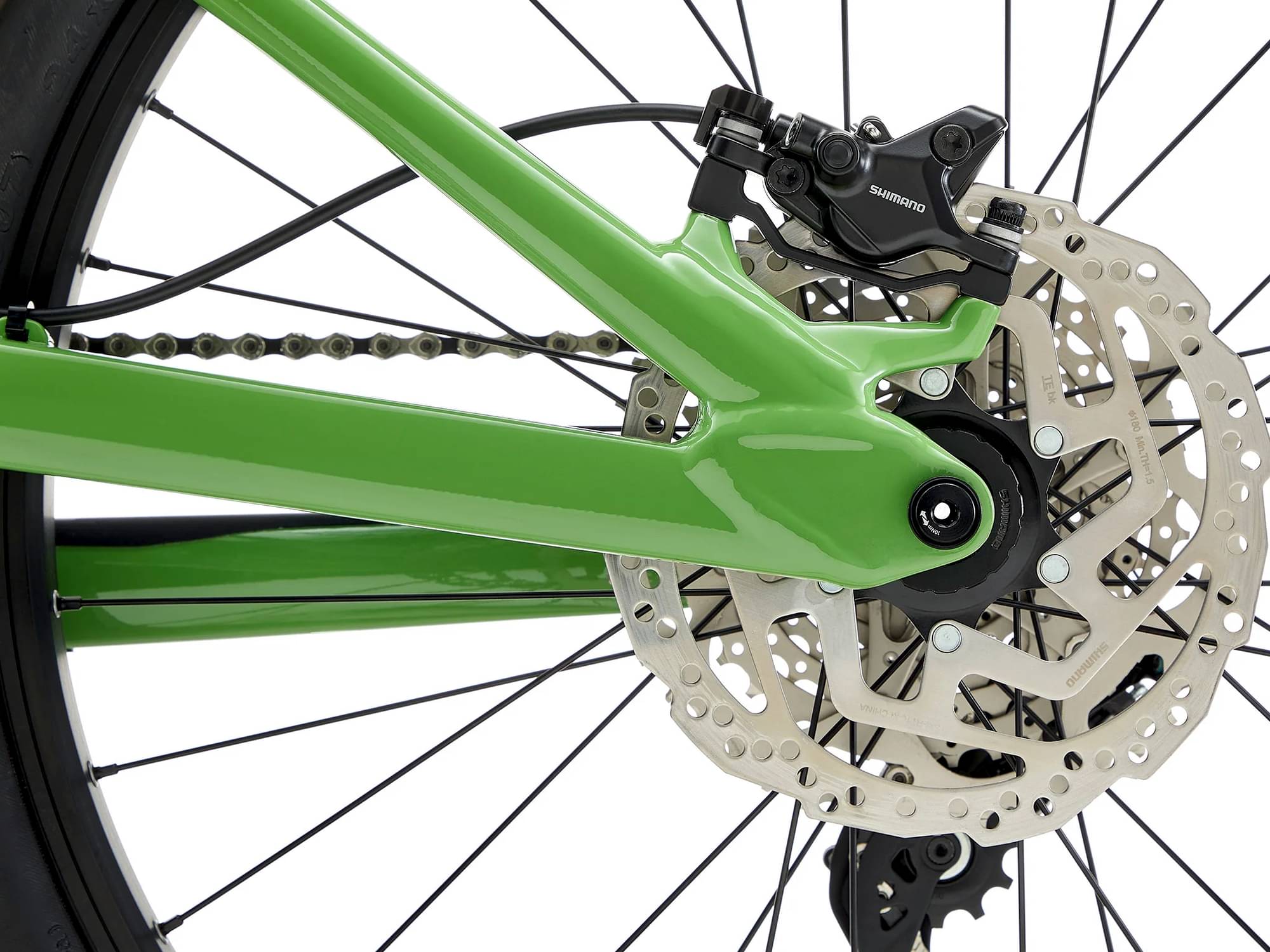

Brakes
Brakes
Shimano Acera
Brake Levers
Shimano Acera
Cockpit
Stem
Kona OB
Handlebar
Kona OB
Grips
Kona Key Grip

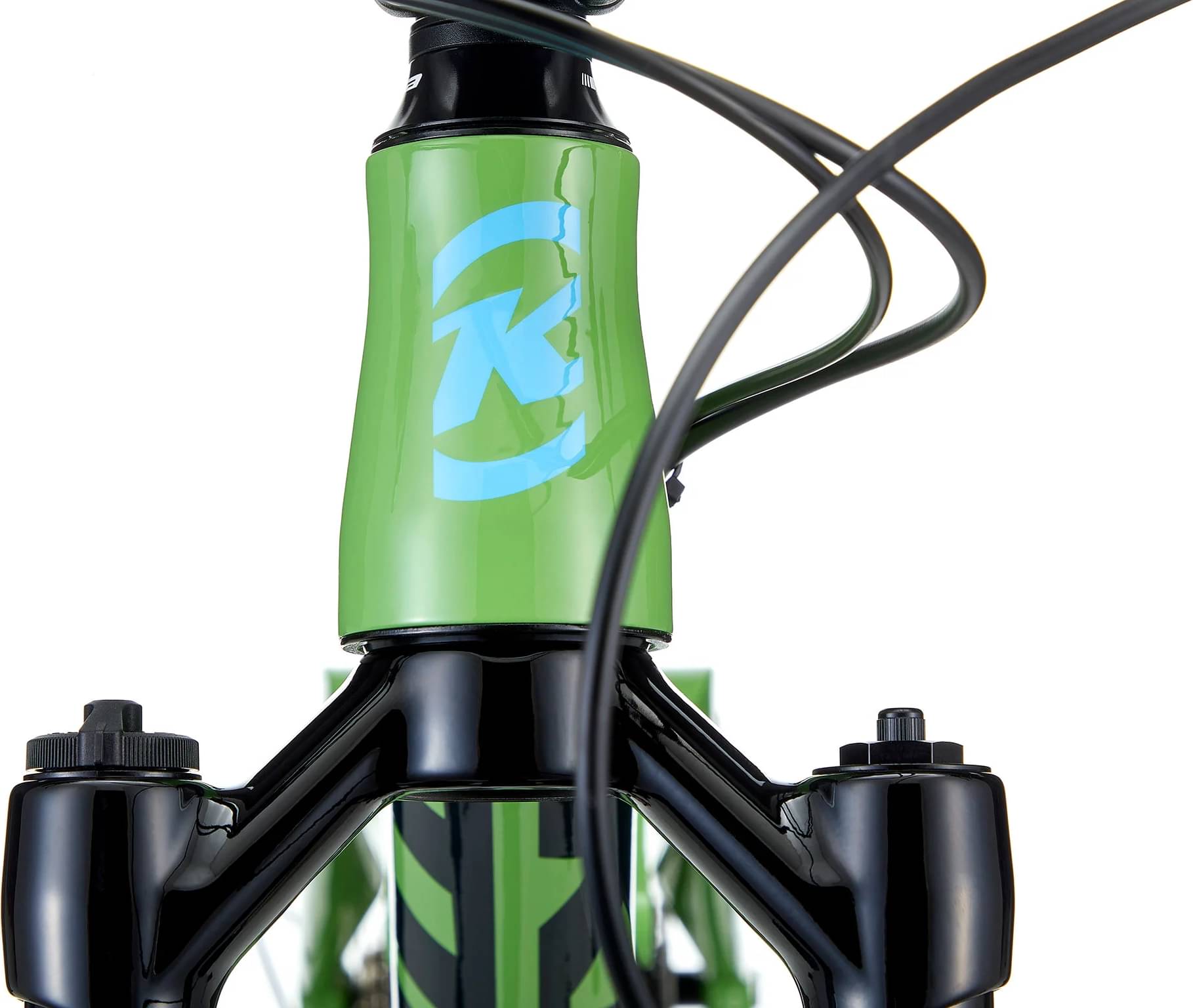

Headset
FSA No.57B
Seat
Saddle
Kona DJ

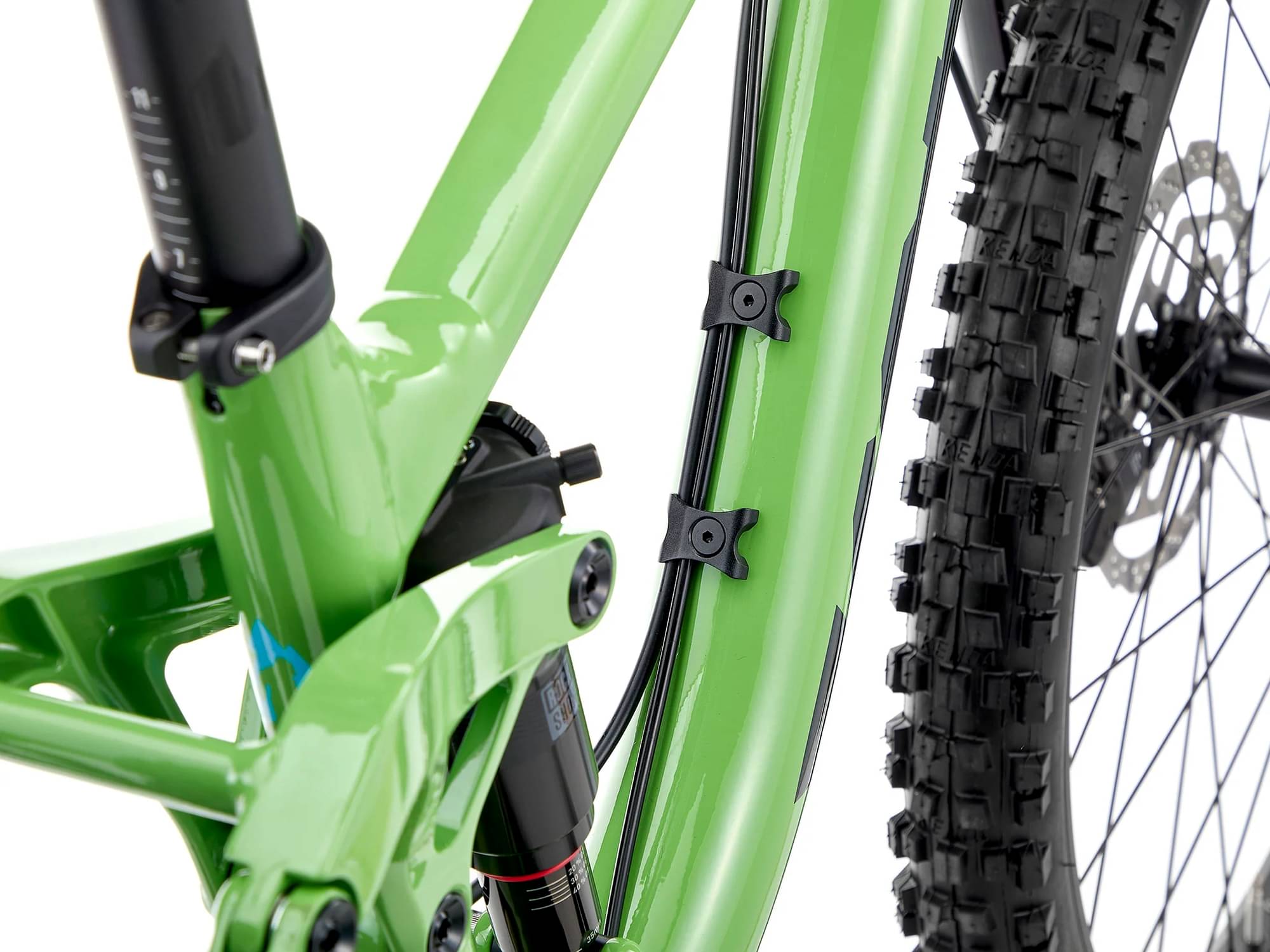

Seatpost
Kona Thumb OB 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM |
|---|---|
| Stack Reach Ratio | 1.386 mm |
| Bottom Bracket Height | 315 mm |
| Front Center | 628 mm |
| Rake | 39 mm |
| Stack | 513 mm |
| Reach | 370 mm |
| Top Tube Length | 497 mm |
| Seat Tube Angle | 74.5 ° |
| Seat Tube Length | 332 mm |
| Head Tube Angle | 67 ° |
| Head Tube Length | 90 mm |
| Chainstay Length | 415 mm |
| Wheelbase | 1043 mm |
| Bottom Bracket Drop | 5 mm |
| Standover Height | 670 mm |
| Wheels | 24" |
