Bike details
Overview
Key information split into simple groups.

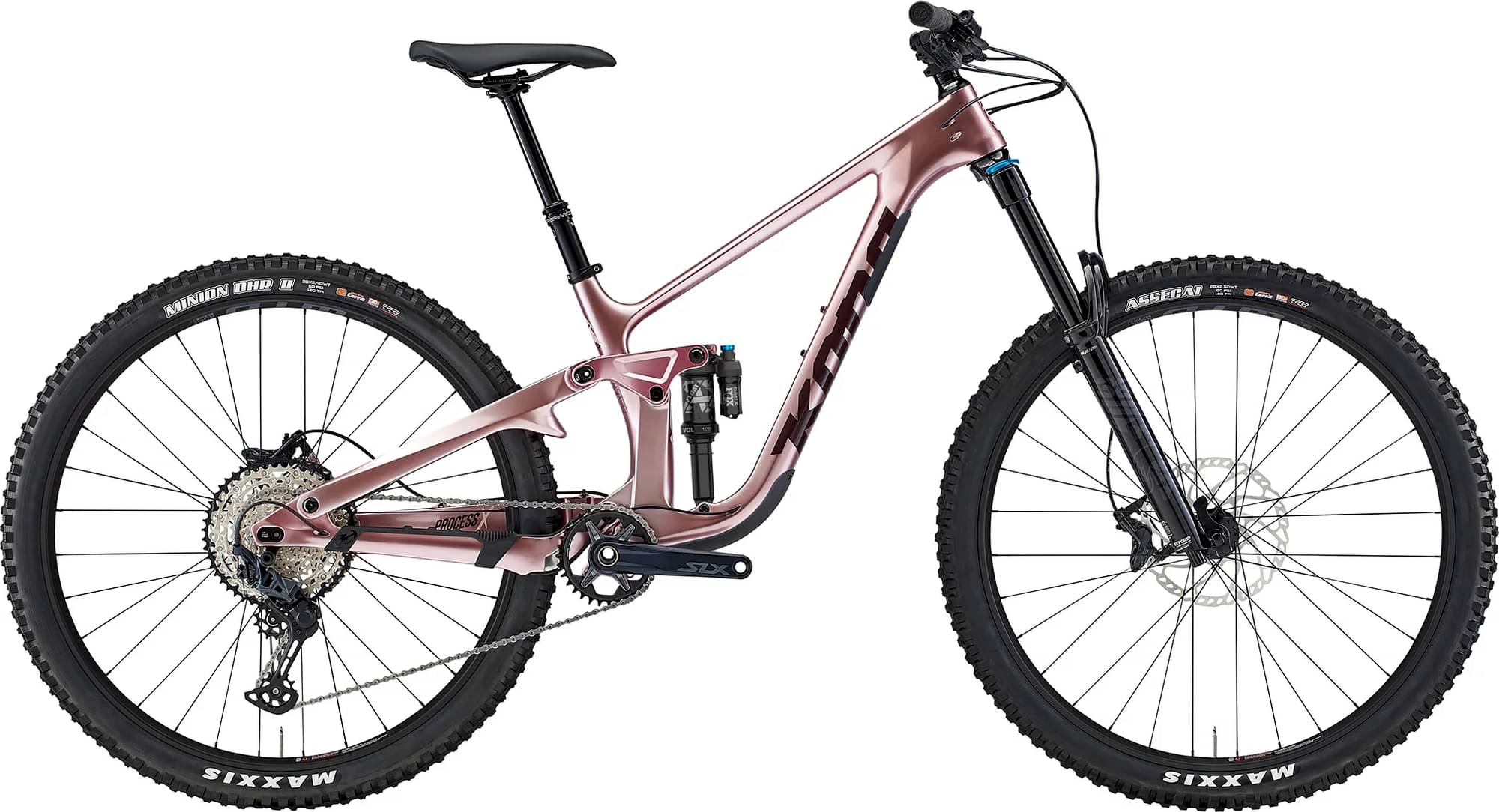

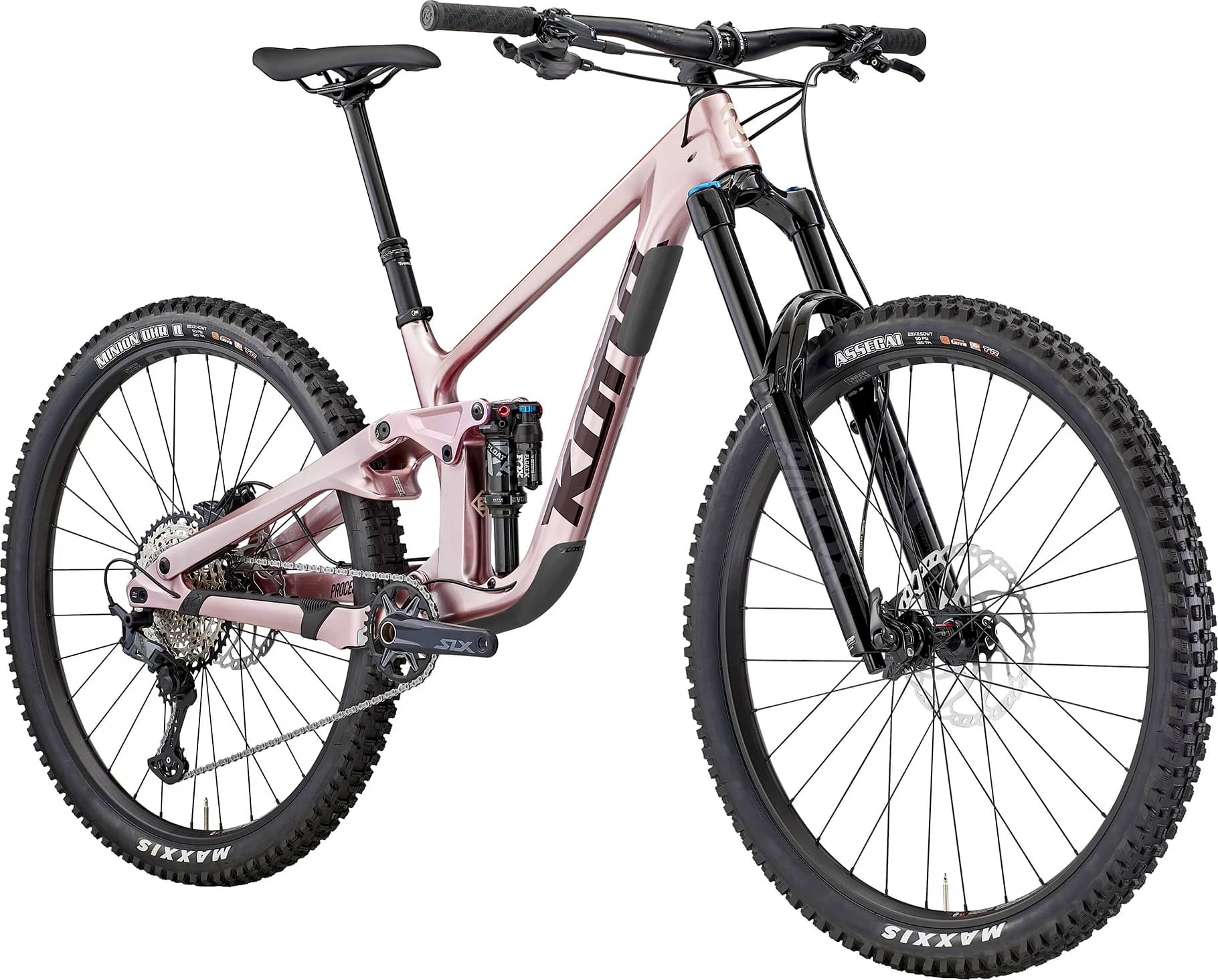

Bike summary
-
-
Frame Carbon -
Travel Front 170mm -
Travel Rear 162mm -
Fork Fox Performance Float 38
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 170cm
MD
157cm - 182cm
LG
175cm - 195cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

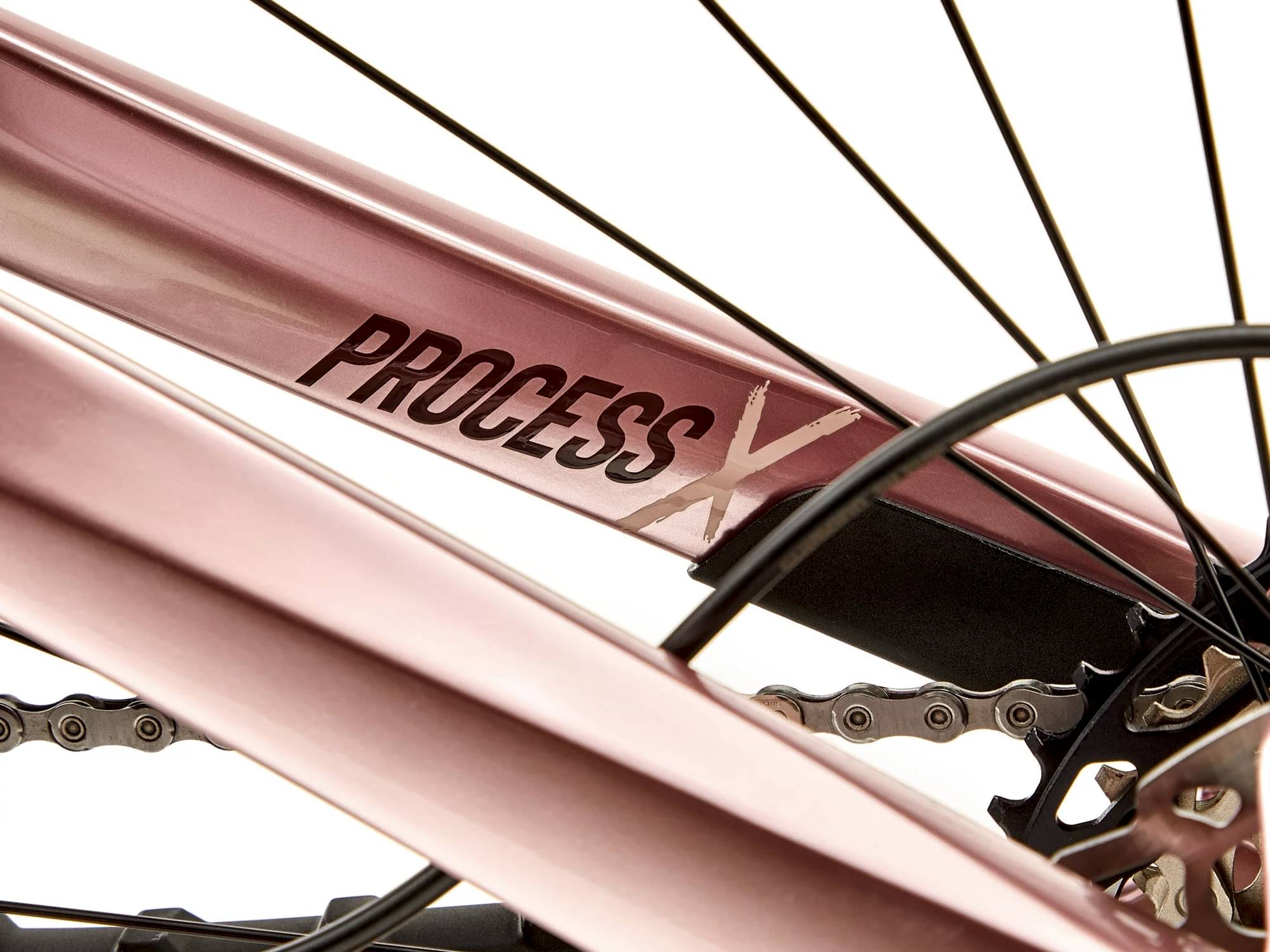

Kona Carbon 162mm Travel
Suspension Fork
Fox 38 Performance Grip Damper 170mm

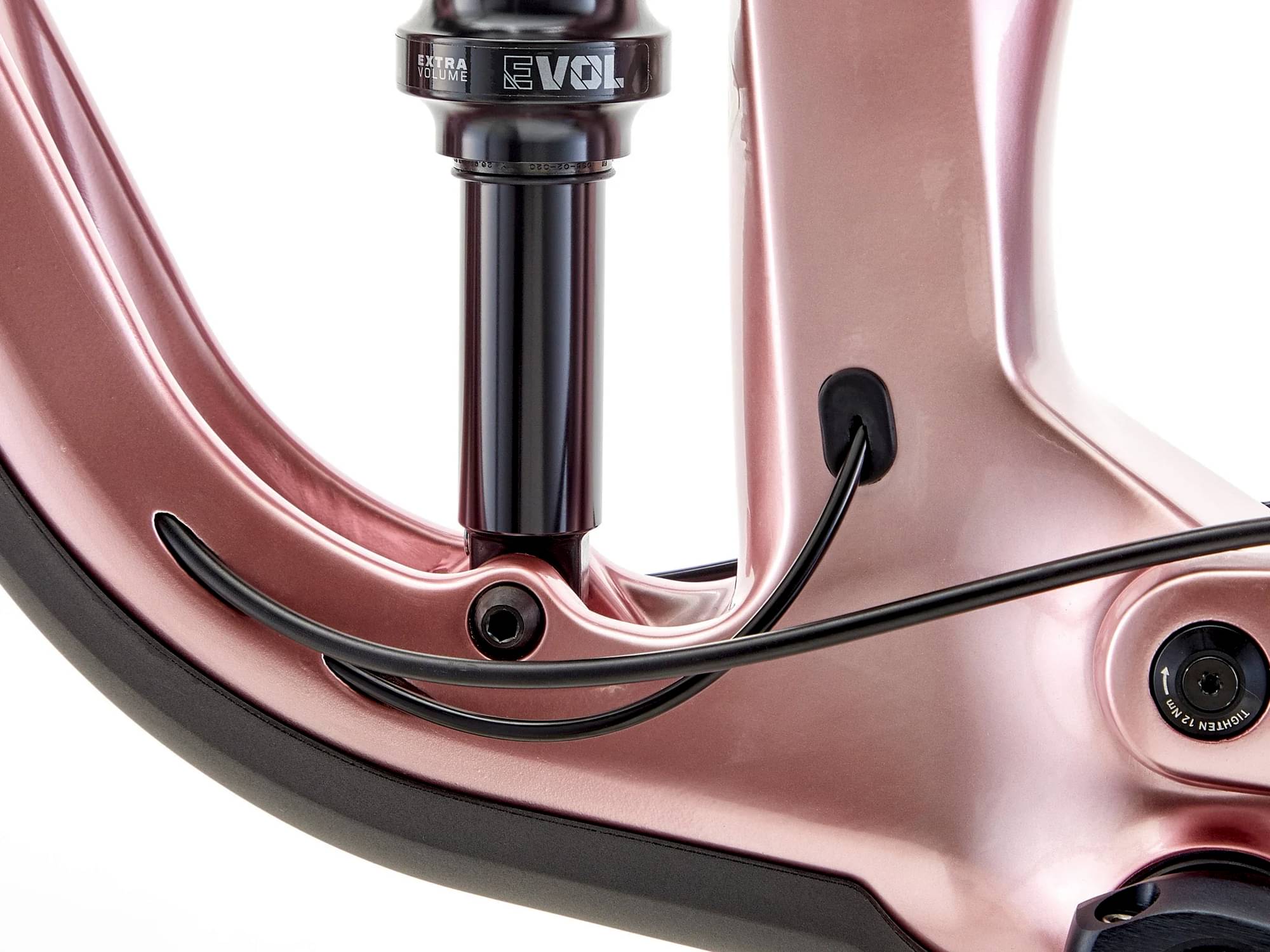

Rear Shock

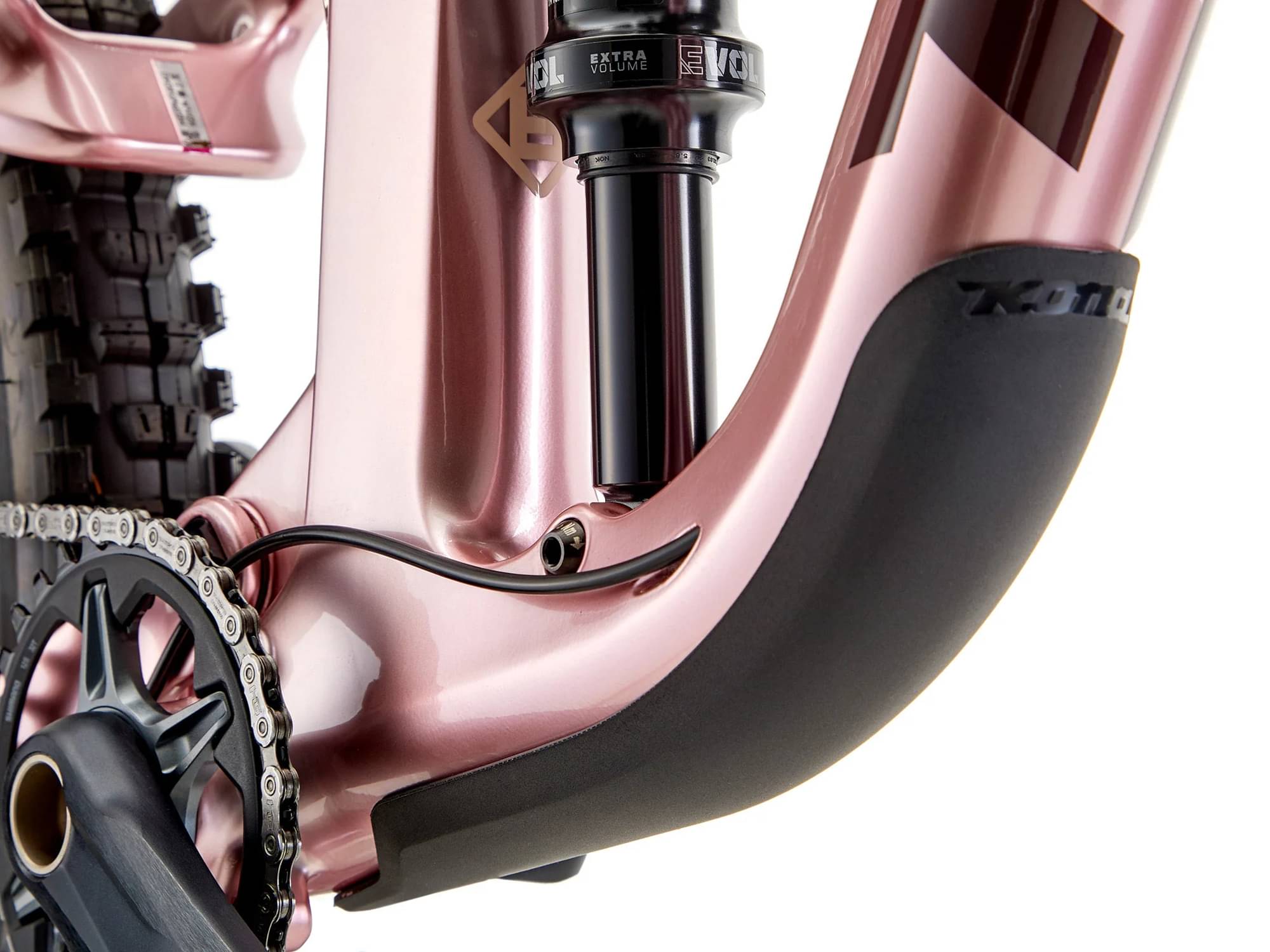

Fox Float X Performance Elite Trunnion
Drivetrain
Rear Derailleur
Shimano SLX 12spd
Front Derailleur
n/a
Shift Levers
Shimano XT 12spd
Cassette

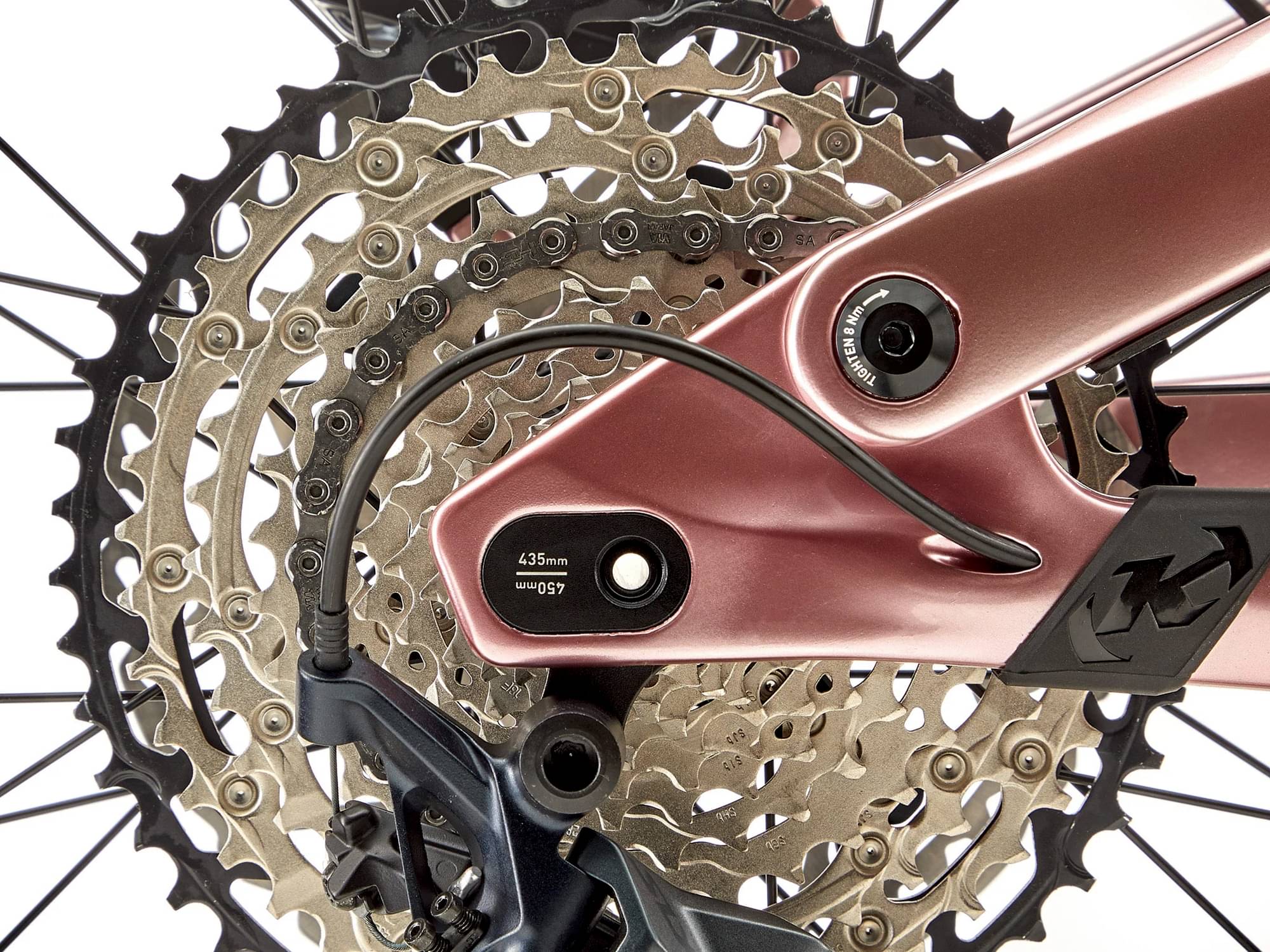

Shimano SLX 10-51t 12spd
Crank

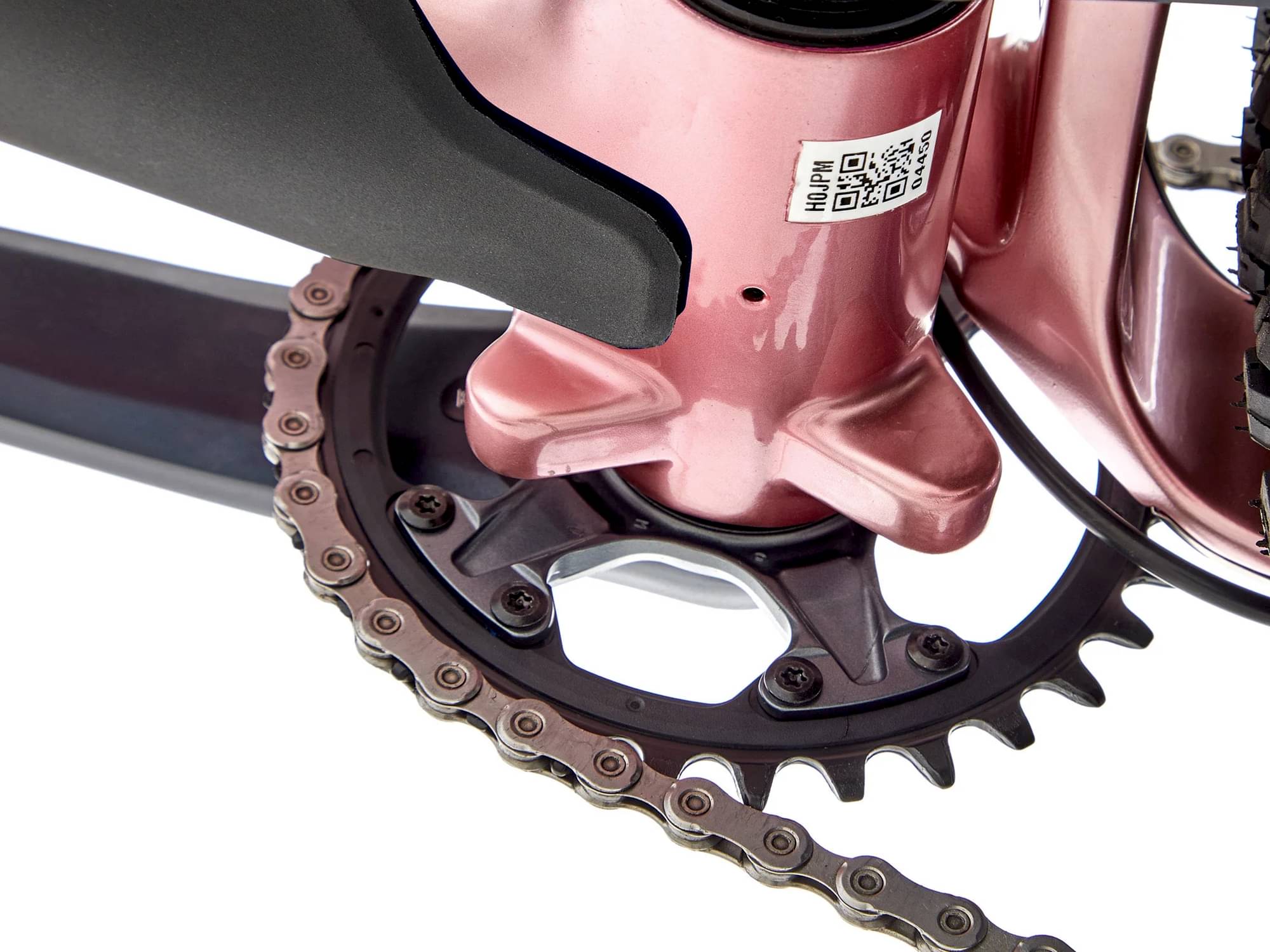

Shimano SLX, 32t
Bottom Bracket
Shimano PF92
Chain
Shimano Deore 12spd
Chain Guide
n/a
Pedals
n/a
Wheels
Front Hub
DT Swiss 370 110x15mm
Rear Hub
DT Swiss 370 148x12mm
Rims
WTB KOM Trail i30 TCS
Spokes
Stainless Black 14g
Tires
Front: Maxxis Assegai EXO+ TR 3C 29x2.5" WT, Rear: Maxxis Minion DHR II EXO+ TR 3C 29x2.4" WT (27.5x2.4" WT size S)
Brakes

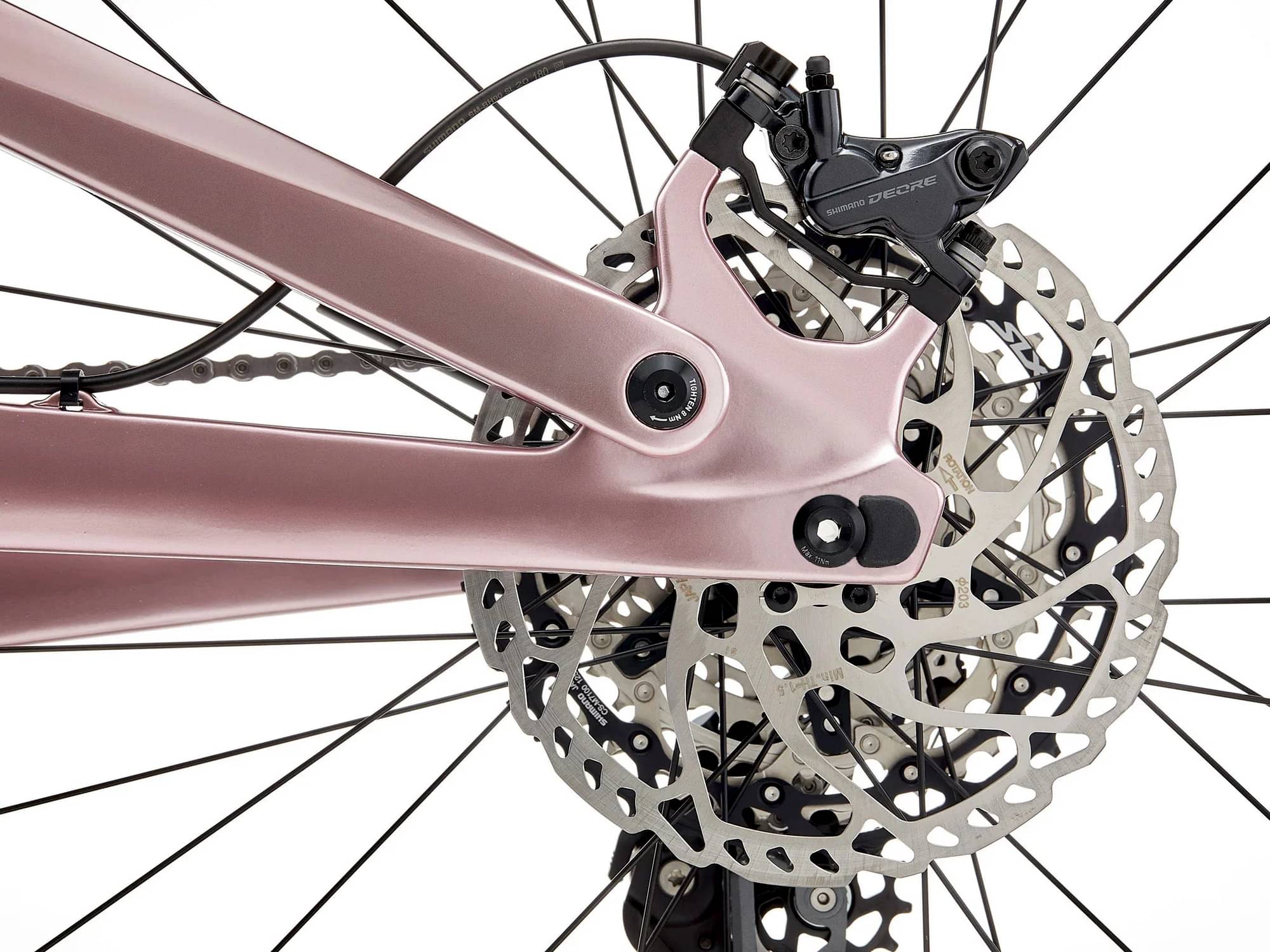

Brakes
Shimano Deore
Brake Levers
Shimano Deore
Cockpit

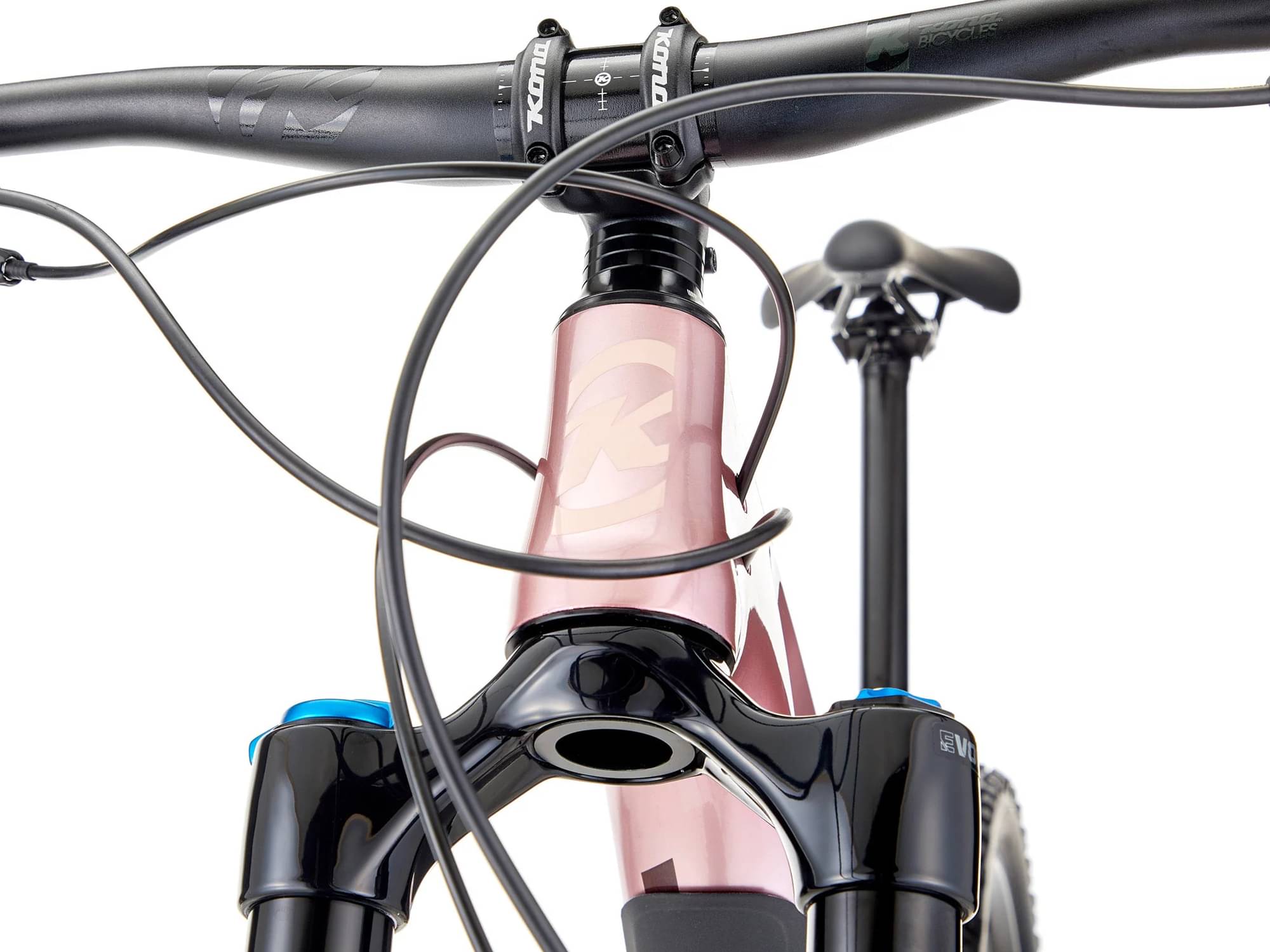

Stem
Kona XC/BC 35
Handlebar
Kona XC/BC 35
Grips
Kona Key Grip
Headset
FSA Orbit 1.5 EP ZS
Seat
Saddle
WTB Volt
Seatpost
TranzX Dropper +RAD Internal w/ Shimano Lever 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.398 mm | 1.323 mm | 1.276 mm | 1.21 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm |
| Front Center | 779 mm | 804 mm | 834 mm | 874 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 145 mm | 140 mm | 140 mm | 140 mm |
| Stack | 615 mm | 615 mm | 625 mm | 635 mm |
| Reach | 440 mm | 465 mm | 490 mm | 525 mm |
| Top Tube Length | 569 mm | 594 mm | 623 mm | 662 mm |
| Seat Tube Angle | 78.2 ° | 78.2 ° | 78 ° | 77.9 ° |
| Seat Tube Length | 380 mm | 380 mm | 420 mm | 450 mm |
| Head Tube Angle | 63.5 ° | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 94 mm | 94 mm | 105 mm | 116 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1213 mm | 1238 mm | 1268 mm | 1308 mm |
| Bottom Bracket Drop | 20 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 690 mm | 700 | 710 mm | 720 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 152 cm | 157 cm | 175 cm | 180 cm |
| Rider Max Height | 170 cm | 182 cm | 195 cm | 195 cm |
