Bike details
Overview
Key information split into simple groups.

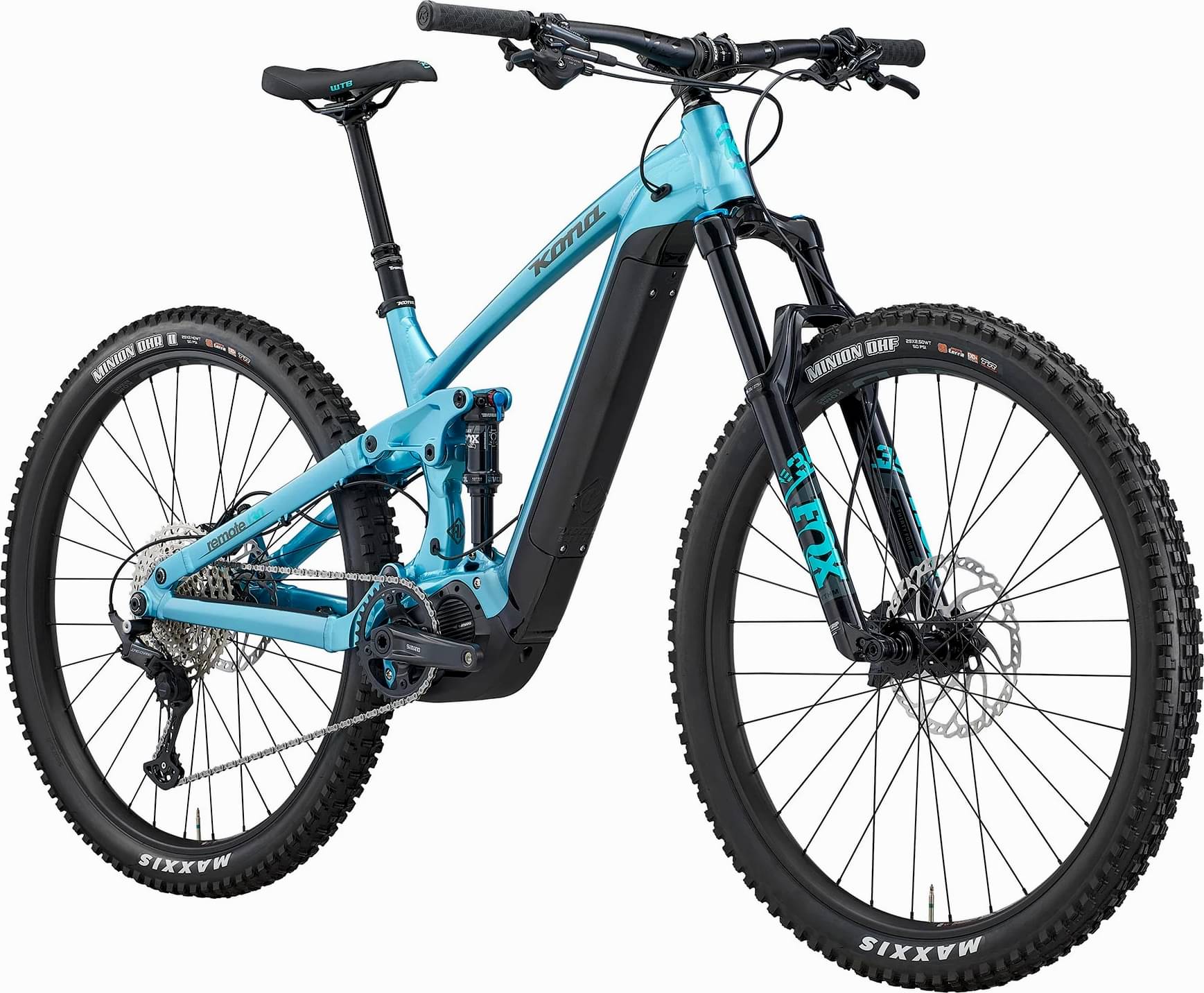

Bike summary
-
-
Frame Aluminum -
Travel Front 140mm -
Travel Rear 130mm -
Fork Fox Rhythm Float 34
-
Groupset Deore -
Suspension Full -

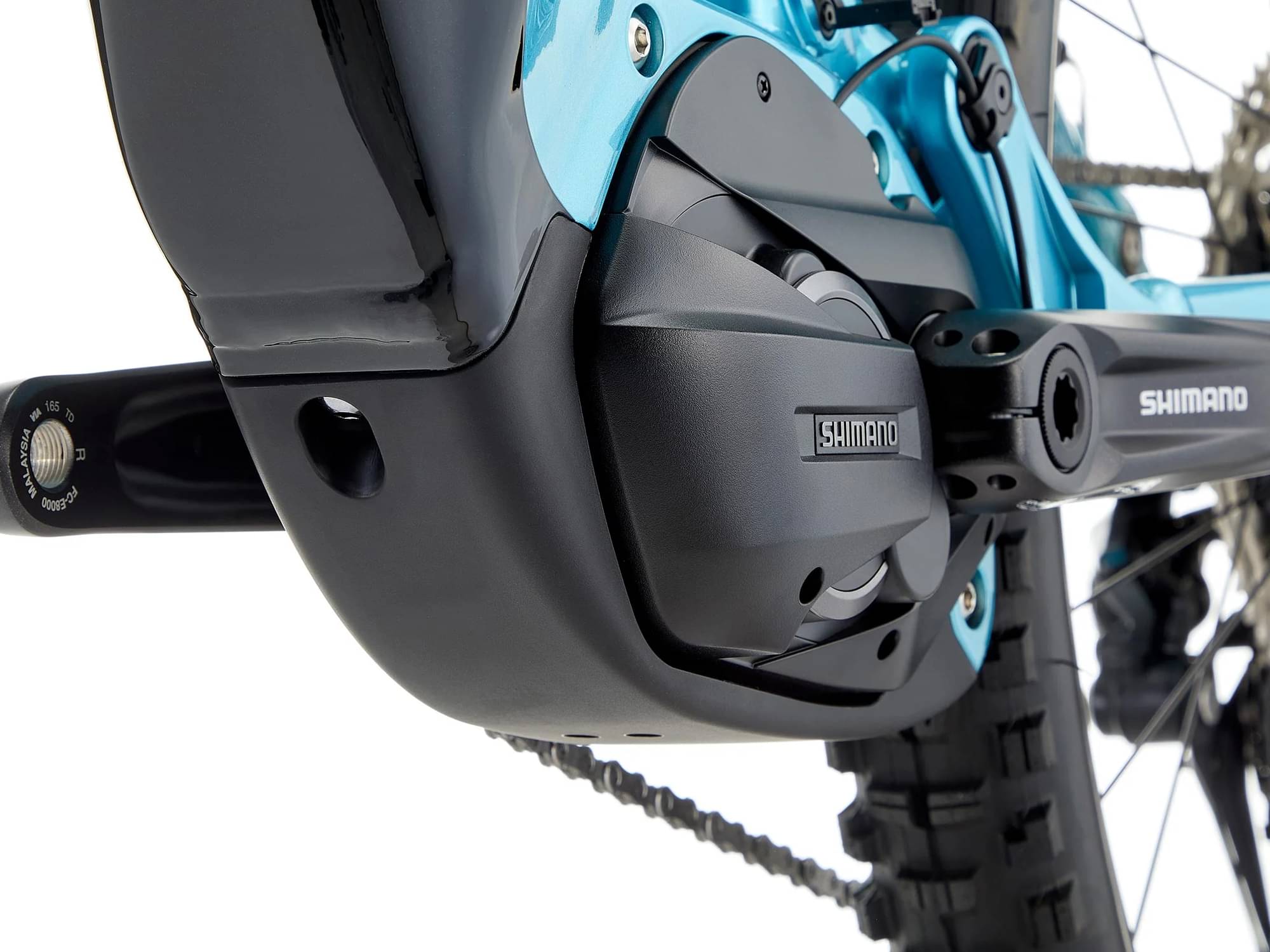

Motor Shimano 250W 60Nm mid-drive -
Battery Shimano 504Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 170cm
MD
157cm - 182cm
LG
175cm - 195cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona 6061 Aluminum Butted 130mm Travel
Suspension Fork
Fox Rhythm 34 Float 140mm Tapered 110 Spacing

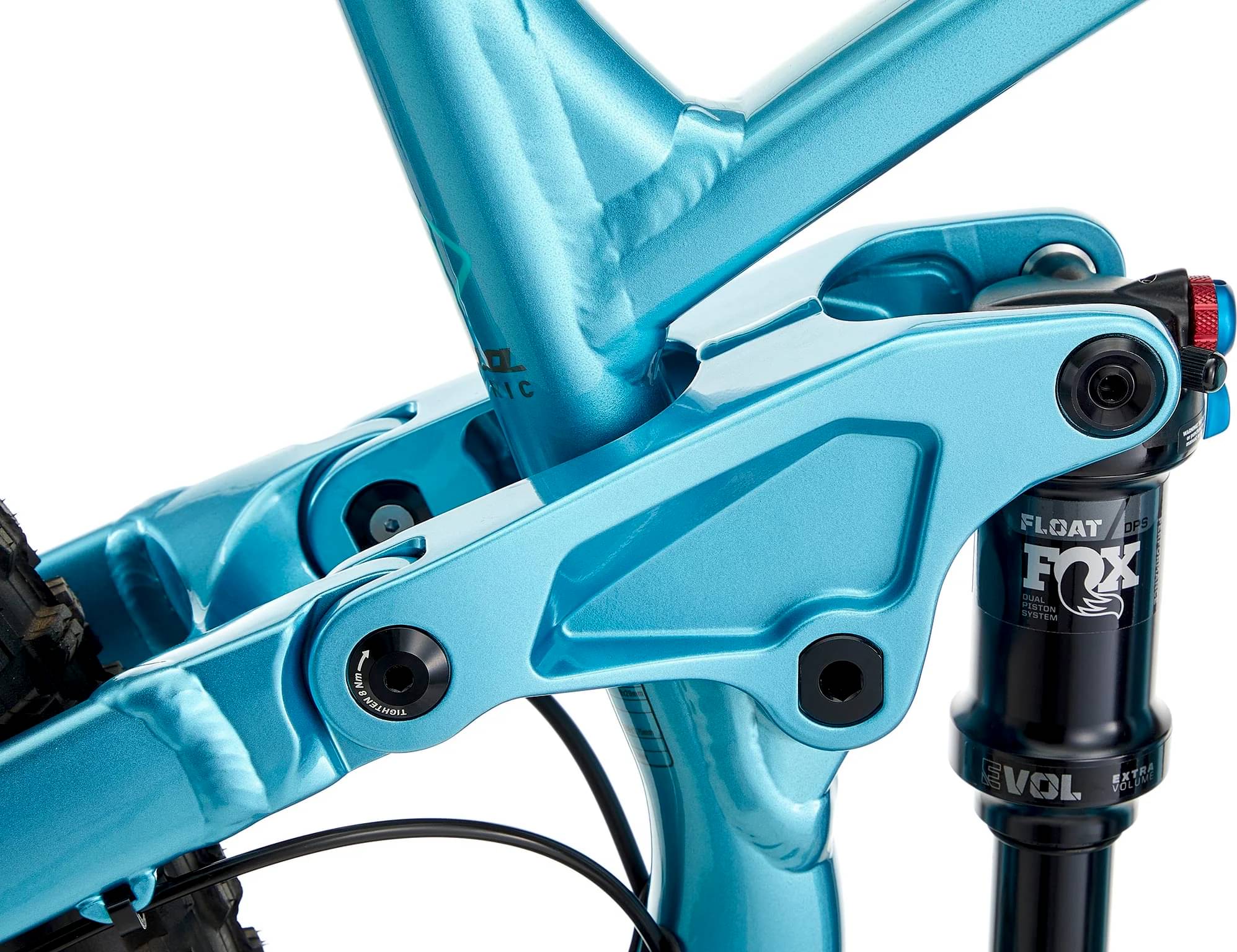

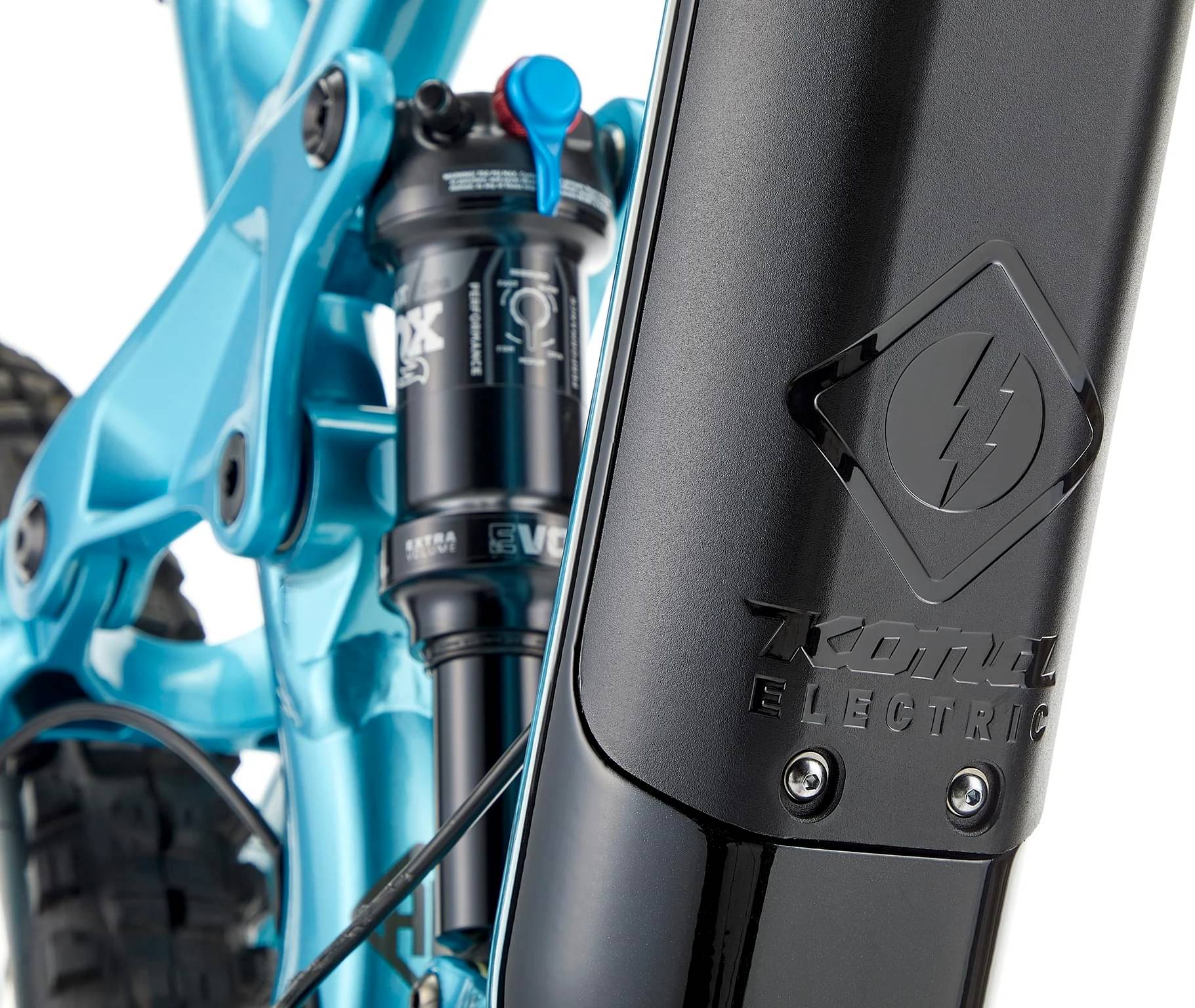

Rear Shock
Fox Performance Float Trunnion
Drivetrain

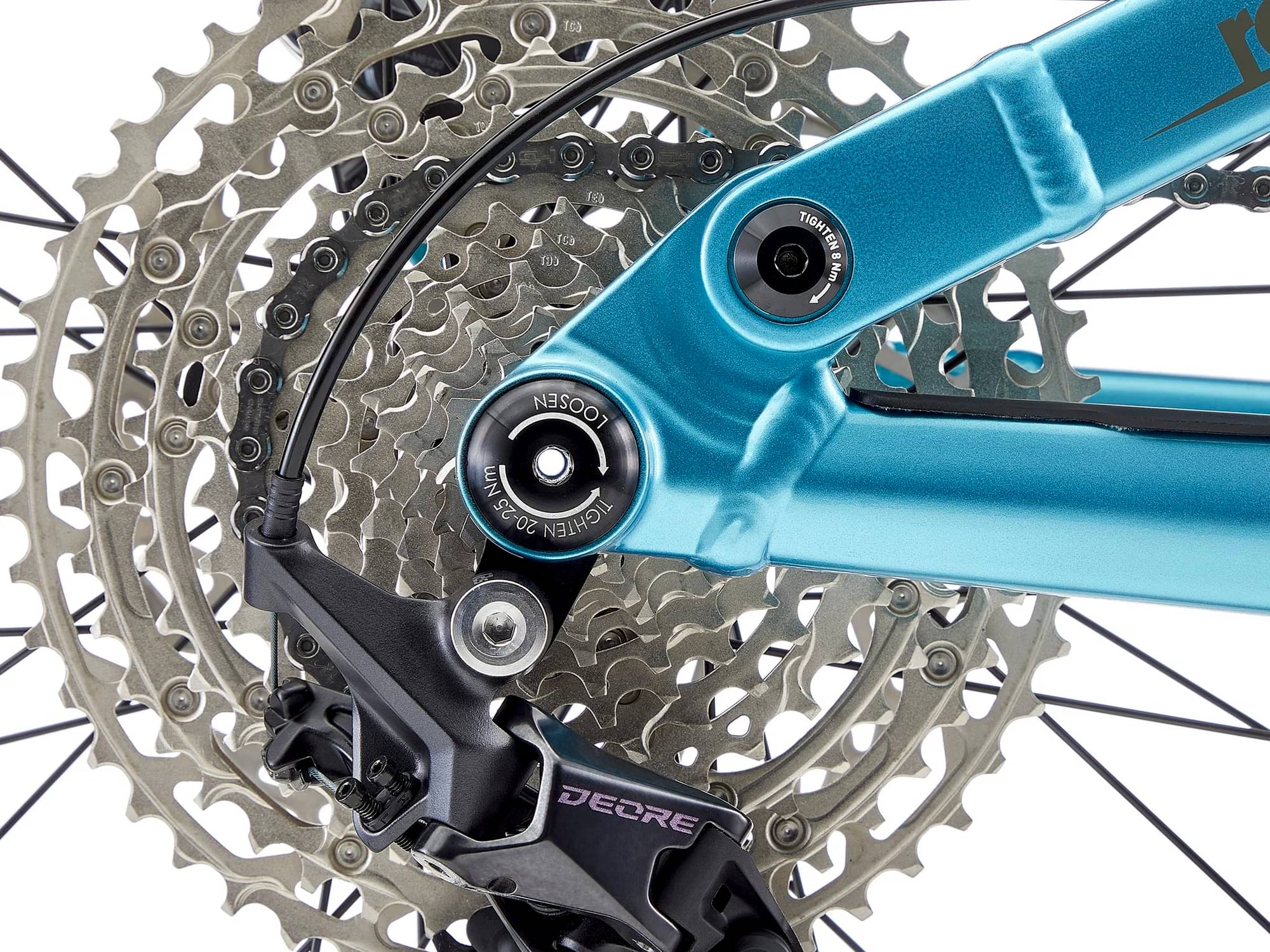

Rear Derailleur
Shimano Deore
Front Derailleur
n/a
Shift Levers
Shimano Deore
Cassette
Shimano Deore 10-51t 12spd
Crank
Shimano E8000, 36t
Bottom Bracket
n/a
Chain
Shimano Deore
Chain Guide
n/a
Pedals
n/a
Wheels
Front Hub
Formula 110x15mm
Rear Hub
Formula 148x12mm
Rims
WTB KOM Trail i35 TCS 2.0
Spokes
Stainless Black 14g
Tires
Front: Maxxis Minion DHF EXO+ TR 3C 29x2.5" WT, Rear: Maxxis Minion DHR II EXO+ TR 3C 29x2.4" WT
Brakes
Brakes
Shimano Deore
Brake Levers
Shimano Deore
Cockpit
Stem
Kona XC/BC 35
Handlebar
Kona XC/BC 35
Grips
Kona Key Grip

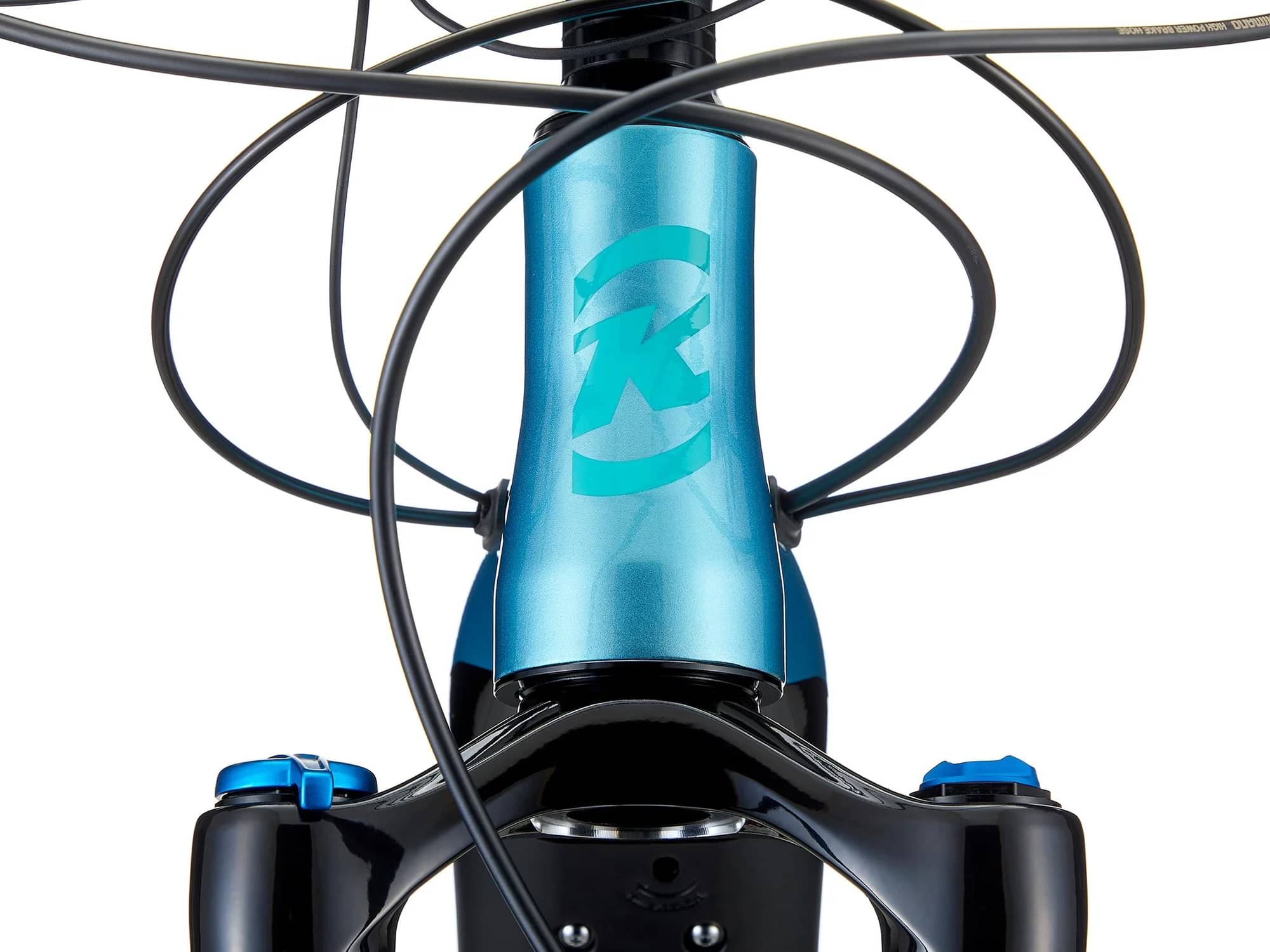

Headset
FSA No.57E
Seat
Saddle
WTB Volt
Seatpost

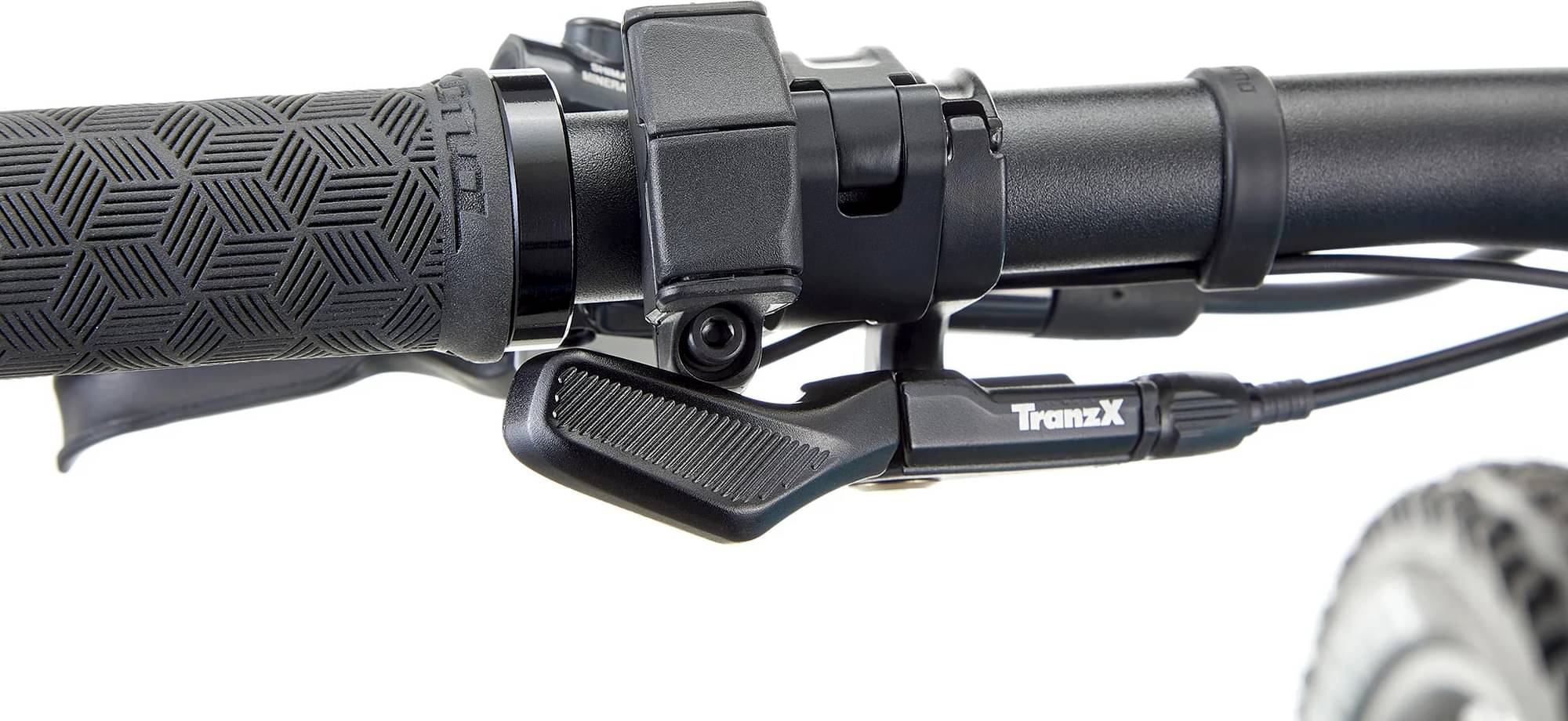

TranzX Dropper Internal 31.6mm
Motor & Battery

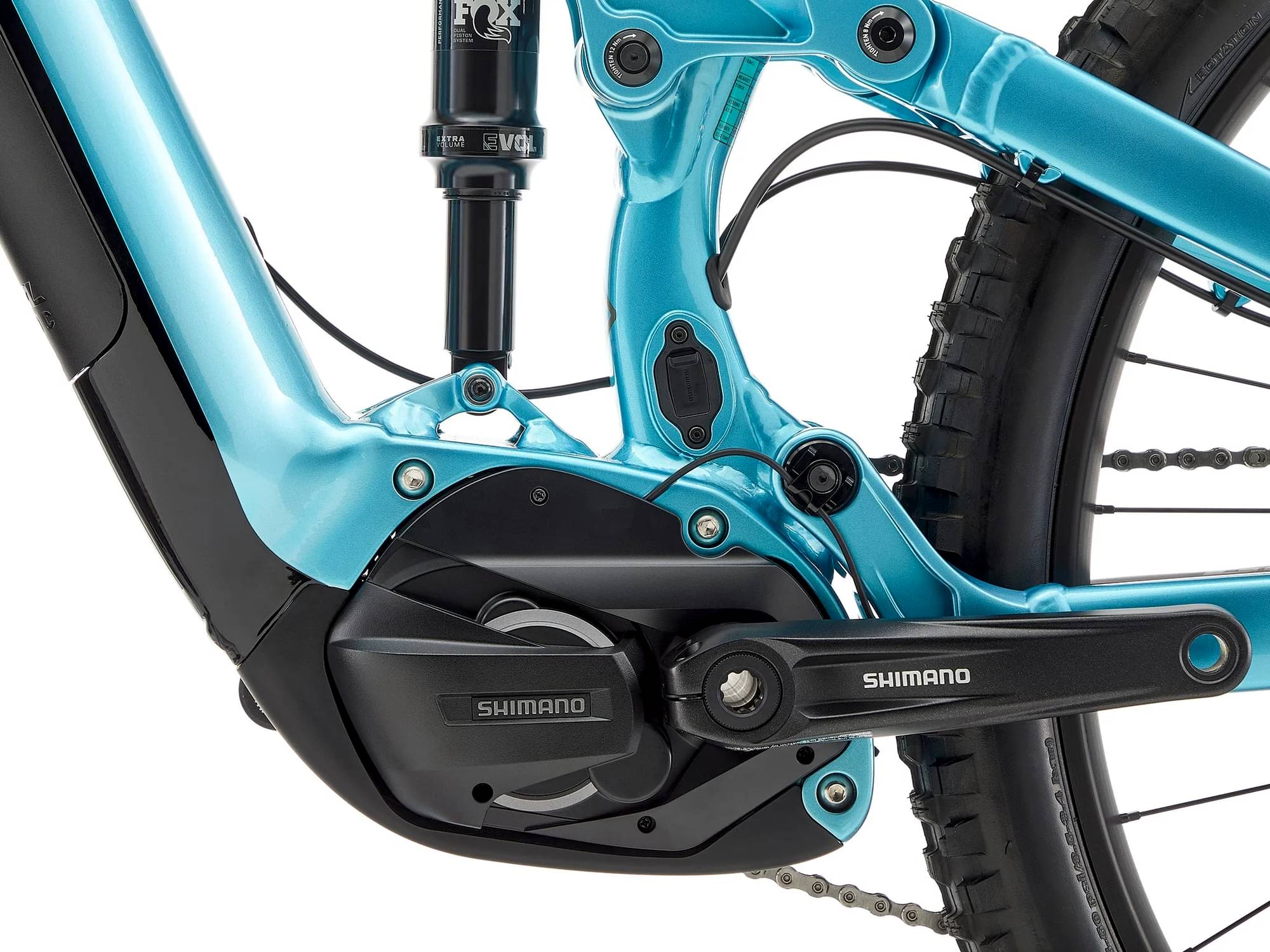

Motor
Shimano E7000 20MPH
Battery
Shimano 504Wh
Charger
Shimano STEPS 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.435 mm | 1.367 mm | 1.316 mm | 1.245 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm |
| Front Center | 752 mm | 780 mm | 809 mm | 849 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 118 mm | 118 mm | 118 mm | 118 mm |
| Stack | 610 mm | 615 mm | 625 mm | 635 mm |
| Reach | 425 mm | 450 mm | 475 mm | 510 mm |
| Top Tube Length | 570 mm | 597 mm | 626 mm | 665 mm |
| Seat Tube Angle | 76.6 ° | 76.5 ° | 76.4 ° | 76.3 ° |
| Seat Tube Length | 385 mm | 410 mm | 450 mm | 485 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 113 mm | 118 mm | 130 mm | 140 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1186 mm | 1213 mm | 1243 mm | 1282 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 720 mm | 720 mm | 720 mm | 725 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 152 cm | 157 cm | 175 cm | 180 cm |
| Rider Max Height | 170 cm | 182 cm | 195 cm | 195 cm |
