Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 160mm -
Travel Rear 160mm -
Fork RockShox ZEB Select+
-
Groupset XT, GX -
Suspension Full -
Motor Shimano 500W 85Nm mid-drive -
Battery Darfon 612Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 170cm
MD
157cm - 182cm
LG
175cm - 195cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona 6061 Aluminum Butted 160mm Travel
Suspension Fork
RockShox Zeb Select + Charger RC 2.1 DebonAir 160mm Tapered 110 Spacing

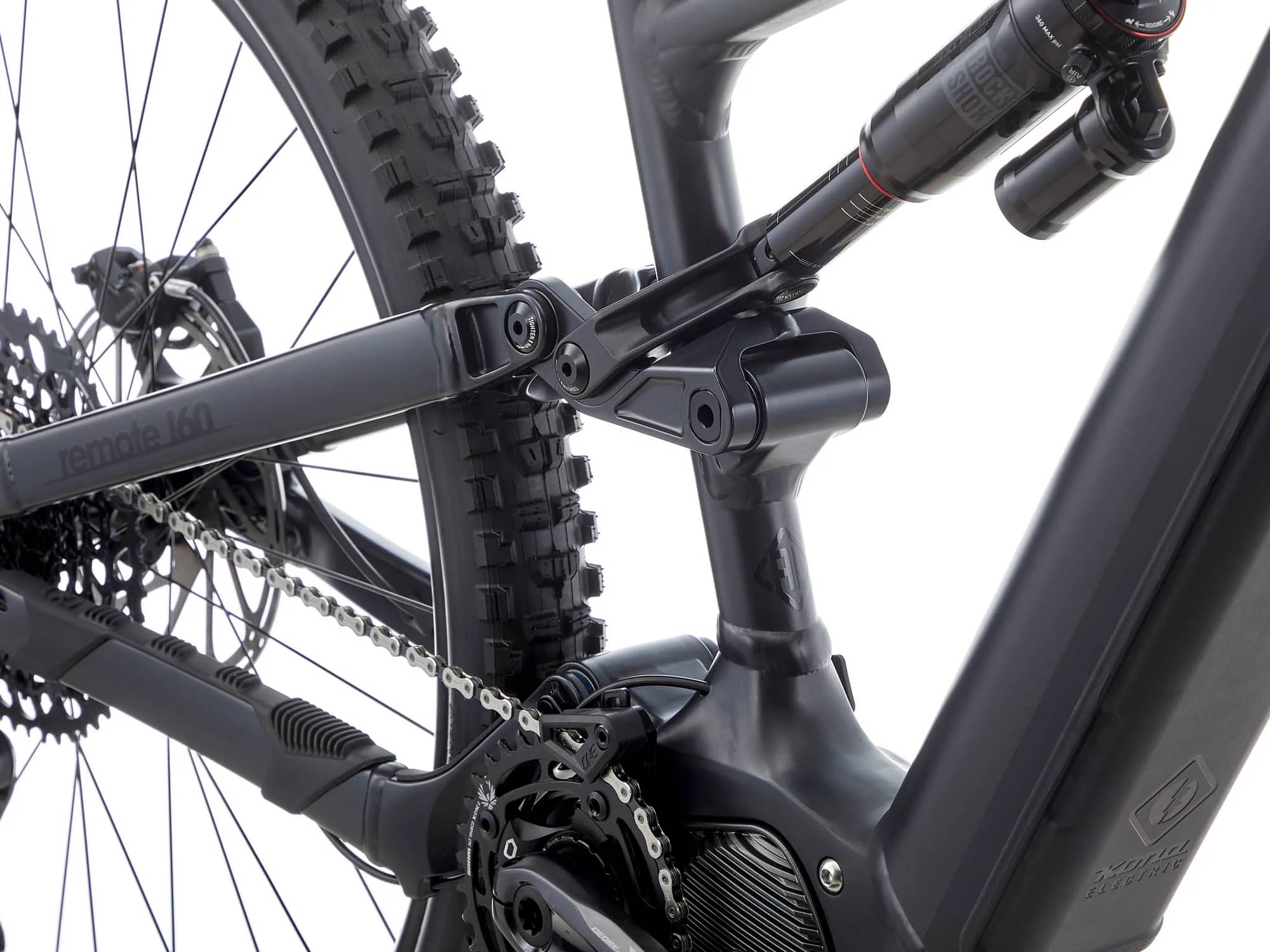

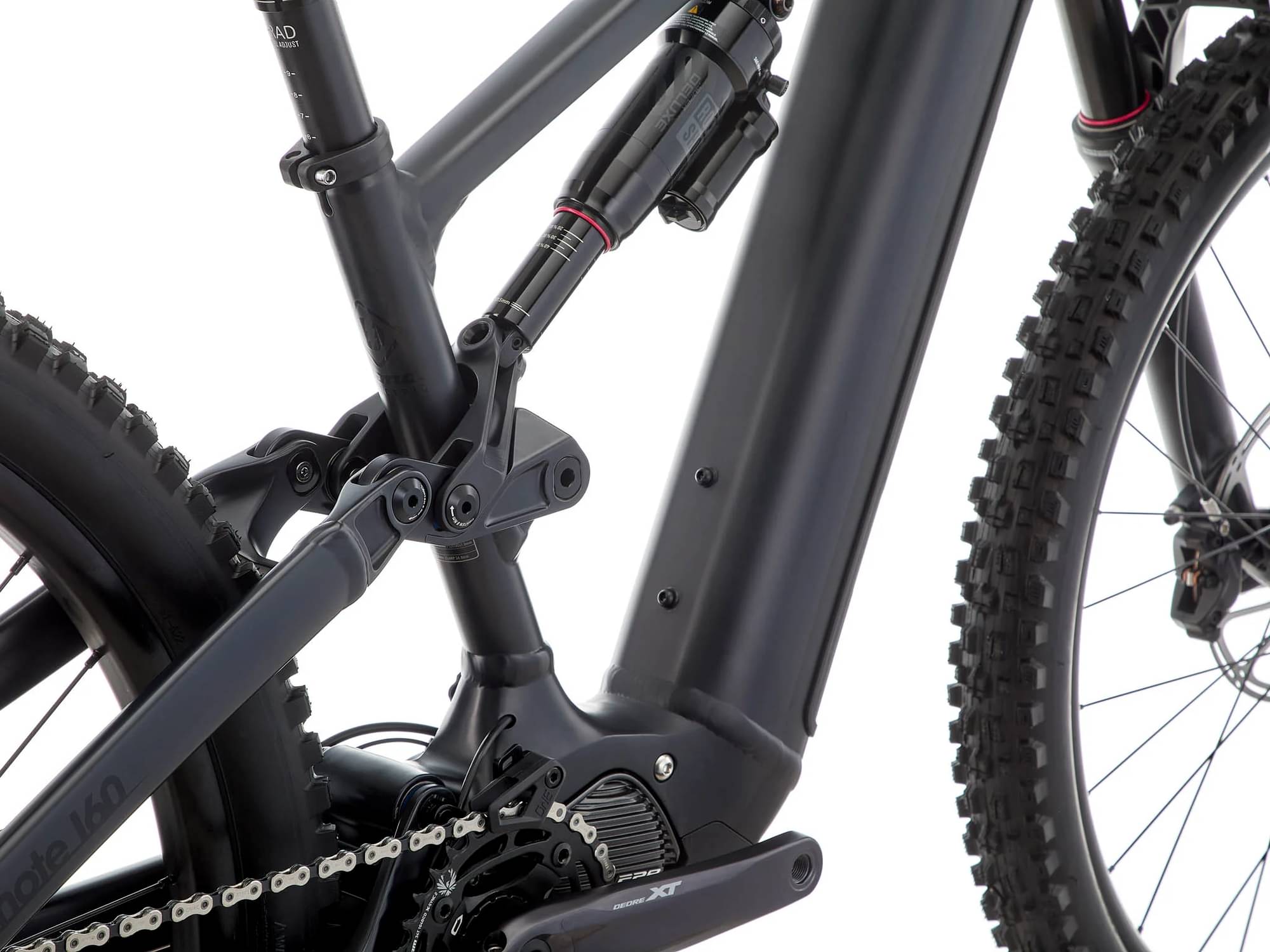

Rear Shock
RockShox Super Deluxe Select
Drivetrain
Rear Derailleur
SRAM GX
Front Derailleur
n/a
Shift Levers
SRAM GX Single Click
Cassette
SRAM GX-Eagle 10-52t 12spd
Crank
Shimano Deore XT, 34t X-Sync Eagle
Bottom Bracket
n/a
Chain
SRAM GX-Eagle
Chain Guide
OneUp Steps
Pedals
n/a
Wheels
Front Hub
Formula 110x15mm
Rear Hub
Formula 148x12mm
Rims
WTB HTZ i30 TCS 2.0
Spokes
Stainless Black 14g
Tires
Front: Maxxis Assegai DD TR 3C 29x2.5" WT, Rear: Maxxis Minion DHR II DD TR 3C 29x2.4" WT
Brakes
Brakes
SRAM Code R
Brake Levers
SRAM Code R

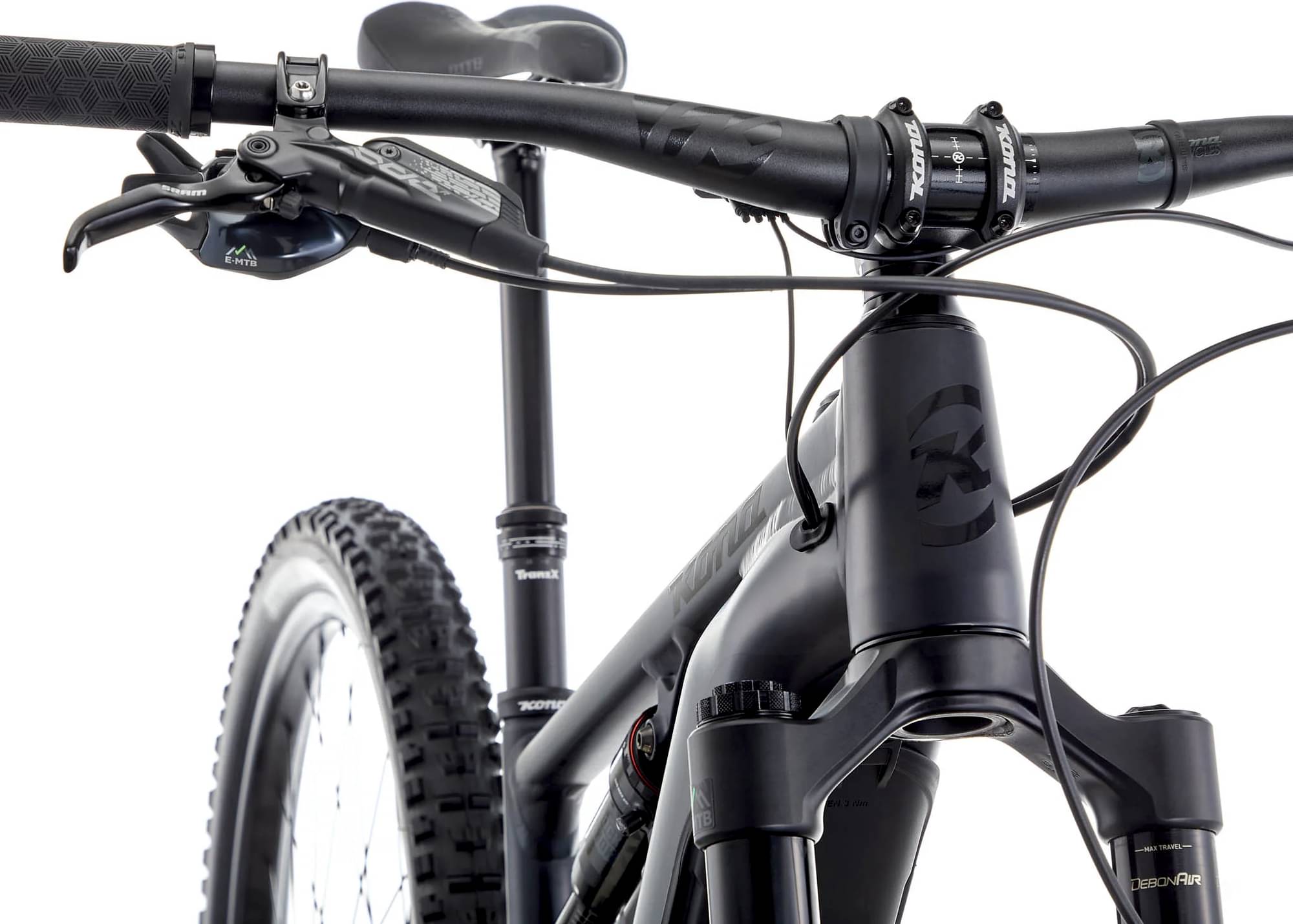

Cockpit
Stem
Kona XC/BC 35
Handlebar
Kona XC/BC 35
Grips
Kona Key Grip
Headset
FSA No.57E
Seat
Saddle
WTB Volt
Seatpost
TranzX Dropper +RAD Internal 31.6mm
Motor & Battery

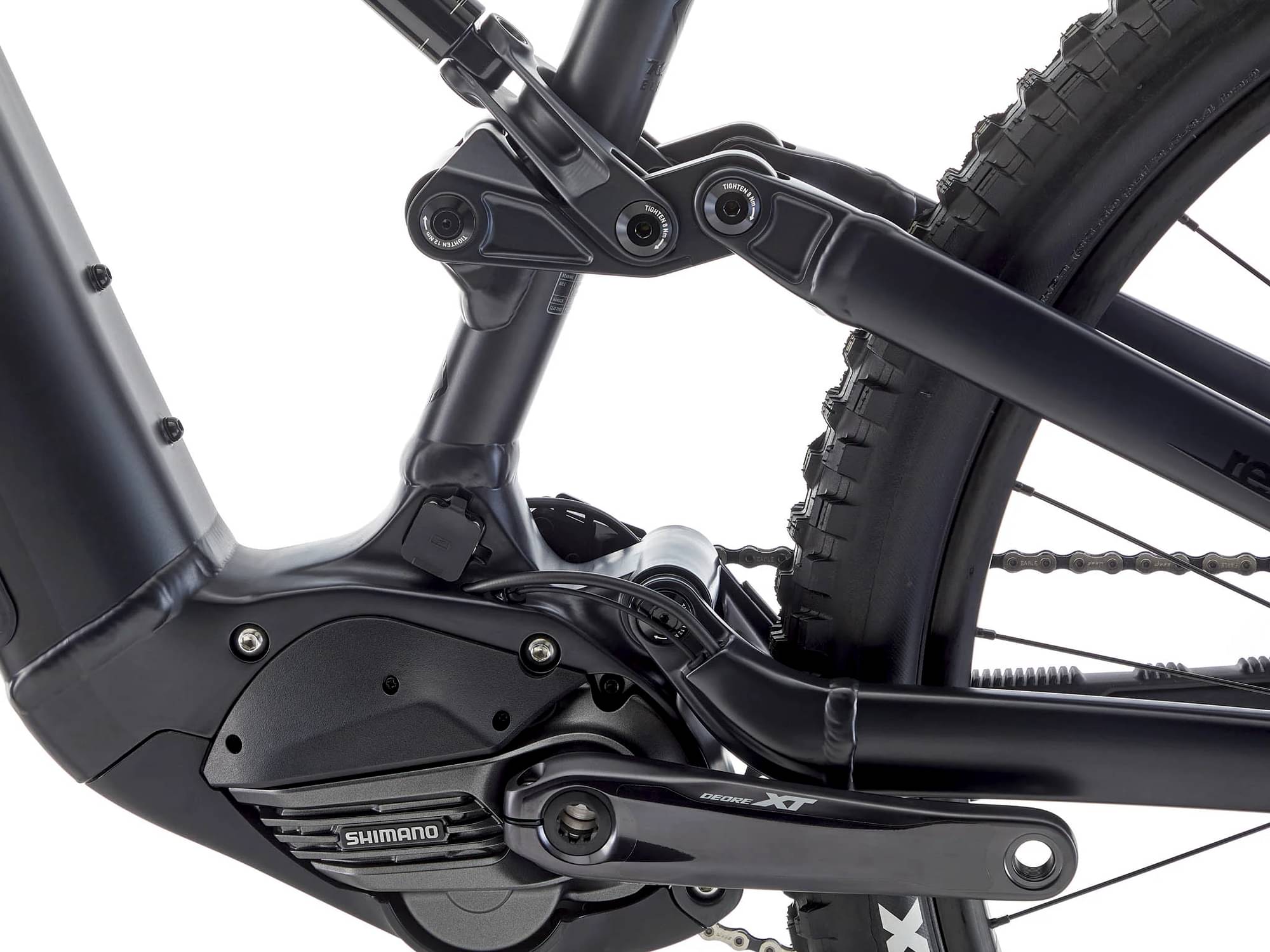

Motor
Shimano EP800 20MPH
Battery
Darfon 612Wh
Charger
Darfon Smart 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.465 mm | 1.385 mm | 1.333 mm | 1.262 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm |
| Front Center | 768 mm | 793 mm | 823 mm | 862 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 130 mm | 130 mm | 130 mm | 130 mm |
| Stack | 630 mm | 630 mm | 640 mm | 650 |
| Reach | 430 mm | 455 mm | 480 mm | 515 mm |
| Top Tube Length | 576 mm | 601 mm | 630 mm | 669 mm |
| Seat Tube Angle | 77 ° | 77 ° | 76.8 ° | 76.7 ° |
| Seat Tube Length | 380 mm | 380 mm | 420 mm | 450 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 112 mm | 112 mm | 123 mm | 135 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1207 mm | 1232 mm | 1261 mm | 1301 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Standover Height | 760 mm | 760 mm | 765 mm | 770 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 152 cm | 157 cm | 175 cm | 180 cm |
| Rider Max Height | 170 cm | 182 cm | 195 cm | 195 cm |
