Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 180mm -
Travel Rear 178mm -
Fork Fox Performance Float 38
-
Groupset XT, Deore -
Suspension Full -
Motor Shimano 500W 85Nm mid-drive -
Battery Darfon 612Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 170cm
MD
157cm - 182cm
LG
175cm - 195cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona 6061 Aluminum Butted 178mm Travel
Suspension Fork
Fox 38 Performance 180mm Tapered 110 Spacing

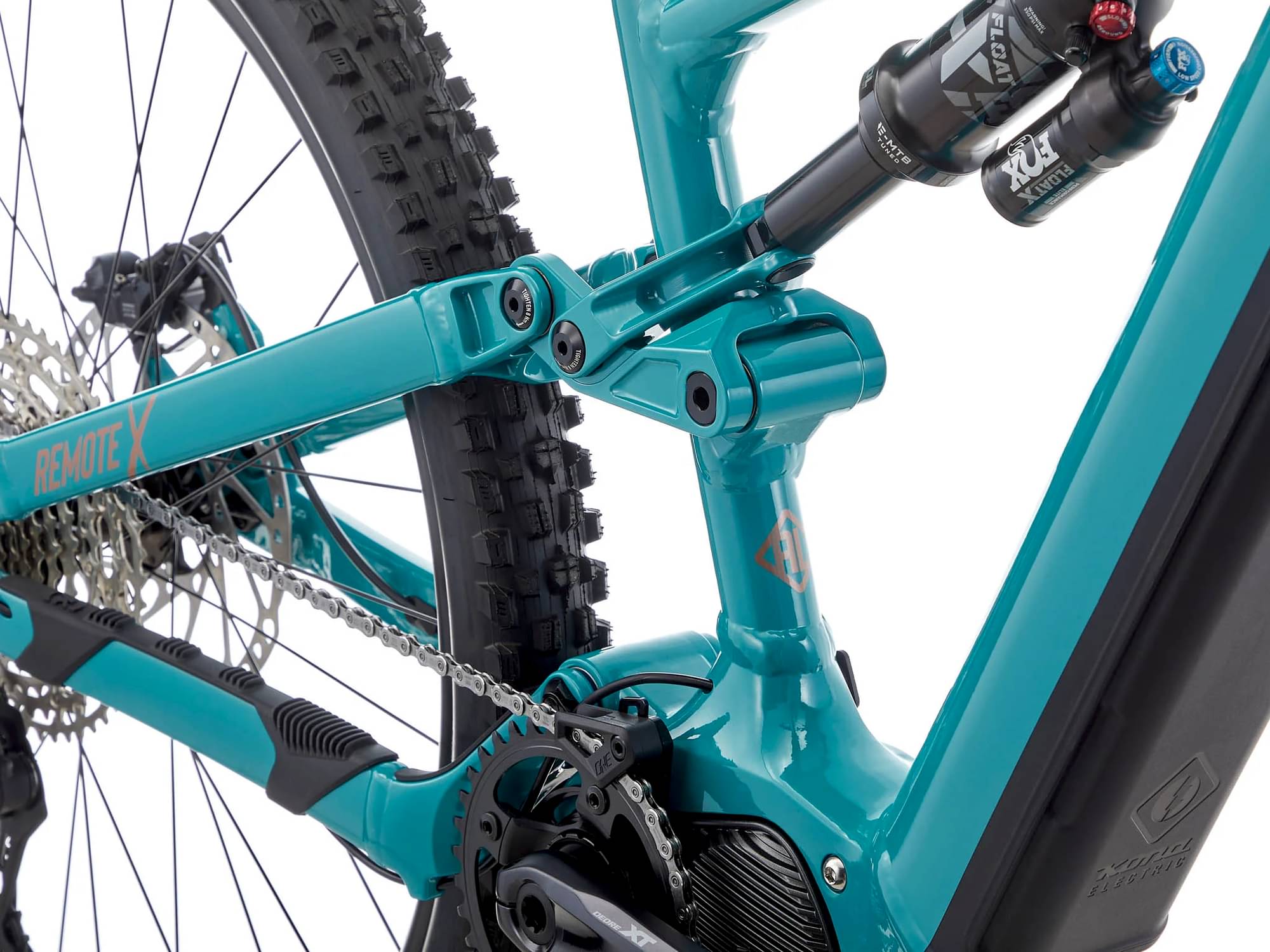

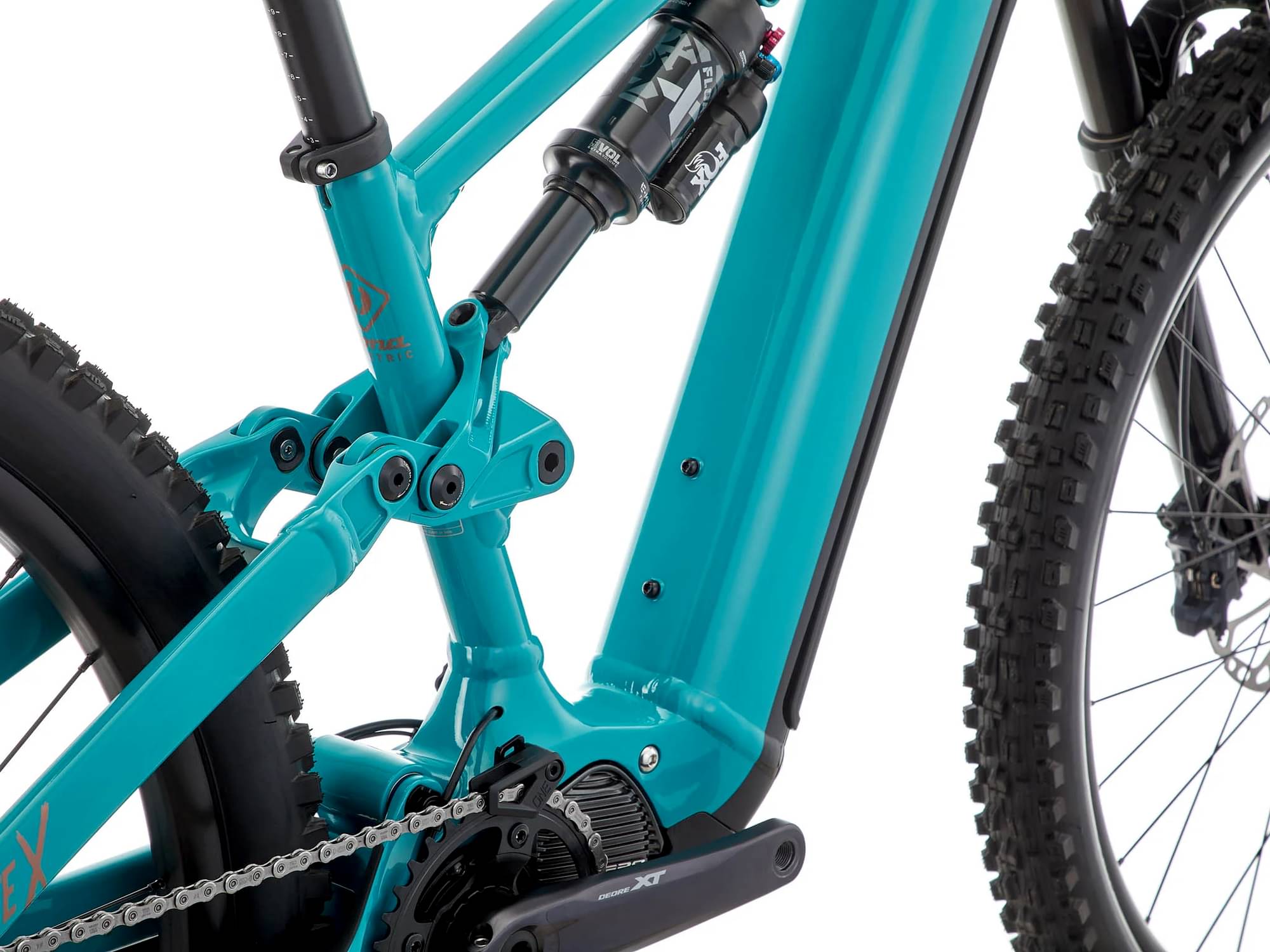

Rear Shock
Fox Float X Performance Elite
Drivetrain
Rear Derailleur
Shimano Deore
Front Derailleur
n/a
Shift Levers
Shimano Deore
Cassette
Shimano Deore 10-51t 12spd
Crank
Shimano Deore XT, 36t
Bottom Bracket
n/a
Chain
Shimano Deore
Chain Guide
OneUp Steps
Pedals
n/a
Wheels
Front Hub
Formula 110x15mm (centerlock)
Rear Hub
Formula 148x12mm (centerlock)
Rims
WTB HTZ i30 TCS 2.0
Spokes
Stainless Black 14g
Tires
Front: Maxxis Assegai DD TR 3C 29x2.5" WT, Rear: Maxxis Assegai DD TR 3C 29x2.5" WT
Brakes
Brakes
Shimano SLX
Brake Levers
Shimano SLX

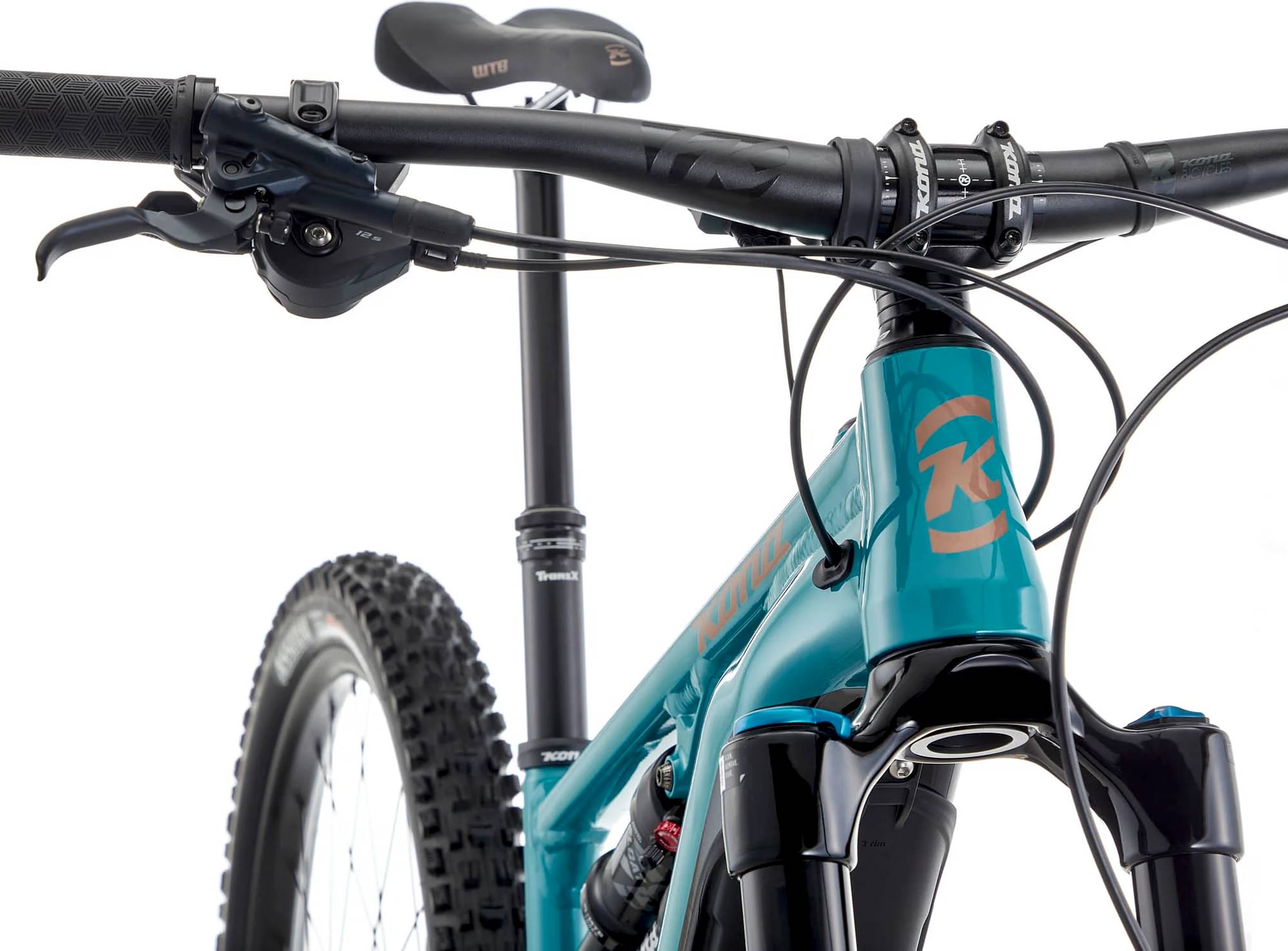

Cockpit
Stem
Kona XC/BC 35
Handlebar
Kona XC/BC 35
Grips
Kona Key Grip
Headset
FSA No.57E
Seat
Saddle
WTB Volt
Seatpost
TranzX Dropper +RAD Internal 31.6mm
Motor & Battery

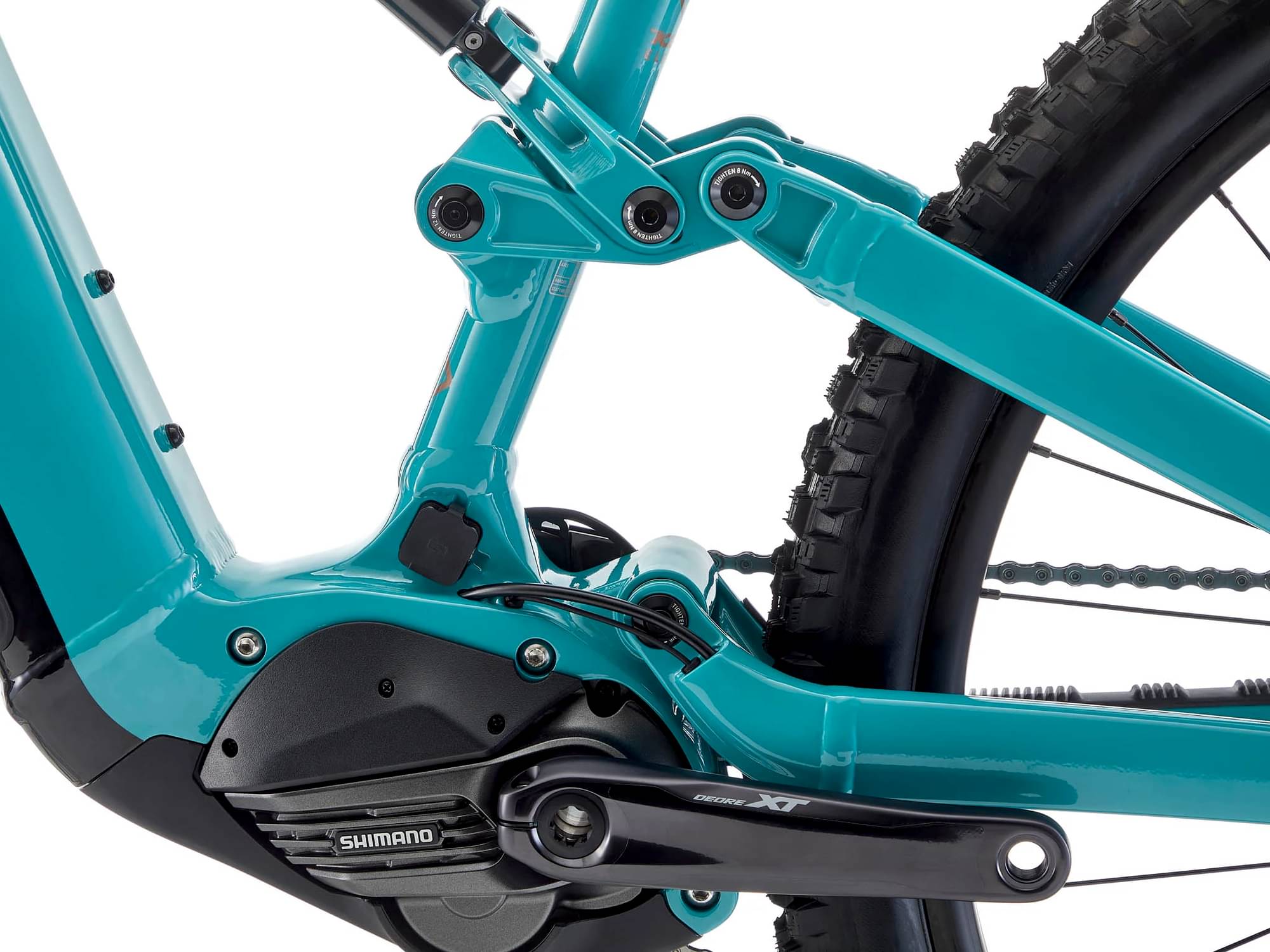

Motor
Shimano EP800 20MPH
Battery
Darfon 612Wh
Charger
Darfon Smart 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.477 mm | 1.396 mm | 1.344 mm | 1.272 mm |
| Bottom Bracket Height | 355 mm | 355 mm | 355 mm | 355 mm |
| Front Center | 786 mm | 811 mm | 841 mm | 881 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 138 mm | 138 mm | 138 mm | 138 mm |
| Stack | 635 mm | 635 mm | 645 mm | 655 mm |
| Reach | 430 mm | 455 mm | 480 mm | 515 mm |
| Top Tube Length | 568 mm | 593 mm | 621 mm | 660 mm |
| Seat Tube Angle | 77.8 ° | 77.8 ° | 77.7 ° | 77.5 ° |
| Seat Tube Length | 380 mm | 380 mm | 420 mm | 450 mm |
| Head Tube Angle | 63.5 ° | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 110 mm | 110 mm | 121 mm | 133 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1225 mm | 1250 mm | 1280 mm | 1320 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 20 mm | 20 mm |
| Standover Height | 765 mm | 765 mm | 770 mm | 775 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 152 cm | 157 cm | 175 cm | 180 cm |
| Rider Max Height | 170 cm | 182 cm | 195 cm | 195 cm |
