Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Groupset Rival, Apex -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components

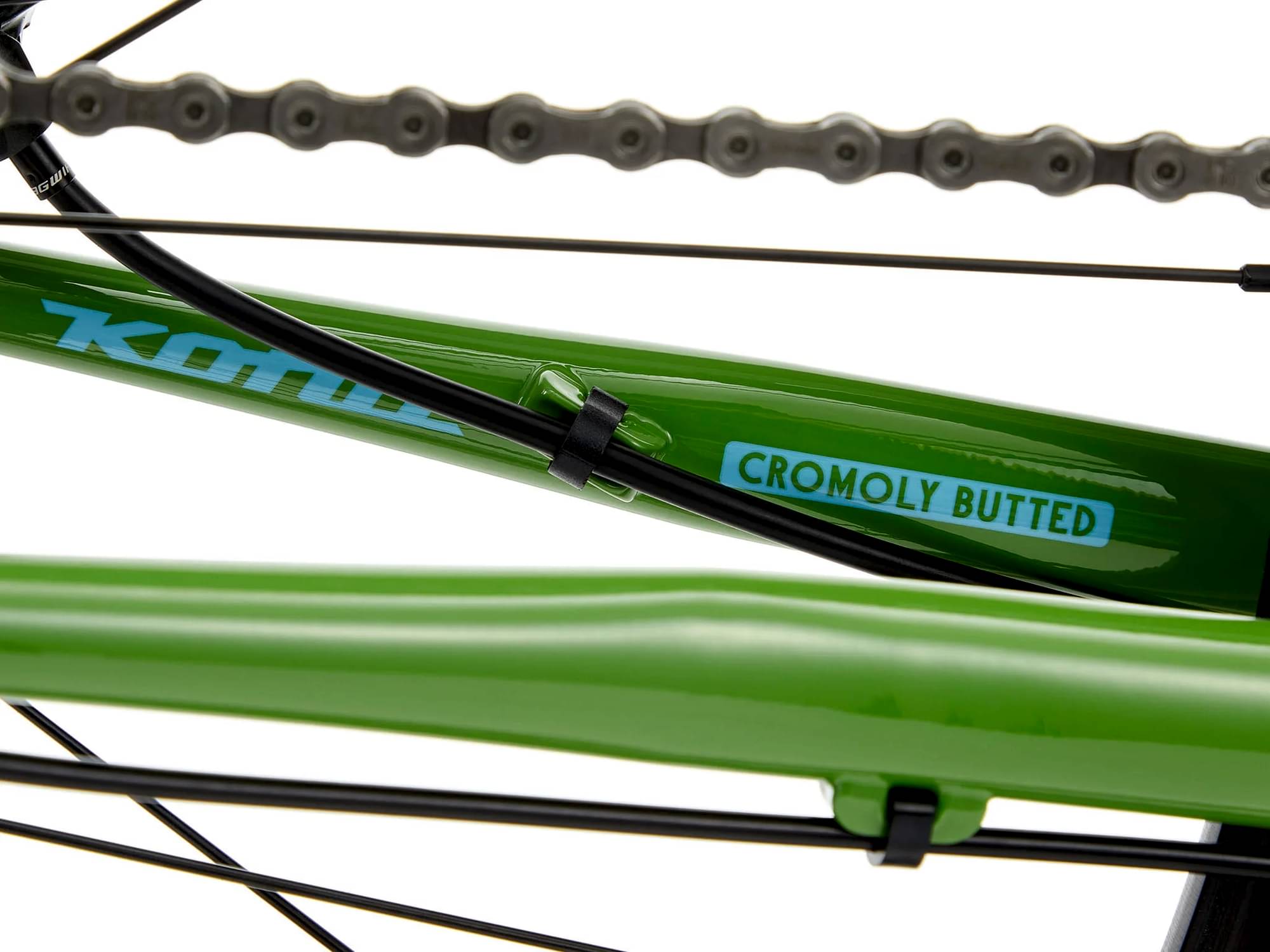

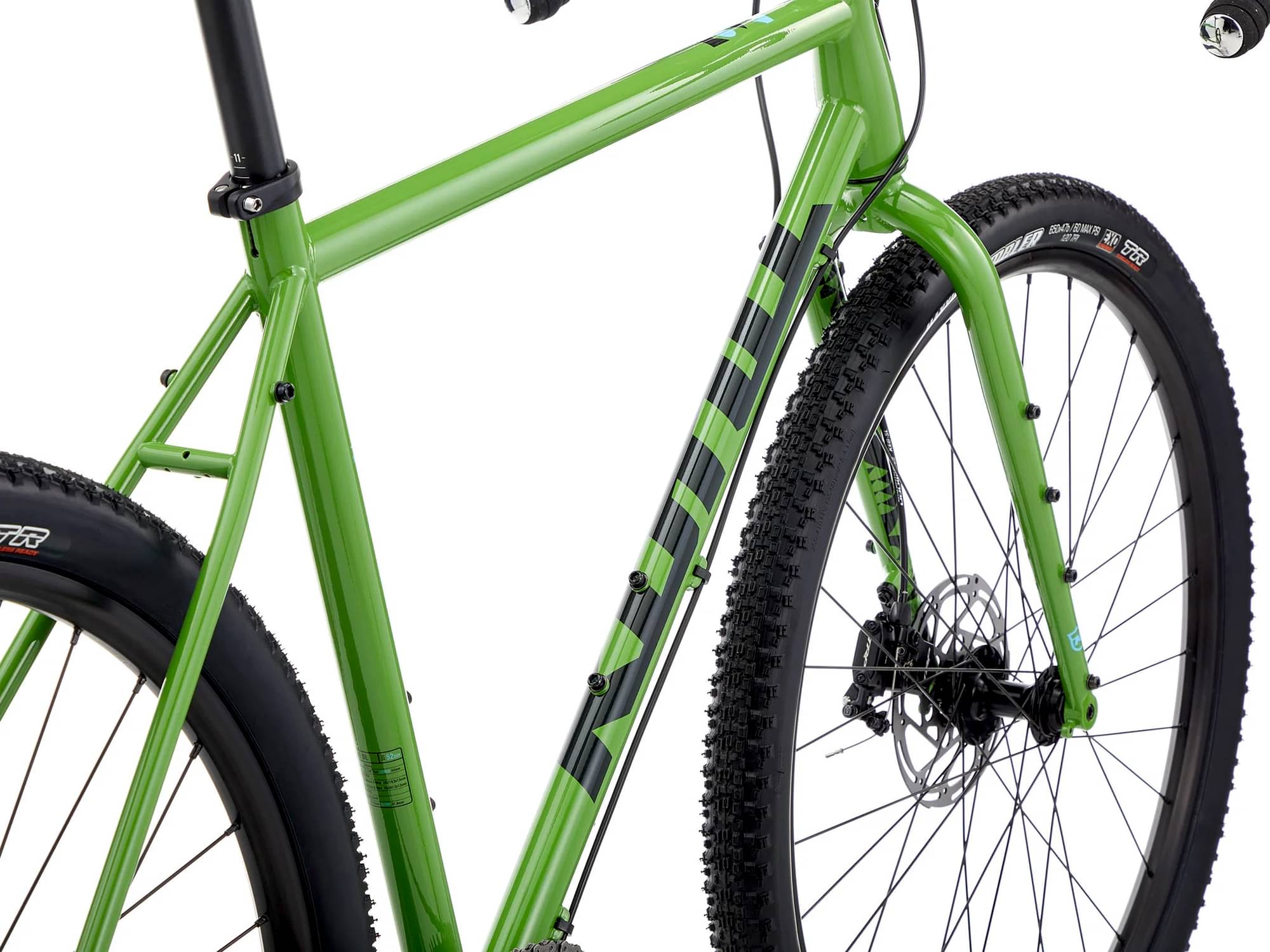

Frame
Frame
Kona Butted Cromoly
Suspension Fork
Kona Project Two Cromoly Disc
Rear Shock
n/a
Drivetrain
Rear Derailleur
SRAM Rival 1
Front Derailleur
n/a
Shift Levers
SRAM Rival 1
Cassette
SRAM PG1130 11-42t 11spd
Crank
SRAM Apex, 40t X-Sync
Bottom Bracket
SRAM GXP 68mm
Chain
SRAM PC1110
Chain Guide
n/a
Pedals
n/a
Wheels
Front Hub
Formula 100x12mm
Rear Hub
Formula 142x12mm
Rims
WTB ST i23 TCS 2.0
Spokes
Stainless Black 14g
Tires
Front: Maxxis Rambler EXO TR 650x47c, Rear: Maxxis Rambler EXO TR 650x47c

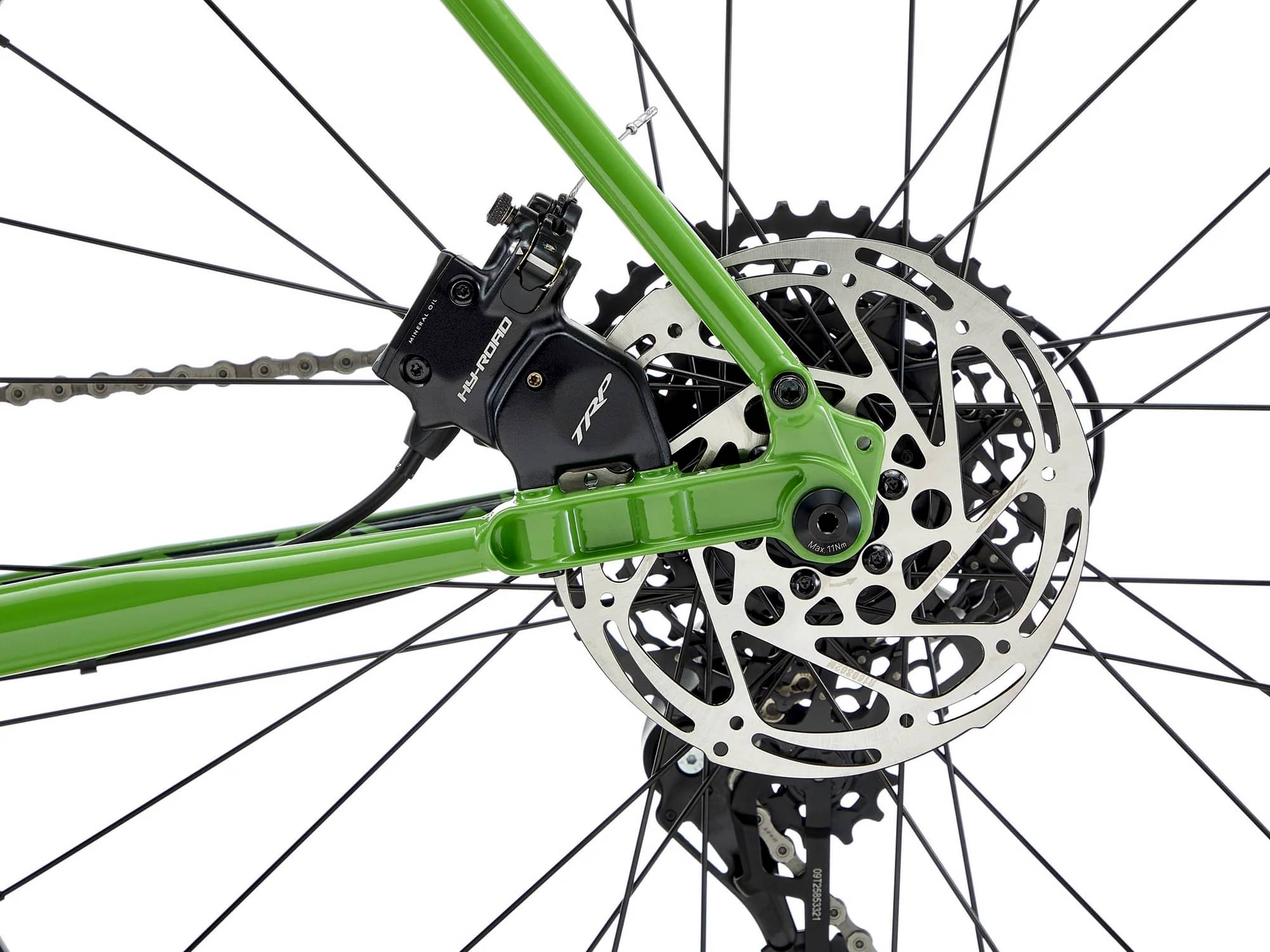

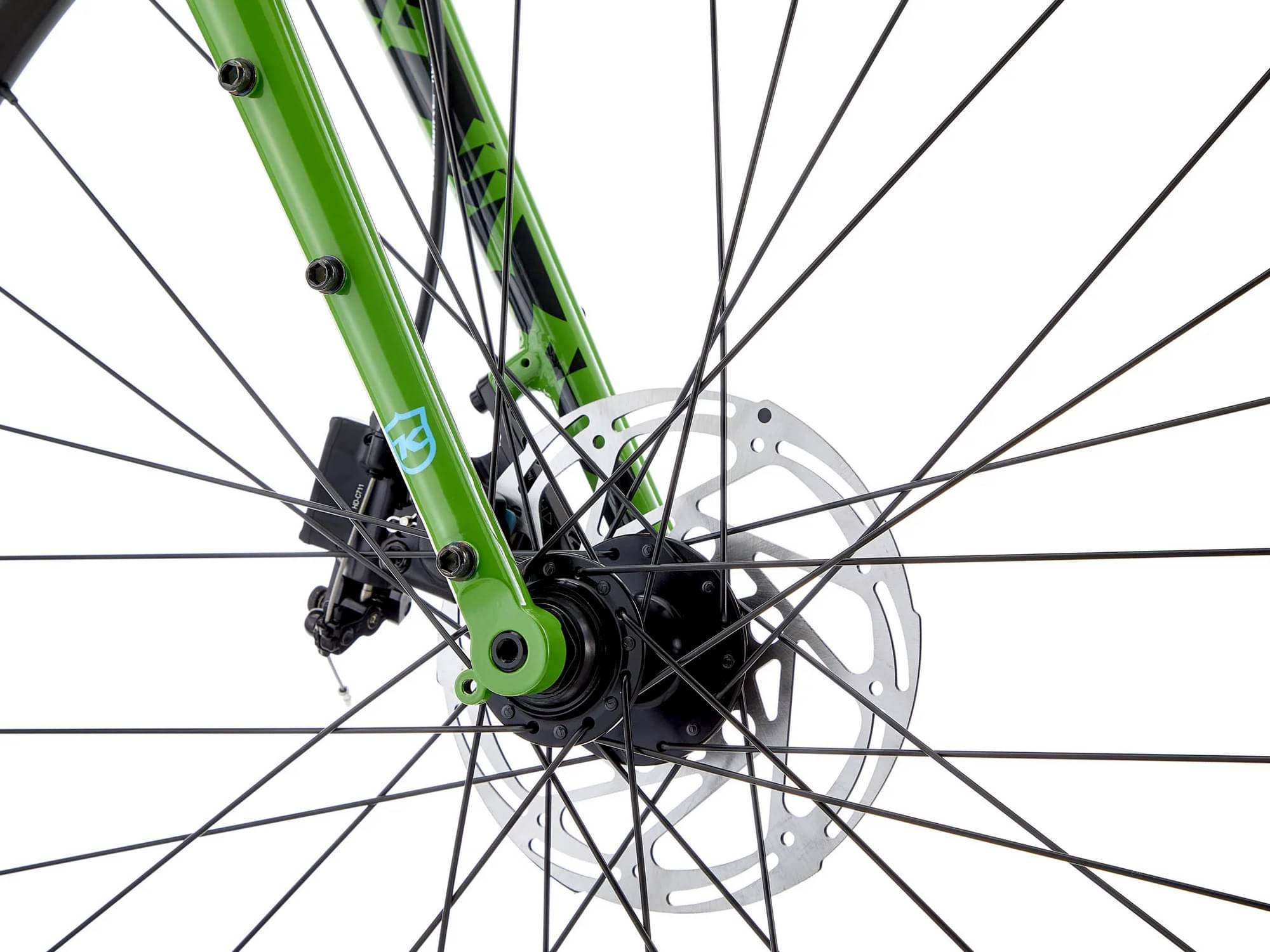

Brakes
Brakes
TRP HDC711C Mechanical / Hydraulic
Brake Levers
SRAM Rival 1

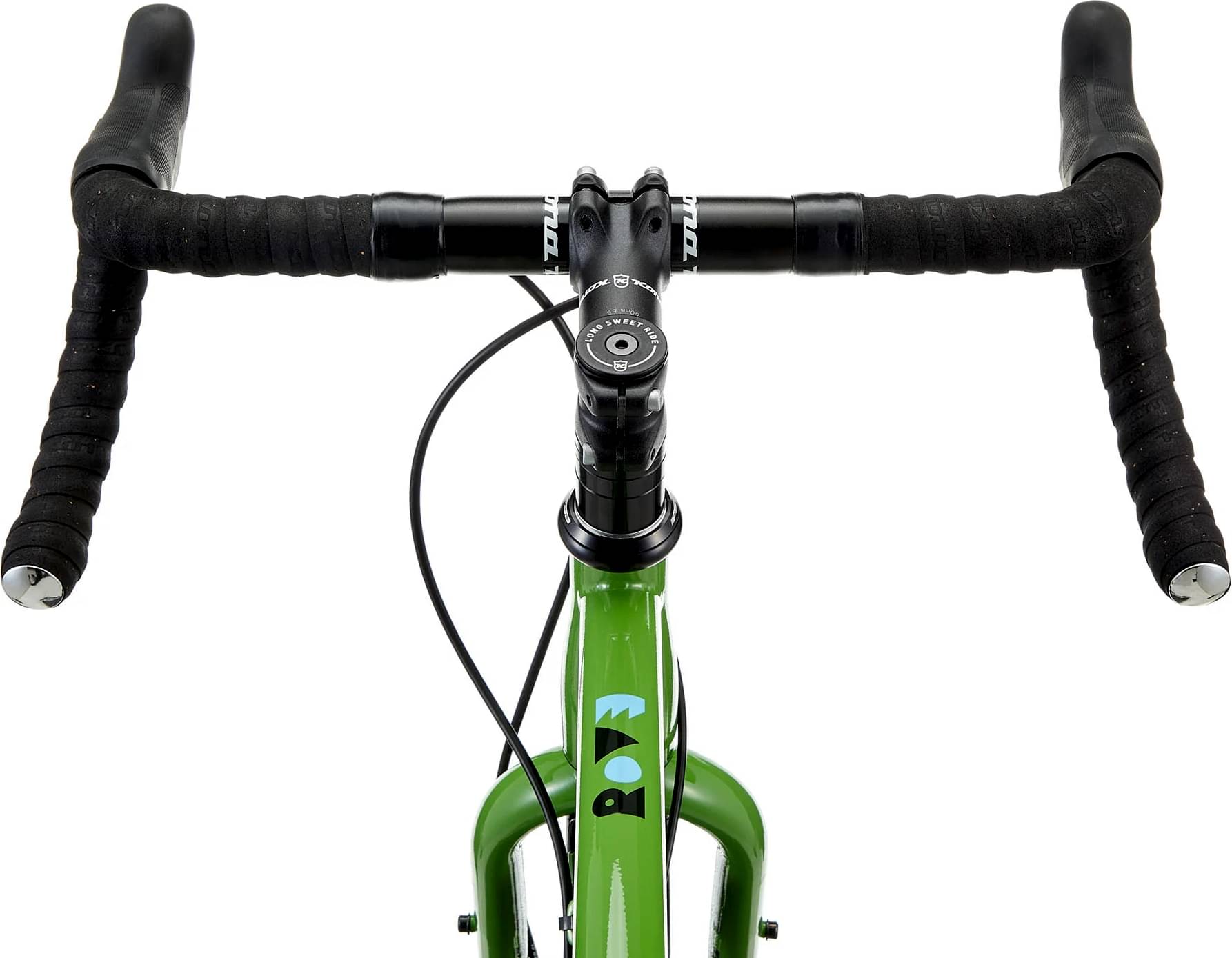

Cockpit
Stem
Kona Road Deluxe
Handlebar
Kona Road
Grips
Kona Cork Tape
Headset
FSA No.1/No.10
Seat
Saddle
WTB Volt
Seatpost
Kona Deluxe Thumb w/Offset 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 50cm | 52cm | 54cm | 56cm | 58cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.458 mm | 1.488 mm | 1.515 mm | 1.548 mm | 1.565 mm |
| Bottom Bracket Height | 268 mm | 268 mm | 270 mm | 270 mm | 272 mm | 272 mm |
| Front Center | 592 mm | 604 mm | 612 mm | 623 mm | 628 mm | 643 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 64 mm | 64 mm | 61 mm | 61 mm | 58 mm | 58 mm |
| Stack | 532 mm | 551 mm | 570 mm | 588 mm | 607 mm | 626 mm |
| Reach | 372 mm | 378 mm | 383 mm | 388 mm | 392 mm | 400 mm |
| Top Tube Length | 515 mm | 531 mm | 546 mm | 562 mm | 578 mm | 598 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 480 mm | 500 mm | 520 mm | 540 mm | 560 mm | 580 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 71 ° | 71 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 90 mm | 110 mm | 130 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1016 mm | 1029 mm | 1036 mm | 1048 mm | 1054 mm | 1068 mm |
| Bottom Bracket Drop | 74 mm | 74 mm | 72 mm | 72 mm | 70 mm | 70 mm |
| Standover Height | 735 mm | 754 mm | 775 mm | 794 mm | 815 mm | 834 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 | 650 |
