Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Claris, Suntour -
Suspension Rigid -
Motor hub-drive -
Battery Phylion 418Wh -
Drivetrain 1 × 8 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona 6061 Aluminum Butted
Suspension Fork
Kona Project Two Aluminum Disc
Rear Shock
n/a
Drivetrain
Rear Derailleur
Shimano Clairs
Front Derailleur
n/a
Shift Levers
Shimano Clairs
Cassette
Shimano Clairs 11-32t 8spd

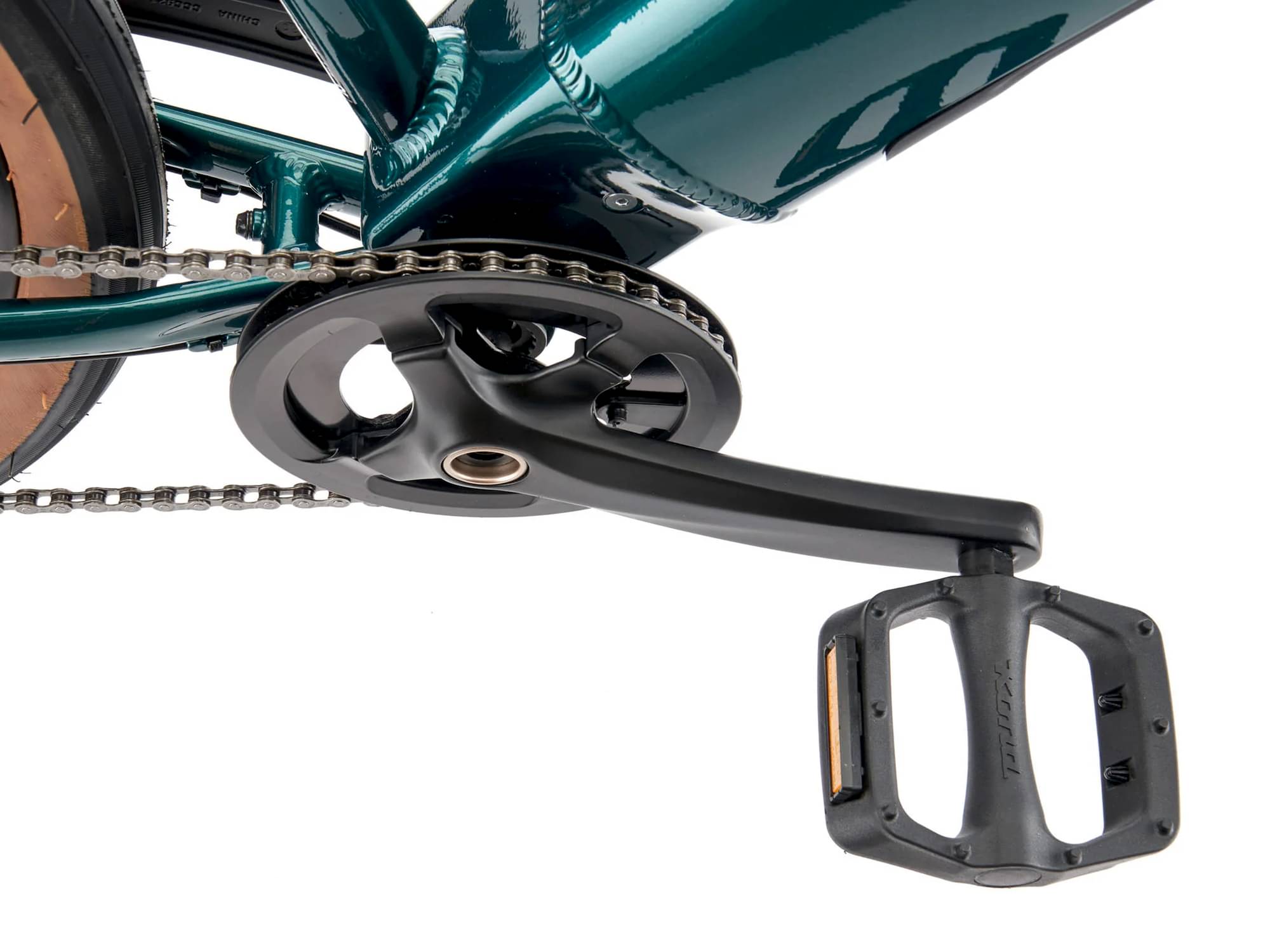

Crank
Suntour, 38t
Bottom Bracket
Suntour
Chain
KMC Z8.3
Chain Guide
n/a
Pedals
Kona JS2
Wheels
Front Hub
Shimano 100x9mm
Rear Hub
SR Suntour HD 20MPH
Rims
WTB SX19
Spokes
Stainless Black 14g/13g
Tires
Front: WTB Horizon Comp 650x47c, Rear: WTB Horizon Comp 650x47c
Brakes
Brakes
Tektro Spyre-C Mechanical
Brake Levers
Tektro Spyre-C Mechanical

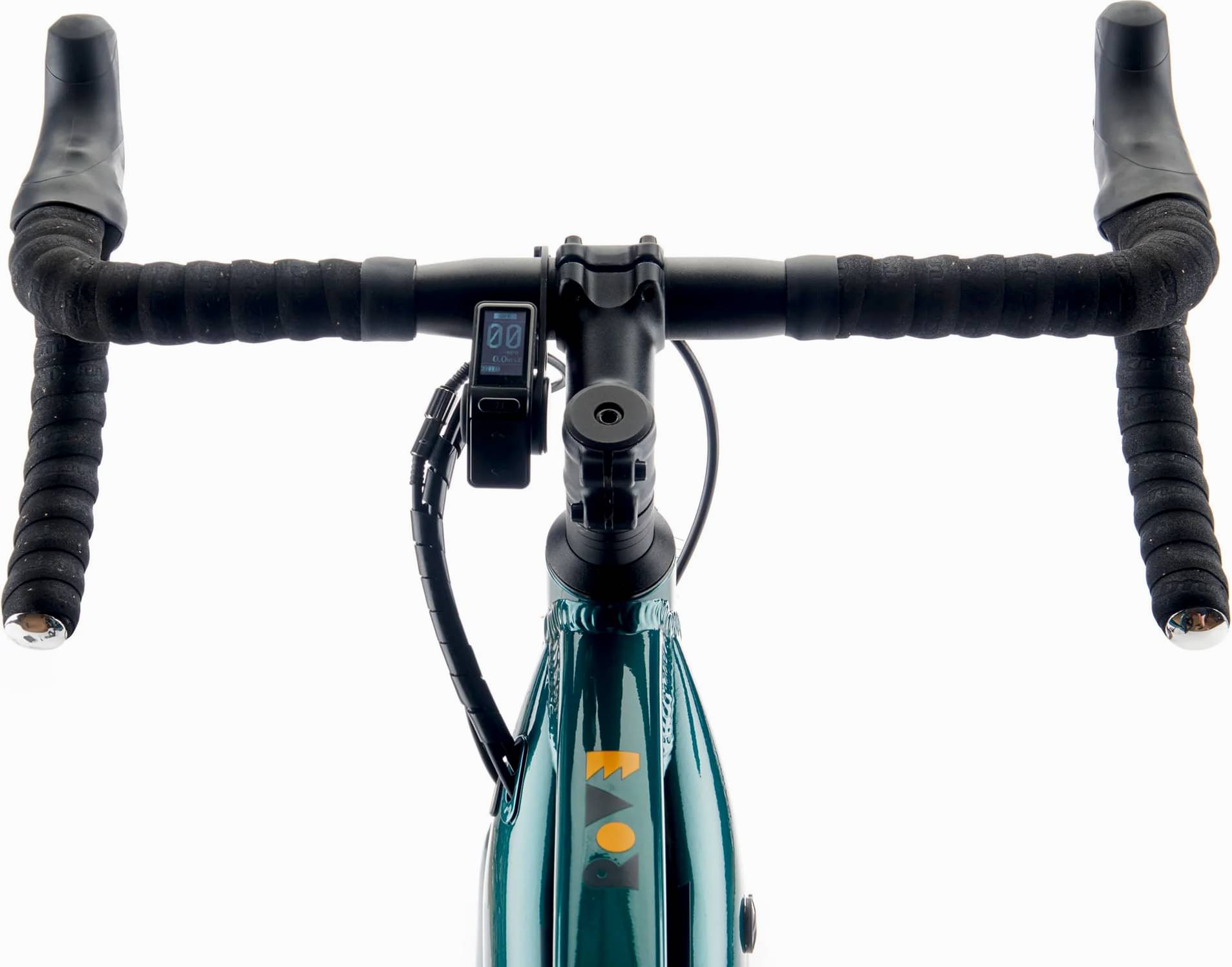

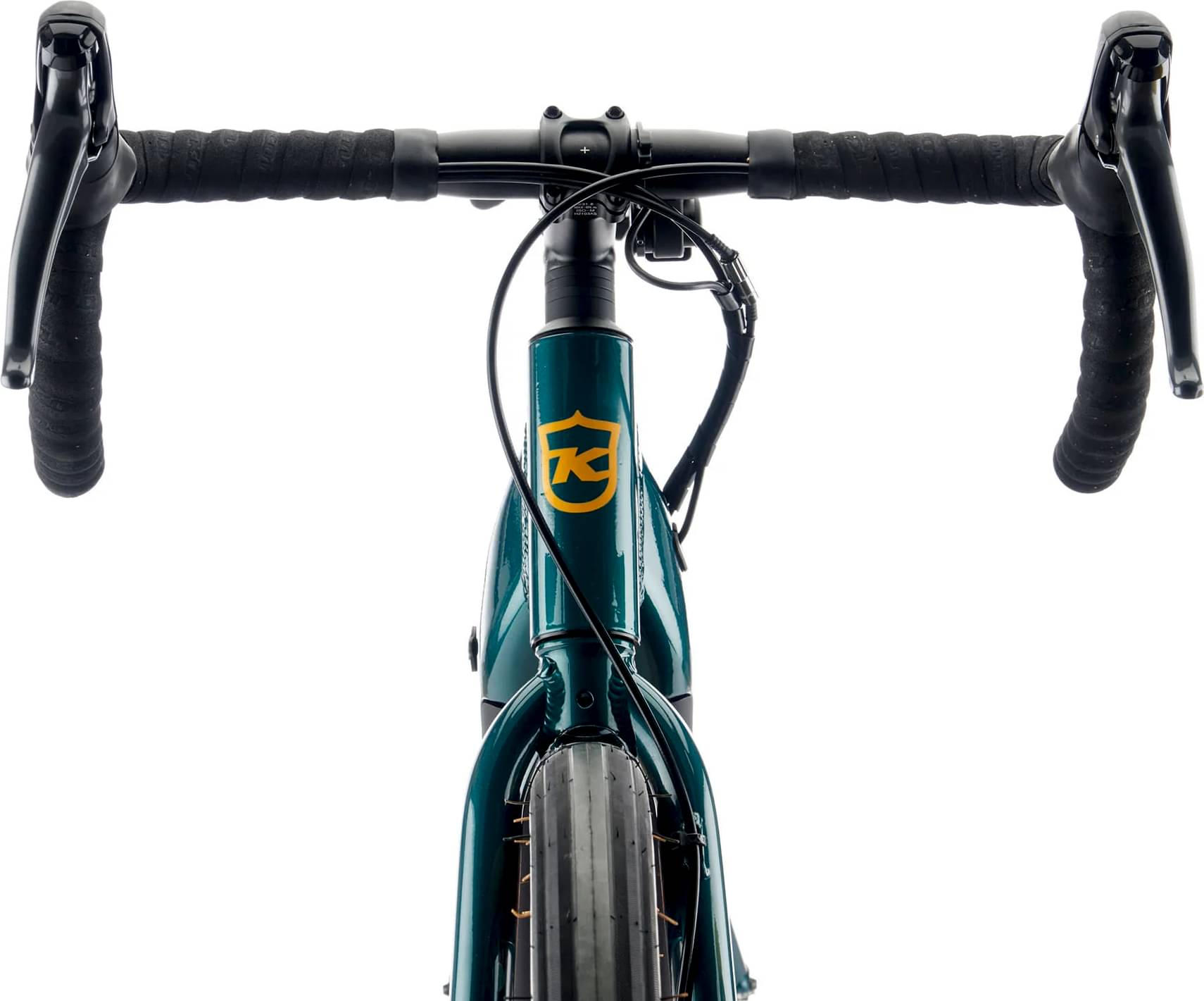

Cockpit
Stem
Kona Road Deluxe
Handlebar
Kona Road
Grips
Kona Cork Tape
Headset
Feimin FP-H863
Seat
Saddle
Kona Road
Seatpost
Kona Thumb w/Offset 27.2mm
Motor & Battery

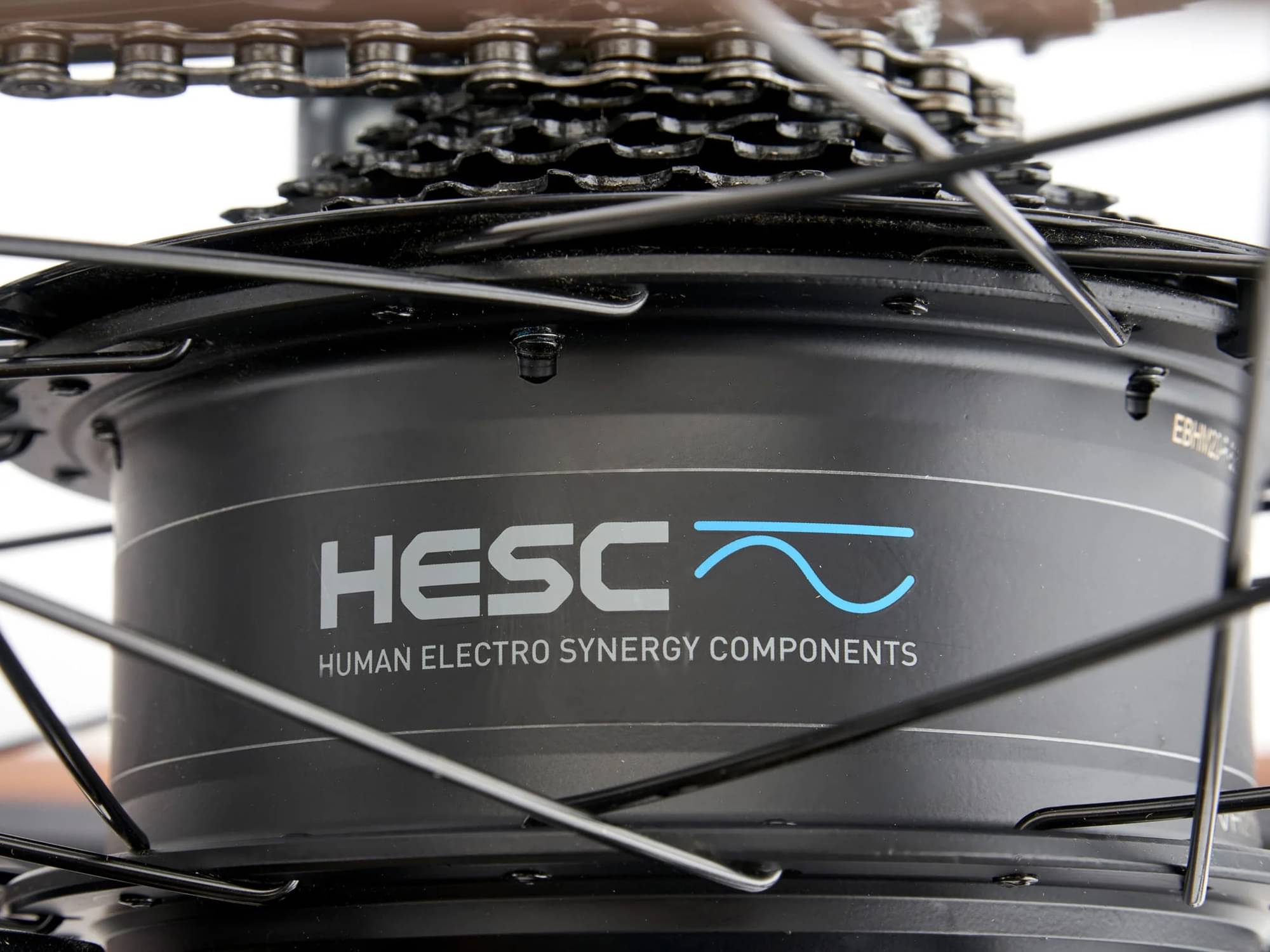

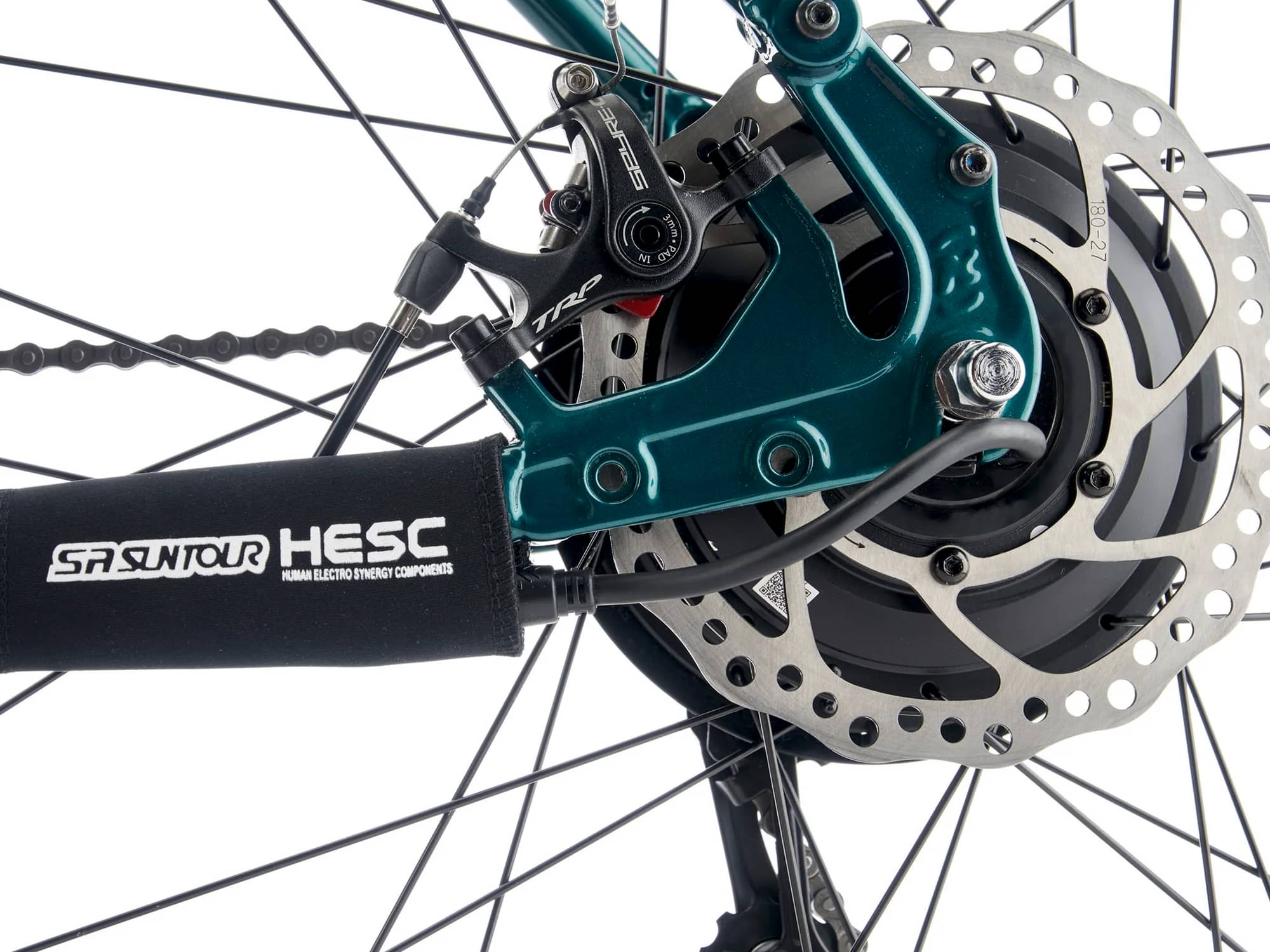

Motor
SR Suntour HD 20MPH

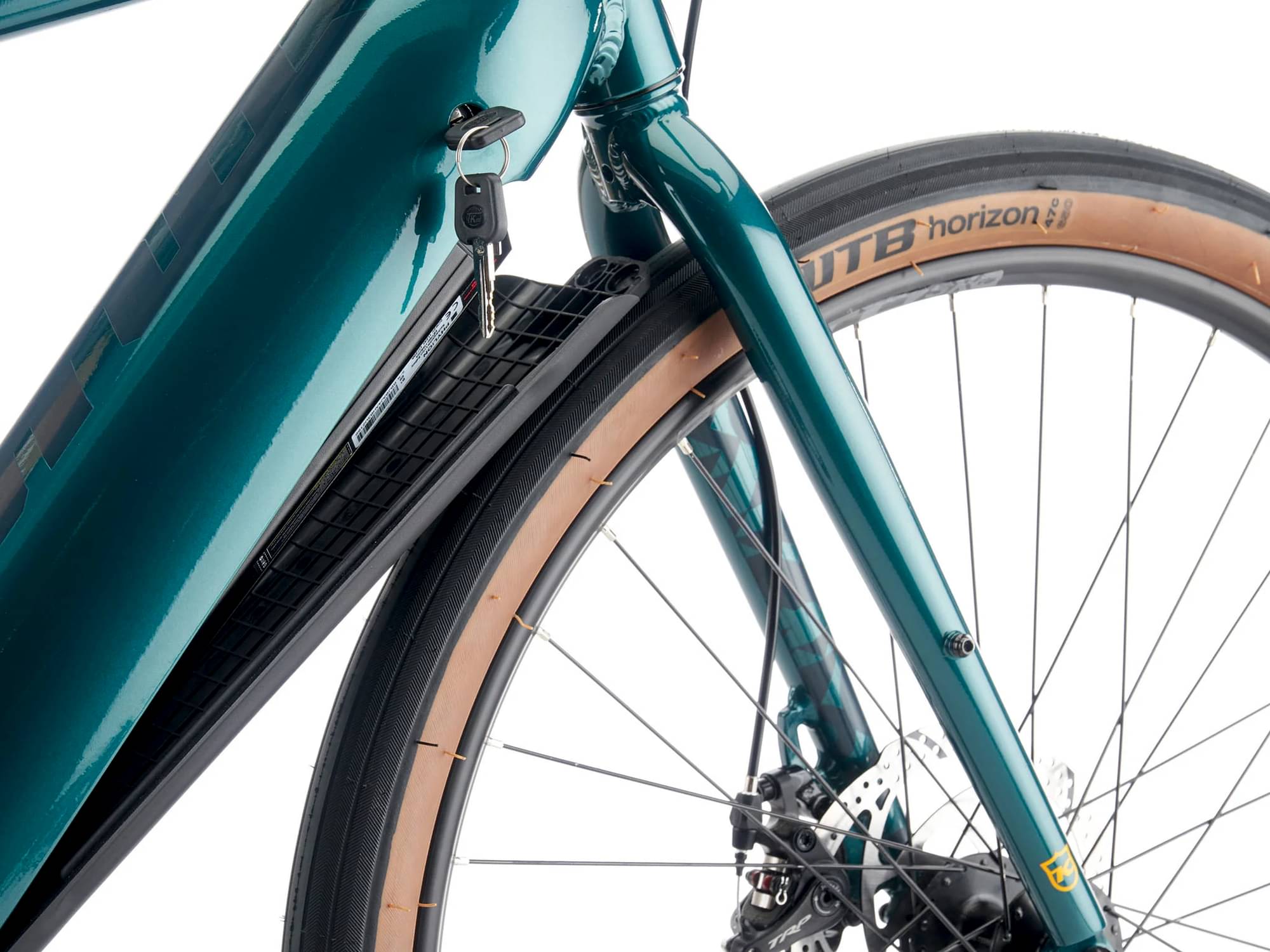

Battery
Phylion 418Wh
Charger
Phylion 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 50cm | 52cm | 54cm | 56cm | 58cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.46 mm | 1.49 mm | 1.52 mm | 1.56 mm | 1.57 mm |
| Bottom Bracket Height | 282 mm | 282 mm | 282 mm | 282 mm | 282 mm | 282 mm |
| Front Center | 602 mm | 609 mm | 613 mm | 625 mm | 631 mm | 645 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 64 mm | 64 mm | 60 mm | 61 mm | 58 mm | 58 mm |
| Stack | 546 mm | 546 mm | 562 mm | 581 mm | 602 mm | 621 mm |
| Reach | 367 mm | 373 mm | 378 mm | 383 mm | 387 mm | 395 mm |
| Top Tube Length | 515 mm | 526 mm | 541 mm | 557 mm | 573 mm | 592 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 480 mm | 500 mm | 520 mm | 540 mm | 560 mm | 580 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 71 ° | 71 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 125 mm | 125 mm | 140 mm | 160 mm | 180 mm | 200 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1040 mm | 1046 mm | 1052 mm | 1063 mm | 1069 mm | 1083 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 729 mm | 748 mm | 768 mm | 788 mm | 808 mm | 828 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 | 650 |
About this model
Rove HD is a Kona E Rove model. Kona launched 1 e-bike of this model so far.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Gravel e-bikes average price
If you want an acceptable Gravel e-bike you should know that the average price is 3642$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
When Kona released this model in 2023, its price was 2199$. Doing a quick comparison, we notice that Rove HD price is 65.62% lower than the average cost of a Gravel e-bike.
Rove HD components
Fork material
Rove HD has an aluminum fork, so there won’t be much extra weight added to the e-bike. However, they are not so stiff as carbon forks are.
Wheels size
As for the wheels, Kona Rove HD 2023, has a aluminum model. After 700c wheels, 650b is the second most popular choice for road bikes. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Rove HD has Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
