Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 26" -
Travel Front 80mm -
Suspension Hardtail -
Drivetrain Single Speed -
Brakes Mechanical Disc
Sizing
Recommended size guide.
LG
175cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona Clump Cromoly Butted
Suspension Fork
Rock Shox Argyle R 80mm w/20mm D/O
Rear Shock
N/A
Drivetrain
Rear Derailleur
N/A
Front Derailleur
N/A
Shift Levers
N/A
Cassette
Formula 14T
Crank
Aricle 30T
Bottom Bracket
Chainway Spanish BB
Chain
KMC Z410B
Pedals
Wellgo B107.P
Wheels
Front Hub
Formula Disc 20mm
Rear Hub
Formula Disc 135mm
Rims
Alex DM-24
Spokes
Sandvik Stainless 14g
Tires
Maxxis DTH 26x2.3
Brakes
Brakes
ProMax Mechanical Disc
Brake Levers
ProMax Mechanical Disc
Disk Rotors
ProMax 160mm
Cockpit
Stem
Kona DH
Handlebar
Kona DJ Bar
Grips
Kona G-LOG
Headset
FSA
Seat
Saddle
Kona Pivotal
Seatpost
Pivotal
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | R | LG |
|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.313 mm |
| Bottom Bracket Height | 310 mm | 310 mm |
| Front Center | 645 mm | 665 mm |
| Rake | 45 mm | 45 mm |
| Stack | 545 mm | 545 mm |
| Reach | 395 mm | 415 mm |
| Top Tube Length | 580 mm | 595 mm |
| Seat Tube Angle | 71.5 ° | 71.5 ° |
| Head Tube Angle | 69 ° | 69 ° |
| Head Tube Length | 115 mm | 115 mm |
| Chainstay Length | 400 mm | 400 mm |
| Wheelbase | 1045 mm | 1065 mm |
| Bottom Bracket Drop | 33 mm | 33 mm |
| Standover Height | 710 mm | 710 mm |
| Wheels | 26" | 26" |
Model Overview

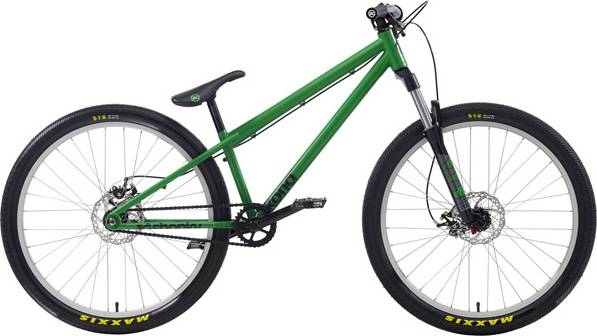

Shonky completes the Kona Shonky model. Kona released 12 bikes variations of this model so far.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Dirt Jump bikes
If you want an acceptable Dirt Jump bike you should know that the average price is 863$. However, you could also get a good Dirt Jump bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Overview of components
Wheels size
When leaving the production line, the Shonky model has 26″ aluminum wheels. Being a little smaller, these wheels will fit both small and tall riders. However, they provide less traction than 29″ wheels do.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Shonky comes with Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, performance-wise there is room for improvement.
