Bike details
Overview
Key information split into simple groups.

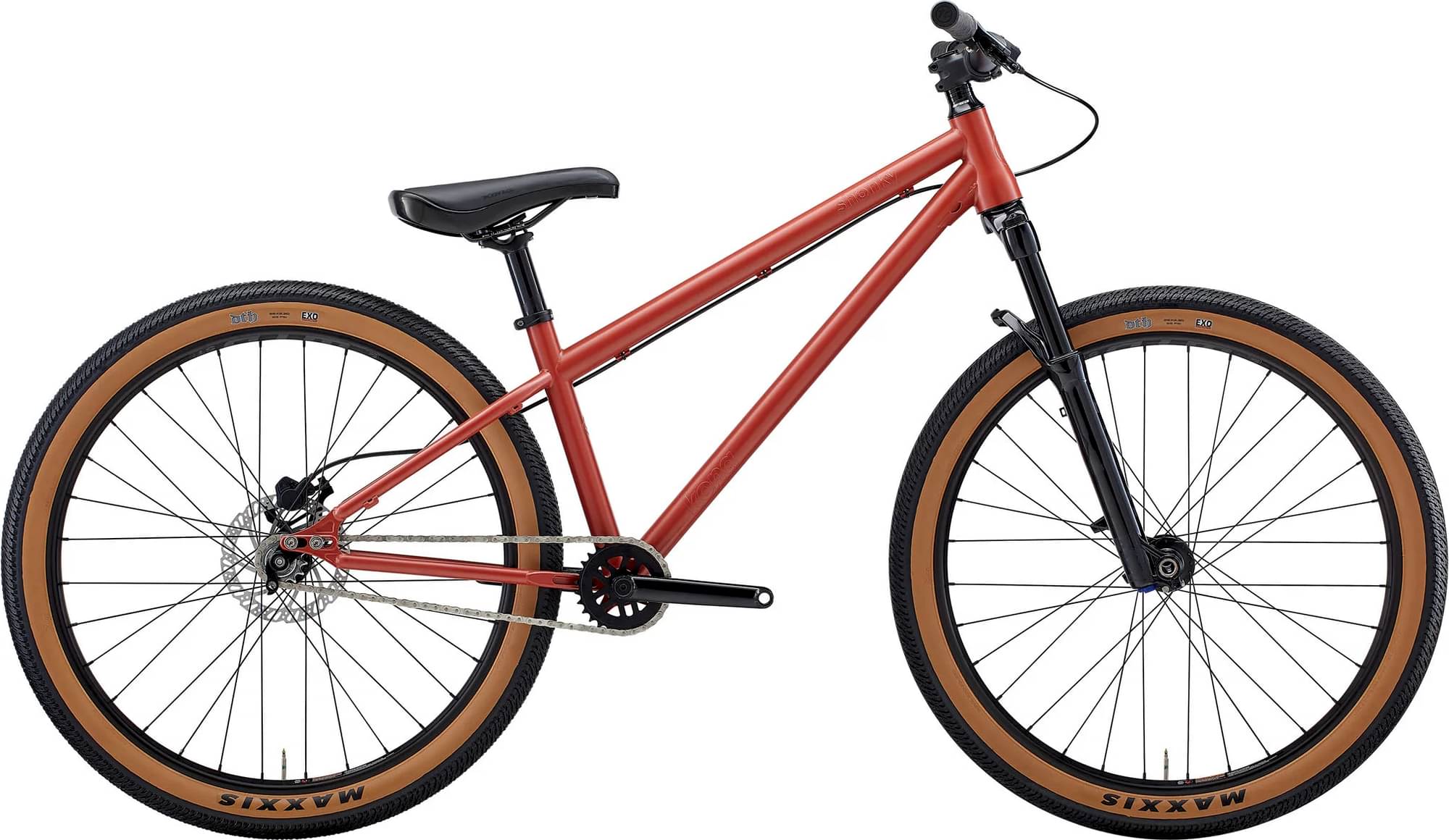

Bike summary
-
-
Frame Steel -
Travel Front 100mm -
Fork Manitou Circus Expert
-
Suspension Hardtail -
Drivetrain Single Speed -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
152cm - 170cm
LG
175cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components

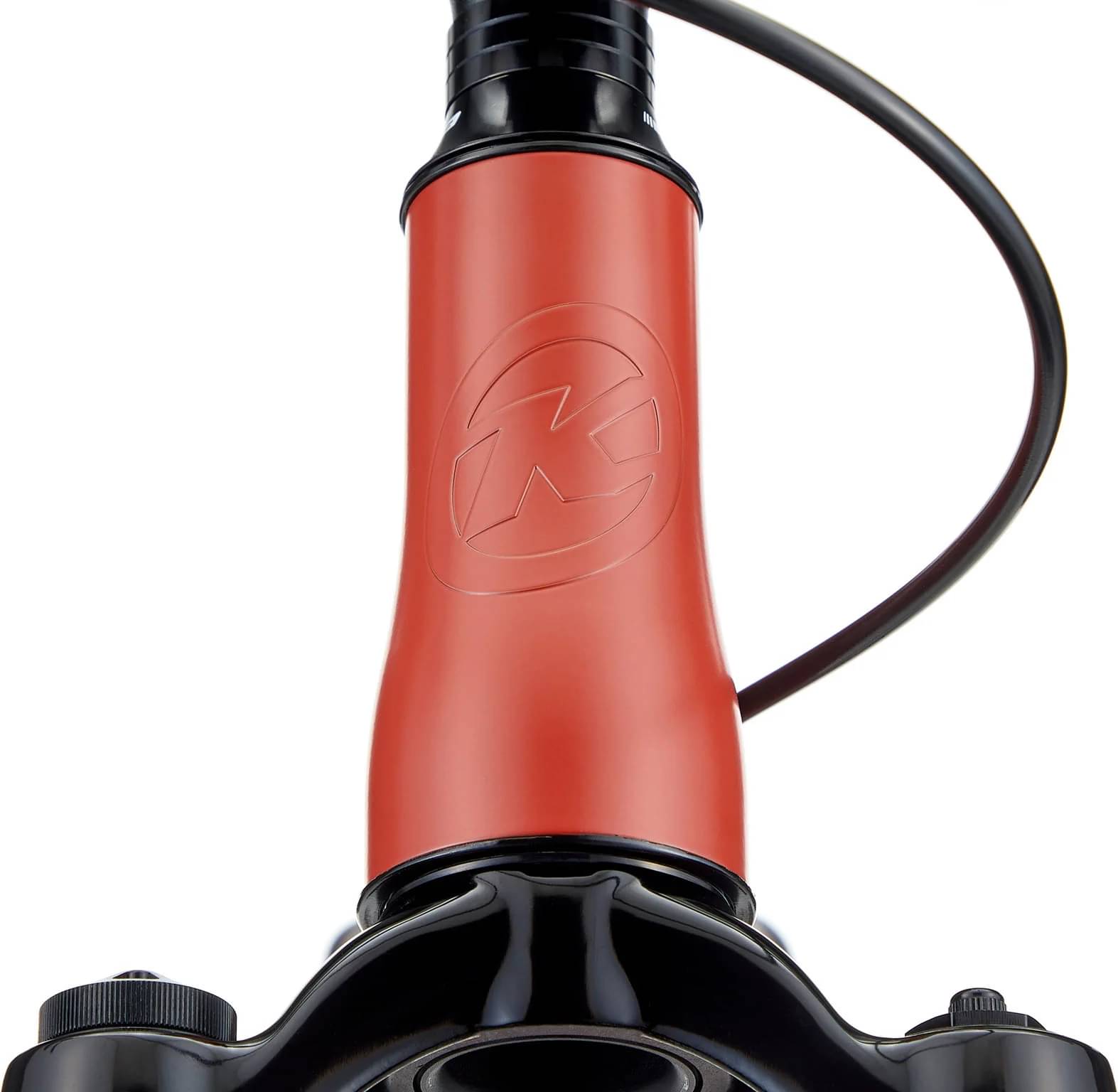

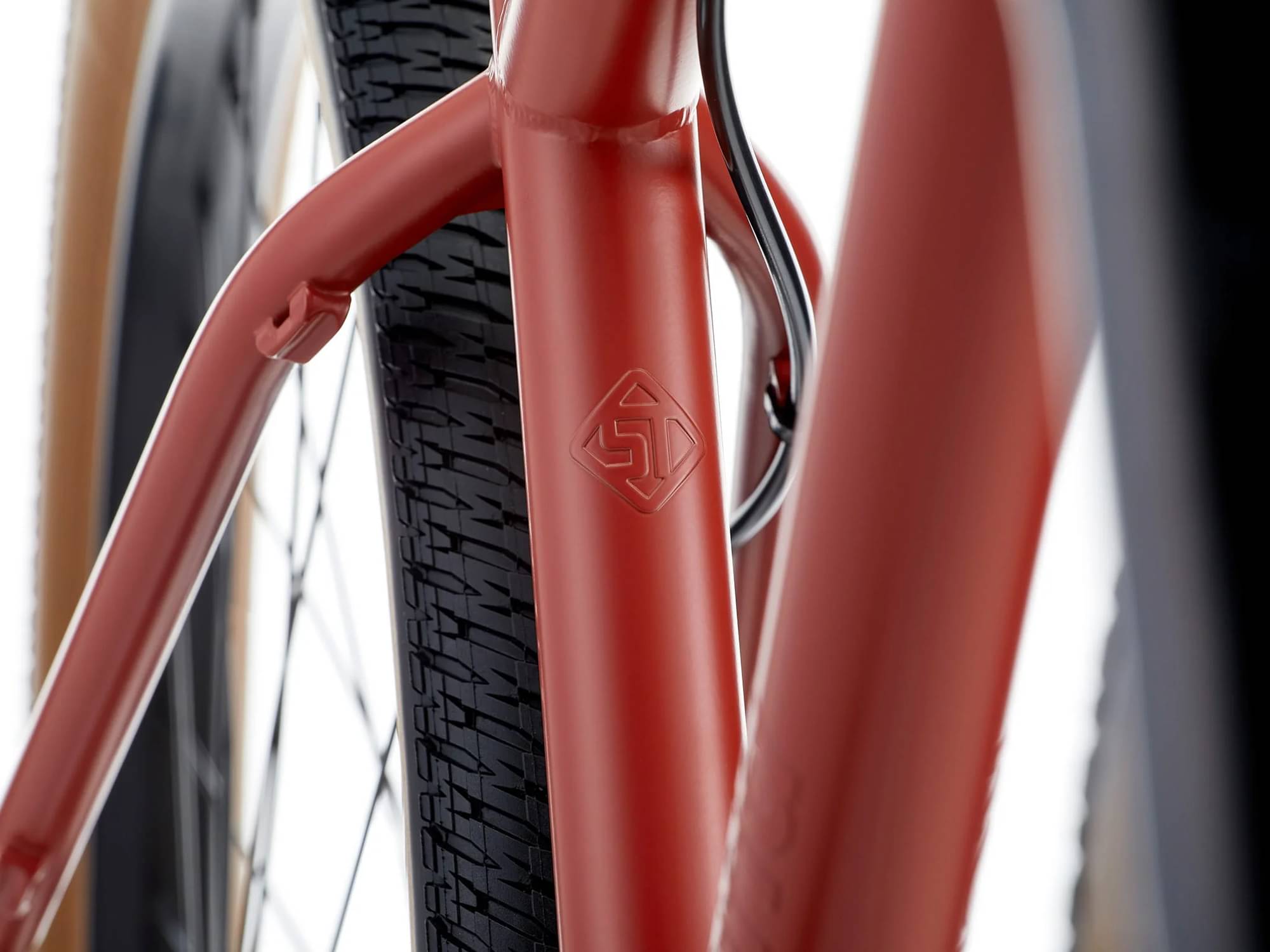

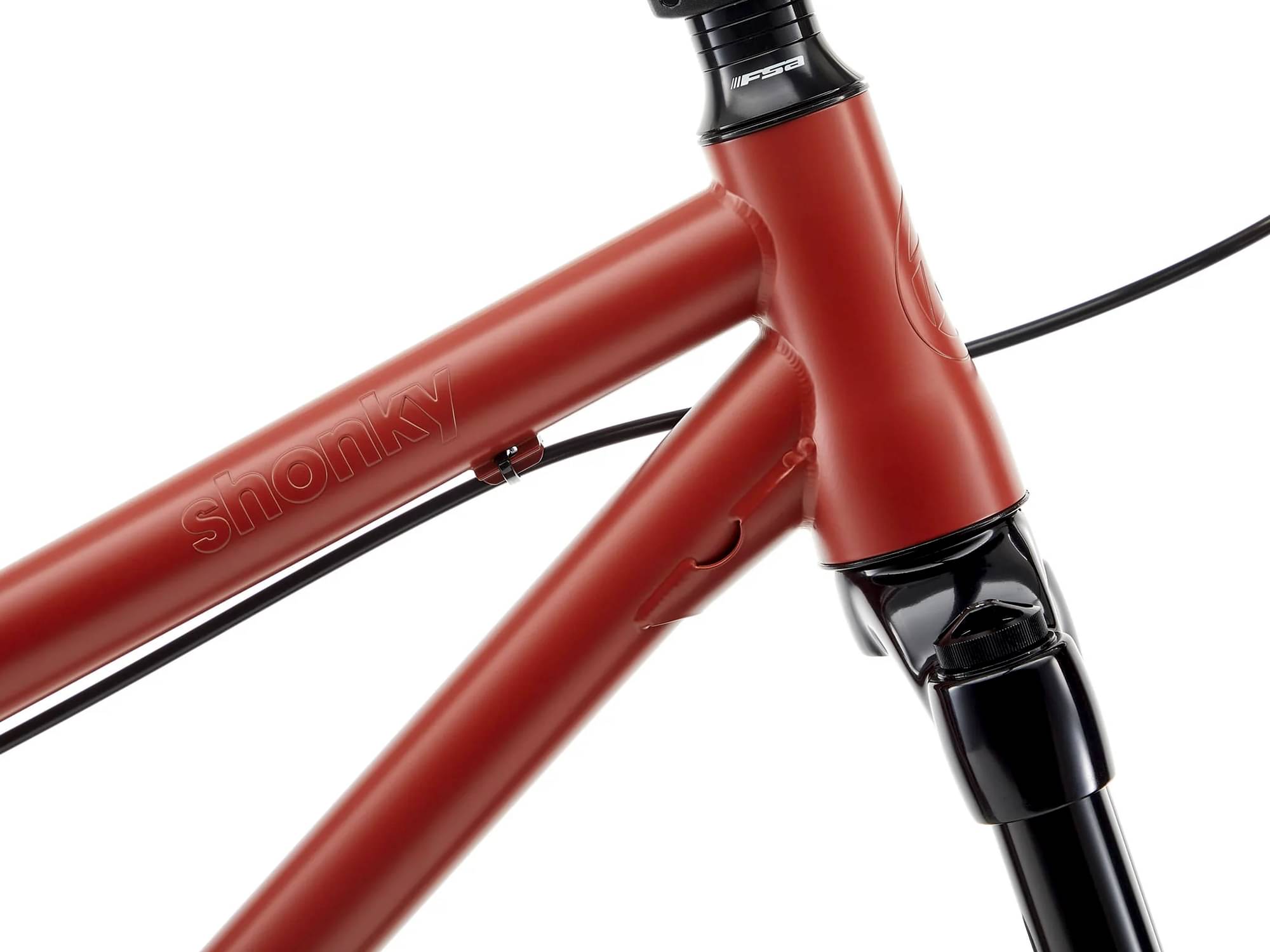

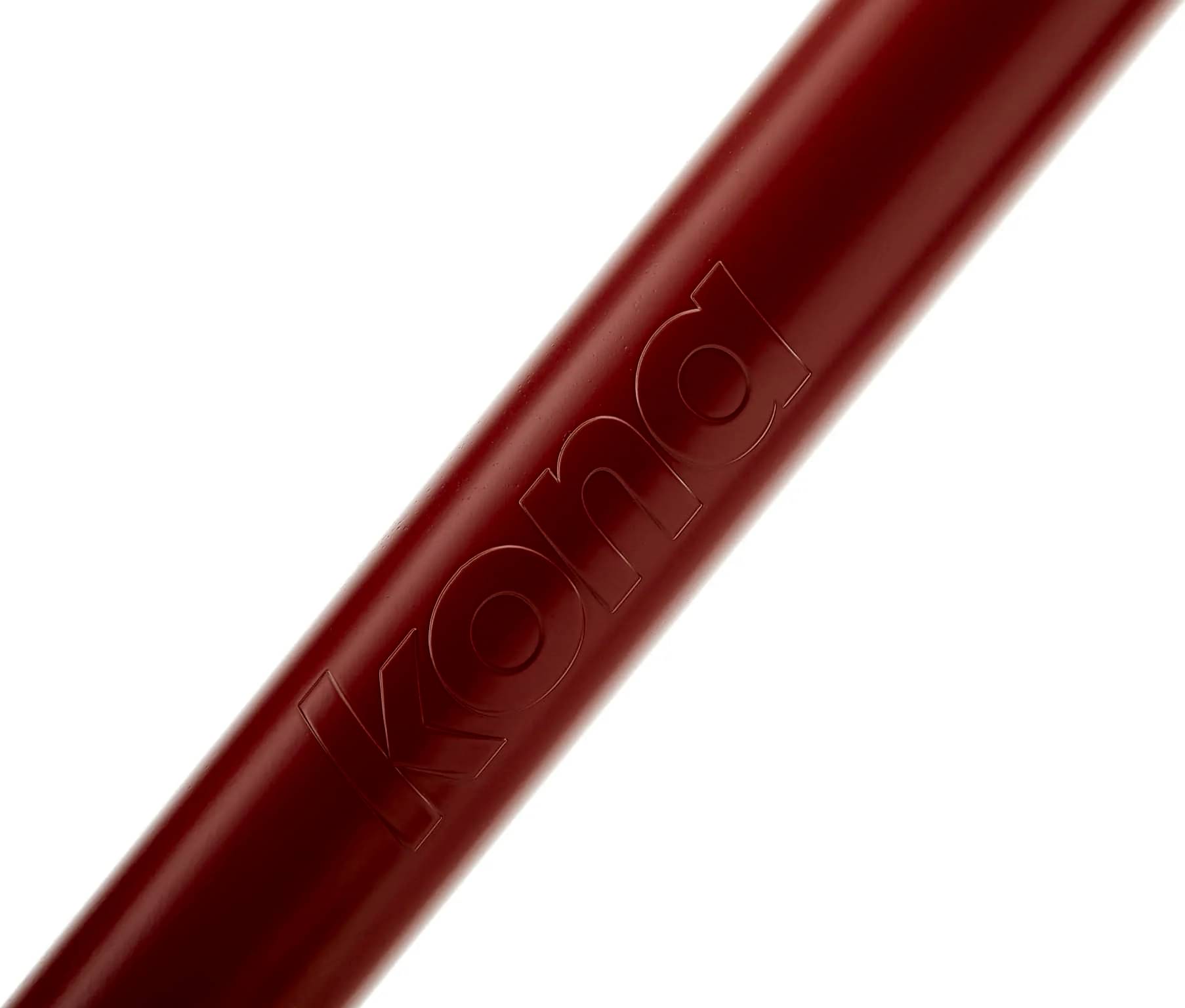

Frame
Frame
Kona Cromoly Butted

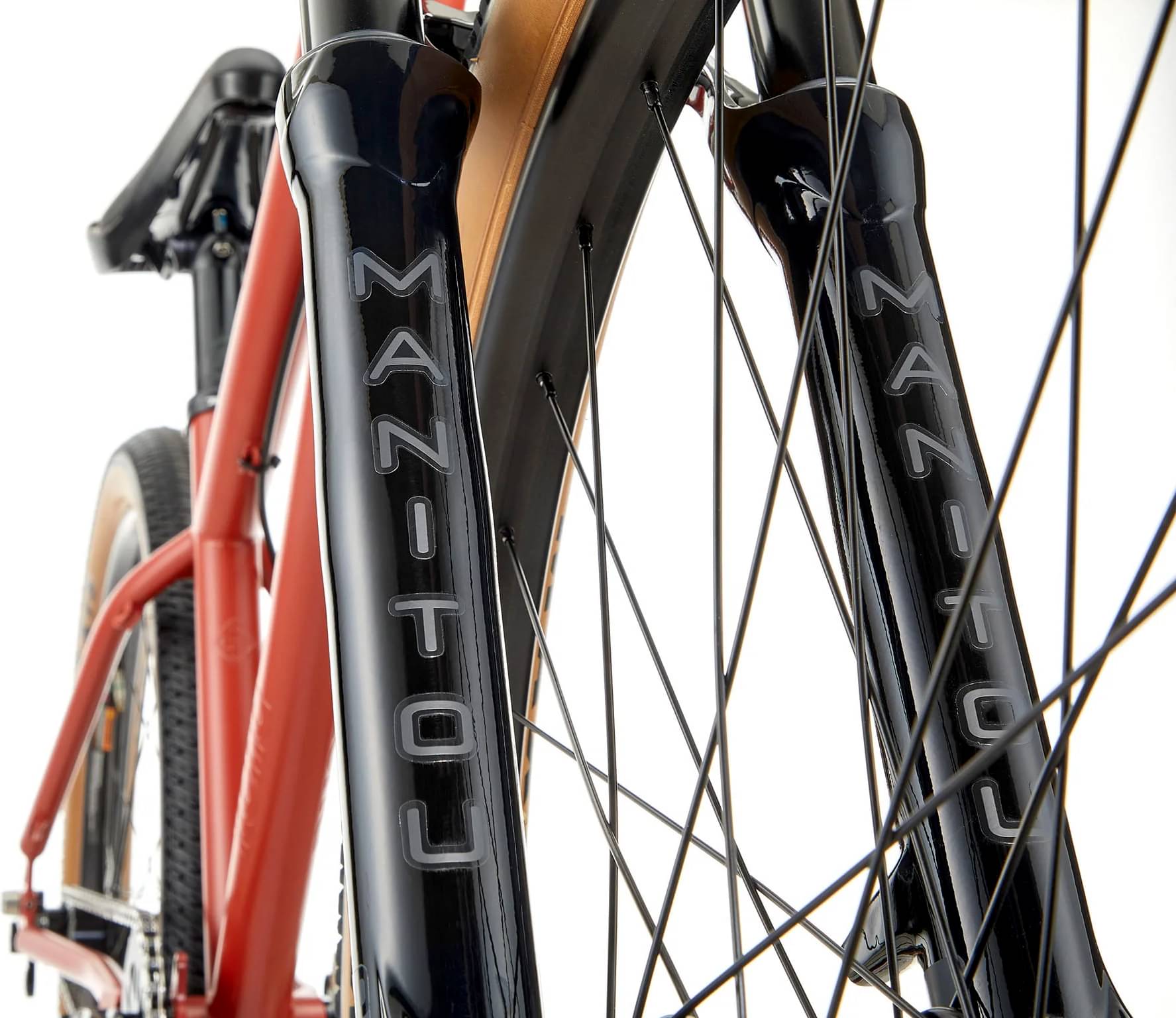

Suspension Fork
Manitou Circus Expert 100mm Tapered 110mm Spacing
Rear Shock
n/a
Drivetrain
Rear Derailleur
n/a
Front Derailleur
n/a
Shift Levers
n/a

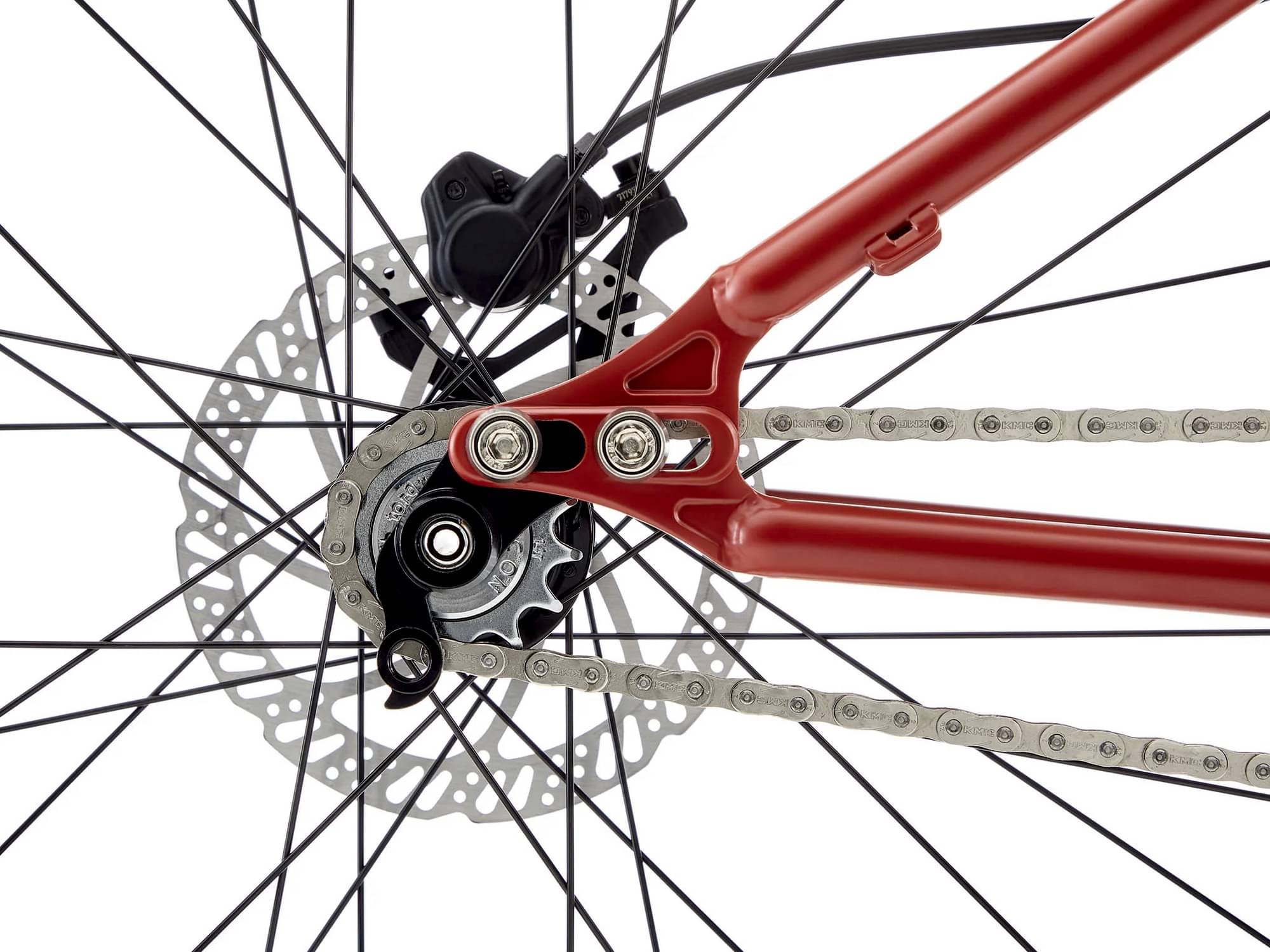

Cassette
Joytech Single Speed 14t

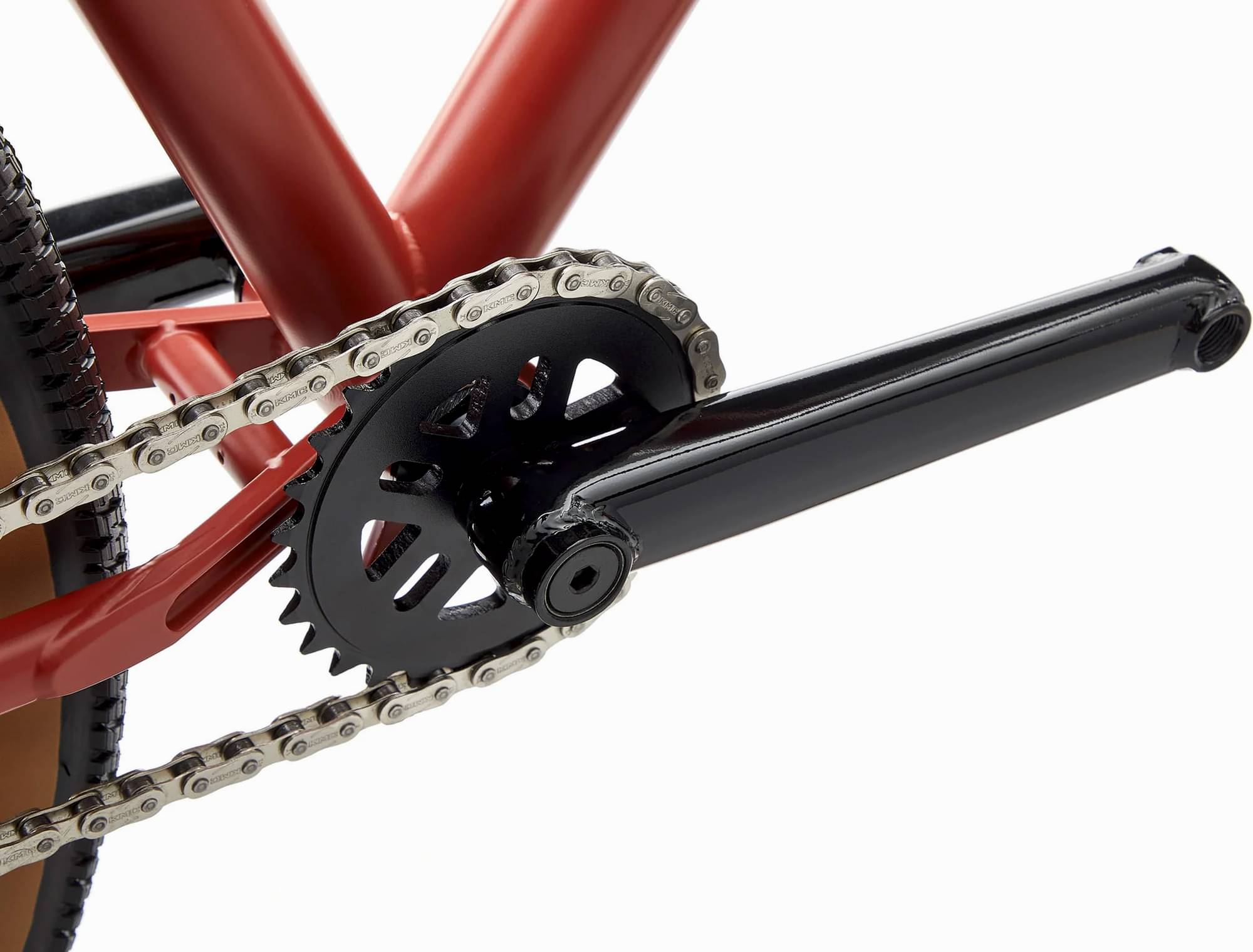

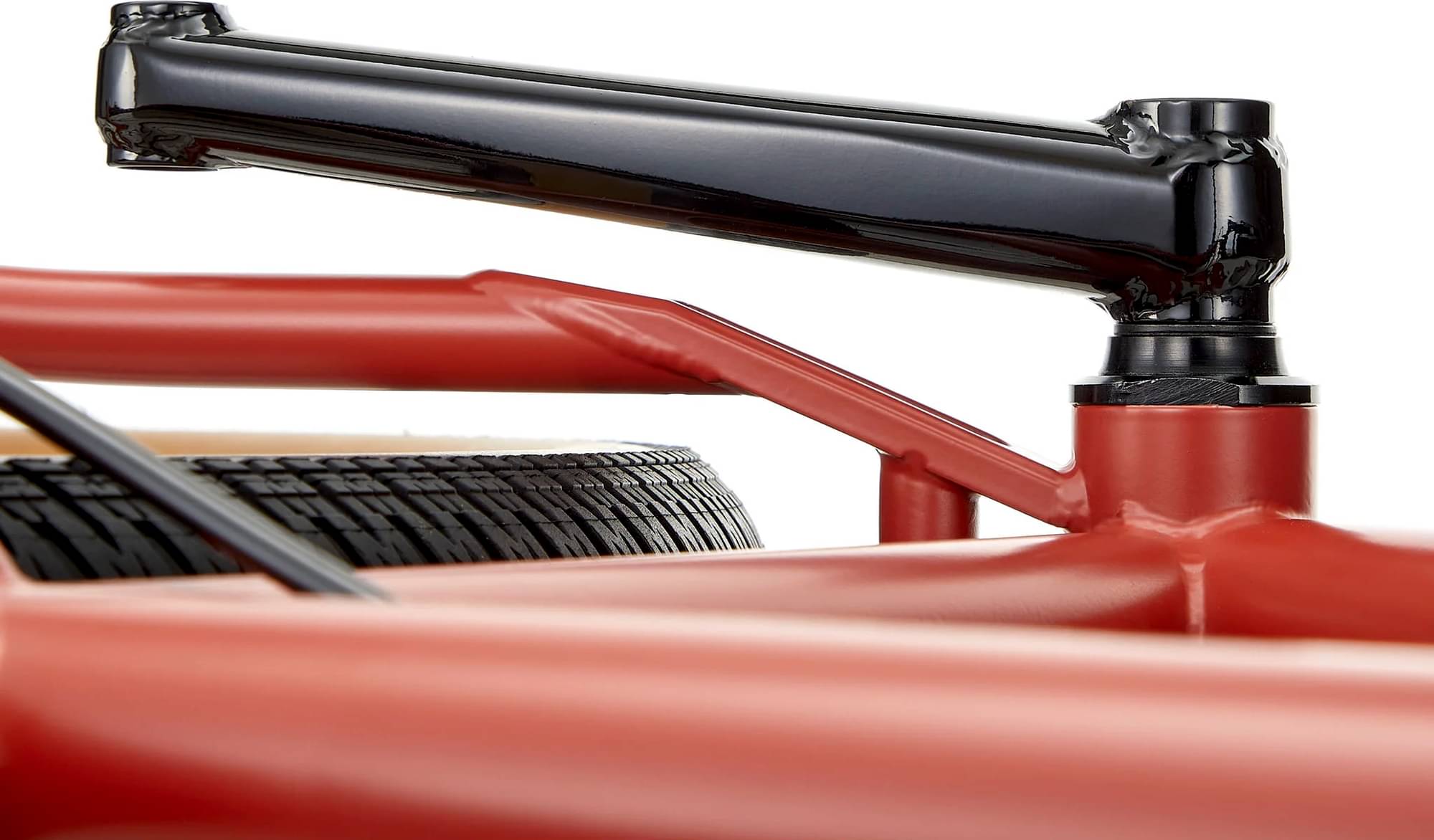

Crank
Samox Dirt Jumper, 28t
Bottom Bracket
Samox Dirt Jumper
Chain
SRAM PC1
Chain Guide
n/a
Pedals
n/a
Wheels
Front Hub
Formula 110x20mm
Rear Hub
Formula 142x12mm
Rims
WTB ST i30 TCS 2.0
Spokes
Stainless Black 14g
Tires
Front: Maxxis DTH EXO TR DUAL 26x2.3", Rear: Maxxis DTH EXO TR DUAL 26x2.3"
Brakes
Brakes
Tektro MD-280 (front) / HD-M275 (rear)
Brake Levers
Tektro RS360A (front) / HD-M275 (rear)

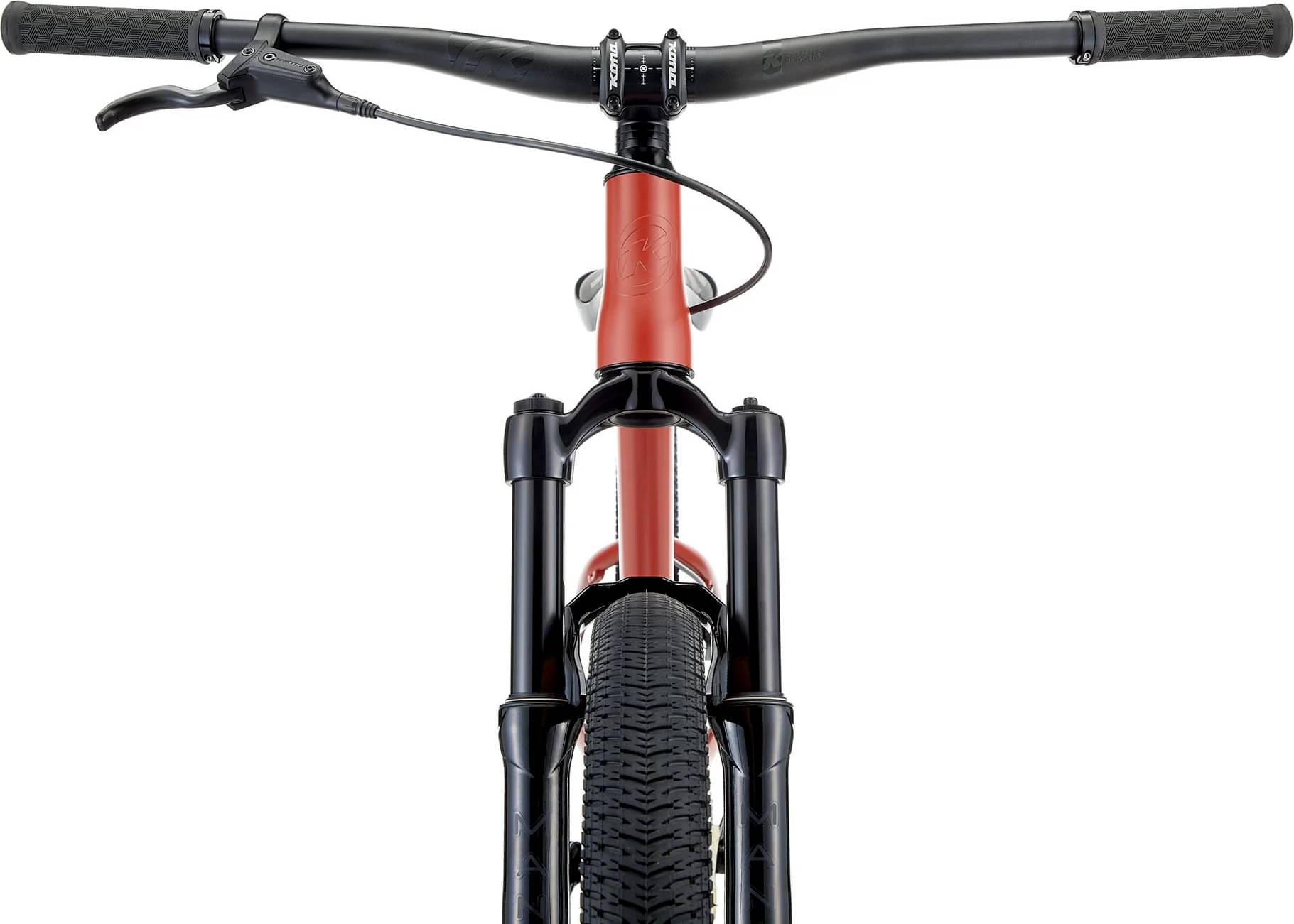

Cockpit
Stem
Kona XC/BC 35
Handlebar
Kona XC/BC 35
Grips
Kona Key Grip
Headset
FSA Orbit 1.5B ZS
Seat
Saddle
Kona Dirt Jump
Seatpost
Kona Thumb
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | LG |
|---|---|---|
| Stack Reach Ratio | 1.407 mm | 1.364 mm |
| Bottom Bracket Height | 307 mm | 307 mm |
| Front Center | 675 mm | 688 mm |
| Rake | 42 mm | 42 mm |
| Trail | 86 mm | 86 mm |
| Stack | 584 mm | 584 mm |
| Reach | 415 mm | 428 mm |
| Top Tube Length | 611 mm | 624 mm |
| Seat Tube Angle | 71.5 ° | 71.5 ° |
| Seat Tube Length | 347 mm | 347 mm |
| Head Tube Angle | 69 ° | 69 ° |
| Head Tube Length | 120 mm | 120 mm |
| Chainstay Length | 400 mm | 400 mm |
| Wheelbase | 1074 mm | 1087 mm |
| Bottom Bracket Drop | 26 mm | 26 mm |
| Standover Height | 680 mm | 677 mm |
| Wheels | 26" | 26" |
| Rider Min Height | 152 cm | 175 cm |
| Rider Max Height | 170 cm | 195 cm |
