Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 80mm -
Fork SunTour NEX
-
Groupset Tourney, Altus -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona 6061 Aluminum Butted
Suspension Fork
Suntour NEX Coil Spring 80mm
Rear Shock
n/a
Drivetrain
Rear Derailleur
Shimano Tourney
Front Derailleur
Shimano Tourney
Shift Levers
Shimano Altus
Cassette
Shimano Altus 11-34t 8spd
Crank
Shimano, 22/32/42t
Bottom Bracket
FSA 68mm
Chain
KMC Z8.3
Chain Guide
n/a
Pedals
Kona JS2
Wheels
Front Hub
Formula 100x9mm
Rear Hub
Formula 135x10mm
Rims
Double Wall alloy
Spokes
Stainless Black 14g
Tires
WTB Venture 700x50c
Brakes
Brakes
Tektro HDM275 Hydraulic
Brake Levers
Tektro HDM275 Hydraulic
Disk Rotors
Tektro TR160 160mm
Cockpit
Stem
Kona Control
Handlebar
Kona Aluminum Riser
Grips
Kona Key Grip Slip on
Headset
Feimin FP-H863
Seat
Saddle
Kona Crosstrail
Seatpost
Kona Thumb w/Offset 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.43 mm | 1.37 mm | 1.31 mm |
| Bottom Bracket Height | 305 mm | 305 mm | 305 mm | 305 mm |
| Front Center | 671 mm | 699 mm | 727 mm | 761 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 79 mm | 79 mm | 79 mm | 79 mm |
| Stack | 609 mm | 618 mm | 628 mm | 637 mm |
| Reach | 408 mm | 433 mm | 457 mm | 488 mm |
| Top Tube Length | 582 mm | 609 mm | 636 mm | 670 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 370 mm | 420 mm | 470 mm | 530 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 454 mm | 454 mm | 454 mm | 454 mm |
| Wheelbase | 1118 mm | 1146 mm | 1174 mm | 1209 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 729 mm | 734 mm | 741 mm | 761 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

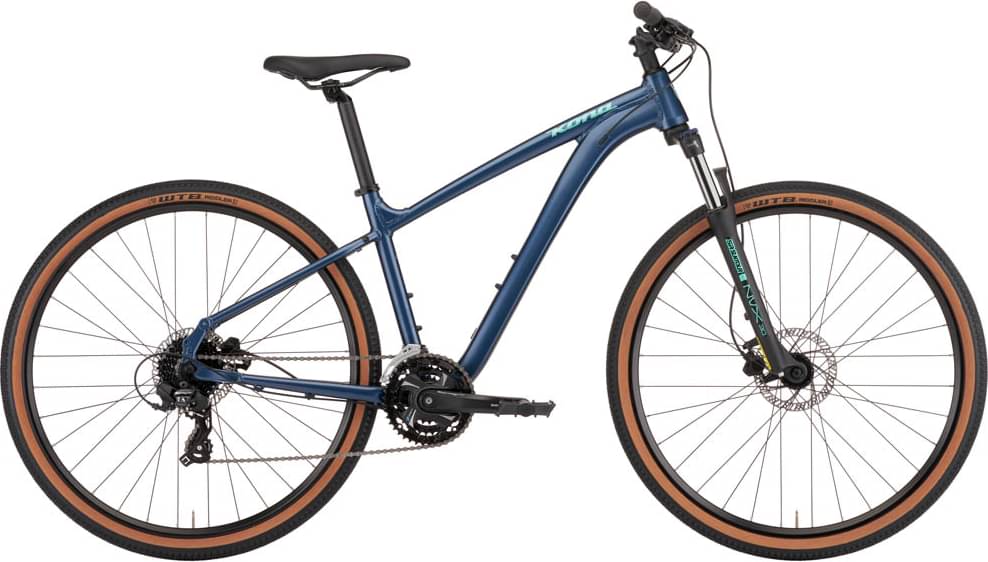

Splice belongs to the Kona Splice model. There are 17 bikes that carry this model name.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Hybrid bikes
Our math shows that the average cost of a dependable Hybrid bike is 562$. However, this doesn’t mean that if you spend less money on a Hybrid bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Kona released this model in 2022, its price was 899$. Comparing this to the average Hybrid bike price, we see that the price is 59.96% higher.
Overview of components
Fork
This bike has the SunTour NEX fork installed. The fork’s travel is 80mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
When it comes to wheels, the Splice bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Kona Splice has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Splice comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
