Bike details
Overview
Key information split into simple groups.

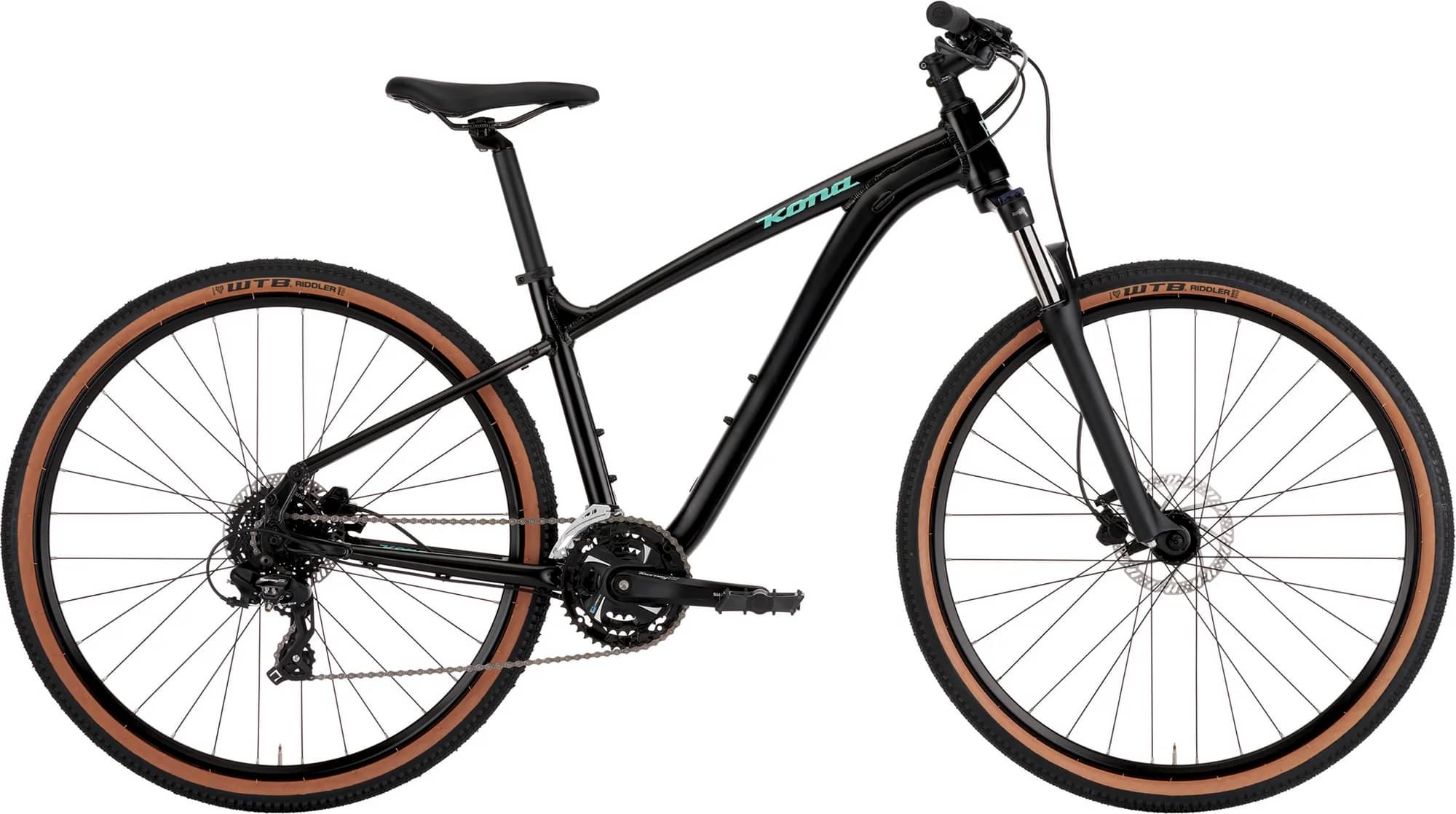

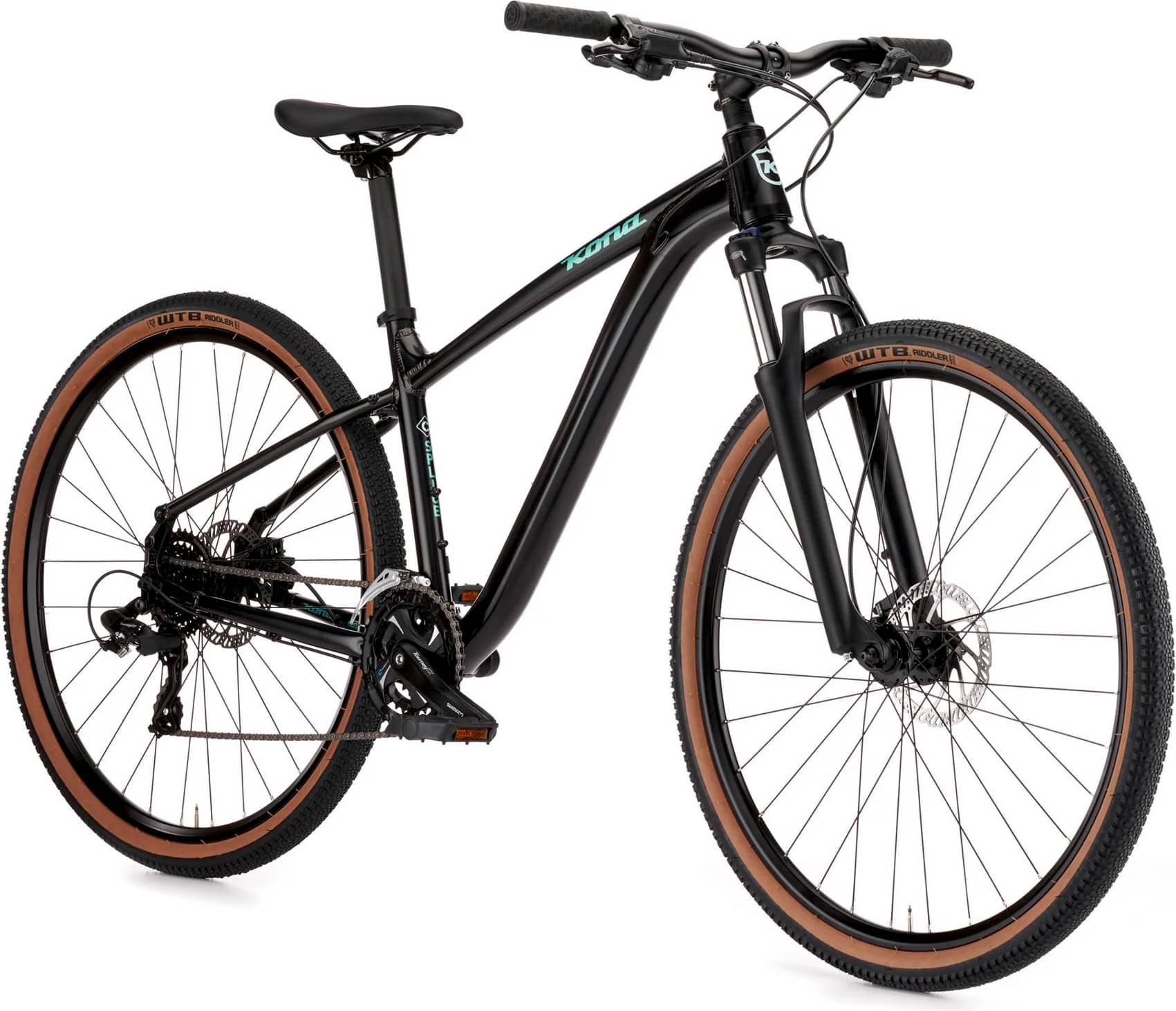

Bike summary
-
-
Frame Aluminum -
Travel Front 80mm -
Fork Suntour NEX
-
Groupset Tourney, Altus -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components

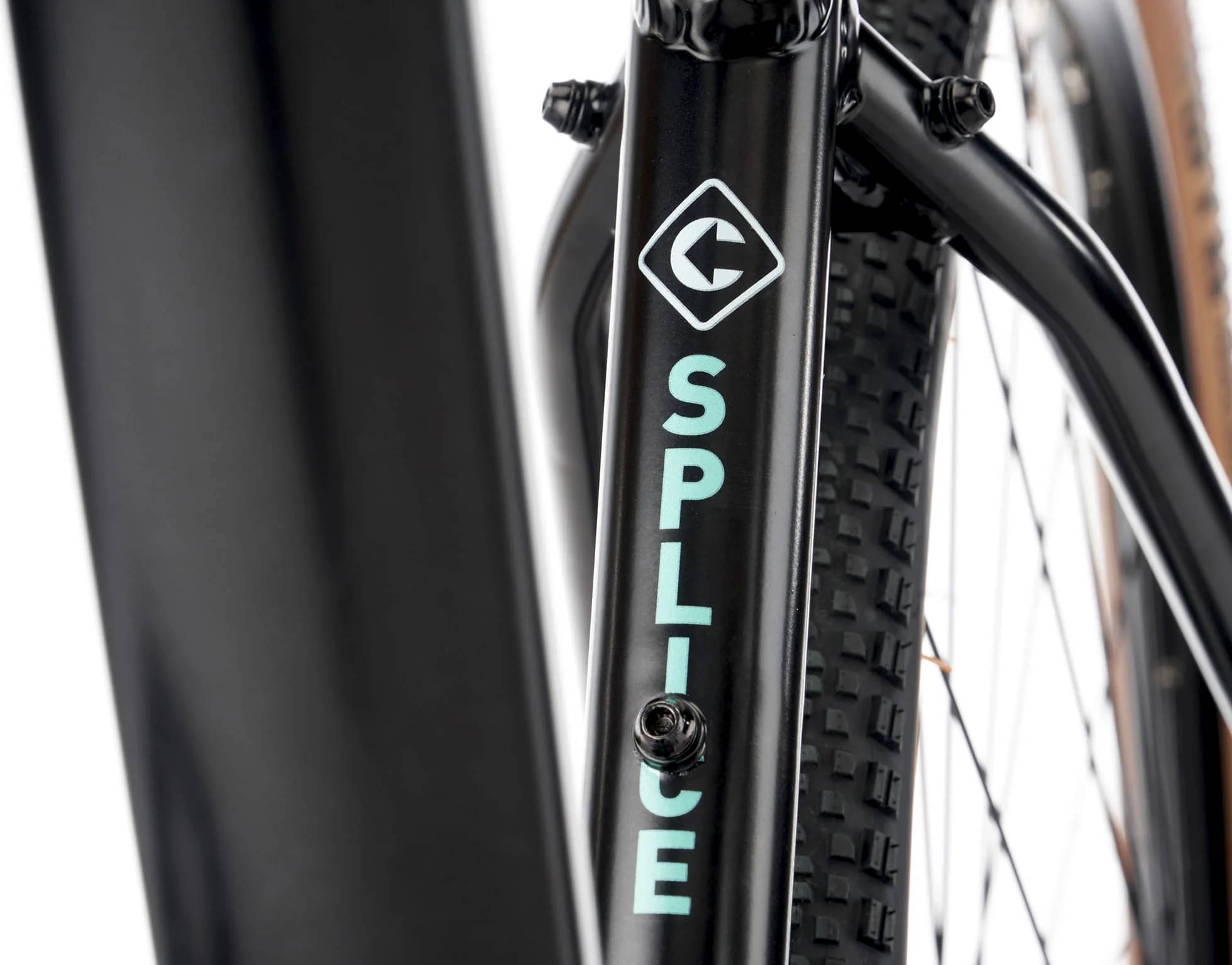

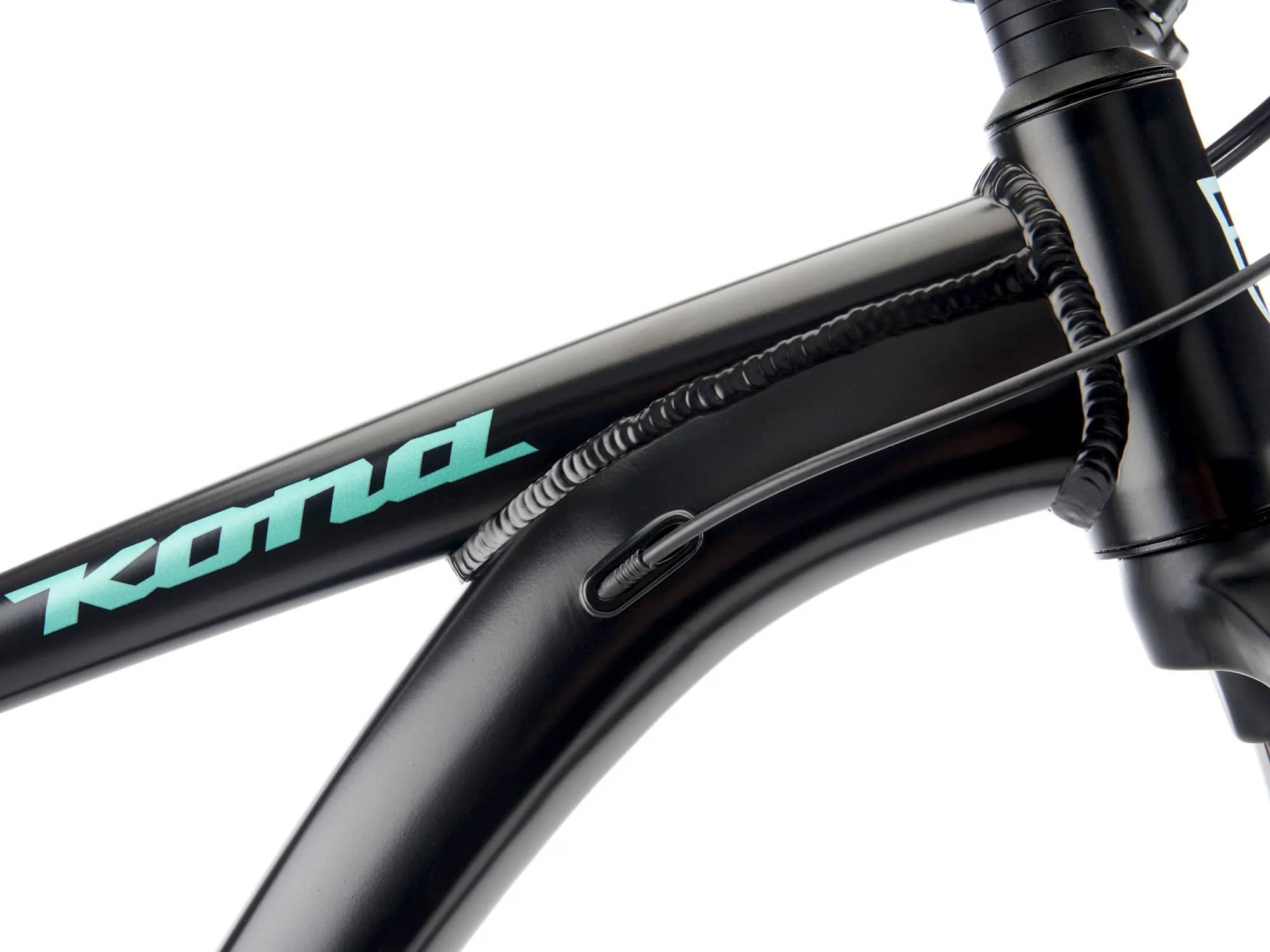

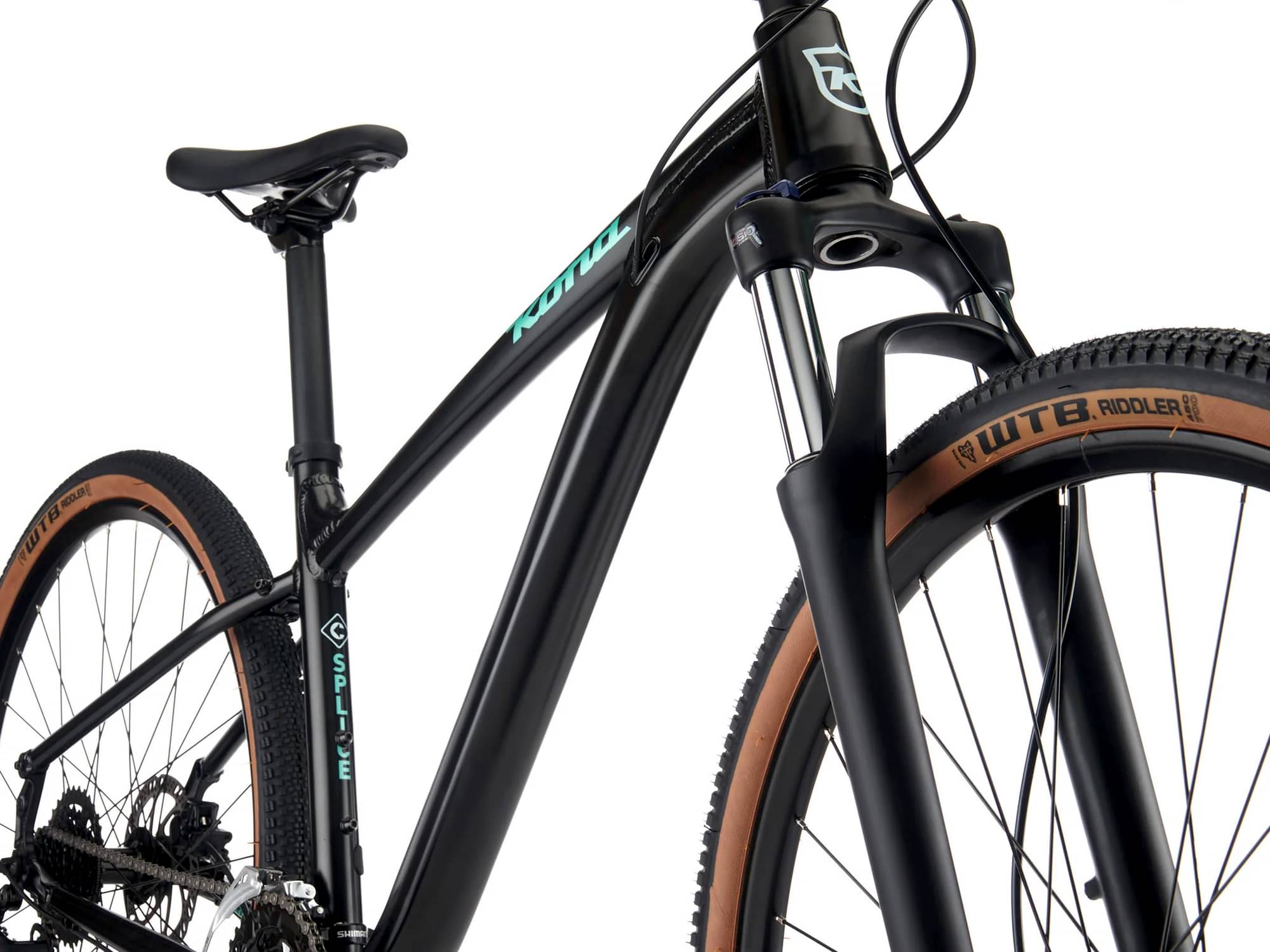

Frame
Frame

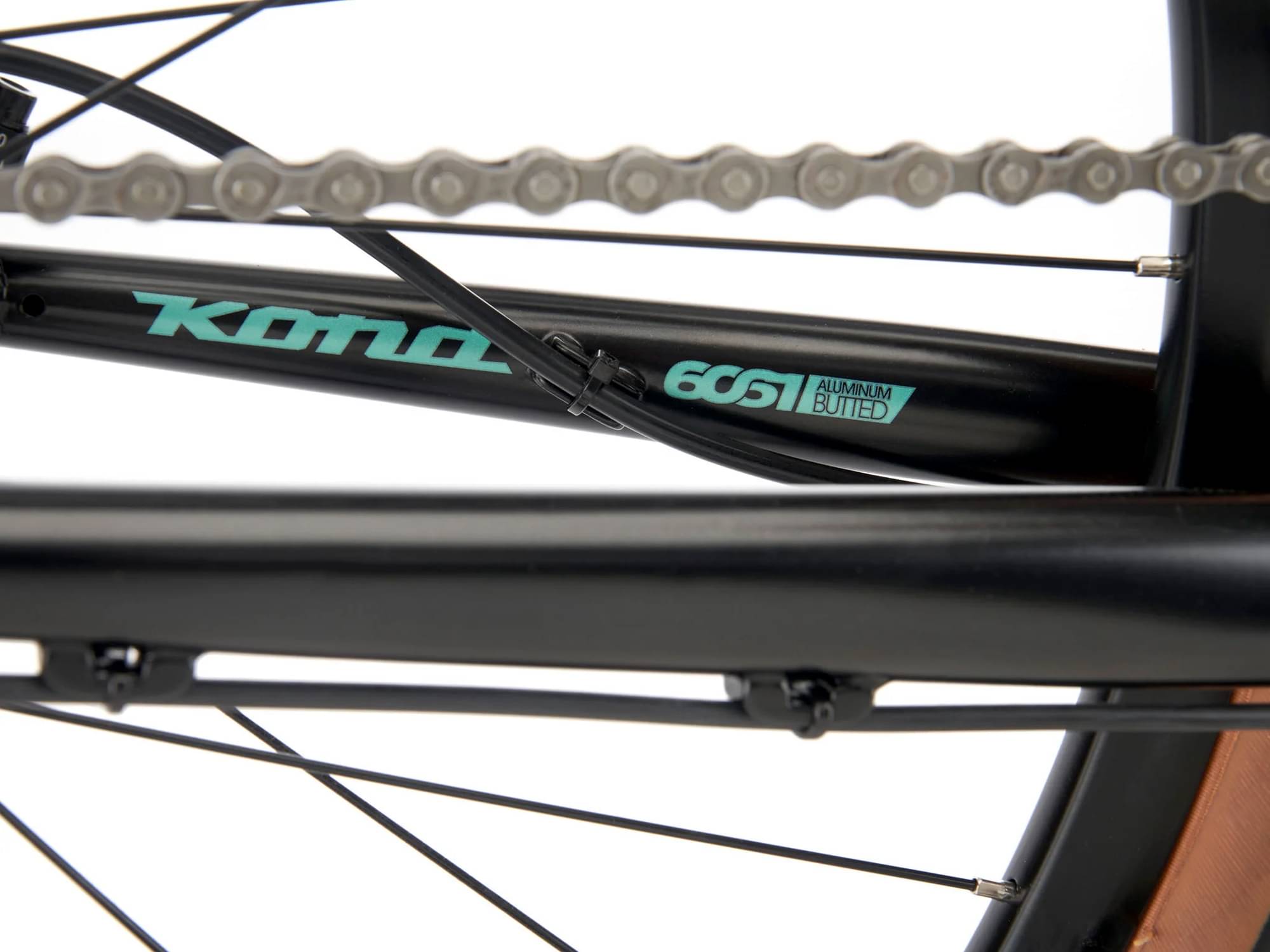

Kona 6061 Aluminum Butted
Suspension Fork
Suntour NEX Coil Spring 80mm
Rear Shock
n/a
Drivetrain

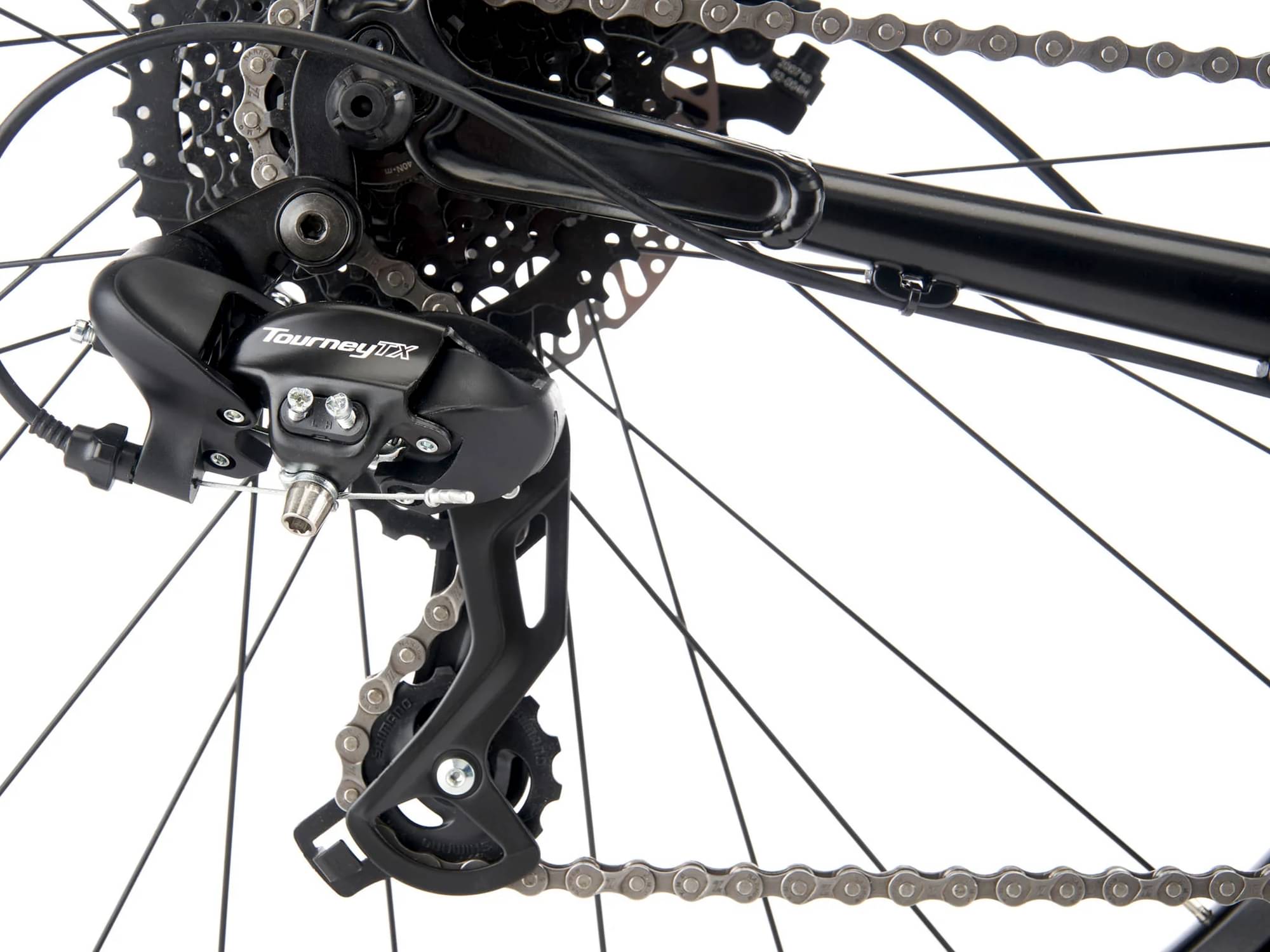

Rear Derailleur
Shimano Tourney
Front Derailleur
Shimano Tourney
Shift Levers
Shimano Altus
Cassette
Shimano Altus 11-34t 8spd

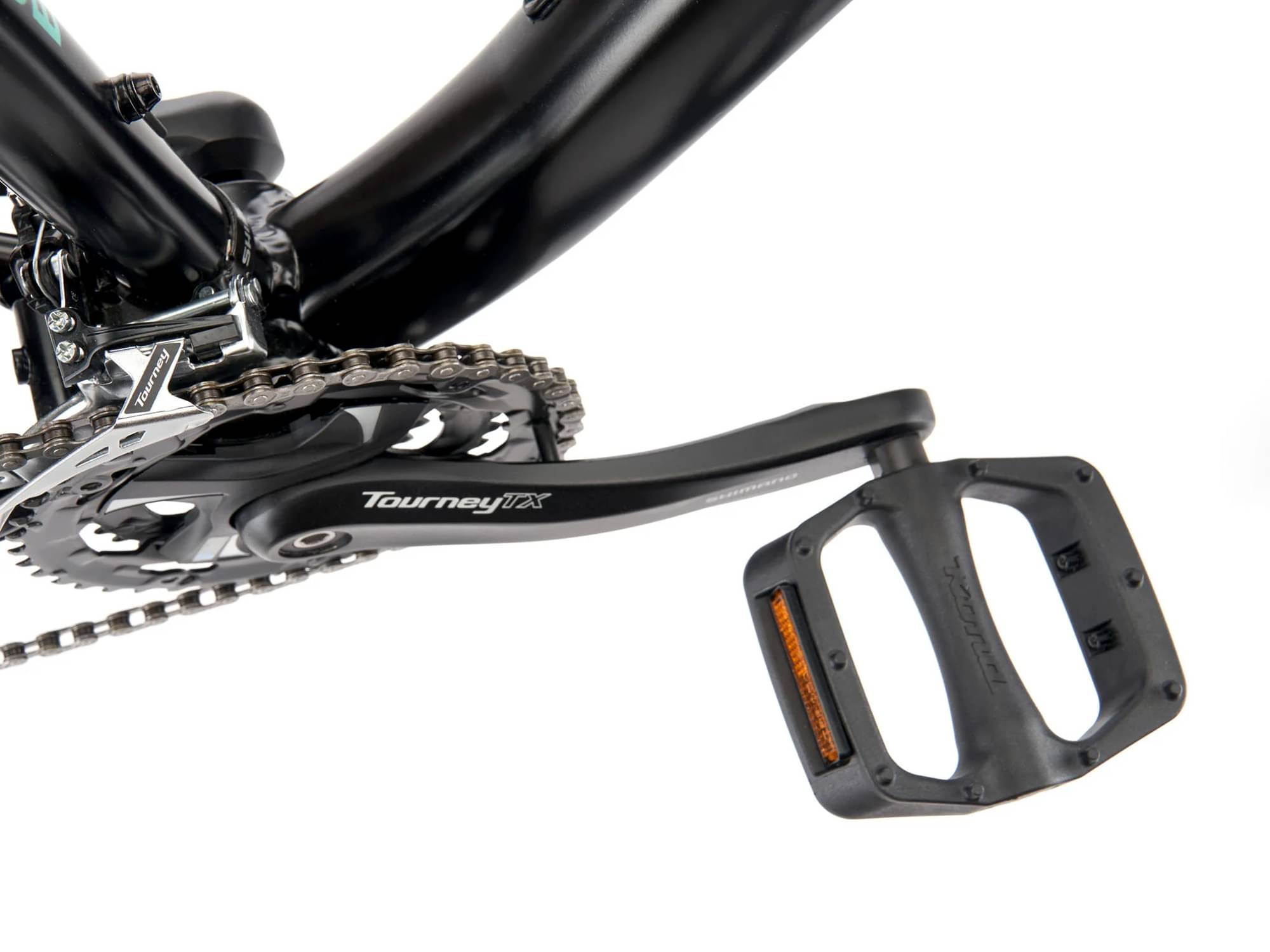

Crank
Shimano, 22/32/42t
Bottom Bracket
FSA 68mm
Chain
KMC Z8.3
Chain Guide
n/a
Pedals
Kona JS2
Wheels
Front Hub
Formula 100x9mm
Rear Hub
Formula 135x10mm
Rims
Double Wall alloy
Spokes
Stainless Black 14g

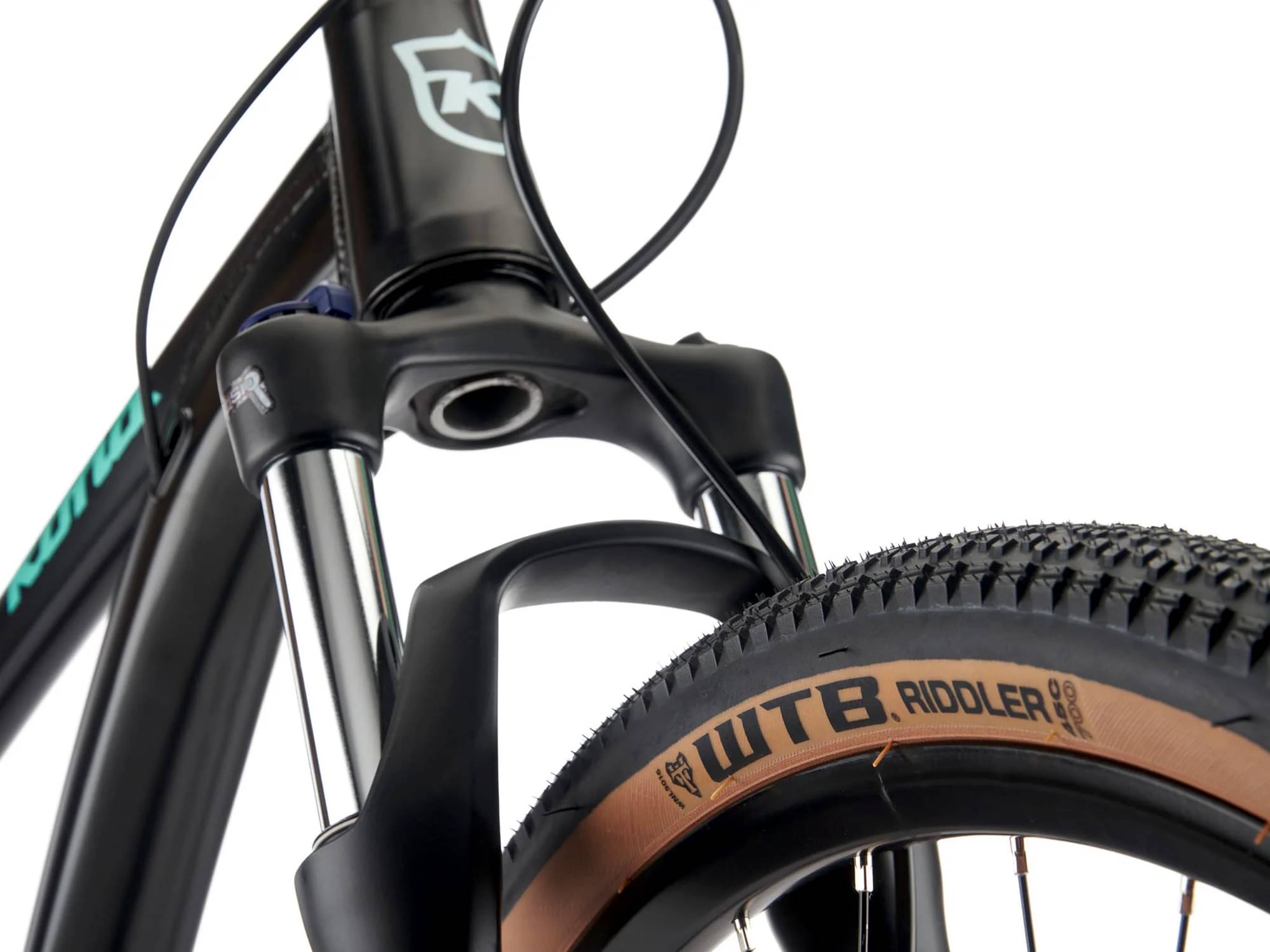

Tires
Front: WTB Riddler 700x45c, Rear: WTB Riddler 700x45c

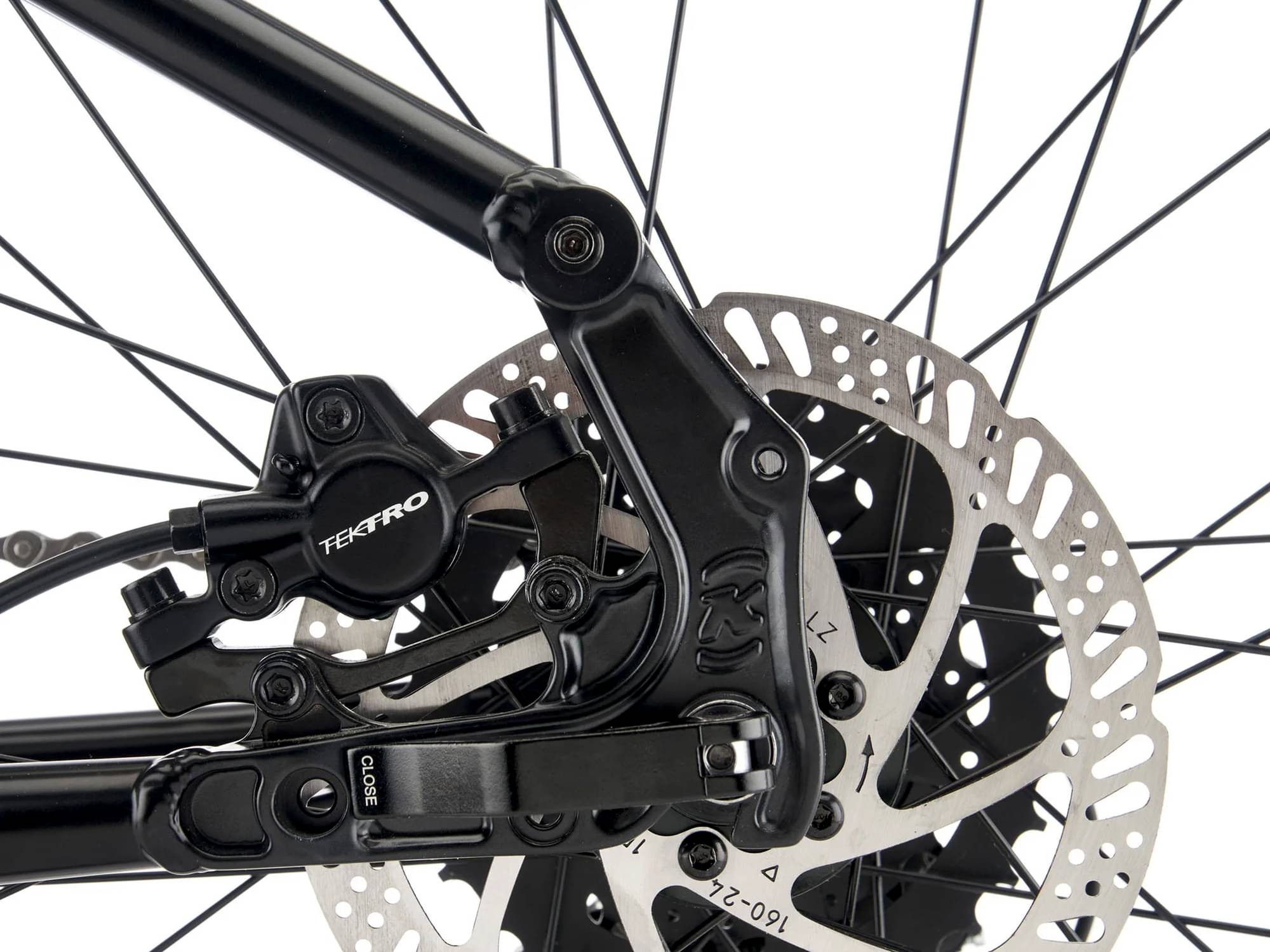

Brakes
Brakes
Clarks M2 Hydraulic

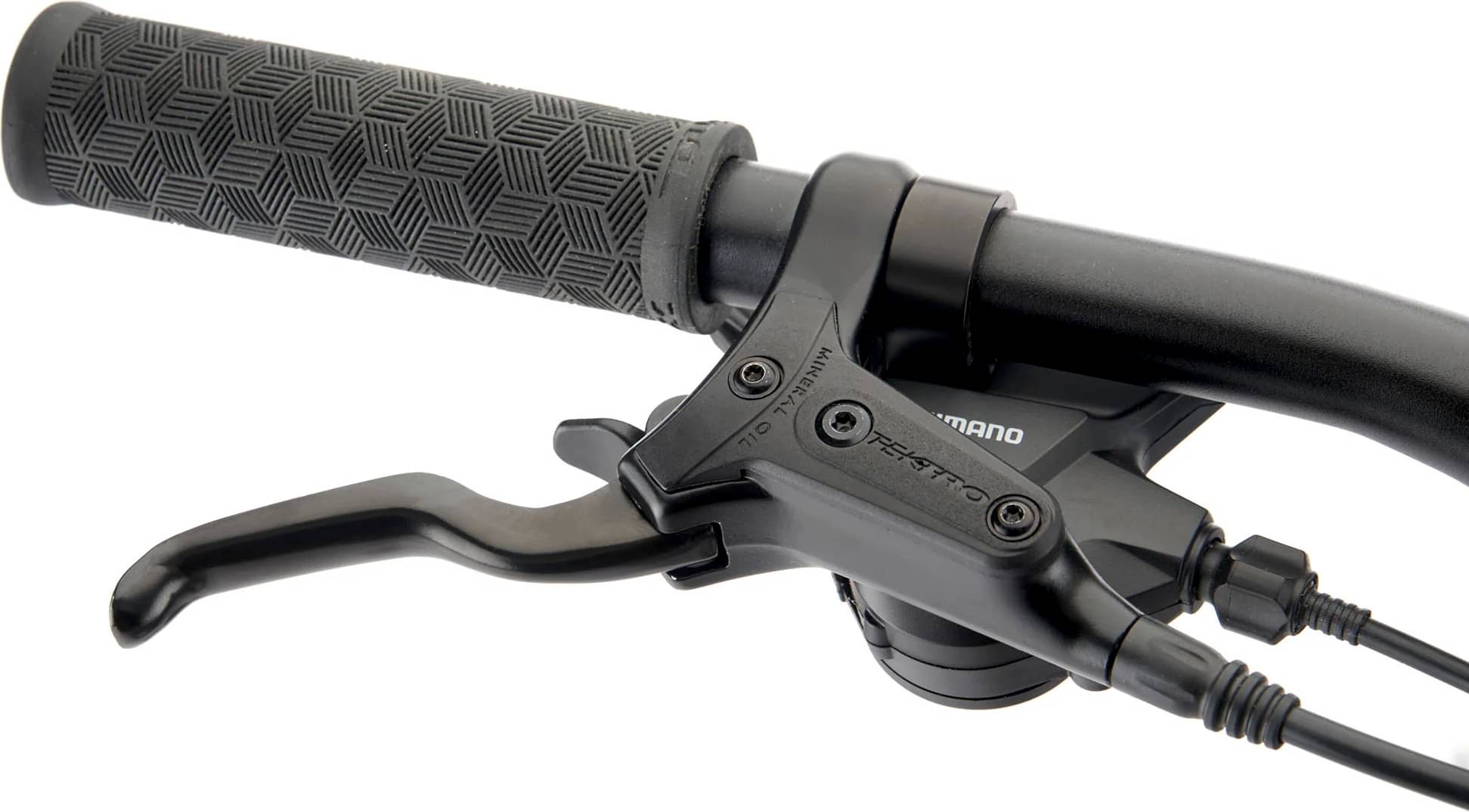

Brake Levers
Clarks M2 Hydraulic

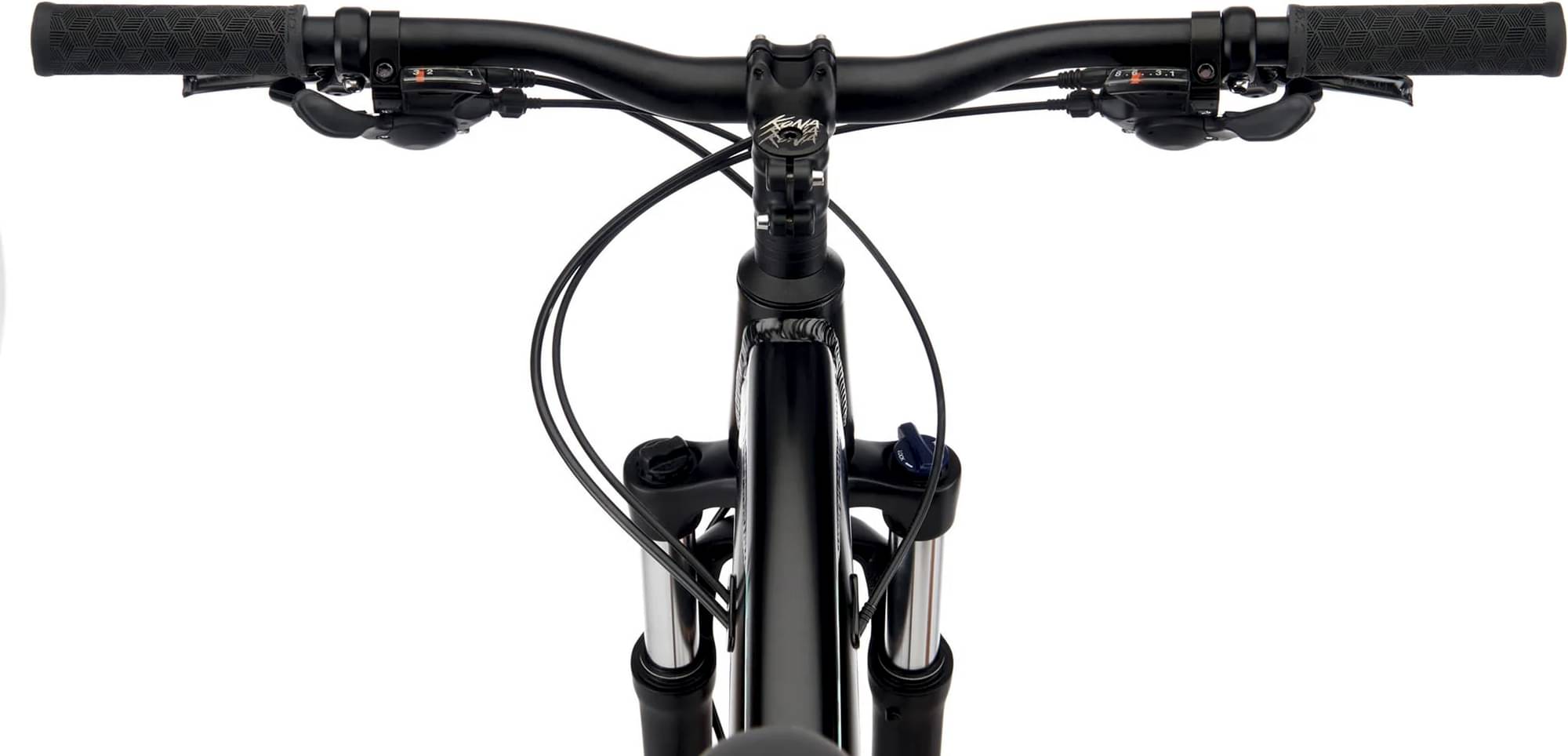

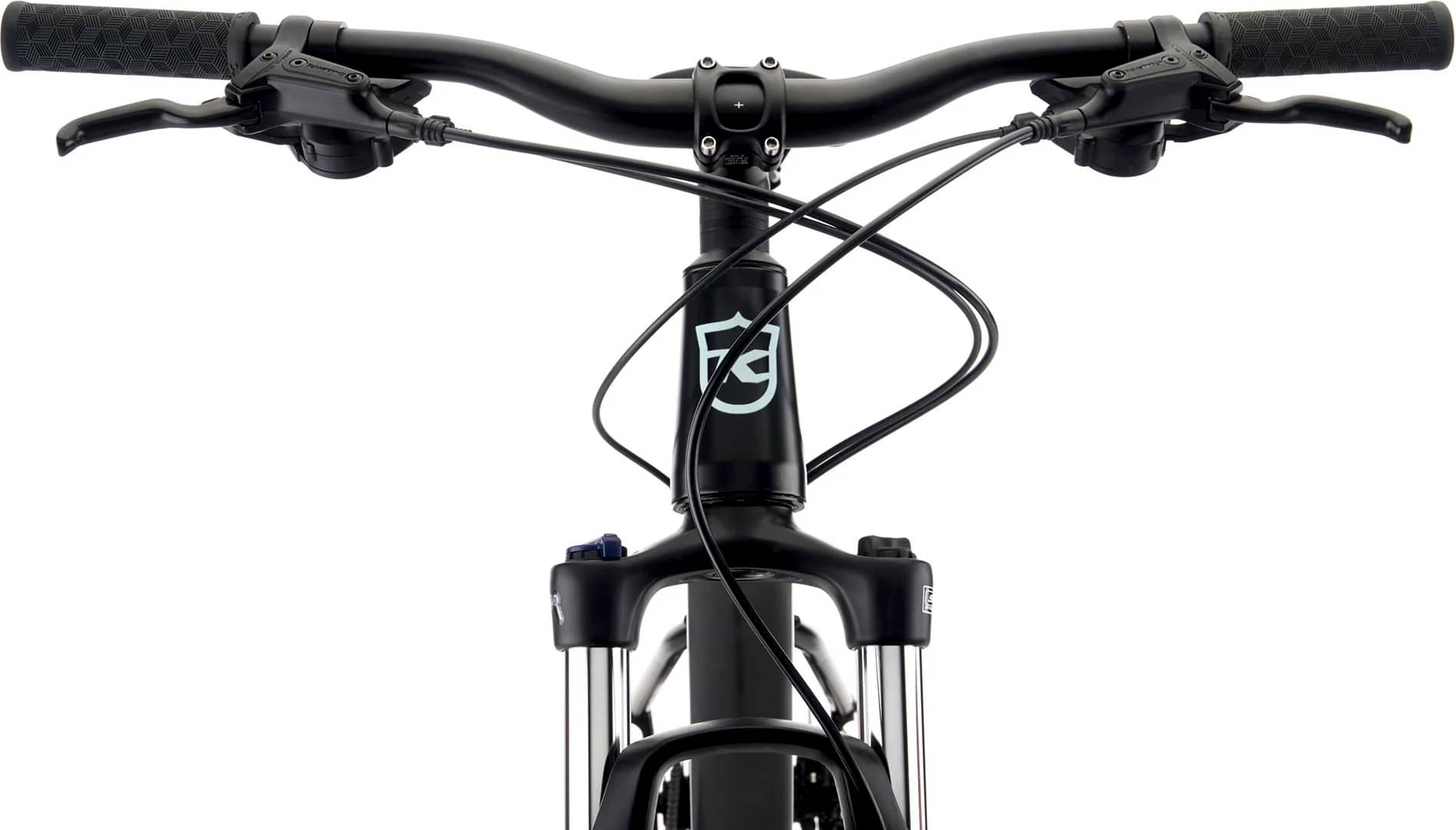

Cockpit
Stem
Kona Control
Handlebar
Kona Aluminum Riser
Grips
Kona Key Grip Slip on

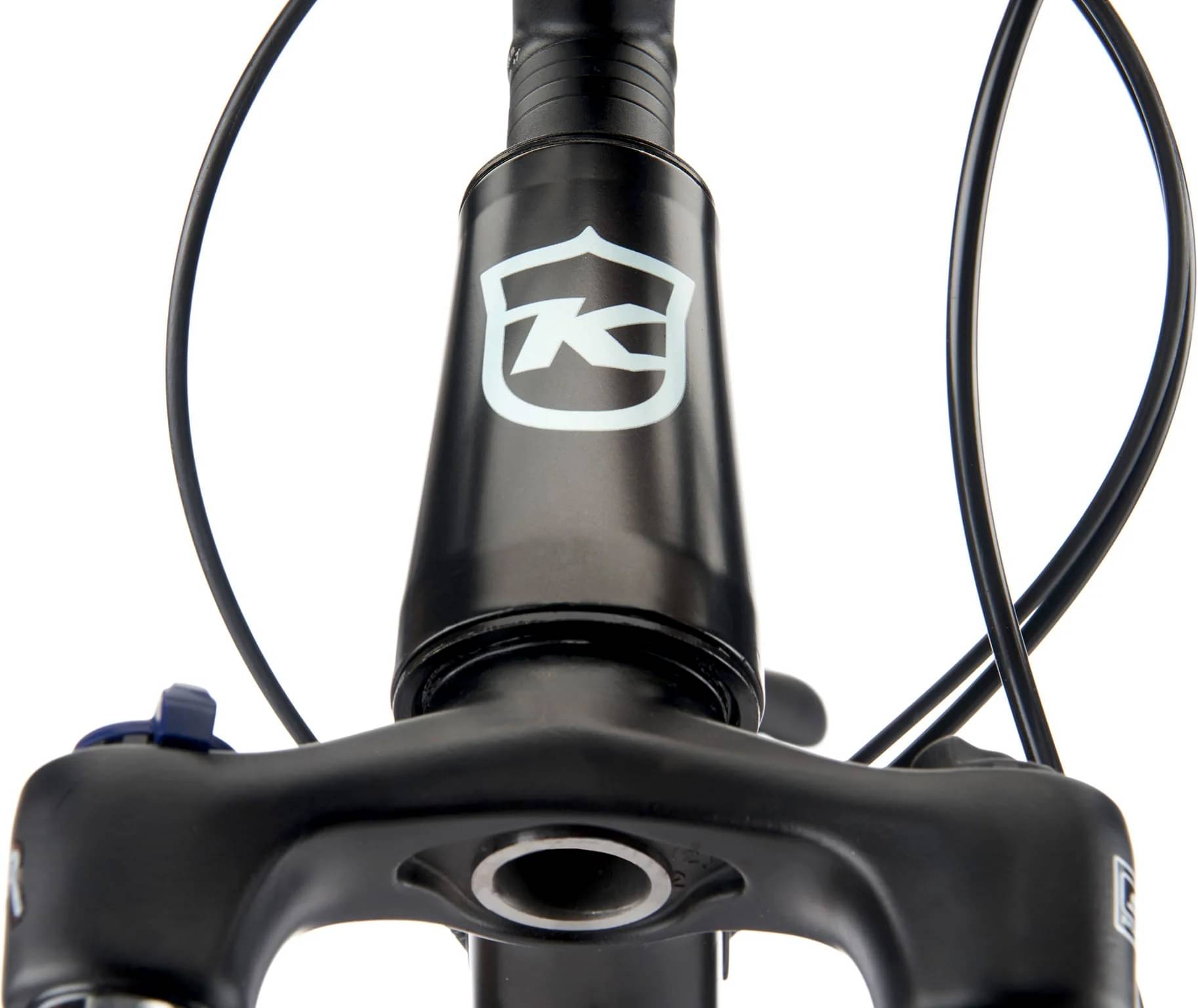

Headset
Feimin FP-H863
Seat
Saddle
Kona Crosstrail
Seatpost
Kona Thumb w/Offset 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.482 mm | 1.439 mm | 1.417 mm | 1.4 mm |
| Bottom Bracket Height | 297 mm | 302 mm | 302 mm | 302 mm |
| Front Center | 638 mm | 666 mm | 692 mm | 718 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 82 mm | 83 mm | 83 mm | 82 mm |
| Stack | 590 mm | 603 mm | 622 mm | 641 mm |
| Reach | 398 mm | 419 mm | 439 mm | 458 mm |
| Top Tube Length | 572 mm | 597 mm | 623 mm | 647 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 381 mm | 432 mm | 483 mm | 533 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 110 mm | 130 mm | 150 mm | 170 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1072 mm | 1100 mm | 1127 mm | 1153 mm |
| Bottom Bracket Drop | 58 mm | 53 mm | 53 mm | 53 mm |
| Standover Height | 691 mm | 734 mm | 773 mm | 812 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
