Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 200mm -
Travel Rear 200mm -
Fork RockShox BoXXer
-
Groupset Saint, e*thirteen LG1 Plus -
Suspension Full -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
157cm - 182cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona DH 7005 Aluminum 200mm Travel
Suspension Fork
RockShox Boxxer WC 200mm w/20mm TA
Rear Shock
Fox DHX RC4
Drivetrain
Rear Derailleur
Shimano Saint
Front Derailleur
E*13 LG1+
Shift Levers
Shimano Saint
Cassette
Shimano HG80 11-28 9 spd
Crank
Shimano Saint 36T
Bottom Bracket
Shimano Saint
Chain
Shimano HG93
Pedals
Kona Wah Wah
Wheels
Front Hub
Shimano Saint
Rear Hub
Shimano Saint
Rims
Mavic EX 729
Spokes
Sandvik Stainless 14g
Tires
Maxxis DHF 26x2.5
Brakes
Brakes
Shimano Saint
Brake Levers
Shimano Saint
Disk Rotors
Shimano Saint 203mm
Cockpit
Stem
Easton Havoc
Handlebar
Easton Havoc
Grips
Kona G-LOG
Headset
FSA Orbit 1.5 ZS NO.57-1
Seat
Saddle
WTB Devo Team
Seatpost
Easton Havoc
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | Short | MD | Long |
|---|---|---|---|
| Stack Reach Ratio | 1.462 mm | 1.381 mm | 1.297 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm |
| Front Center | 720 mm | 755 mm | 795 mm |
| Rake | 45 mm | 45 mm | 45 mm |
| Stack | 570 mm | 580 mm | 590 mm |
| Reach | 390 mm | 420 mm | 455 mm |
| Top Tube Length | 545 mm | 585 mm | 620 mm |
| Seat Tube Angle | 75 ° | 74.7 ° | 74.4 ° |
| Head Tube Angle | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1150 mm | 1185 mm | 1220 mm |
| Bottom Bracket Drop | -7 mm | -7 mm | -7 mm |
| Standover Height | 750 mm | 755 mm | 760 mm |
| Wheels | 26" | 26" | 26" |
About this model

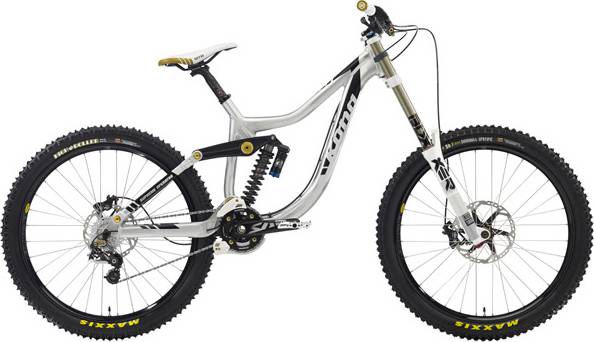

Supreme Operator is a Kona Supreme model. Kona released 7 bikes variations of this model so far.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Downhill bikes
If you want to purchase a solid Downhill bike, it is important to know that the average cost is 3391$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Downhill bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Overview of components
Fork
The fork installed on this bike is the RockShox BoXXer model. The travel on this model is 200mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The Supreme Operator has a rear shock with a travel of 200mm. The model Fox DHX RC4 is the one installed in this bike. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
When leaving the production line, the Supreme Operator model has 26″ aluminum wheels. These wheels give you great handling over your bike. However, they provide less traction than 29″ wheels do.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
